PARTS FOR 1940-48 EVINRUDE "ZEPHYR" 5.4 HP OUTBOARD MOTORS

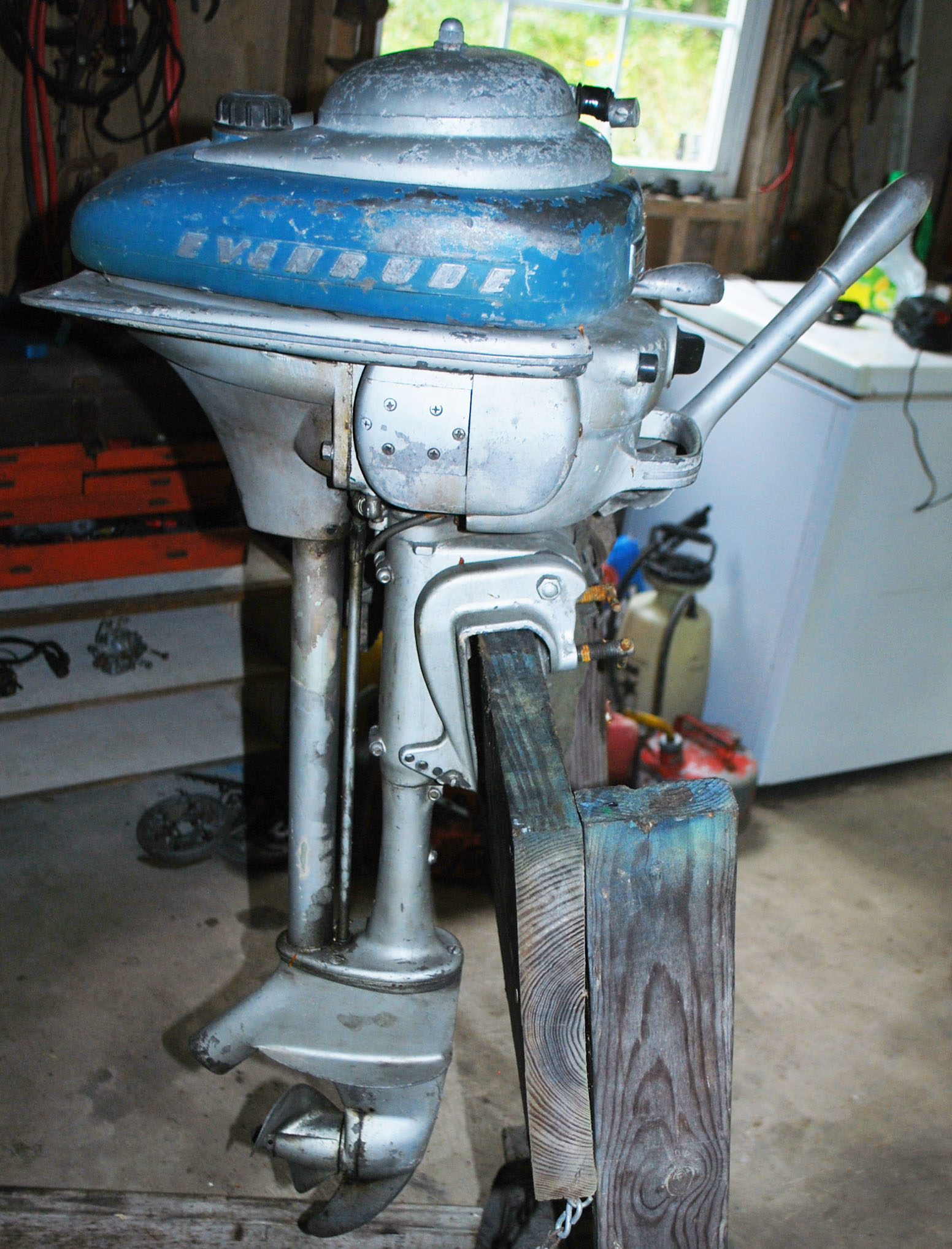

The Evinrude Zephyr holds the distinction of being the smallest 4 cylinder production outboard ever built. They were built from 1940 thru 1949. The parts from nine of these opposed four cylinder outboards #4359-02201,#4381 - 01862 & #4404-27108 are all at our Pennsylvania location which is open from April 1st thru September 26th.
NOTE: Our shopping cart adds shipping charges for domestic orders only. We will ship internationally after a request for a shipping quote is made.
RETURN TO JOHNSON/EVINRUDE PARTS INDEX
Click on any image to enlarge.
| Part # | Pic 1 | Description | Year | Extra Pics | PRICE |
|---|---|---|---|---|---|
 |
Operating & General Instructions Zephyr #4429-4431 (pdf format, 22 pages) |
1949* | n/a | $4.00 | |
 |
Evinrude Zephyr, # 4402 thru #4405, 5.4 HP Parts Catalog (pdf format, 6 pages) | 1946-48 | n/a | $3.00 | |
 |
Evinrude Zephyr, #4429-#4431, 5.4 HP Parts Catalog (pdf format, 6 pages) | 1949* | n/a | $3.00 | |
 |
Rewind Starter Assembly | 1946-48* | PIC#2 | $25.00 (SOLD) | |
 |

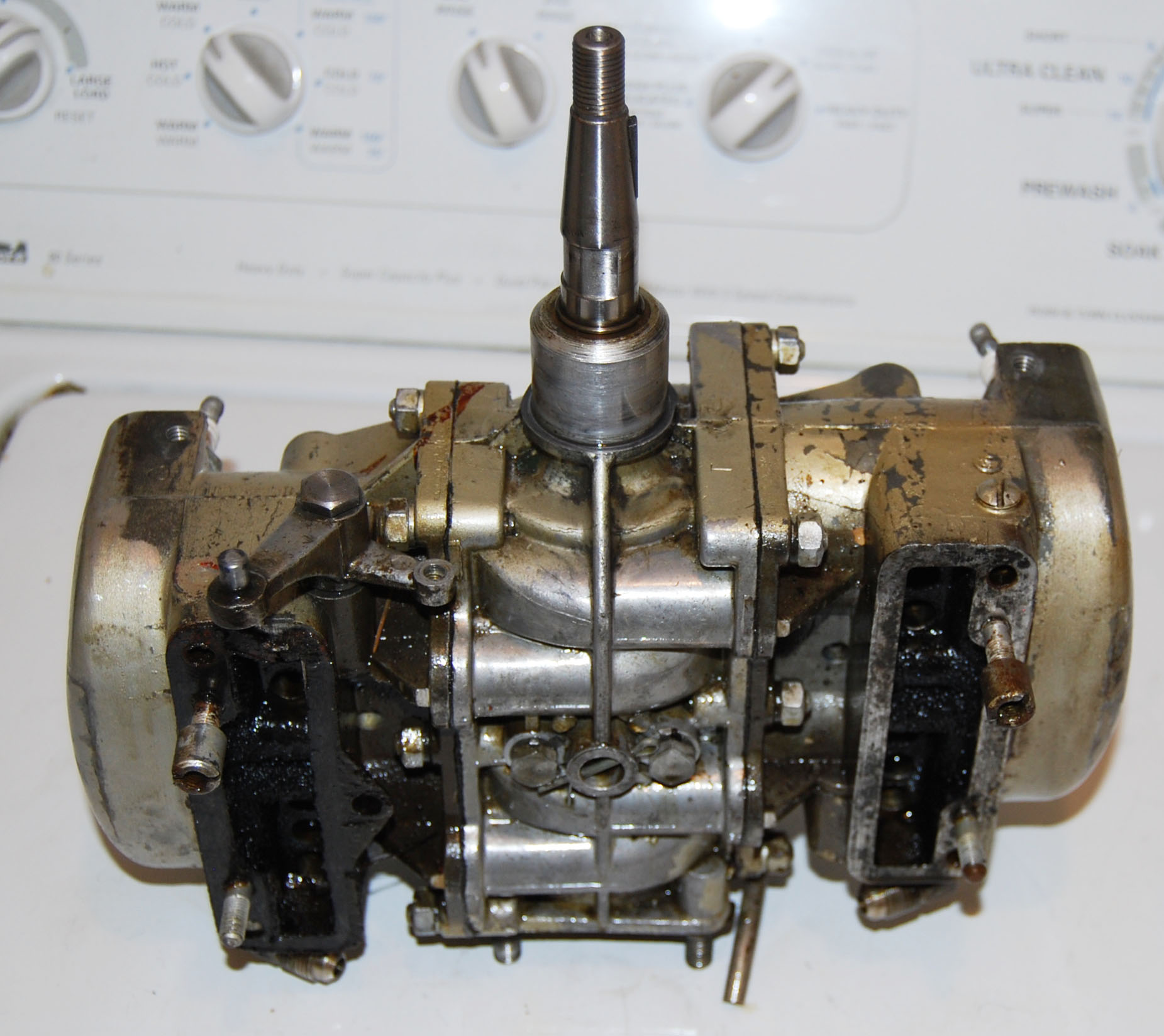

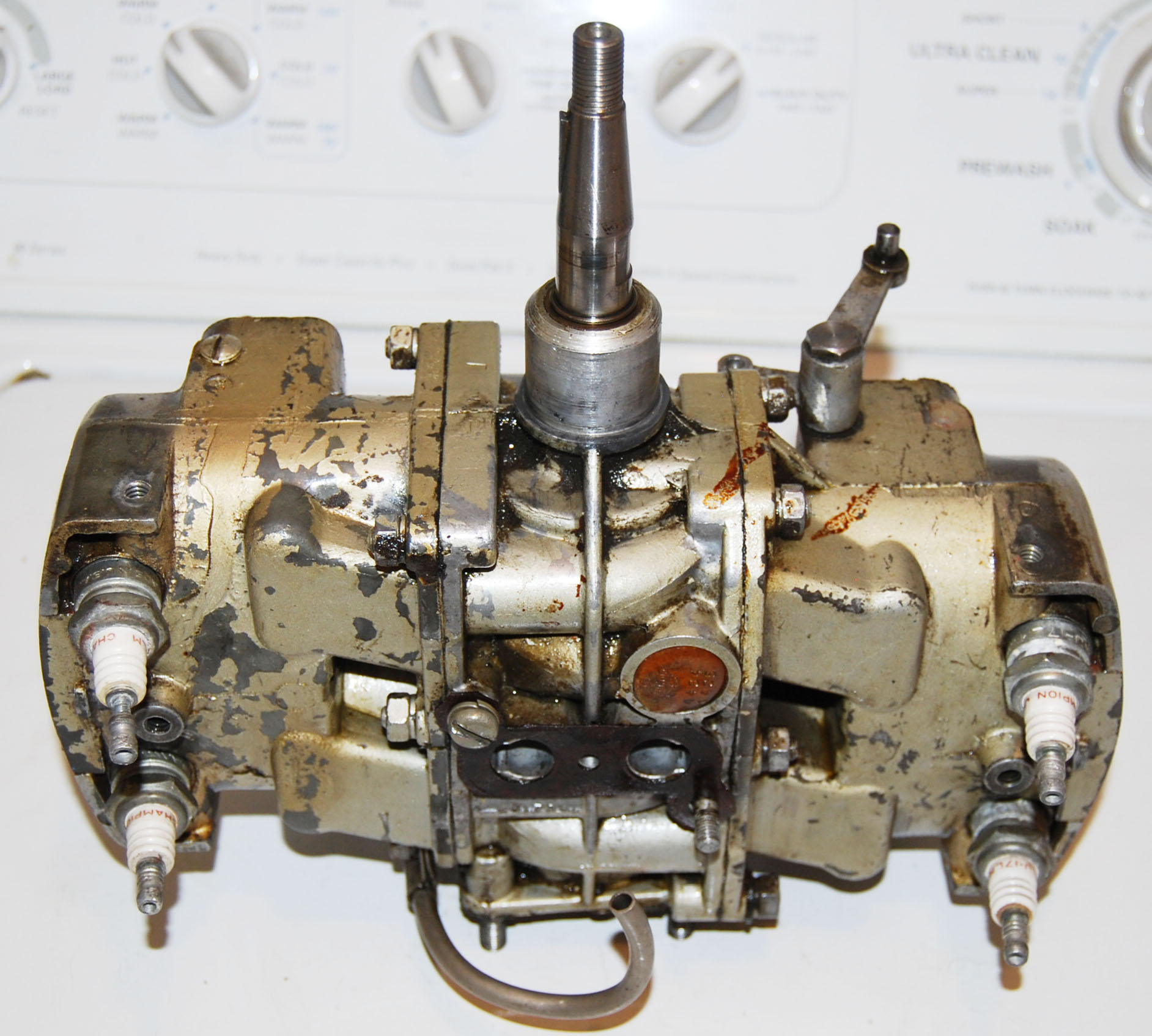

Powerhead Assembly (rotates smoothly with compression) |
1946/48* | $55.00 | ||
 |

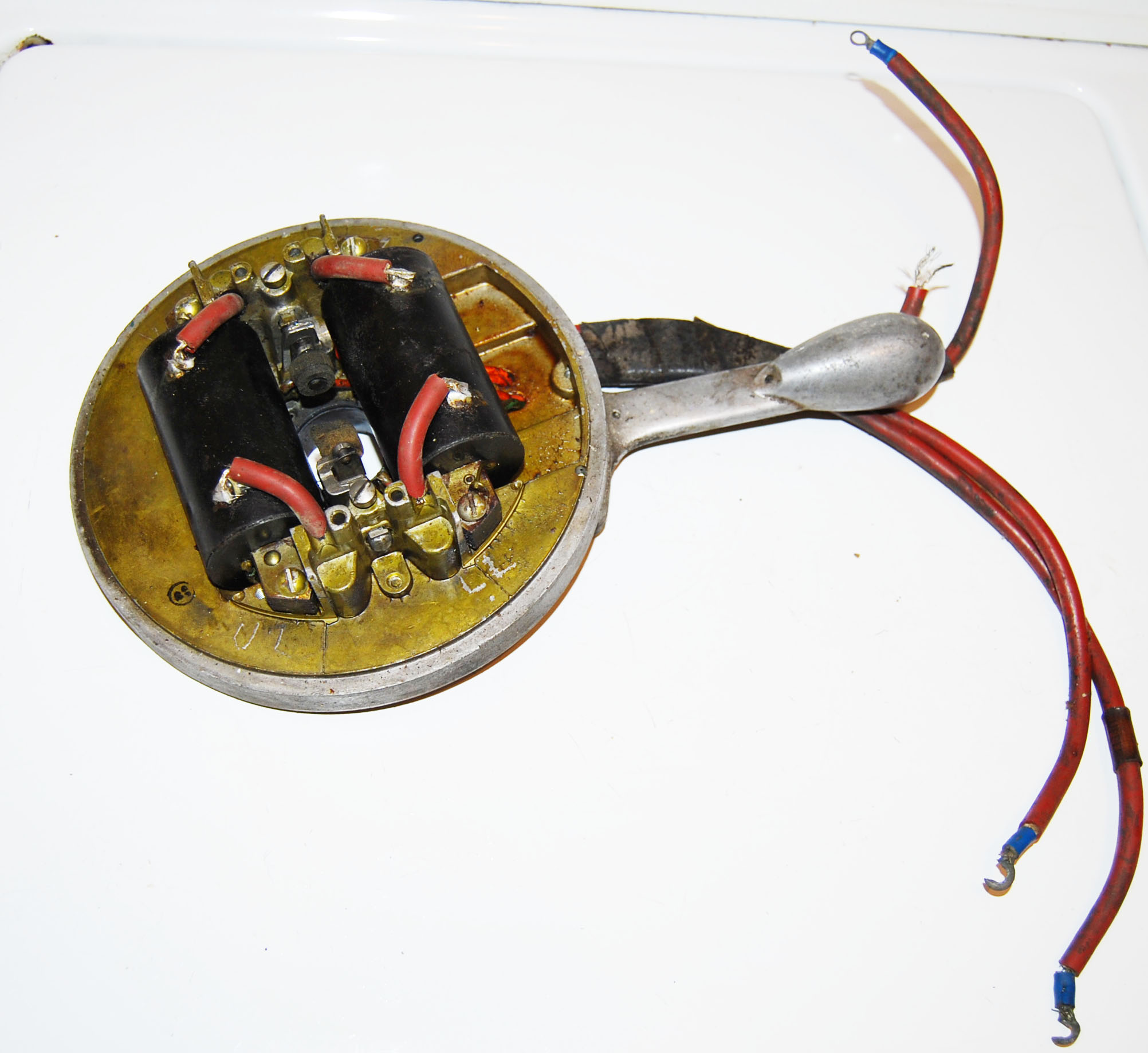

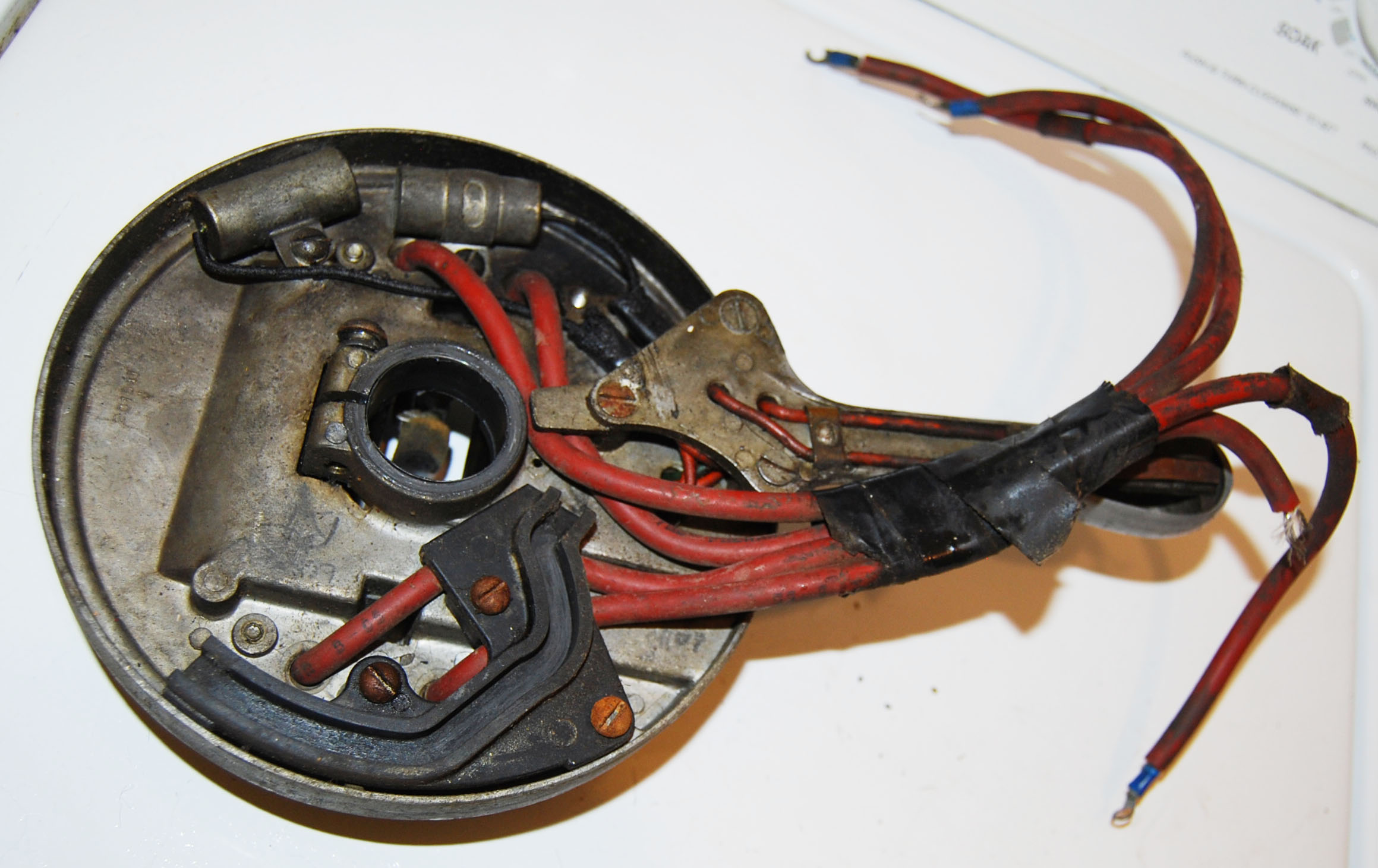

Magneto Assembly - Coils tested | 1946-48* | PIC#2 | $40.00 | |
 |

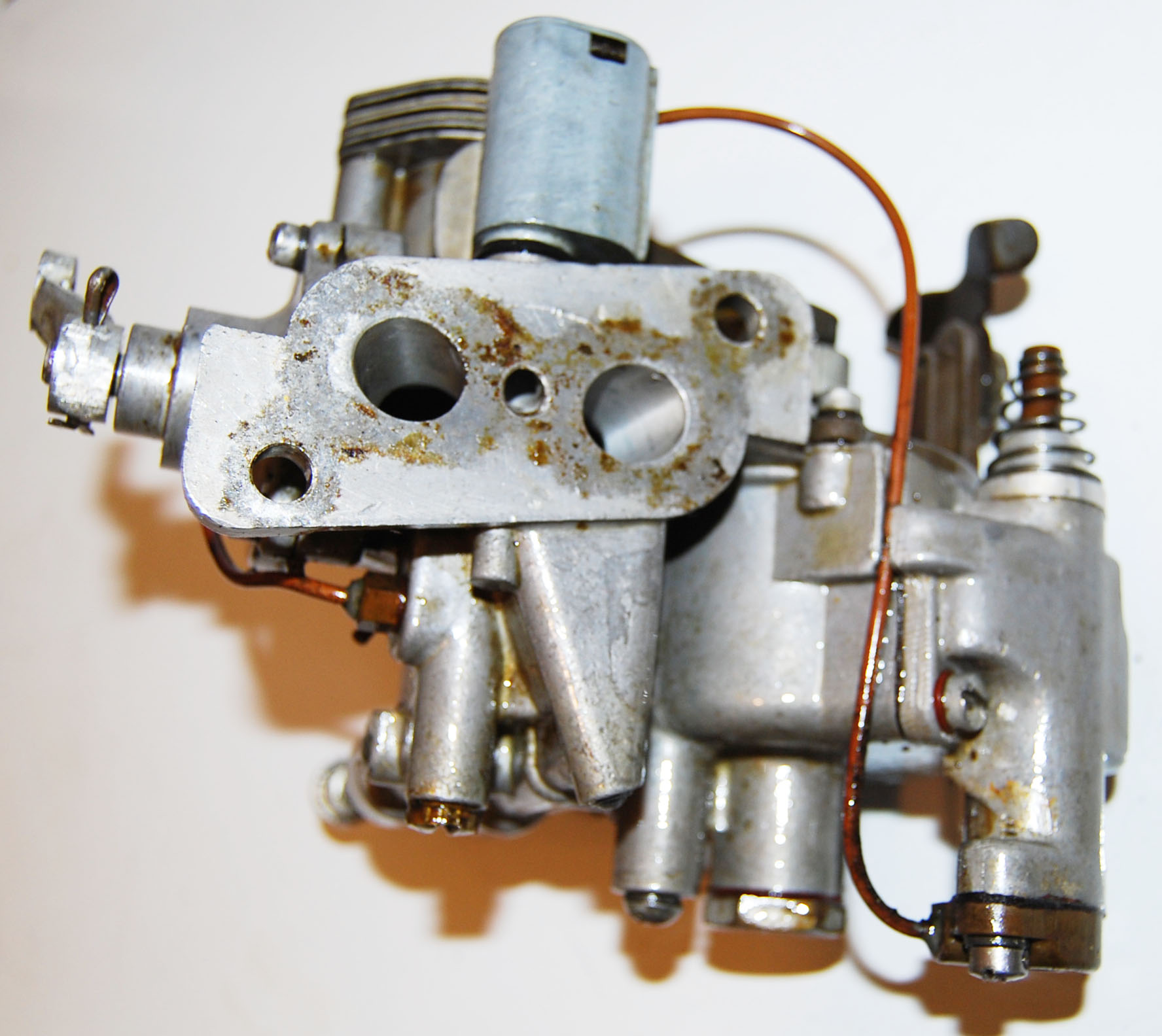

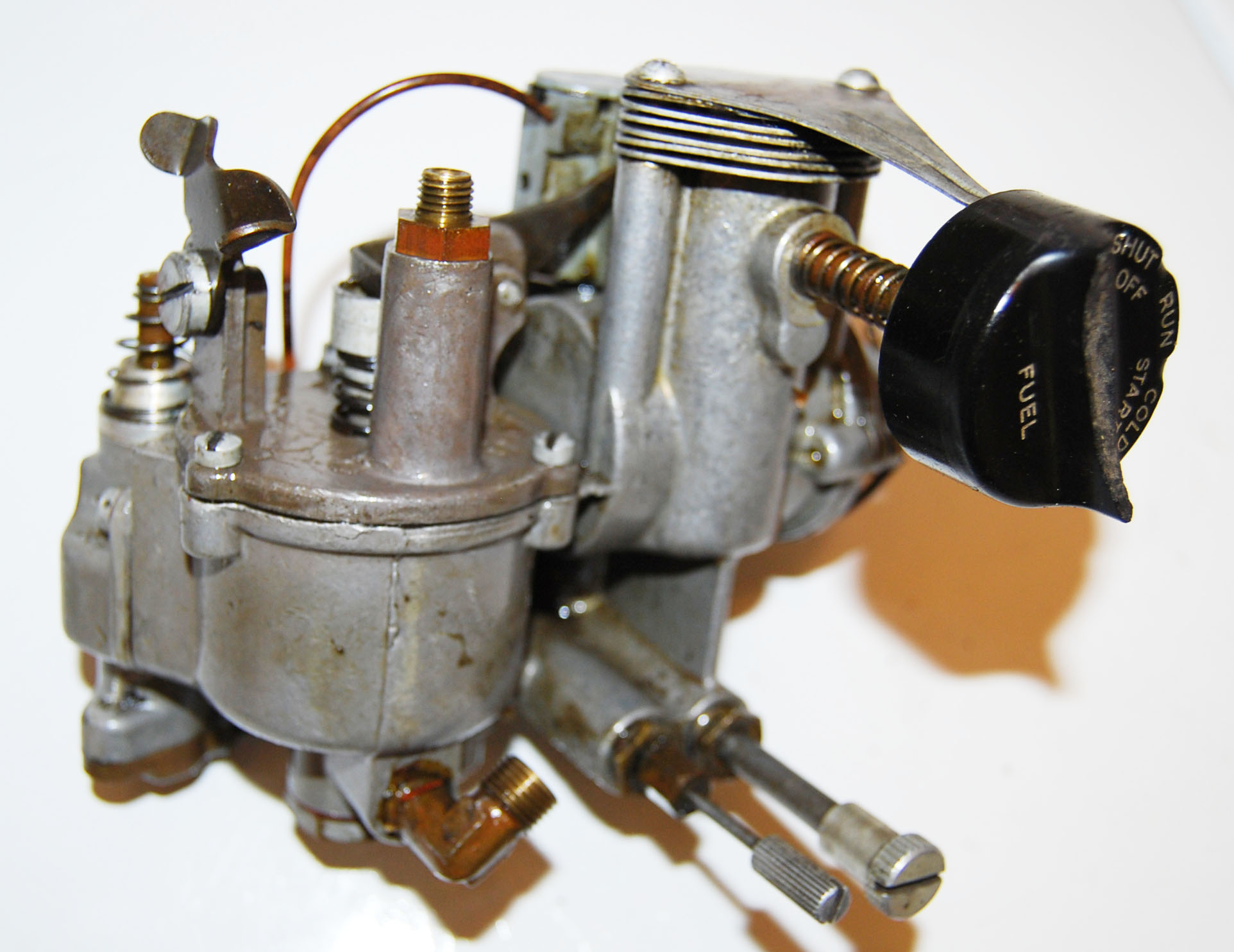

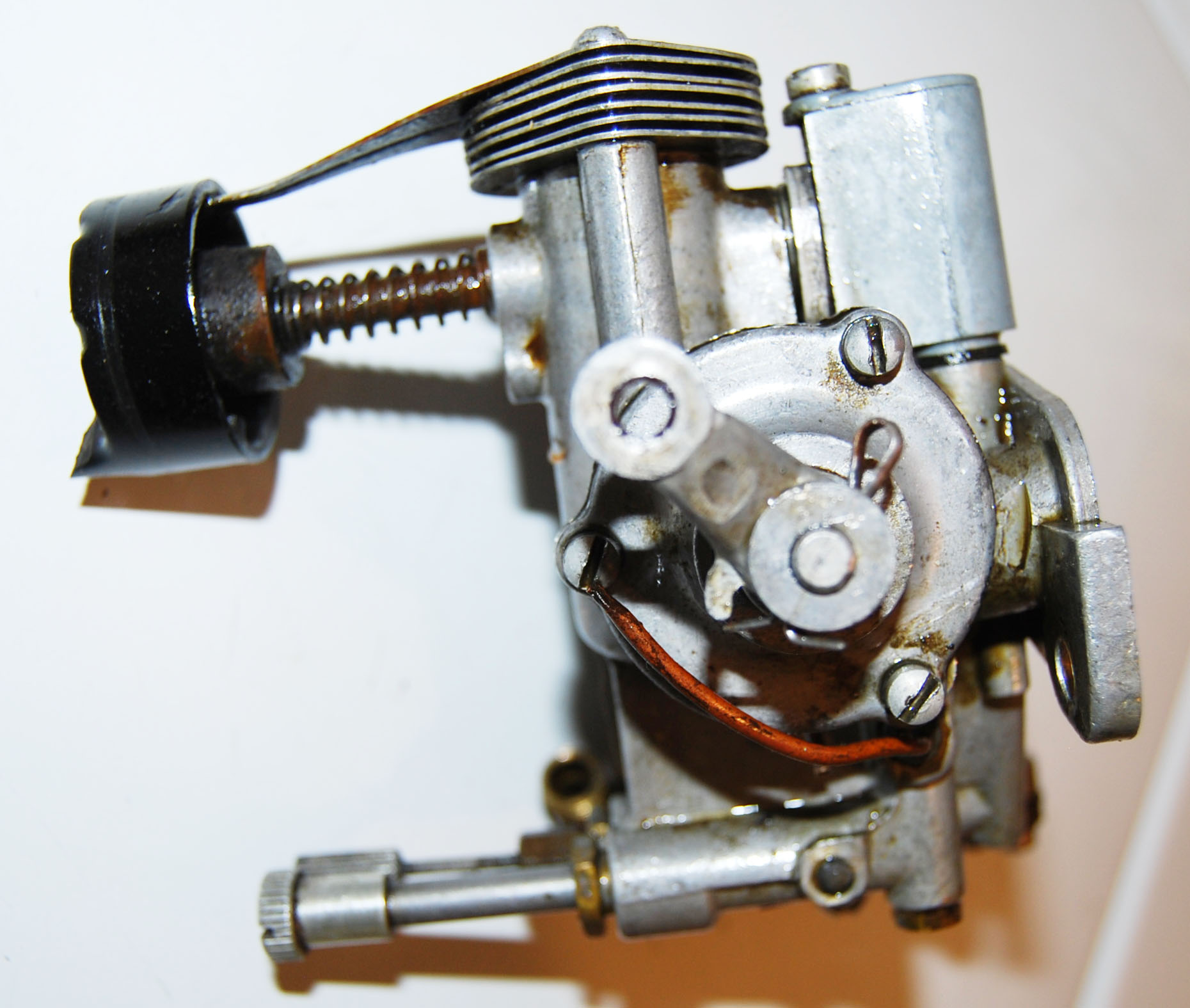

Carburetor Assembly | 1946-48* | $40.00 | ||
| 275043 |  |

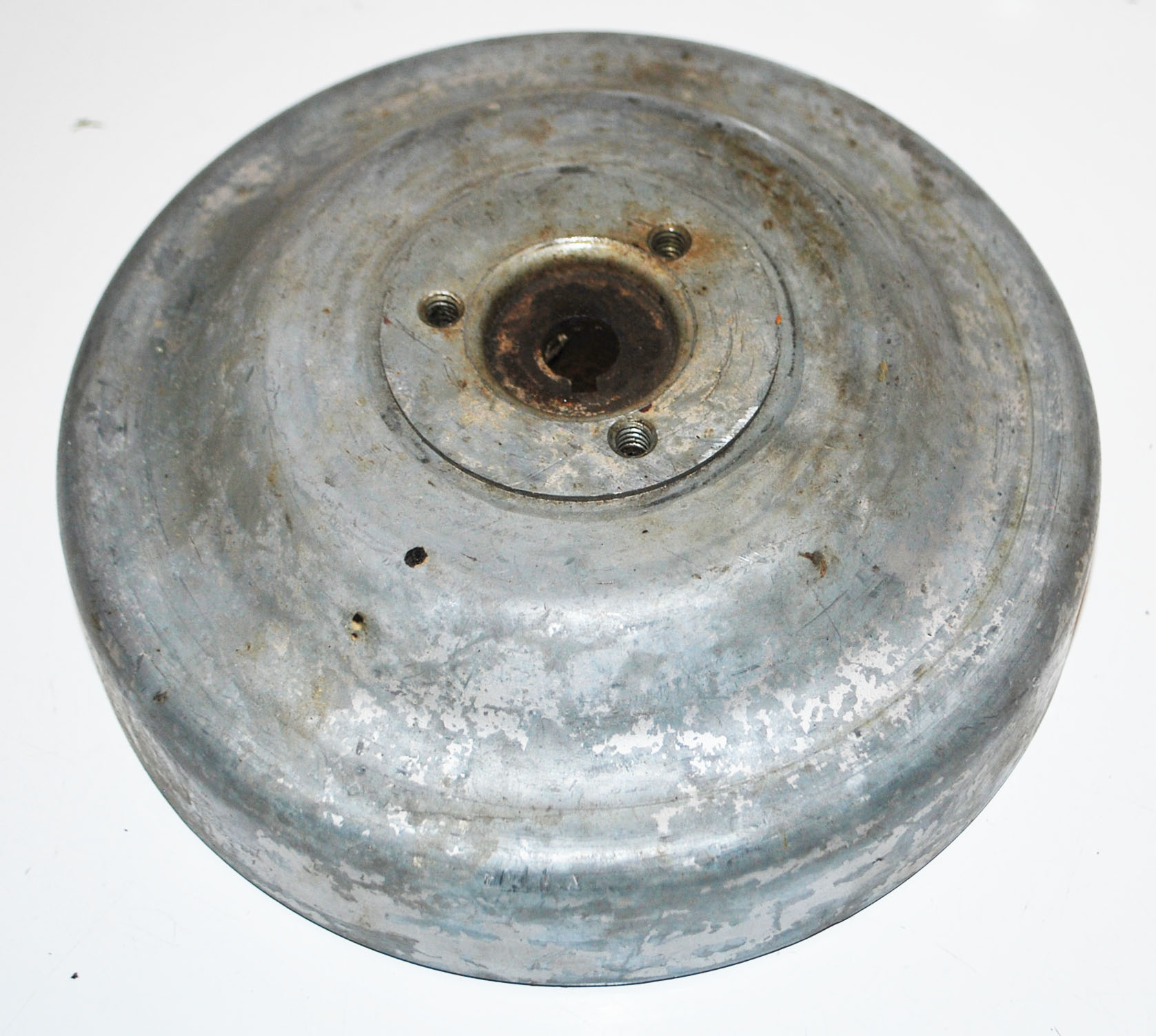

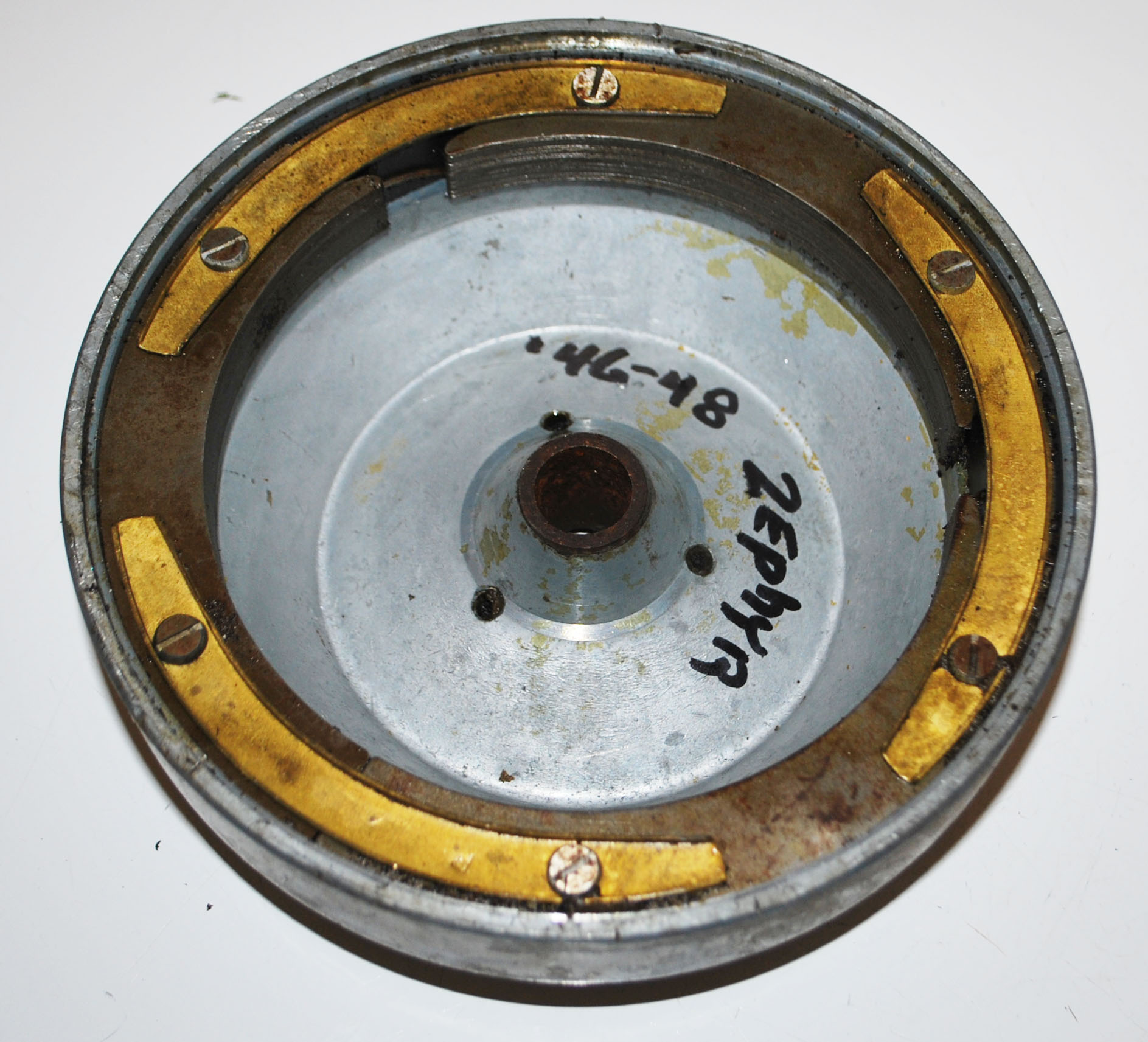

Flywheel (two available) |
1946/48* | PIC#2 | $16.00 |
 |
Flywheel with Starter Pawls | 1946/48* | PIC#2 | $22.00 (SOLD) | |
| 133138 |  |
Flywheel Nut |
1940/48* | n/a | $5.00 |
| 275167 |  |

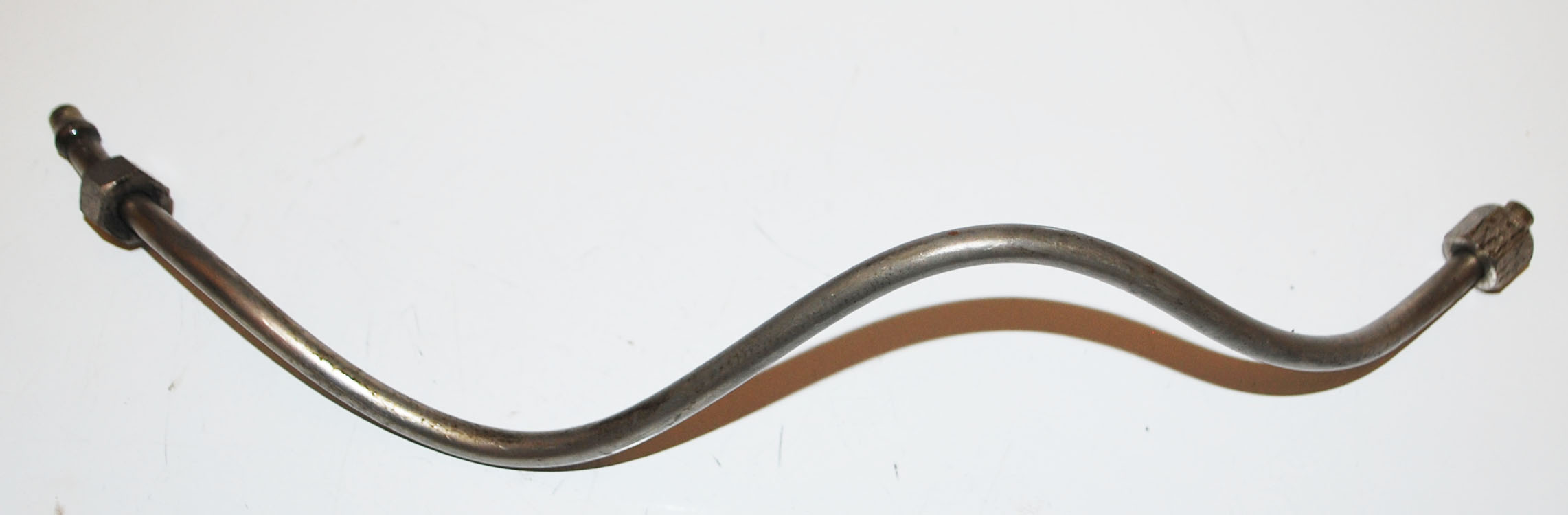

Fuel Line (Tank to Carb) |
1945/46* | n/a | $6.00 |
| 225017 |  |
Fuel Line (tank to carb) (three available) |
1946-48* | n/a | $6.00 |
 |

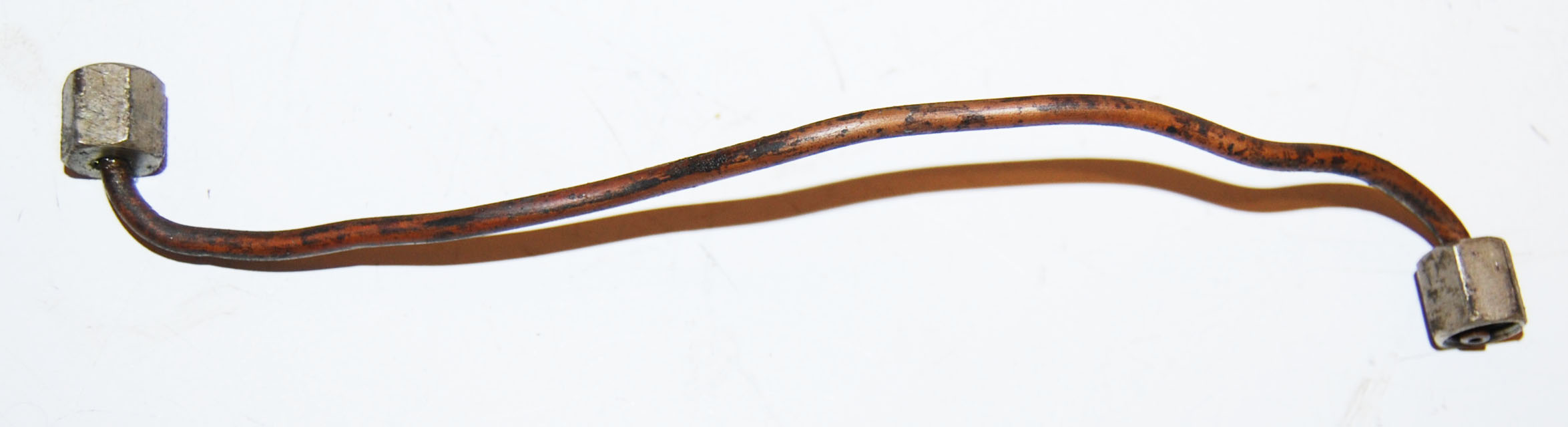

Carburetor Line (small) | 1946-48* | n/a | $4.00 | |
| 275595 |  |

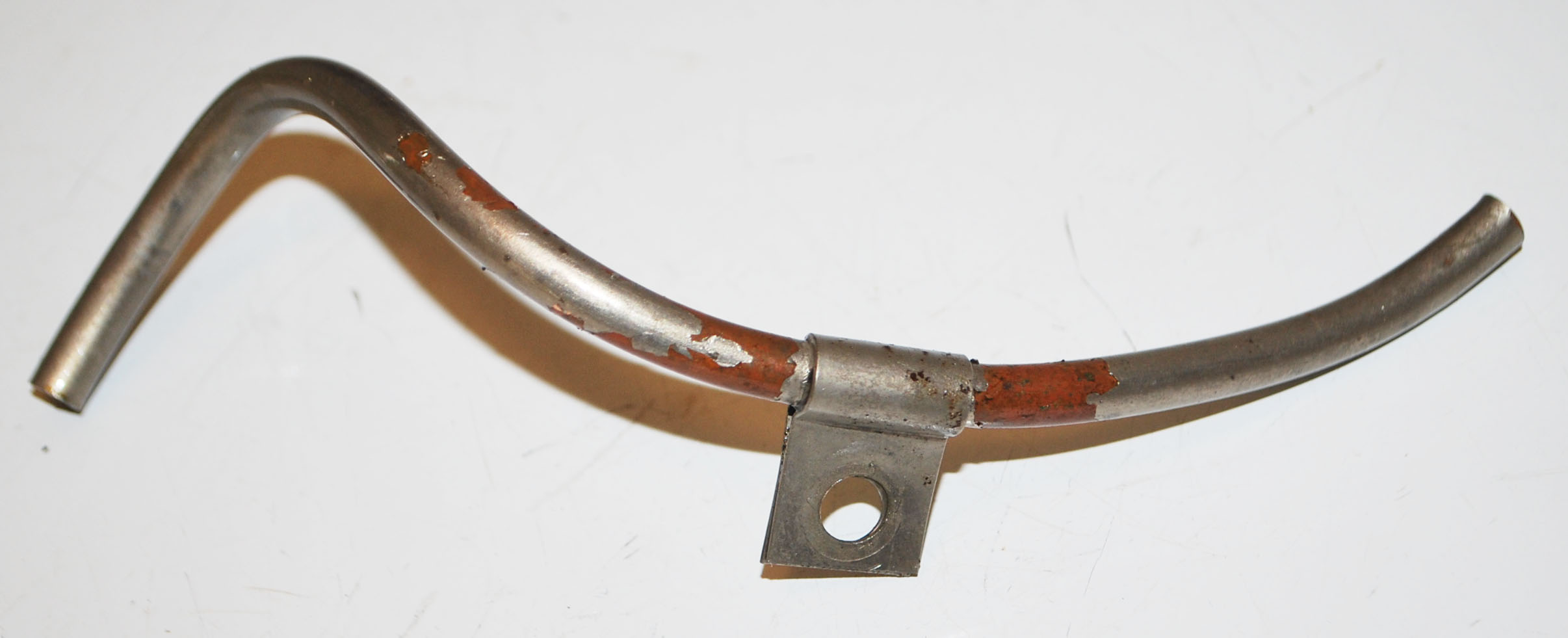

Carb Overflow Tube | 1945/46* | n/a | $4.00 |
 |
Carb Overflow Tube (two available) |
1946/48 | n/a | $4.00 | |
| 200060 |  |
Muffler Cover (two available) |
1946/48* | n/a | $19.00 |
 |

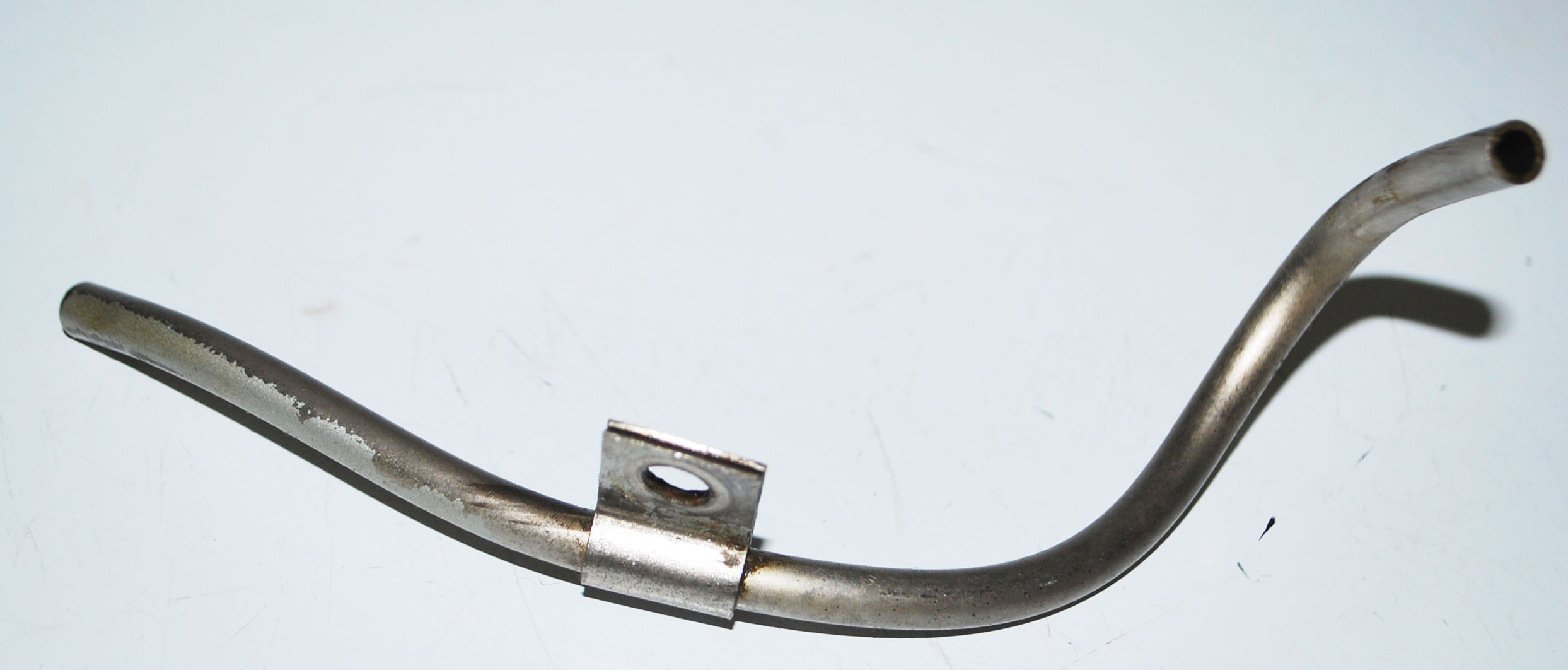

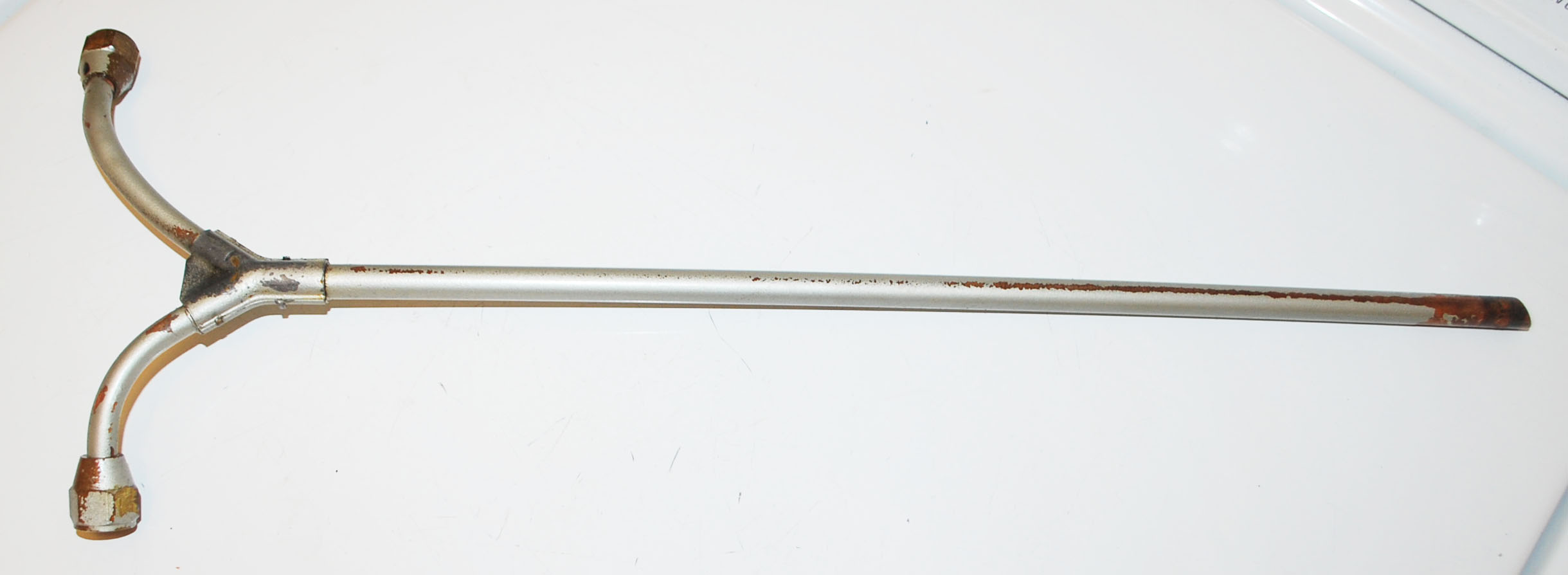

Water Tube Assembly (two available) |
1946/48* |
n/a | $9.00 | |
| 195646 |  |

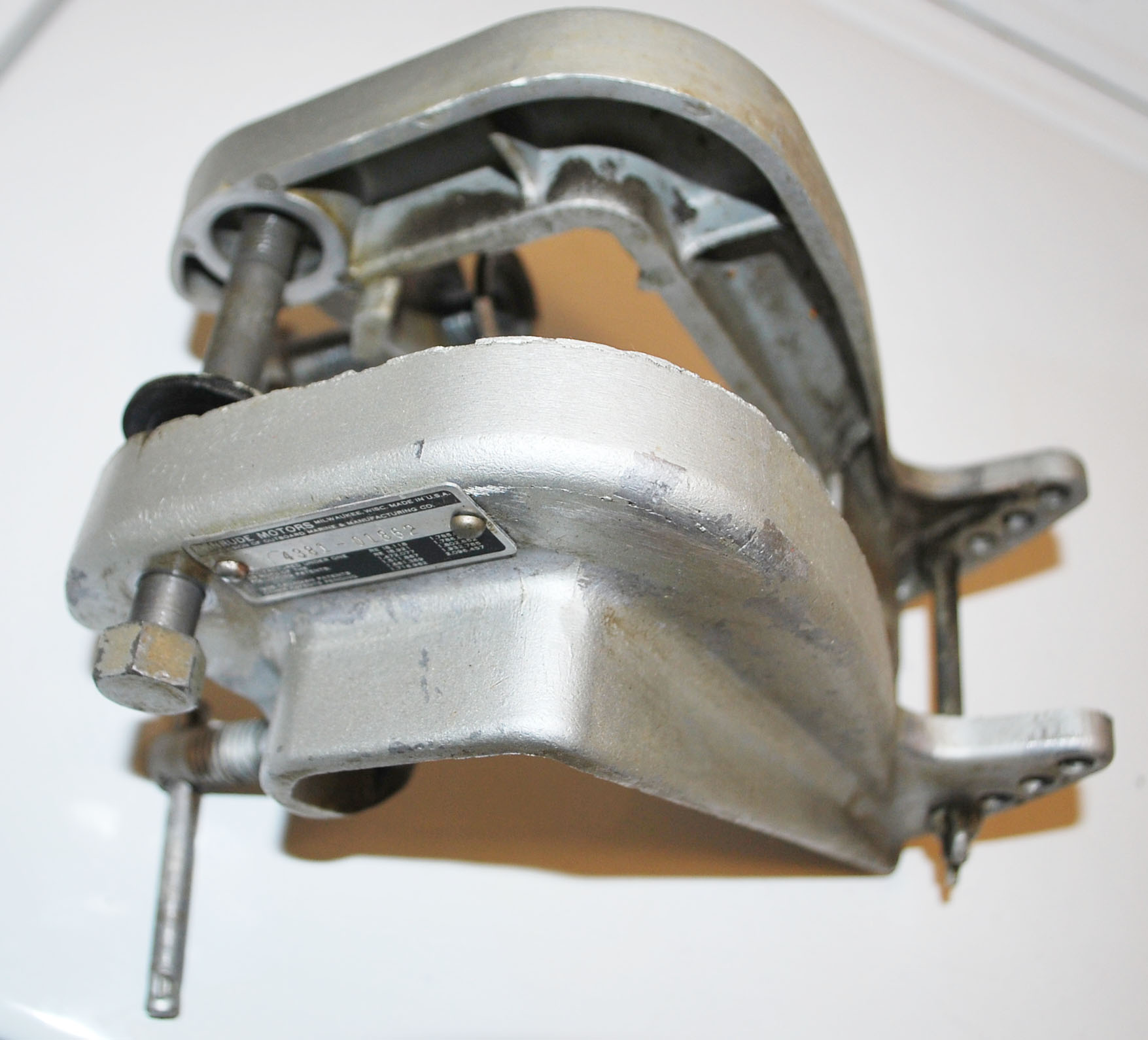

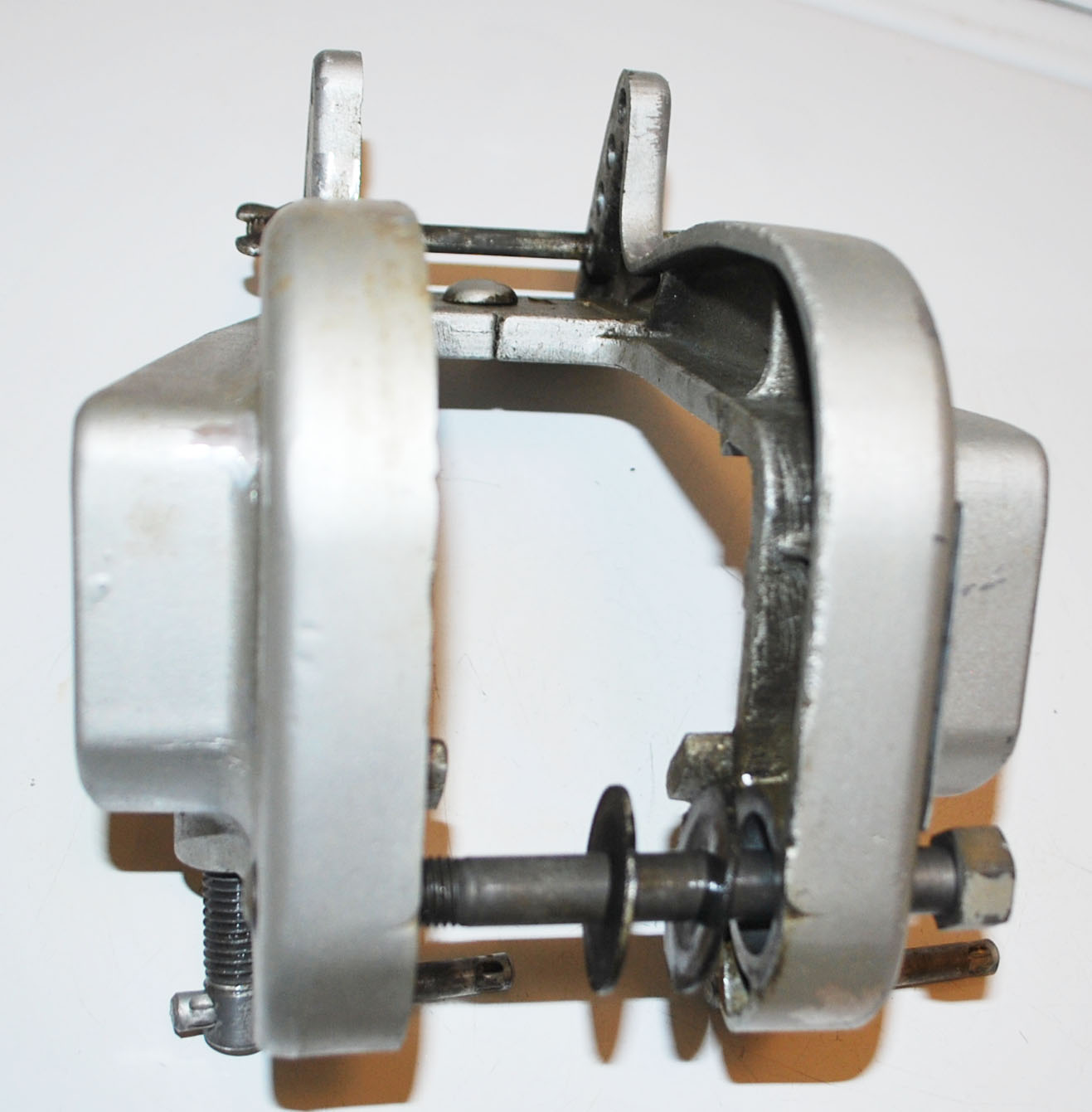

Stern Bracket Assembly | 1945/46* | PIC#2 | $26.00 |
 |

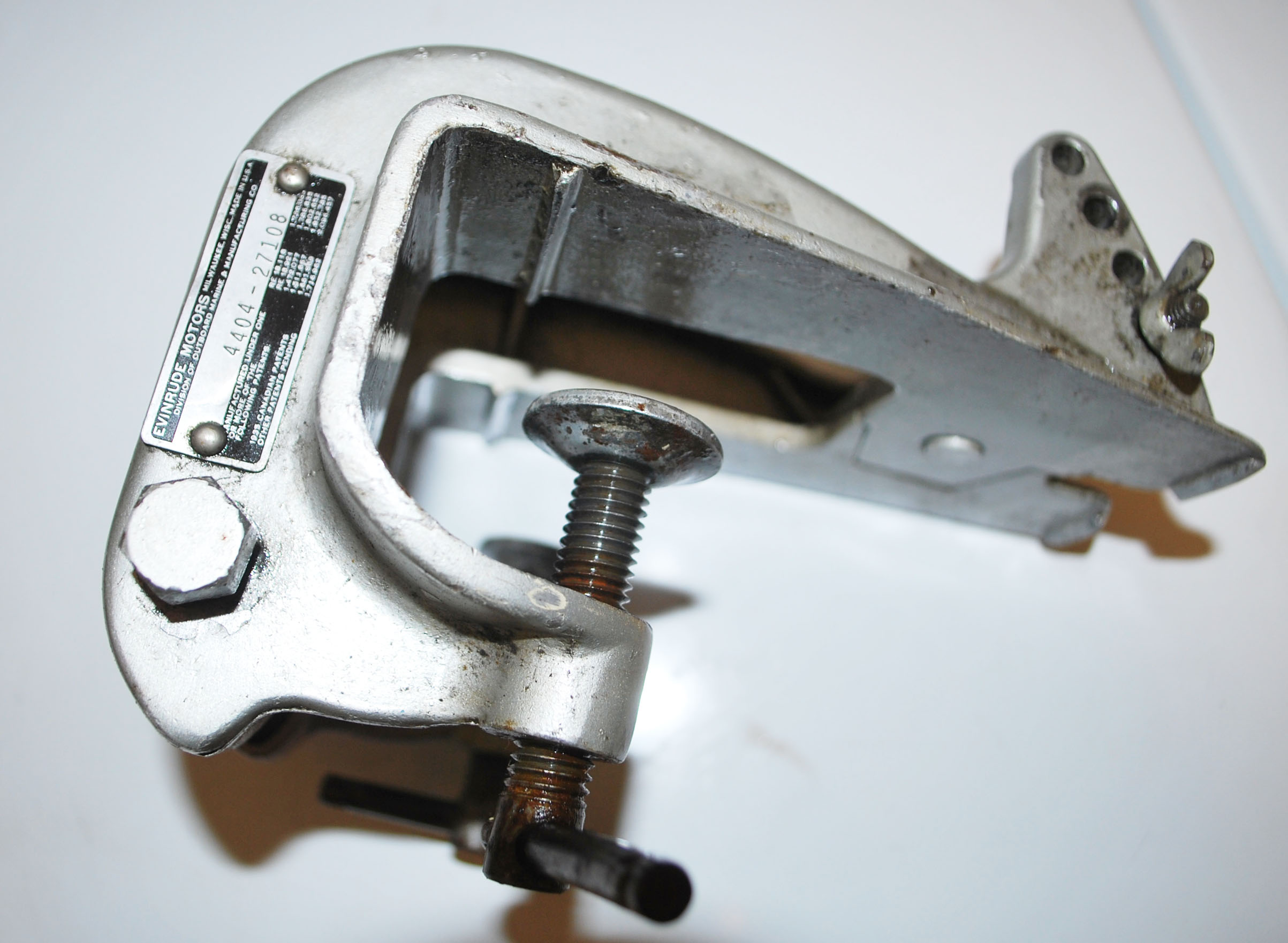

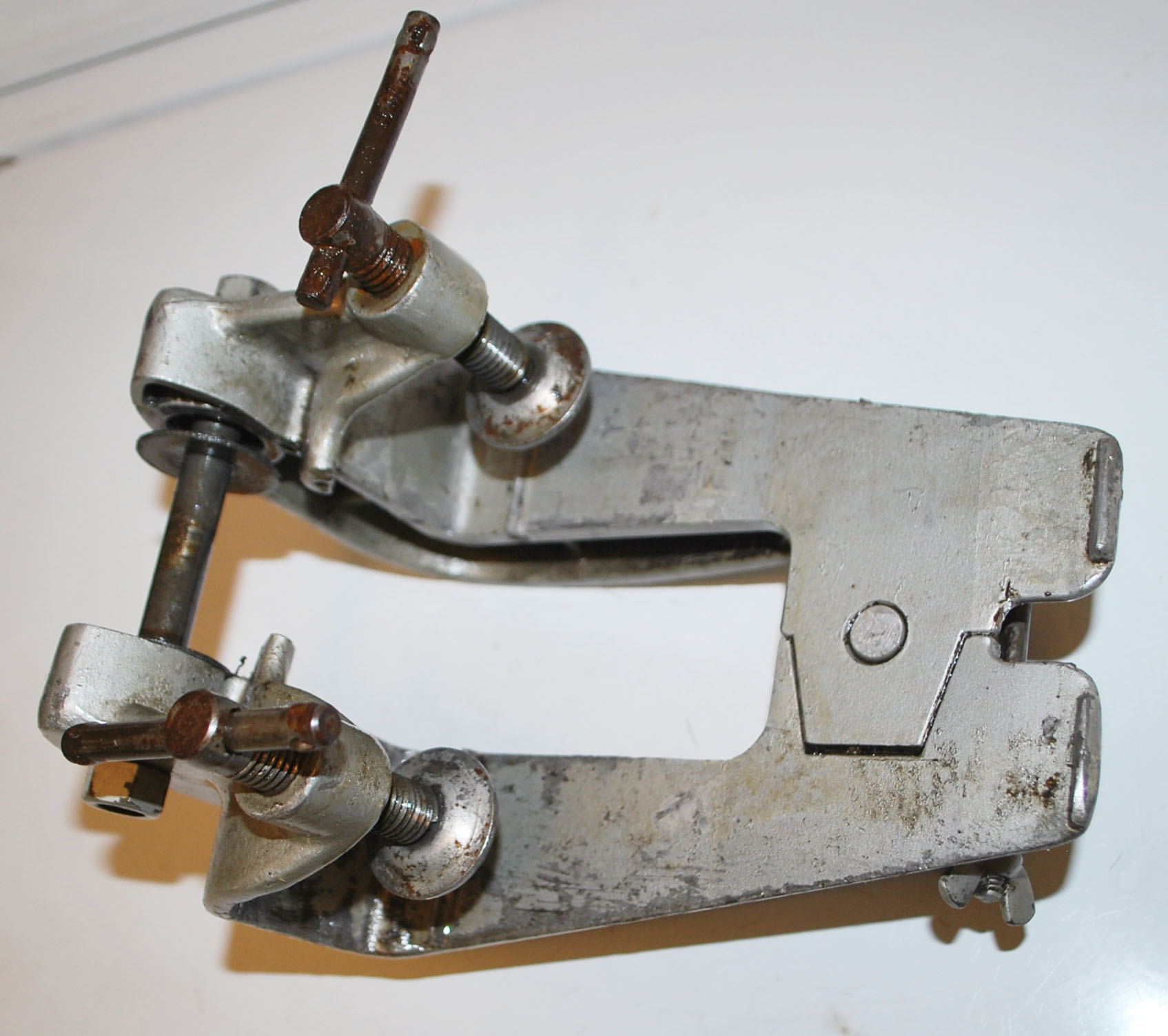

Stern Bracket Assembly (three available) |
1946/48* | PIC#2 | $26.00 | |
 |
Stern Bracket Assembly (custom clamp screws) |
1946-48* | PIC#2 | $26.00 | |
 |

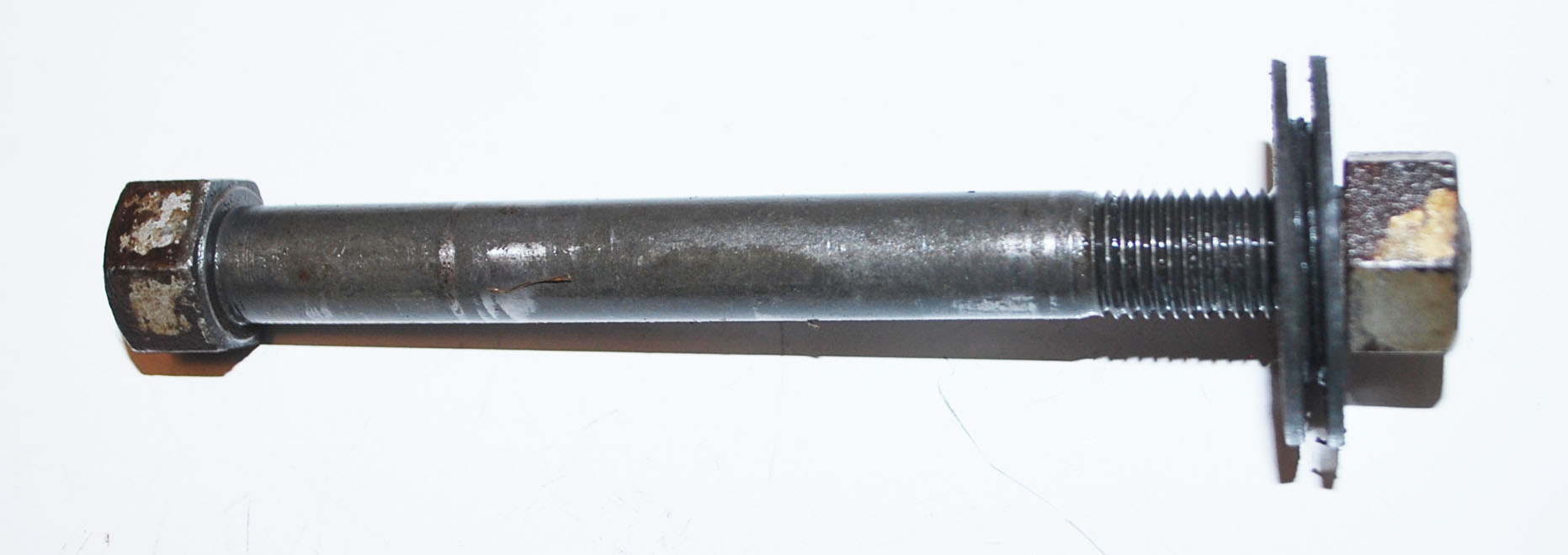

Tilt Bolt Assy. (two available) |
1948* | n/a | $4.00 | |
| 276759 |  |

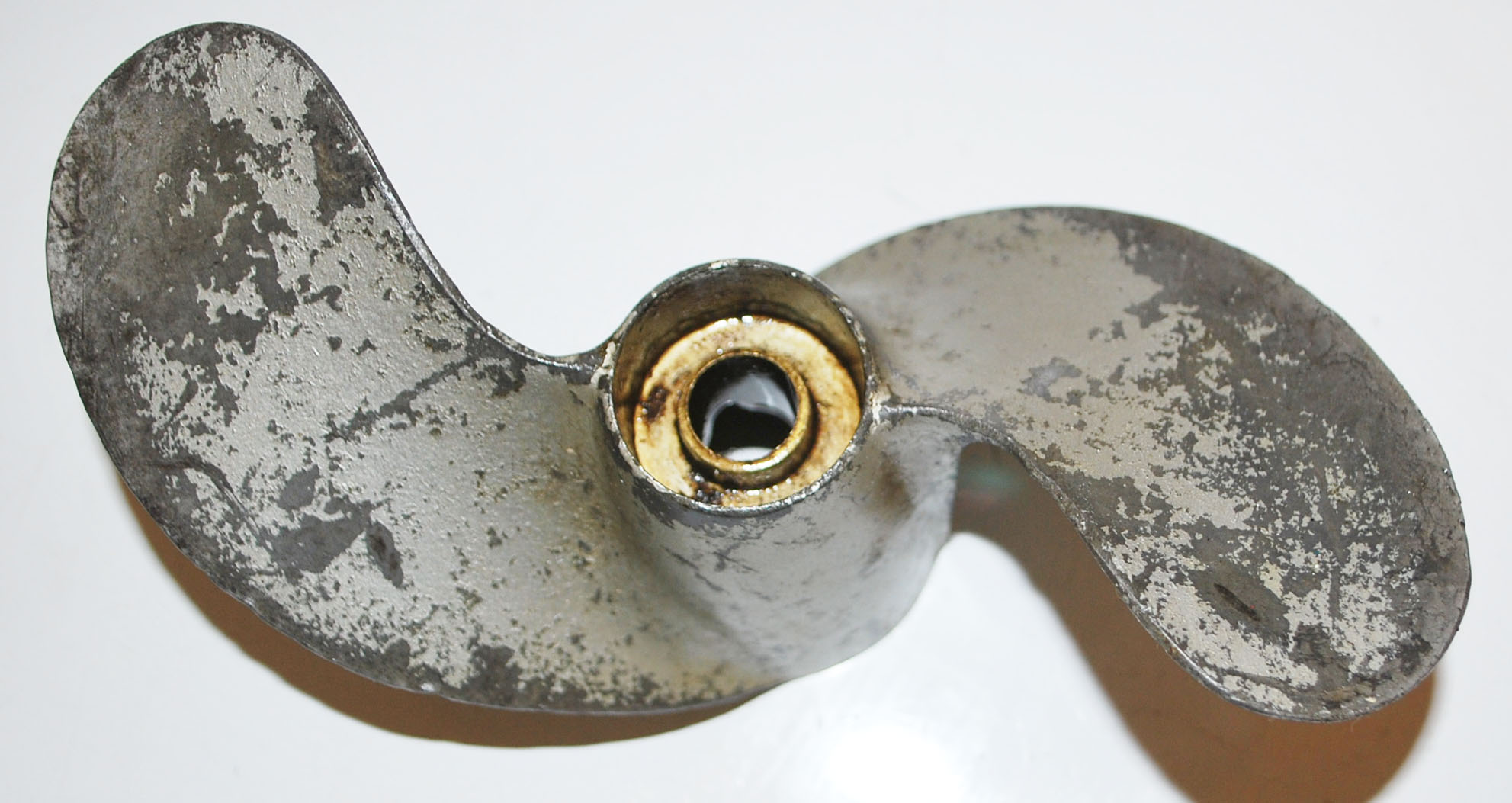

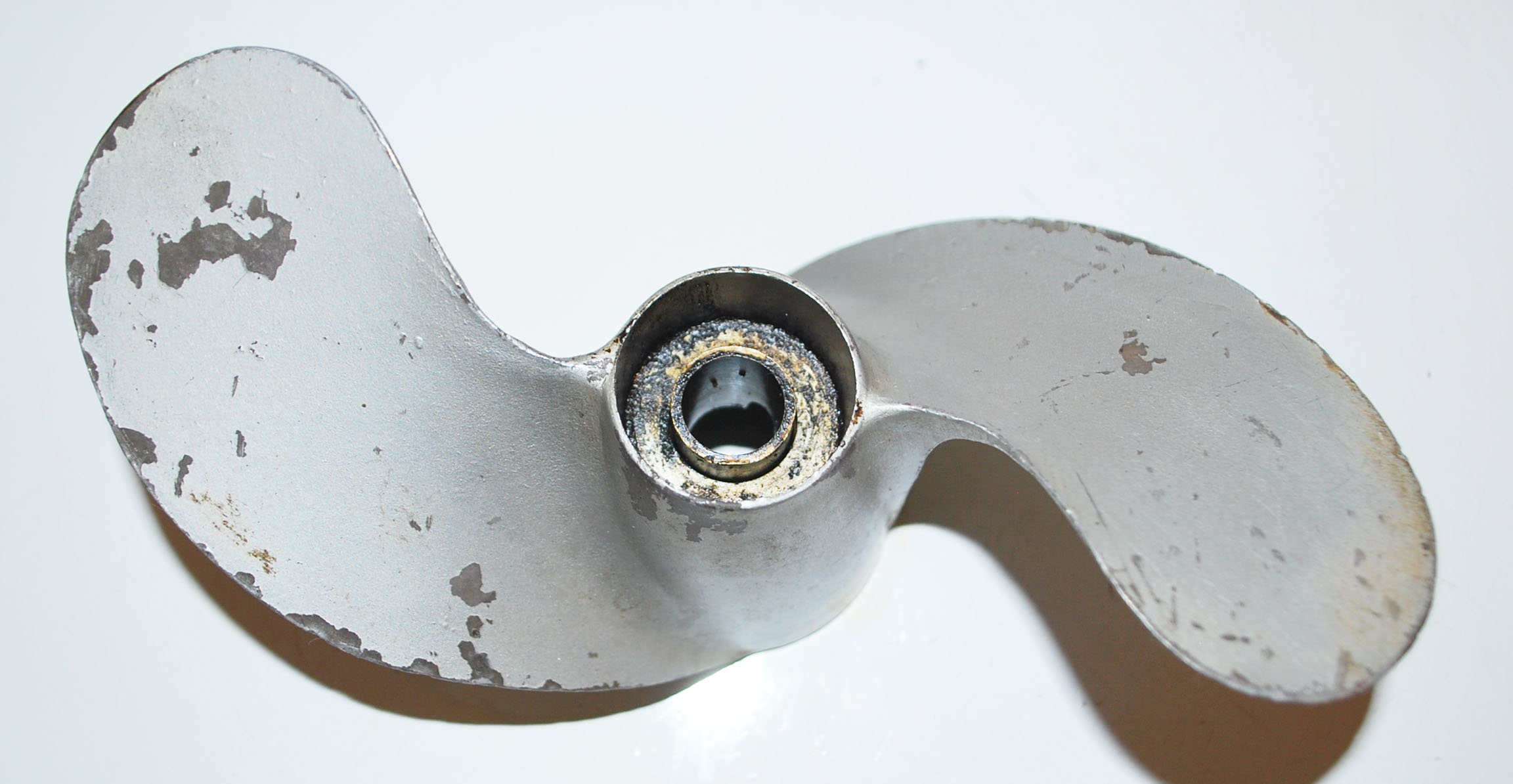

Propeller with Hub | 1945/46* | PIC#2 | $22.00 |
| 276759 |  |
Propeller with Hub (two available) |
1946/48* | PIC#2 | $22.00 |
| 200568 |  |
Propeller Hub | 1946/48* | PIC#2 | $10.00 |
| 200670 |  |

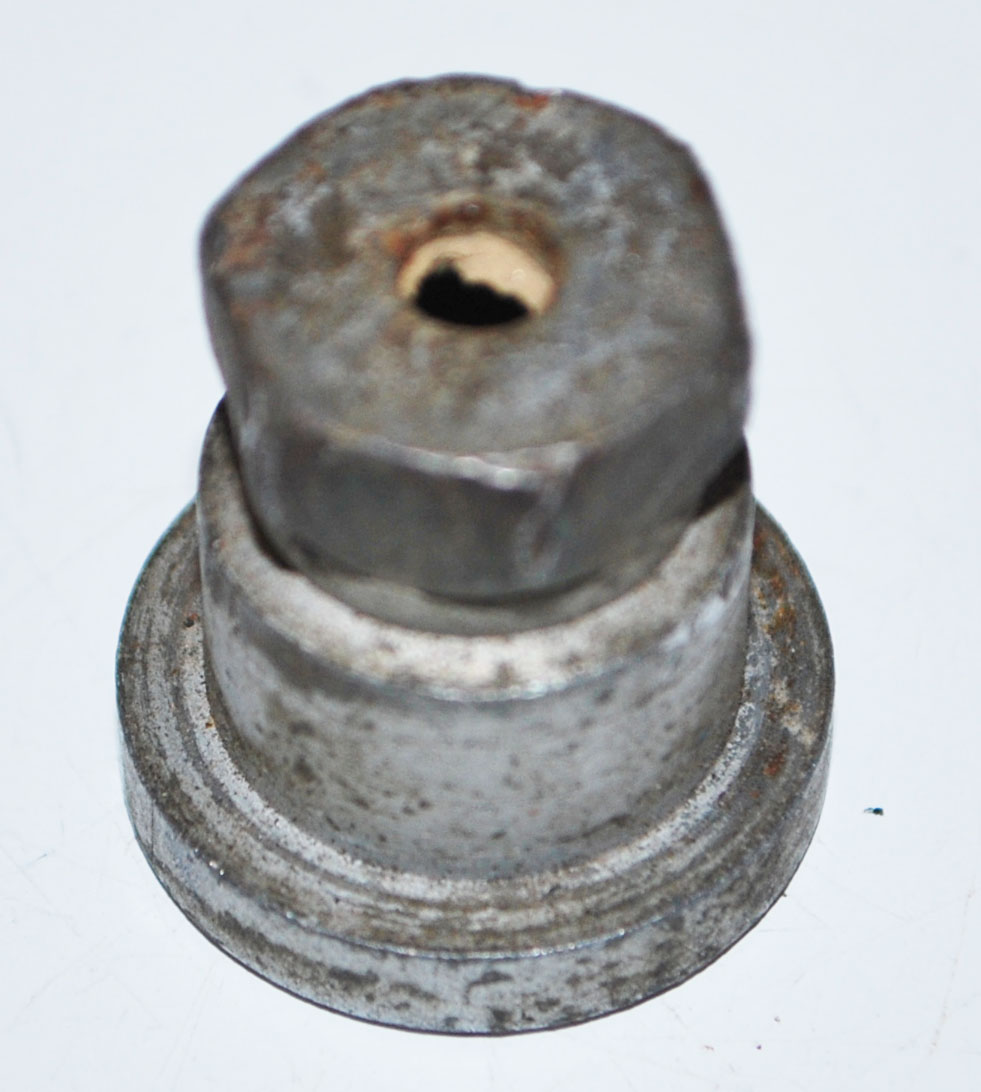

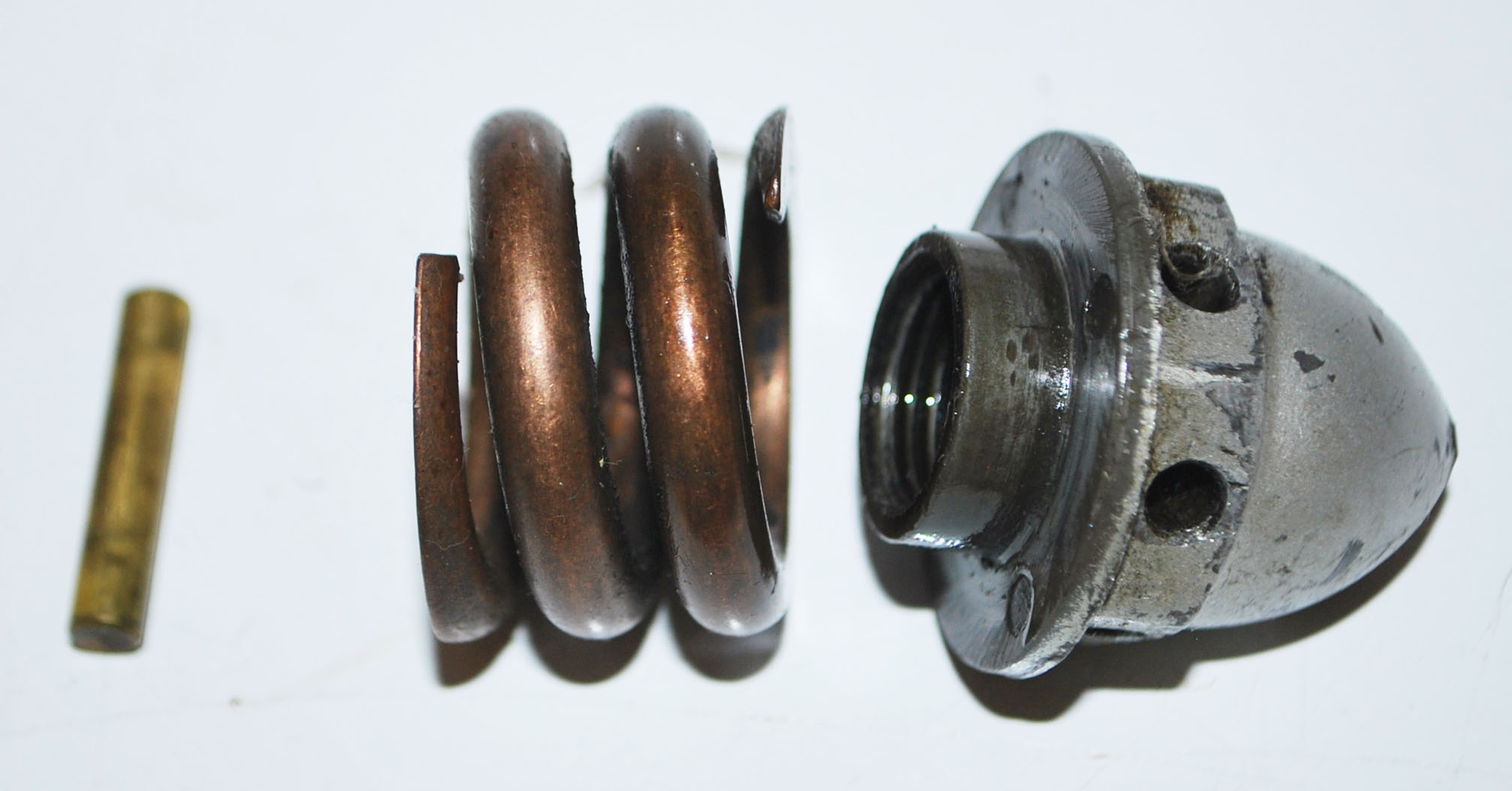

Propeller Nut, Spring & Shear Pin (three available) |
1945-48* | n/a | $10.00 |
 |

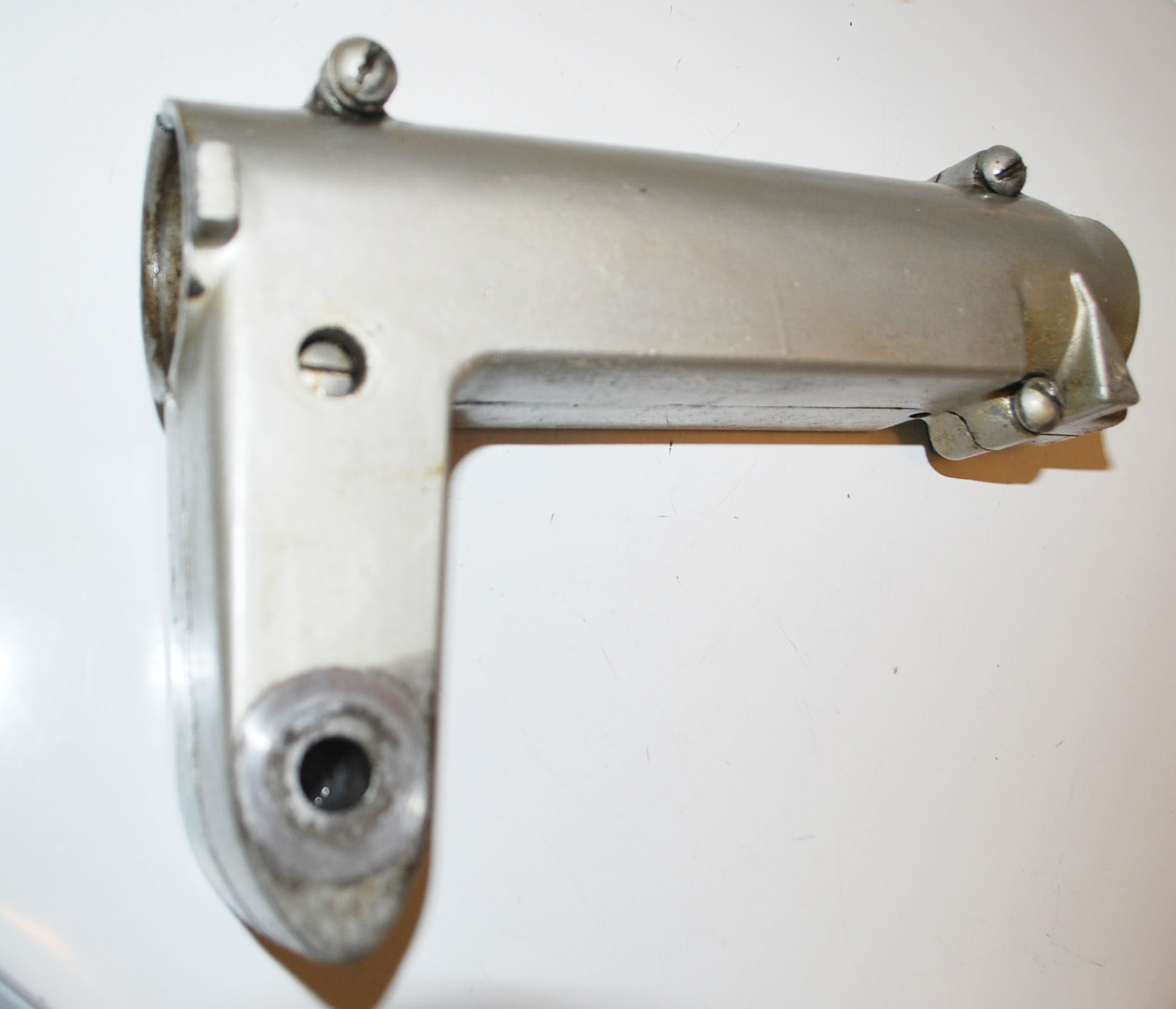

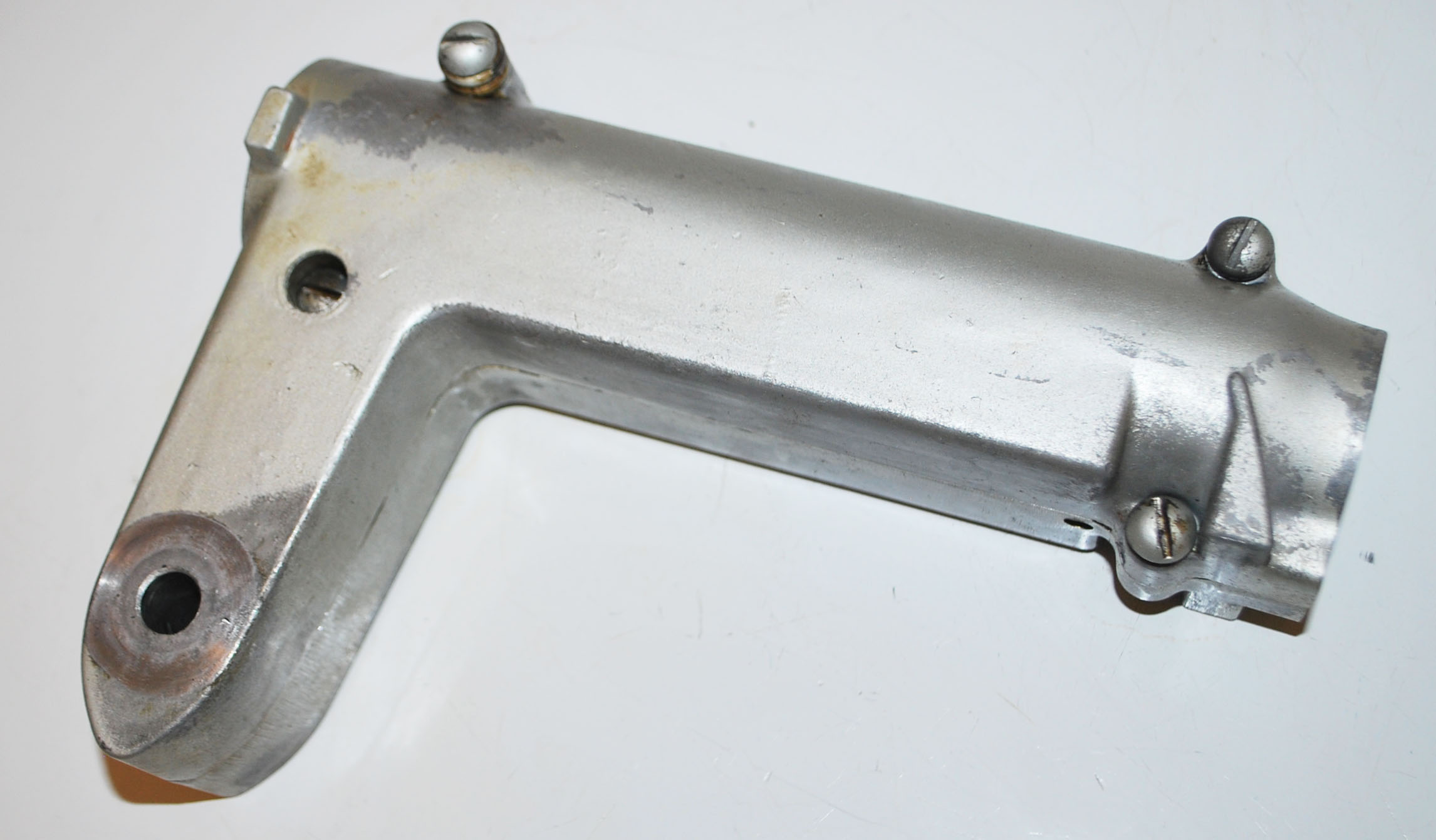

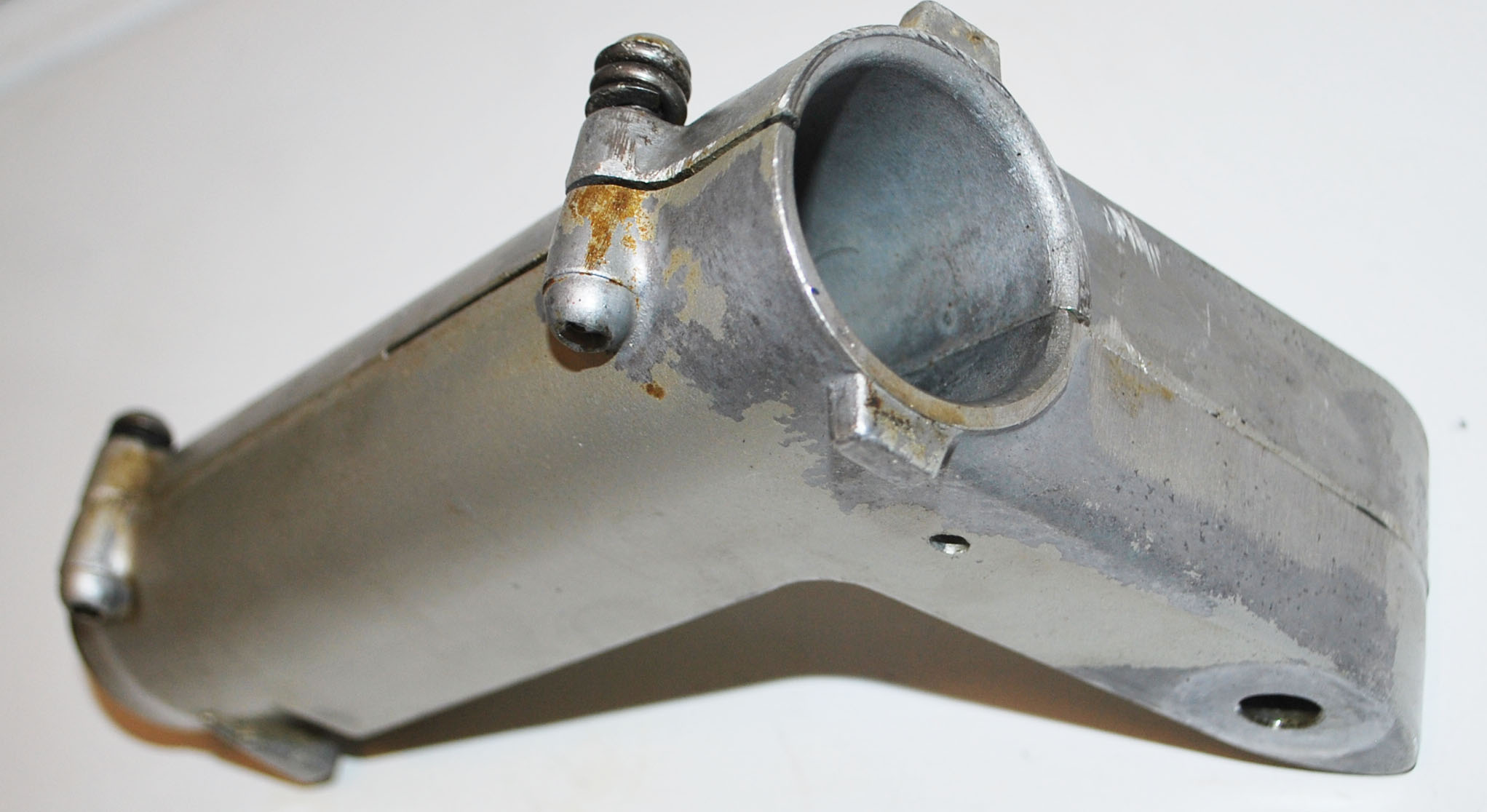

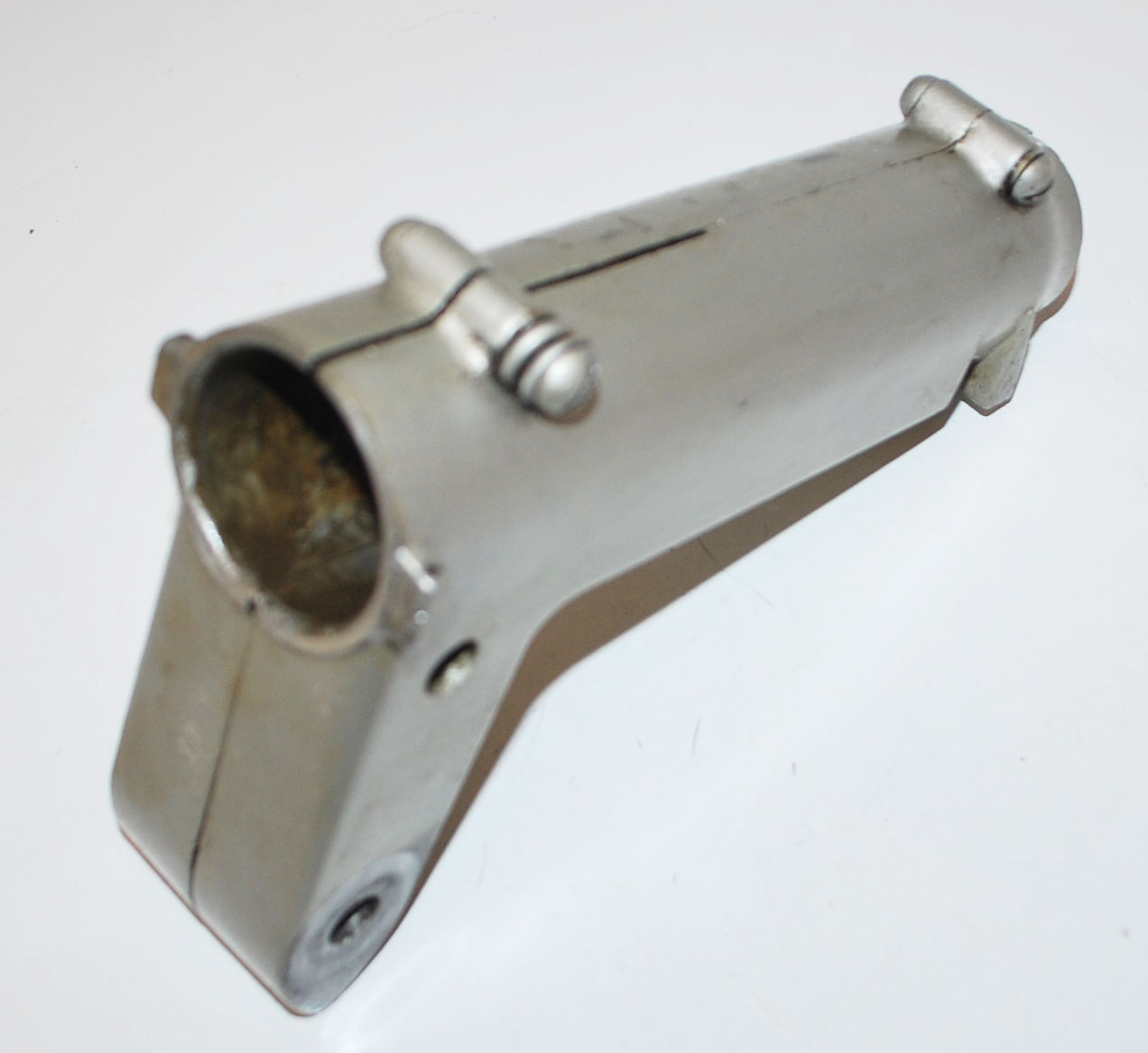

Swivel Bracket | 1945/46* | PIC#2 | $16.00 | |
 |
Swivel Bracket (two available) |
1946/48* | PIC#2 | $16.00 | |
 |

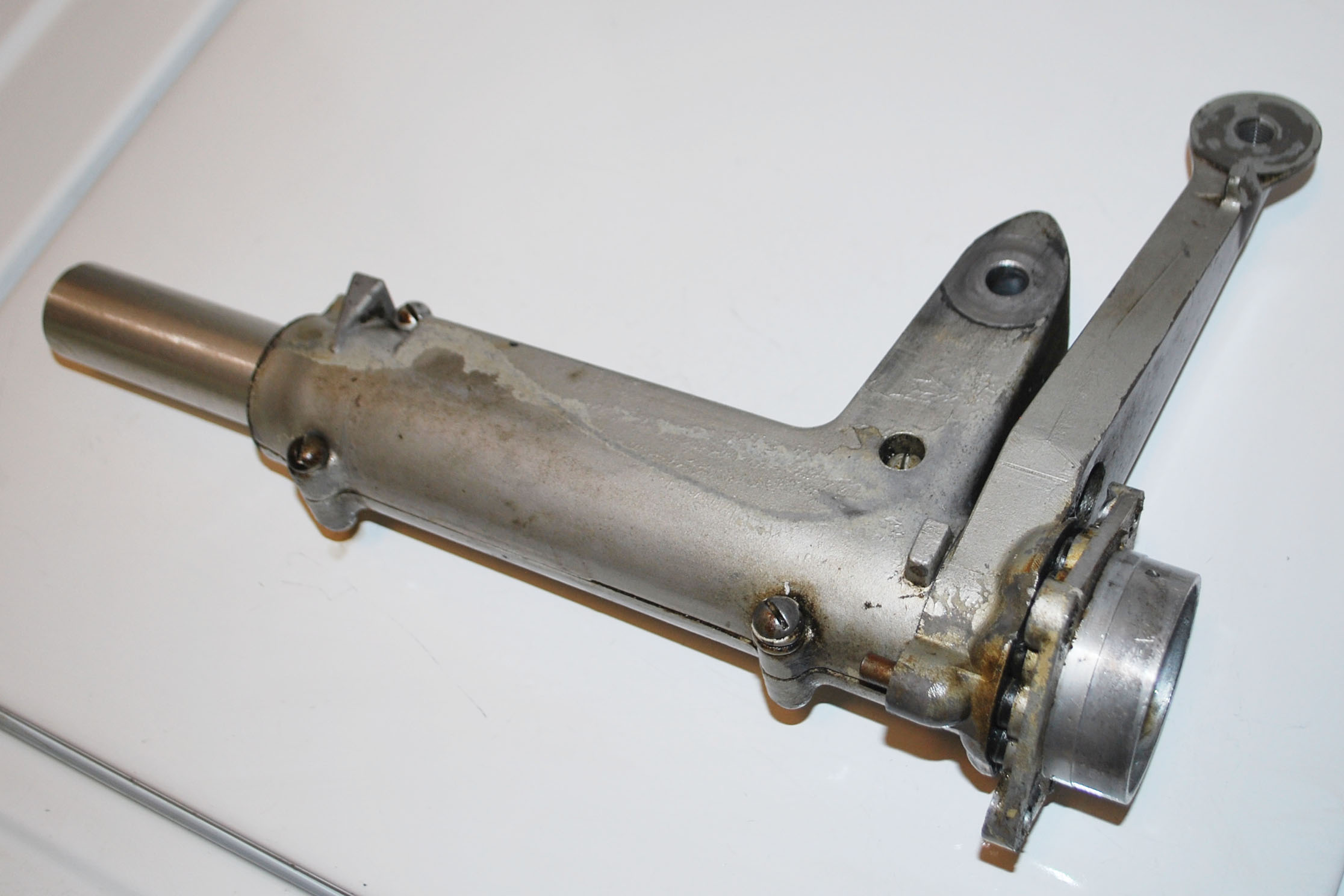

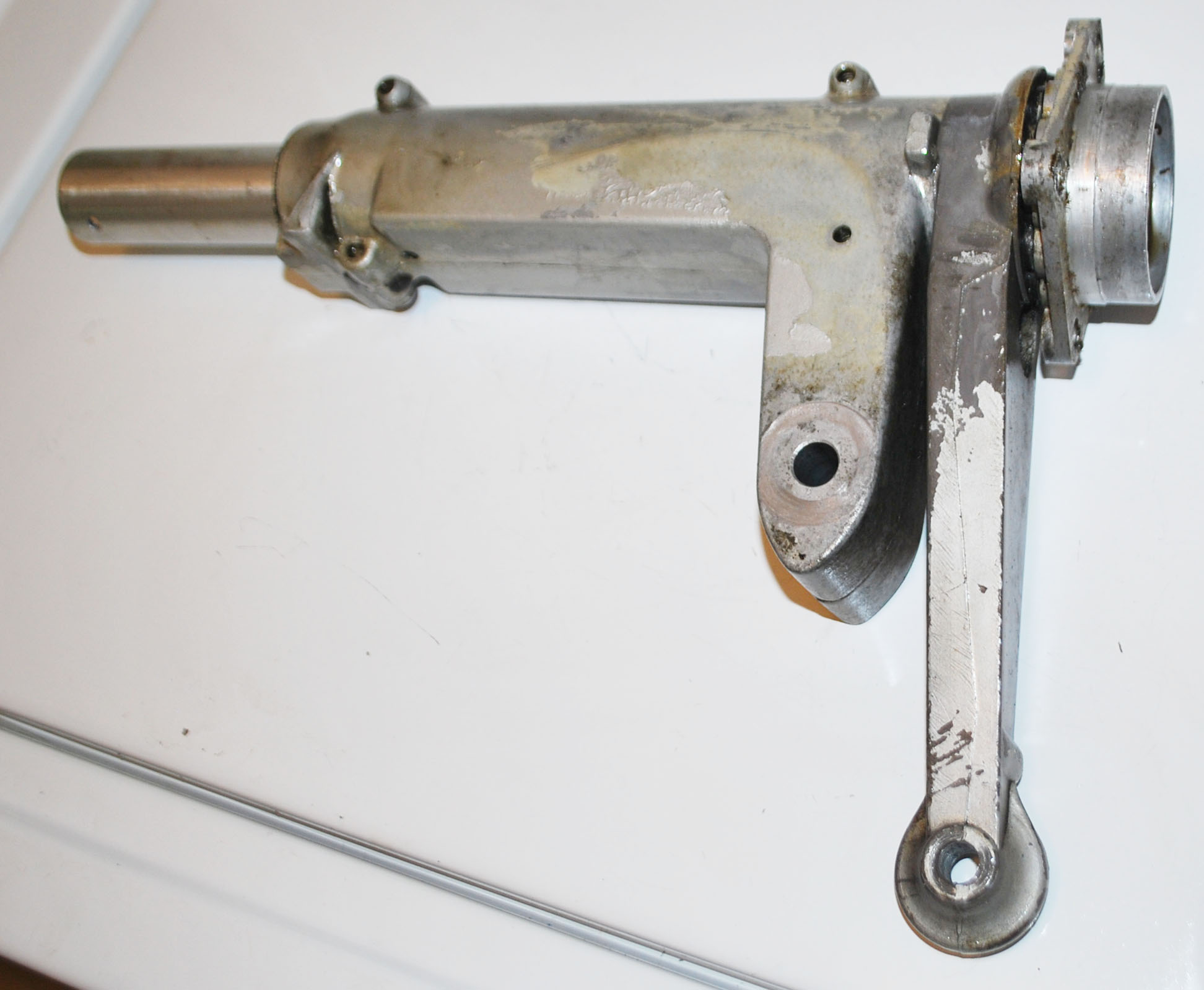

Swivel Bracket / Pivot Post Assembly | 1948* | PIC#2 | $30.00 | |
 |

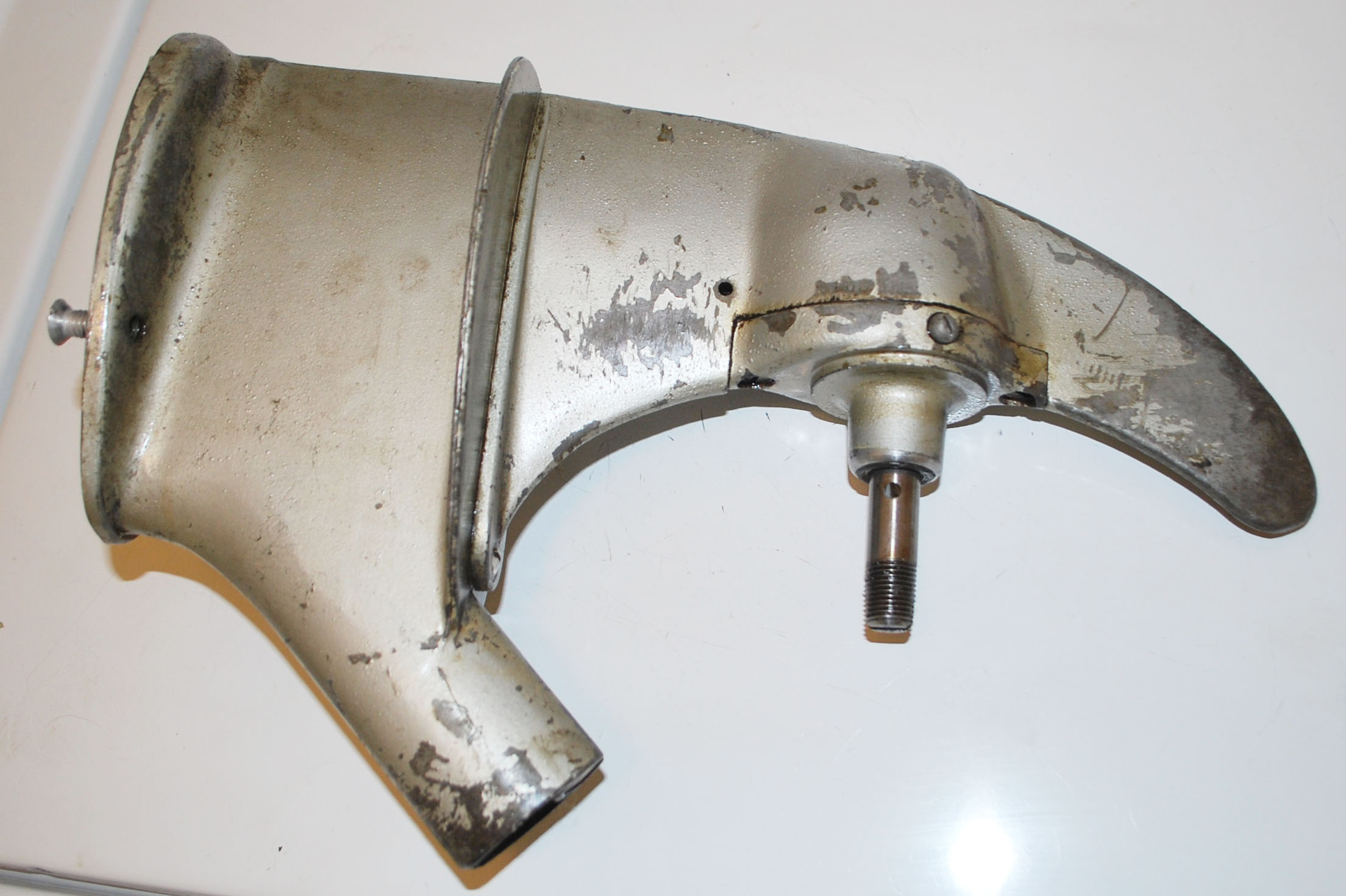

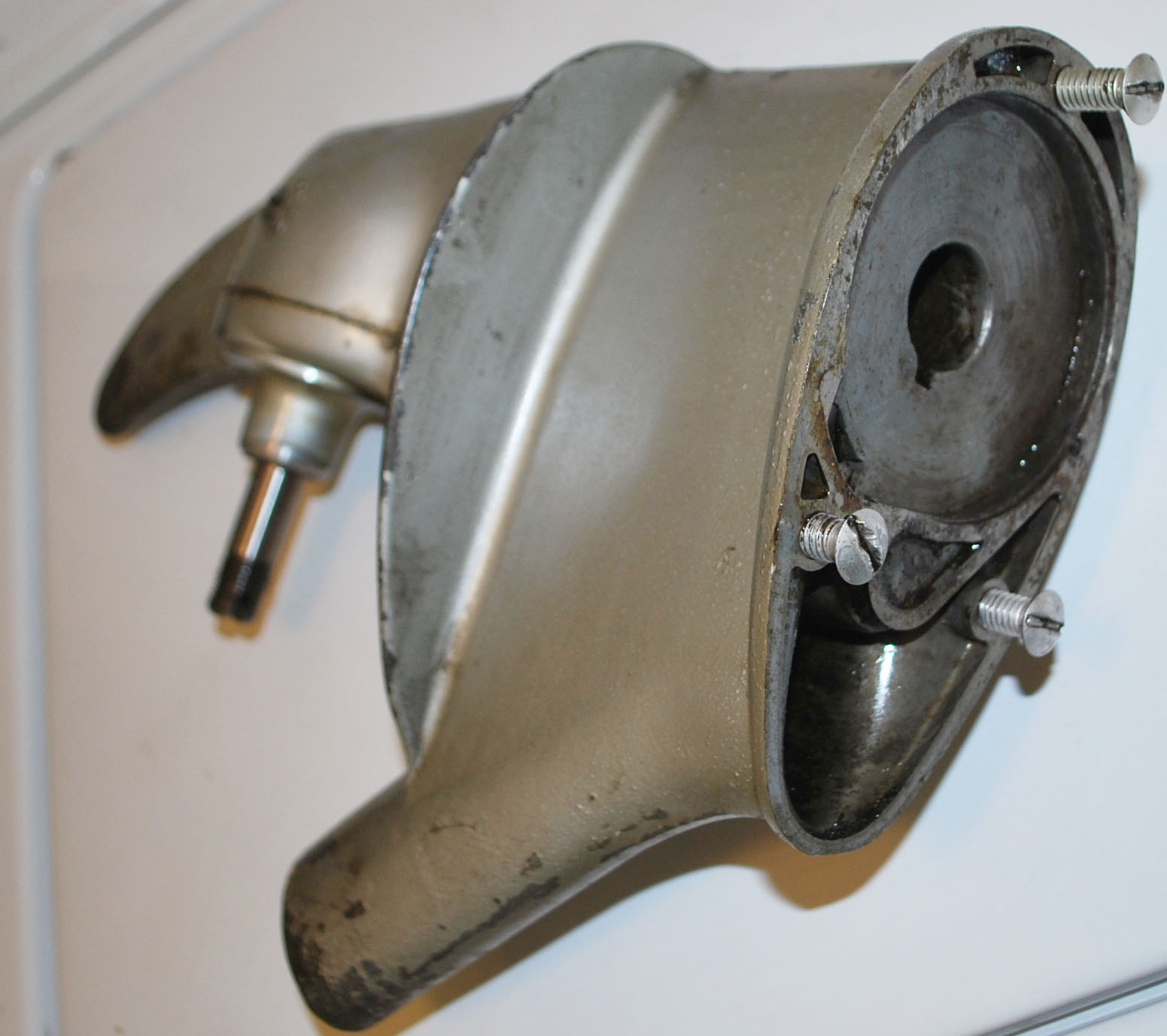

Lower Unit Gearcase (two available) |
1946/48* | PIC#2 | $40.00 | |
| * |  |

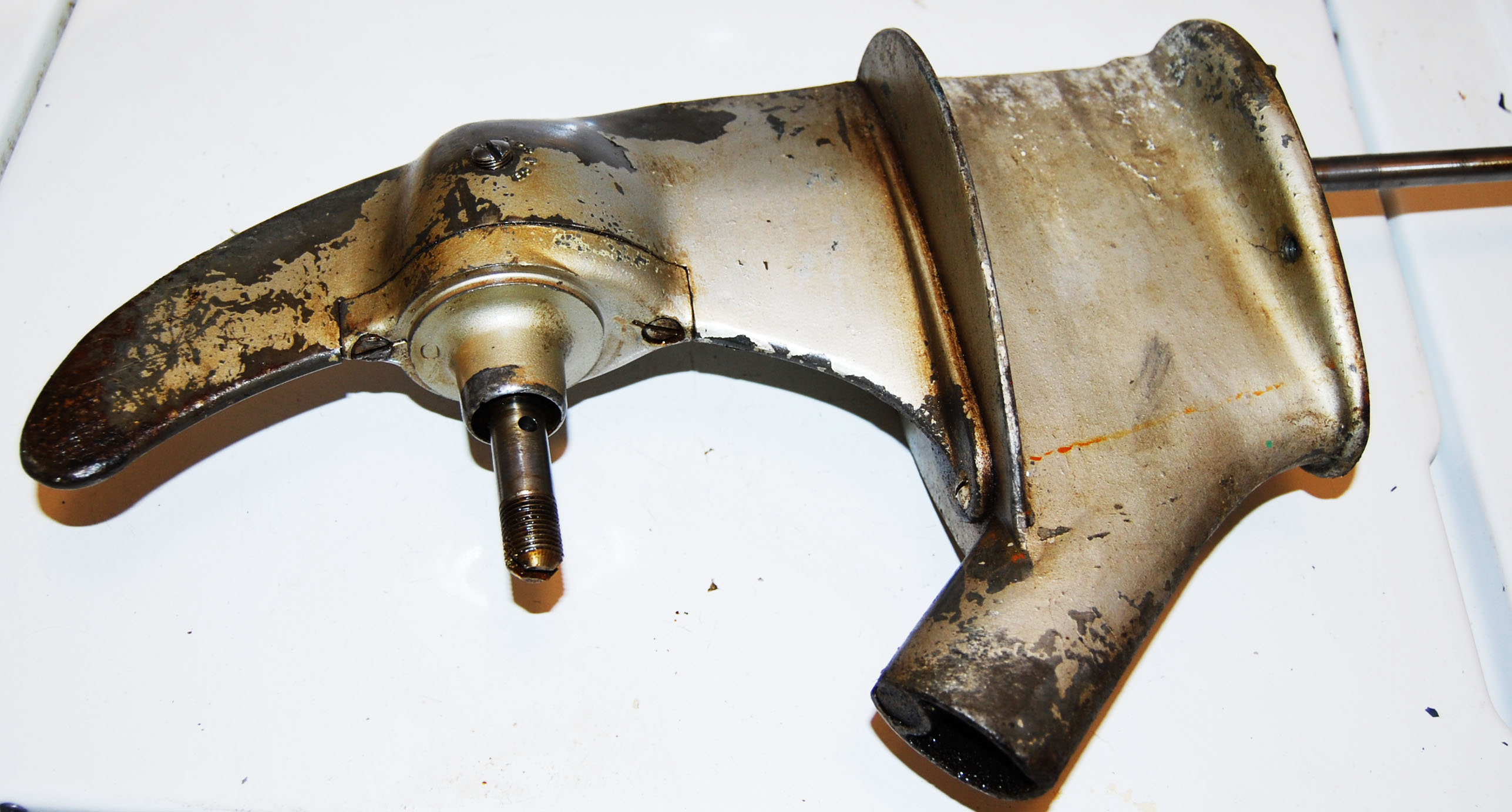

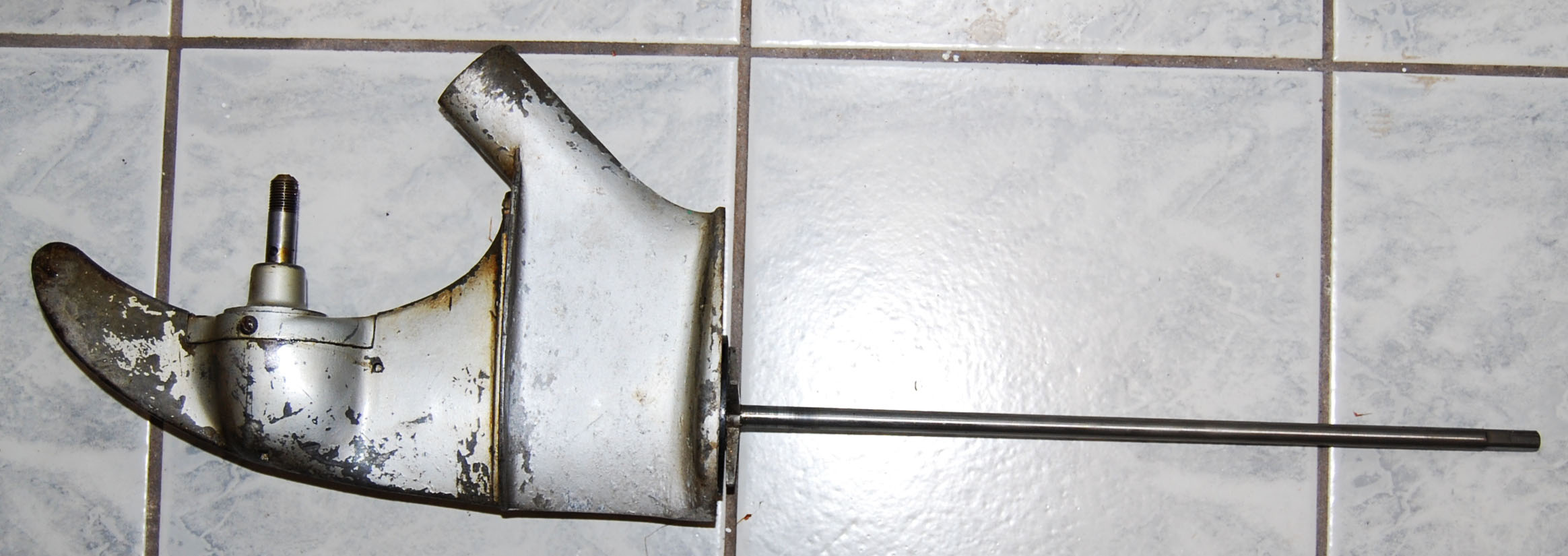

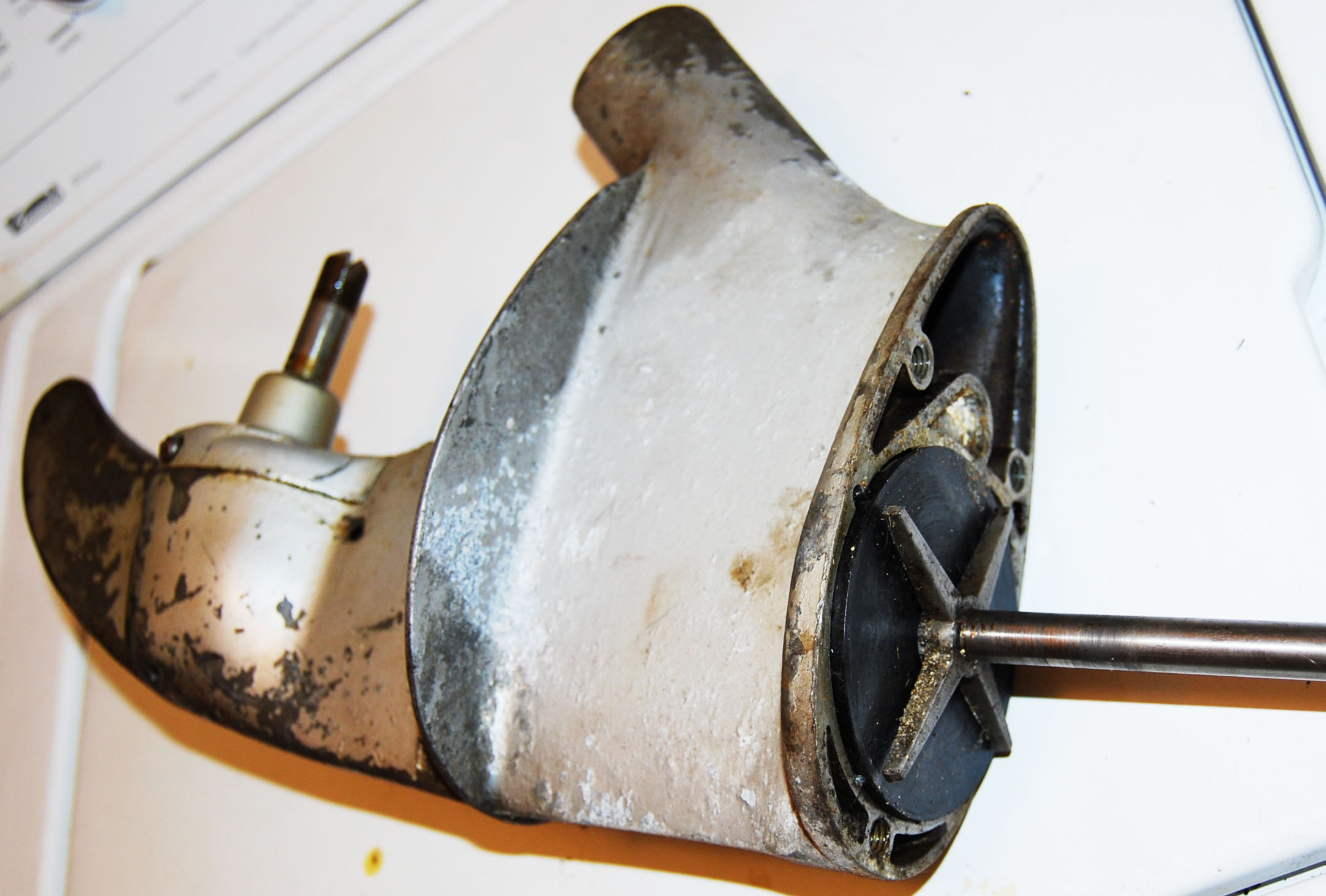

Lower Unit Assembly a (two available) |
1946/48* | $50.00 | |
| 276709 |  |
Driveshaft Assembly |
1945/48* | n/a | $12.00 |
| 276756 |  |

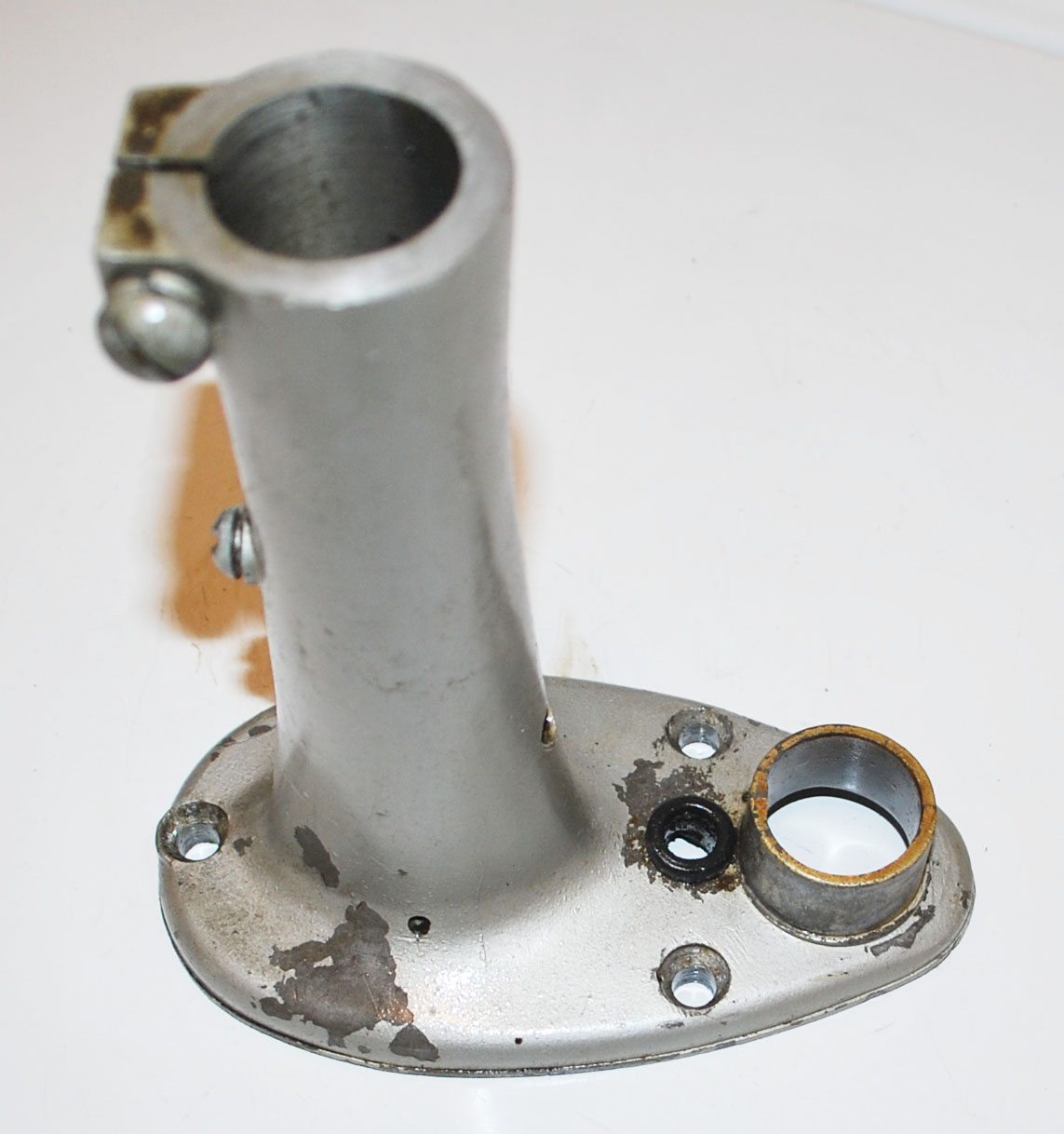

Mid Section | 1945/46* | PIC#2 | $14.00 |
 |
Mid Section (two available) |
1946/48* | PIC#2 | $14.00 | |
| 275130 |  |
Muffler (two available) |
1945/48* | PIC#2 | $14.00 |
| 200261 |  |

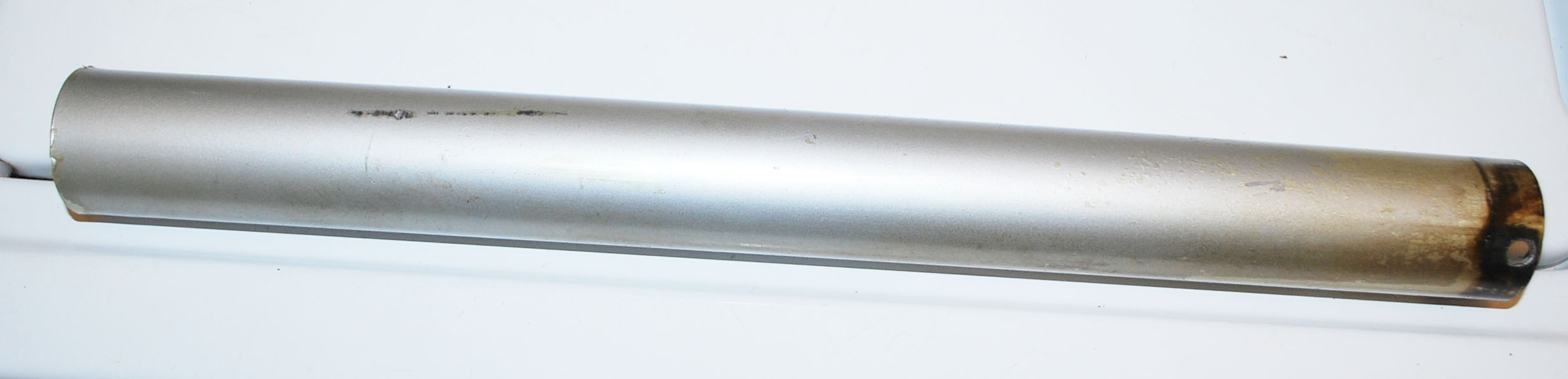

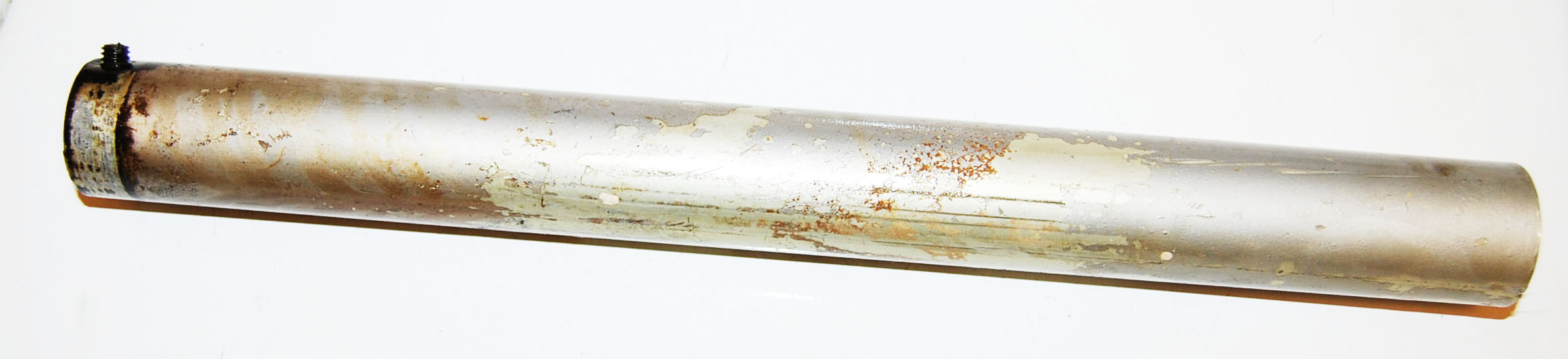

Exhaust Tube | 1945/46* | n/a | $8.00 |
 |
Exhaust Tube (two available) |
1946/48* | n/a | $8.00 | |
 |

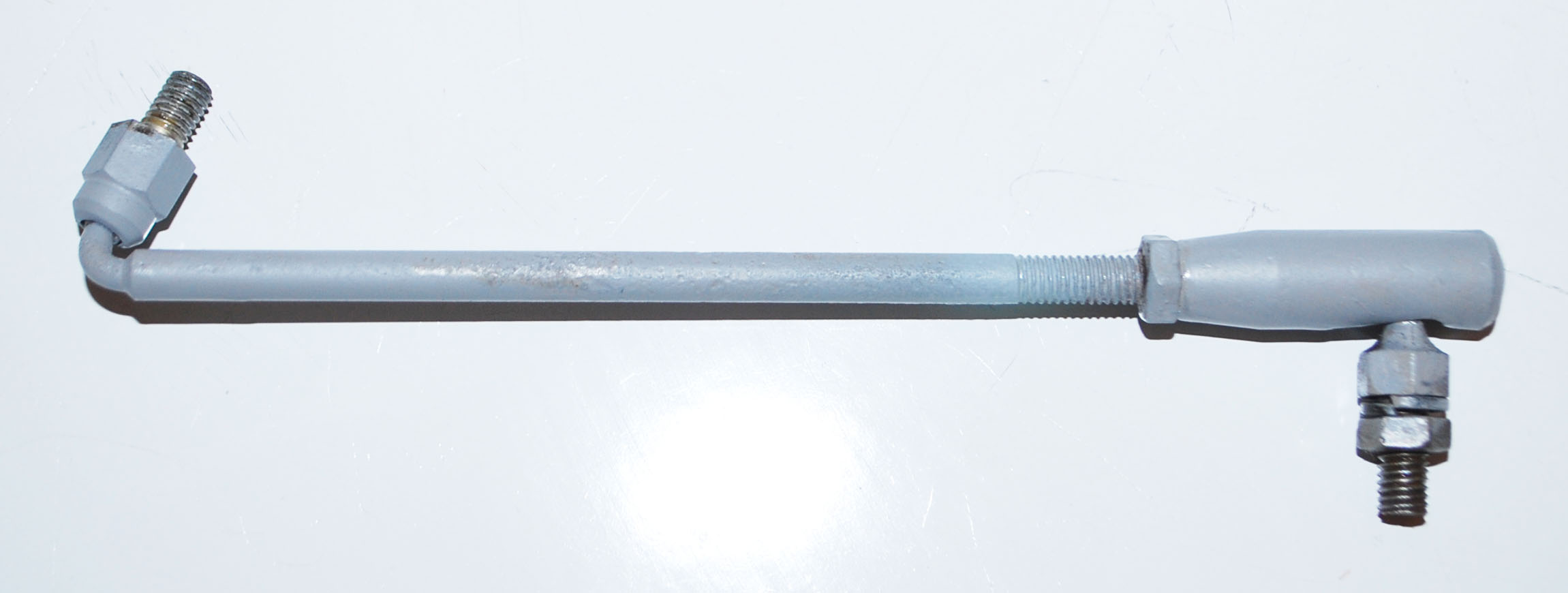

Throttle advance link (two available) |
1948* | n/a | $5.00 | |
 |

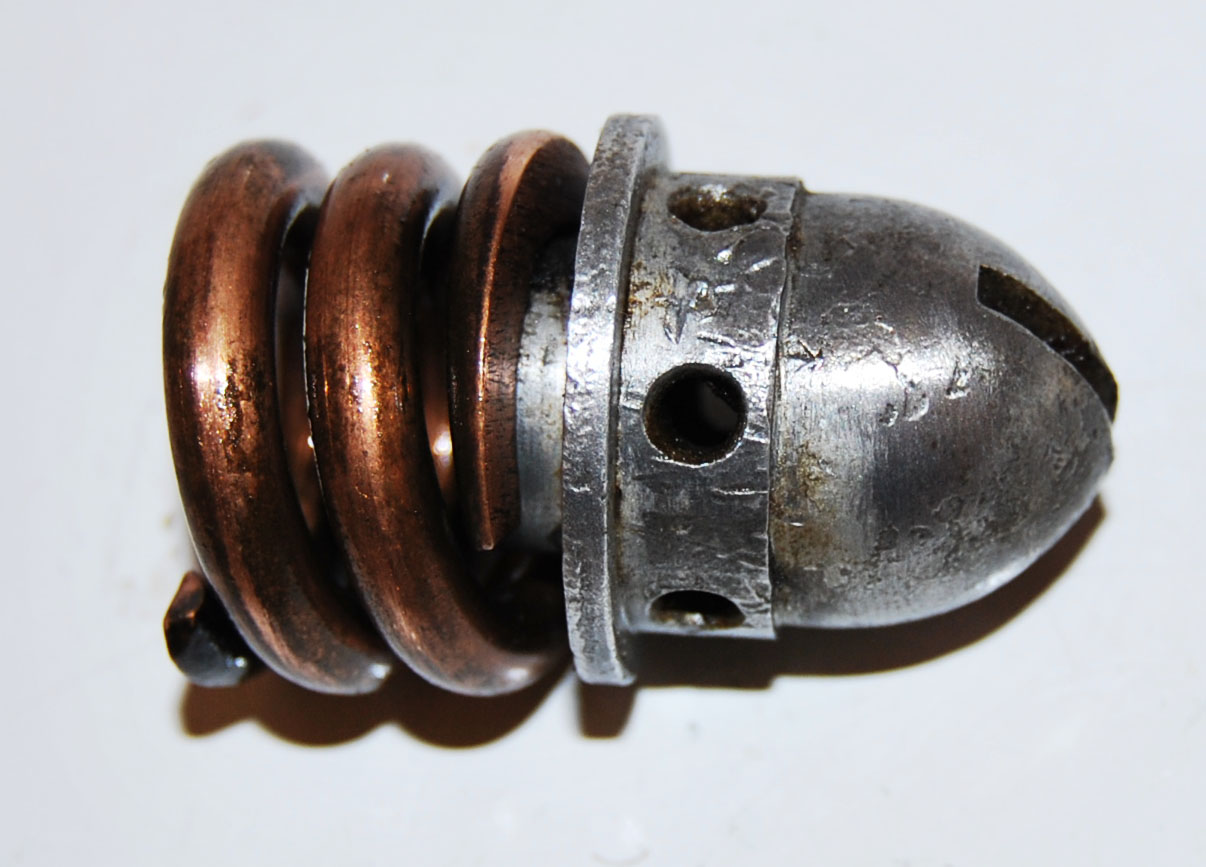

Prop Nut with Spring | 1940/41* | n/a | $10.00 | |
 |

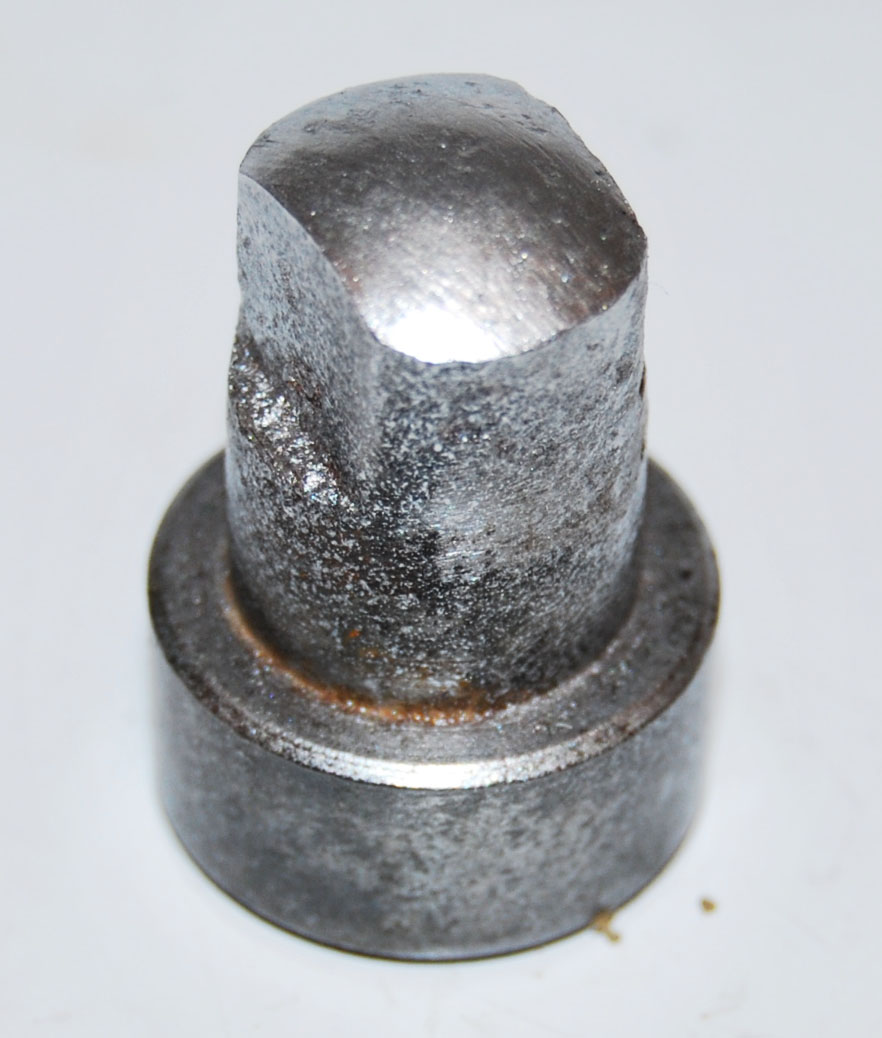

Flywheel Nut | 1940/41* | n/a | $5.00 | |
 |

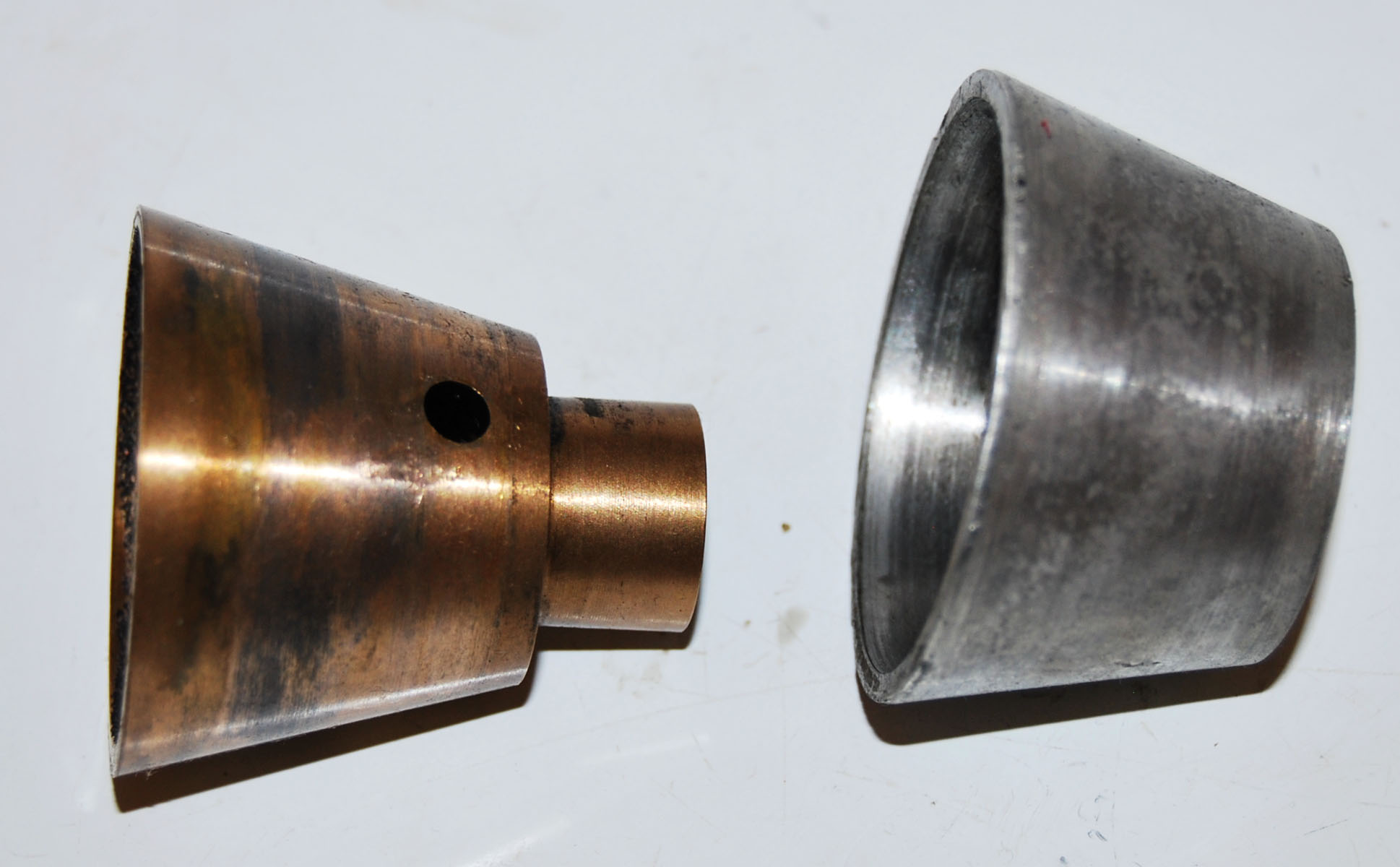

Propeller Hub Assembly | 1940/41* | n/a | $10.00 | |
 |

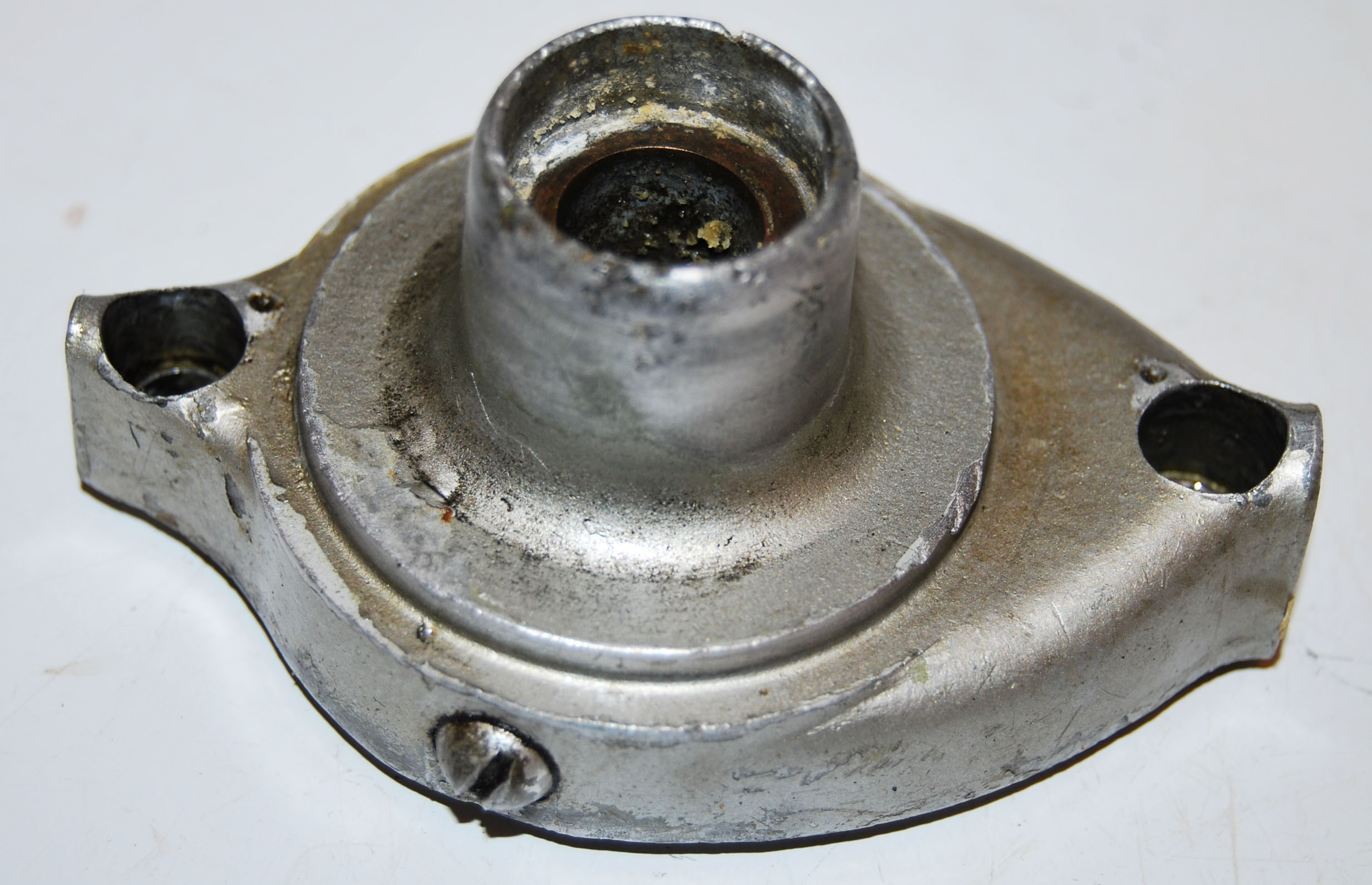

Gearcase Head | 1940/41* | n/a | $9.00 | |
| 275149 |  |

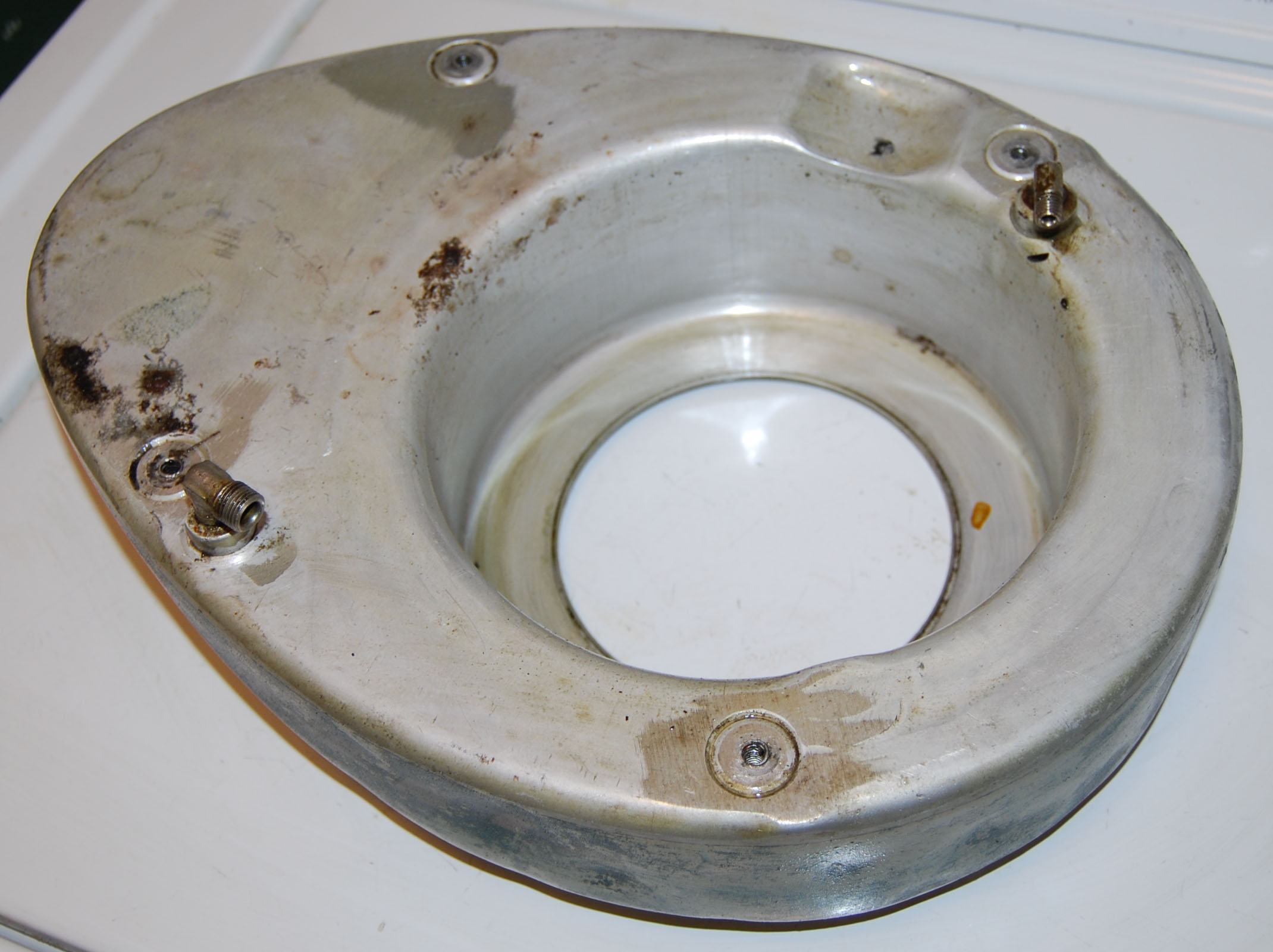

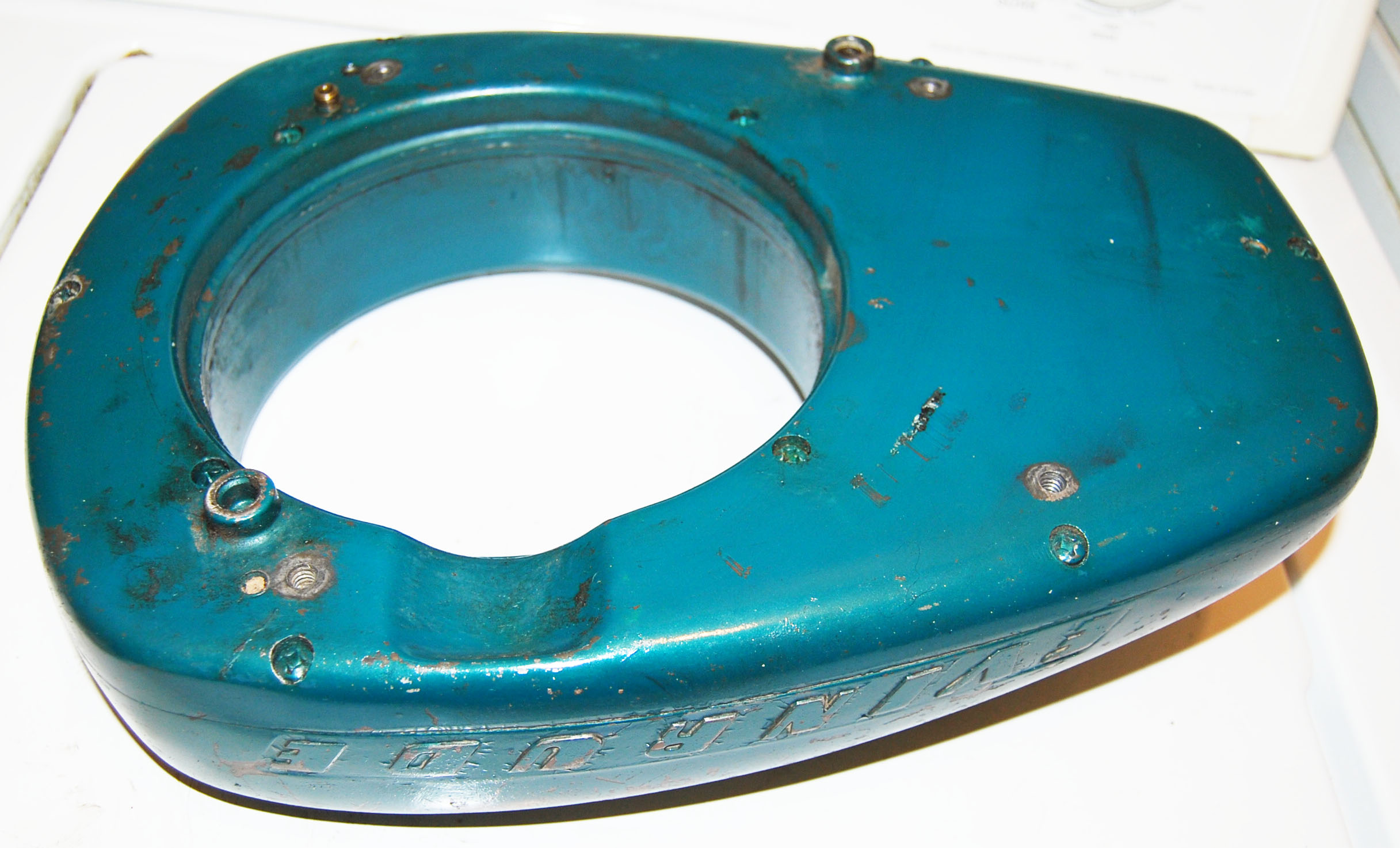

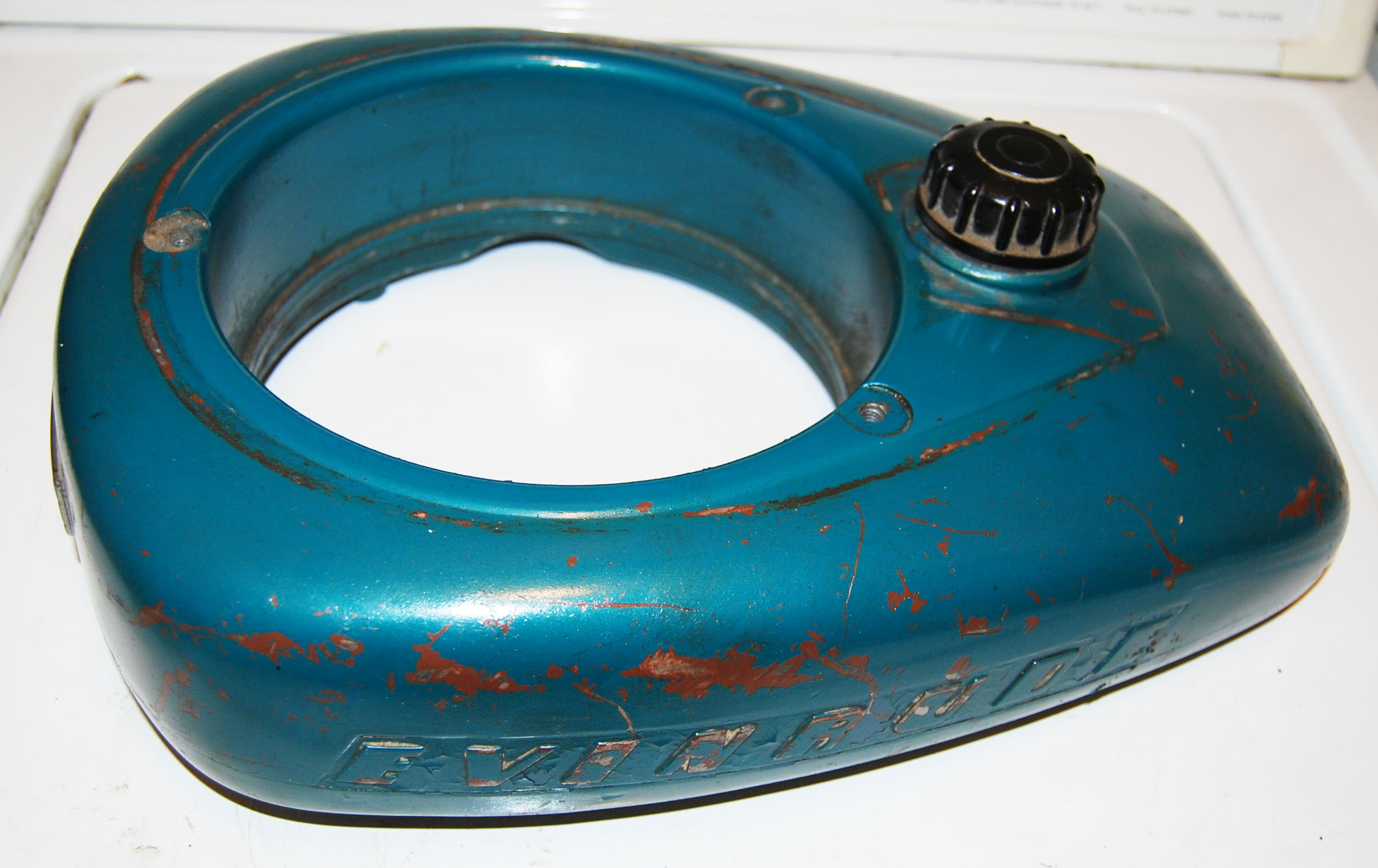

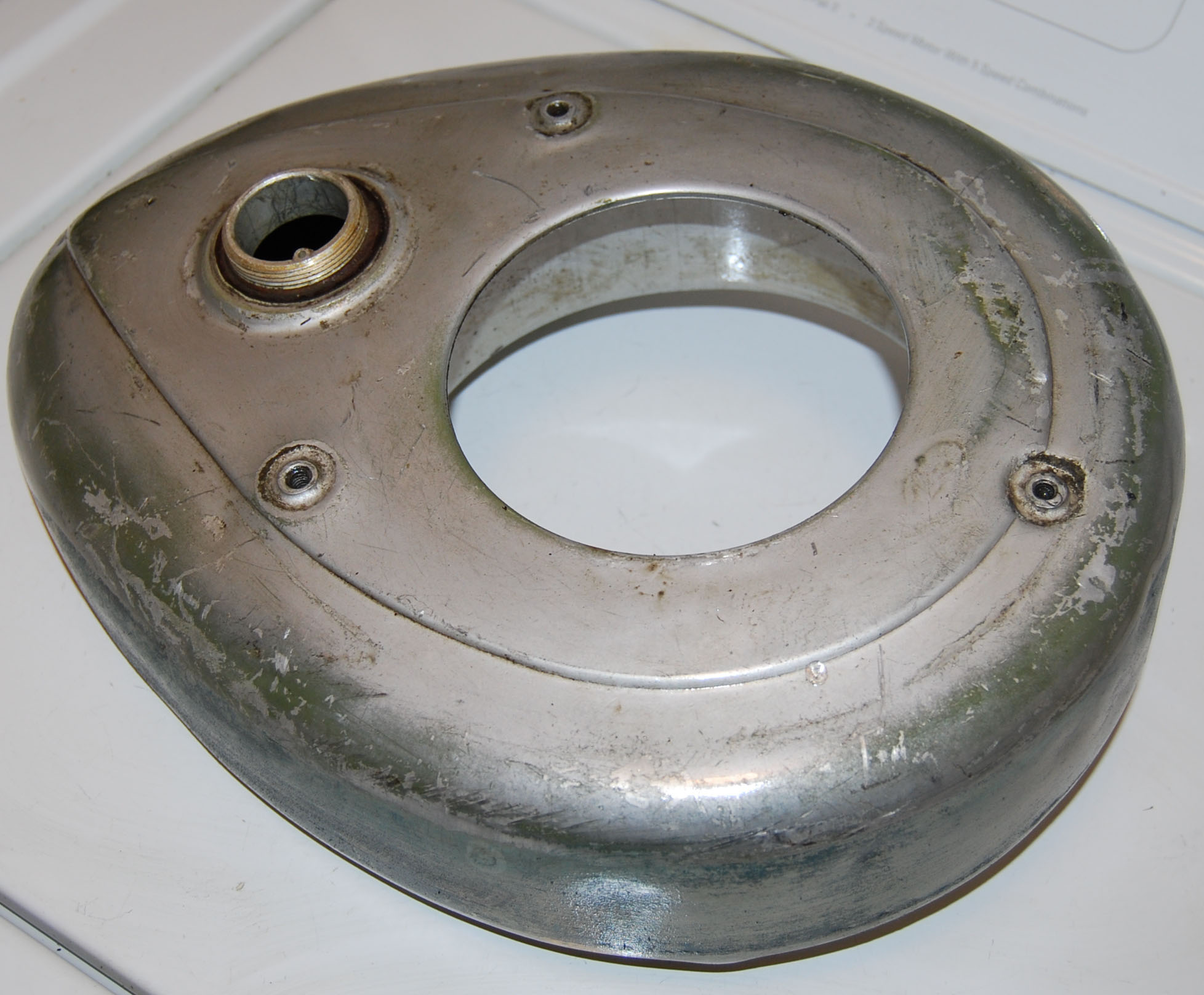

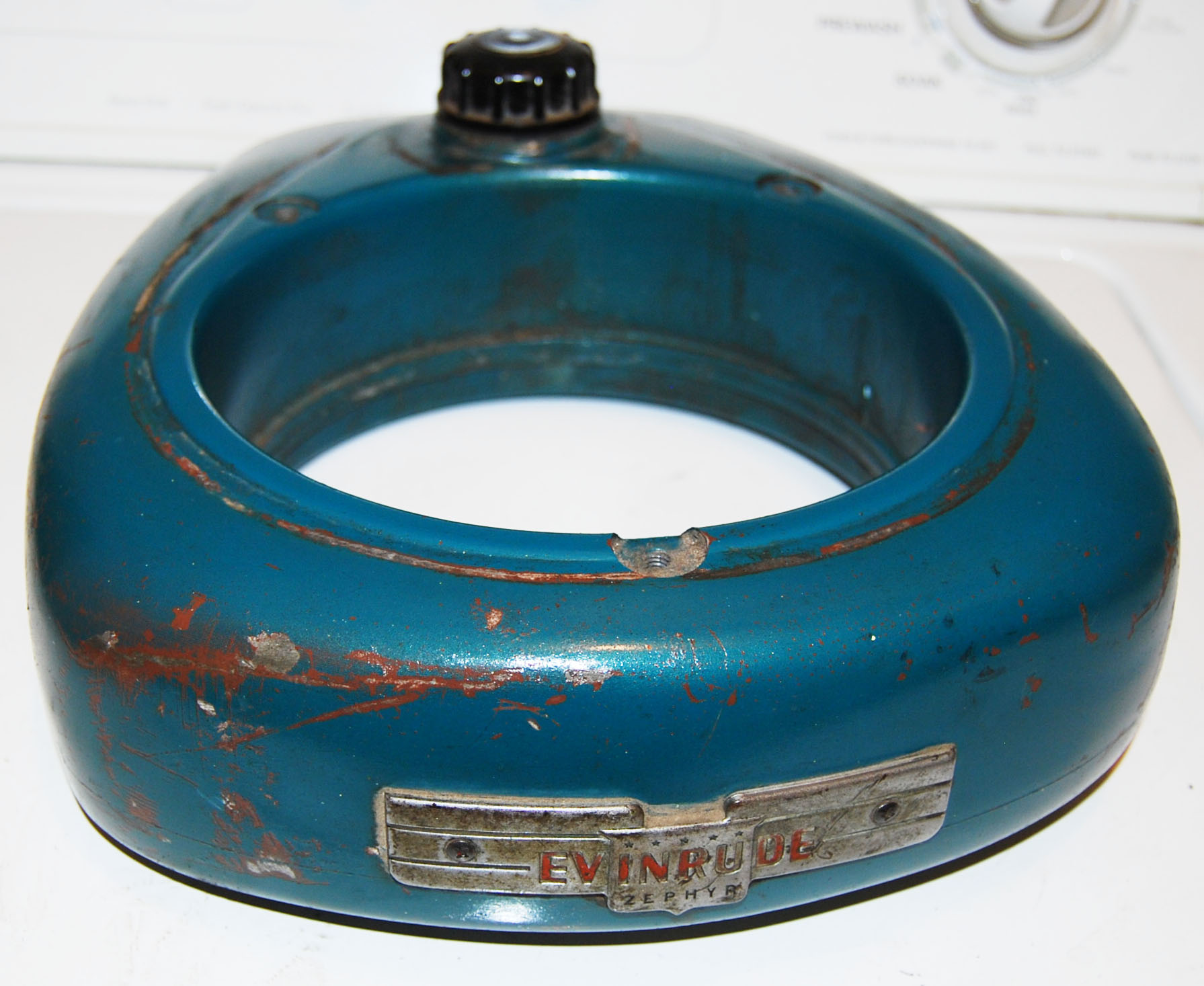

Gas Tank Assembly - (small dents) | 1946/48* | PIC#2 | $20.00 |
 |
Gas Tank Assembly - (no dents) | 1946-48* | $26.00 | ||
 |

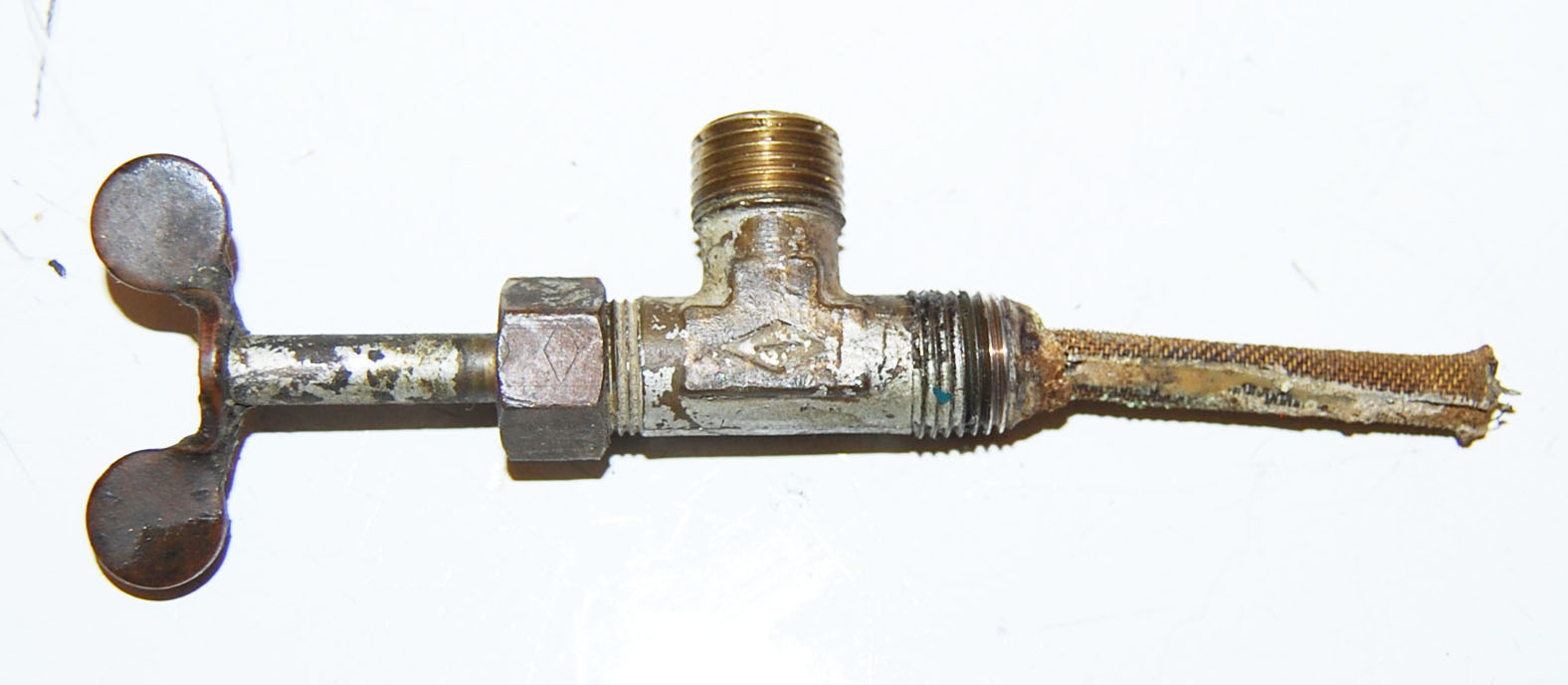

Fuel Petcock wth Filter | 1946-48* | n/a | $11.50 | |

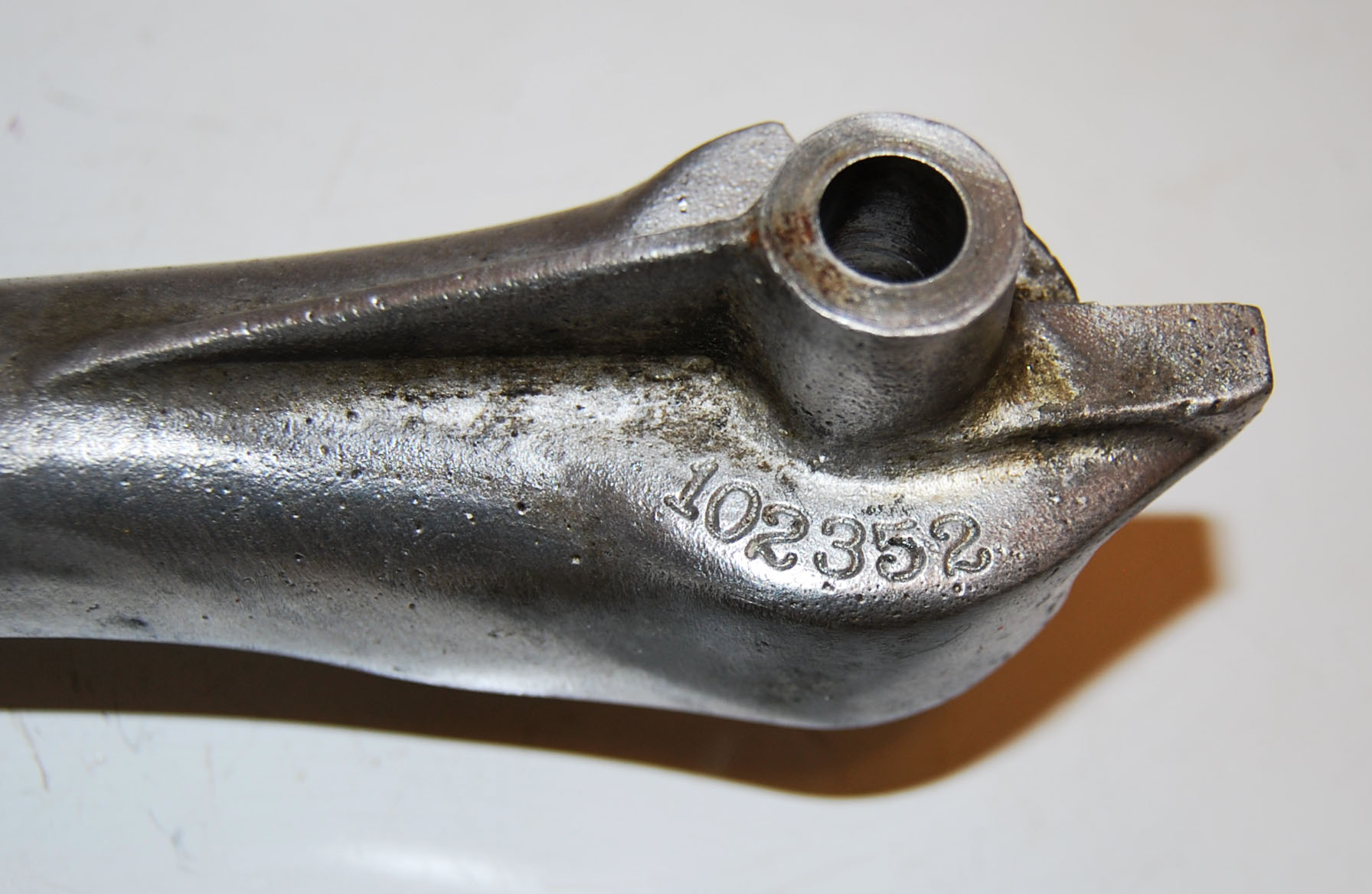

| 102352 |  |

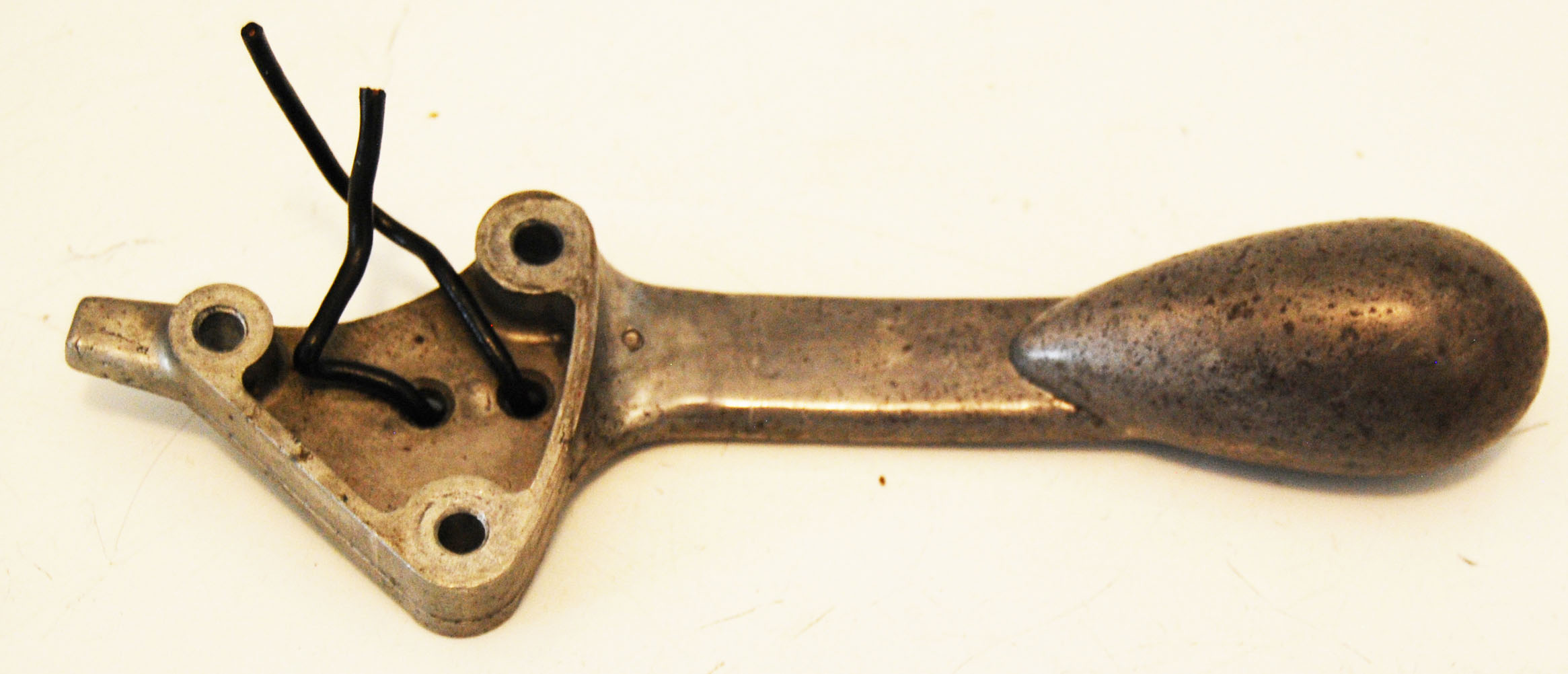

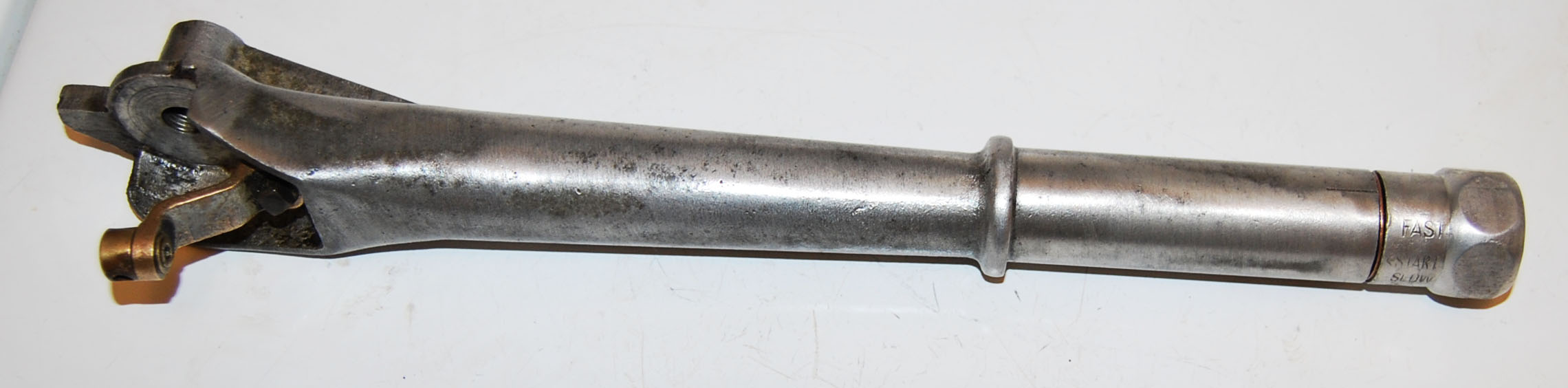

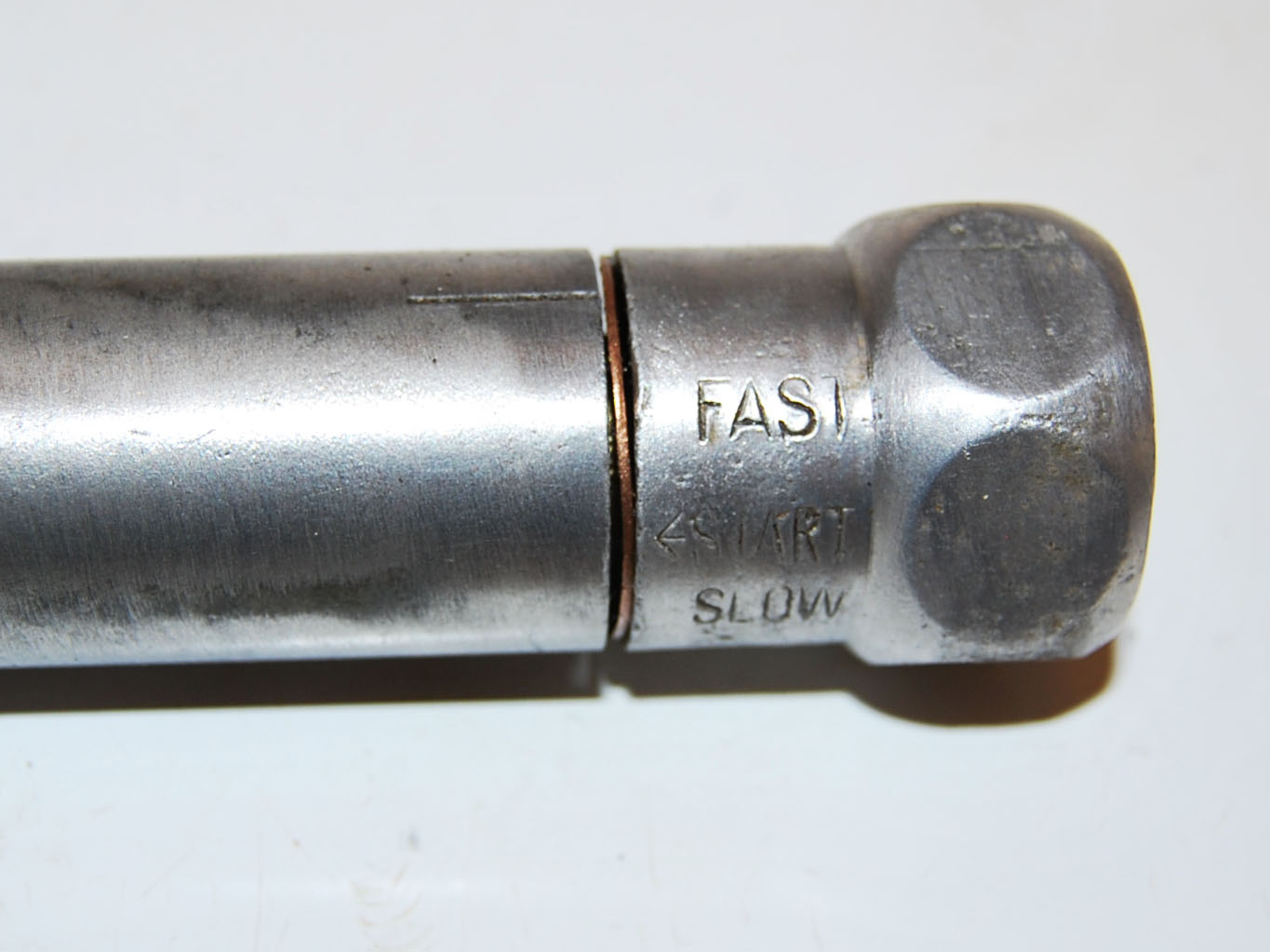

Tiller Handle Assembly (2 available) |
1940/41* | $26.00 | |
 |

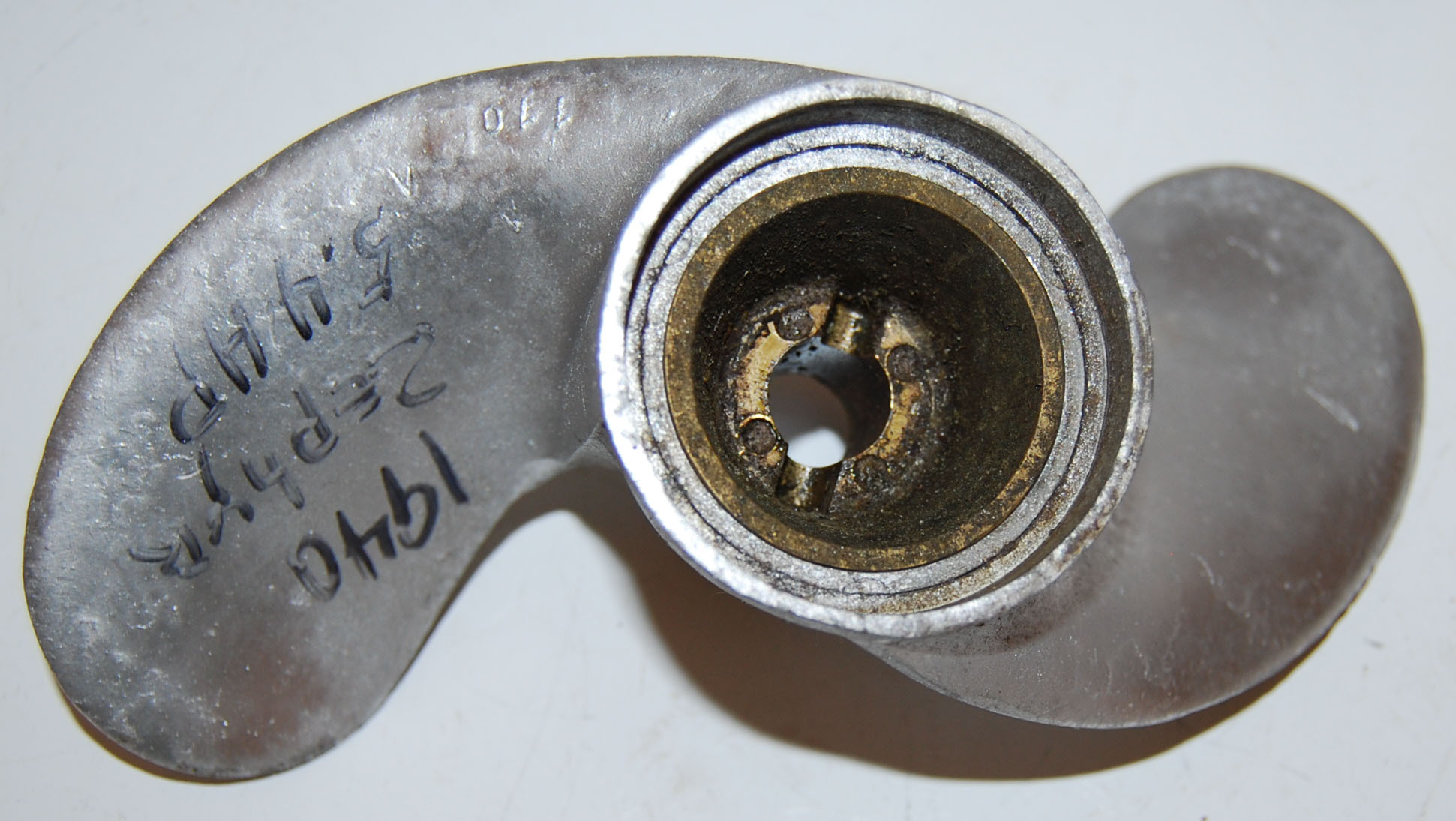

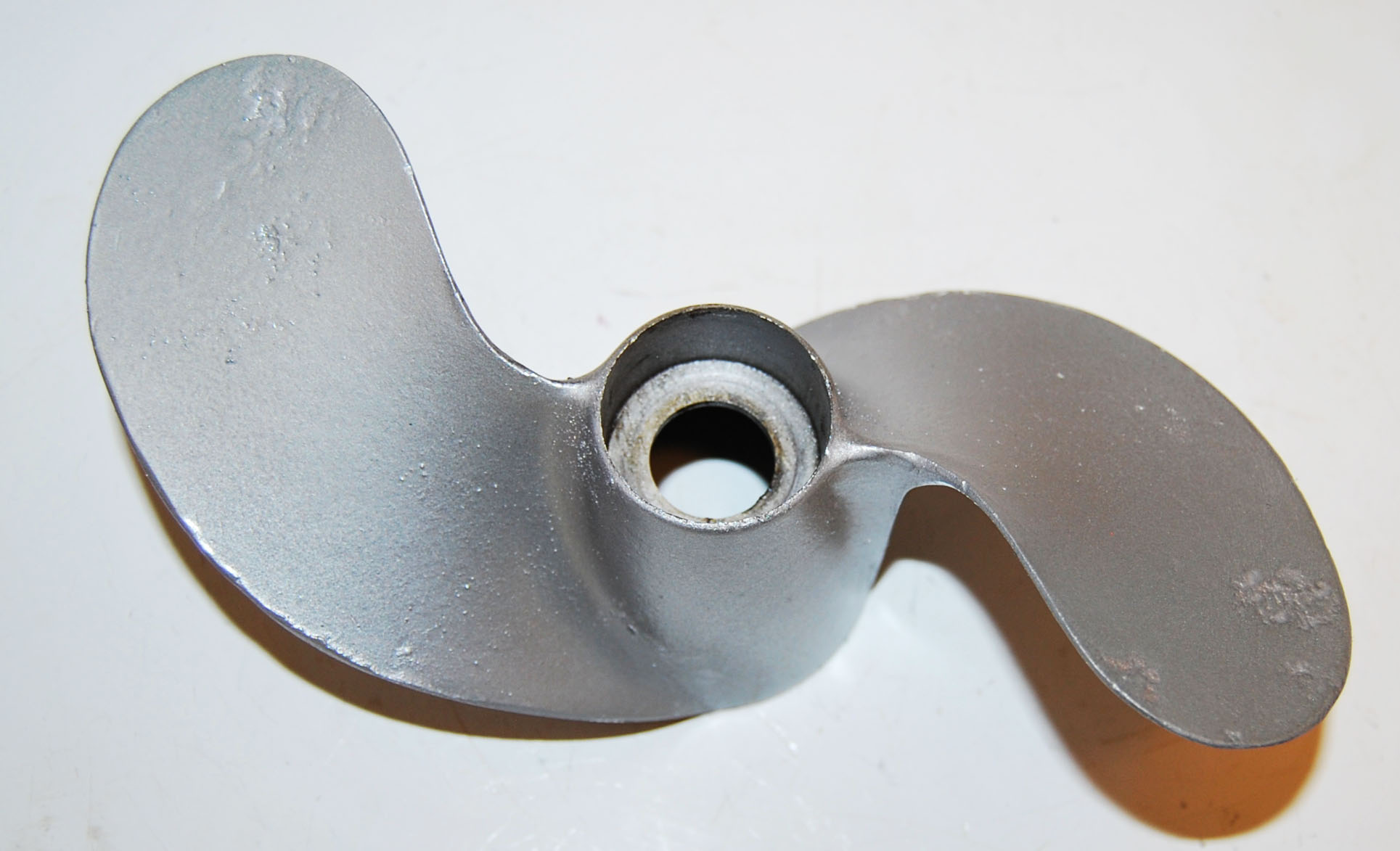

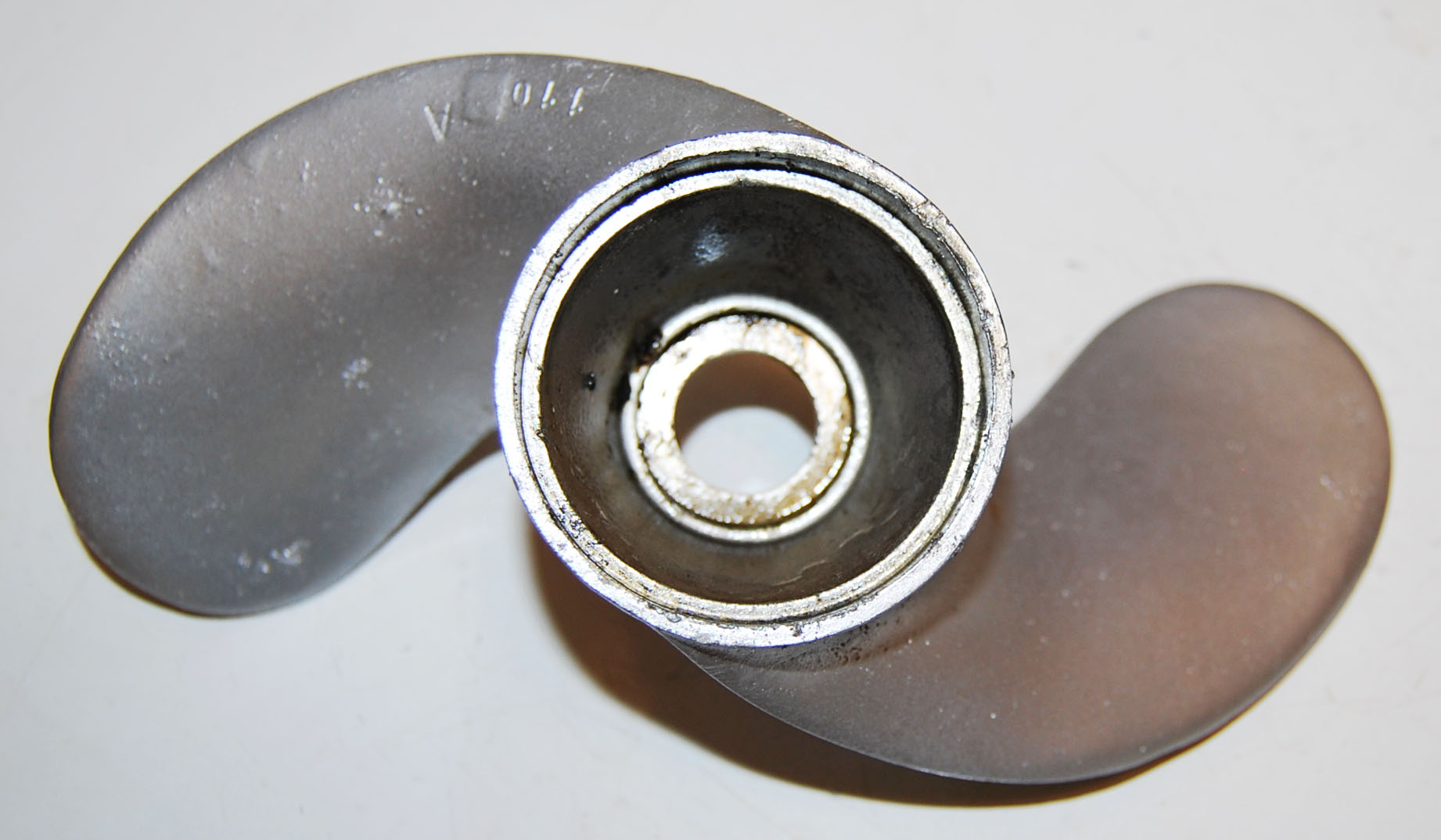

Propeller |
1940/41* | PIC#2 | $18.00 | |
 |

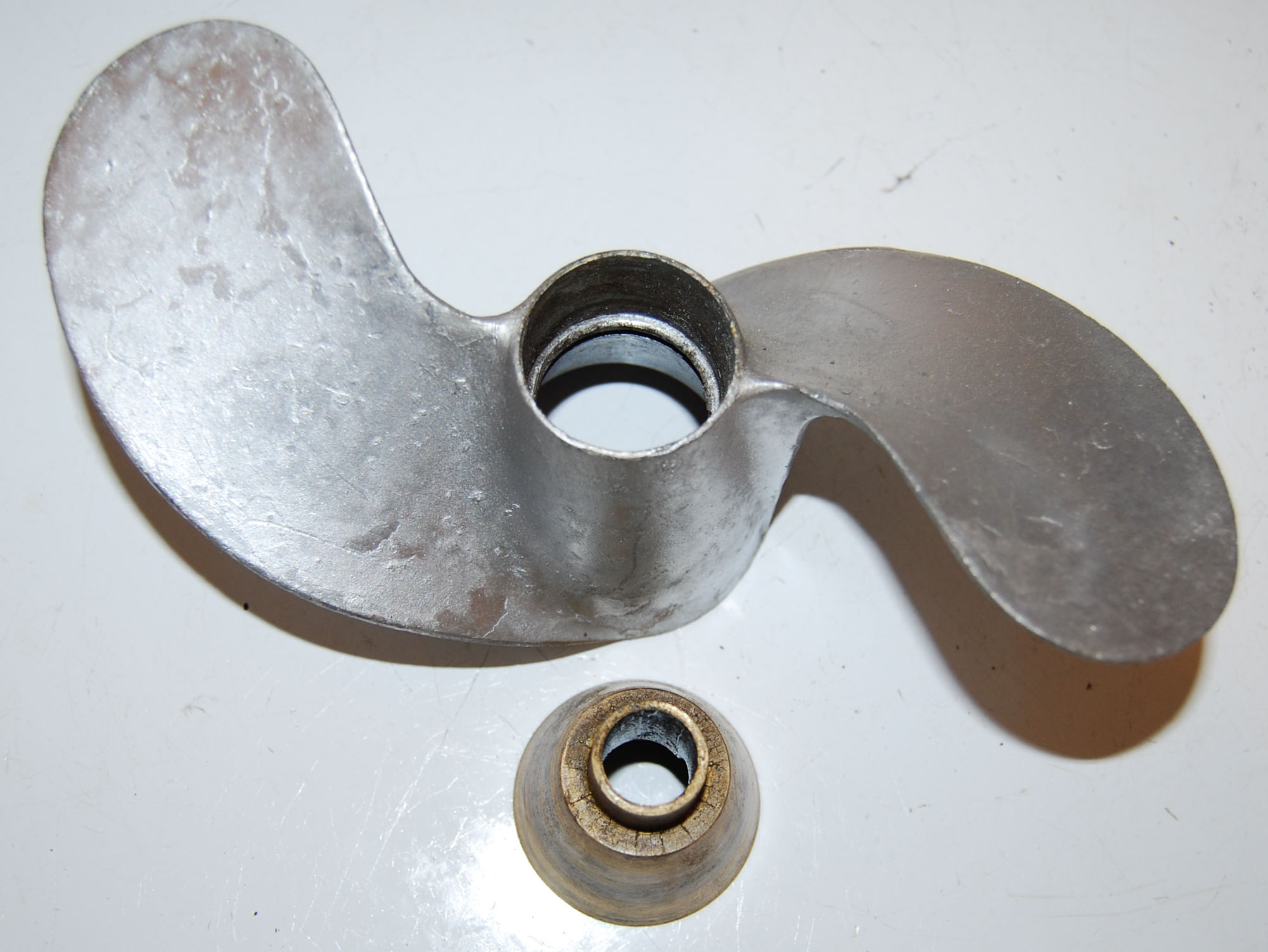

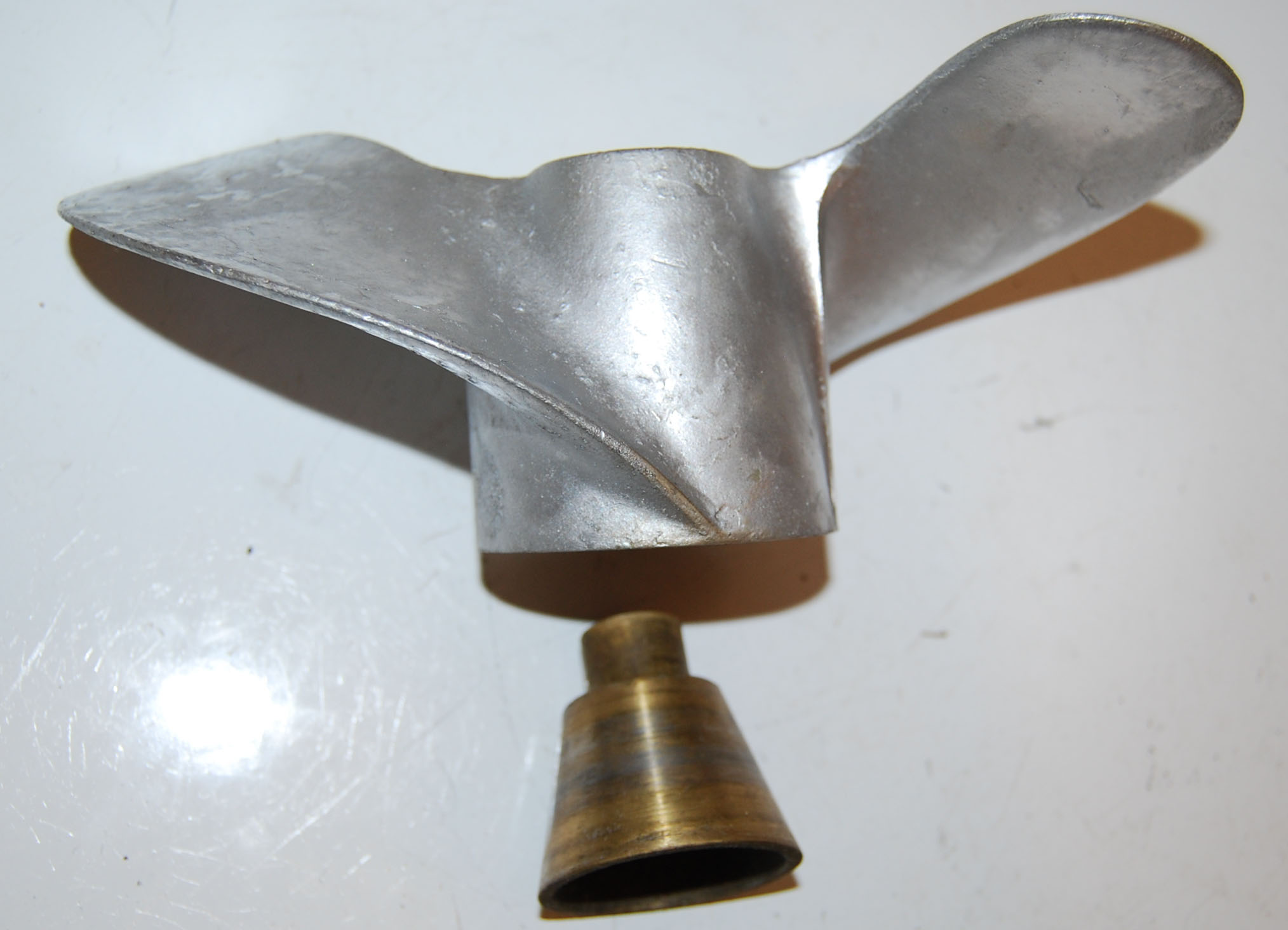

Propeller with Hub | 1940/41* | $22.00 | ||
 |

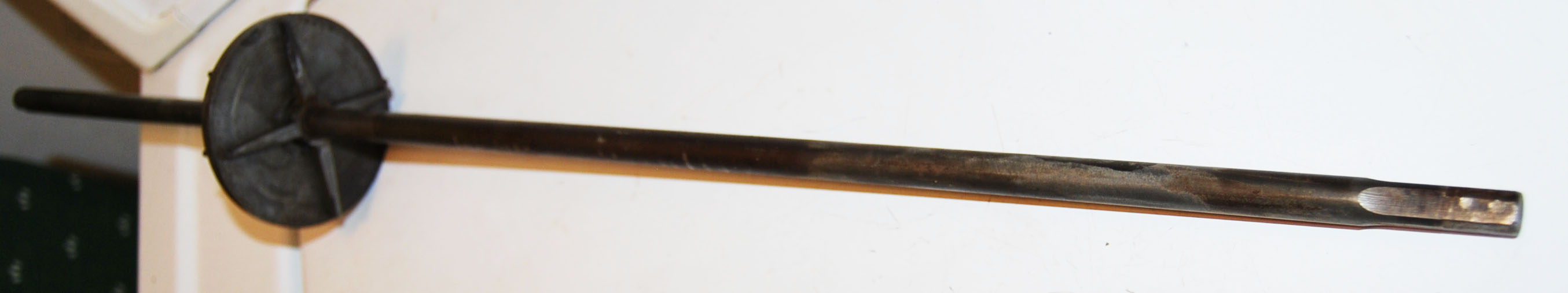

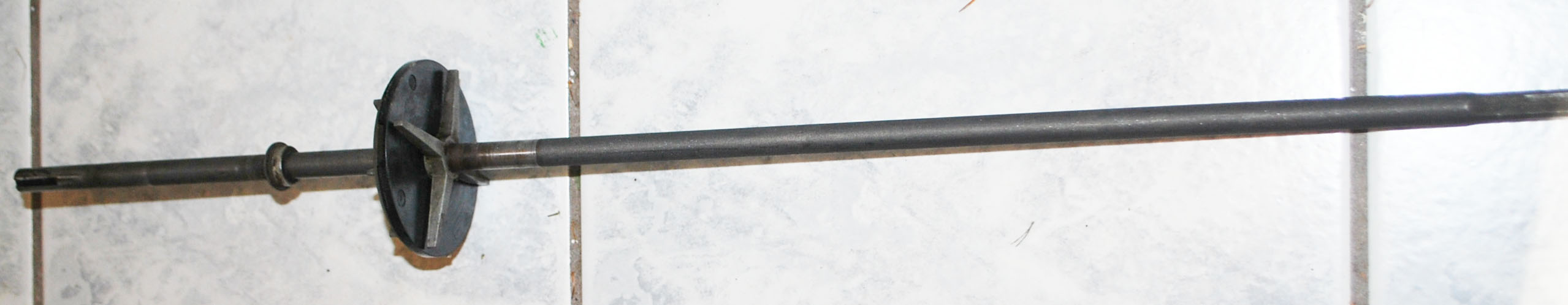

Driveshaft with Impeller (3 available) |
1940/41* | PIC#2 | $12.00 | |
 |

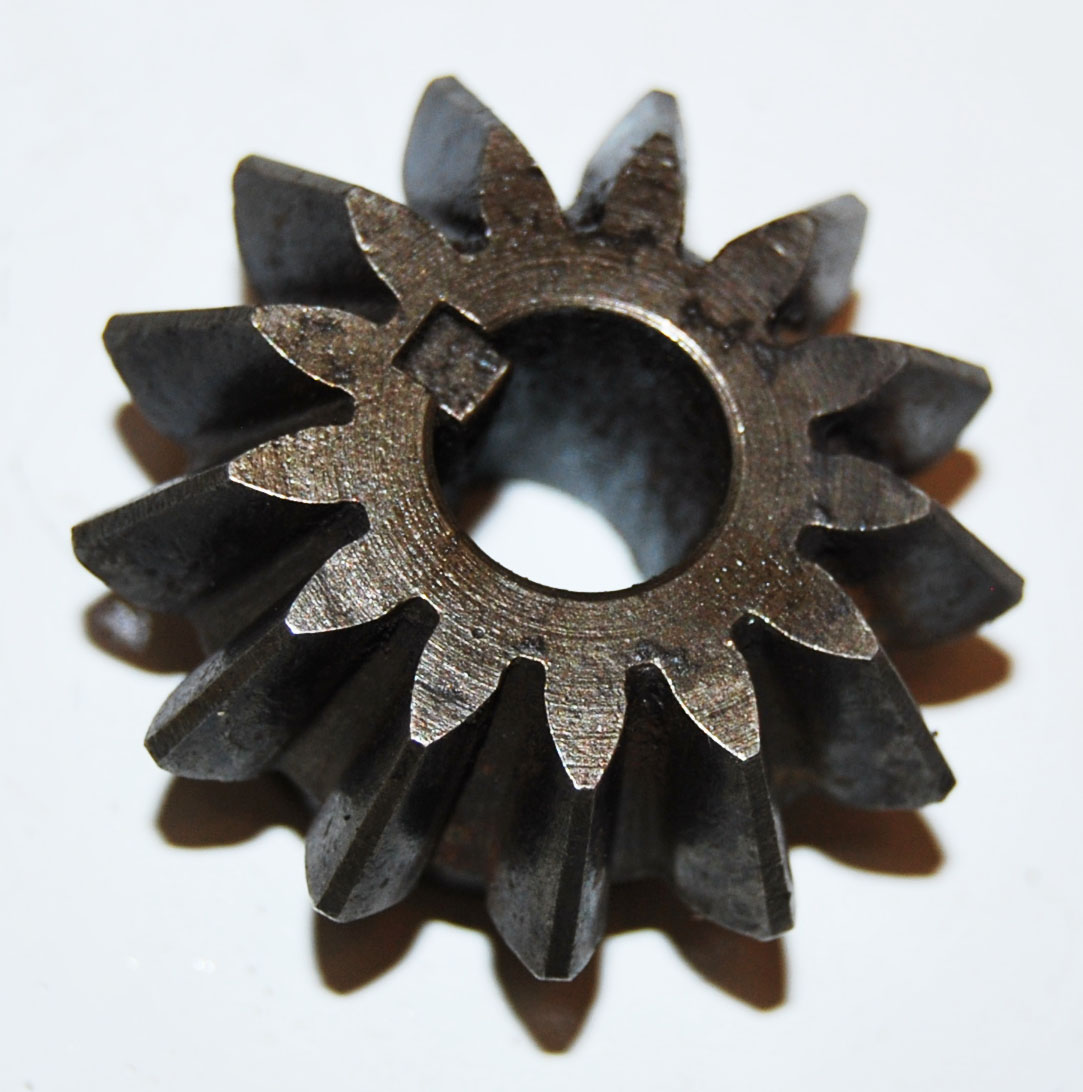

Pinion Gear | 1940/41* | n/a | $8.00 | |
 |

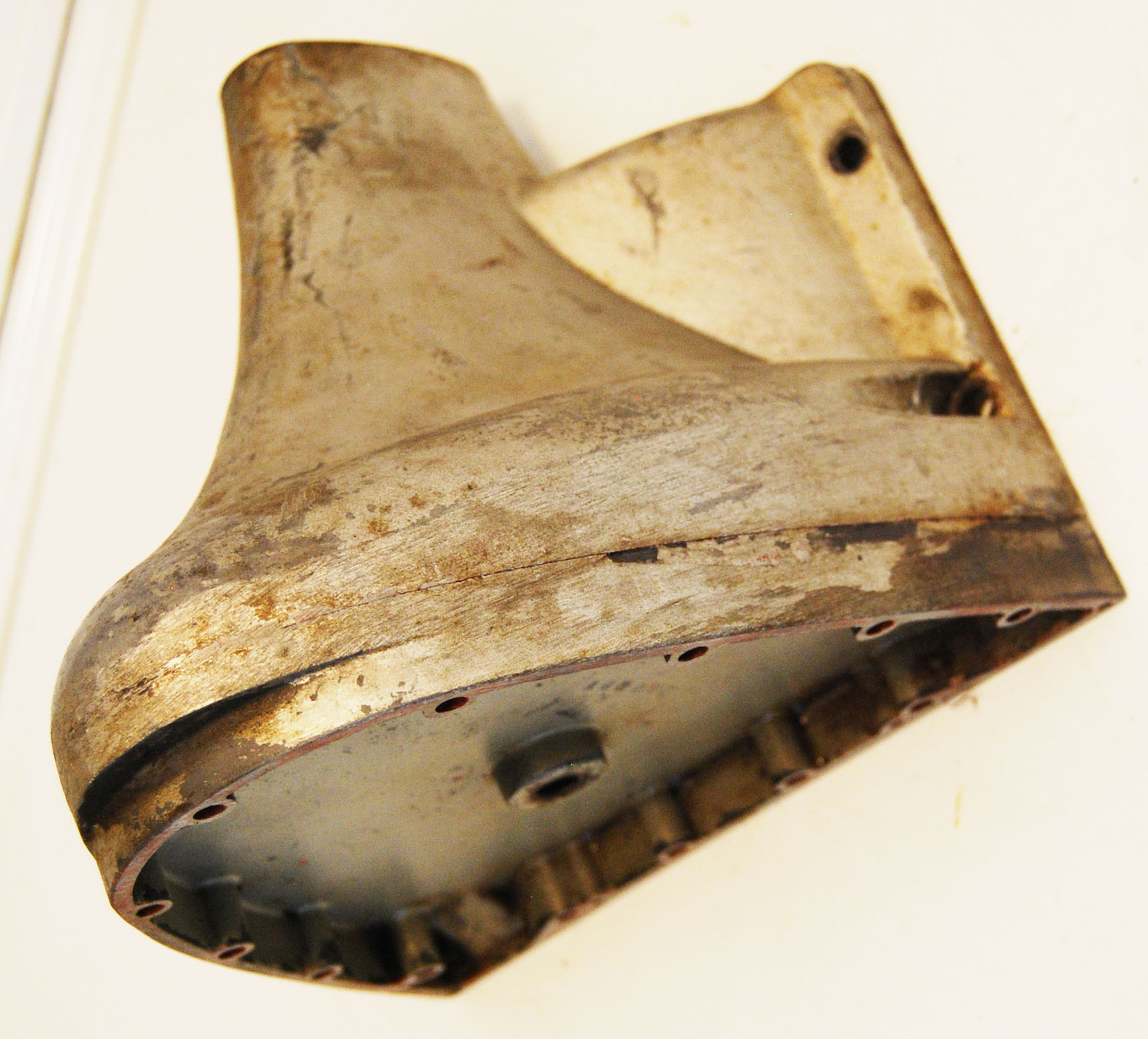

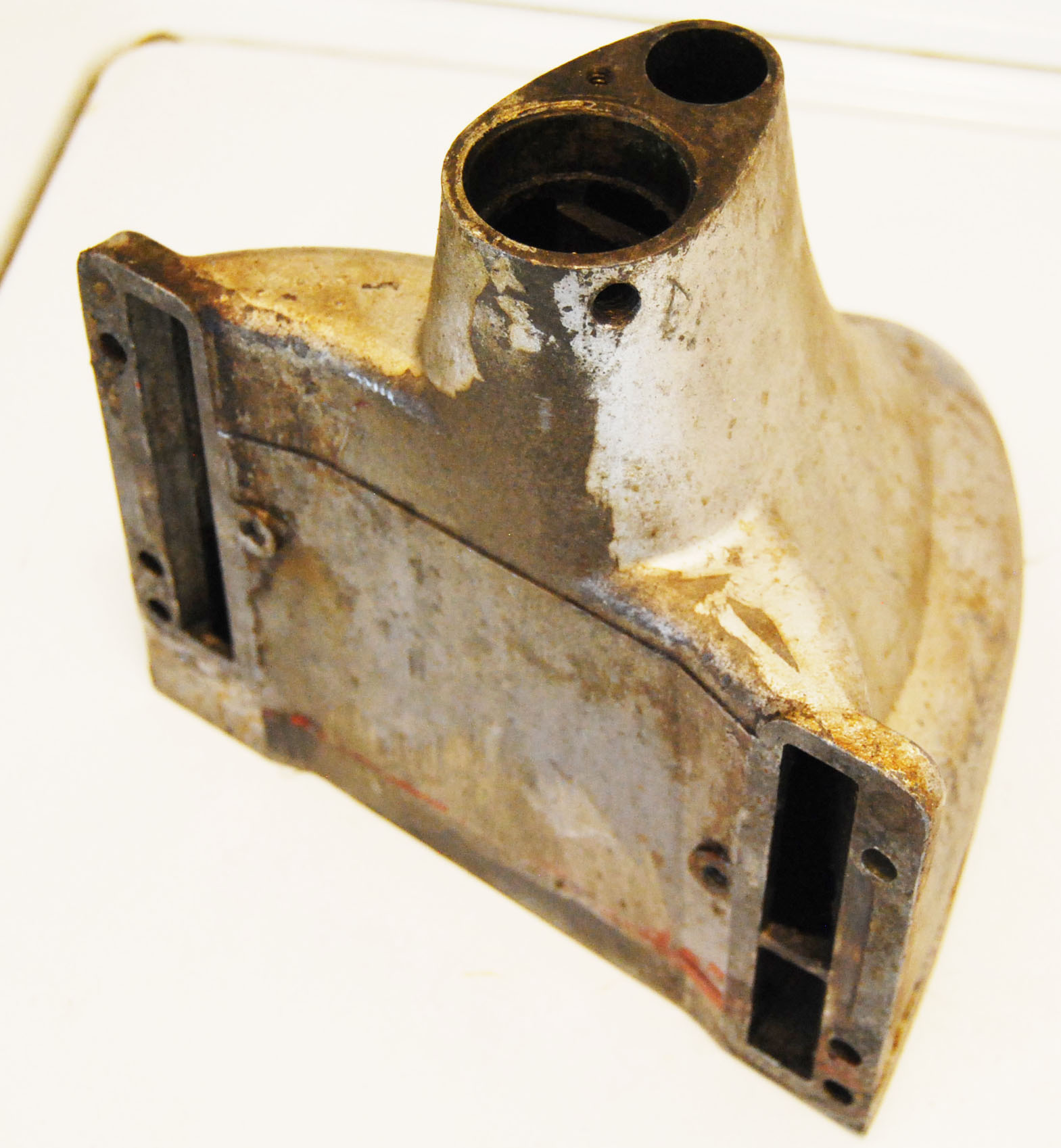

Muffler | 1940/41* | PIC#2 | $15.00 | |
 |

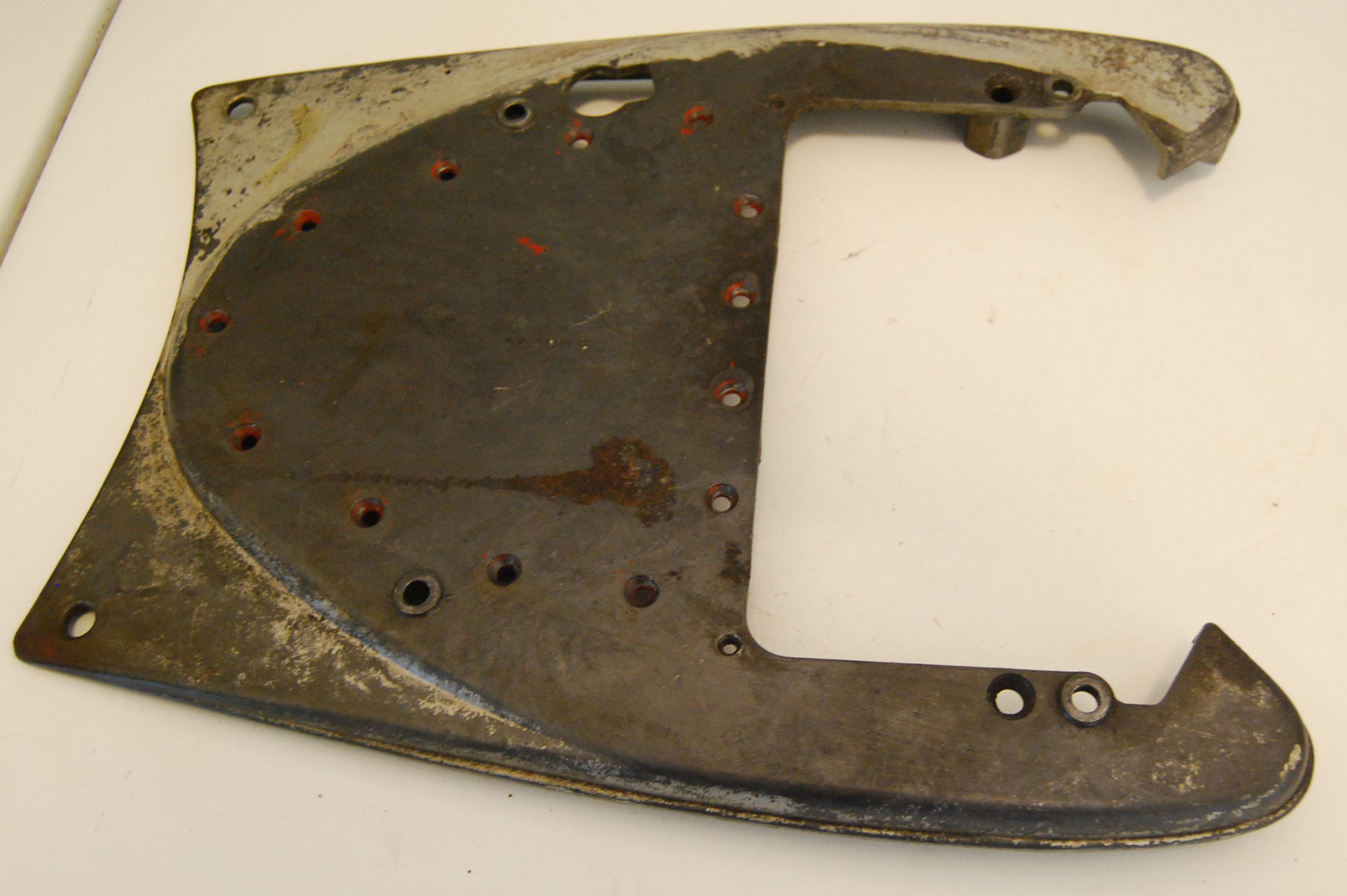

Muffler Cover | 1940/41* | PIC#2 | $19.00 | |
 |

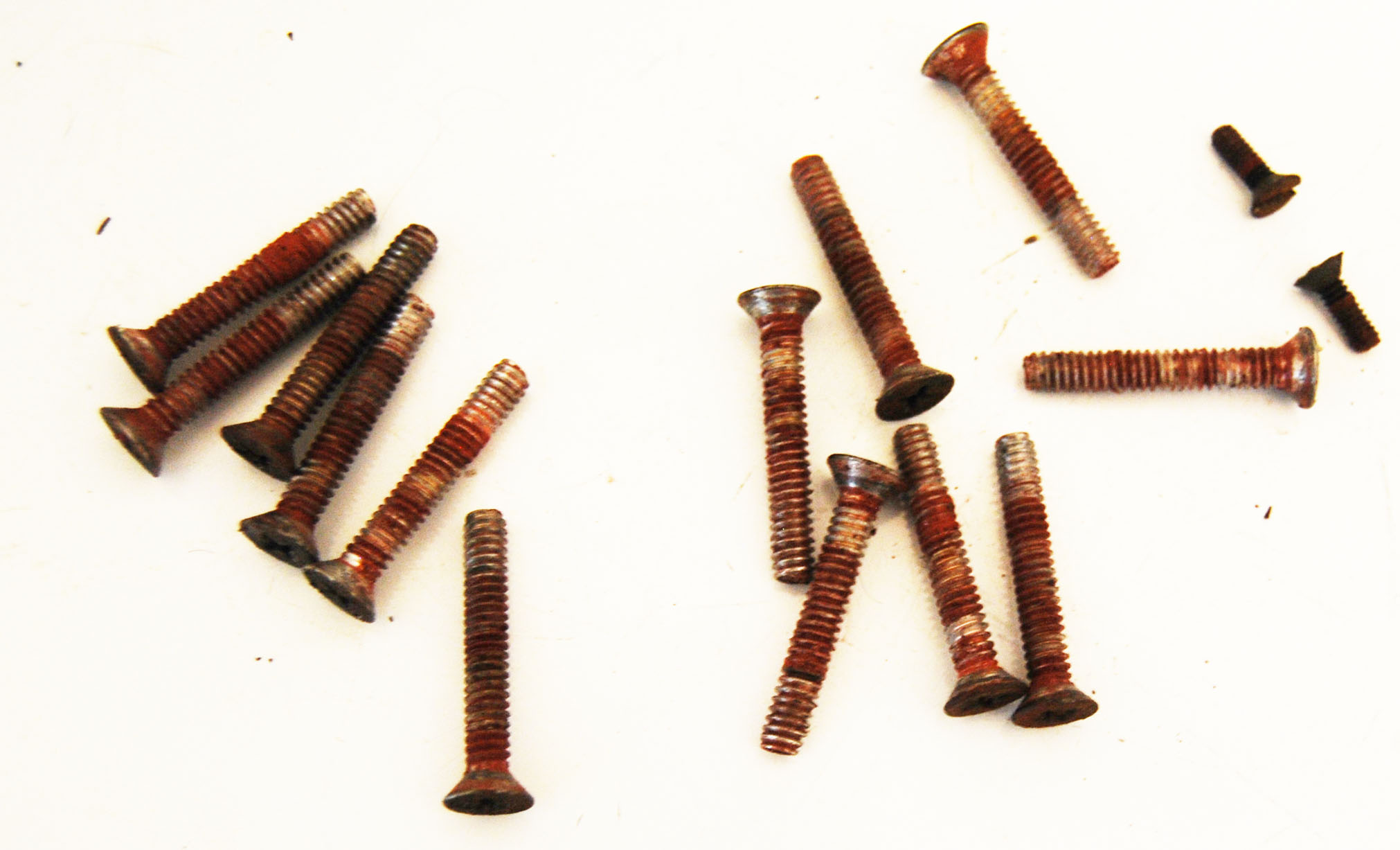

Muffler Cover Screw Set (15 pieces) (two sets available) |
1940/41* | n/a | $7.00 | |
 |

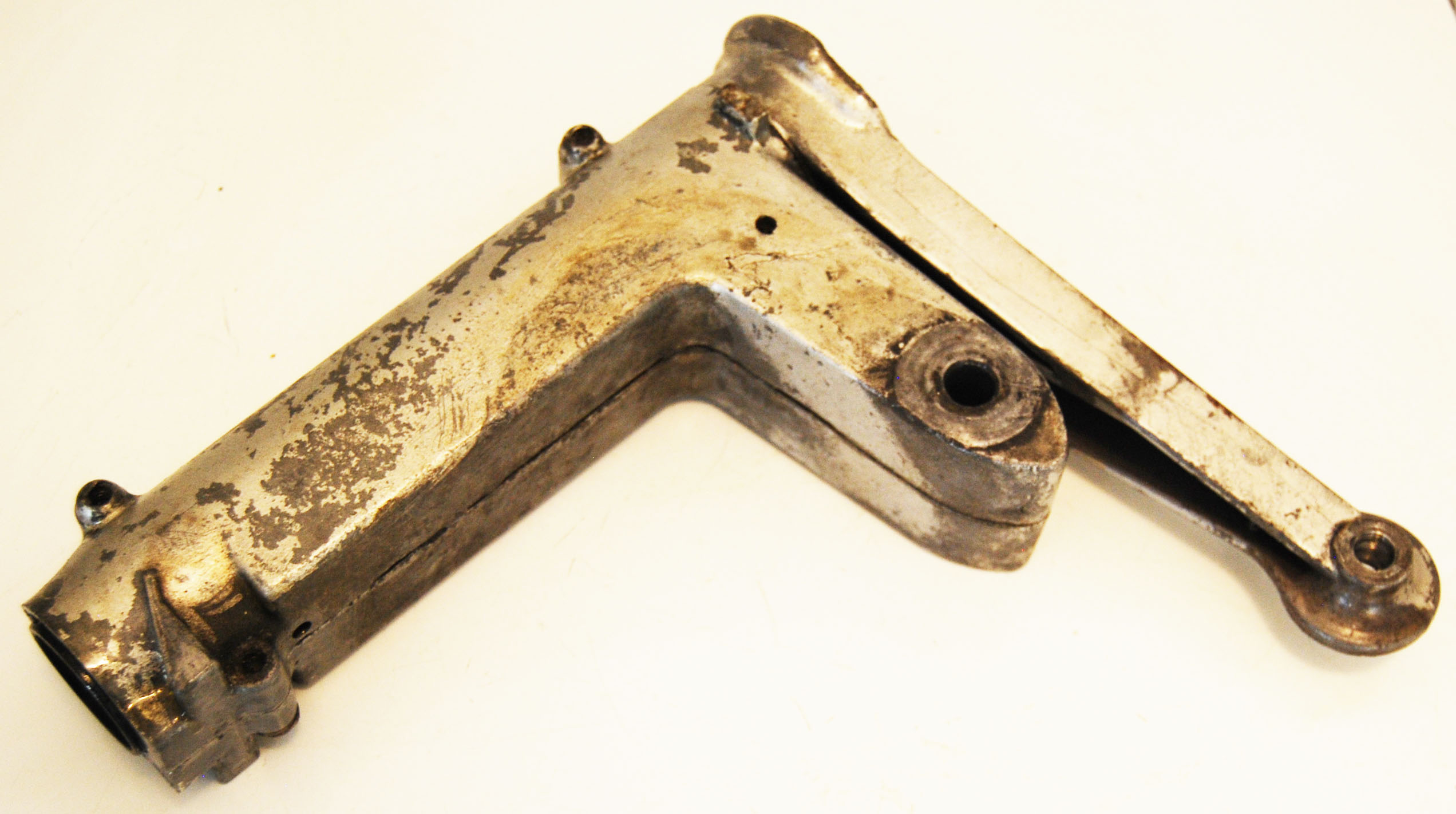

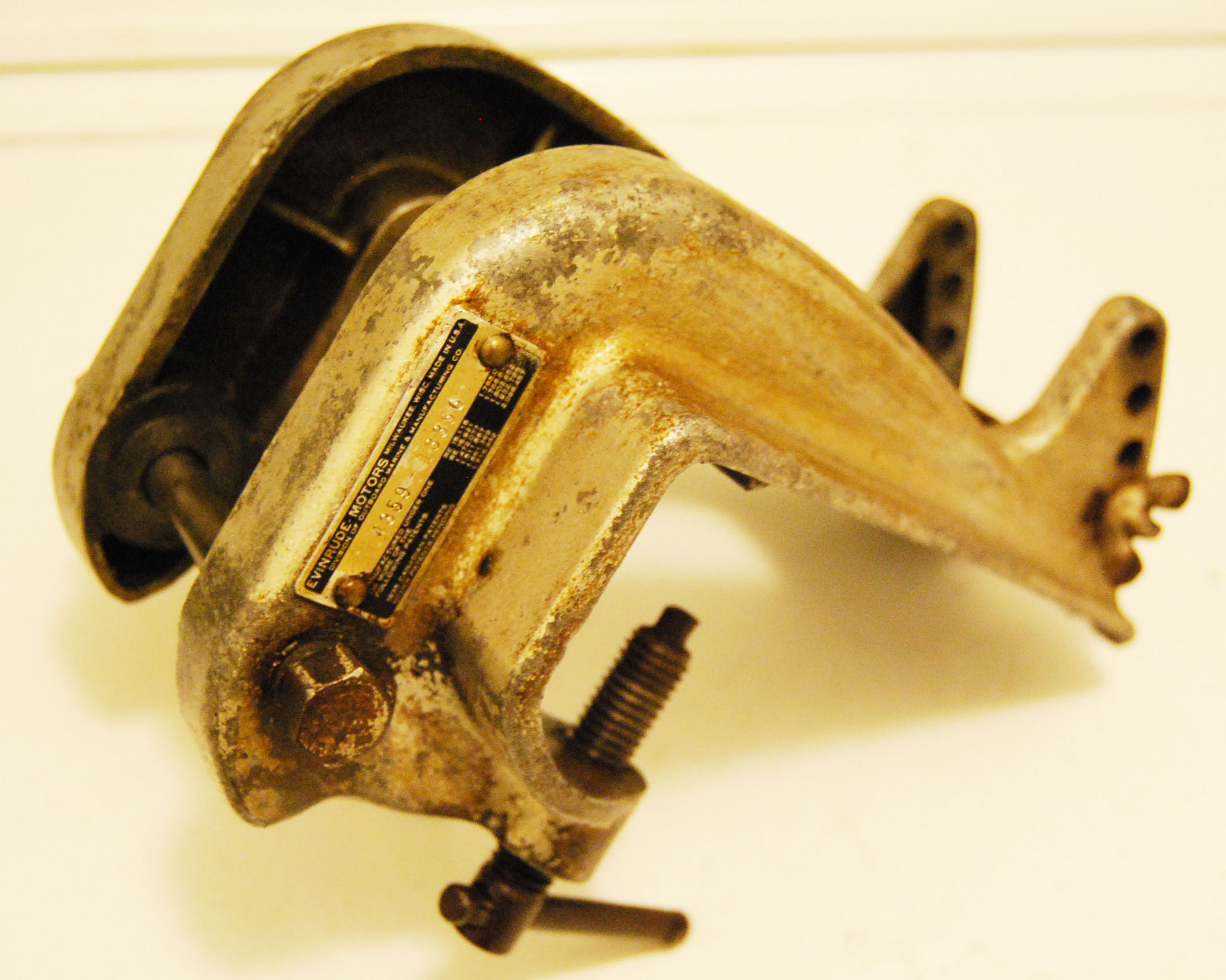

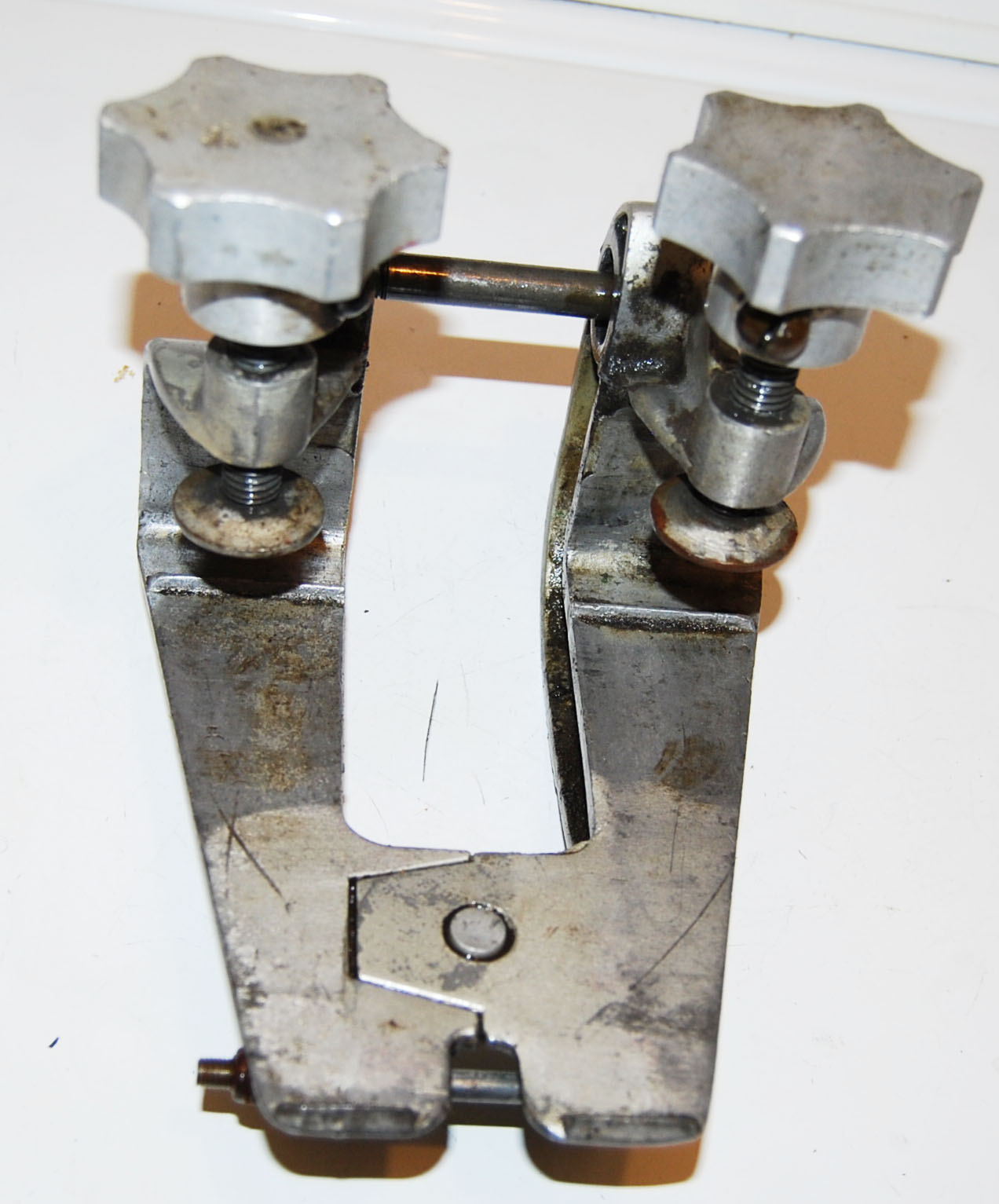

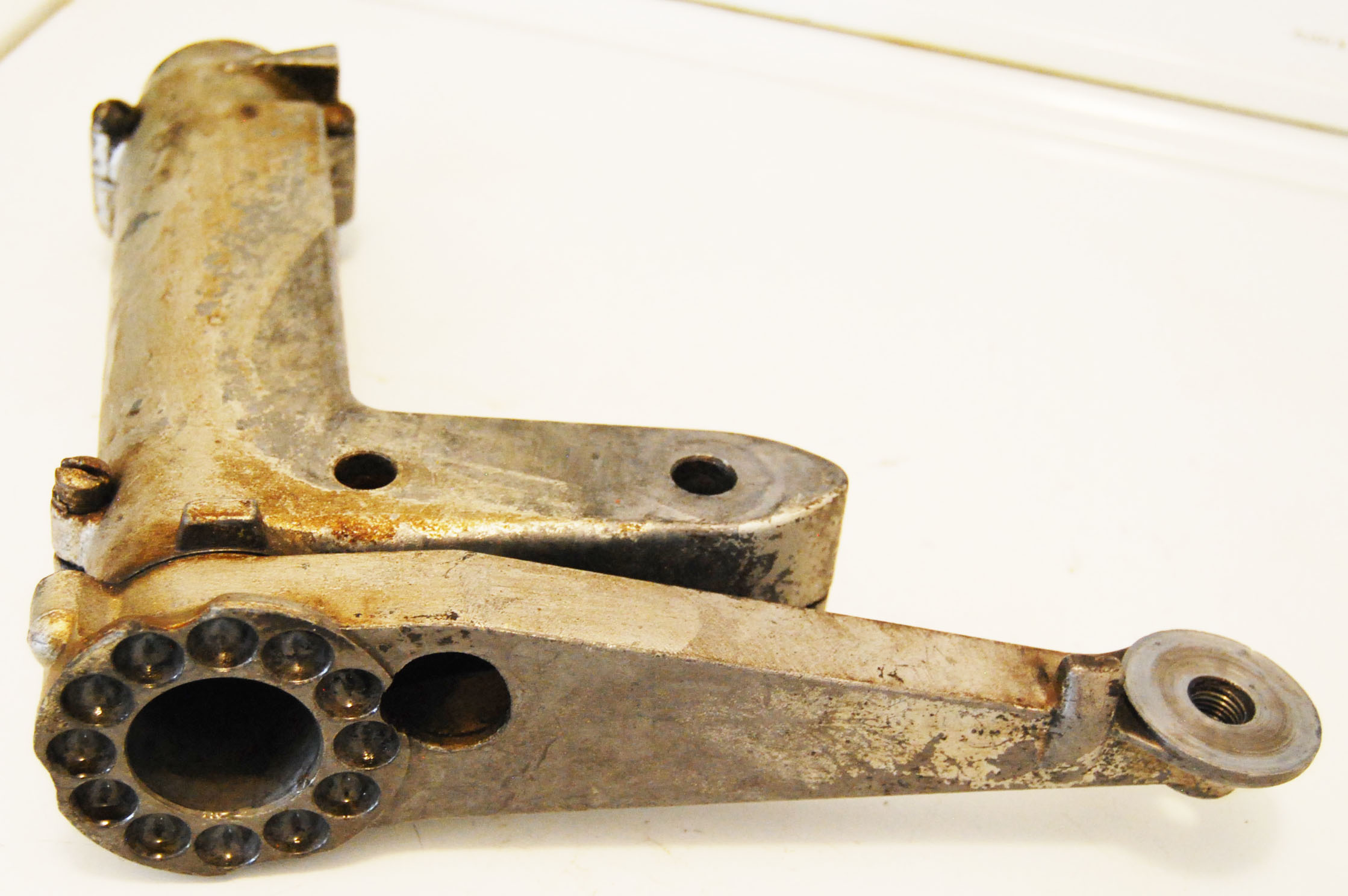

Swivel Bracket Assy. | 1940/41* | PIC#2 | $28.00 | |
 |

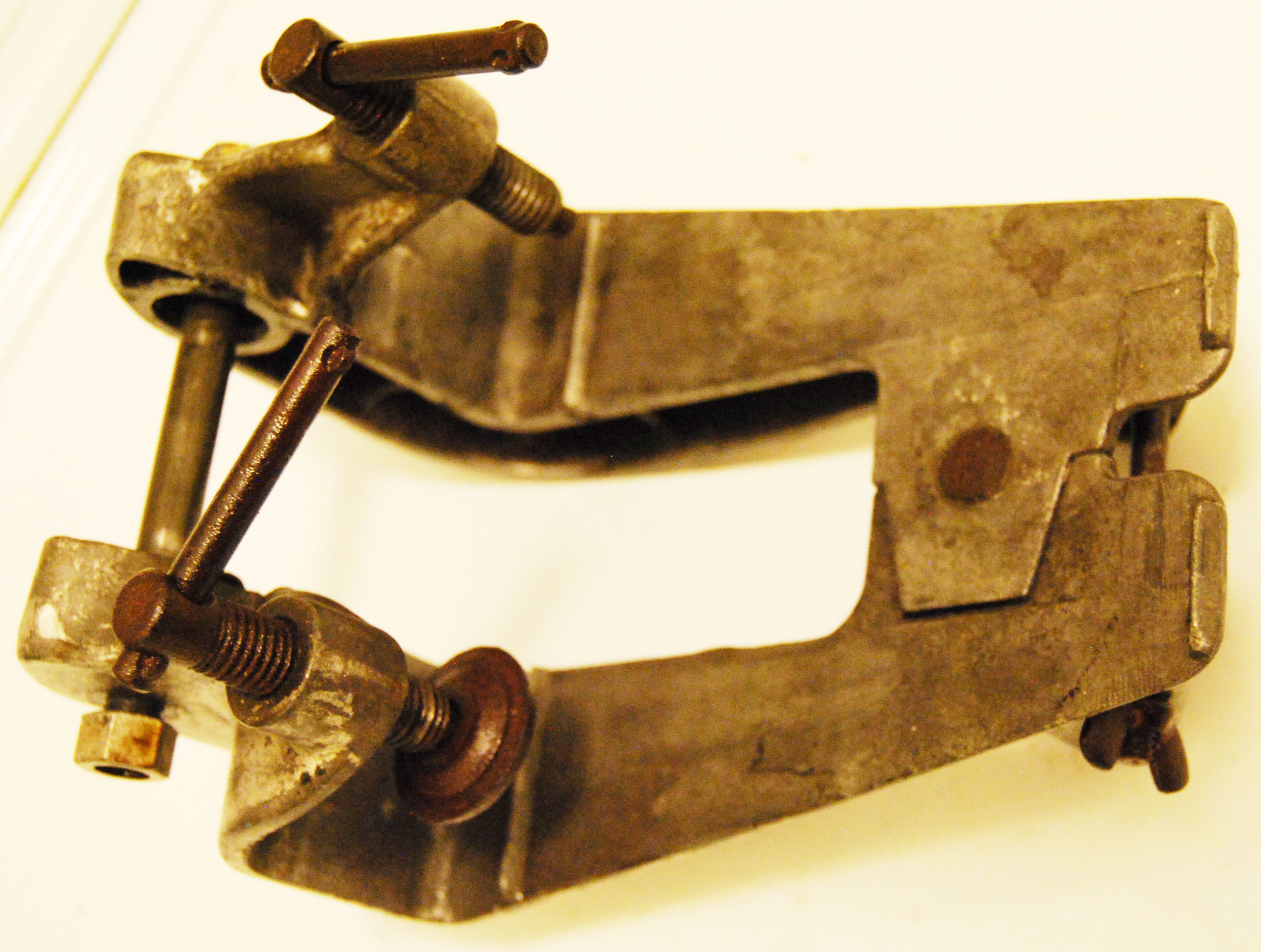

Stern Bracket Assy. (one clamp pad is missing) |
1940/41* | $22.00 | ||
 |

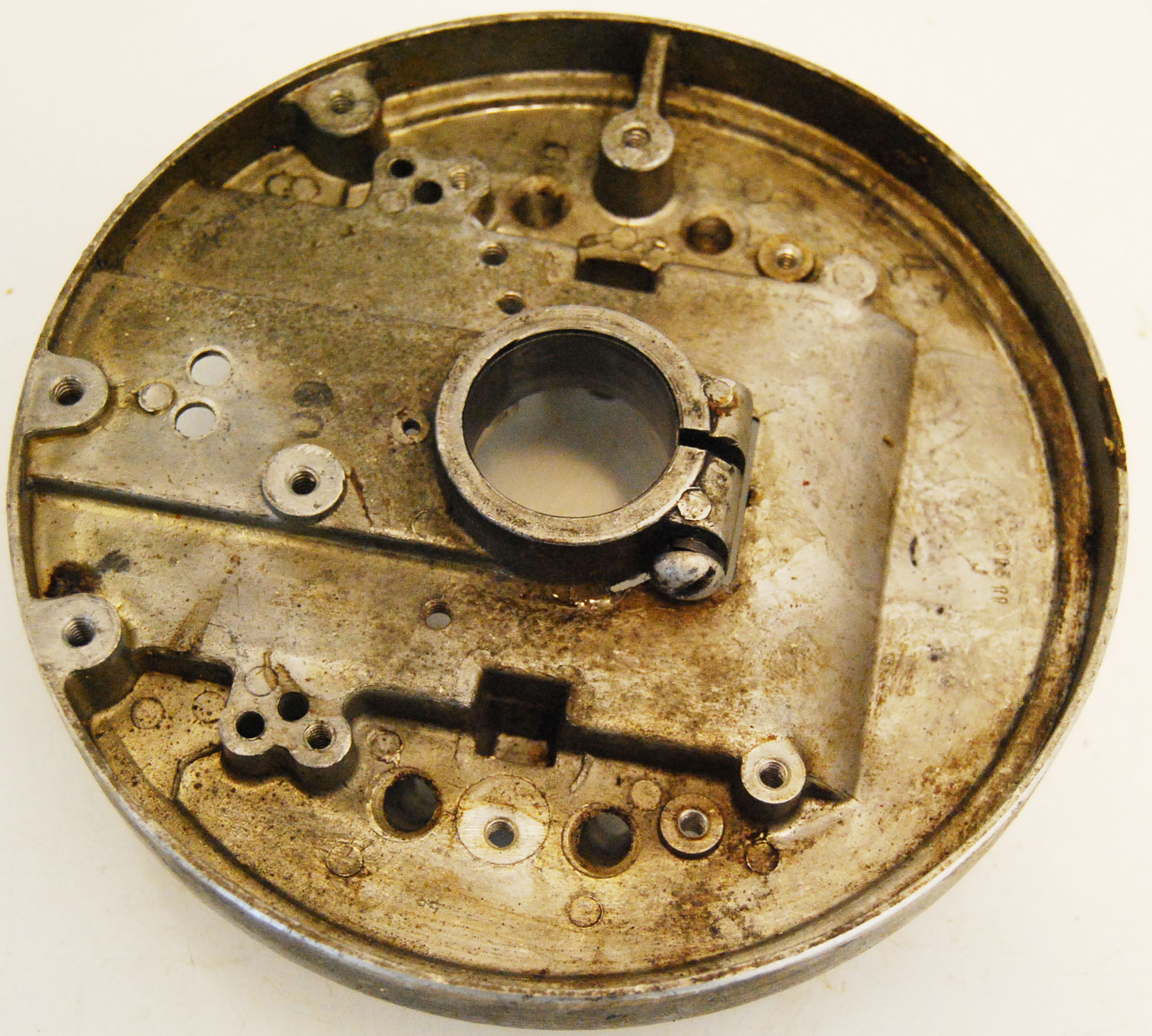

Stator Plate | 1940/41* | PIC#2 | $11.00 | |
 |
Advance Lever Assy. | 1940/41* | PIC#2 | $12.00 | |
 |

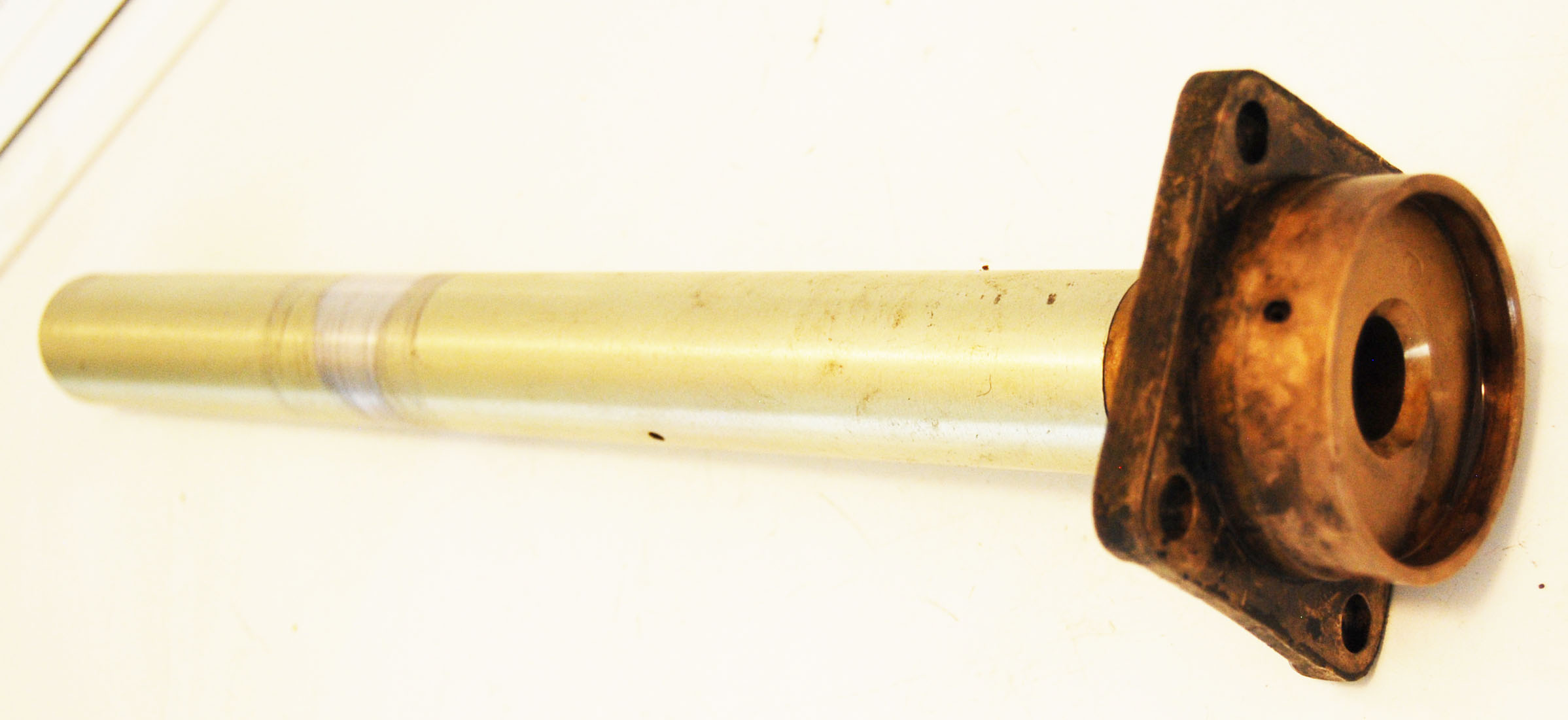

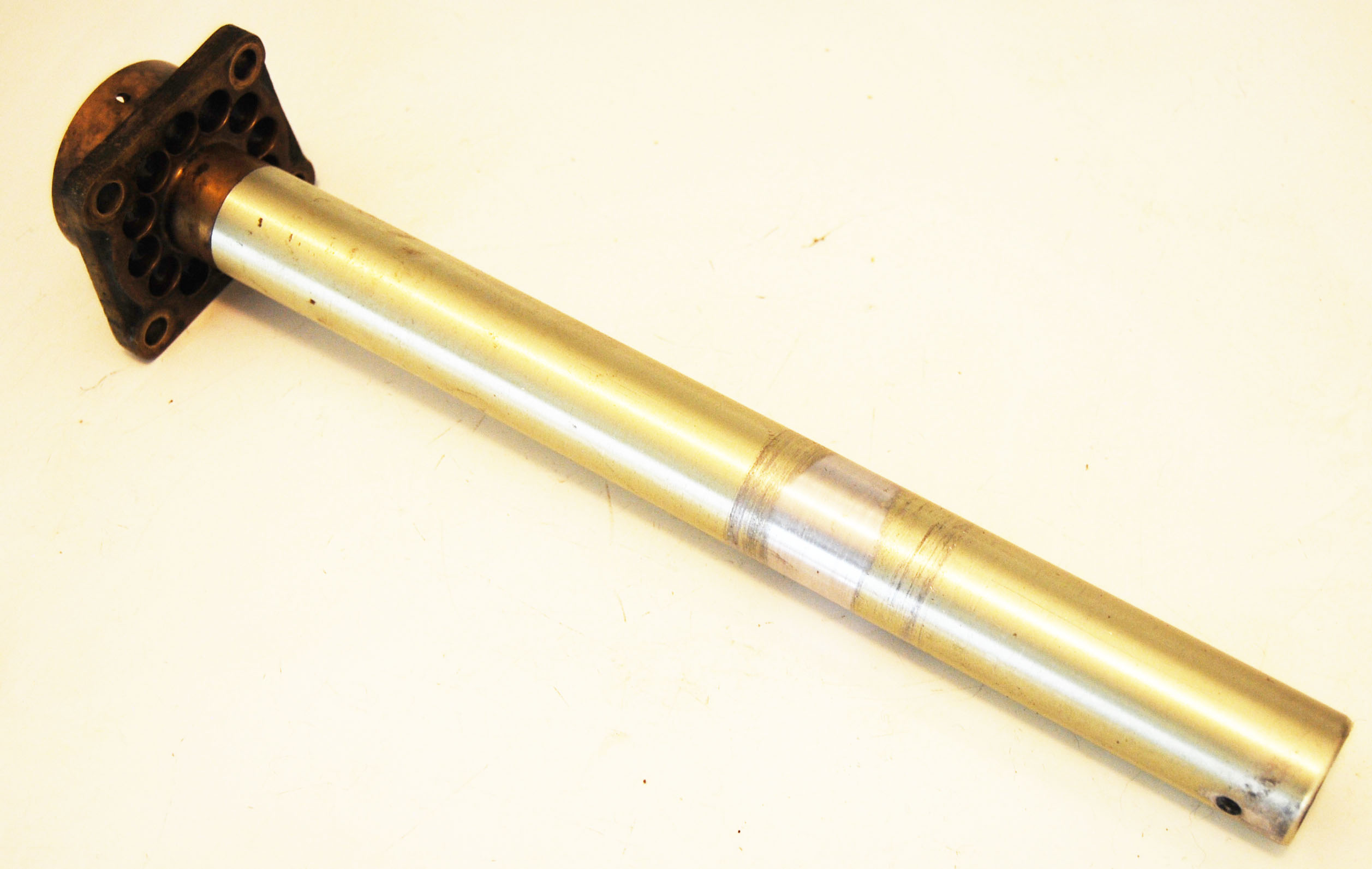

Pivot Post | 1940/41* | PIC#2 | $18.00 | |
 |

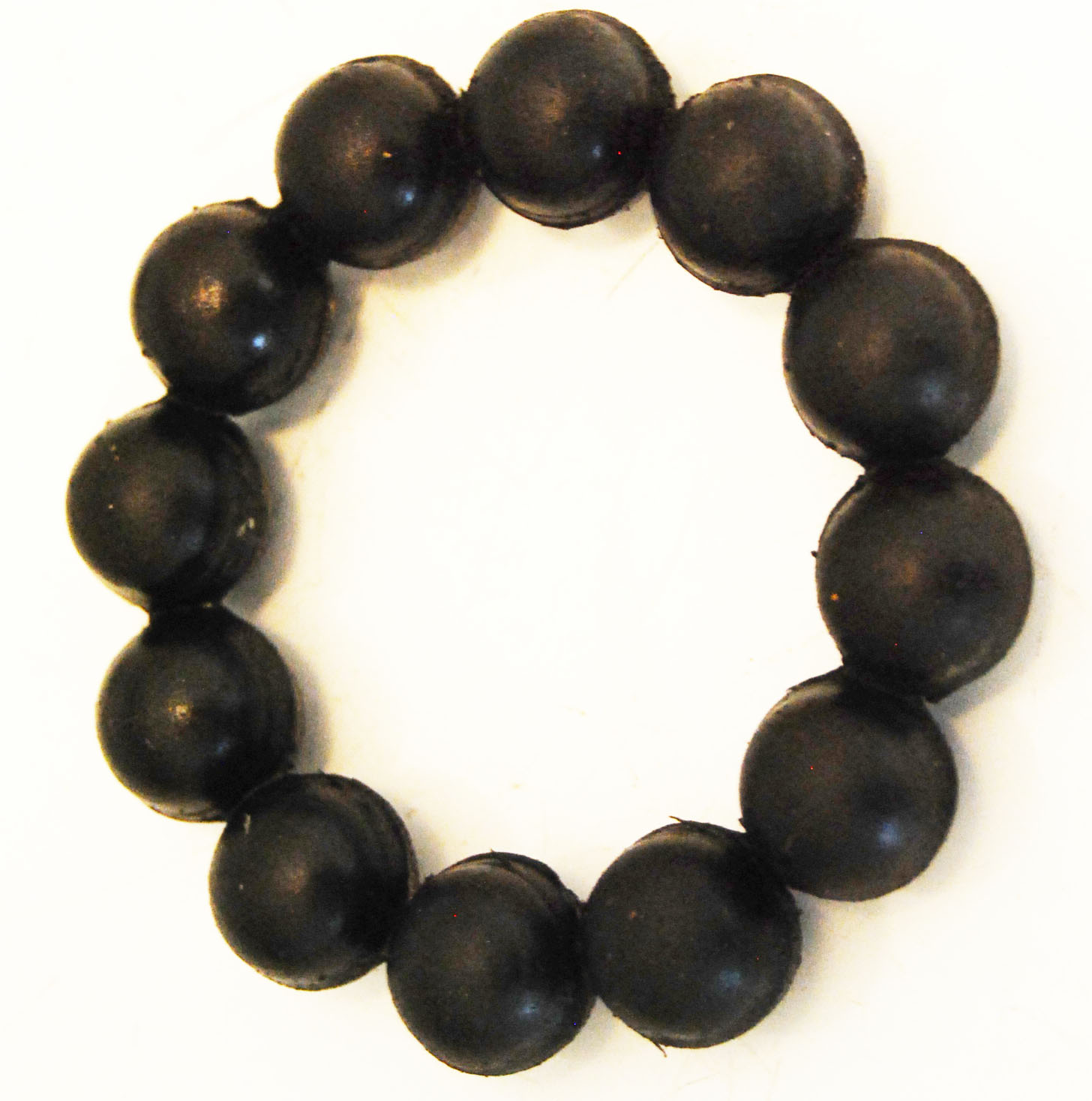

Pivot Post Bearing Ring | 1940/41* | n/a | $10.00 | |
 |

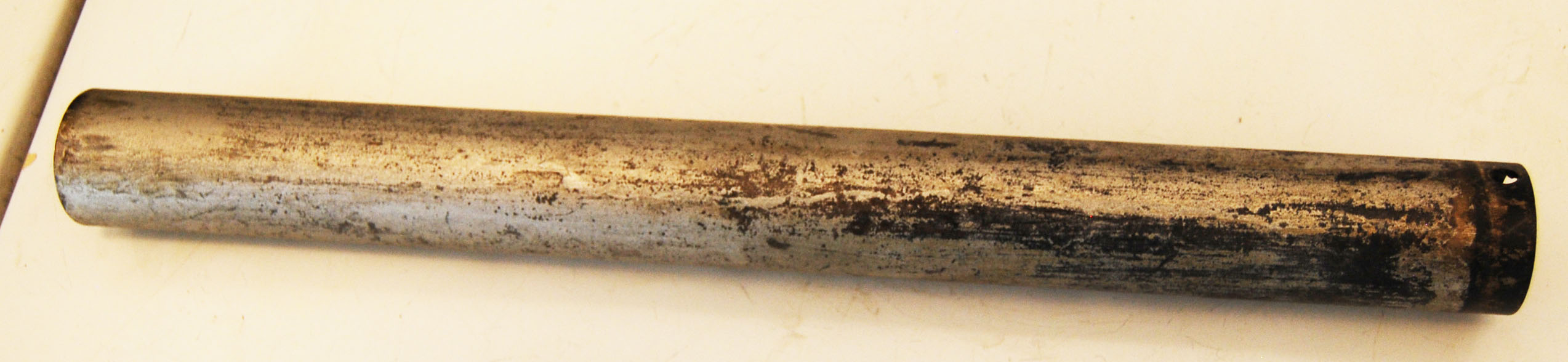

Exhaust Pipe | 1940/41* | n/a | $8.00 | |
 |

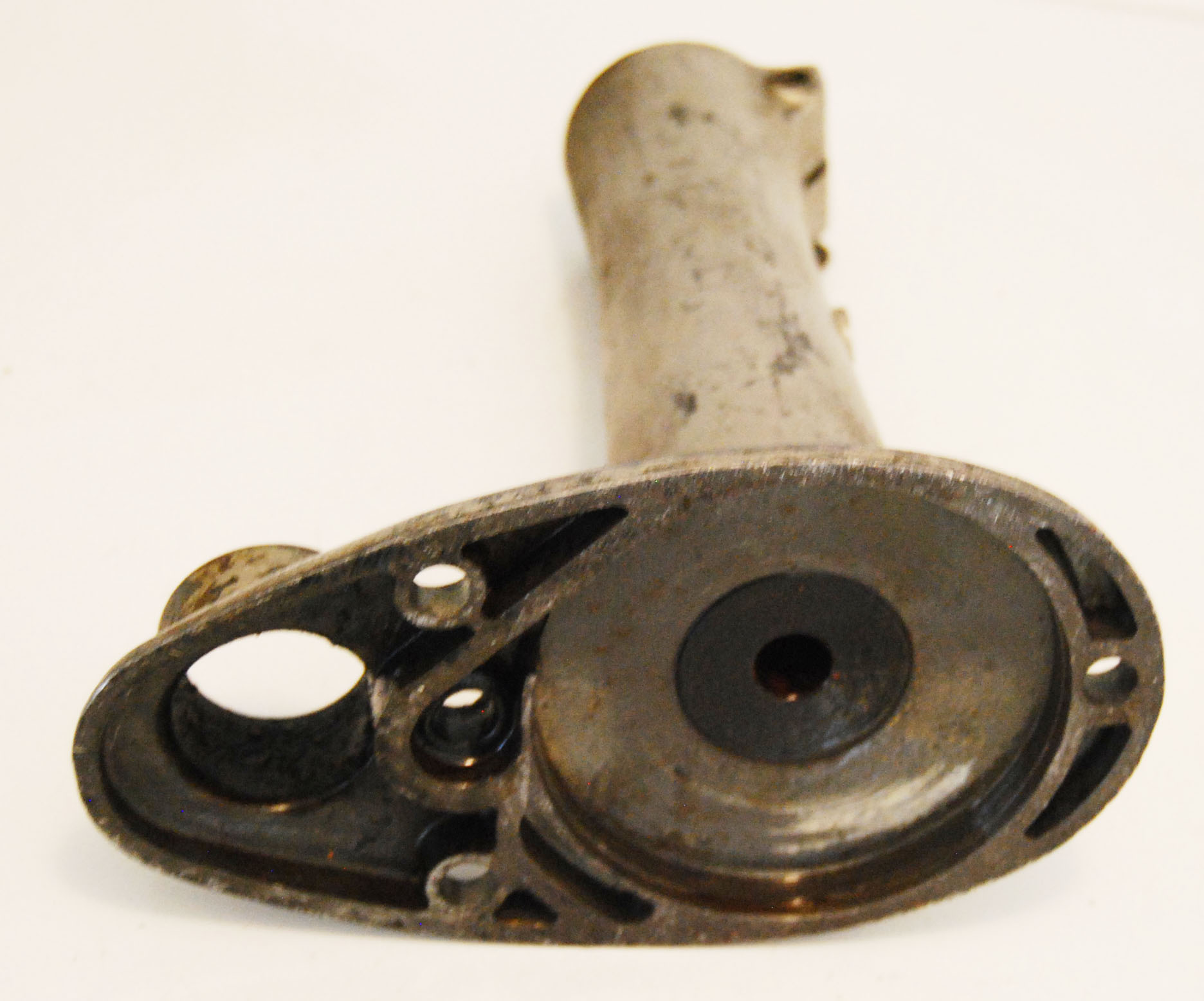

Mid Section | 1940/41* | PIC#2 | $14.00 | |
 |

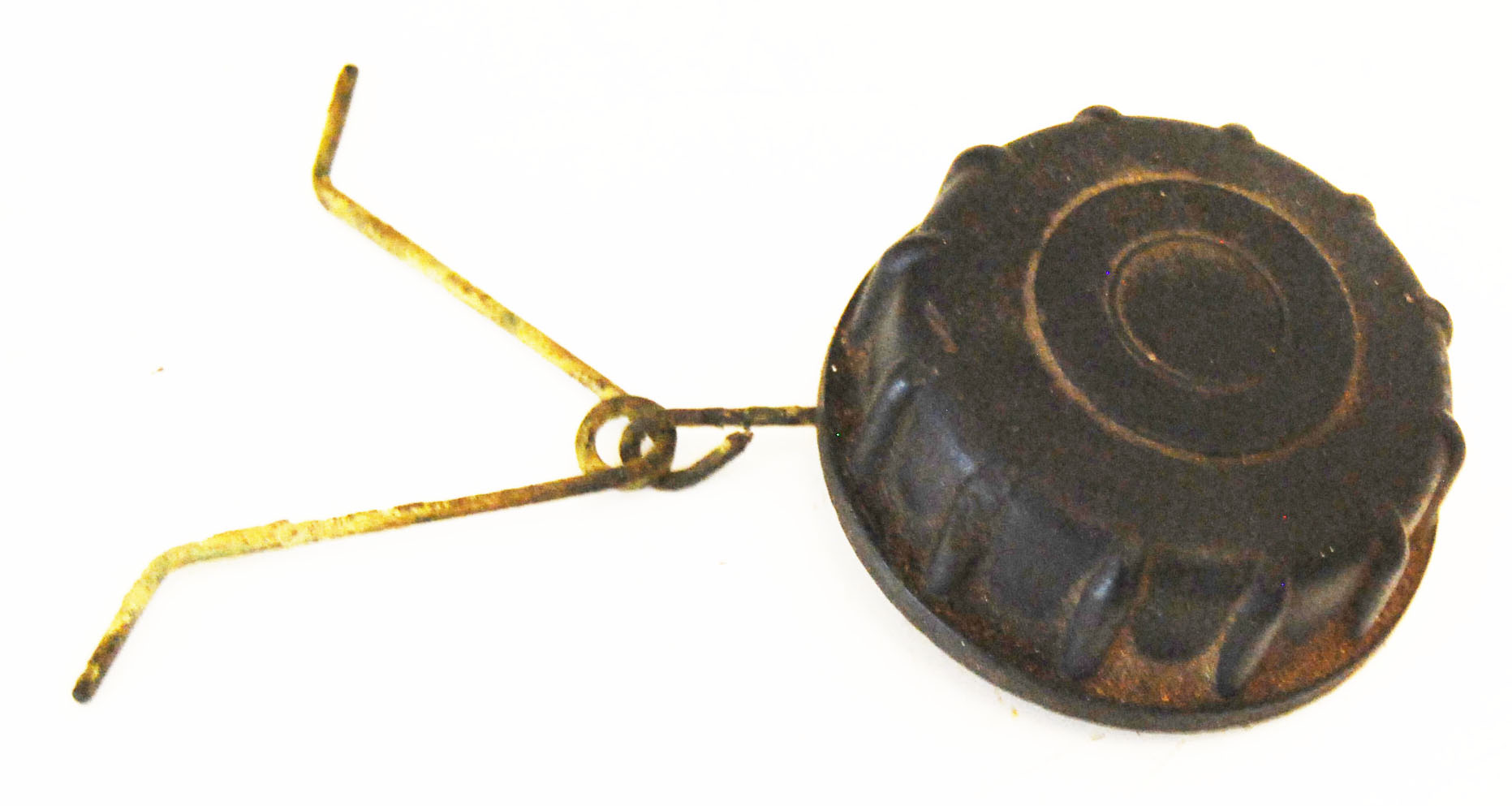

Gas Cap | 1940/41* | n/a | $10.00 | |
 |
Gas Tank fuel filter | 1940/41* | n/a | $8.50 | |
 |
Ignition Coil (two available) (tested) | 1940/41* | n/a | $18.00 | |
 |
Condensers (2) (should have leads replaced) | 1940/41* | n/a | $5.00 | |
 |

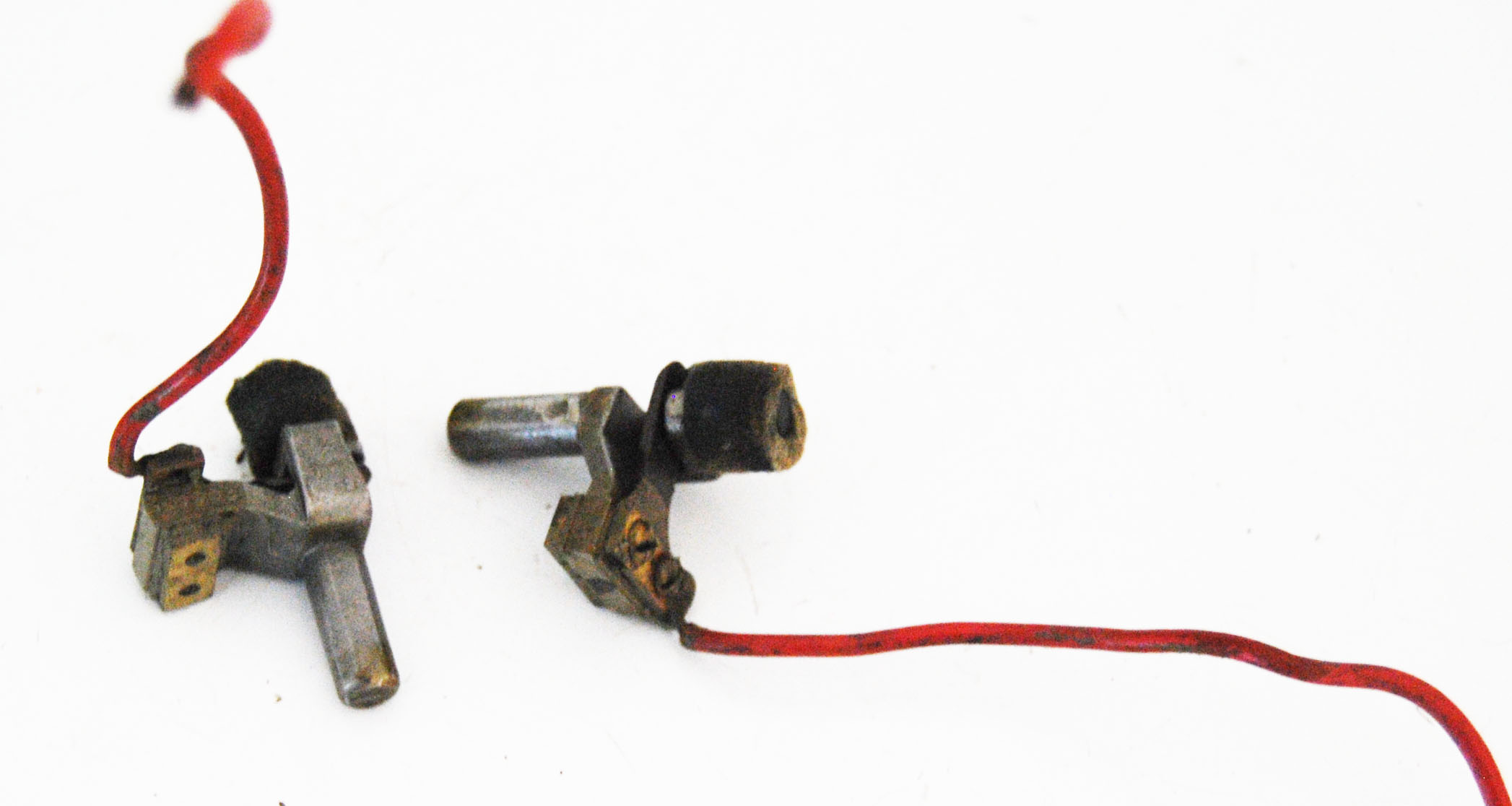

Point Sets (2) (refurbished) | 1940/41* | n/a | $18.00 |
(Page updated 9/25/2024)
*will fit other years
If multiple items are ordered, shipping can be combined and a refund sent to buyer.
