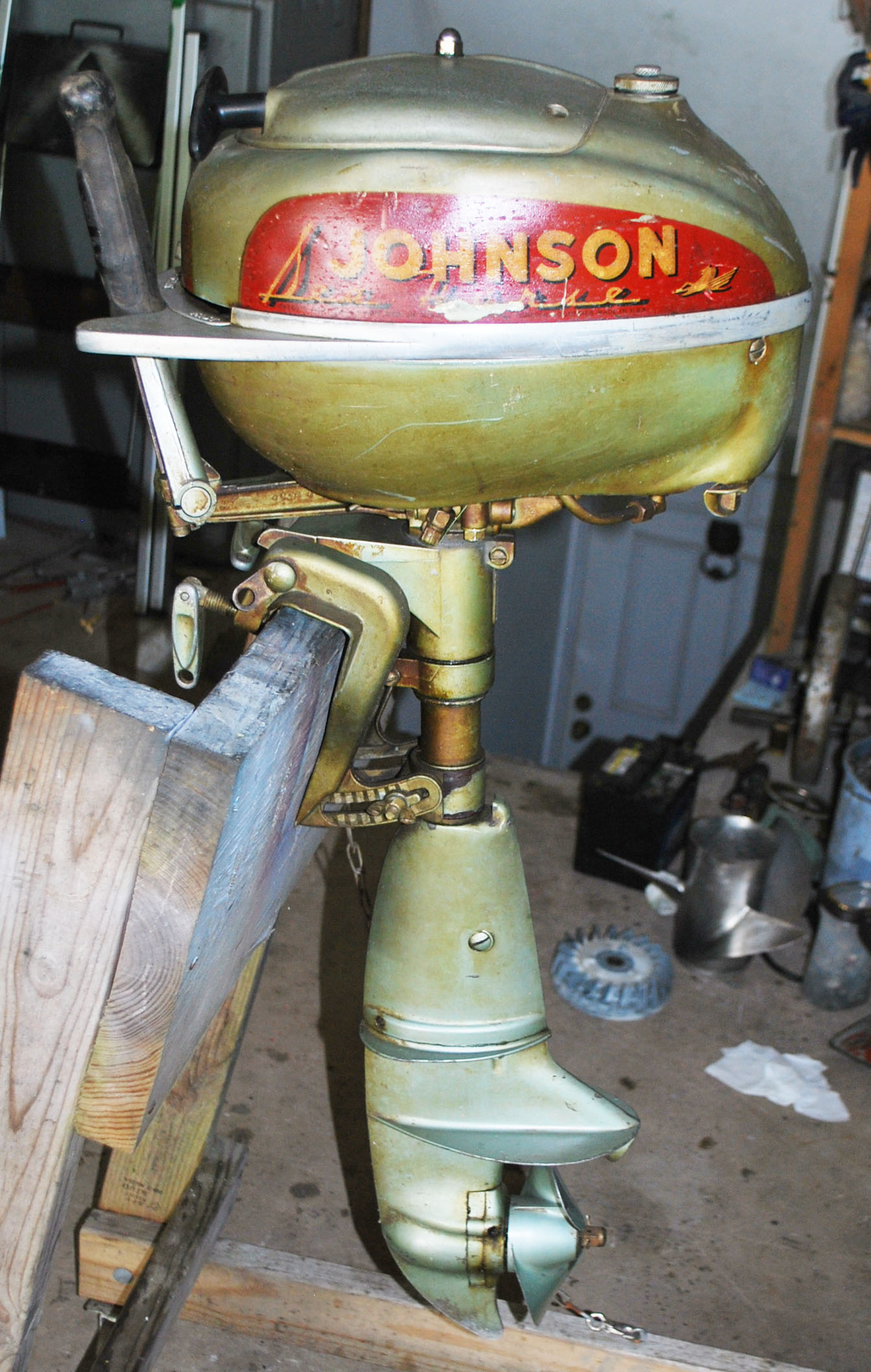

PARTS FOR 1946-1949 JOHNSON 5 HP (TD-20) OUTBOARD MOTORS
The parts from this outboard motor are all at our Pennsylvania location which is open from April 1st thru September 26th.
NOTE: Our shopping cart adds shipping charges for domestic orders only. We will ship internationally after a request for a shipping quote is made.
RETURN TO JOHNSON/EVINRUDE PARTS INDEX
Click on any image to enlarge.
| Part # | Pic 1 | Description | Year | Extra Pics | PRICE |
|---|---|---|---|---|---|
 |
TD-20, 5 HP Parts Catalog (pdf format*), 14 pages | 1946-49 | n/a | $3.50 | |
 |

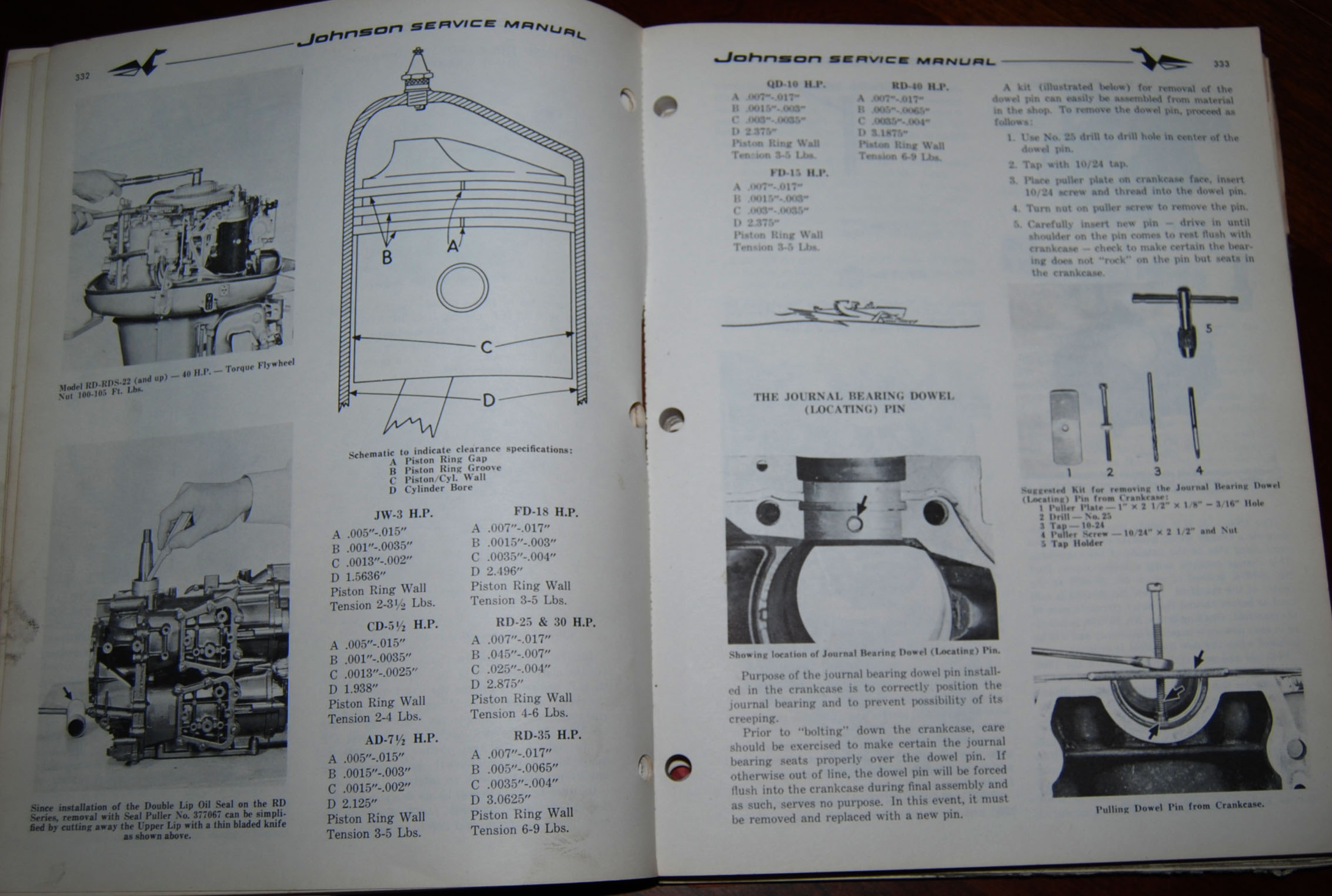

Service Instructions, TS, TD 5 HP, 20 pages (pdf format)* | 1941-1949 | PIC#2 | $3.50 | |
| 42-113, 42-114,41-300459 |  |

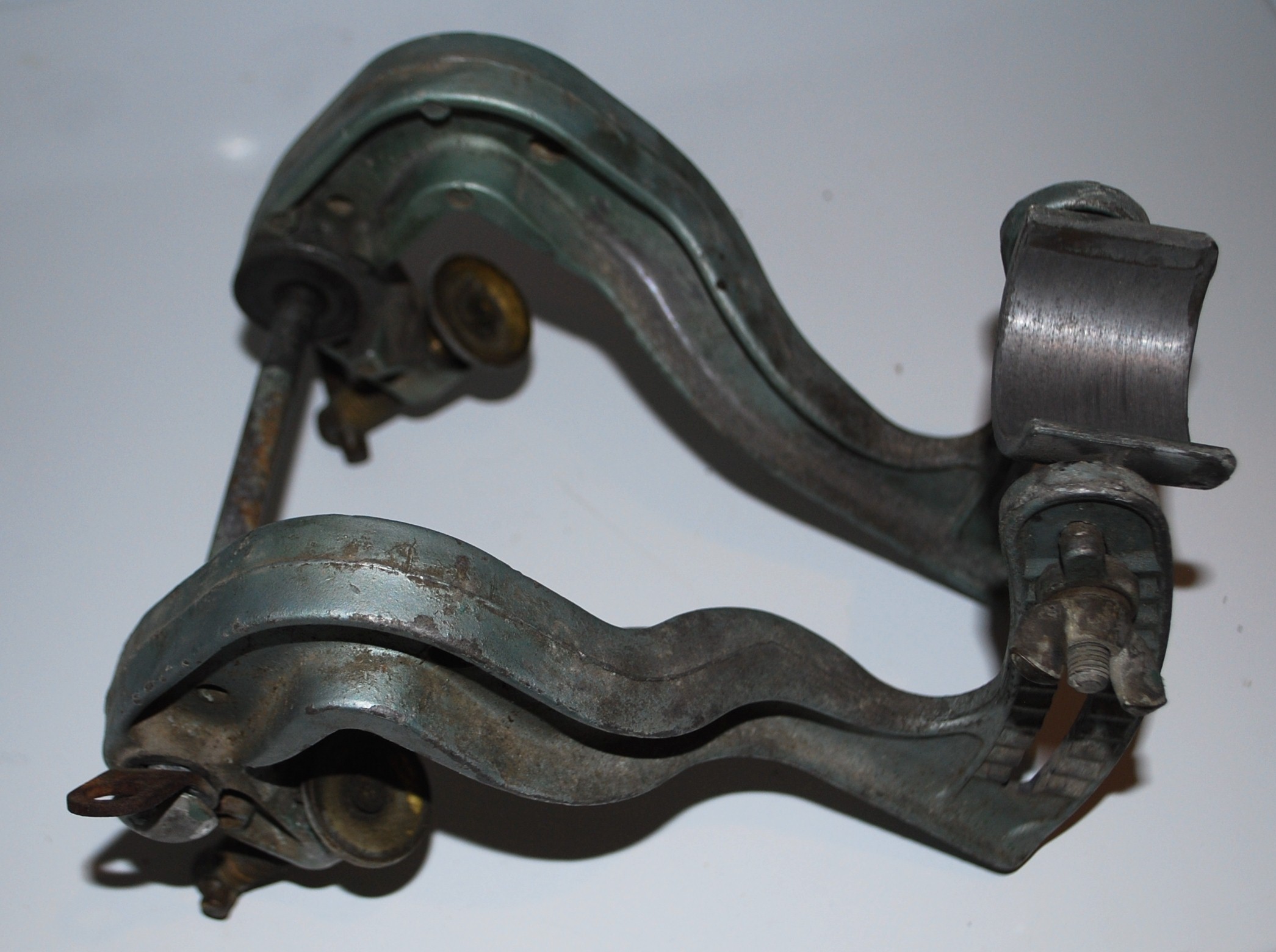

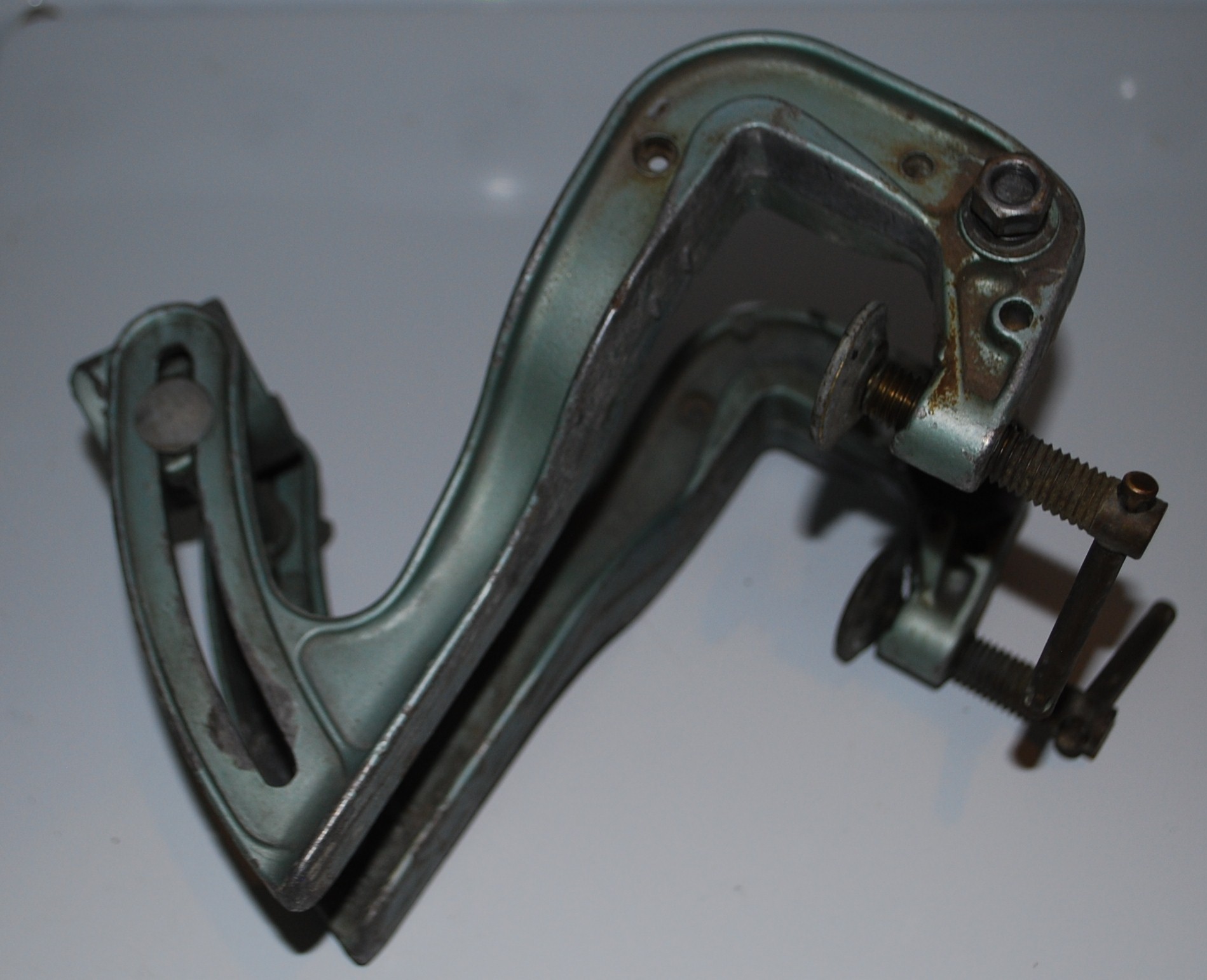

Stern Bracket Assembly (TD-20) 5 HP |
1946 | PIC#2 | $25.00 |
 |

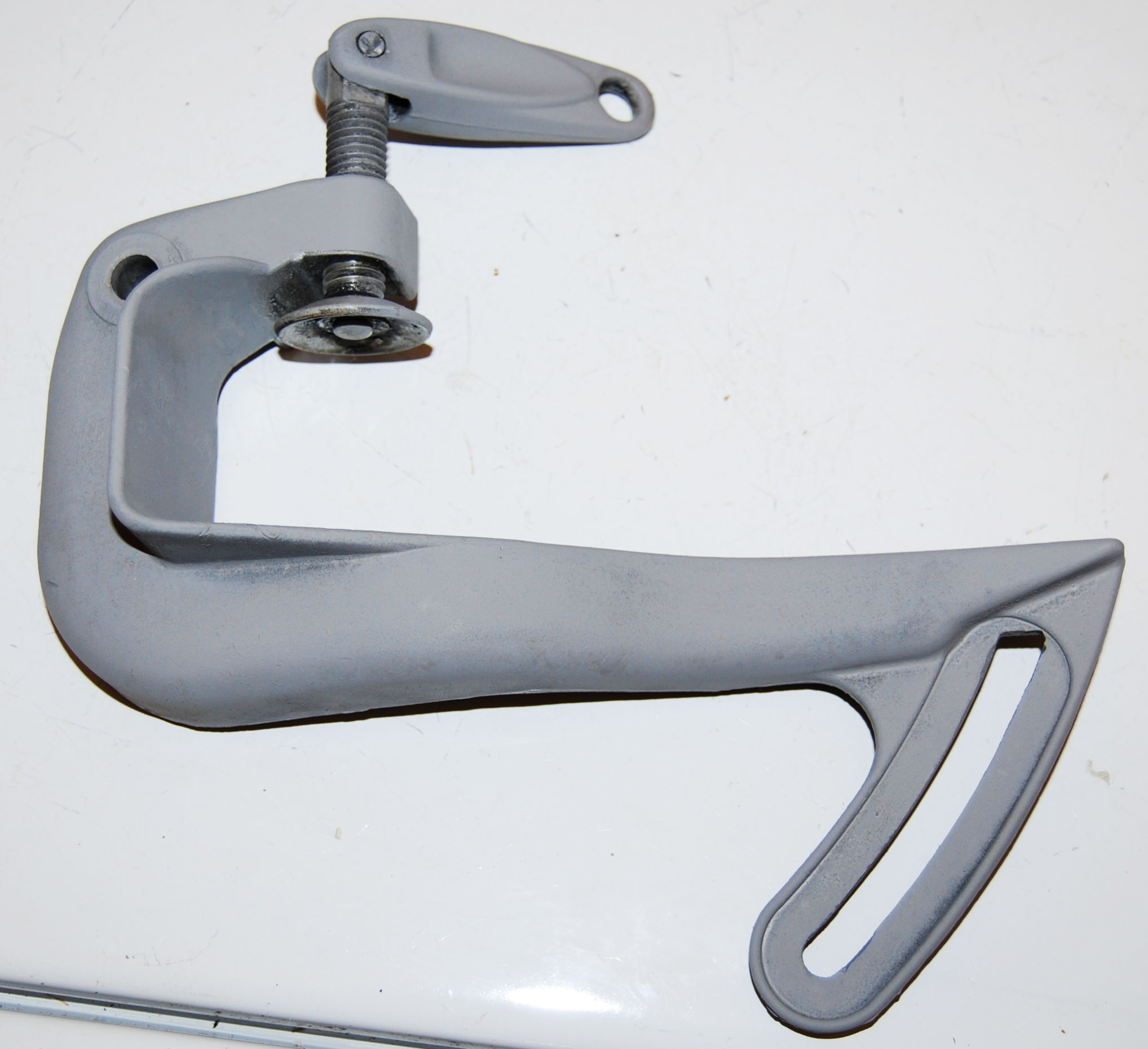

Starboard Stern Bracket (primed) |
1946* | n/a | $12.50 | |
 |

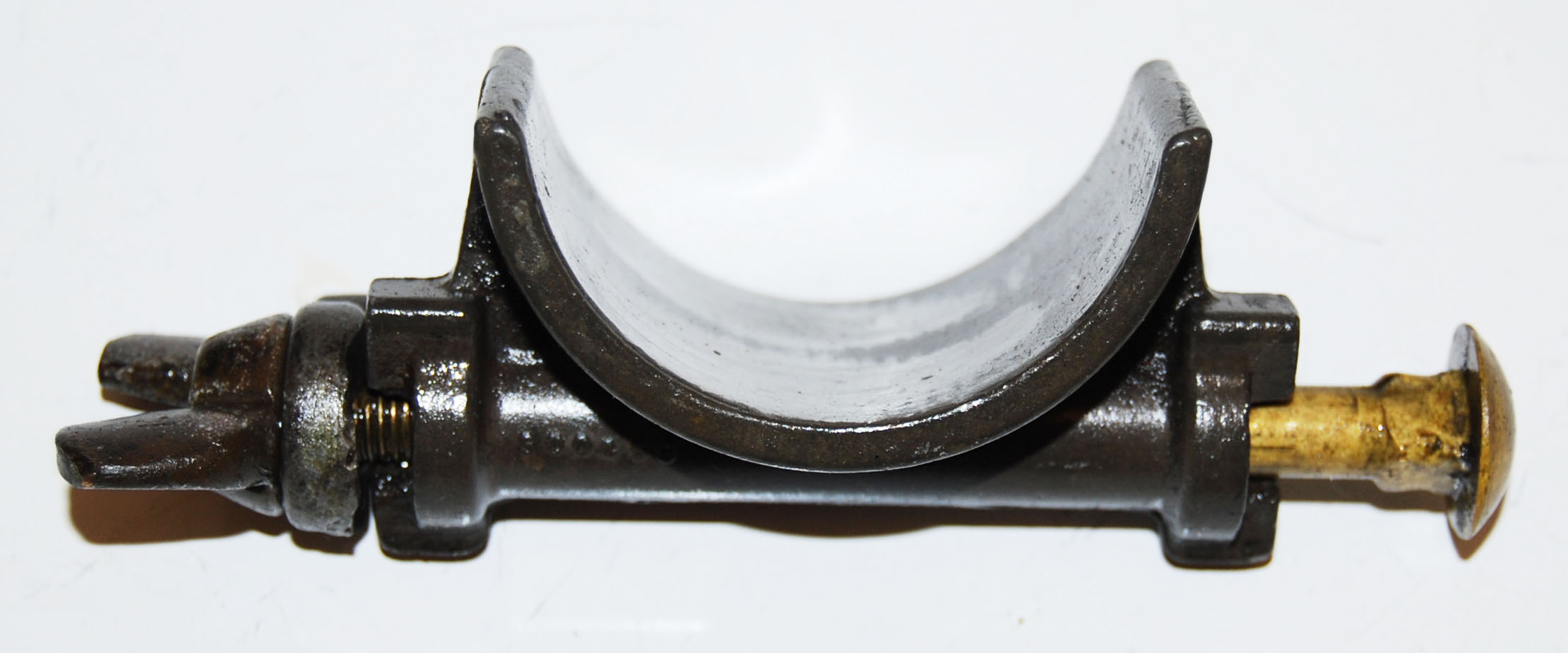

Tilt Angle Support (two available) |
1946* | n/a | $8.50 | |
| 41-300461 |  |

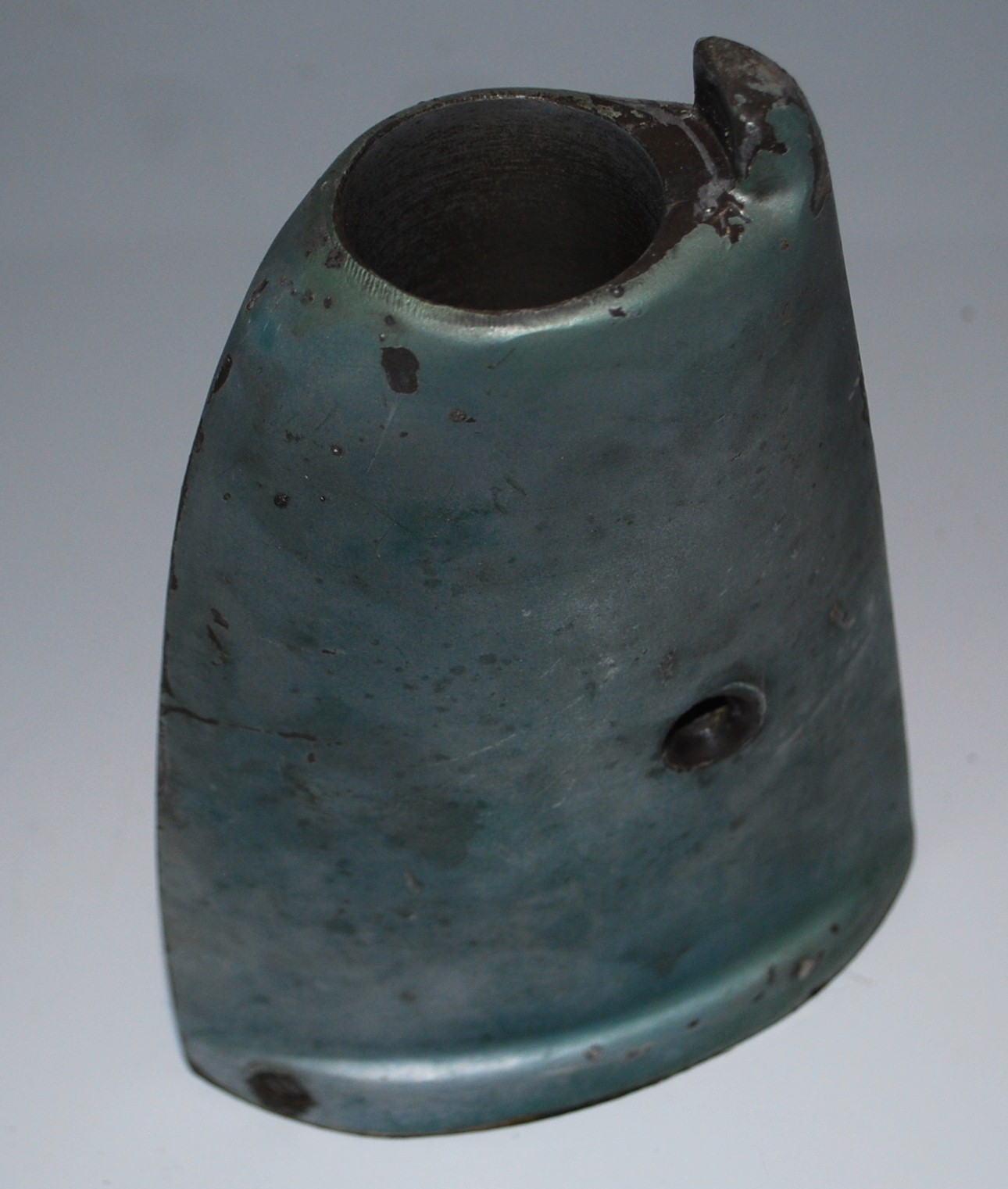

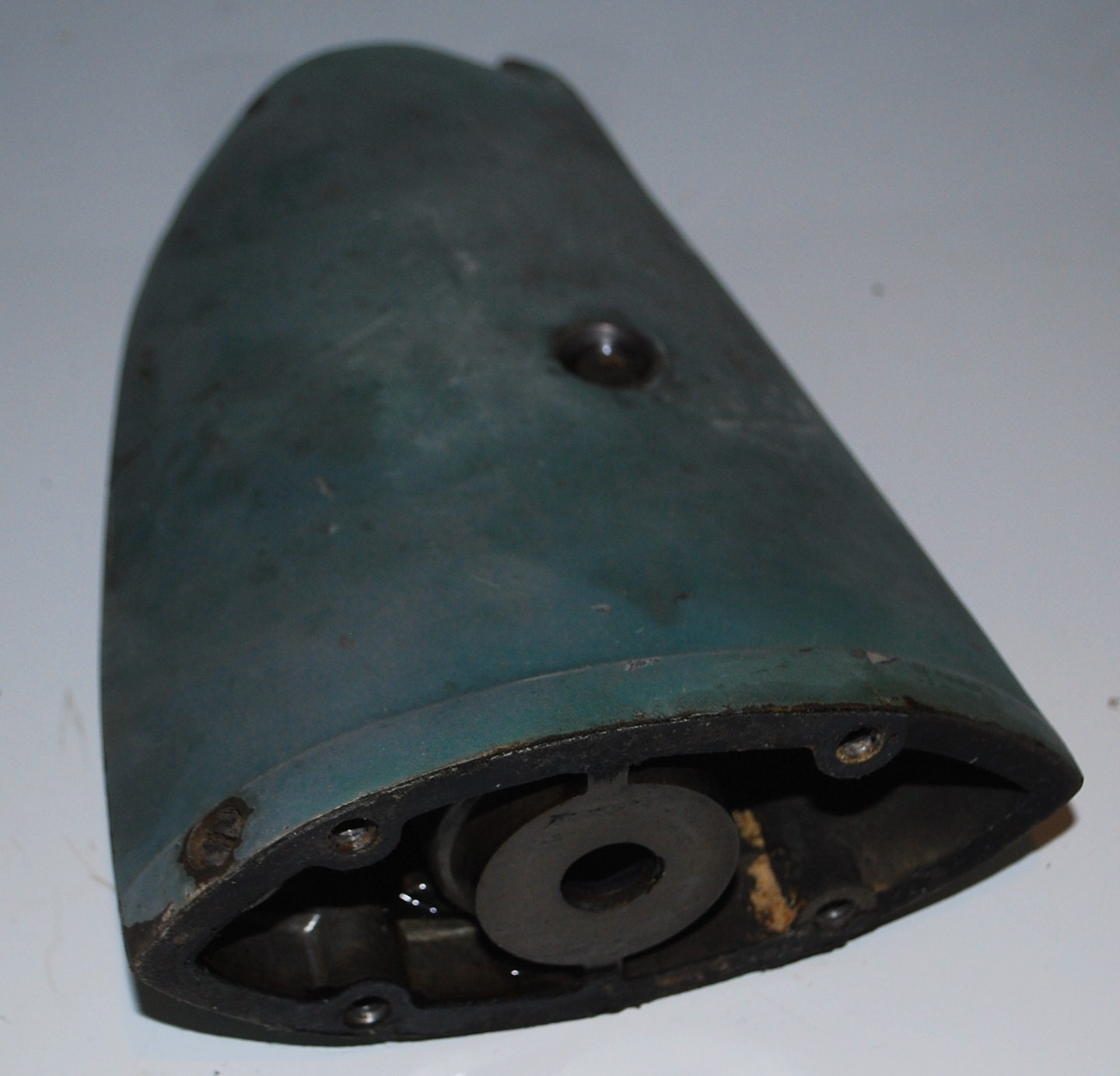

Mid Section (TD-20) 5 HP (2 available) |
1946 | PIC#2 | $15.00 |
| n/a |  |

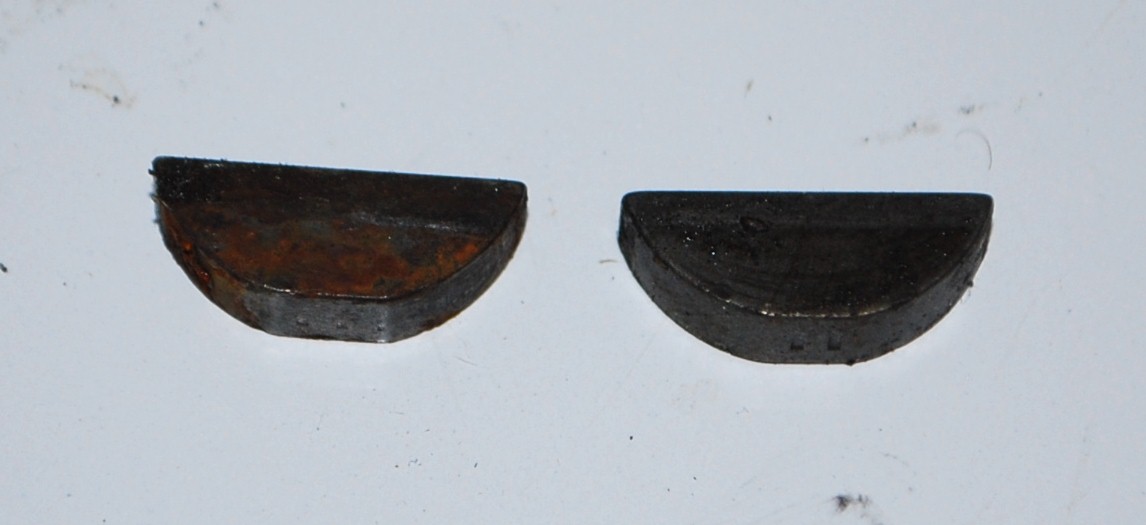

Flywheel Keys (2) (TD-20) 5 HP |
1946 | n/a | $6.00 |
| n/a |  |

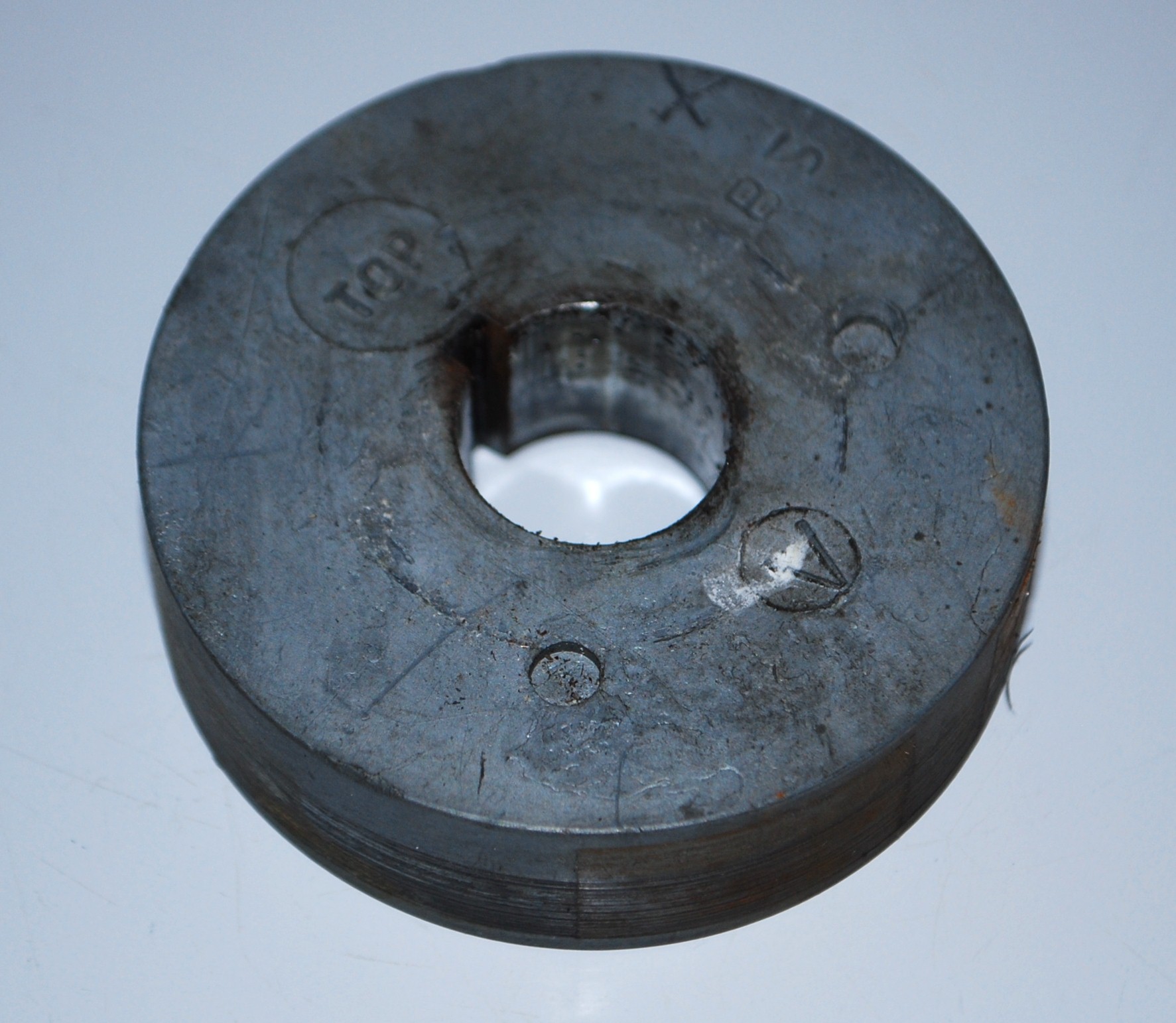

Magneto Rotor (TD-20) 5 HP |
1946 | n/a | $10.00 |
| n/a |  |

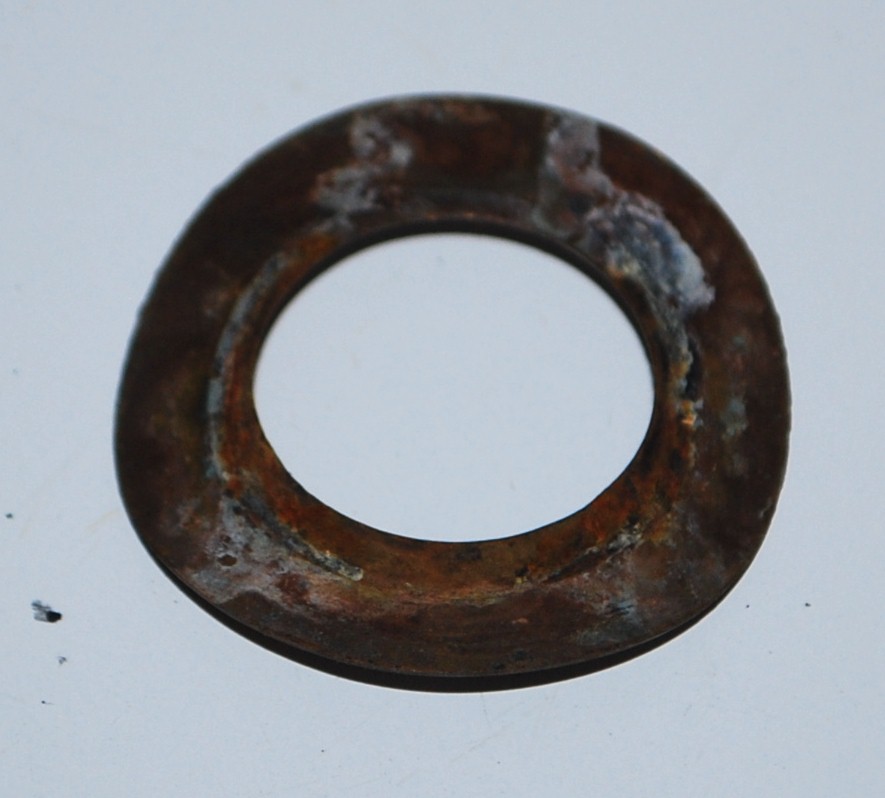

Wave Washer (TD-20) 5 HP |
1946 | n/a | $3.00 |
| n/a |  |

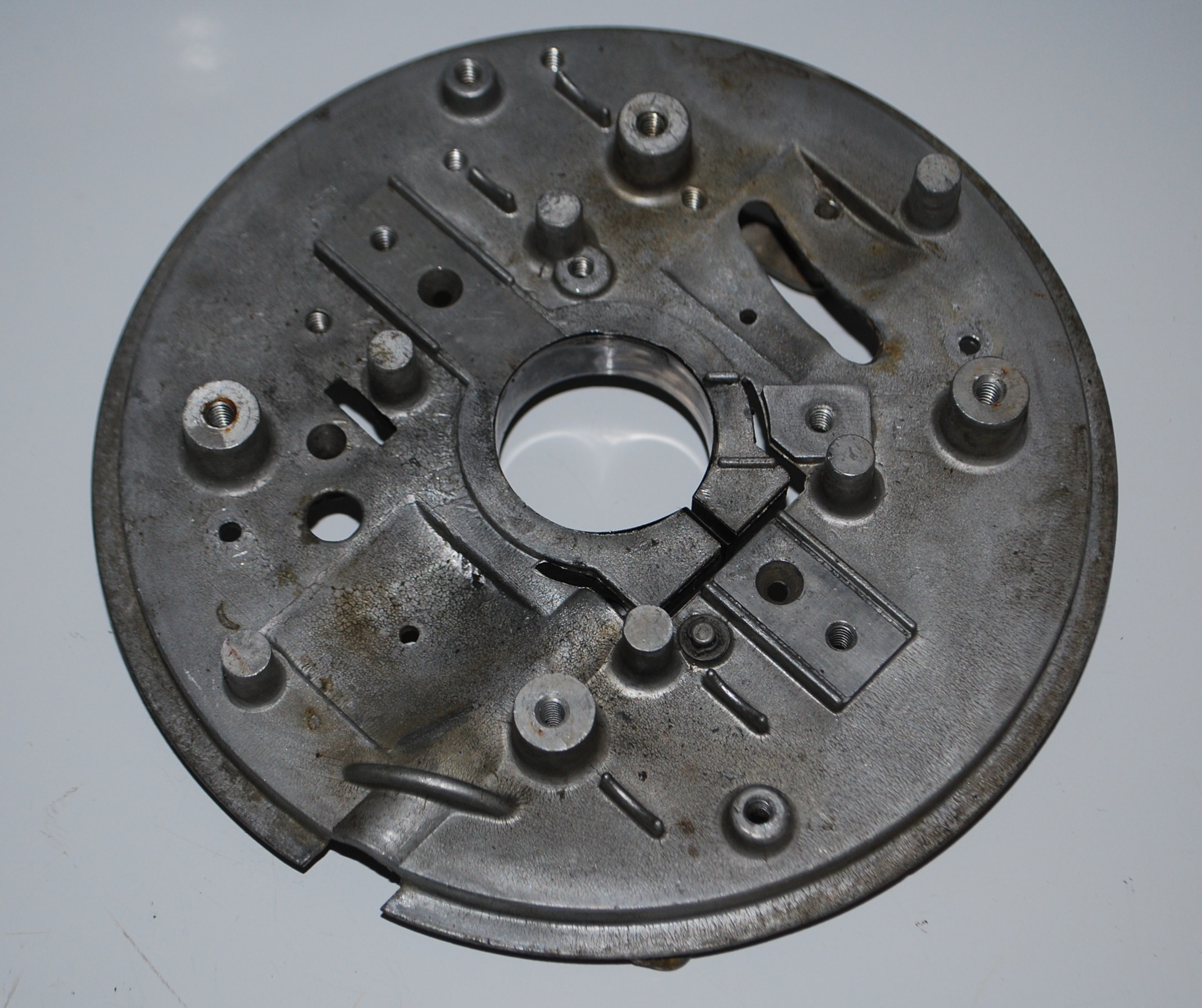

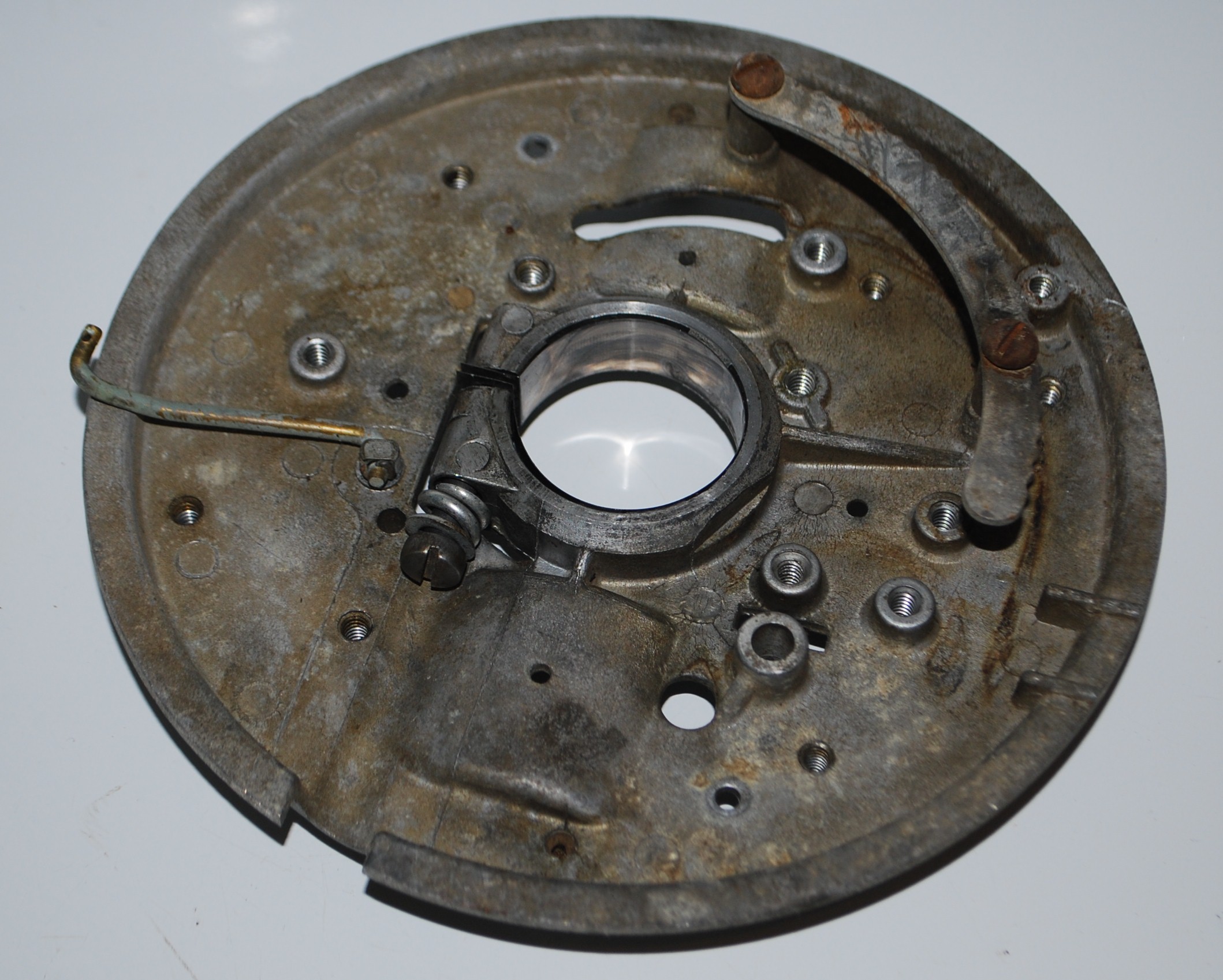

Stator Plate (TD-20) |
1946 | PIC#2 | $12.00 |
| n/a |  |

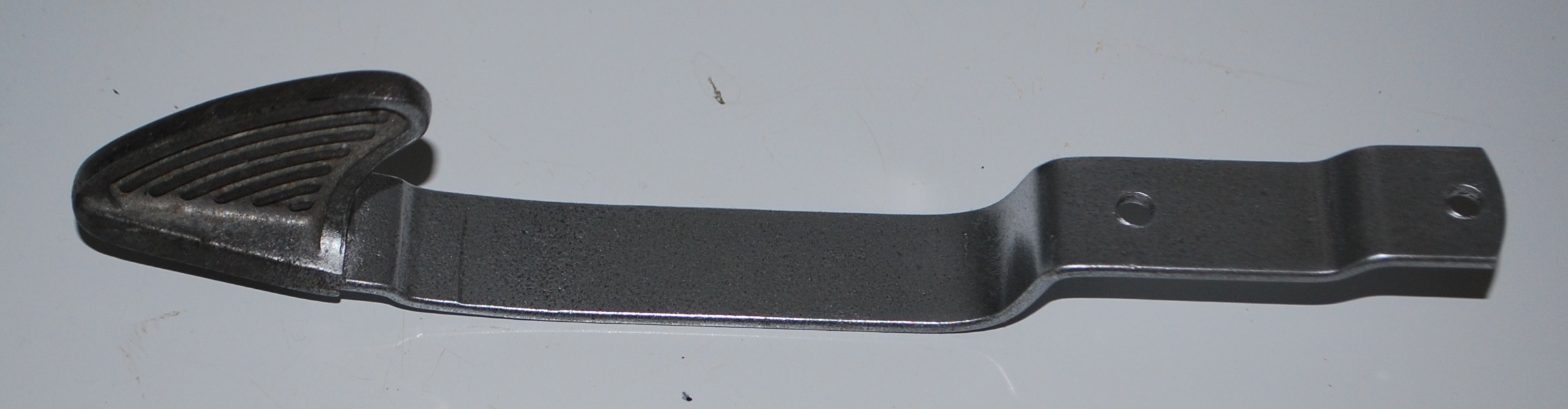

Throttle Lever (TD-20) (2 available) |
1946 | n/a | $8.50 |
| n/a |  |

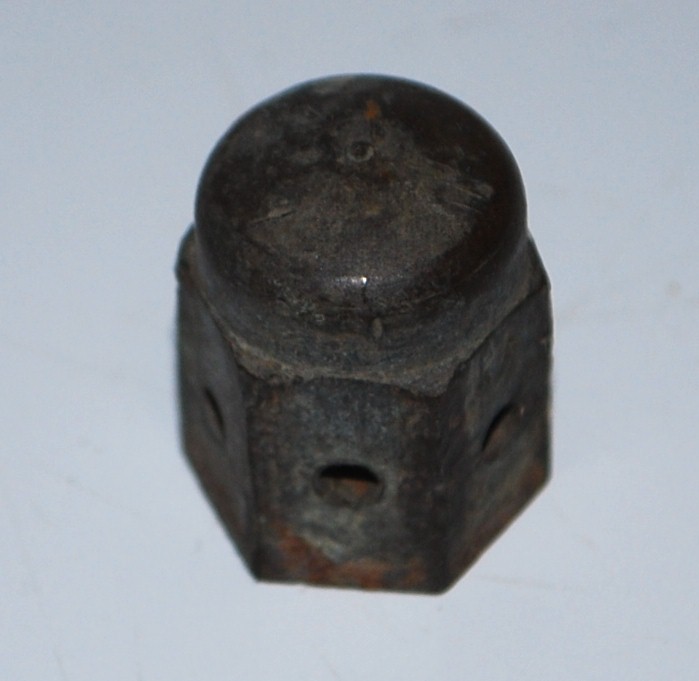

Propeller Nut (TD-20) 5 HP |
1946 | n/a | $6.00 |
| n/a |  |

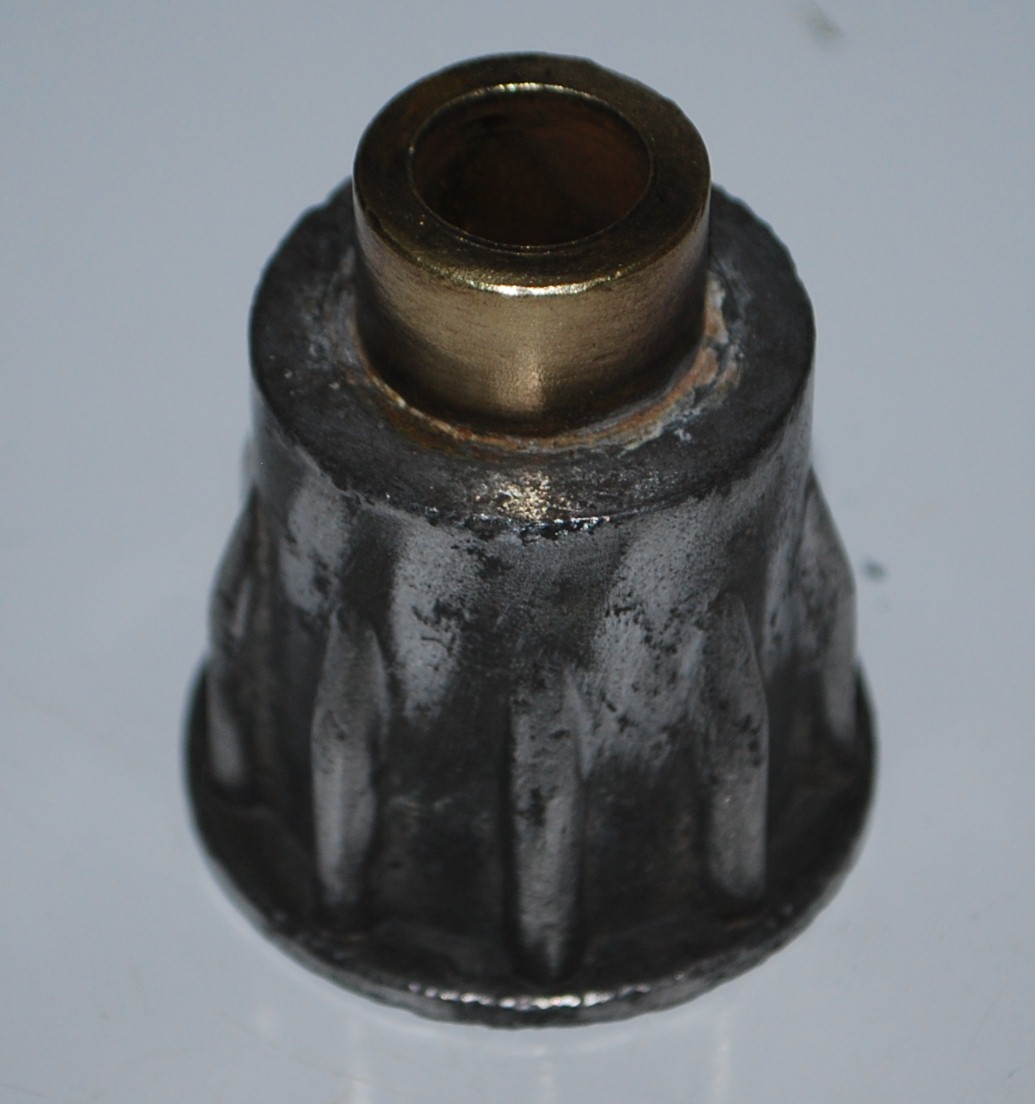

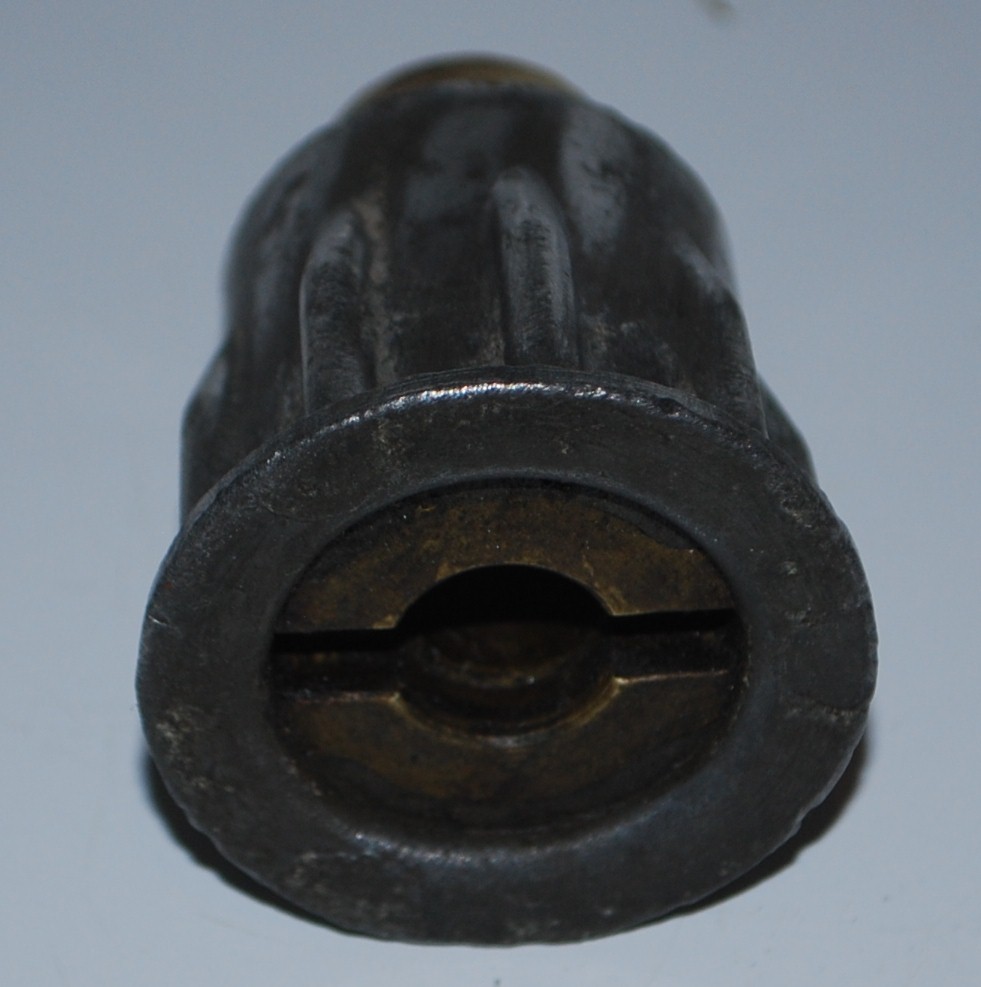

Propeller Hub (TD-20) 5 HP |
1946 | PIC#2 | $7.50 |
| *n/a |  |

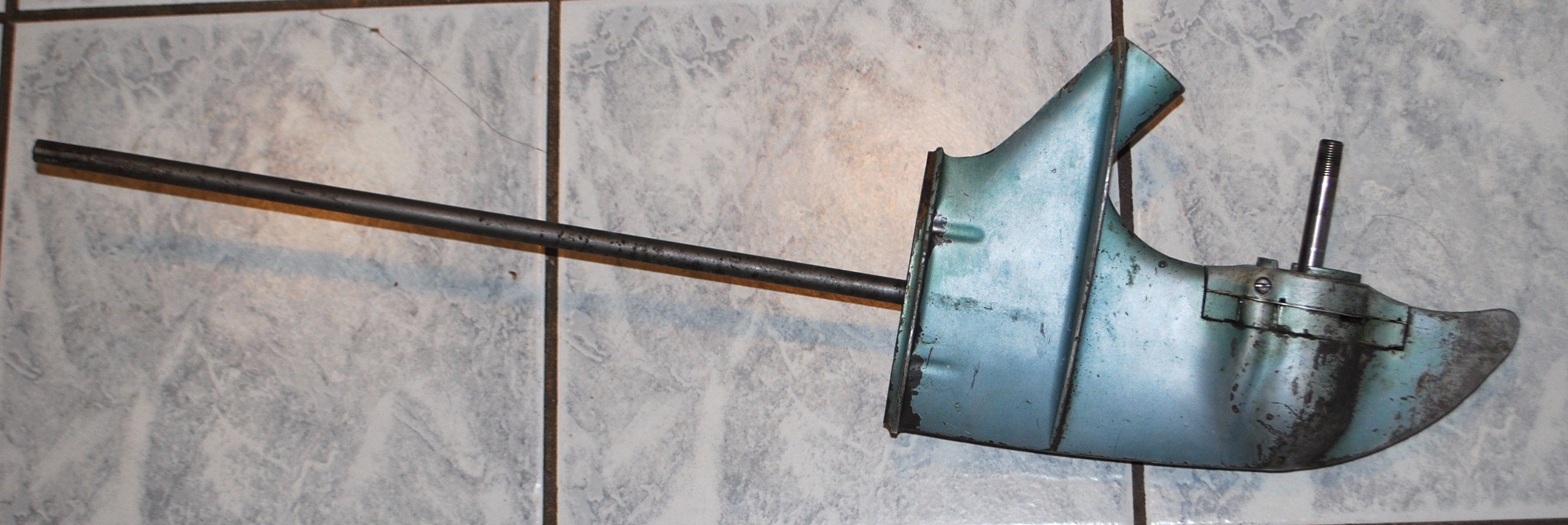

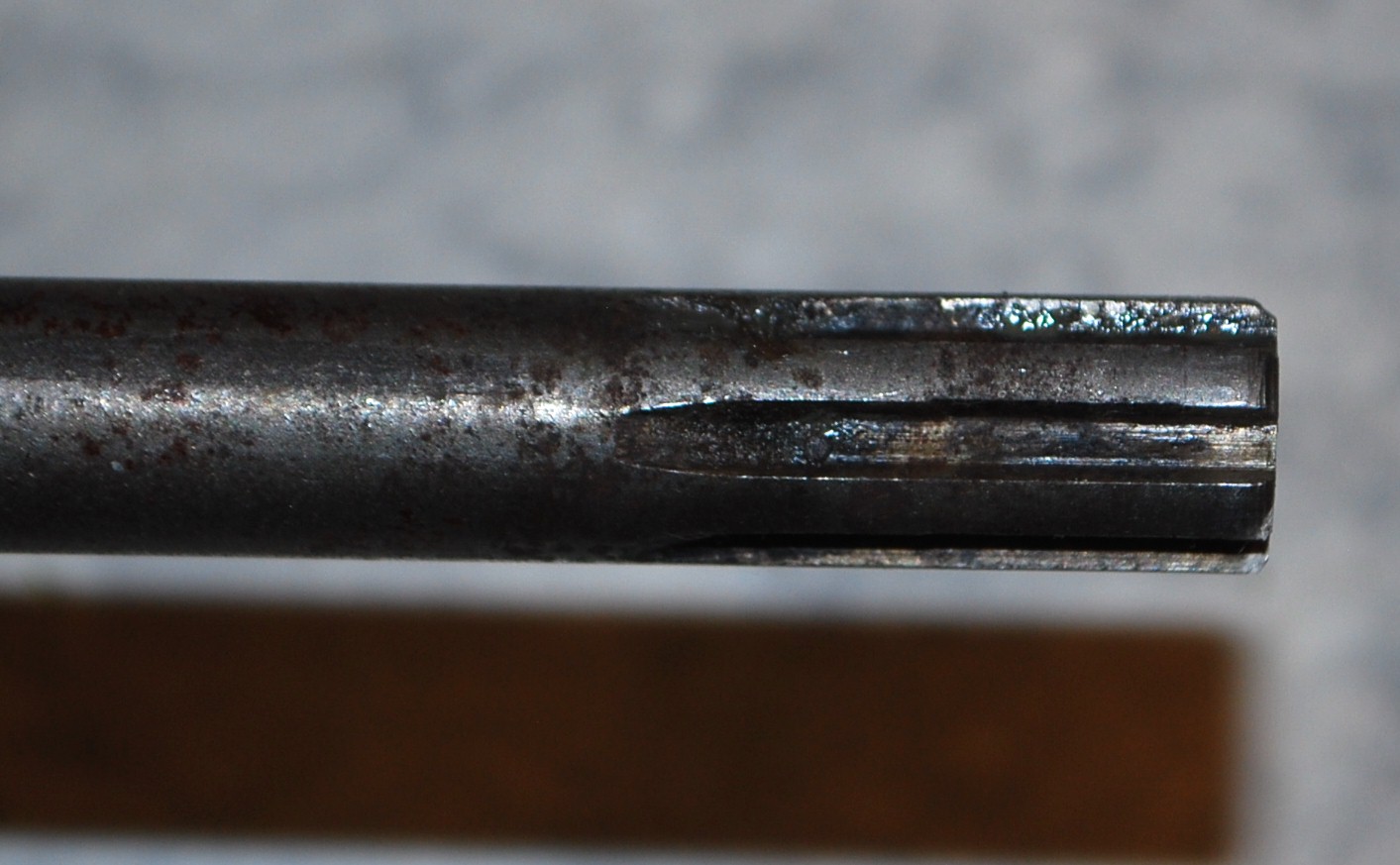

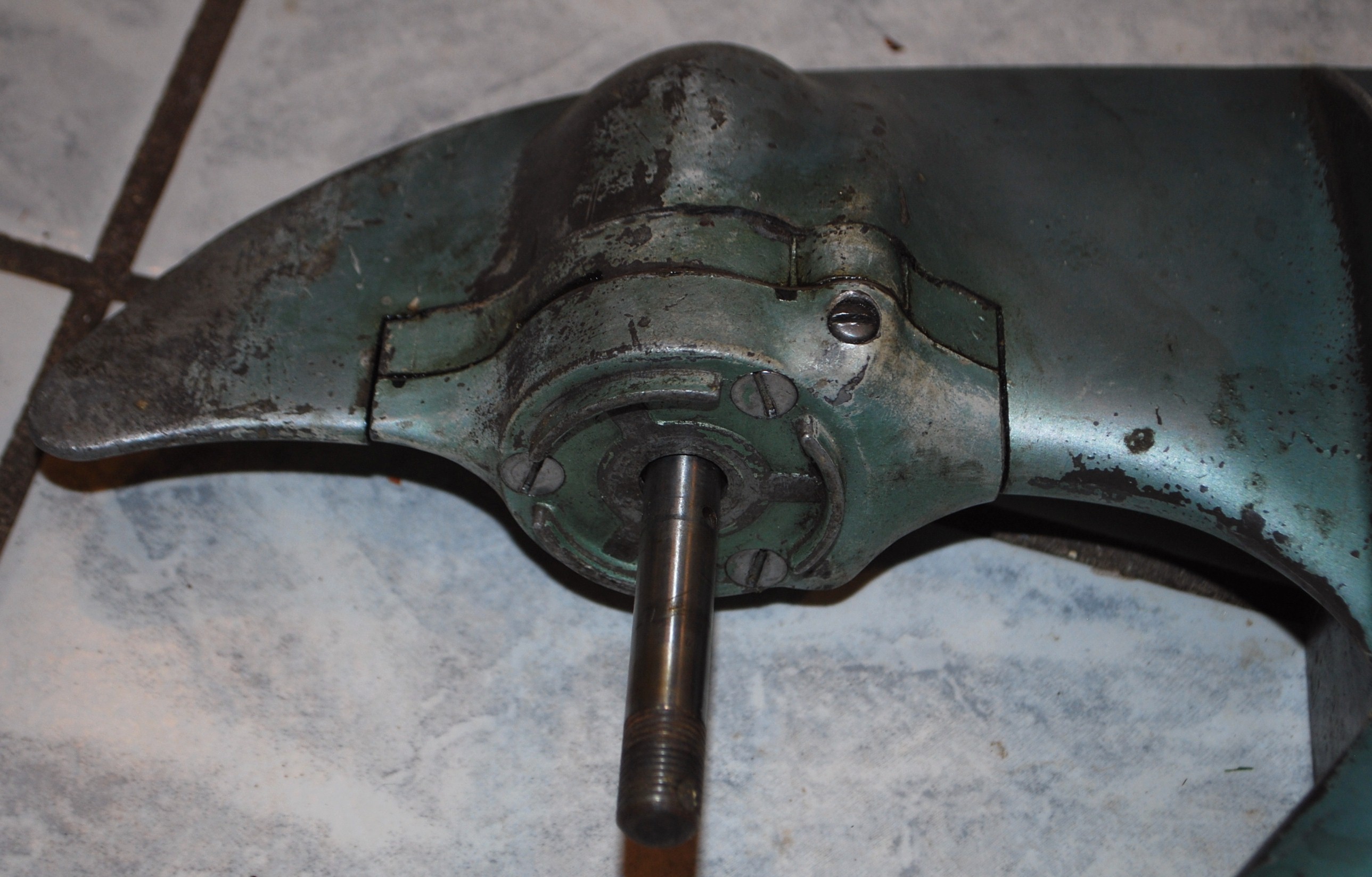

Lower Unit Assy. (TD-20) 5 HP (must ship dry) |
1946 | $45.00 | |
| n/a |  |

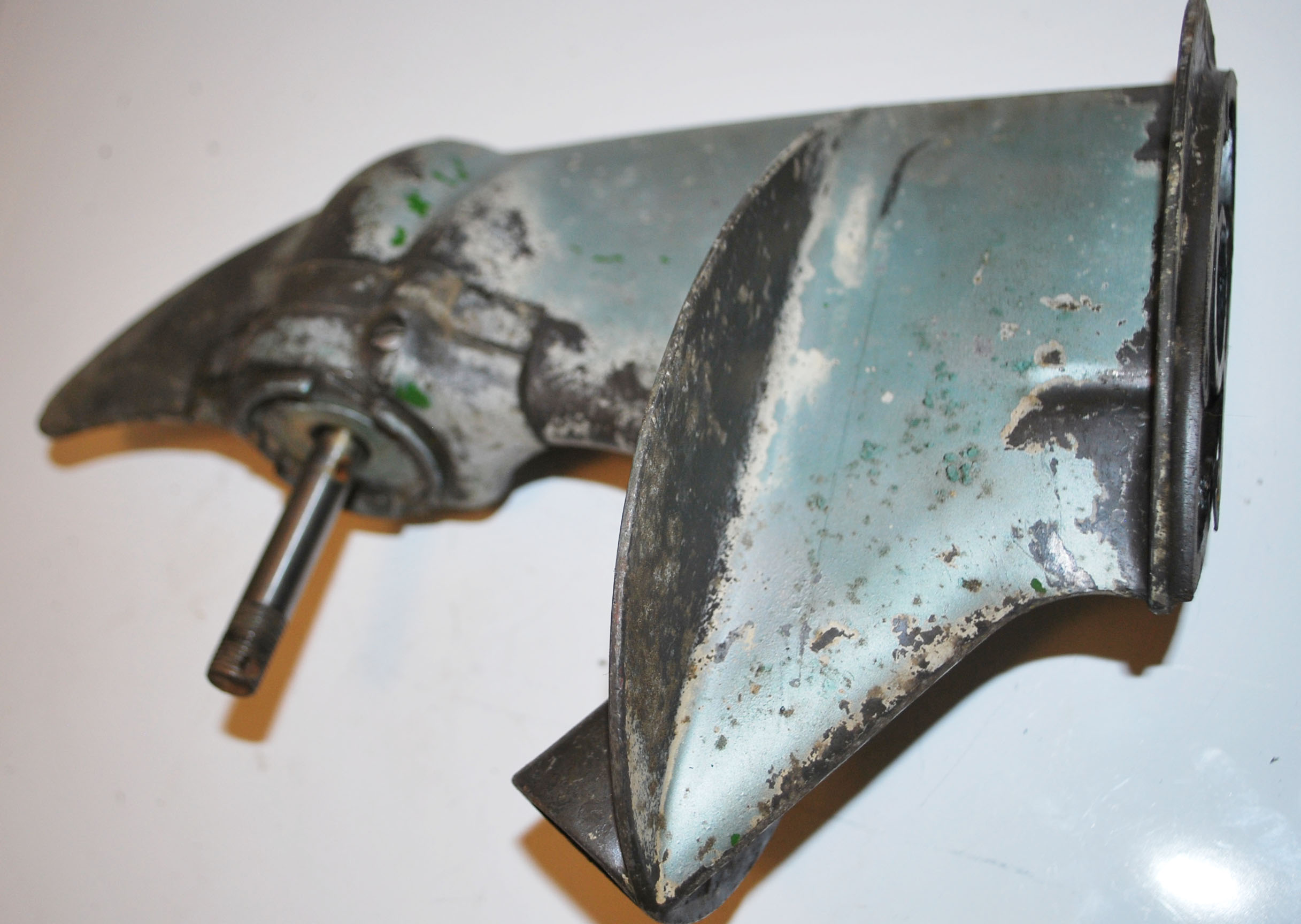

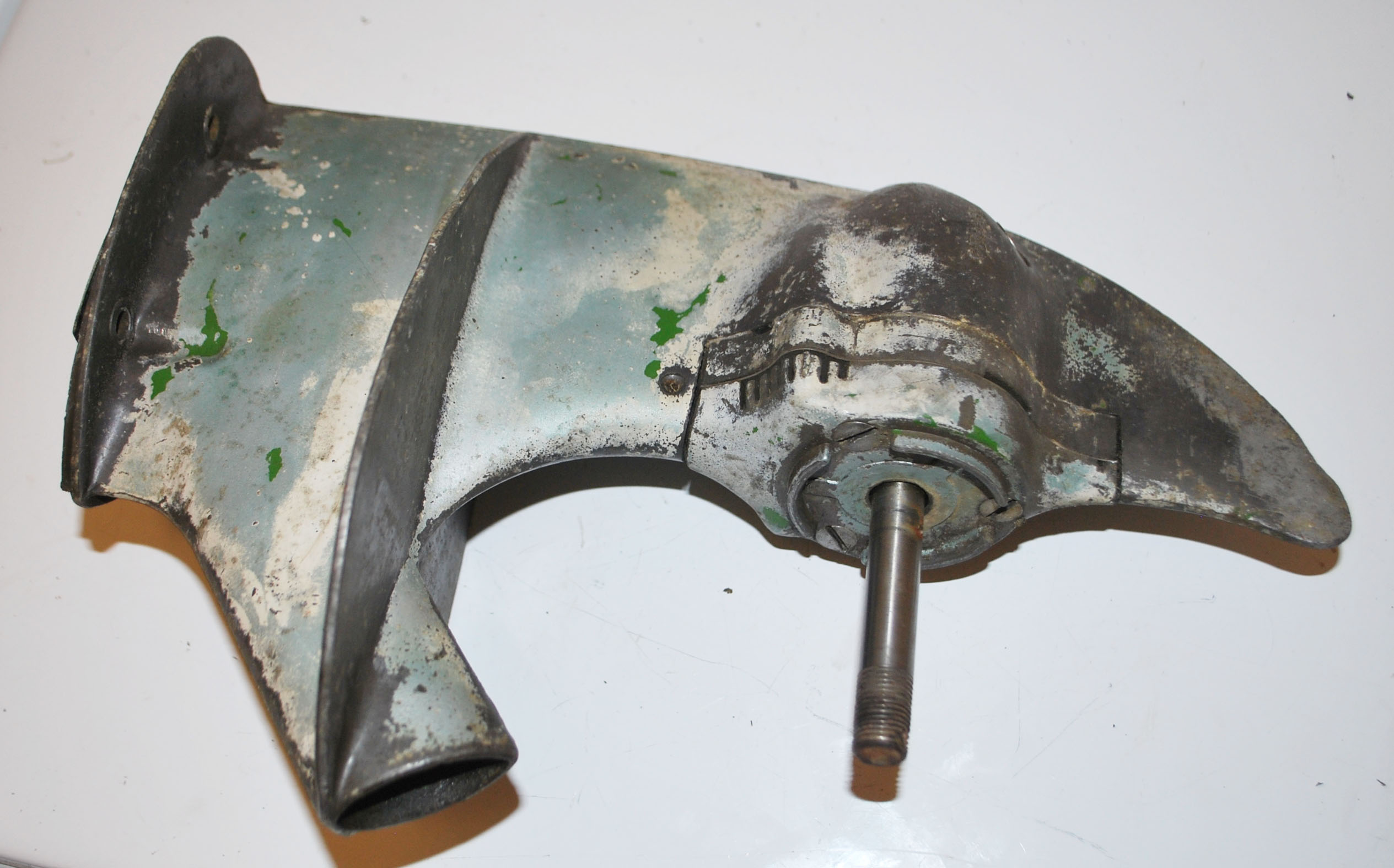

Gearcase Assembly (must ship dry) |
1946-49* | PIC#2 | $38.00 |
| 301725 |  |

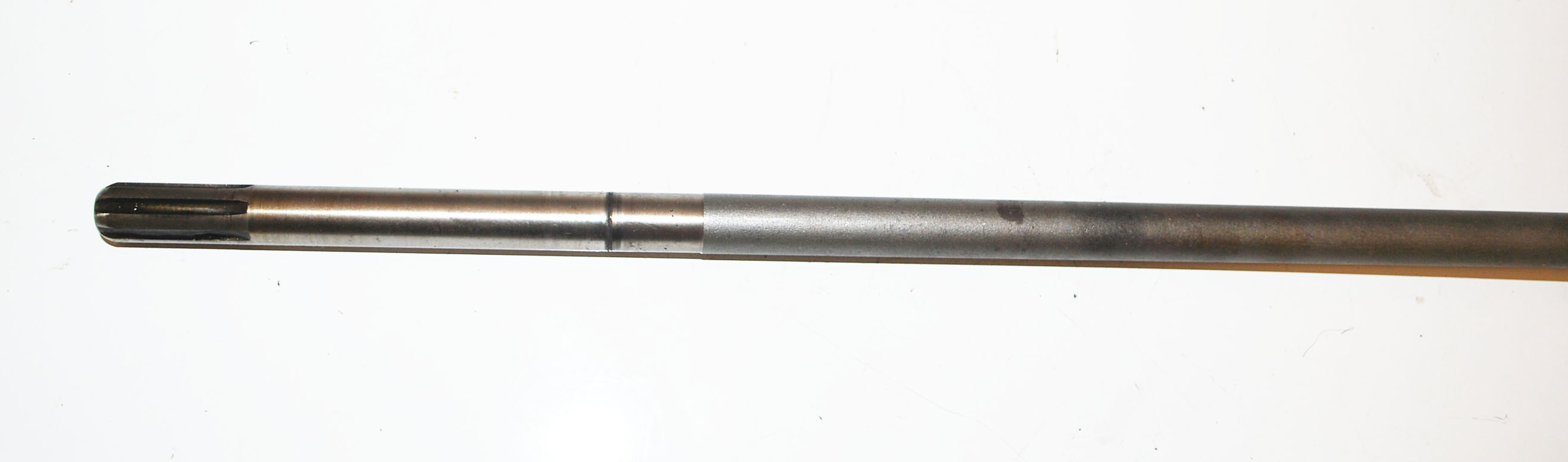

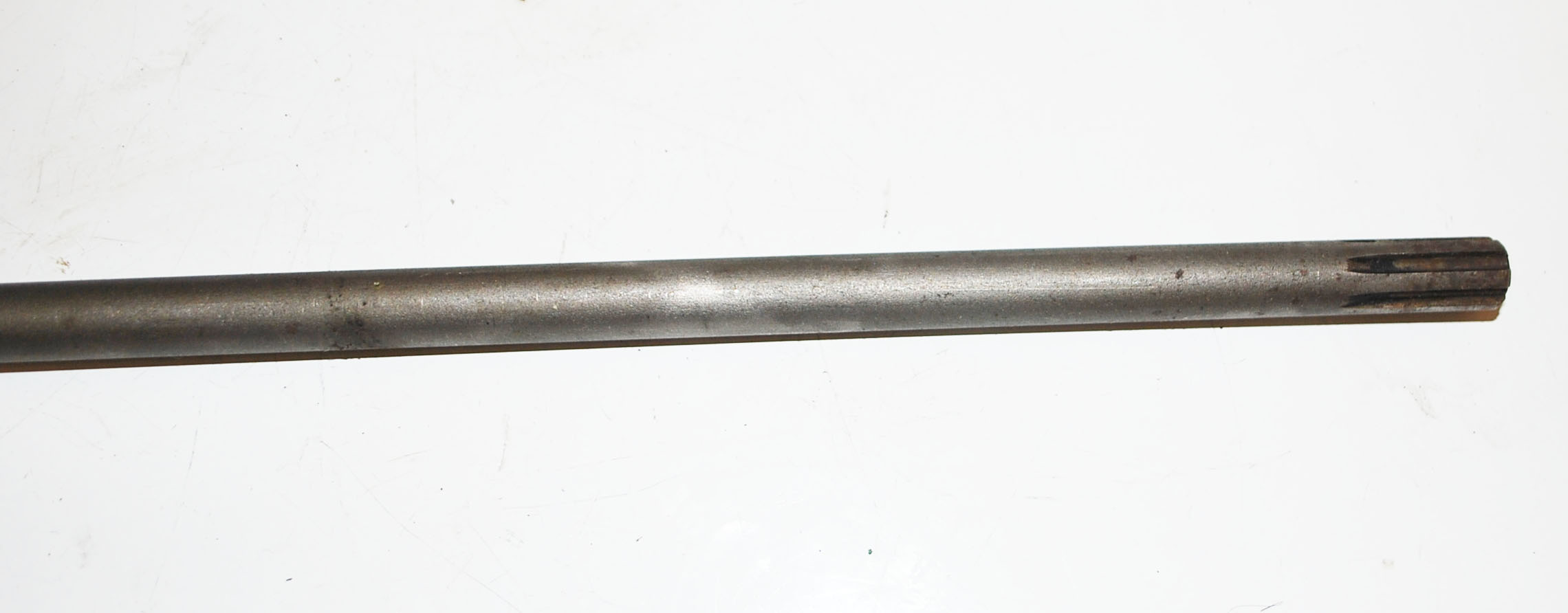

Driveshaft | 1946-49* | PIC#2 | $12.50 |
| n/a |  |

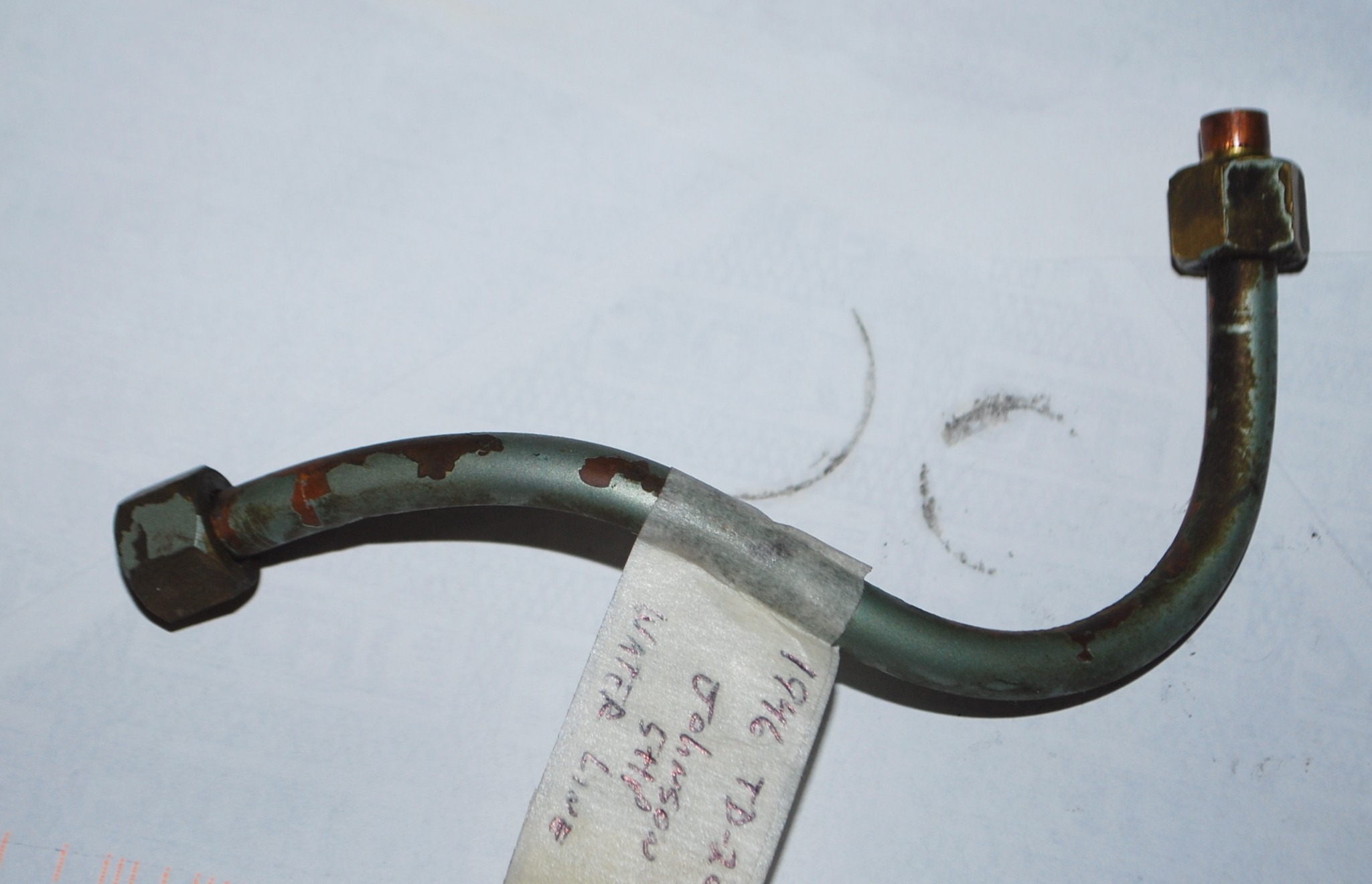

Water Line (TD-20) 5 HP |
1946* | n/a | $5.00 |
 |

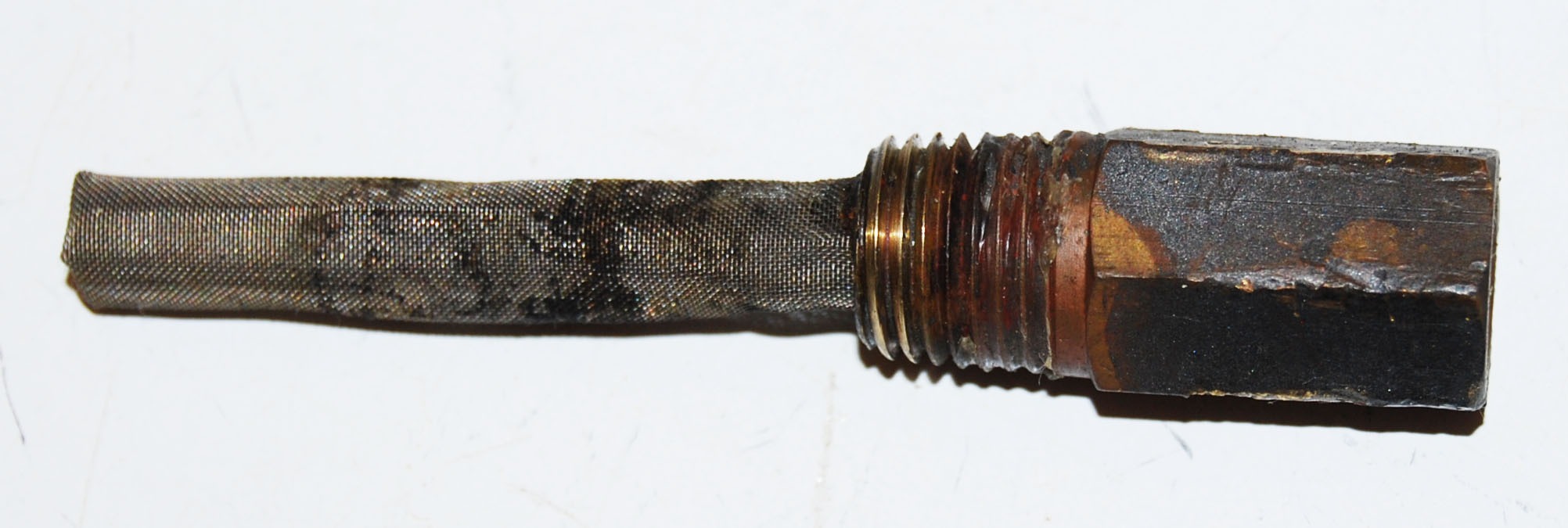

Fuel Filter (in tank) | 1946* | n/a | $9.00 (SOLD) | |
 |

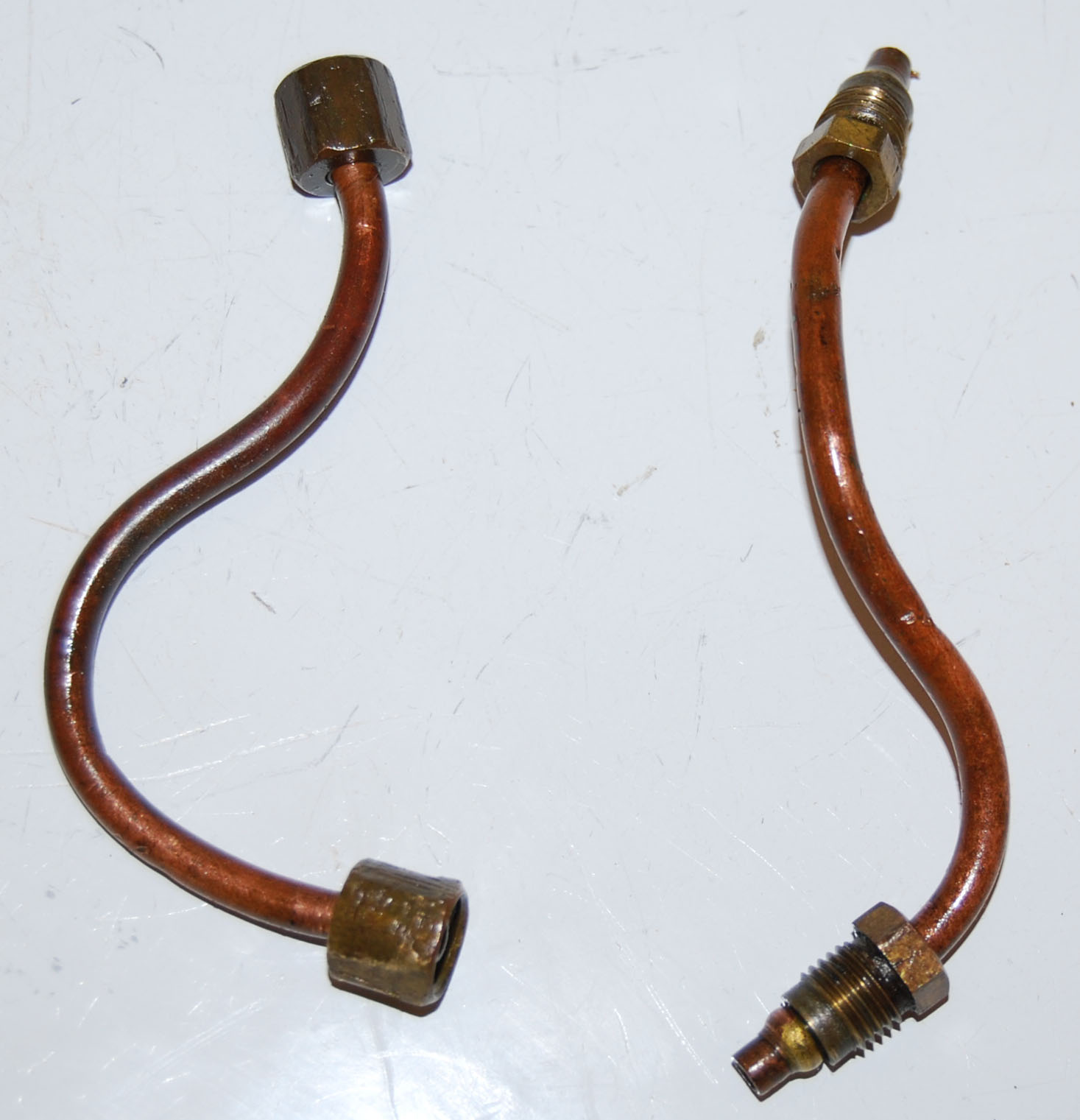

Fuel Lines (set of two) |
1946* | n/a | $5.00 (SOLD) | |
| 301539 |  |

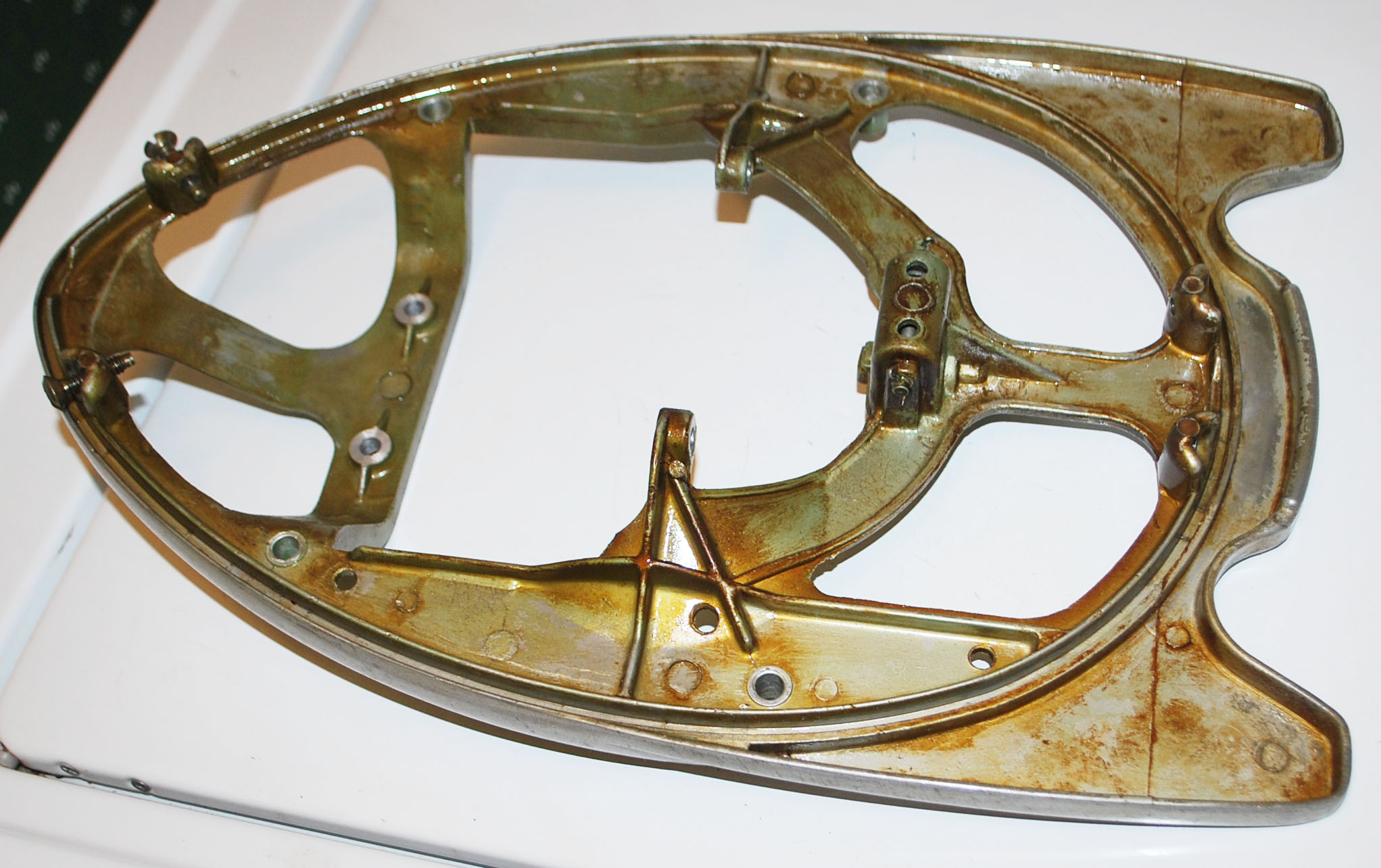

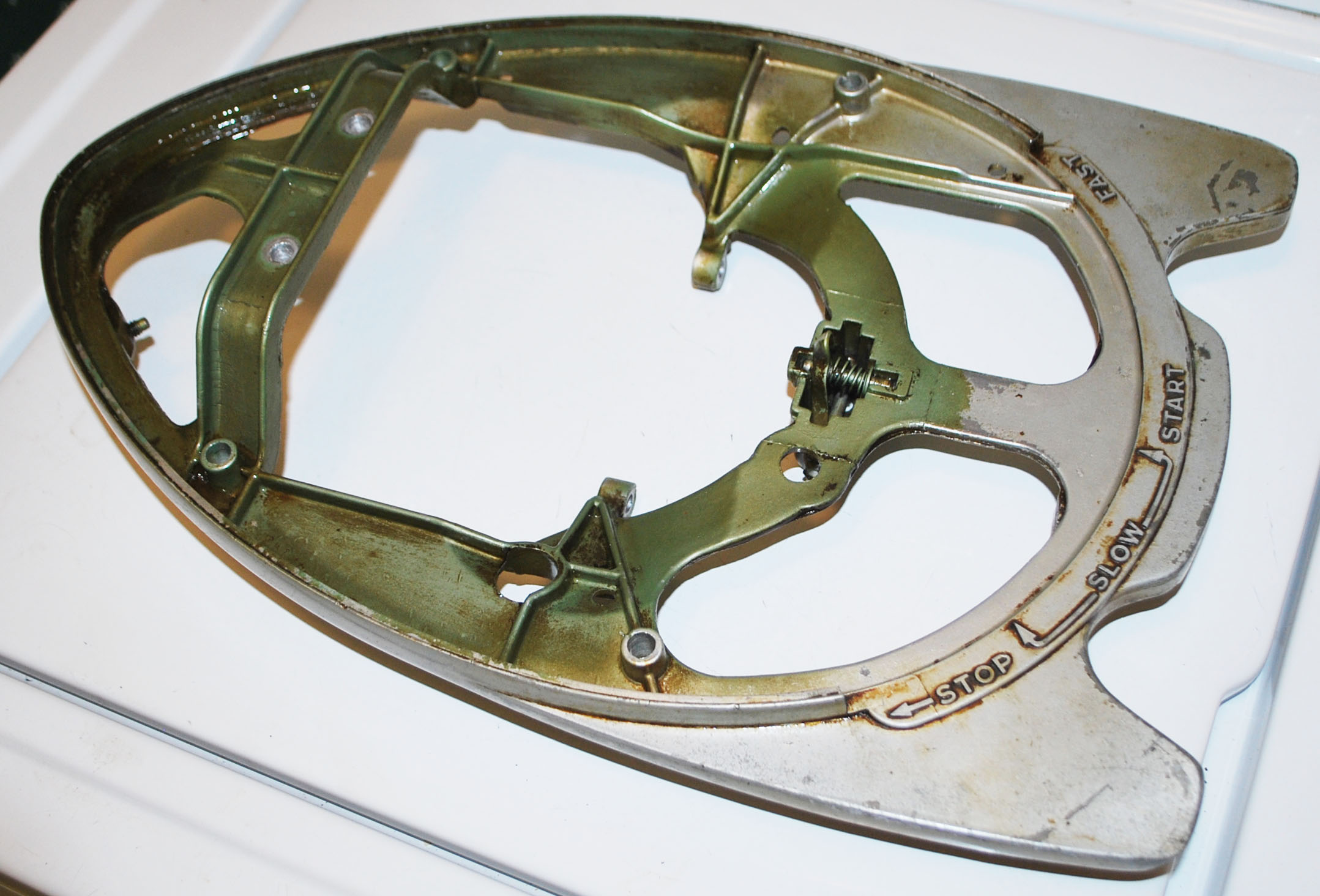

Gas Tank Bracket (two available) |
1946-49* | PIC#2 | $18.00 |
| n/a |  |

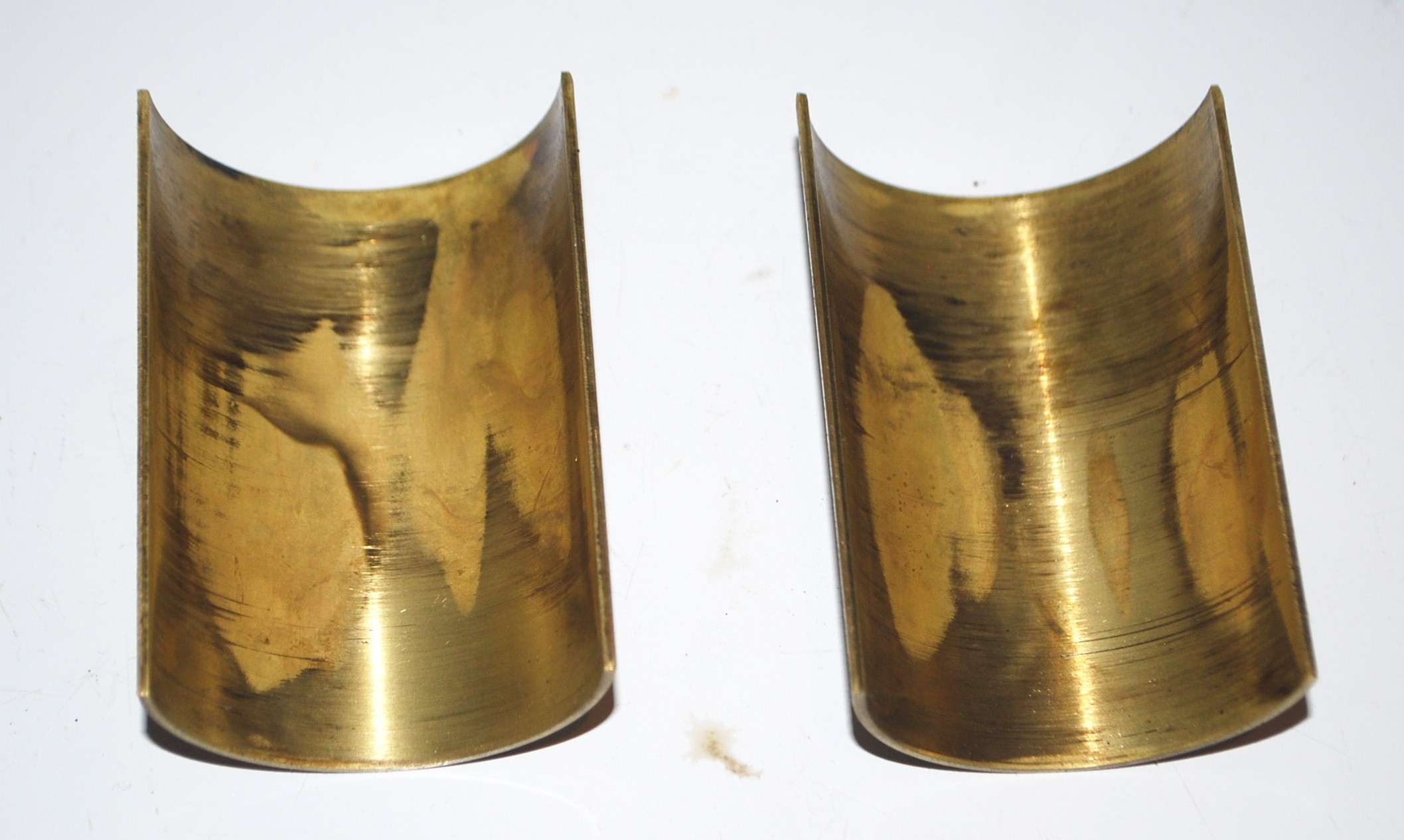

Pivot Shaft Bushings (2) | 1946* | n/a | $9.00 |
| * |  |

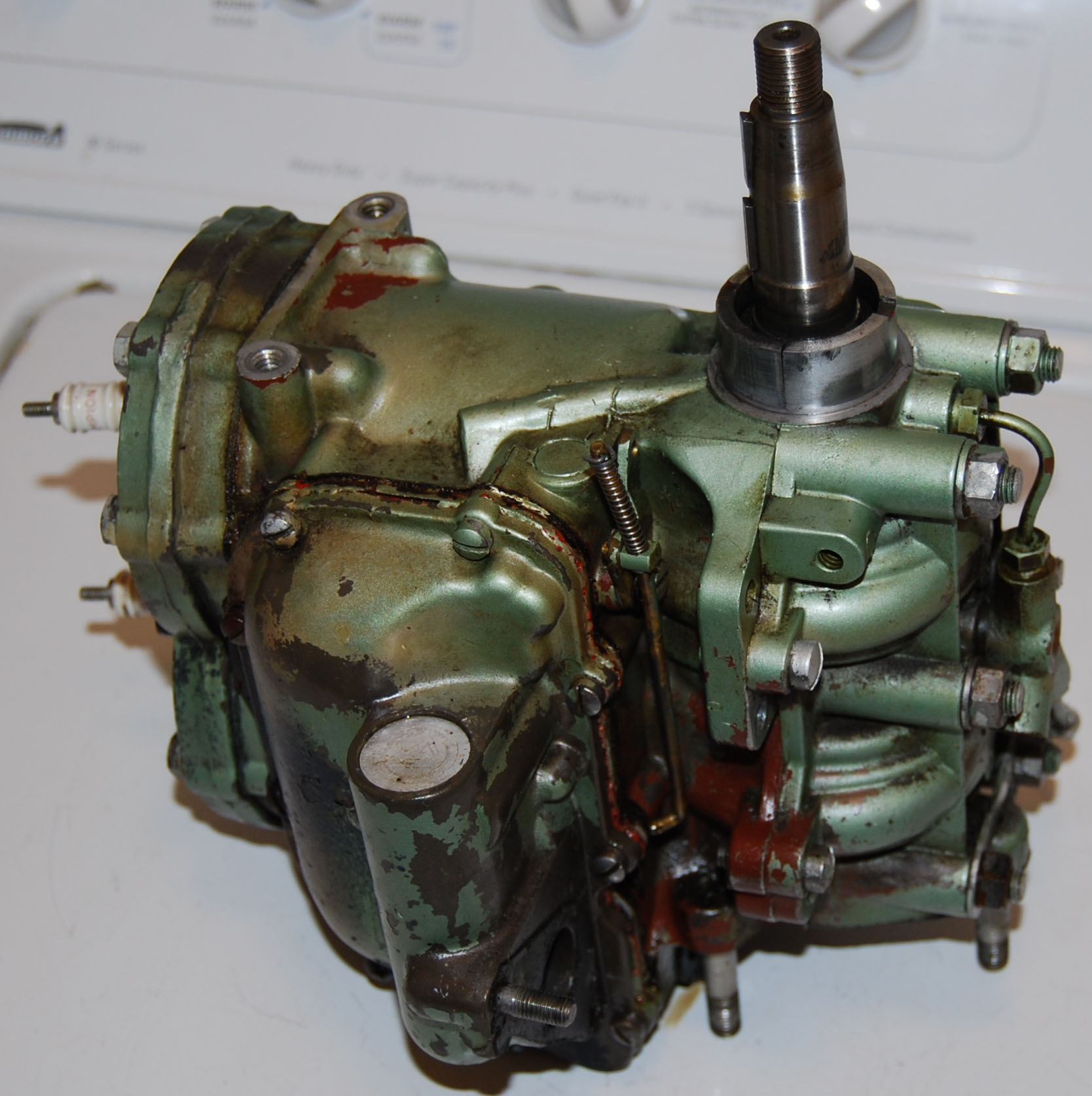

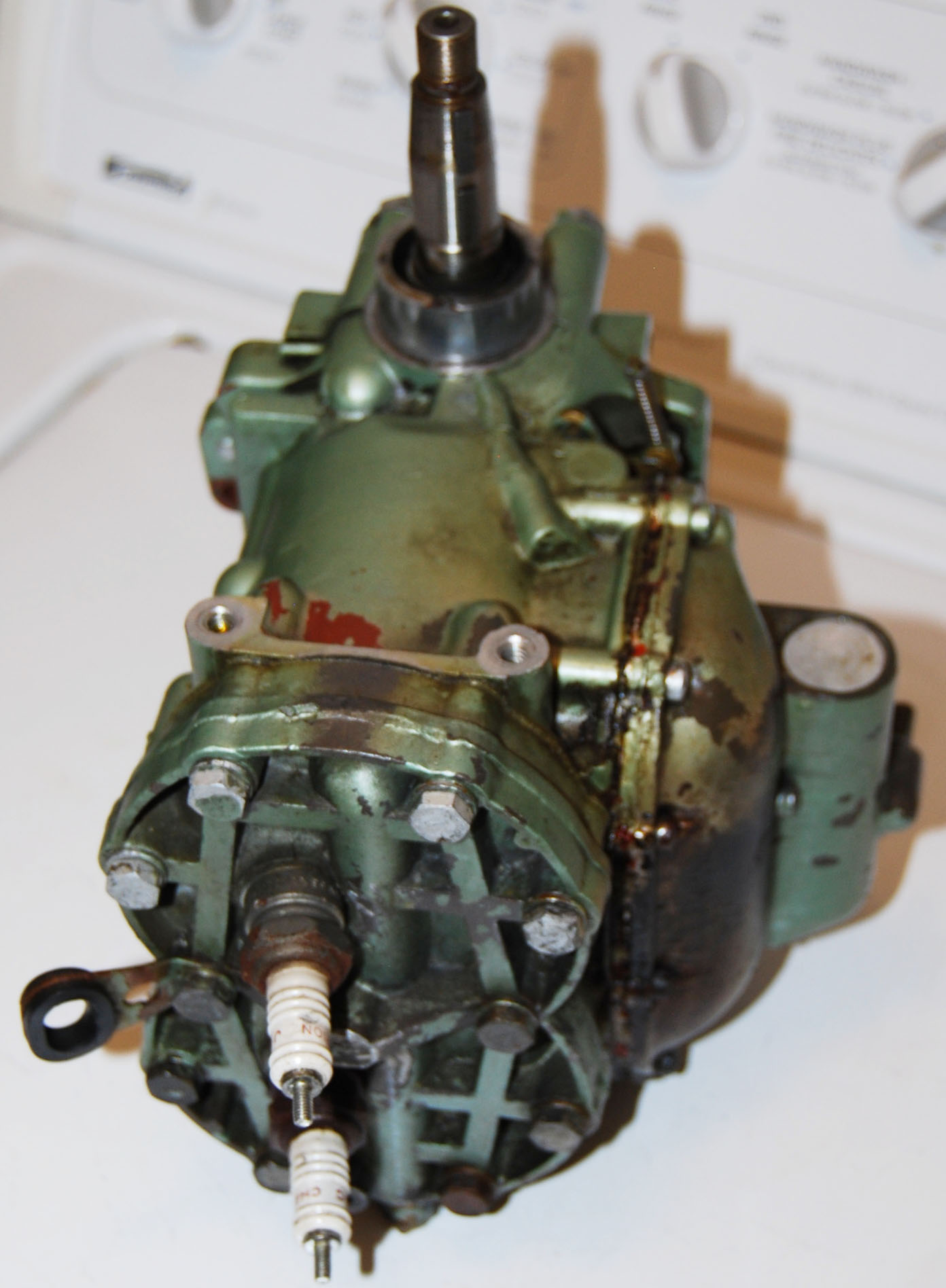

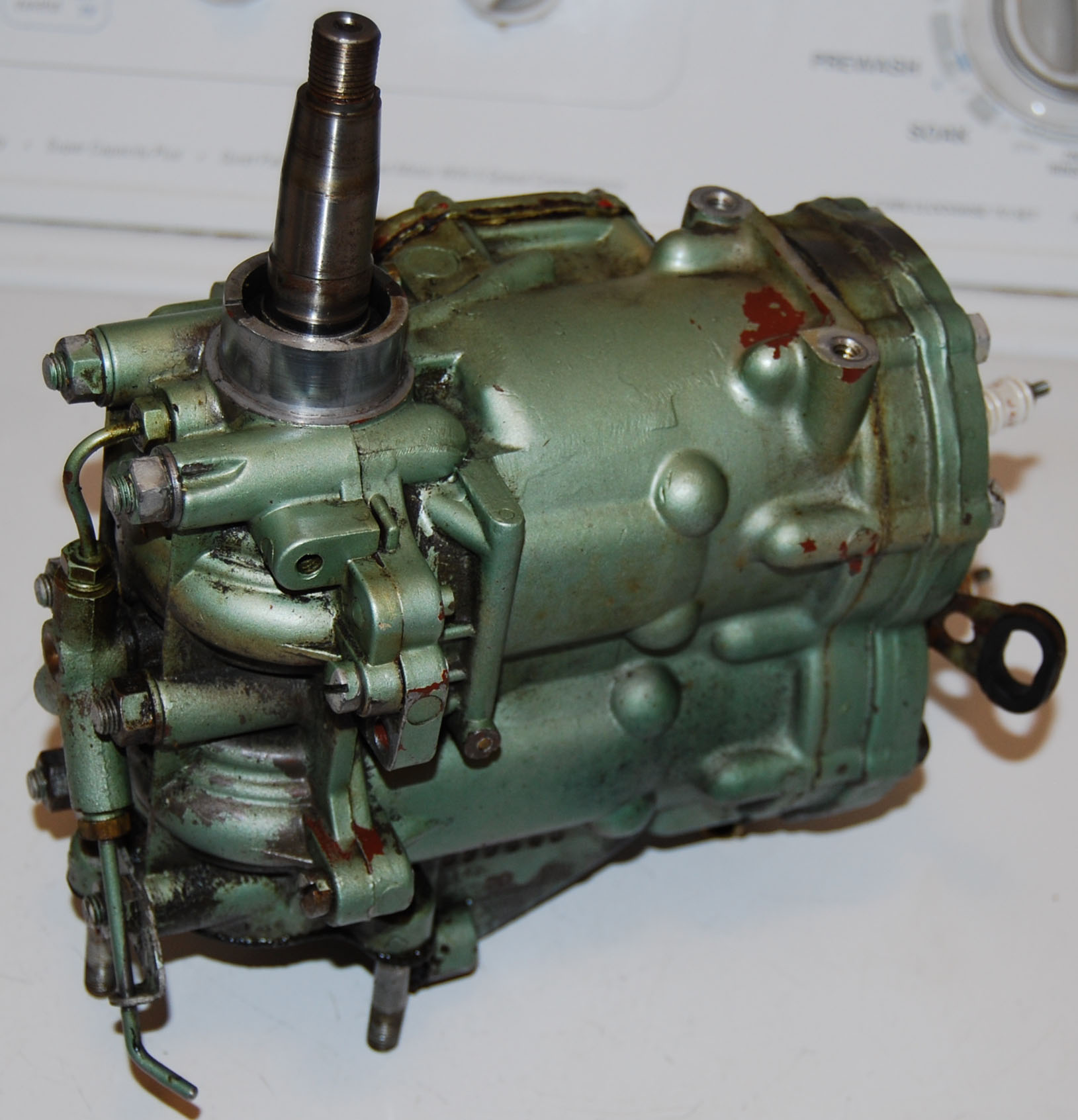

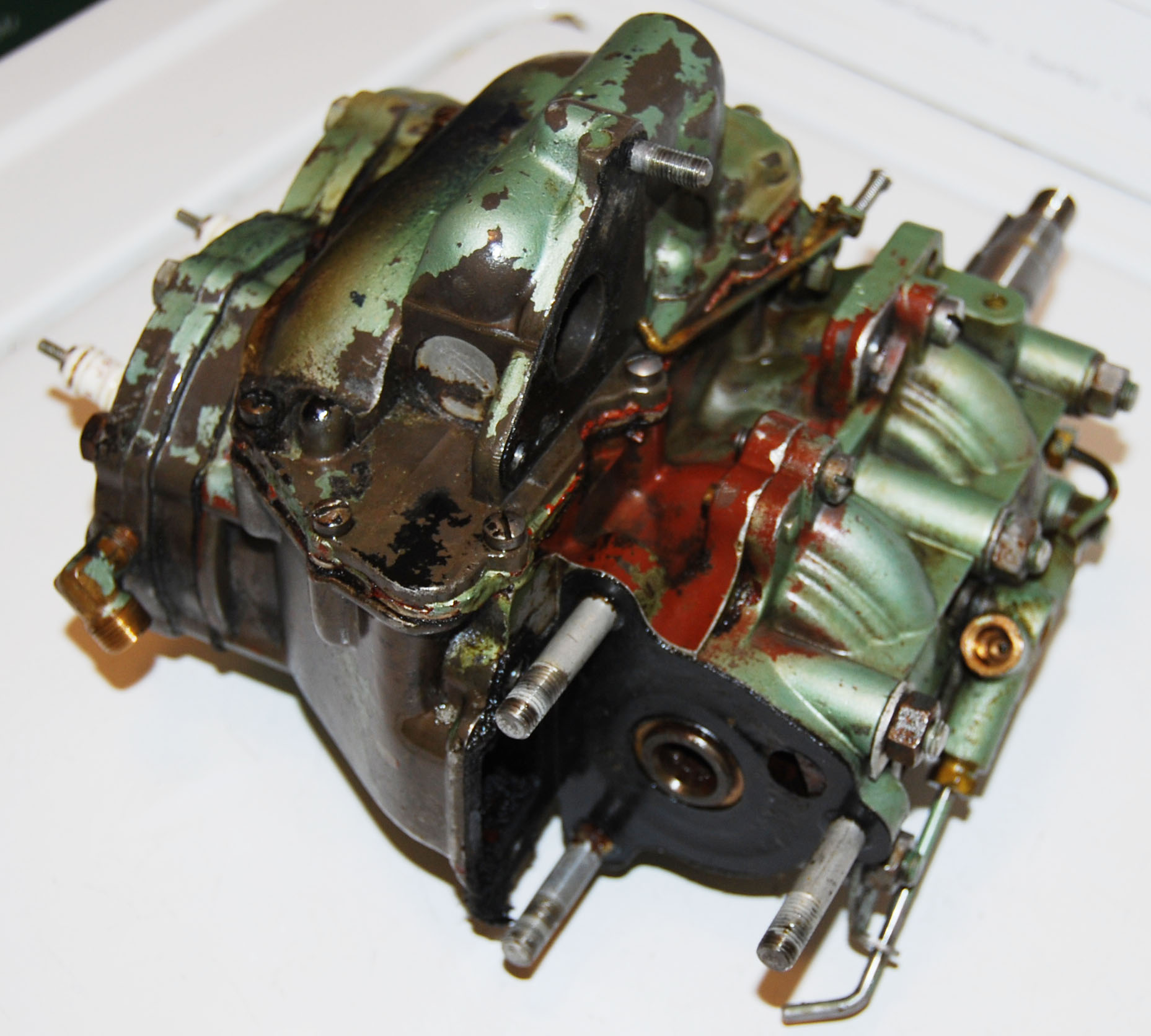

Powerhead Assembly (b) | 1946* | $55.00 | |
| n/a |  |

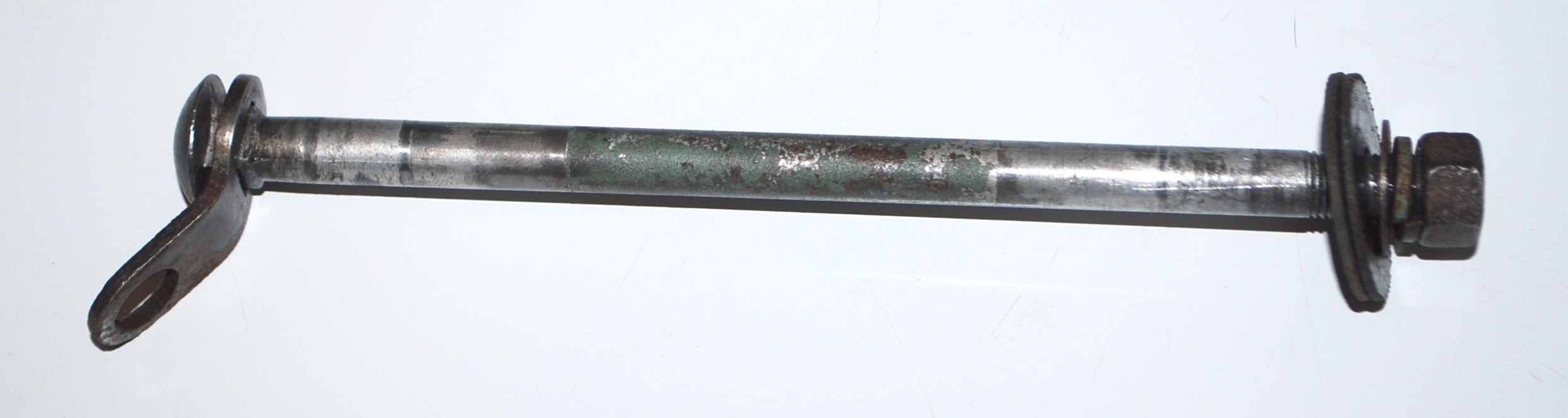

Tilt Bolt Assy. (two available) |
1946* | n/a | $6.00 |
 |

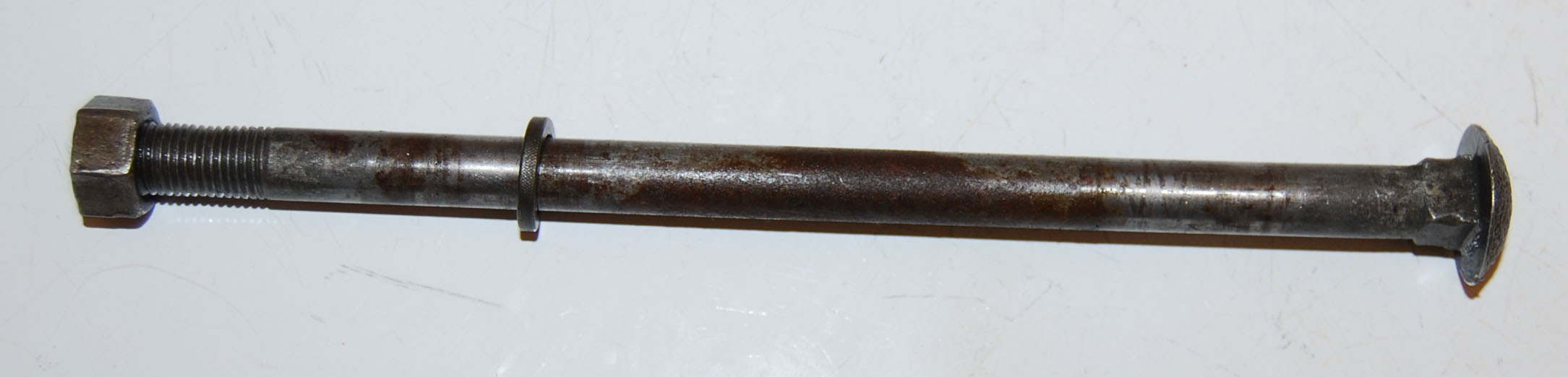

Tilt Bolt | 1946* | n/a | $5.00 | |
| n/a |  |

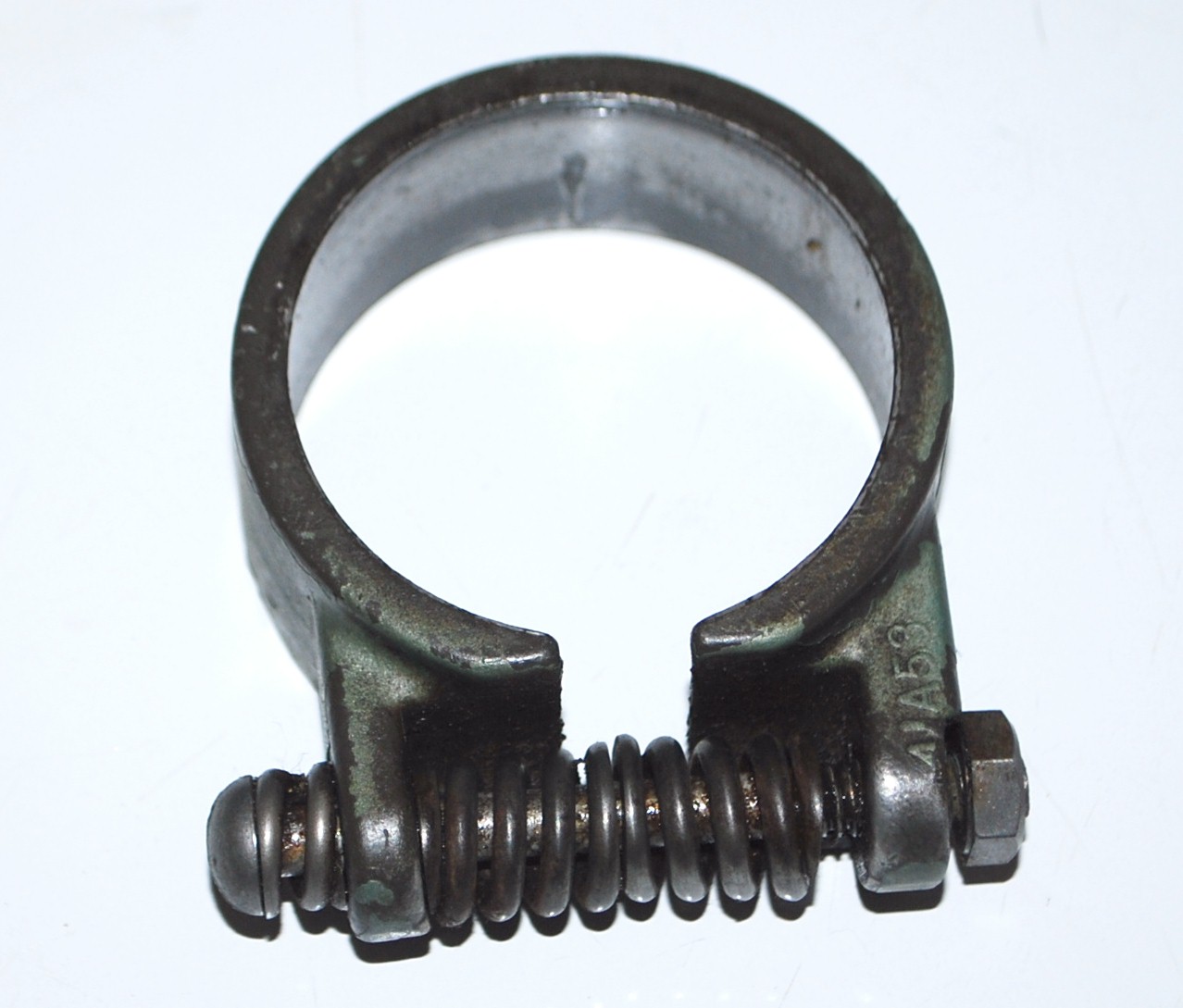

Swivel Post Collar | 1946* | n/a | $10.00 |
| 41-300624 |  |
Copper Exhaust Tube | 1946* | n/a | $10.00 |
 |

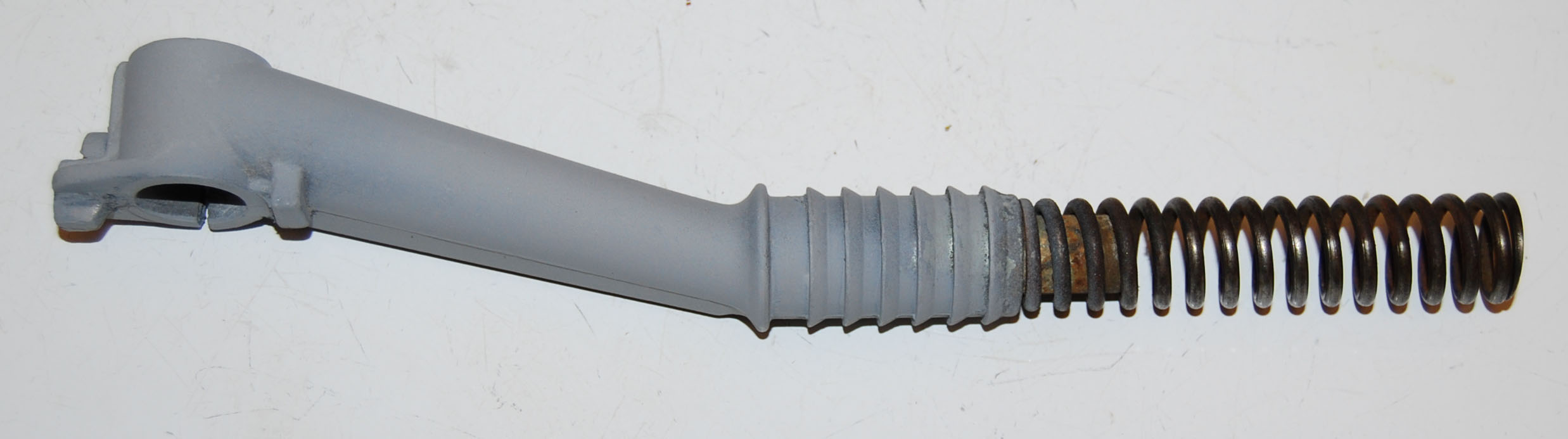

Tiller Handle (two available) |
1946* | n/a | $12.00 | |
 |
Tiller Handle (no grip) | 1946* | n/a | $10.00 | |
 |

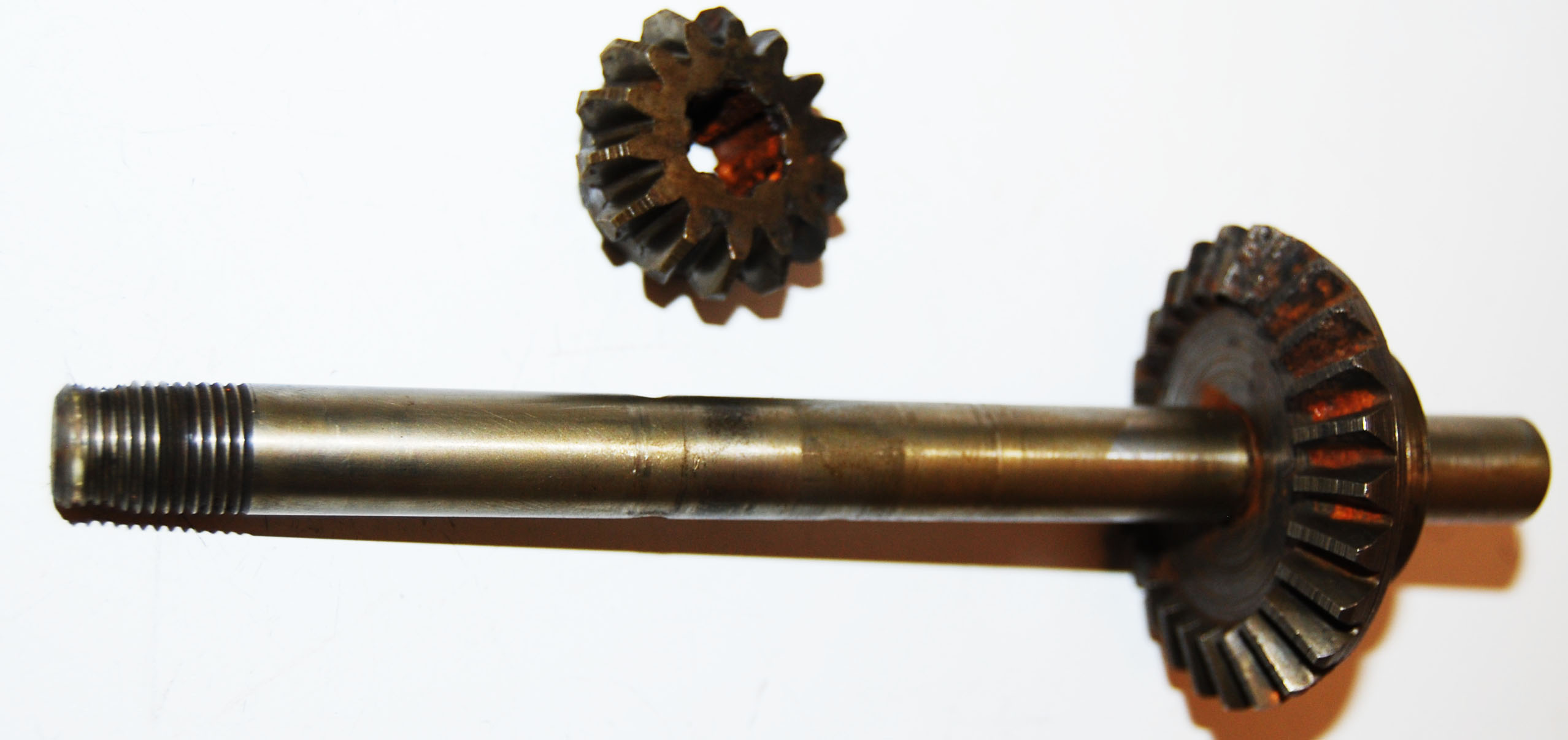

Prop Shaft with Gear Set (two available) |
1946* | n/a | $18.00 | |
 |

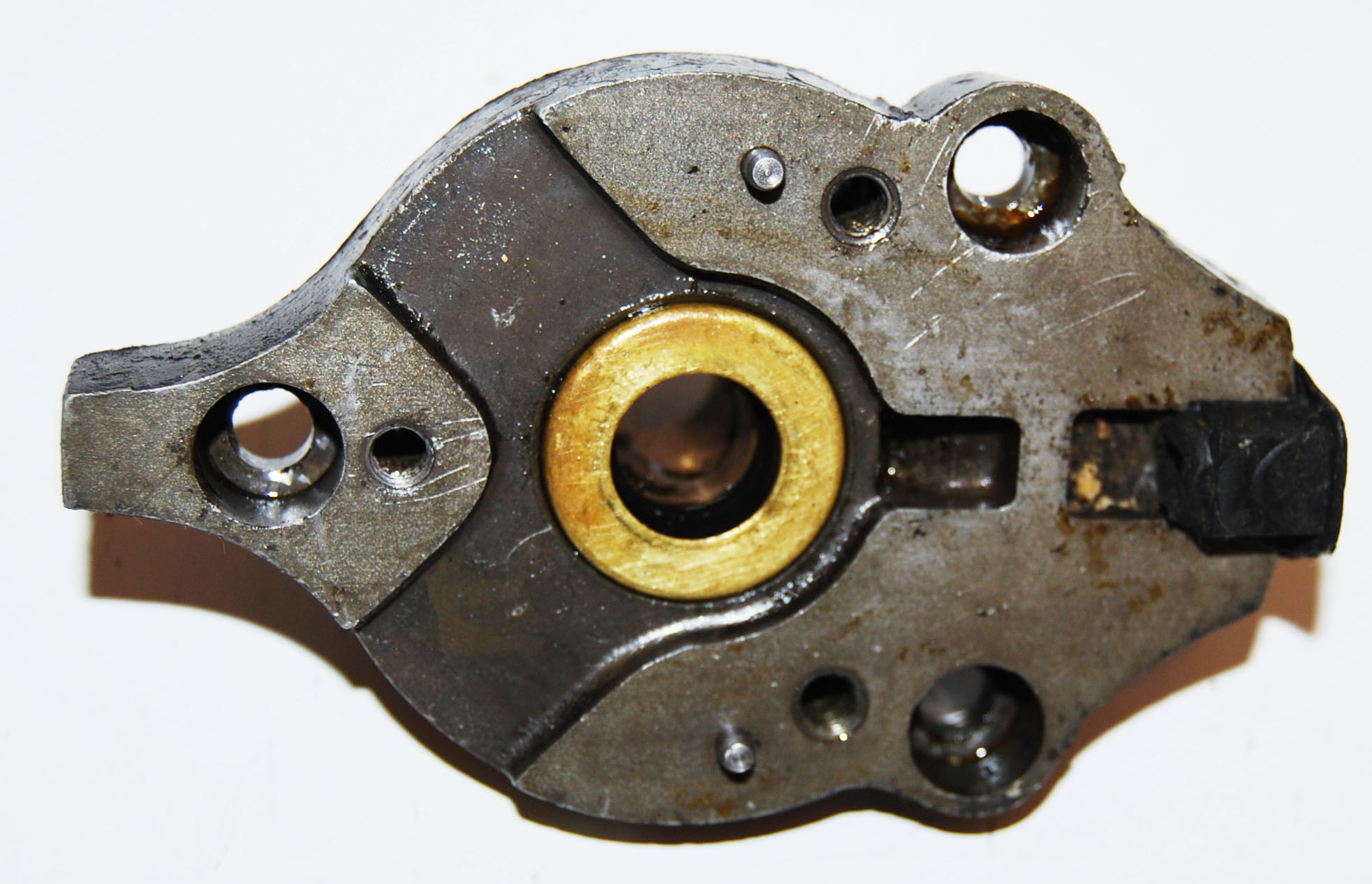

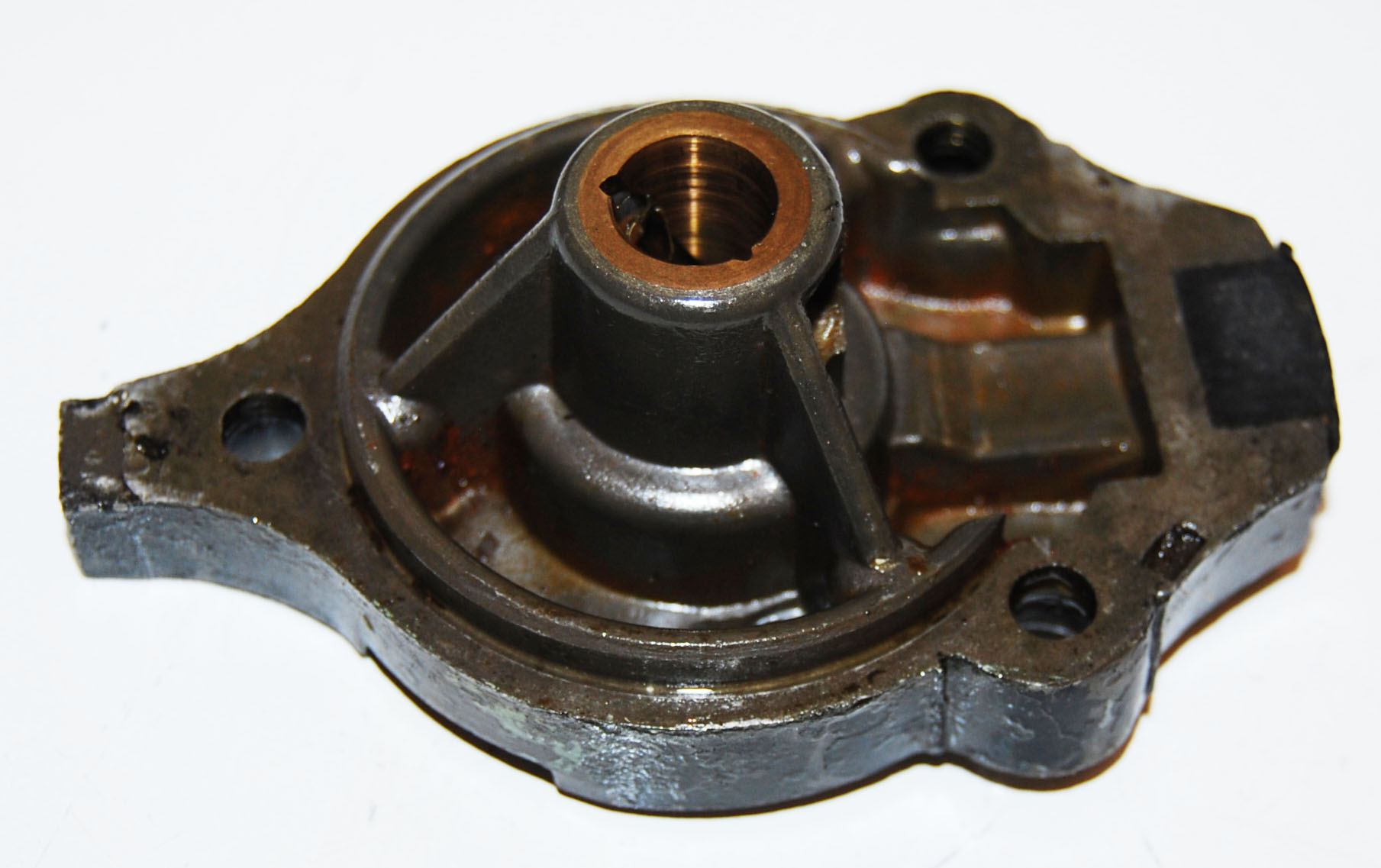

Gearcase Head (two available) |
1946* | PIC#2 | $8.50 | |
 |

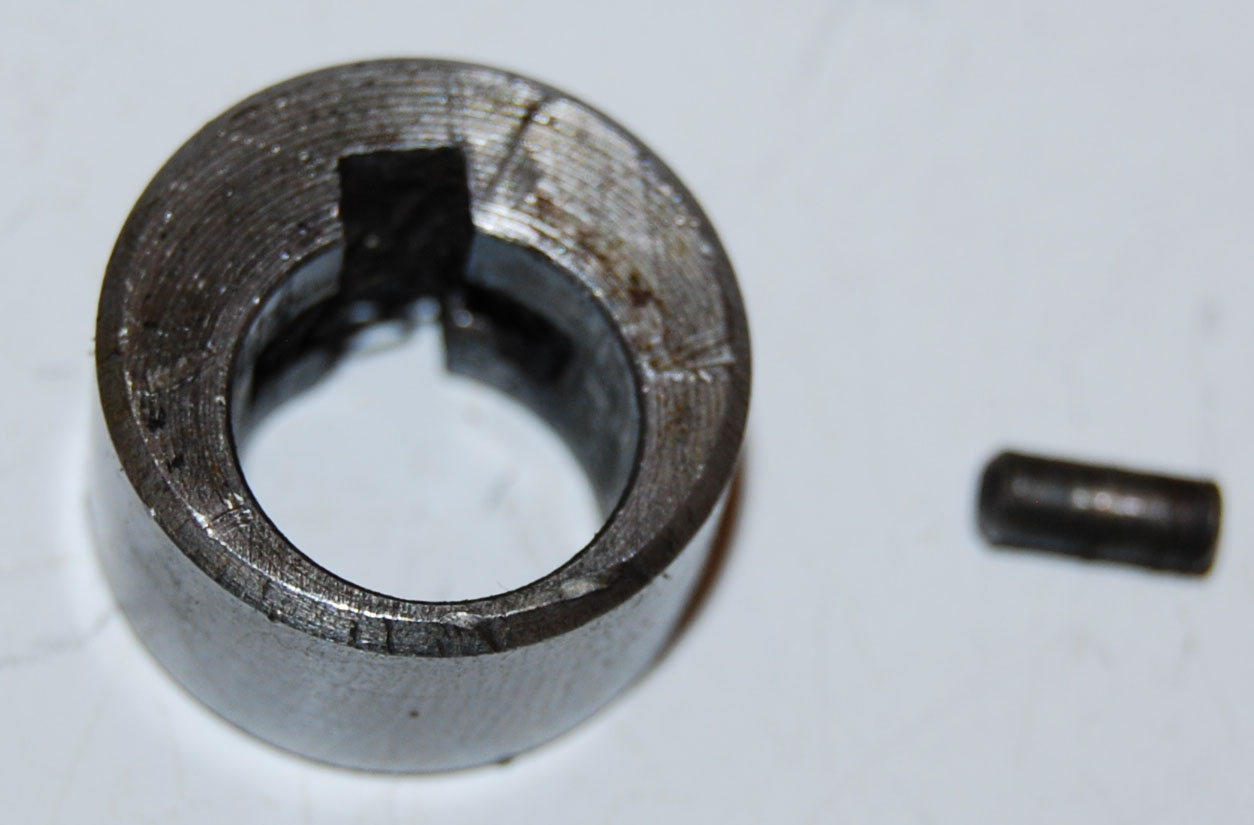

Water Pump Cam & Pin |
1946* | n/a | $7.50 |
(Page updated 9/13/2024)
*will fit several other years/models
