PARTS FOR 1950-53 JOHNSON 5 HP OUTBOARD MOTORS
The parts from these motors (Model #TN-25-TN-28) are all at our North Carolina location which is open from October 1st thru March 27th.
NOTE: Our shopping cart adds shipping charges for domestic orders only. We will ship internationally after a request for a shipping quote is made.
RETURN TO JOHNSON/EVINRUDE PARTS INDEX
Click on any image to enlarge.
| Part # | Pic 1 | Description | Year | Extra Pics | PRICE |
|---|---|---|---|---|---|
| n/a |  |

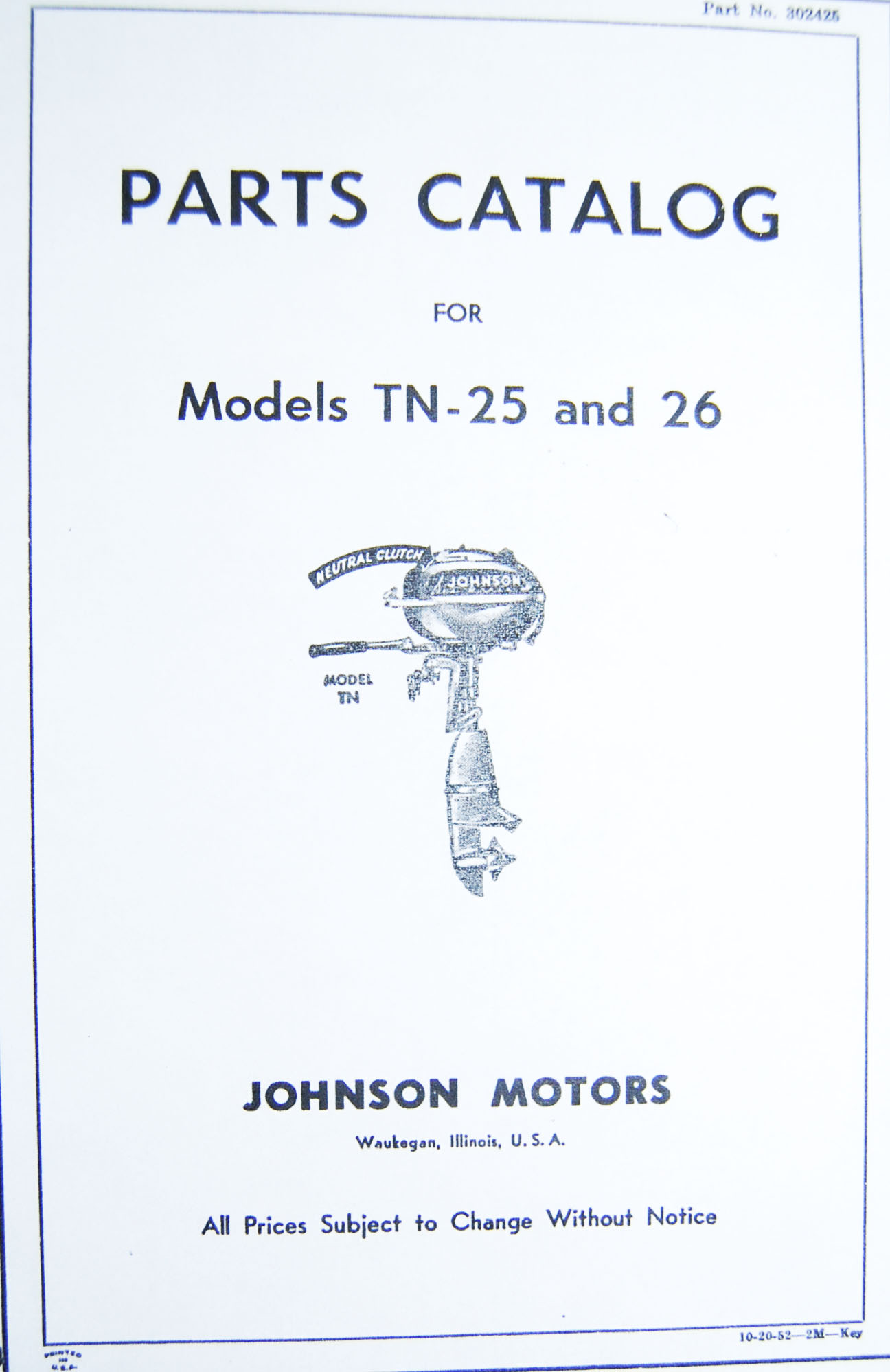

1950-1951 Johnson, TN25, TN26, 5 HP Parts Catalog (pdf format, 14 pages) | 1950-51* | na | $3.00 |
| n/a |  |

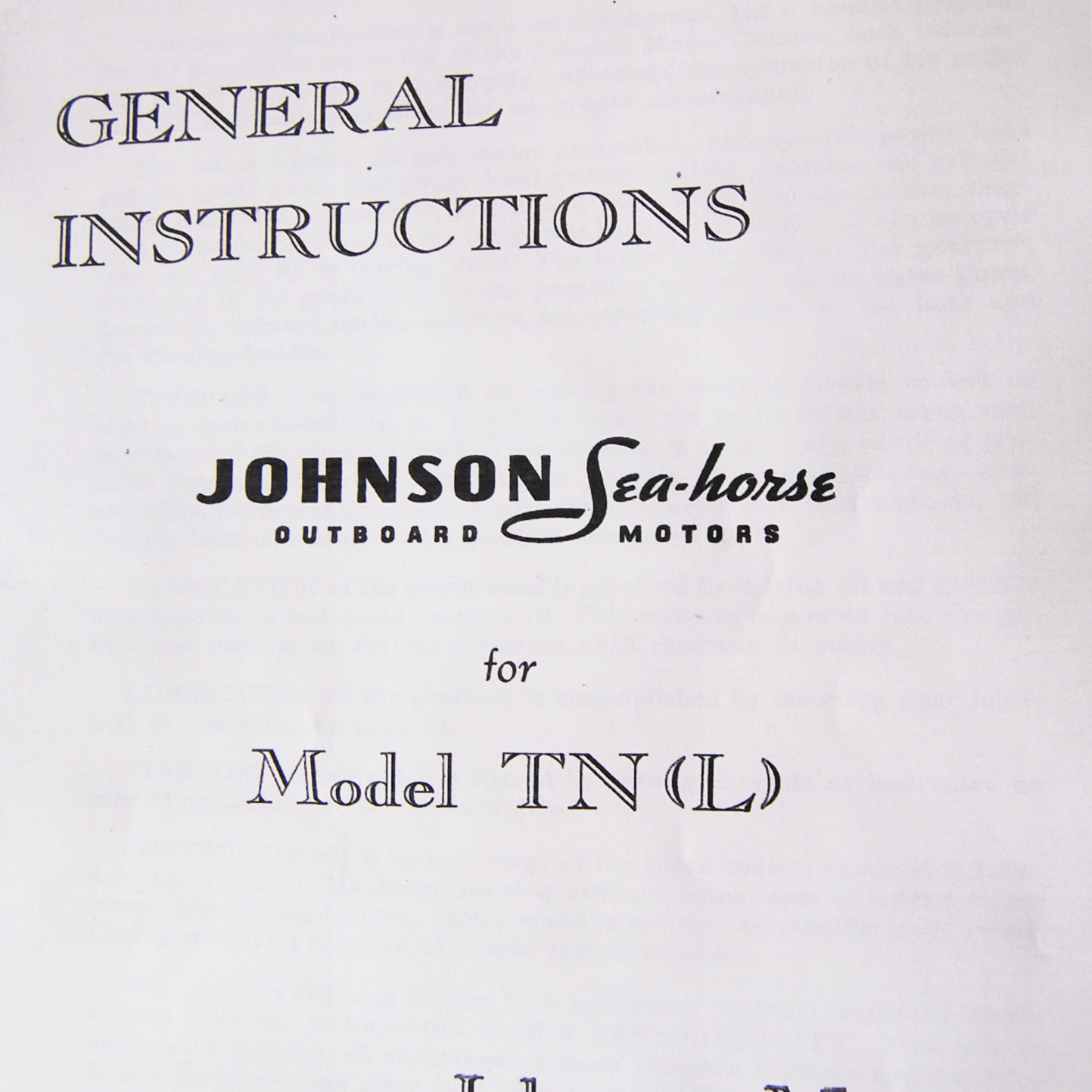

1950-1953 Johnson TN (L), 5 HP General Instruction Manual (pdf format, 30 pages) | 1950-53* | n/a | $4.00 |
| 375039, 41-53 |  |

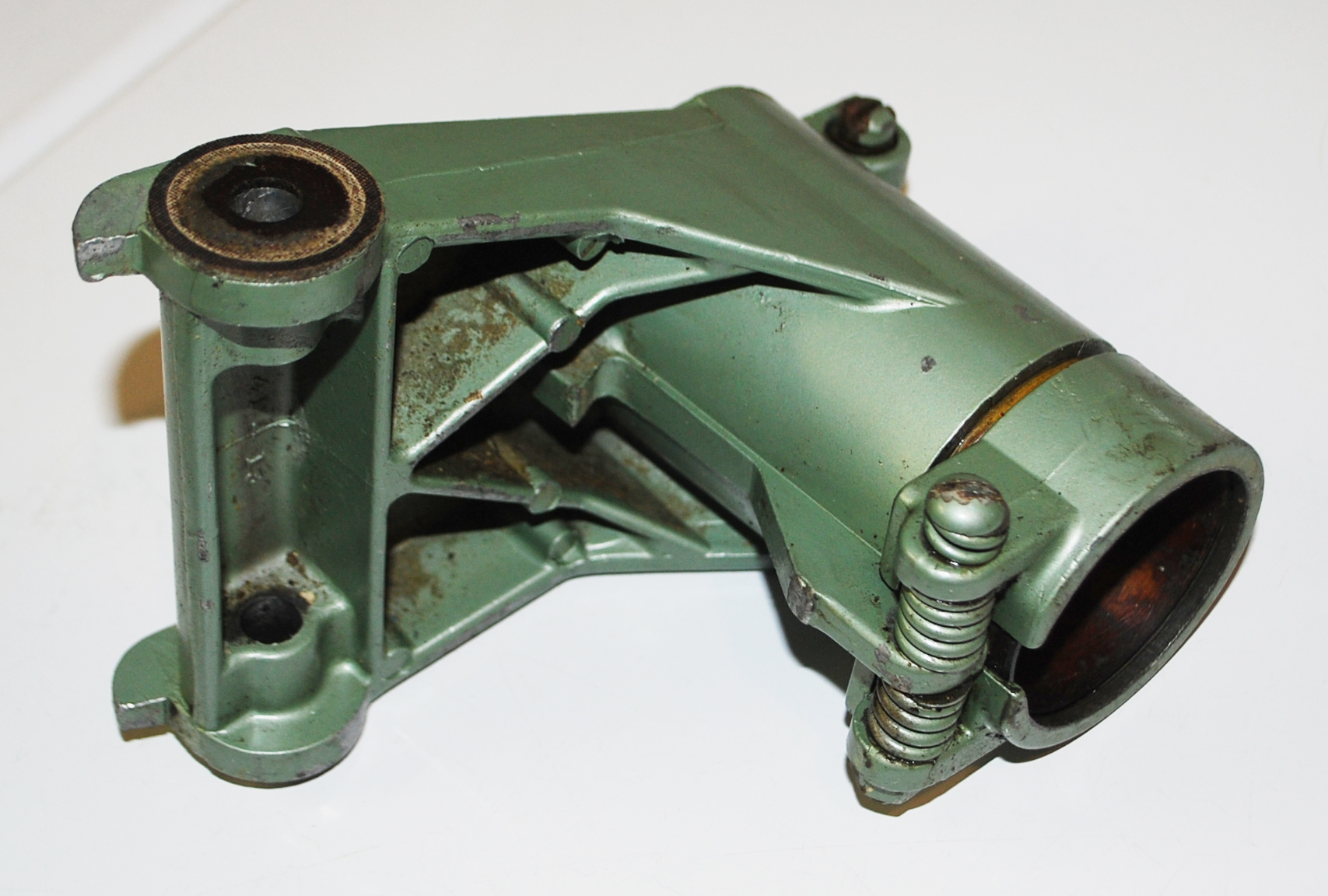

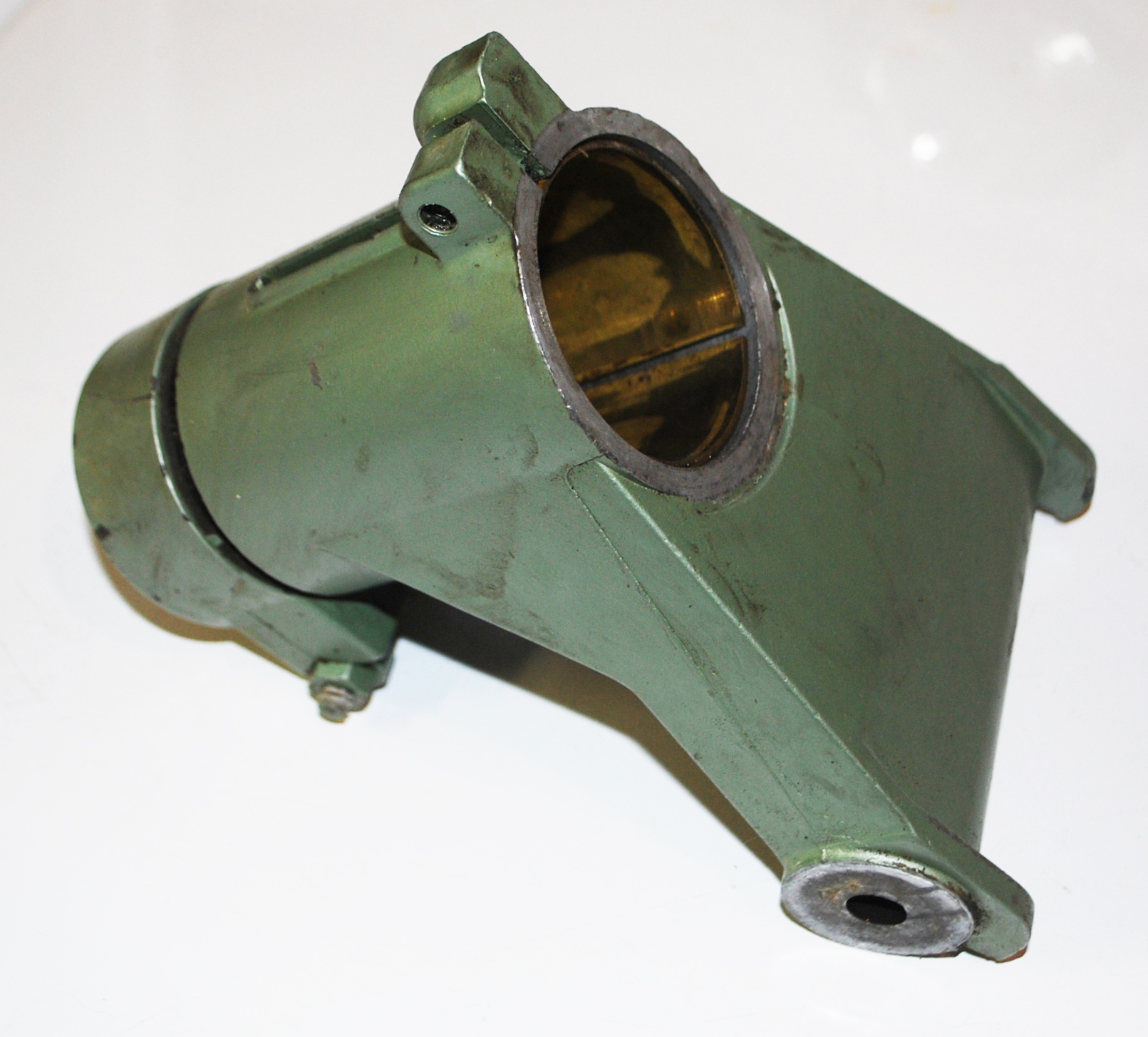

Pivot Tube Bracket | 1950* | PIC#2 | $18.00 |
| 302315 |  |

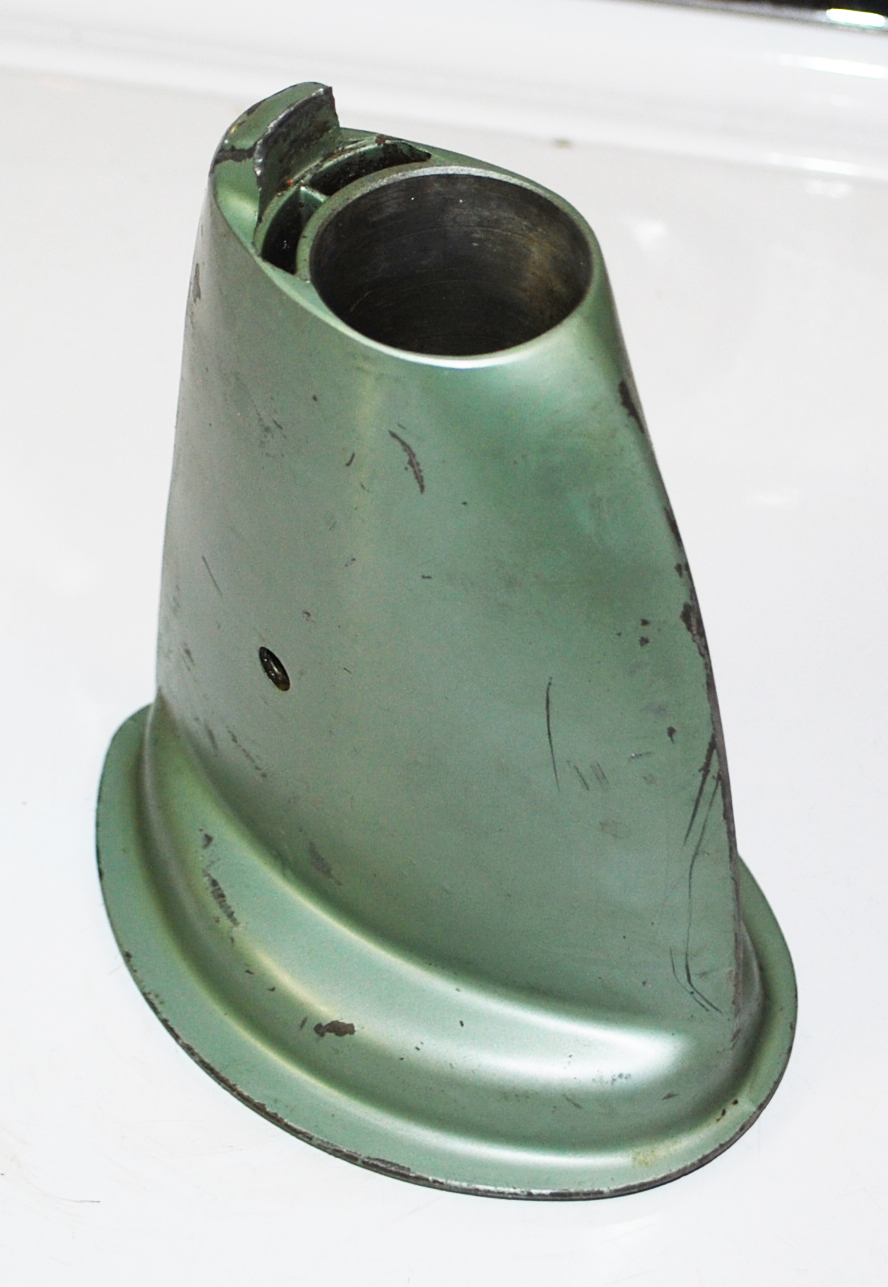

Mid Section | 1950* | PIC#2 | $12.50 |
| 375692 |  |
Gearcase | 1950-53 | PIC#2 | $22.50 |
| 302304 |  |

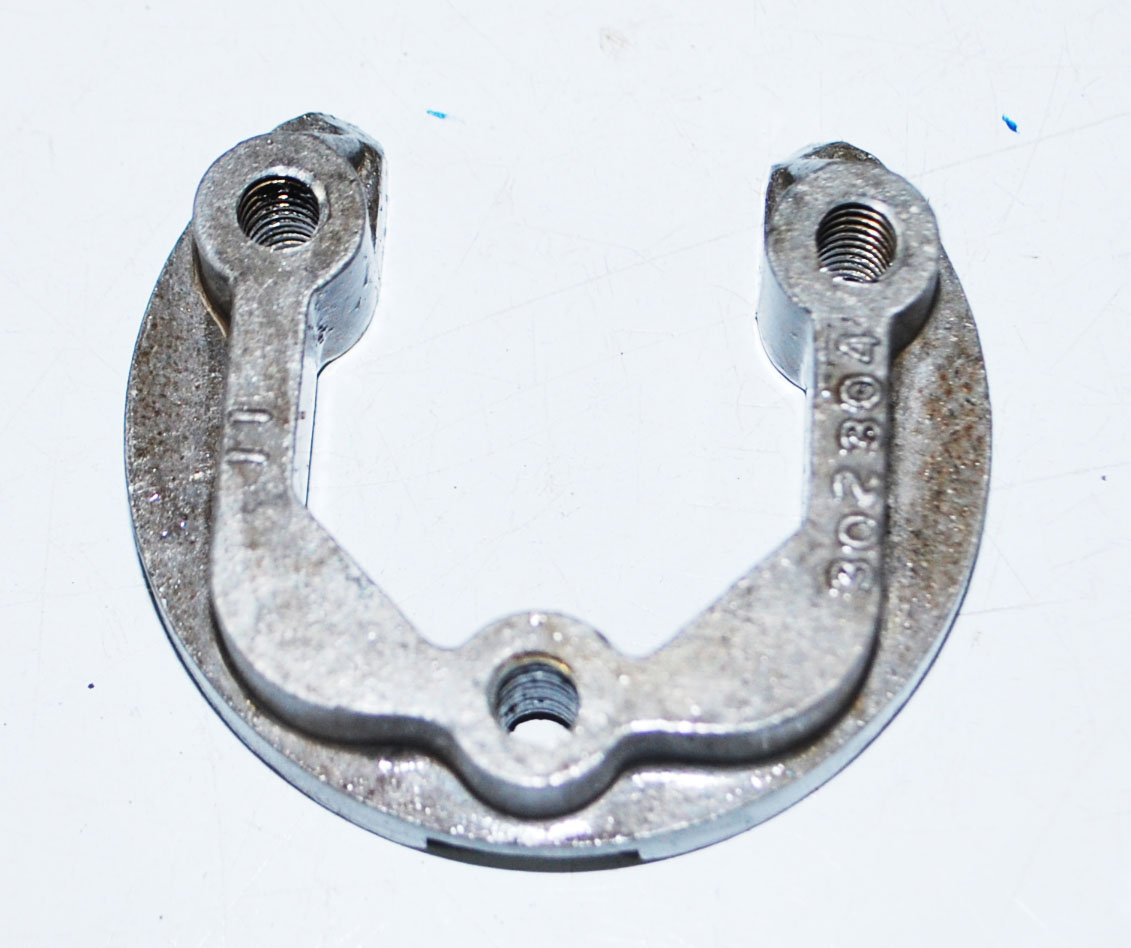

Gearcase Head Retainer (two available) |
1950-53 | n/a | $5.00 |
| 302339 |  |

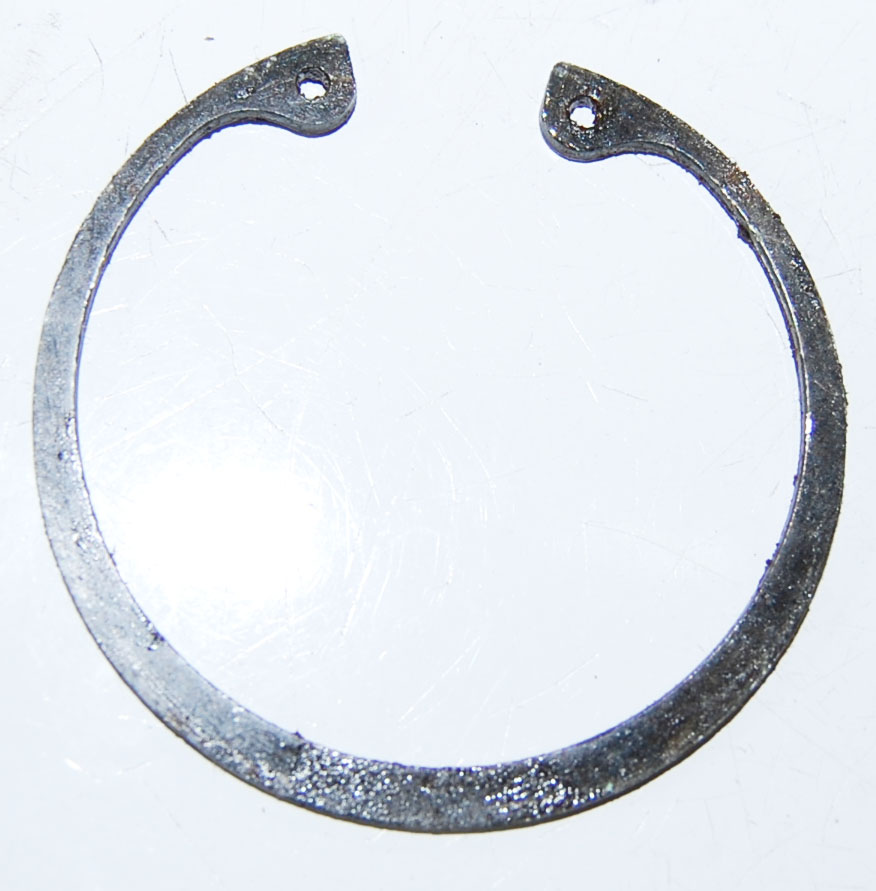

Gearcase Head Snap Ring | 1953* | n/a | $2.50 |
| 375690 |  |

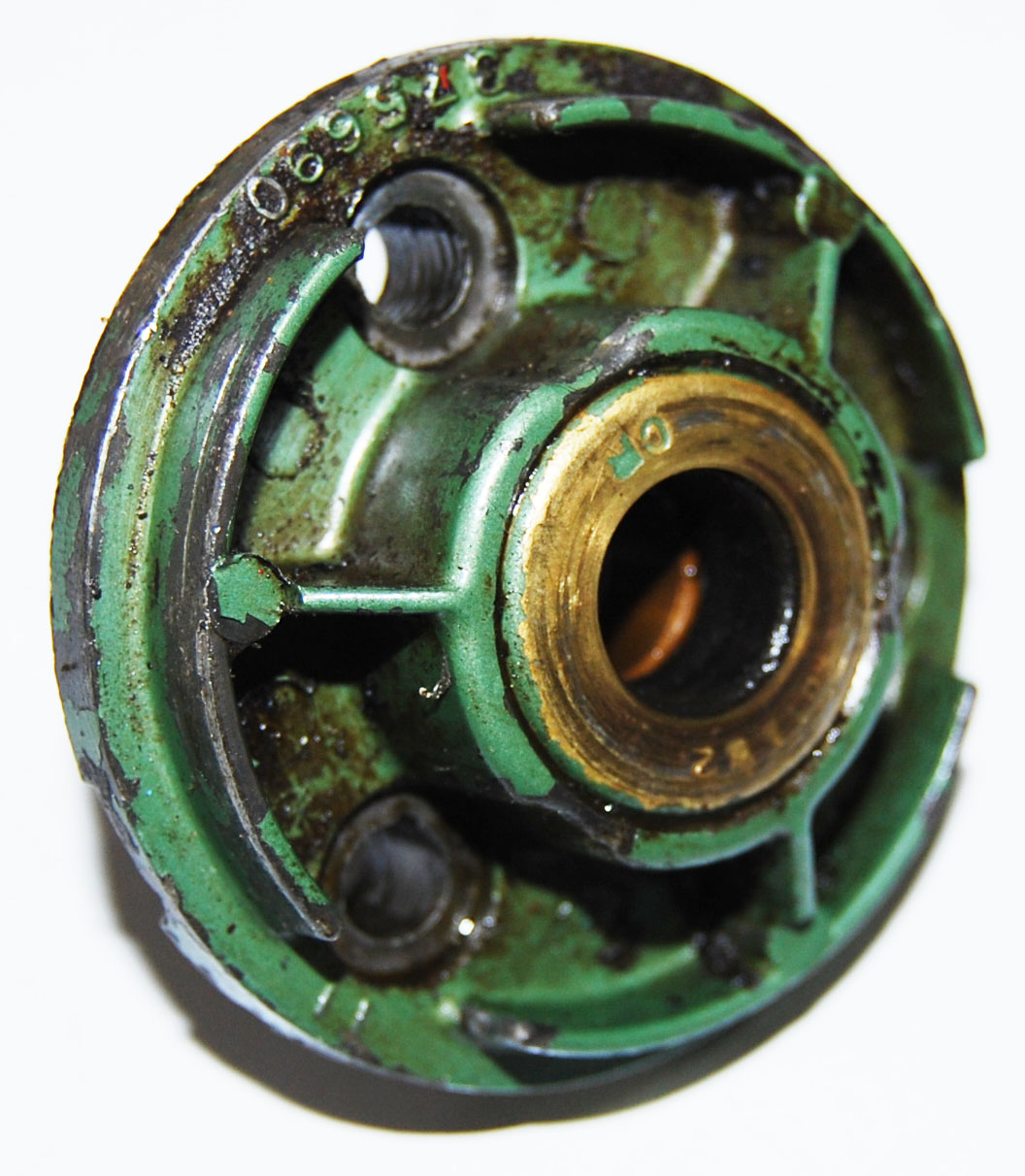

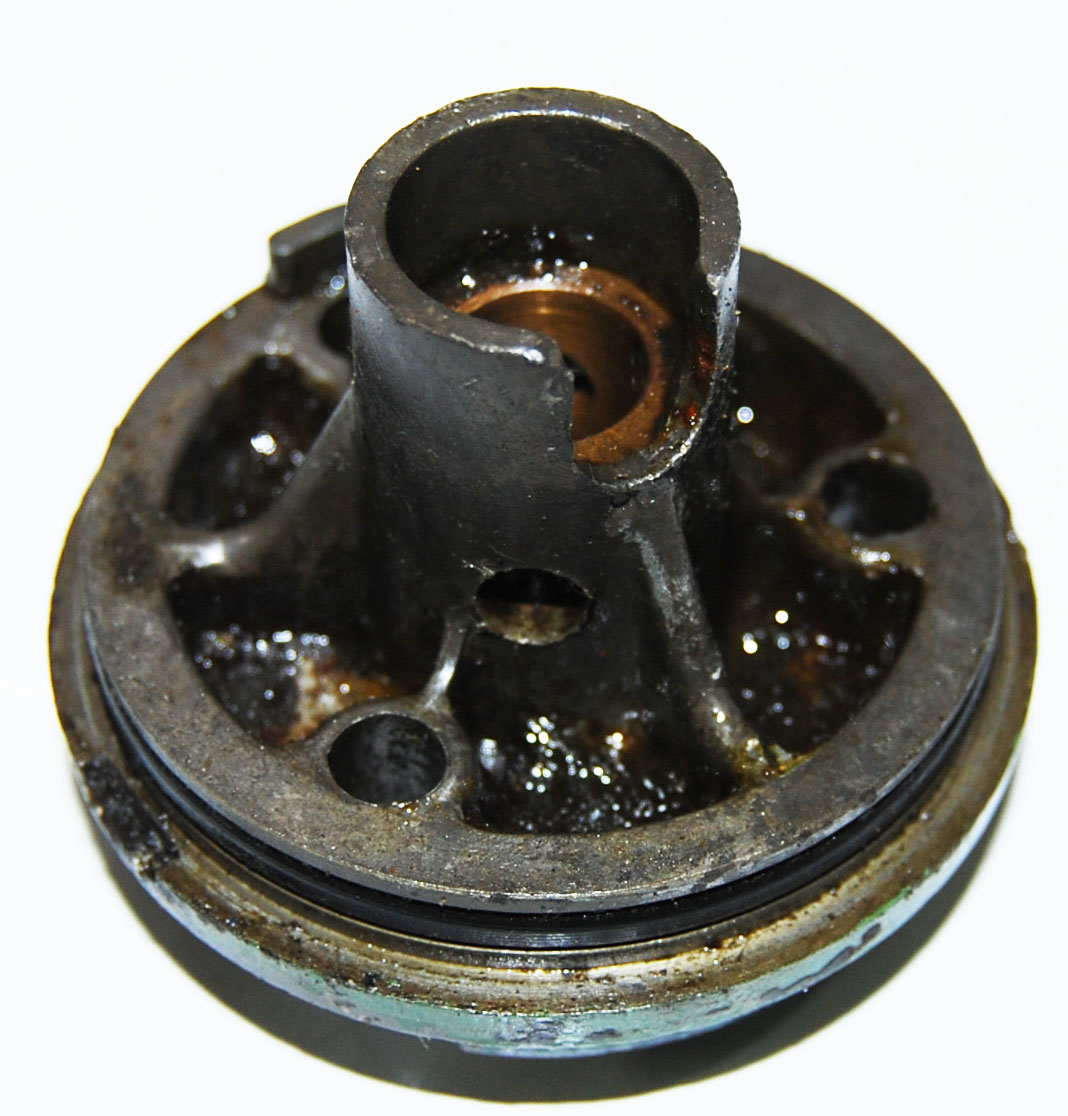

Gearcase Head | 1953* | PIC#2 | $10.00 |
| 375724 |  |

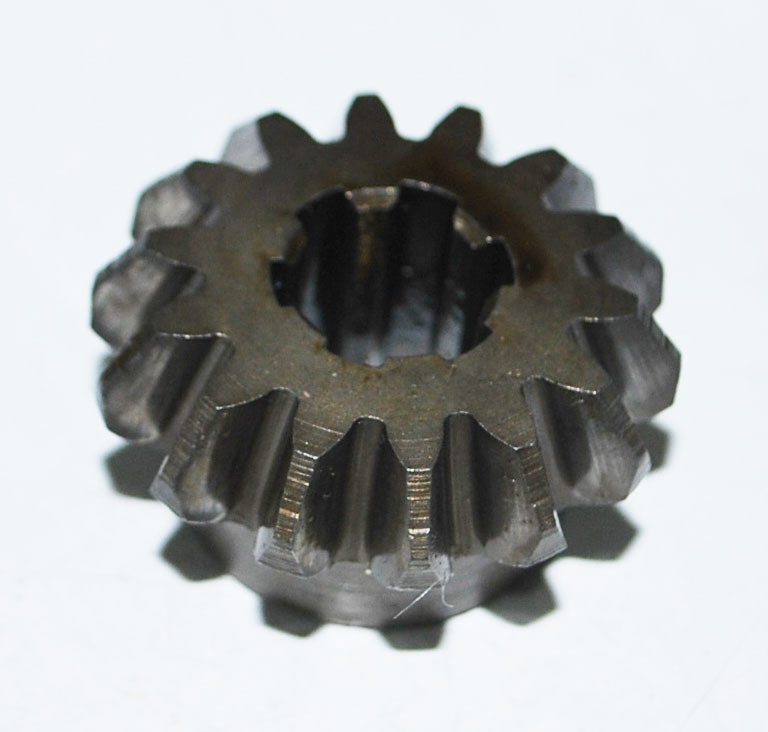

Pinion Gear | 1950-53 | n/a | $9.00 |
| 375724 |  |

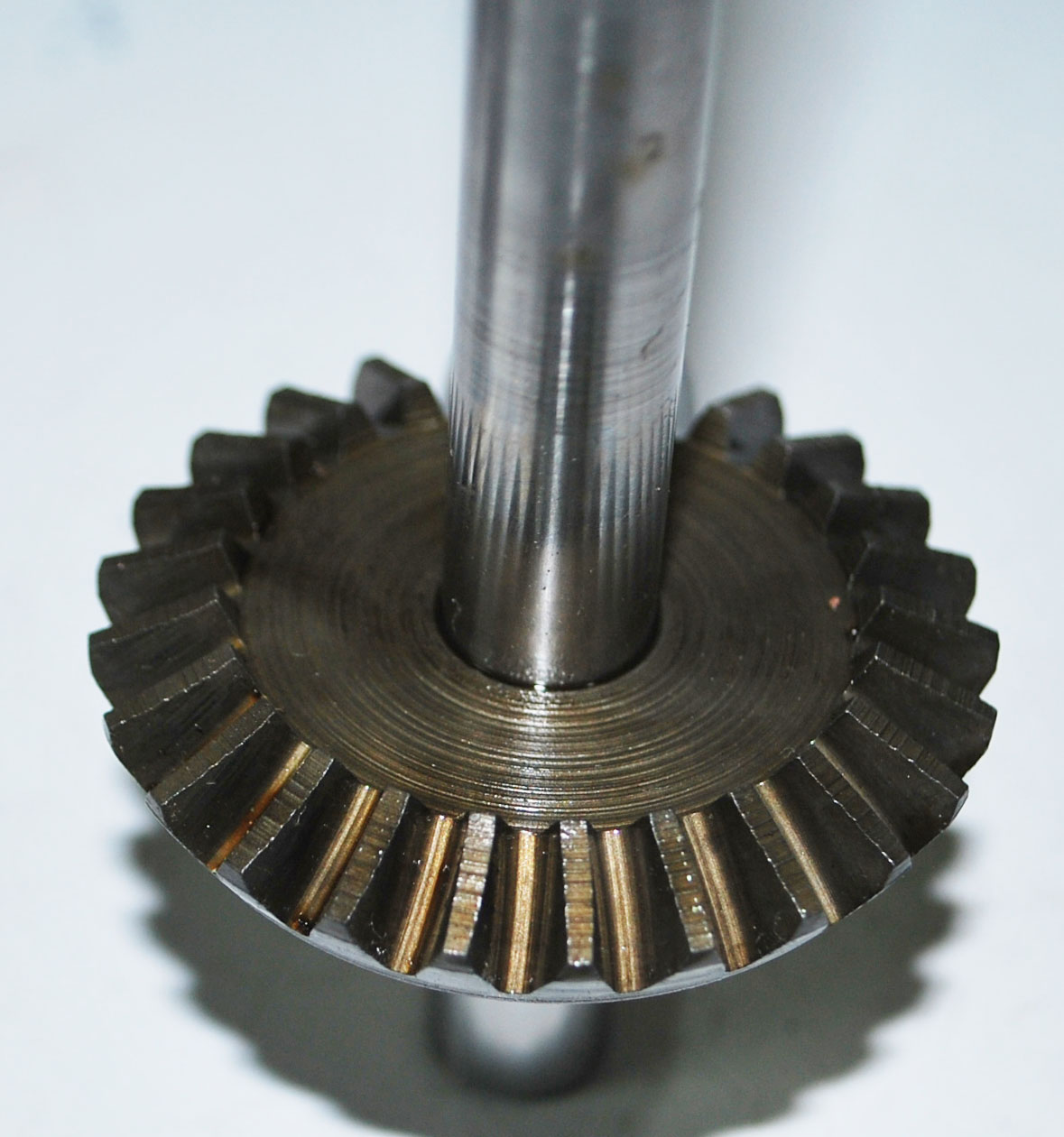

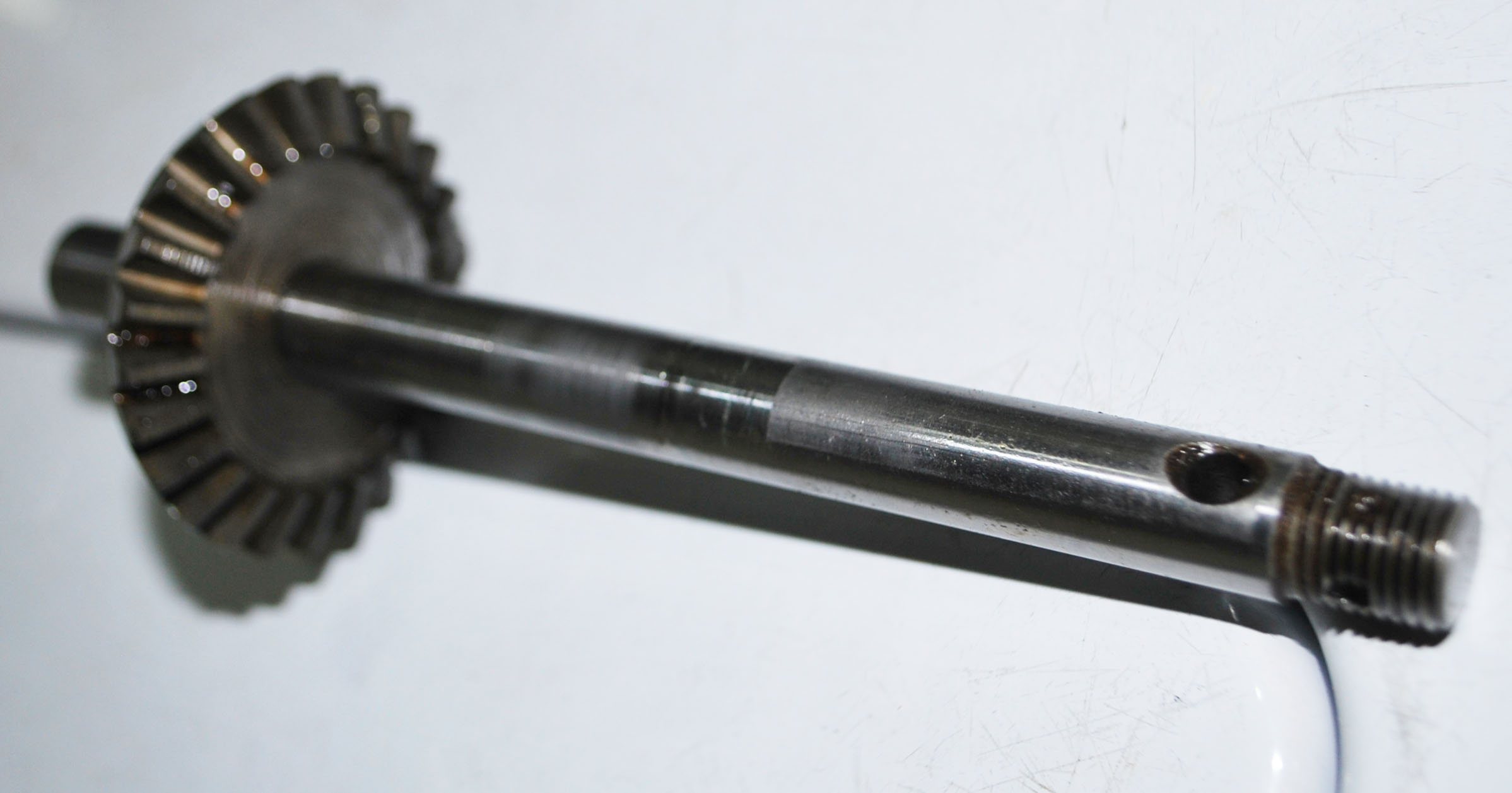

Prop Shaft with Forward Gear | 1950-53 | PIC#2 | $17.00 |
| 375724 |  |

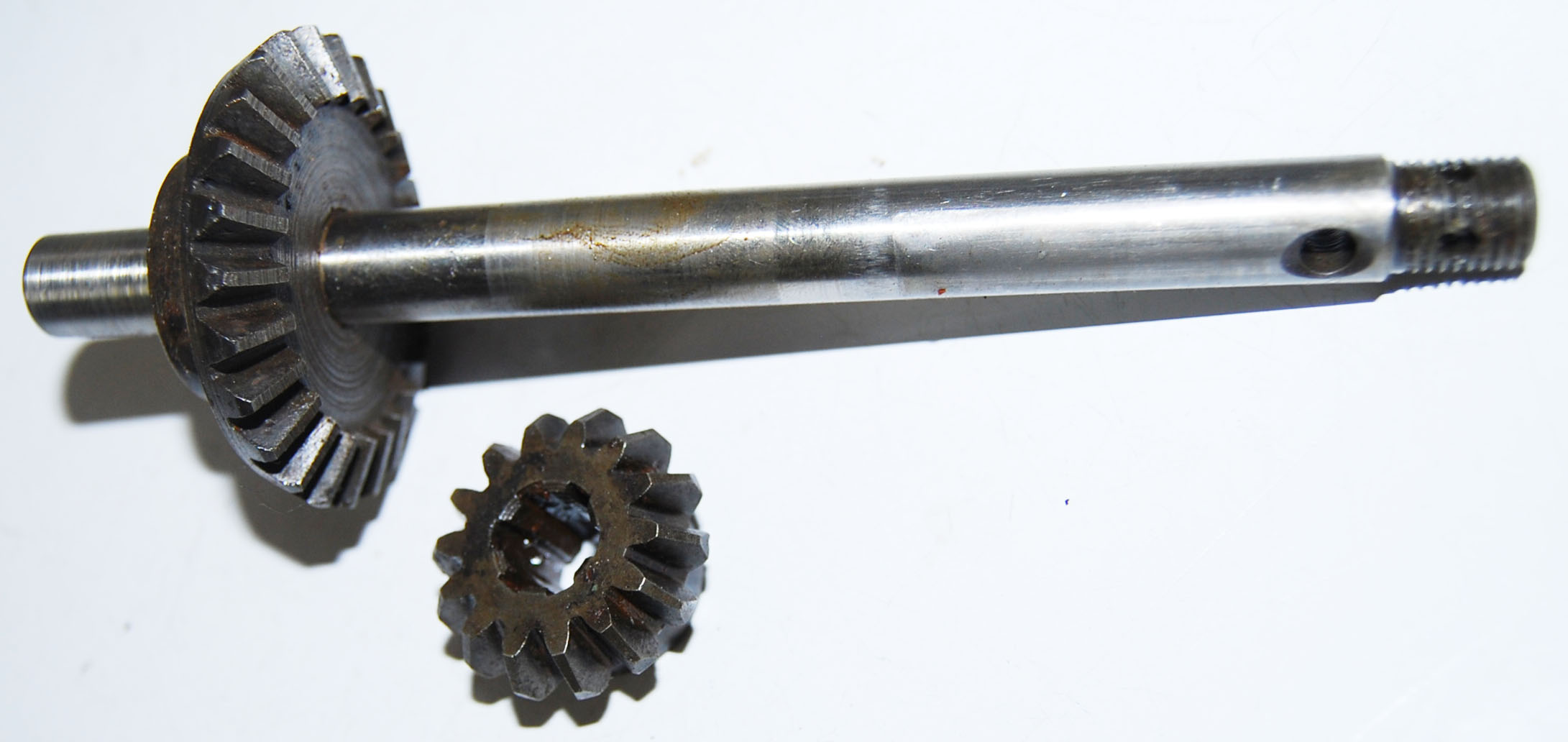

Prop Shaft with Forward & Pinion Gears | 1953* | n/a | $24.00 |
| n/a |  |

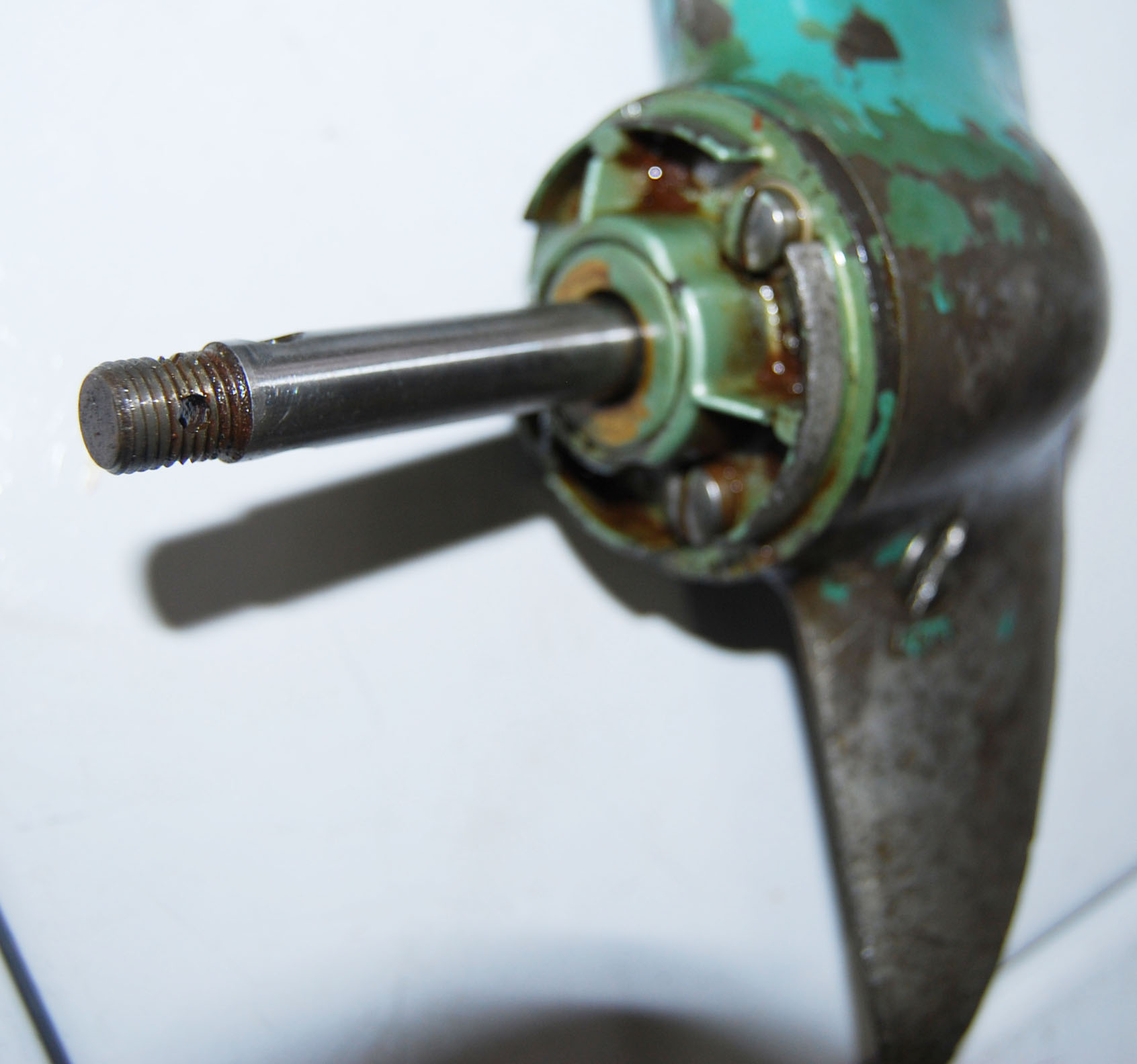

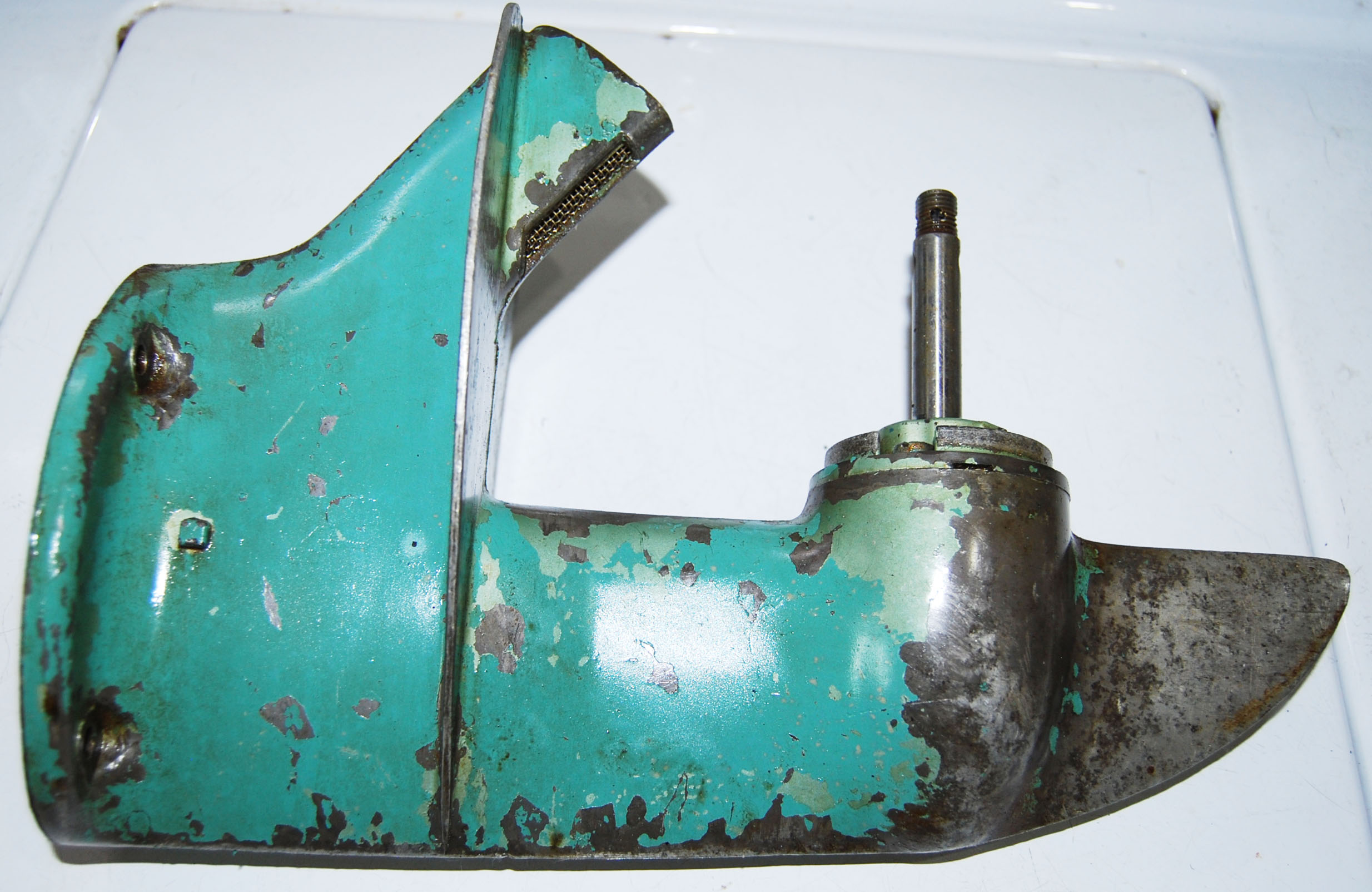

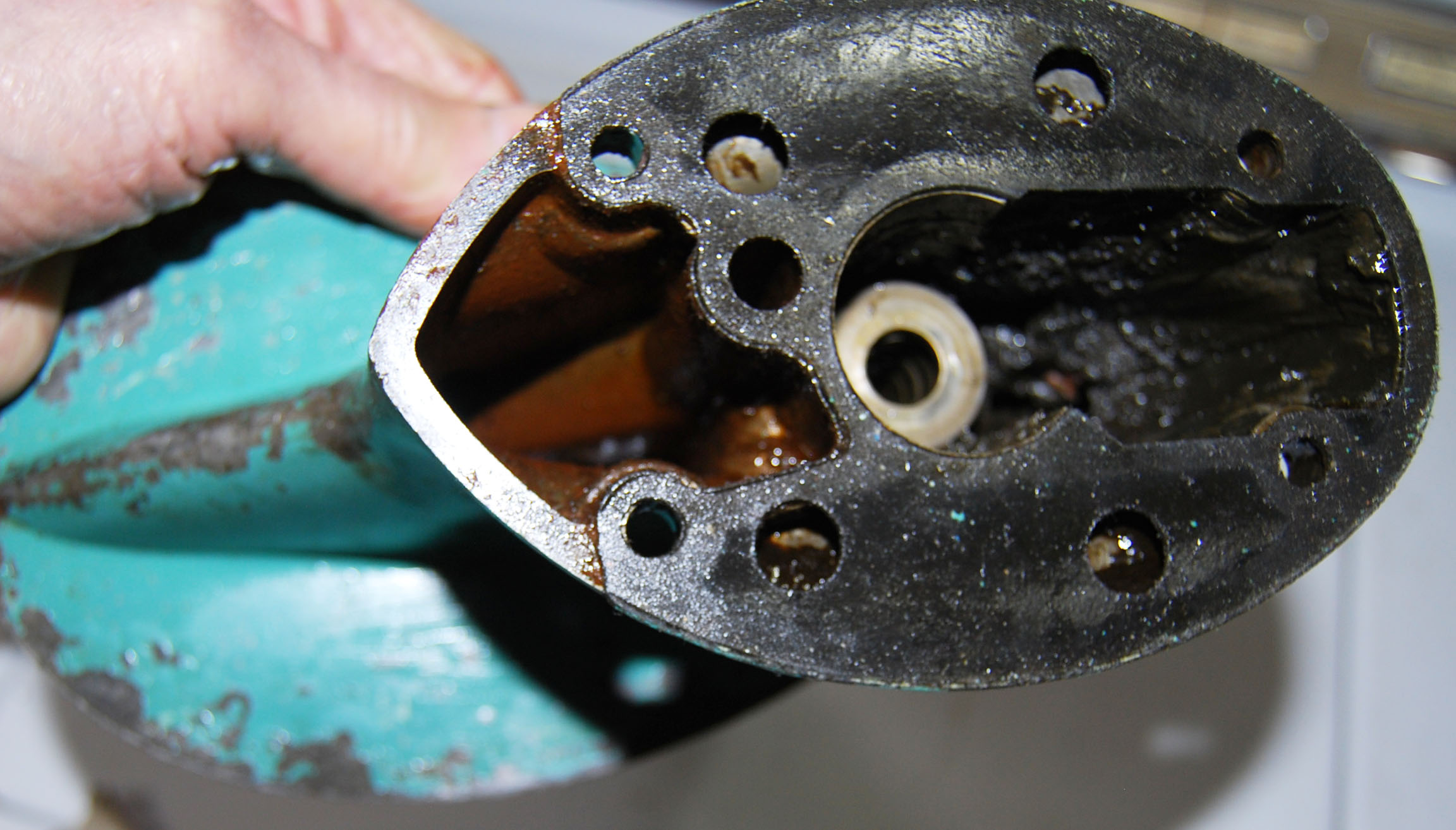

Lower Unit Assembly (good clutch) TN-26 (must ship dry) |
1950/51 | $48.00 | |
| 375693 |  |

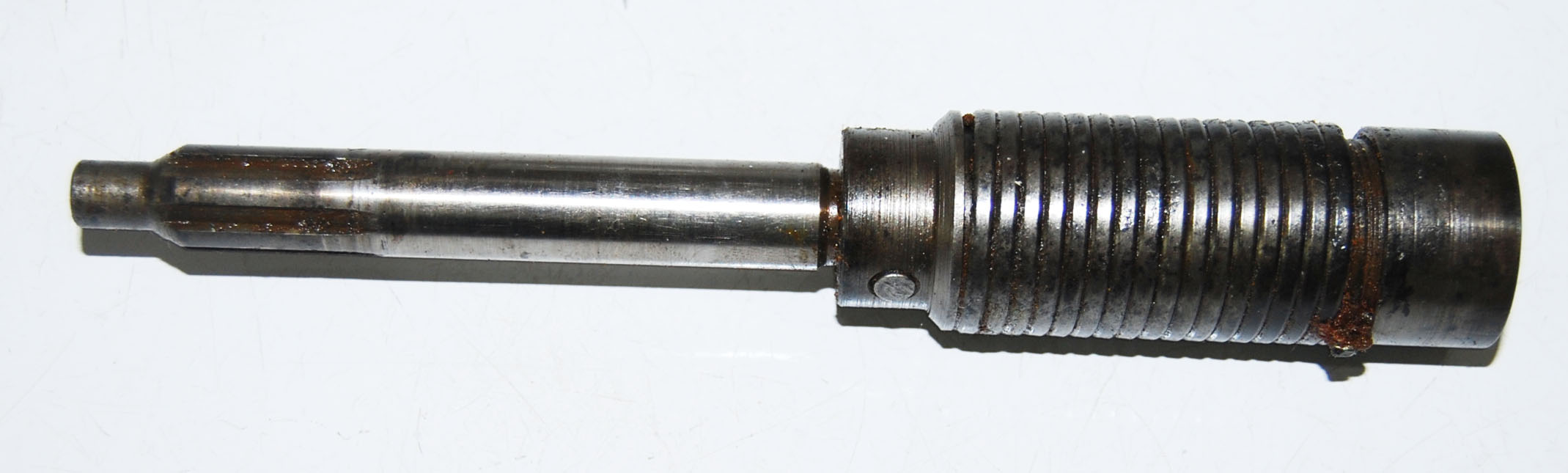

Lower Drive Shaft with Clutch | 1953* | n/a | $18.00 |
| 42-113, 42-114, 300459 |
|

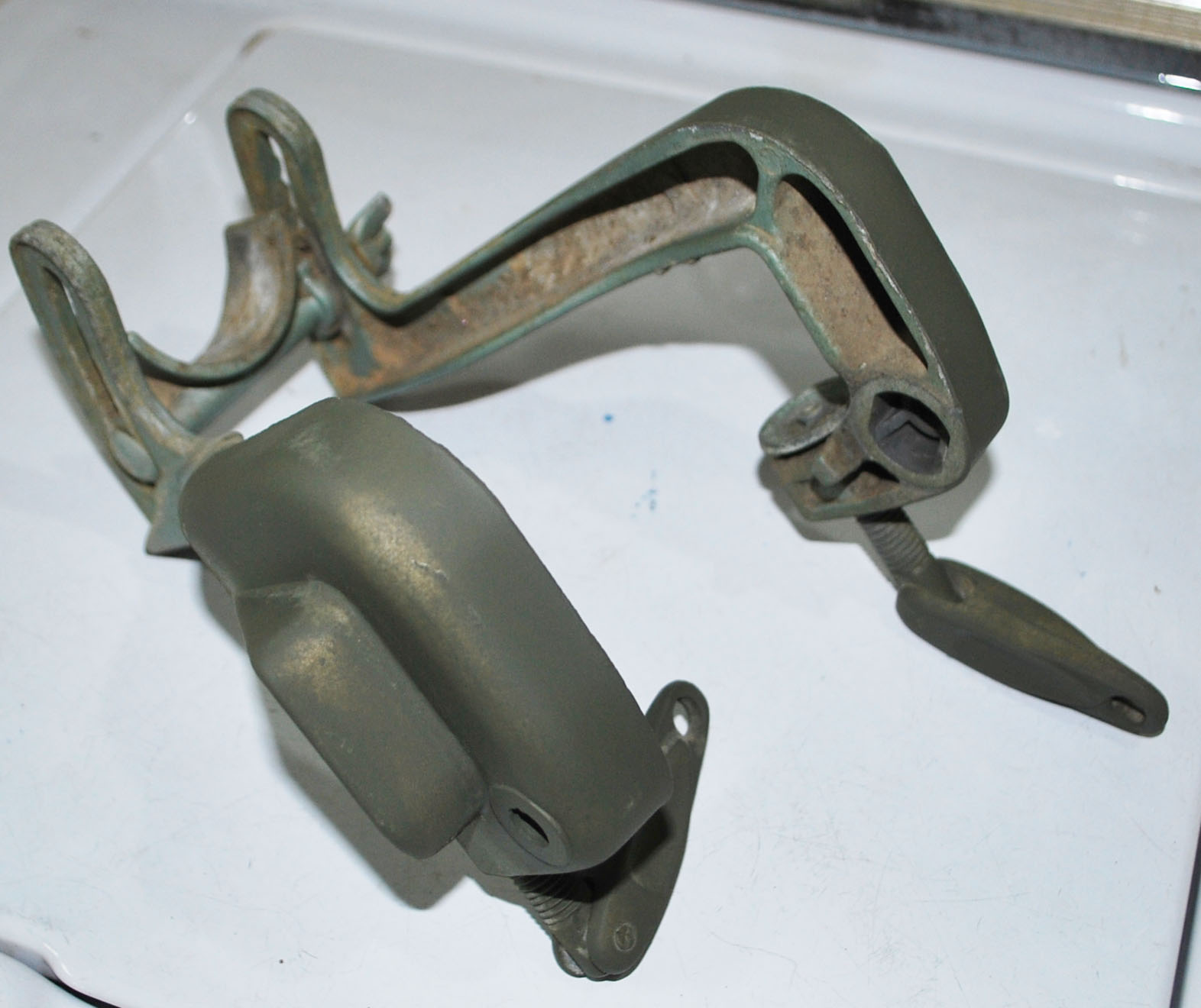

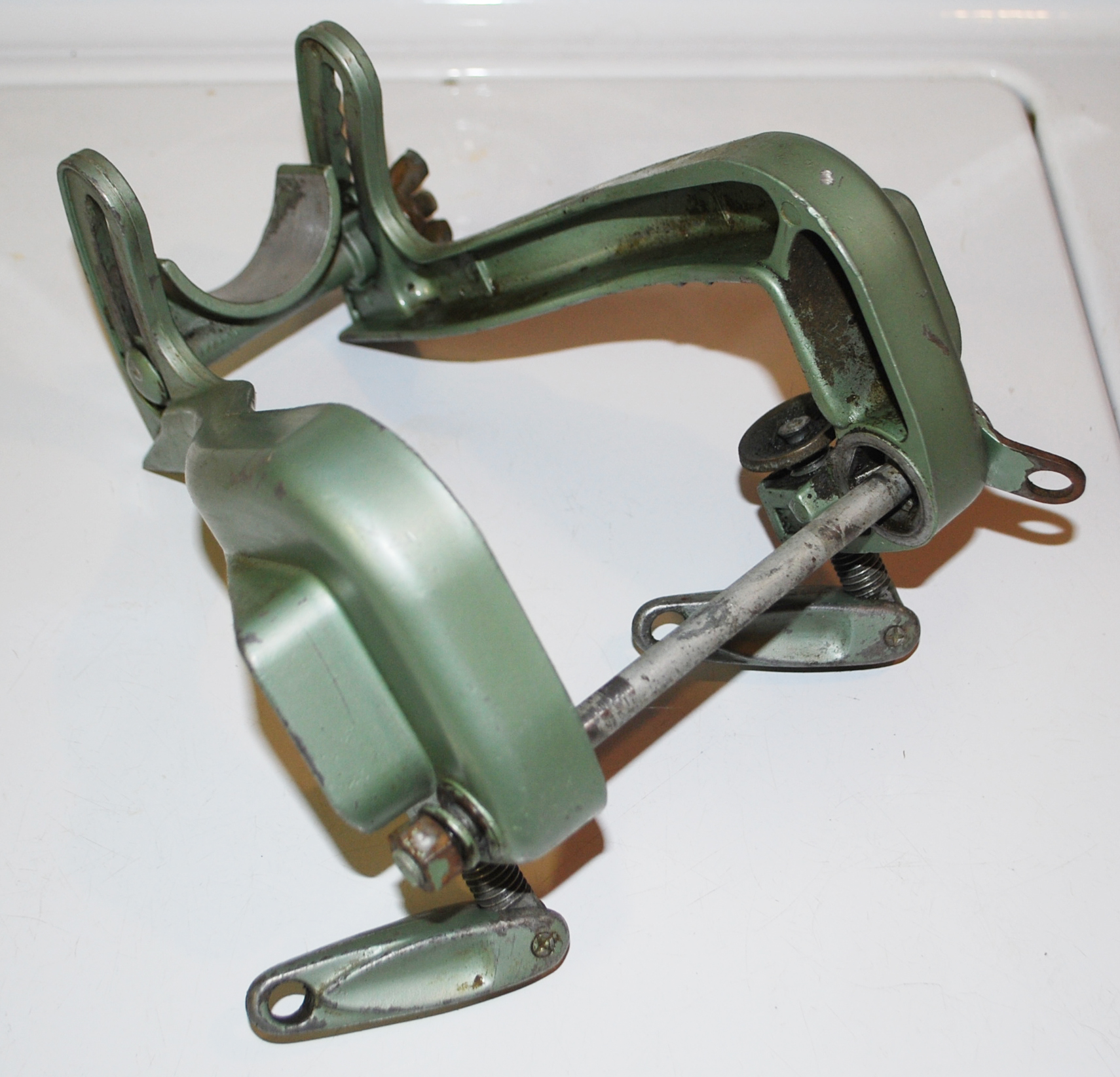

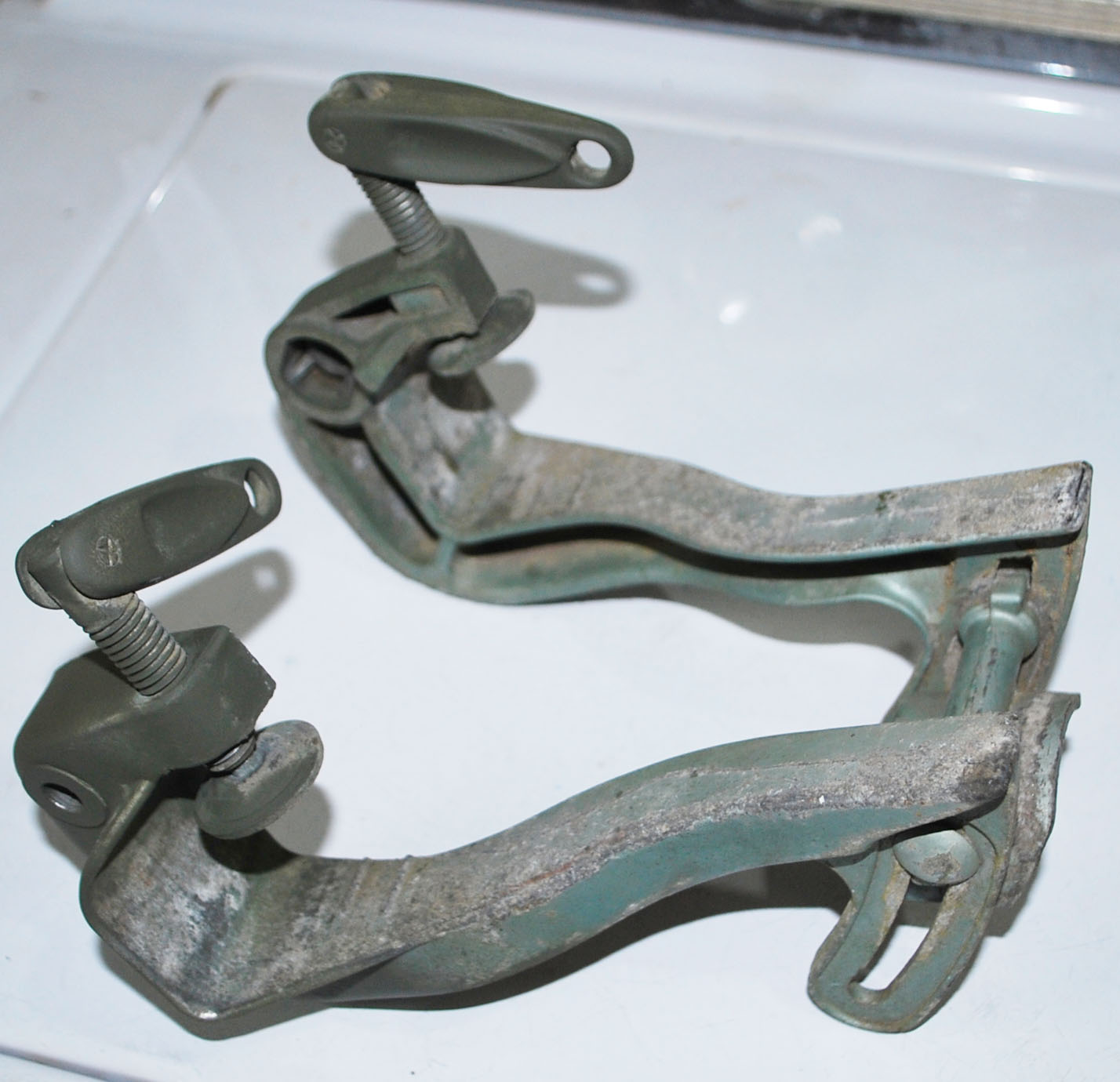

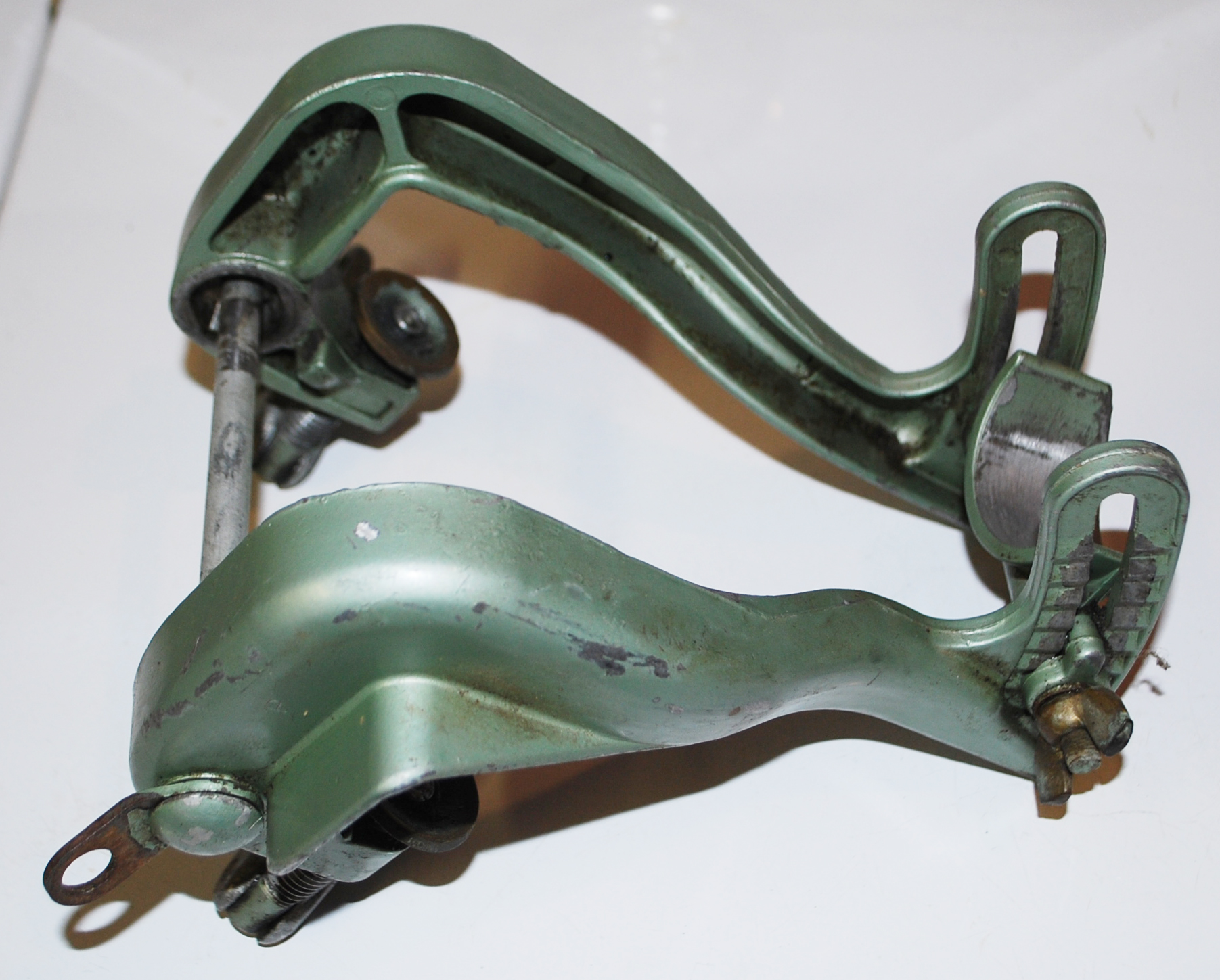

Stern Bracket Assembly (two available) |
1950-53 | $28.50 | |
| 42-114 |  |

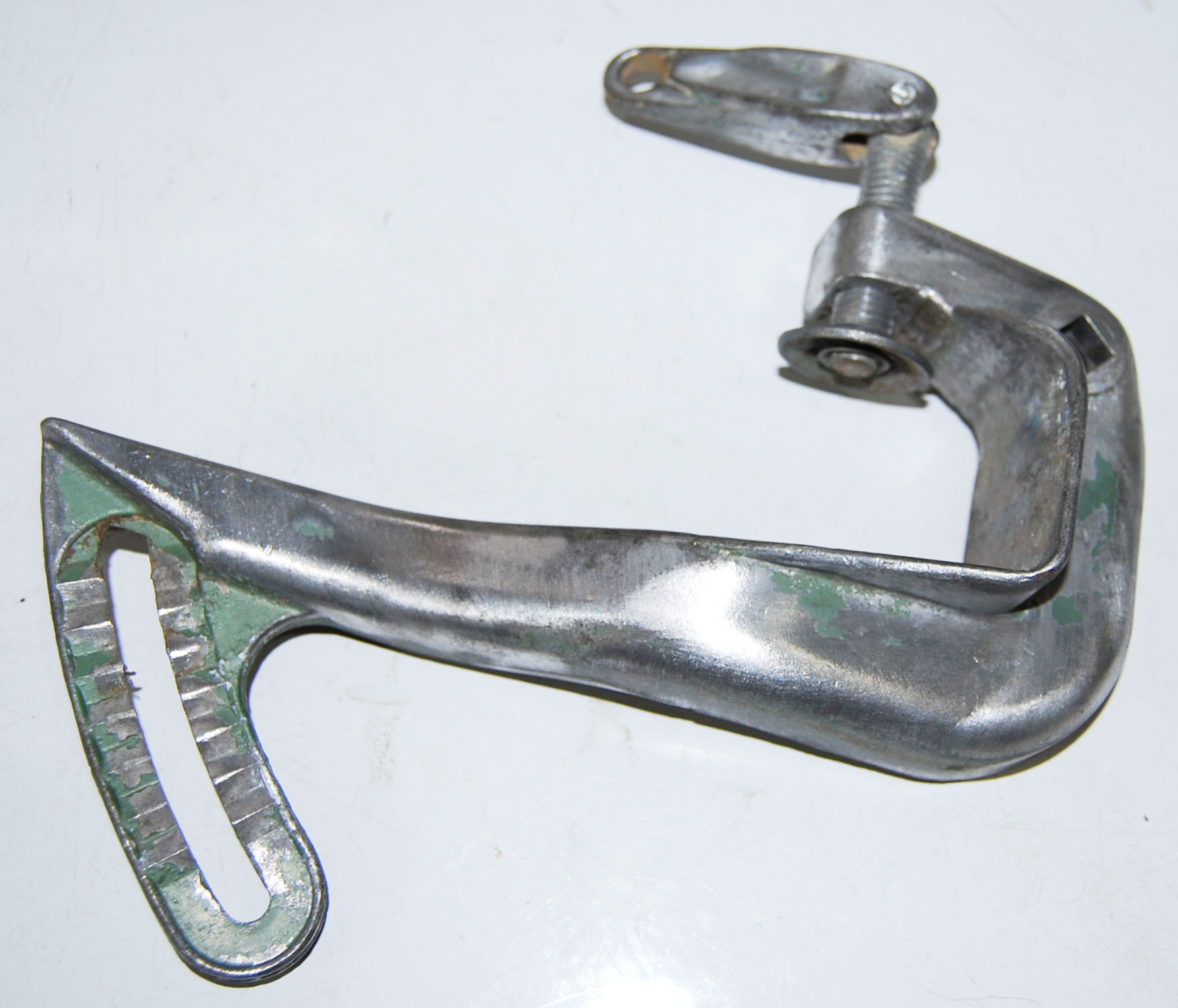

Port Stern Bracket | 1953* | n/a | $14.00 |
| 42-113 |  |

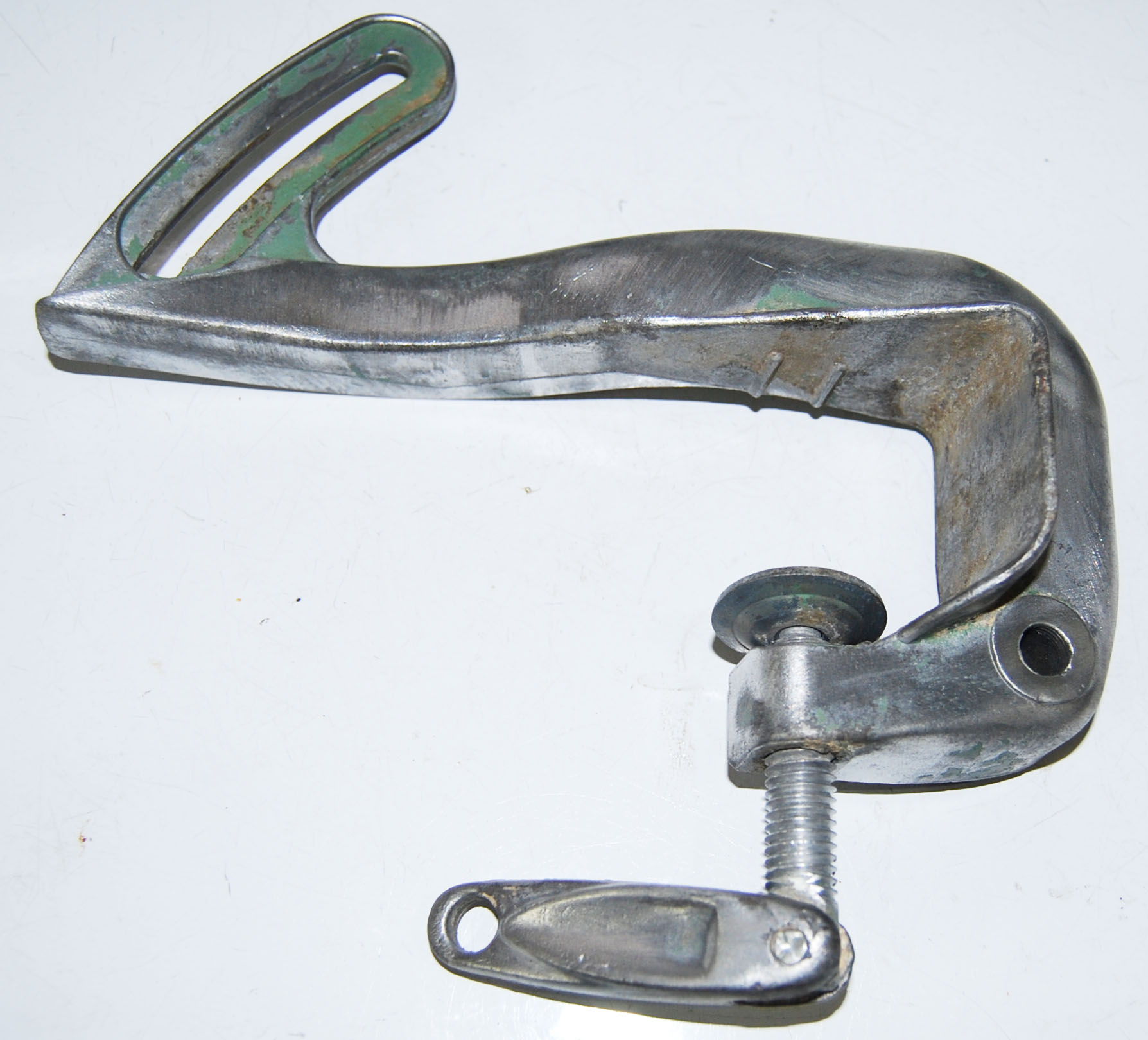

Starboard Stern Bracket | 1953* | n/a | $14.00 |
| 300459 |  |

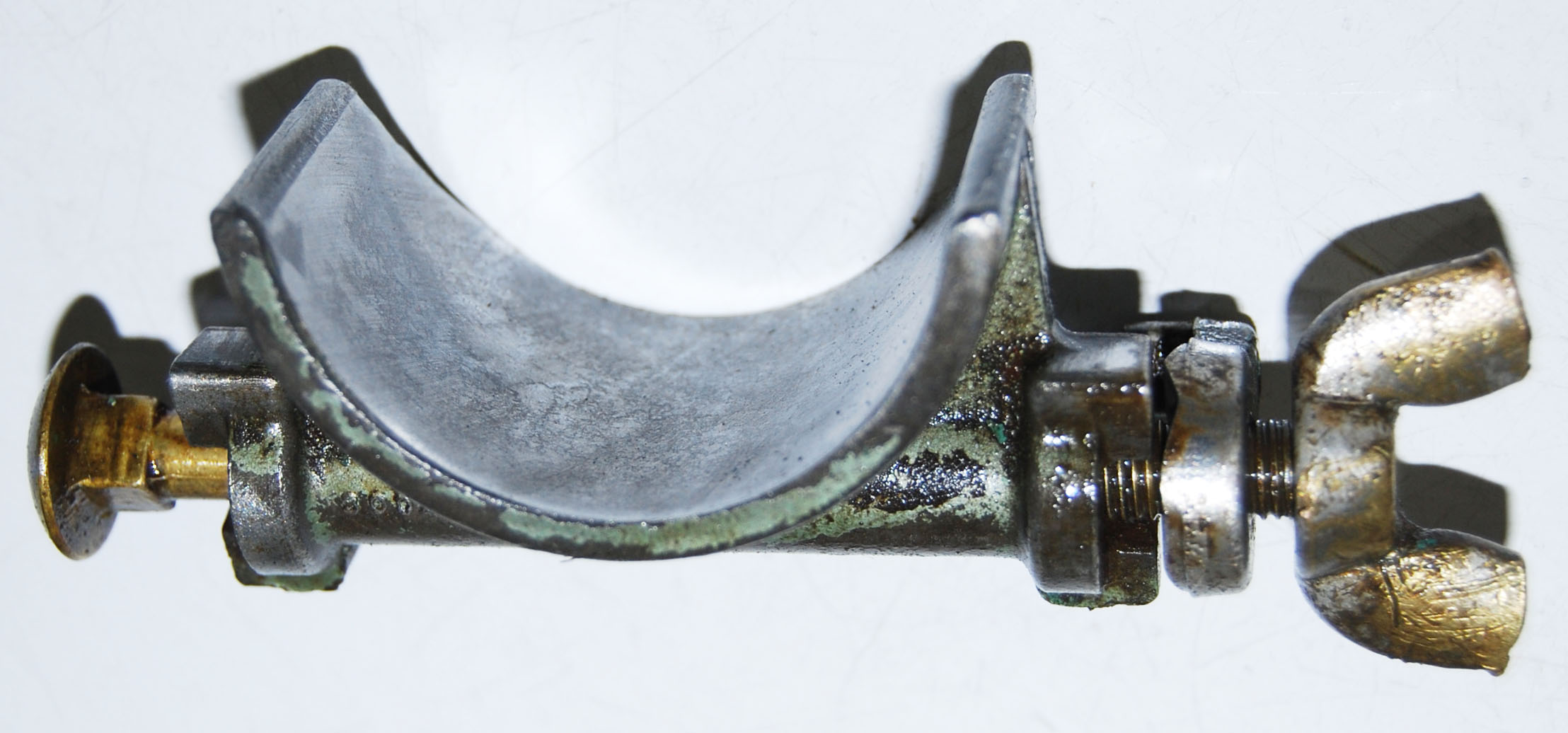

Tilt Angle Support Assy. (two available) |
1951* | n/a | $8.00 |
| 41-61 |  |

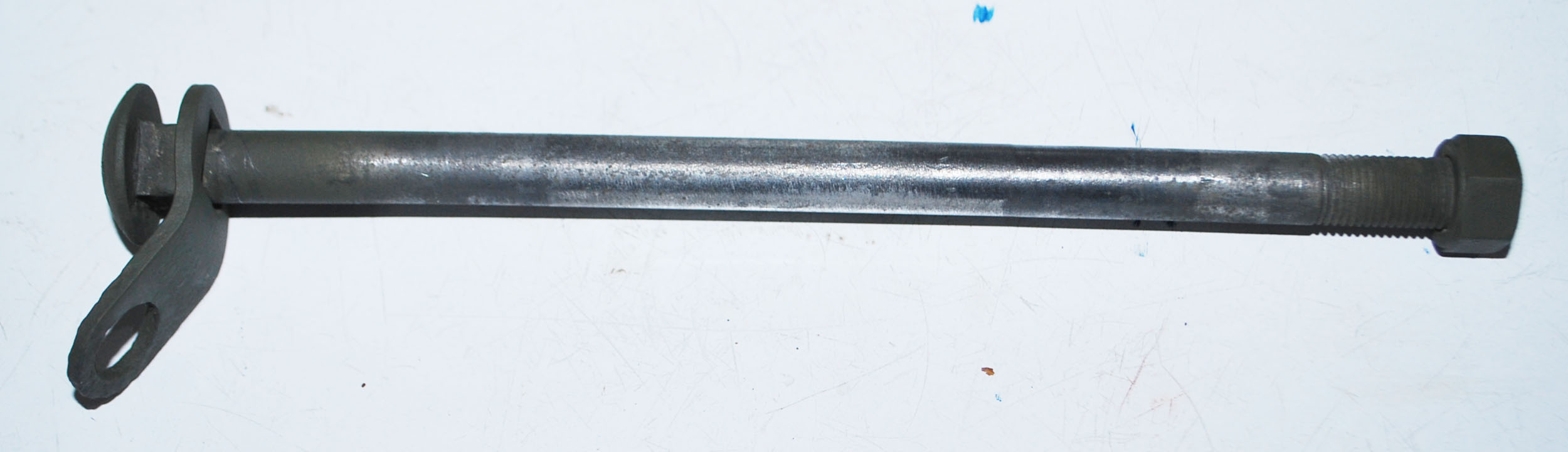

Tilt Bolt Assy. (three available) |
1950-53 | n/a | $4.50 |
| 275004, 41-324 |  |

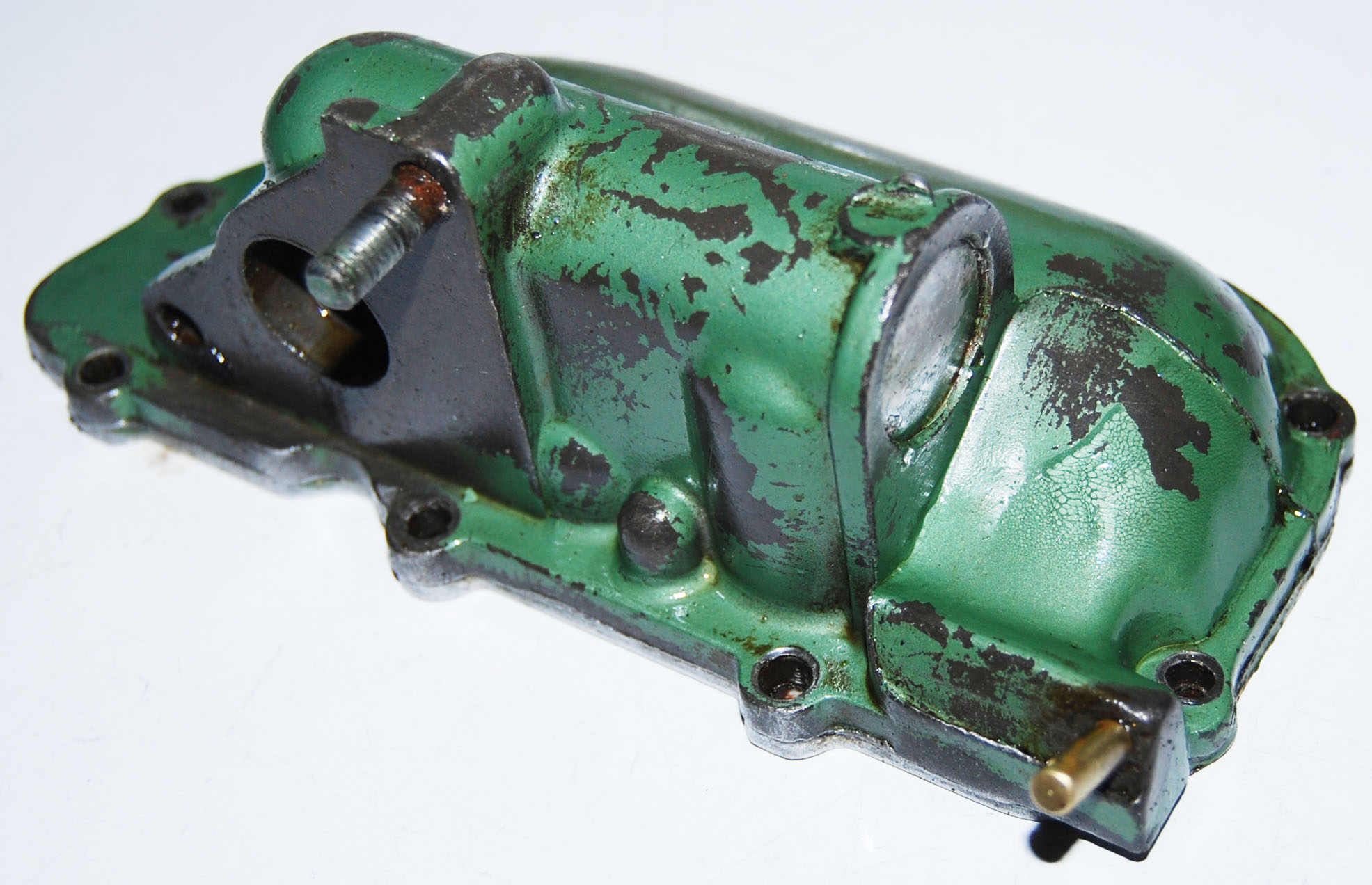

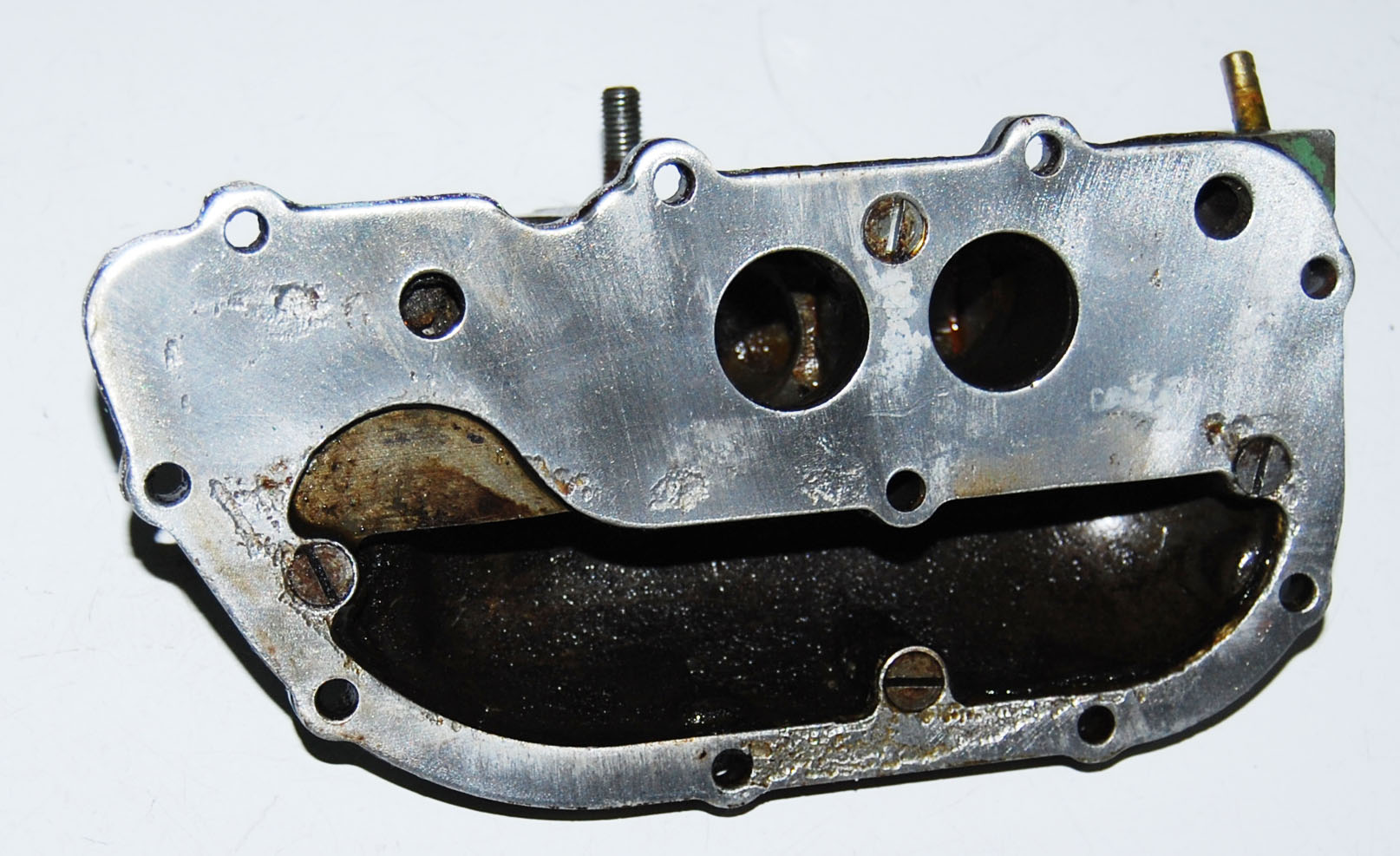

Intake Manifold Assy. | 1953* | PIC#2 | $15.00 |
| 375550 |  |

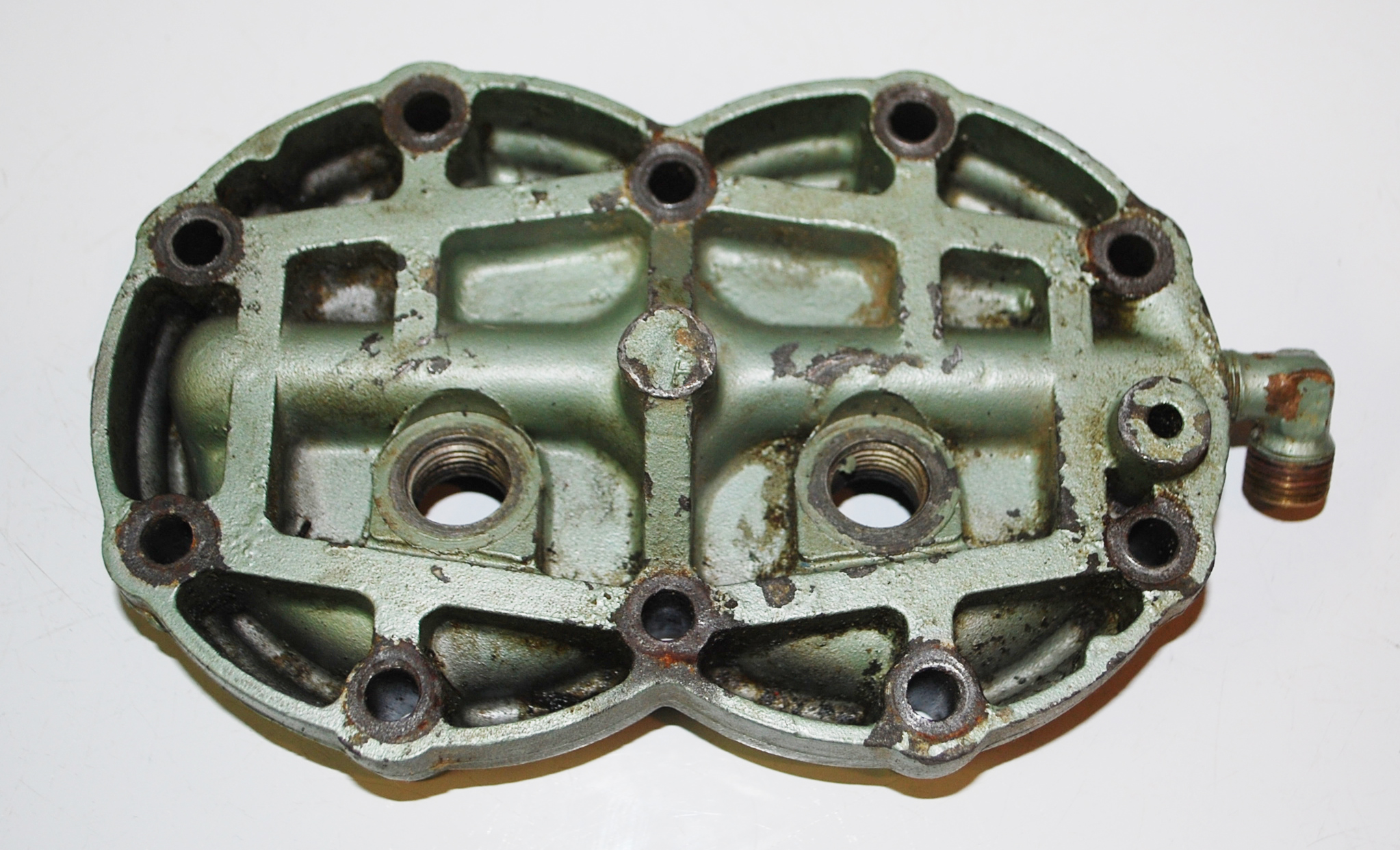

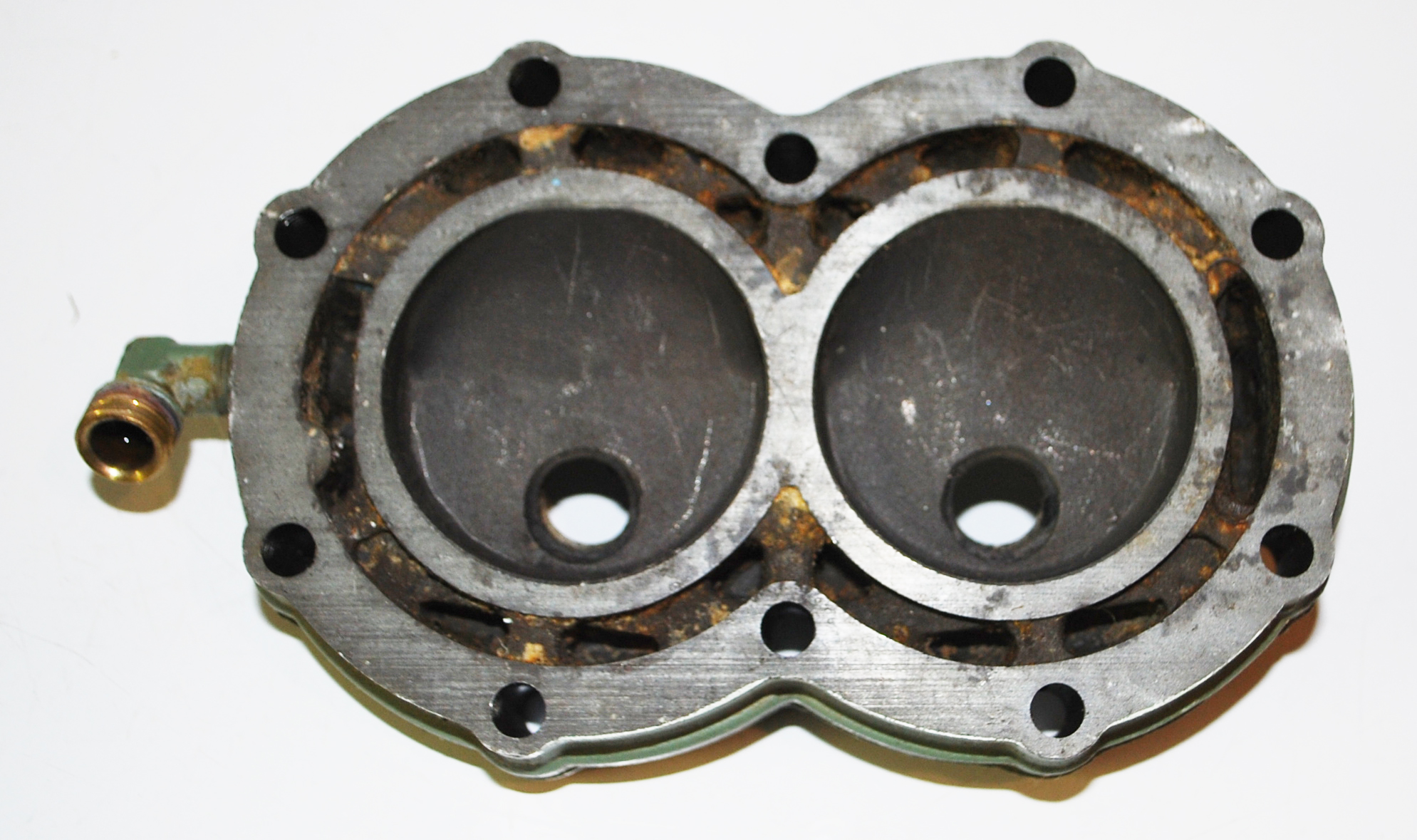

Cylinder Head (three available) |
1950-53 | PIC#2 | $12.50 |
| 53-39 |  |

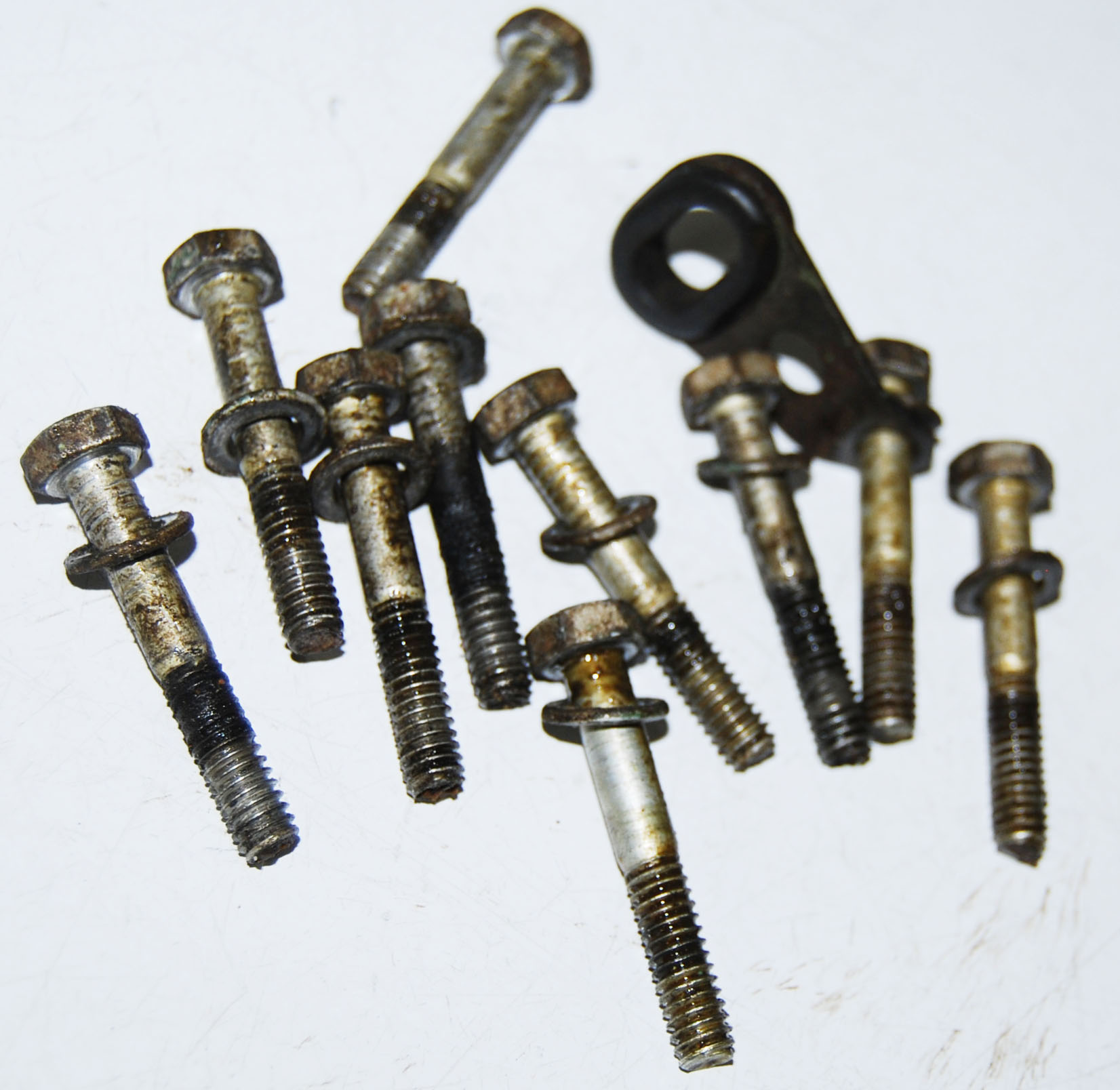

Cylinder Head Bolts (set of 10) | 1951* | n/a | $5.00 |
| 375726 |  |

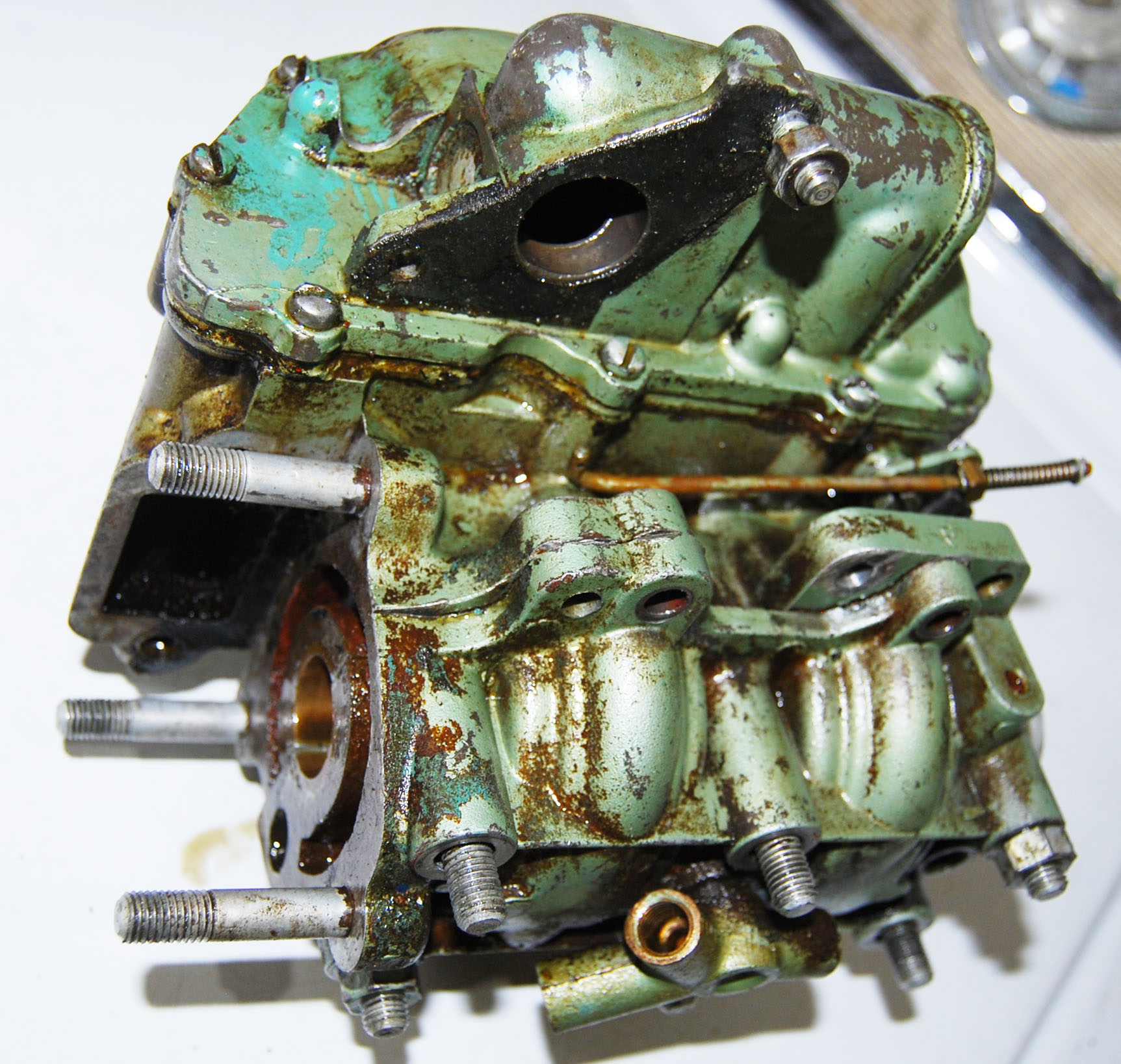

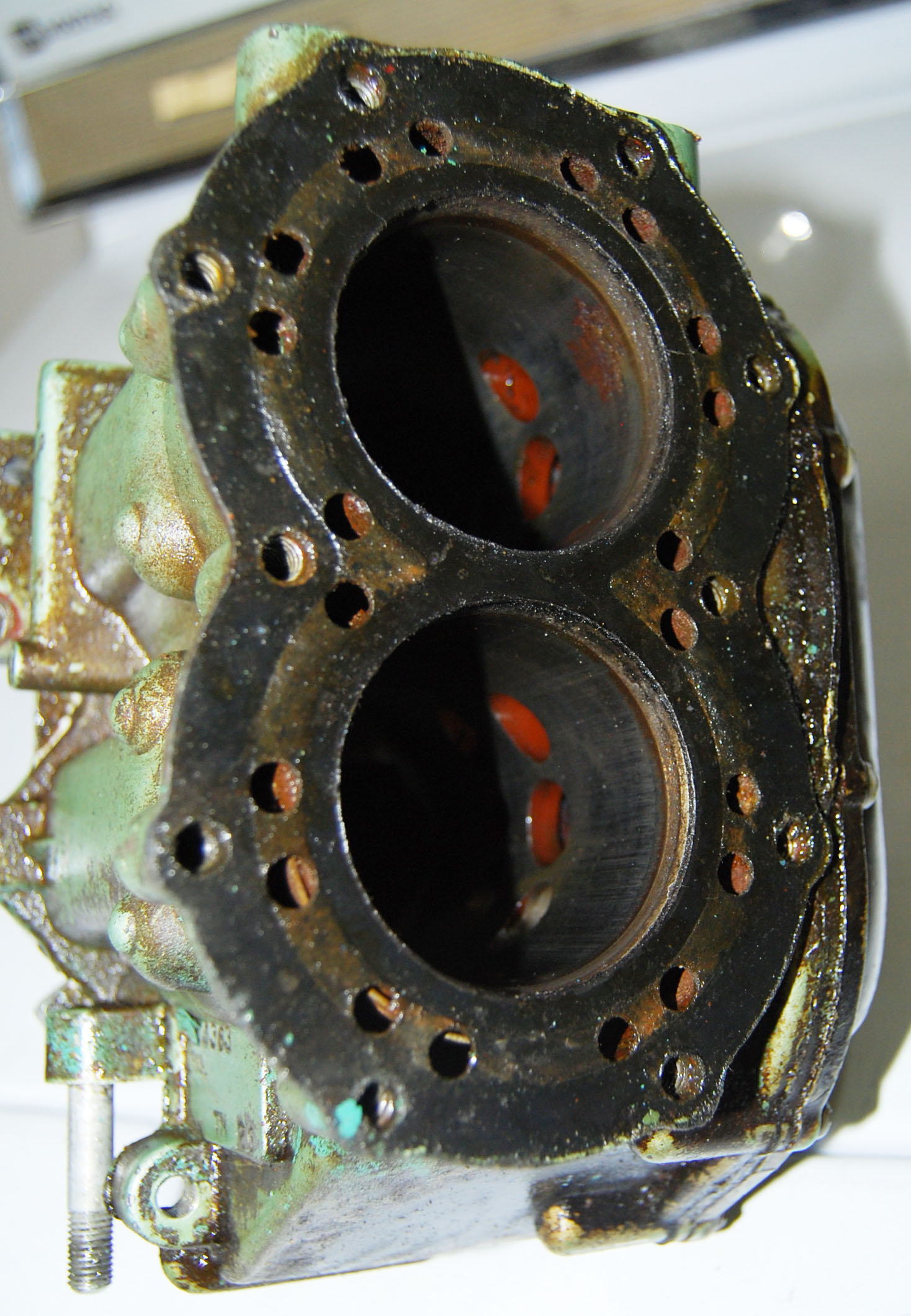

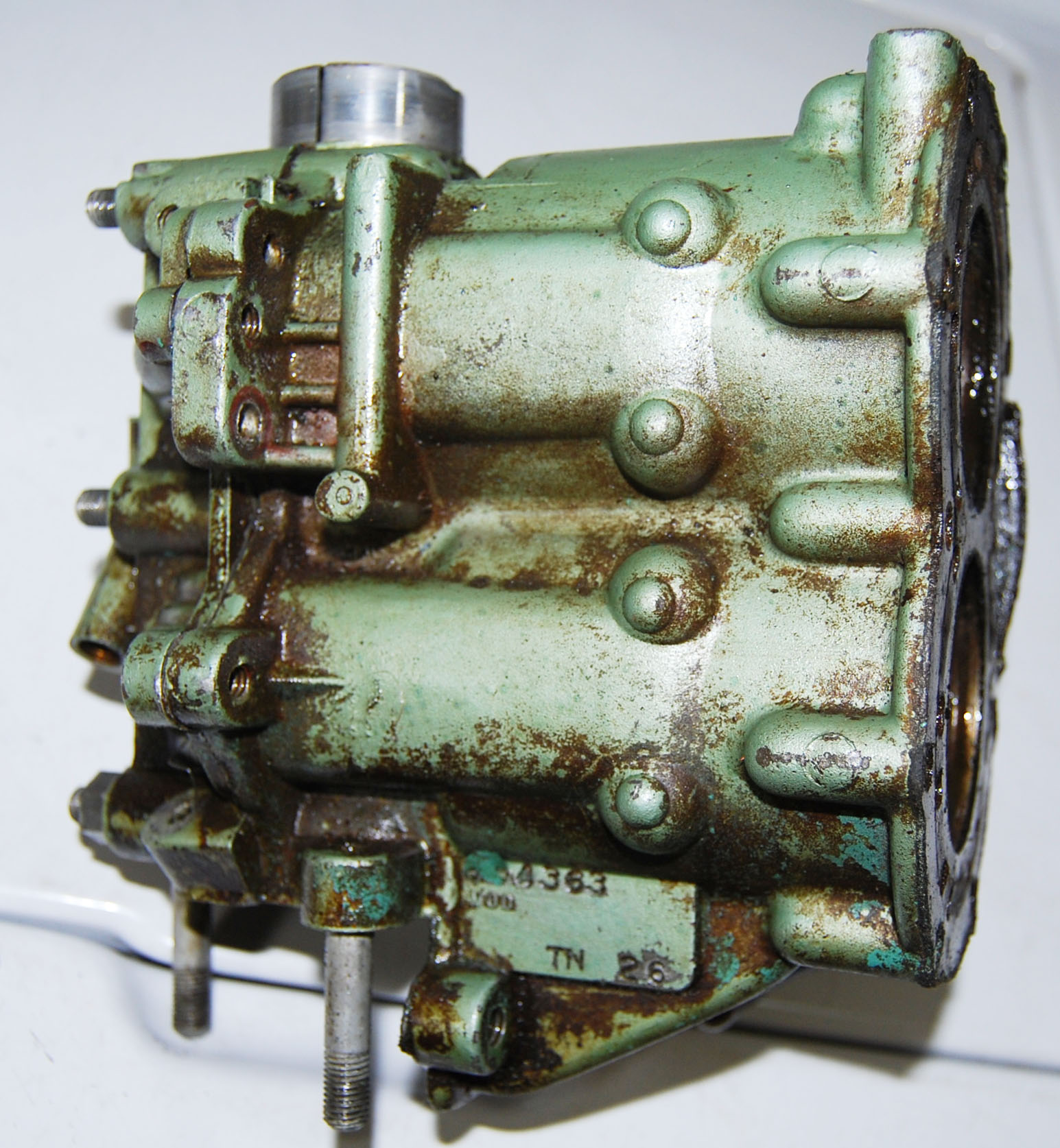

Cylinder Block (good bore) |
1951* | $27.50 | |
| 375079, 42-75, 41-333 |  |

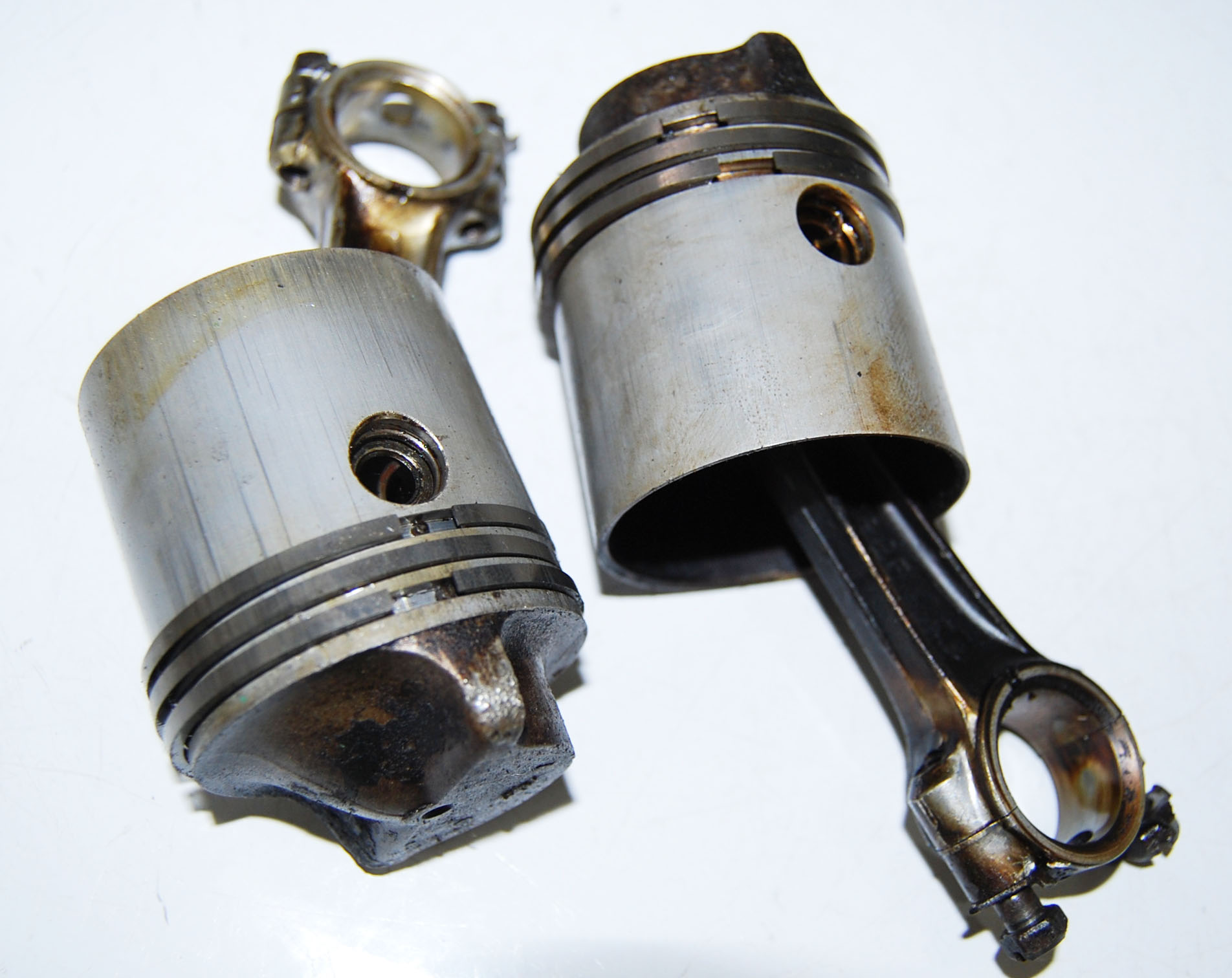

Pistons, Rings & Rods (two) | 1951* | n/a | $24.00 |
| 375691 |  |

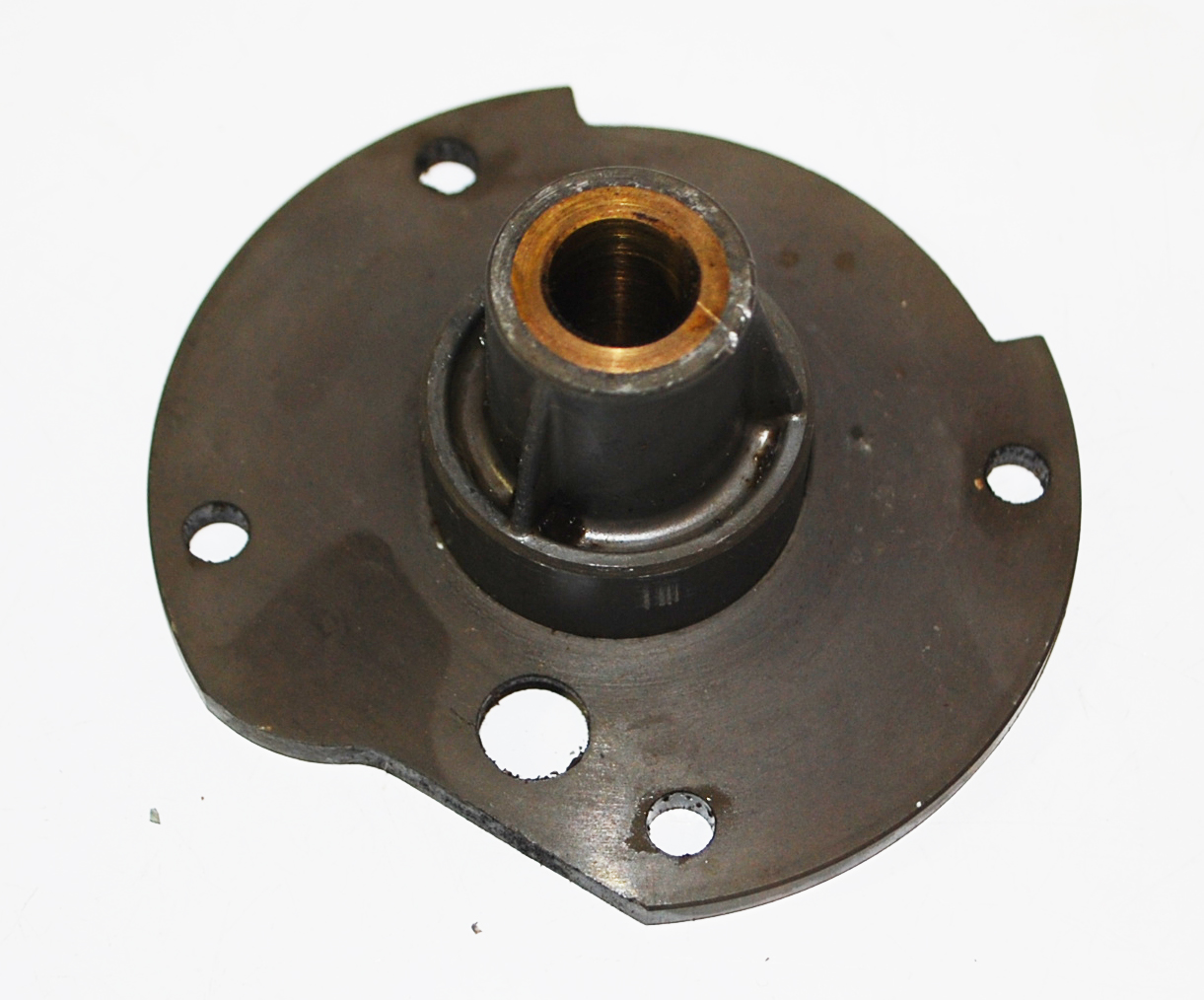

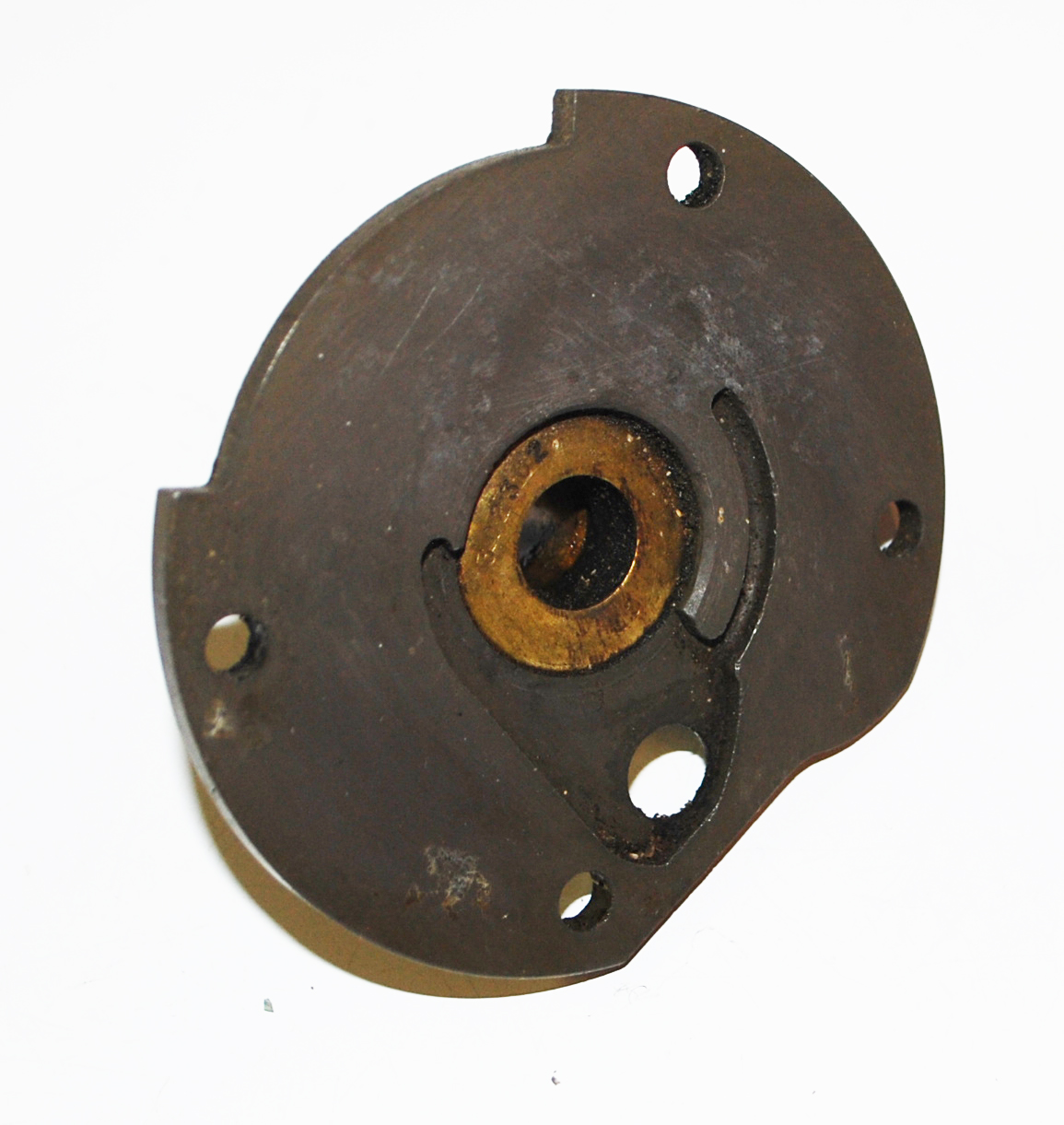

Bearing Plate (under pump) | 1950-53 | PIC#2 | $9.00 |
| 302317 |  |

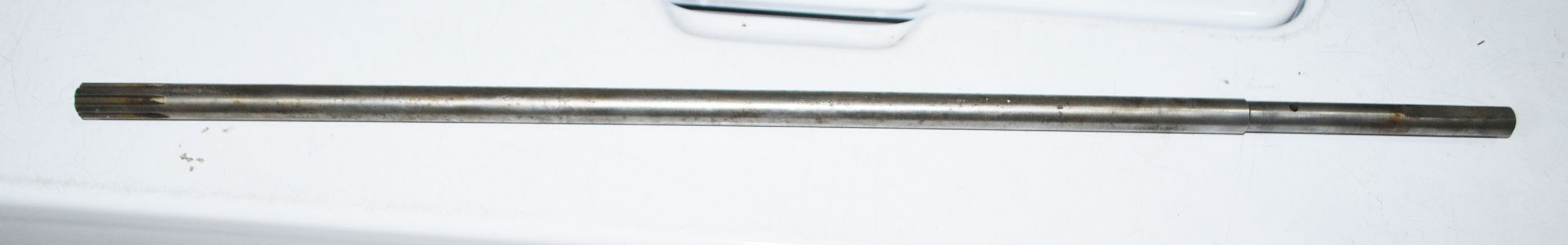

Driveshaft (two available) |
1953 | n/a | $12.00 |
| 375697 |  |

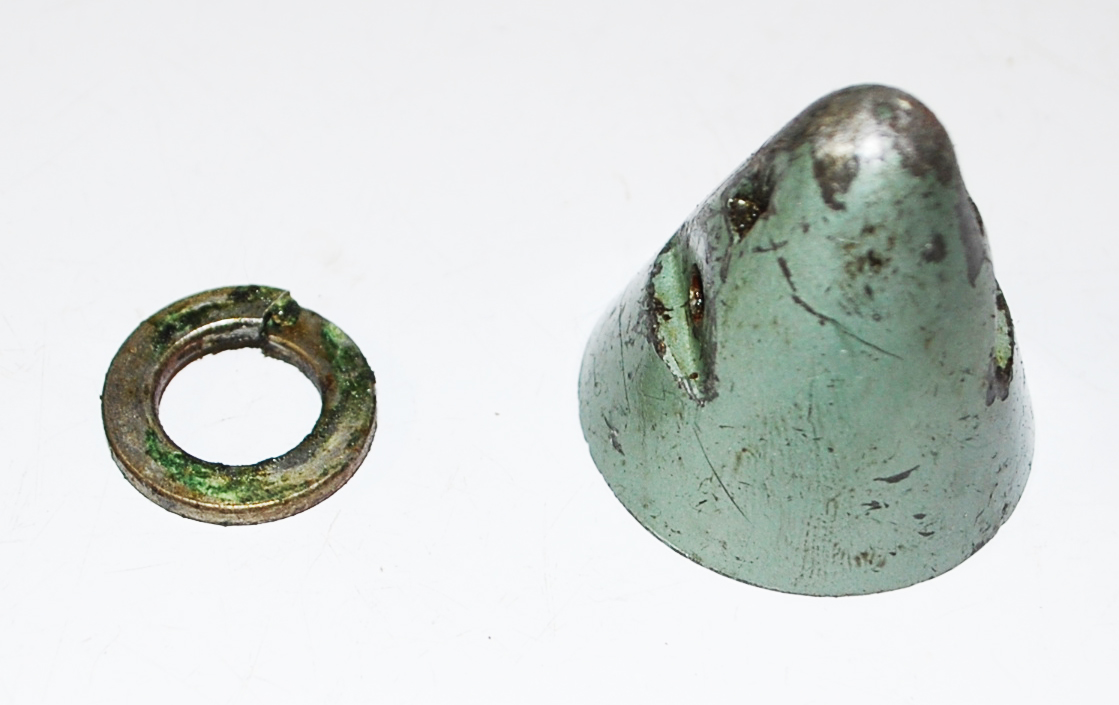

Propeller Nut & Lock Washer (two available) |
1950-53 | n/a | $8.00 |
| 375697 |  |

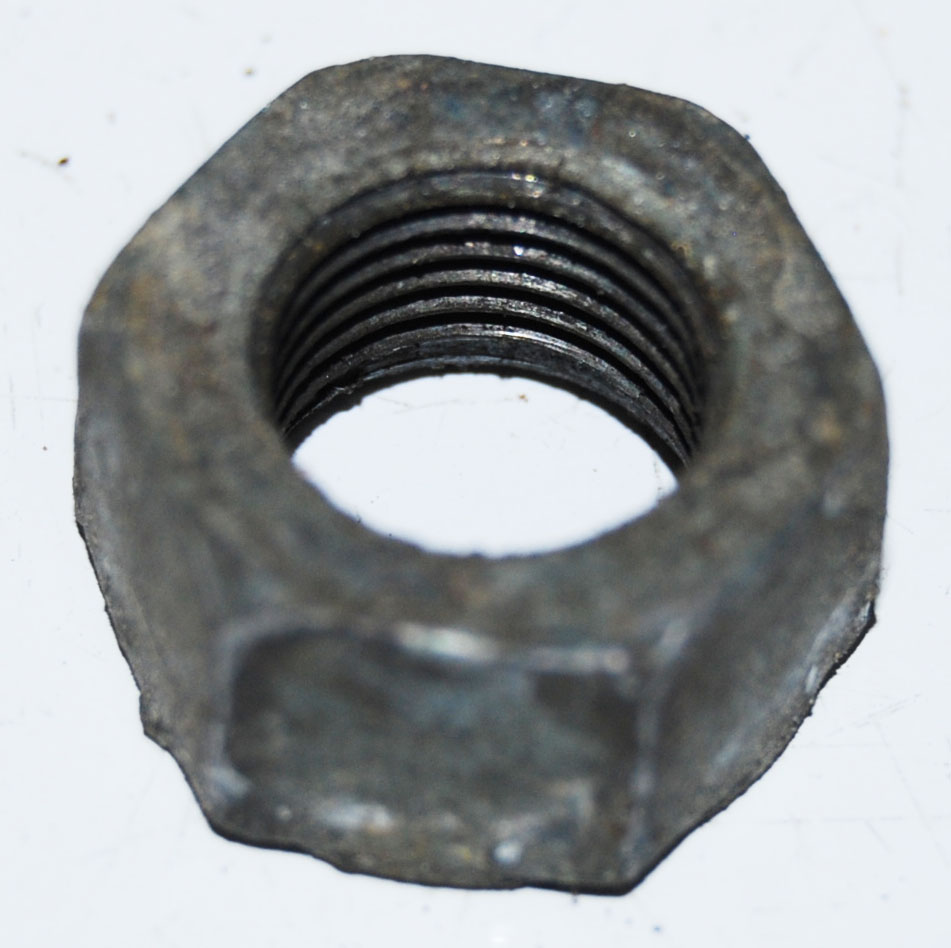

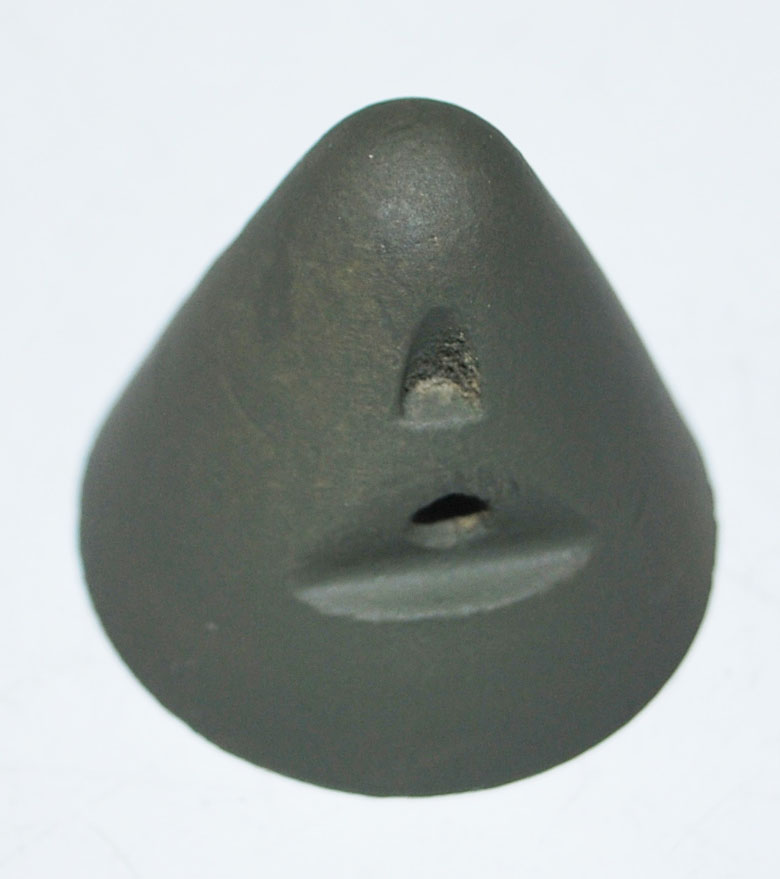

Propeller Nut (two available) |
1950-53 | n/a | $7.00 |
| 42-132 |  |

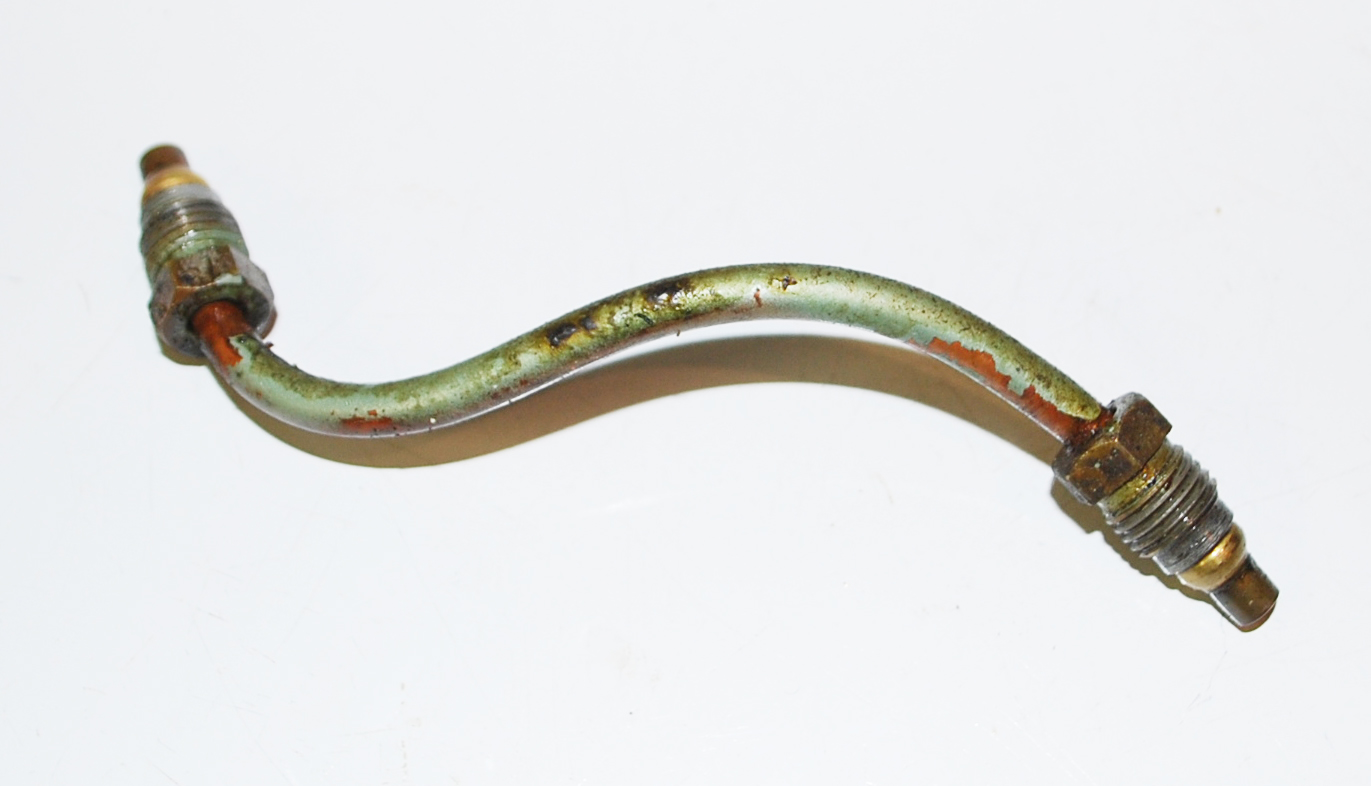

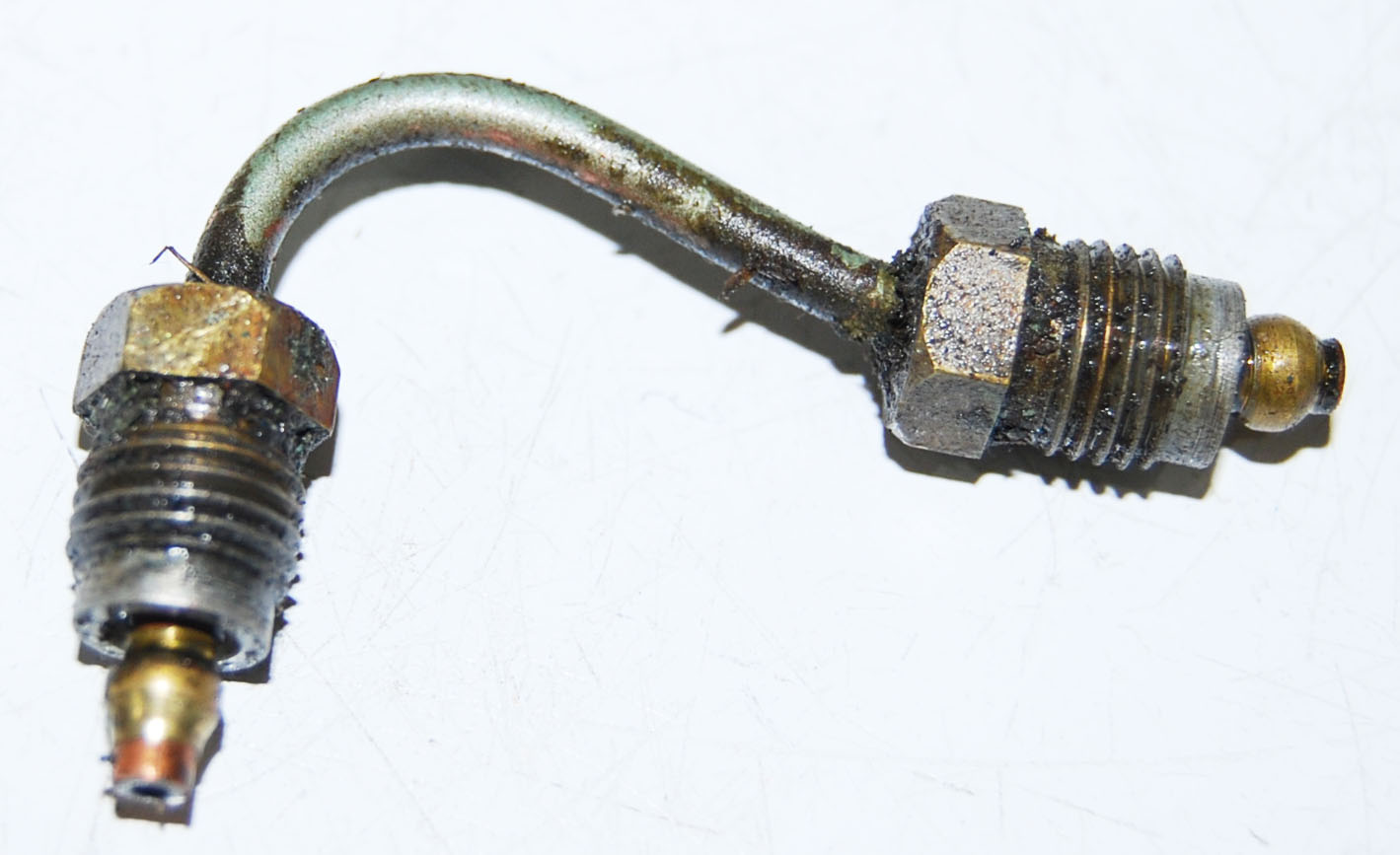

Fuel Line (carb to manifold) (two available) |
1950-53* | n/a | $3.00 |
| 375269 |  |

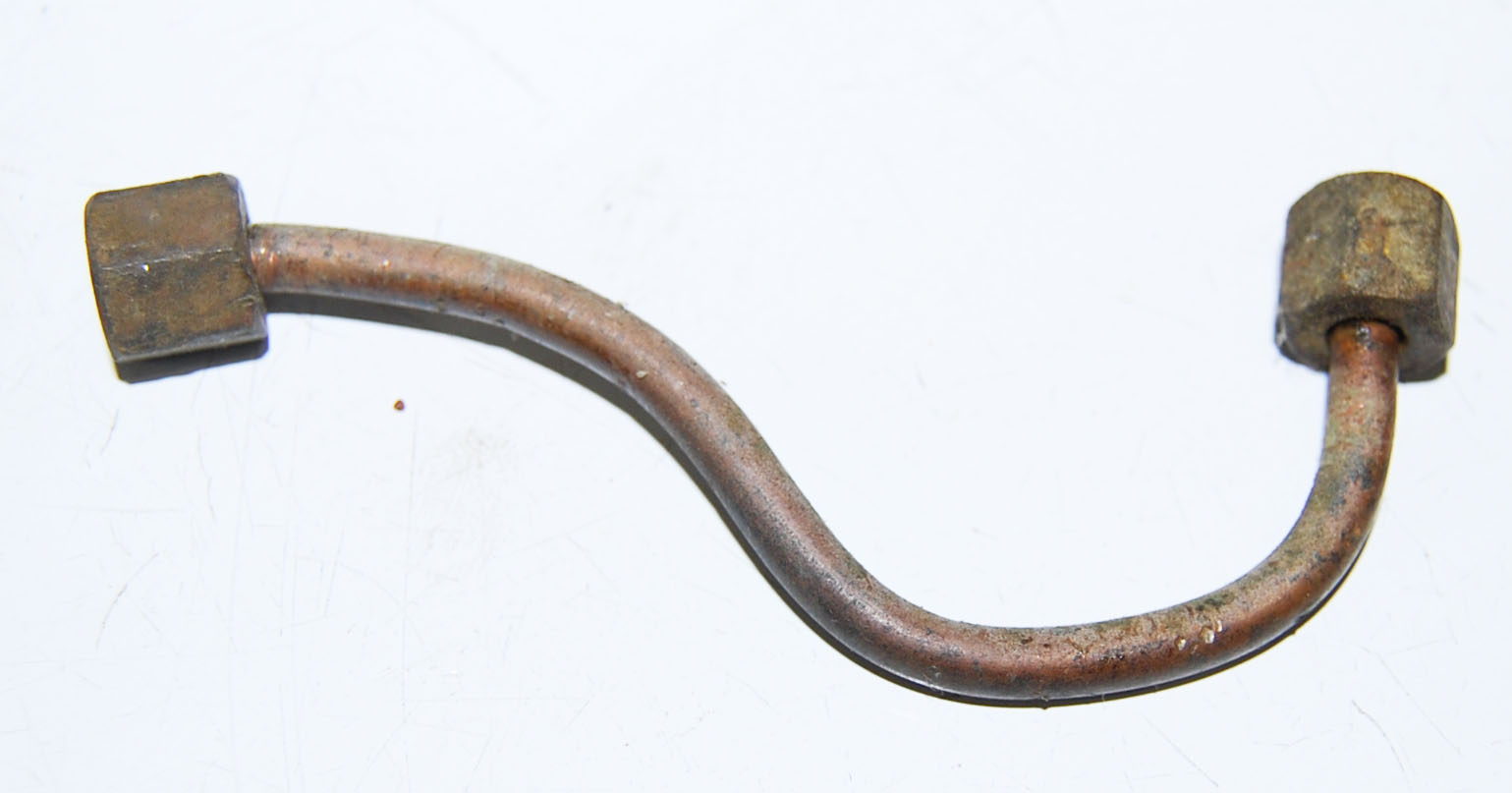

Fuel Line (petcock to carb) (two available) |
1951* | n/a | $3.50 |
| 375663 |  |

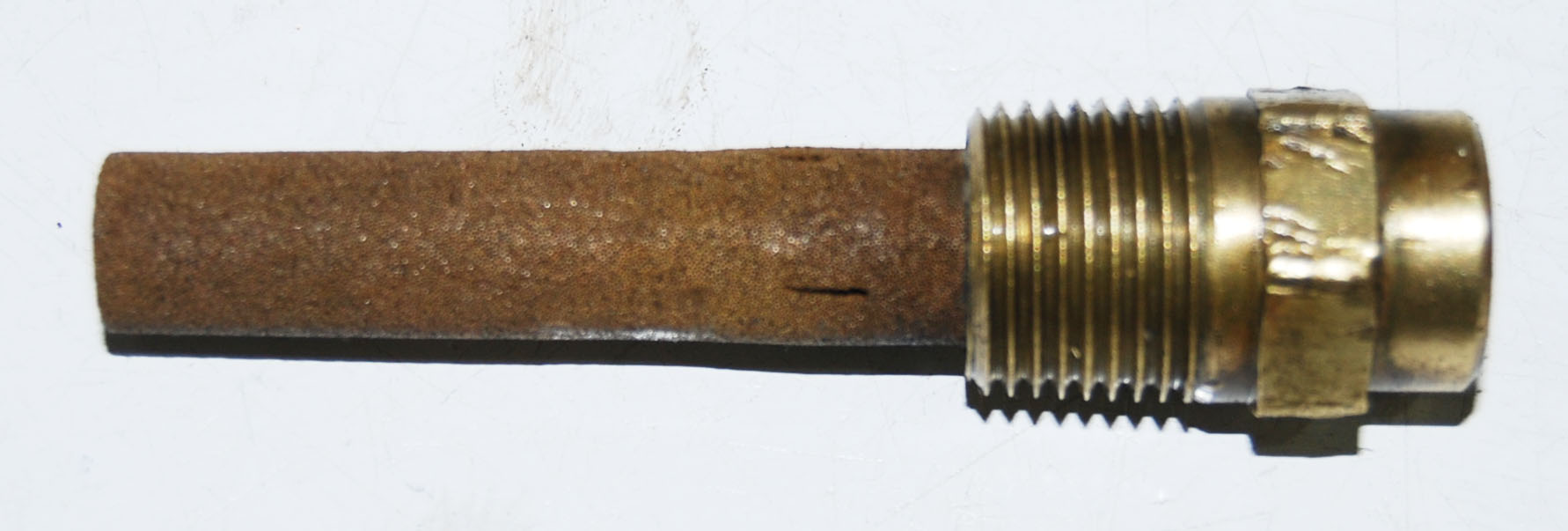

Fuel Filter (in tank) (two available) |
1951* | n/a | $8.50 |
| 300612 |  |

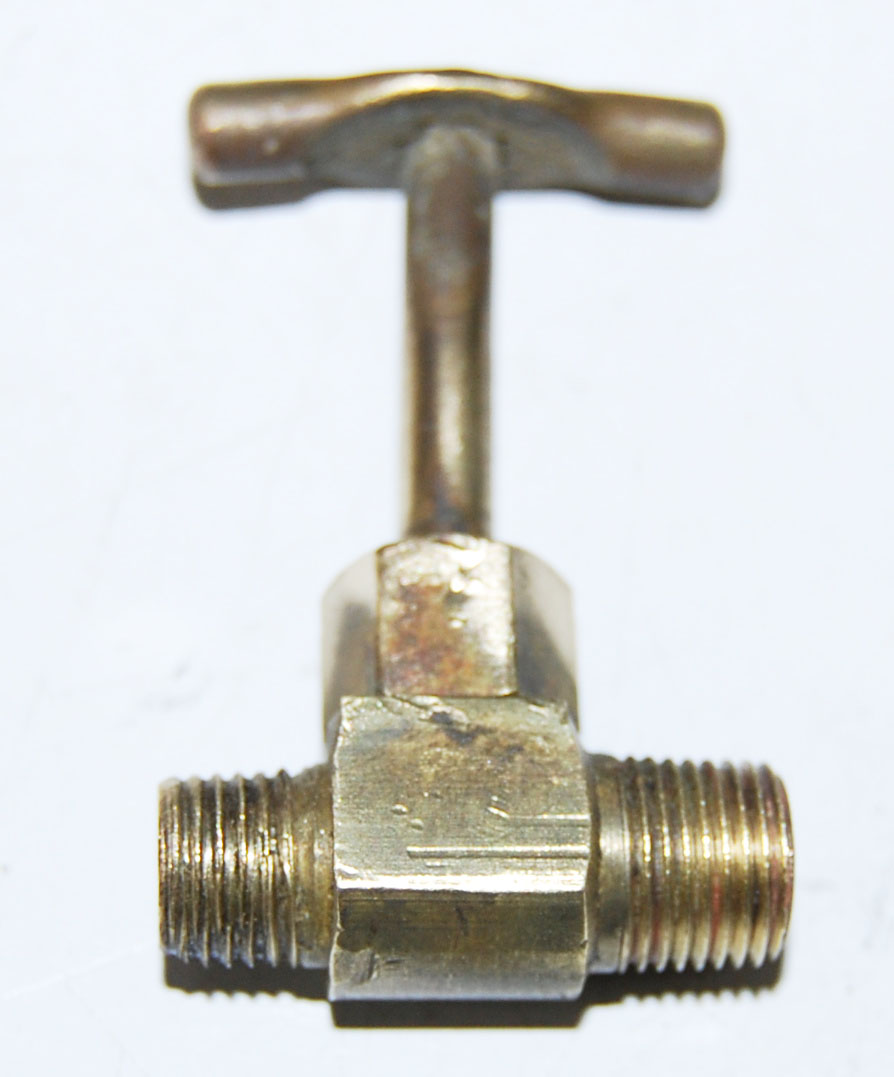

Fuel Petcock | 1953* | n/a | $9.00 |
| 300493 |  |

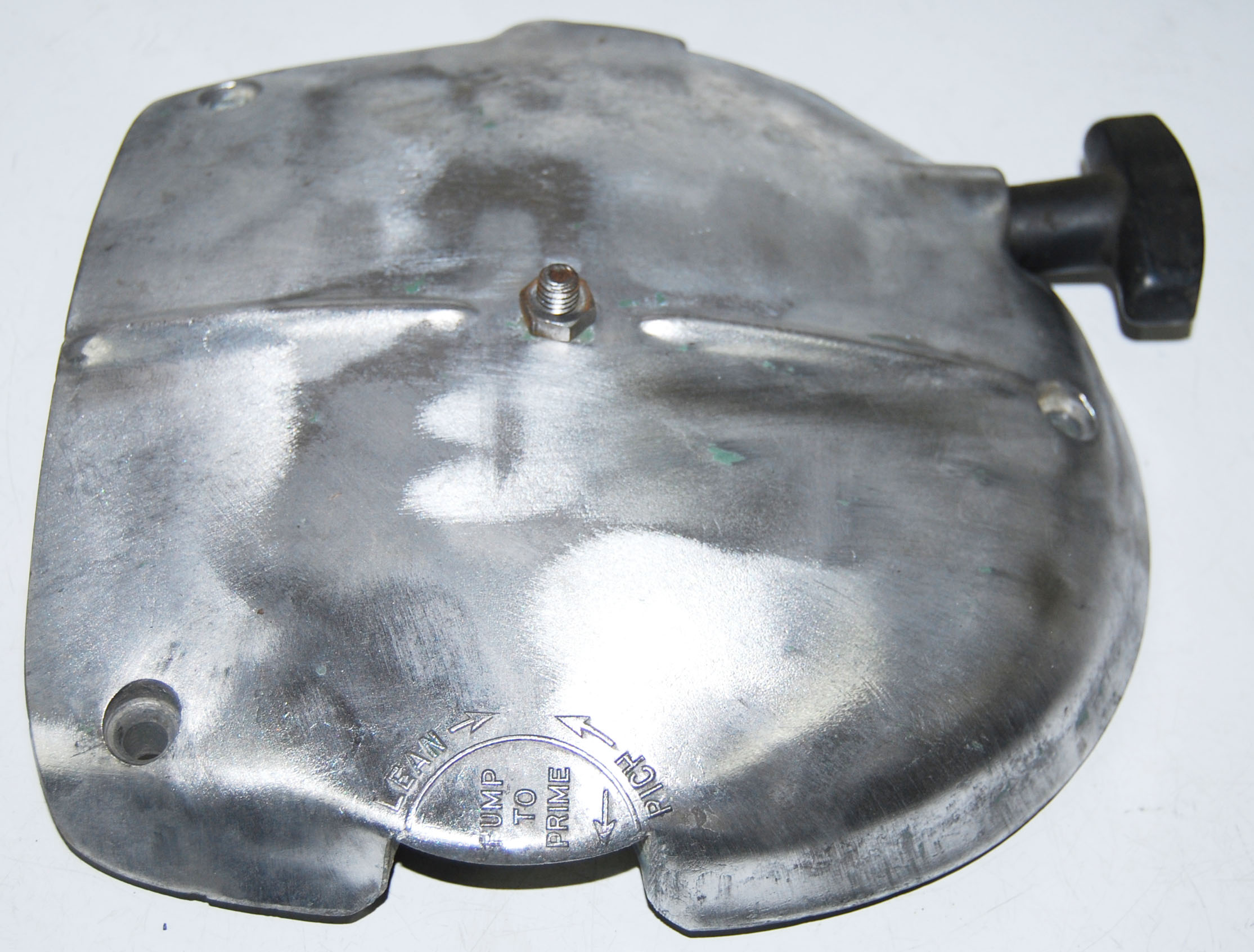

Rewind Starter Assembly (stripped and ready for paint) |
1953* | PIC#2 | $38.00 |
| 301539 |  |

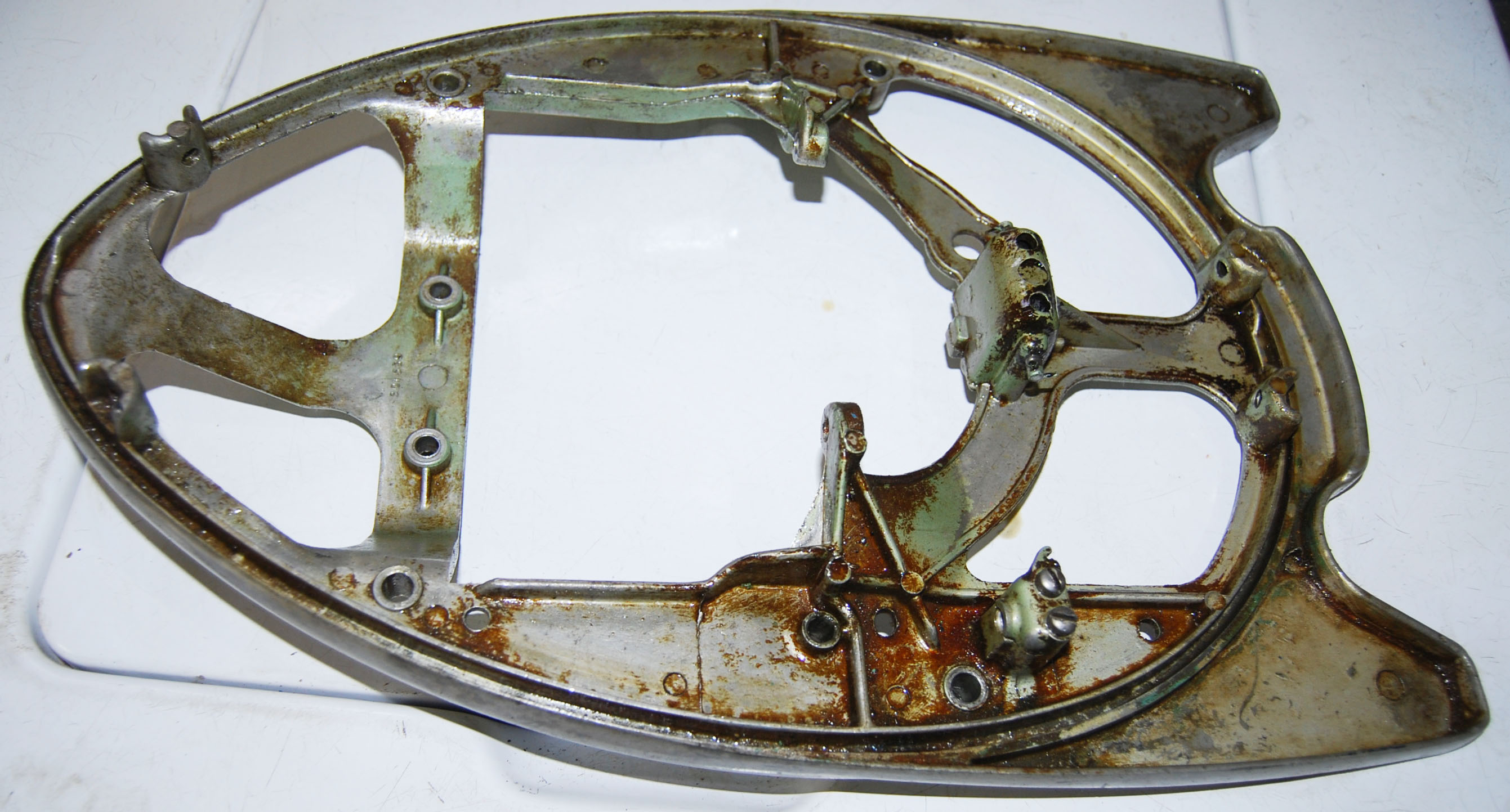

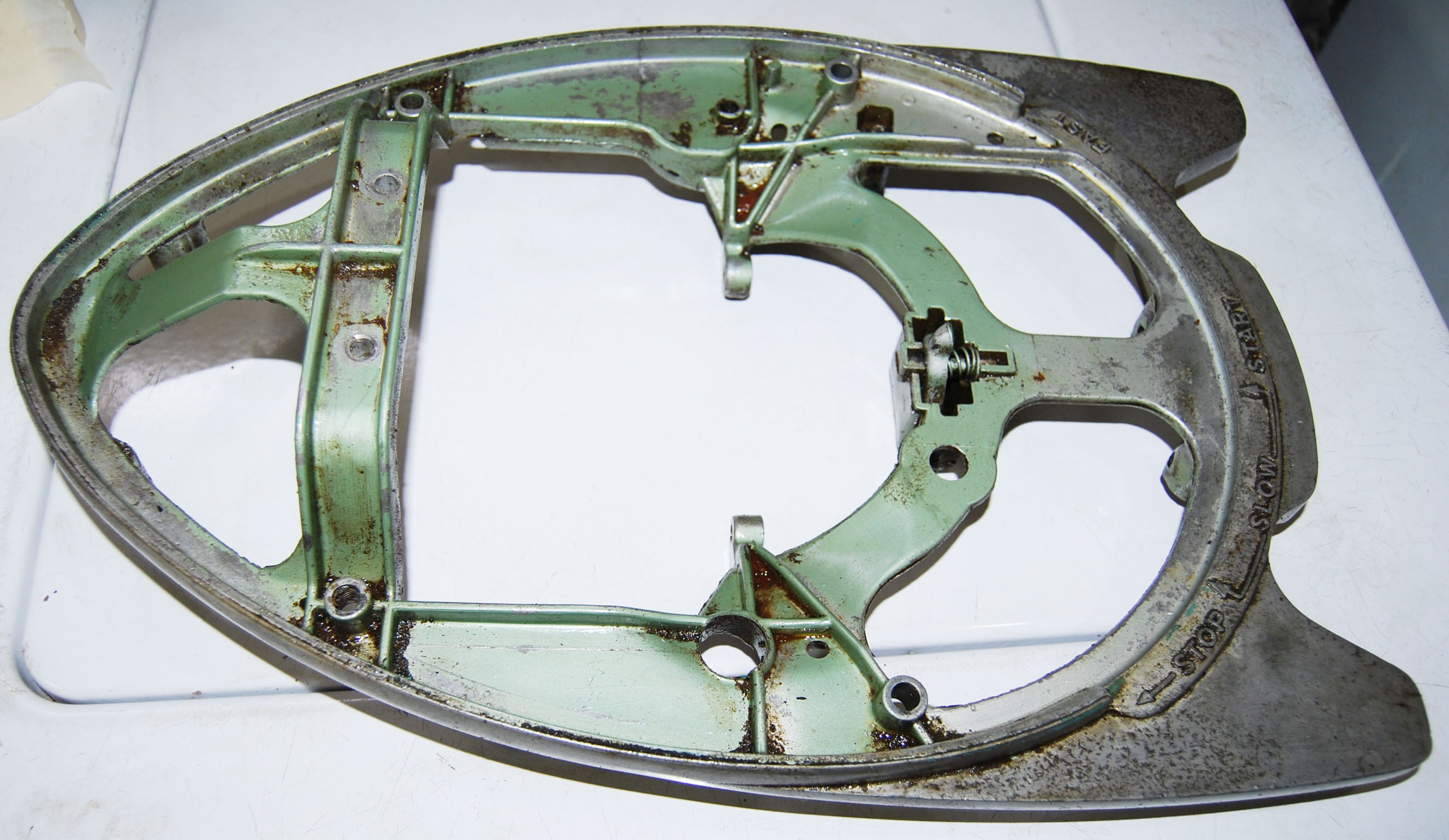

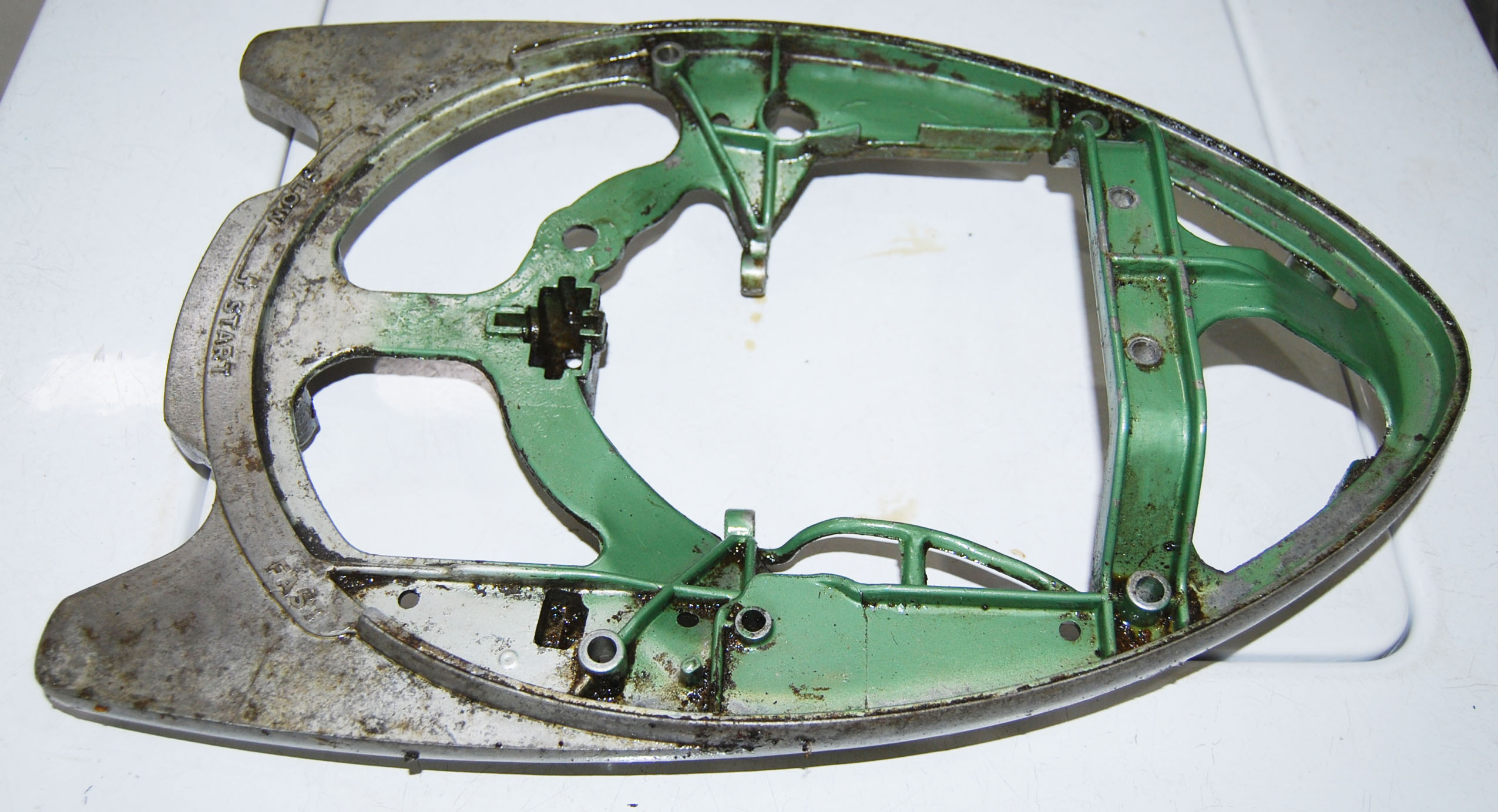

Fuel Tank Bracket | 1951* | PIC#2 | $18.50 |
 |
Fuel Tank Bracket | 1953* | n/a | $18.50 | |
| 375514 |  |

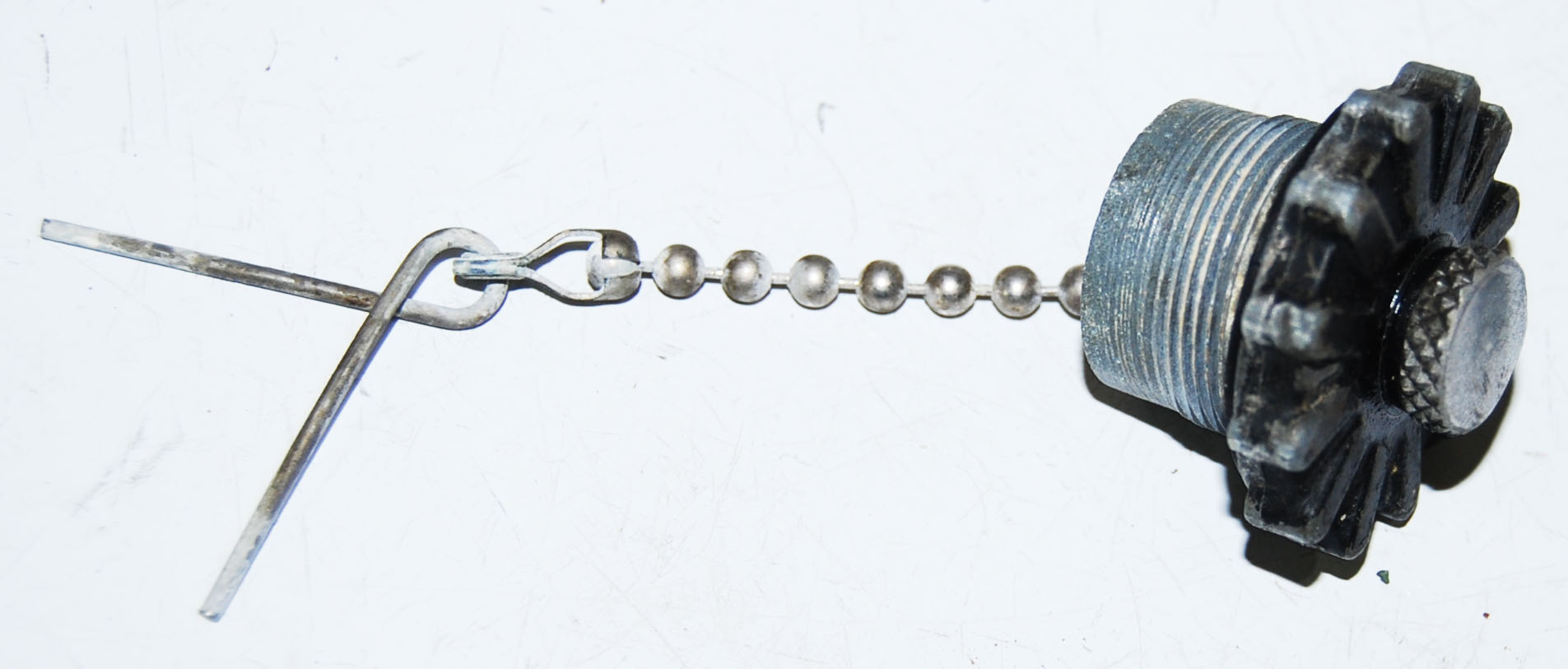

Gas Cap | 1953* | n/a | $10.00 |
| 375192 |  |

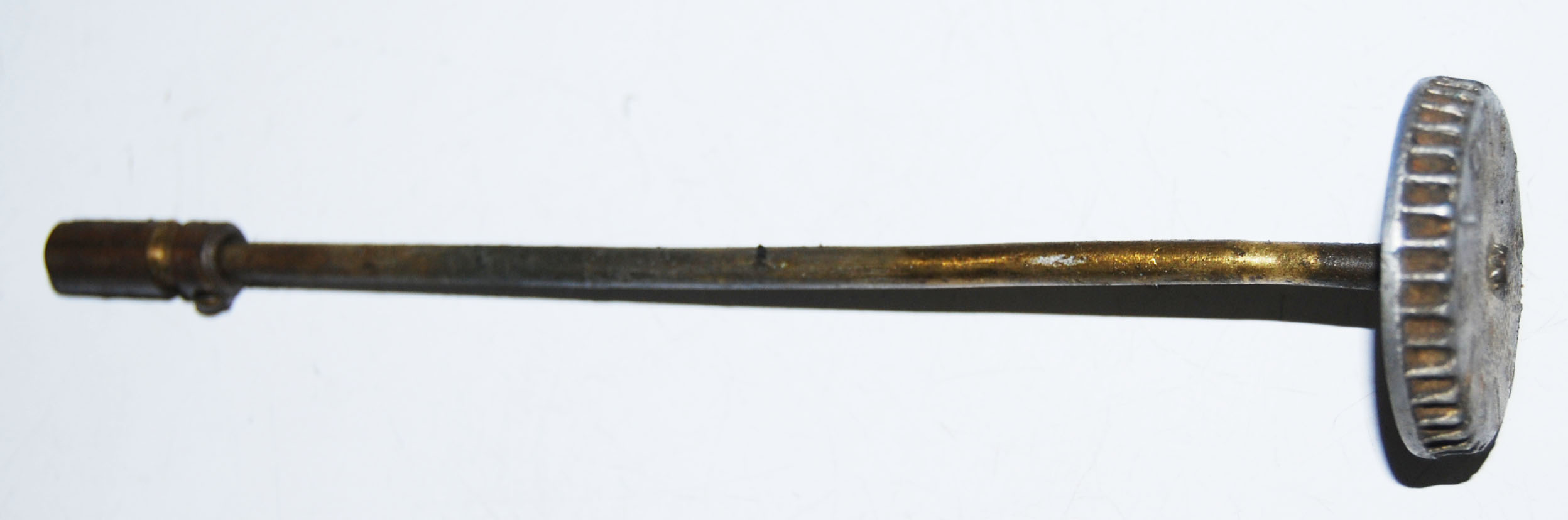

Mixture Knob Assy. | 1951* | n/a | $8.50 |
| 302364 |  |

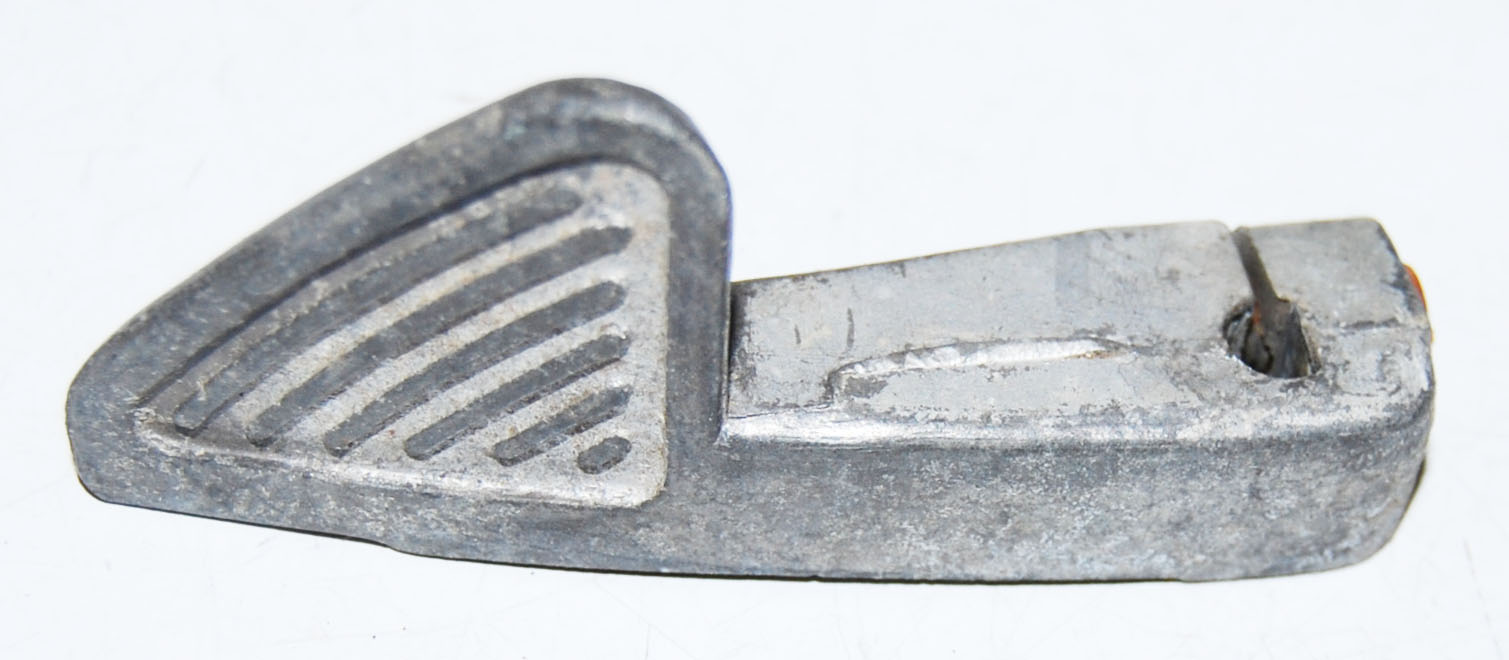

Shift Lever | 1953* | n/a | $7.50 |
| n/a |  |

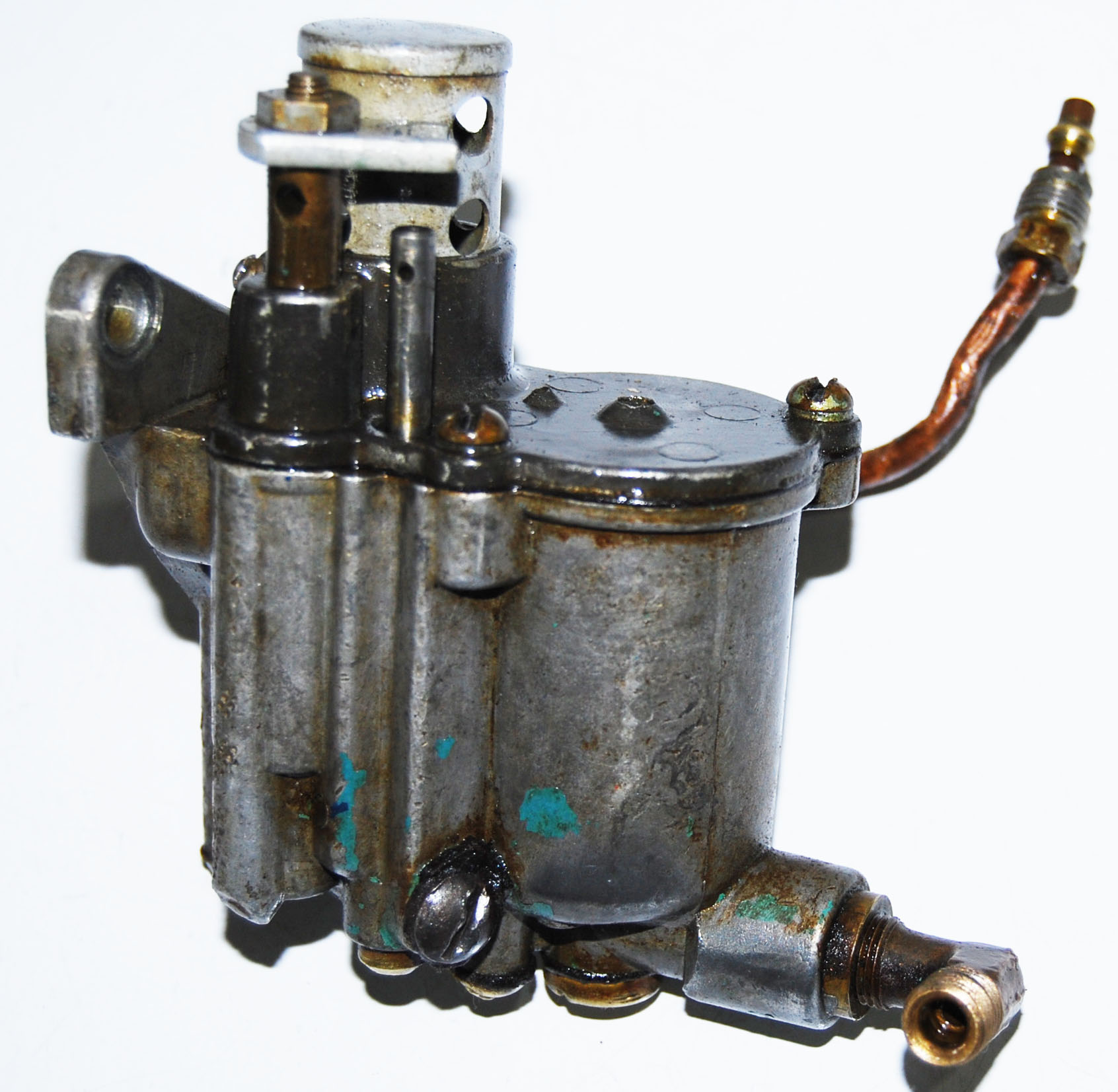

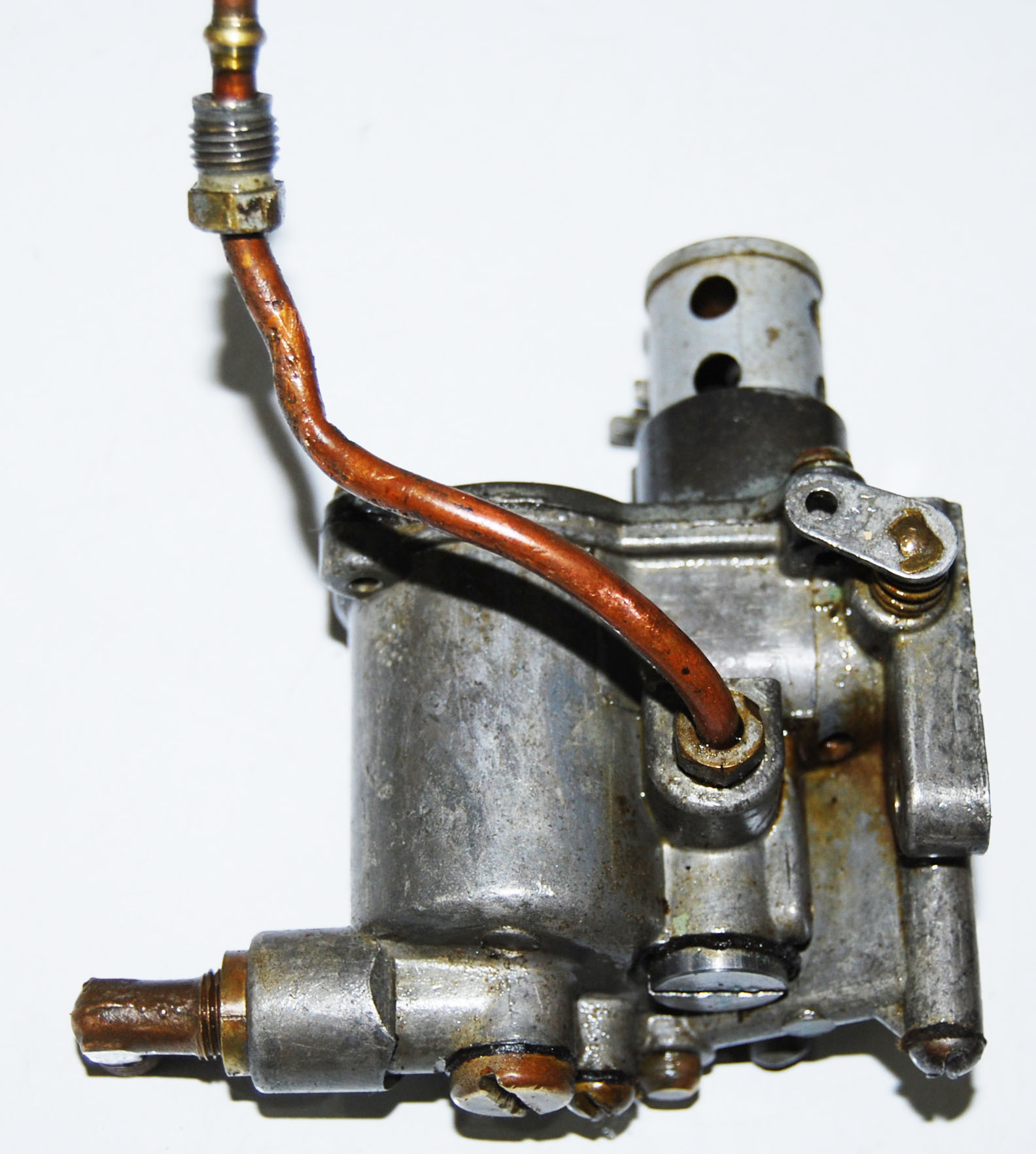

Carburetor Assembly | 1951* | PIC#2 | $35.00 |
 |

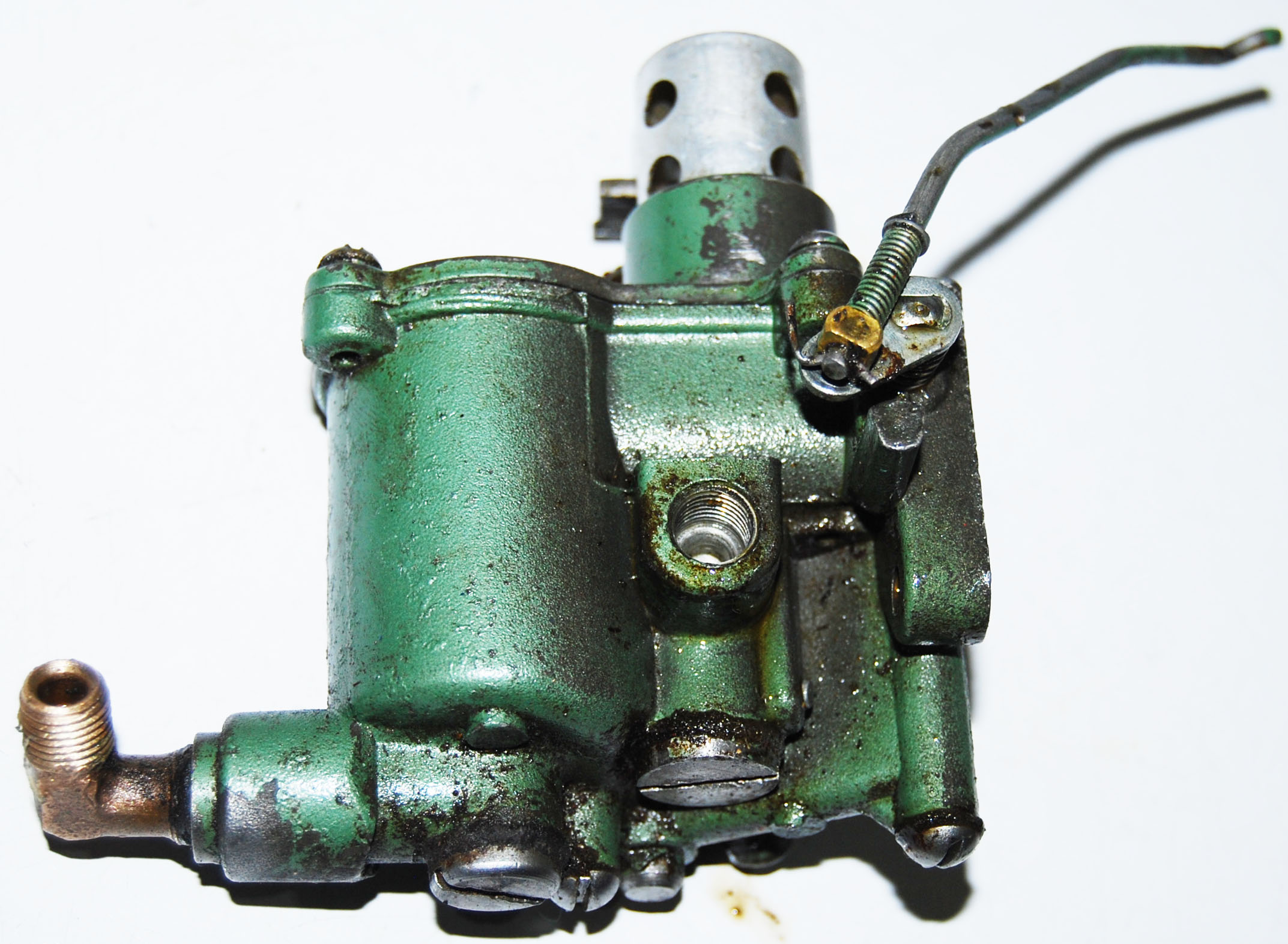

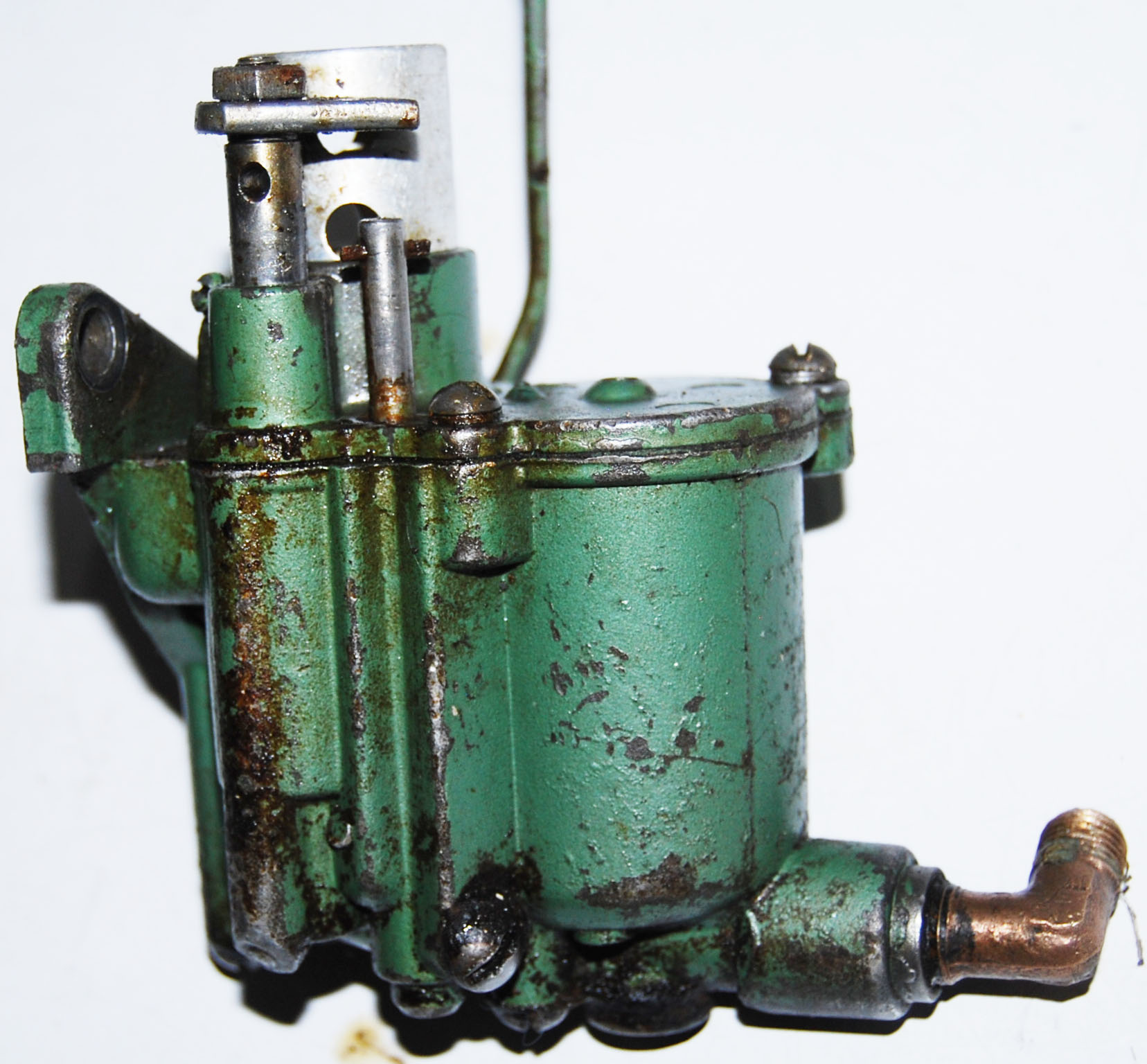

Carburetor Assembly | 1953* | PIC#2 | $35.00 | |
| 42-162 |  |

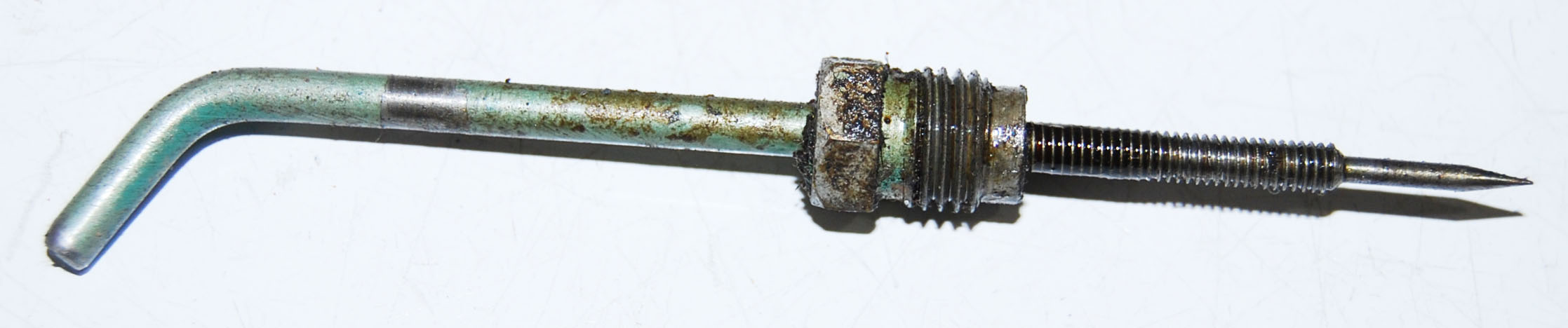

Mixture Needle Valve (two available) |
1951* | n/a | $4.50 |
| 42-97 |  |
Mixture Line (small) | 1951* | n/a | $3.00 |
| 42-148 |  |

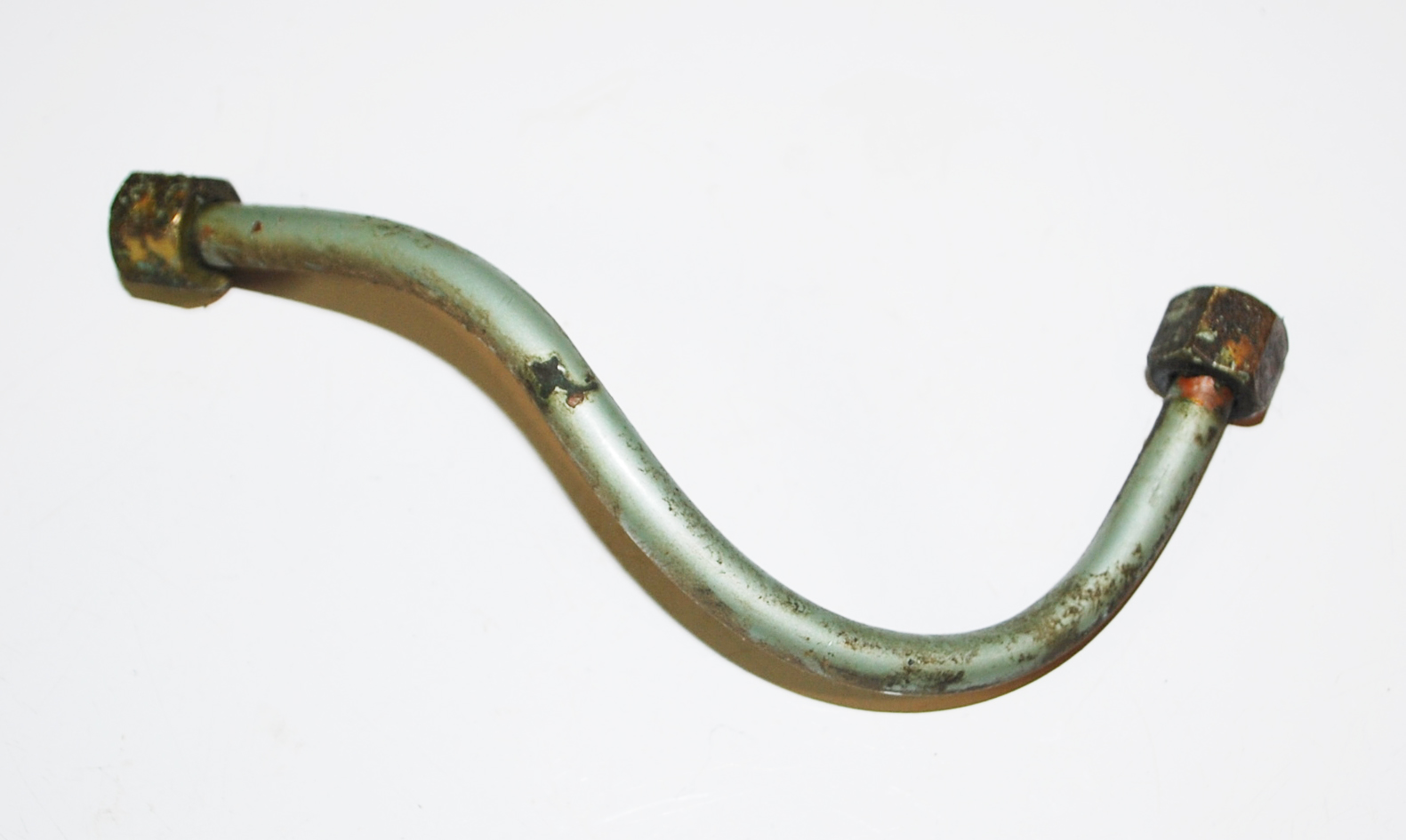

Water Line | 1950* | n/a | $4.00 |
| 300509 300540 |  |

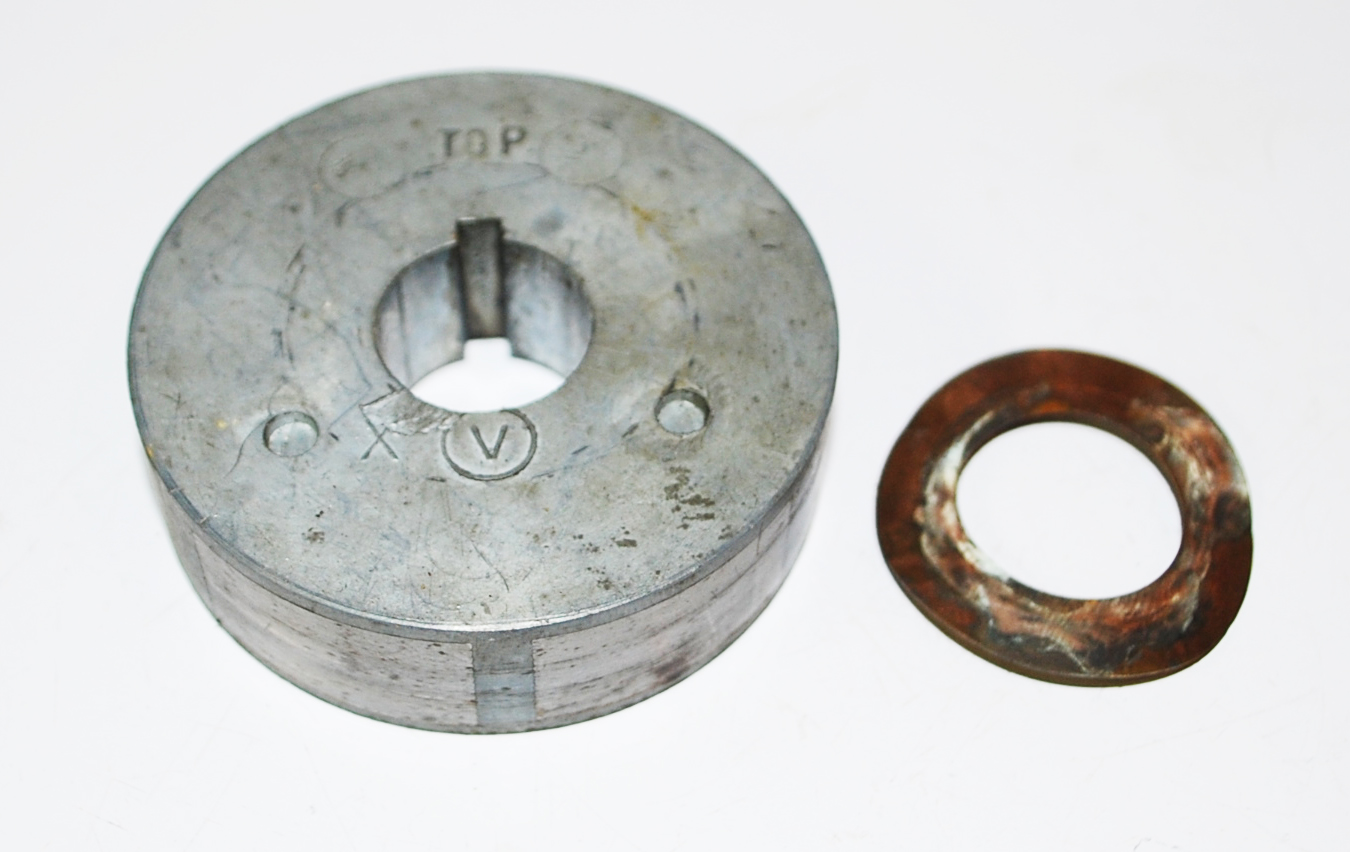

Magneto Magnet & Wave Washer | 1950* | n/a | $10.00 |
| 300540 |  |

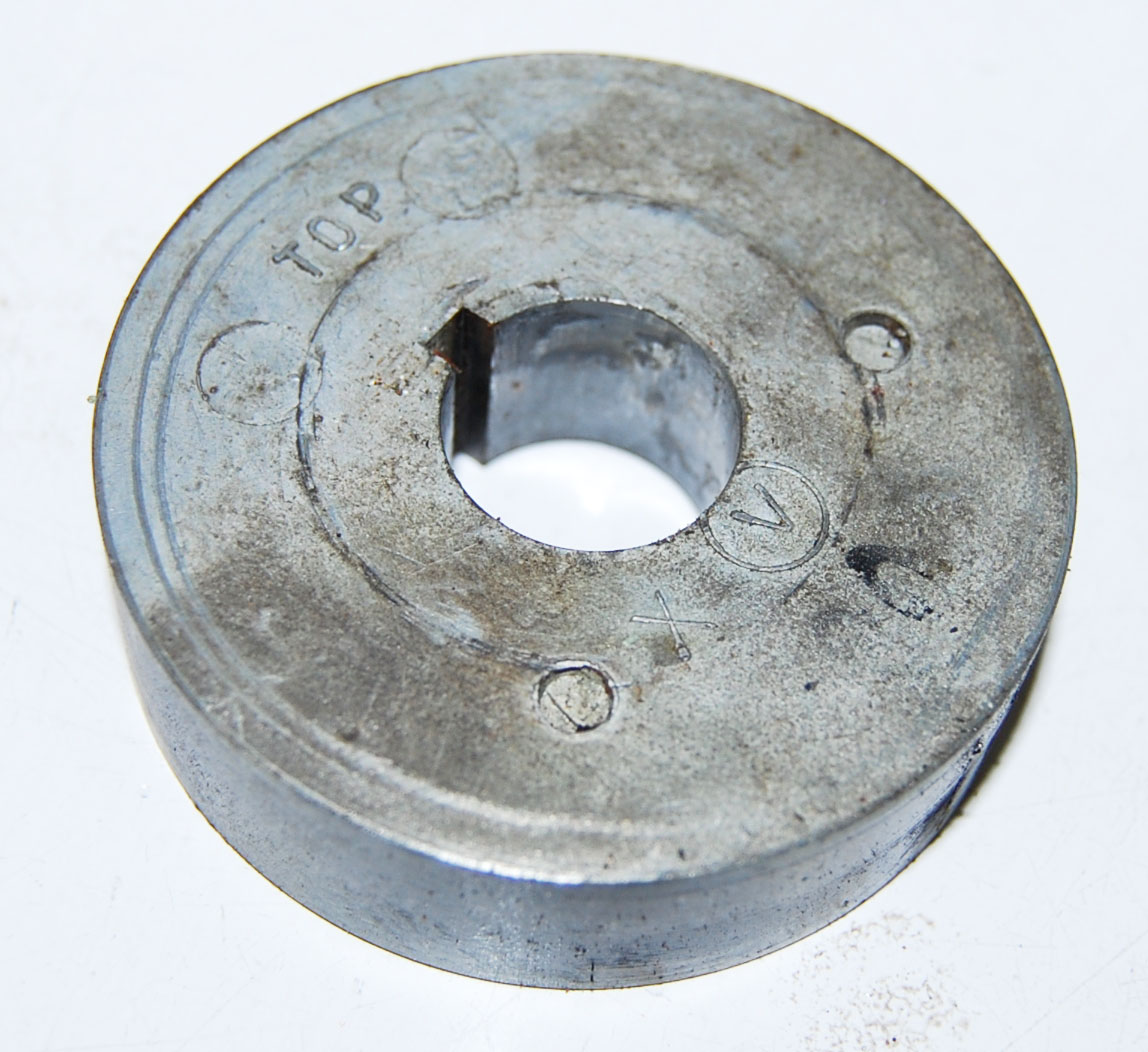

Magneto Magnet | 1951* | n/a | $8.00 |
| n/a |  |

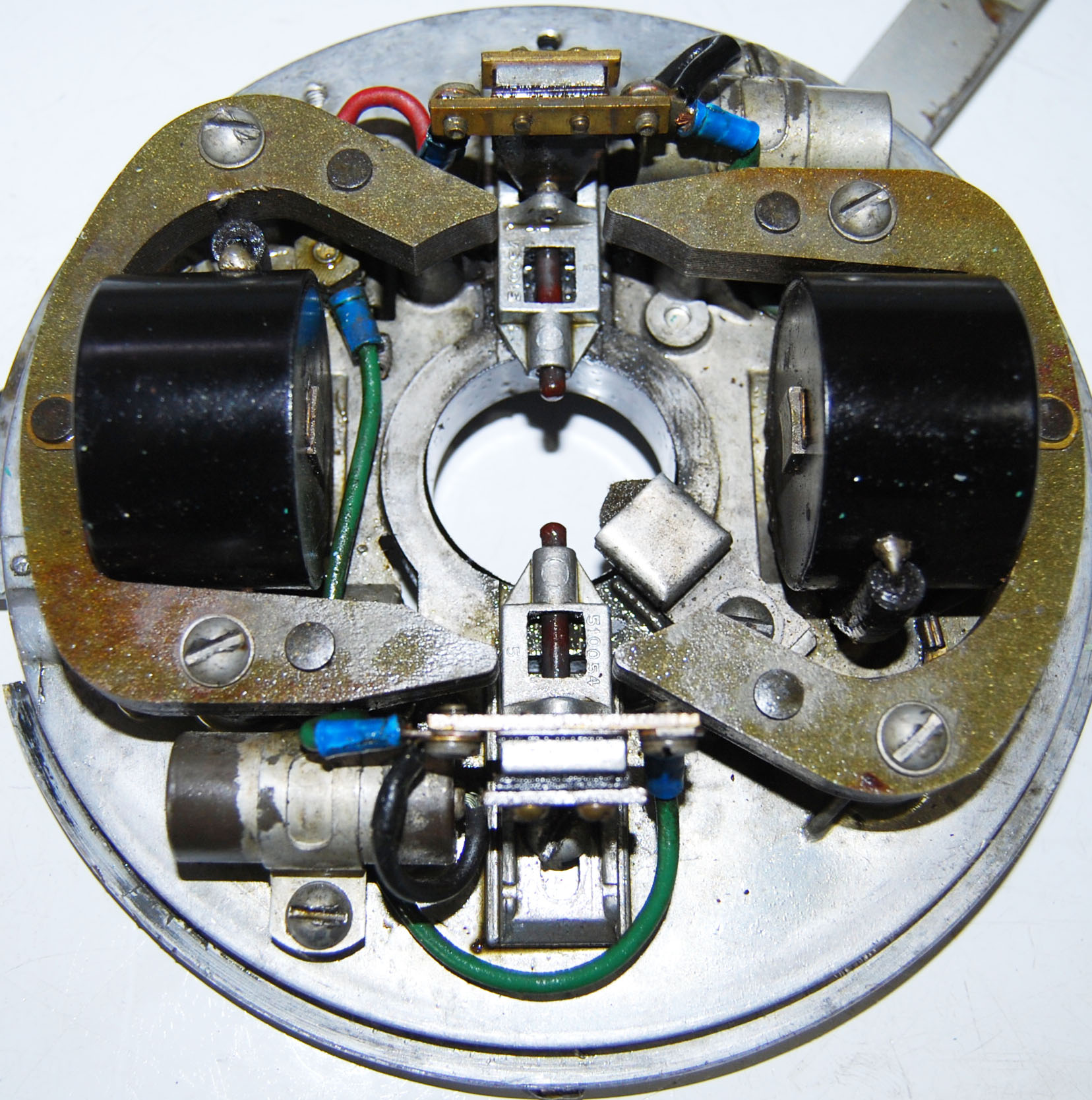

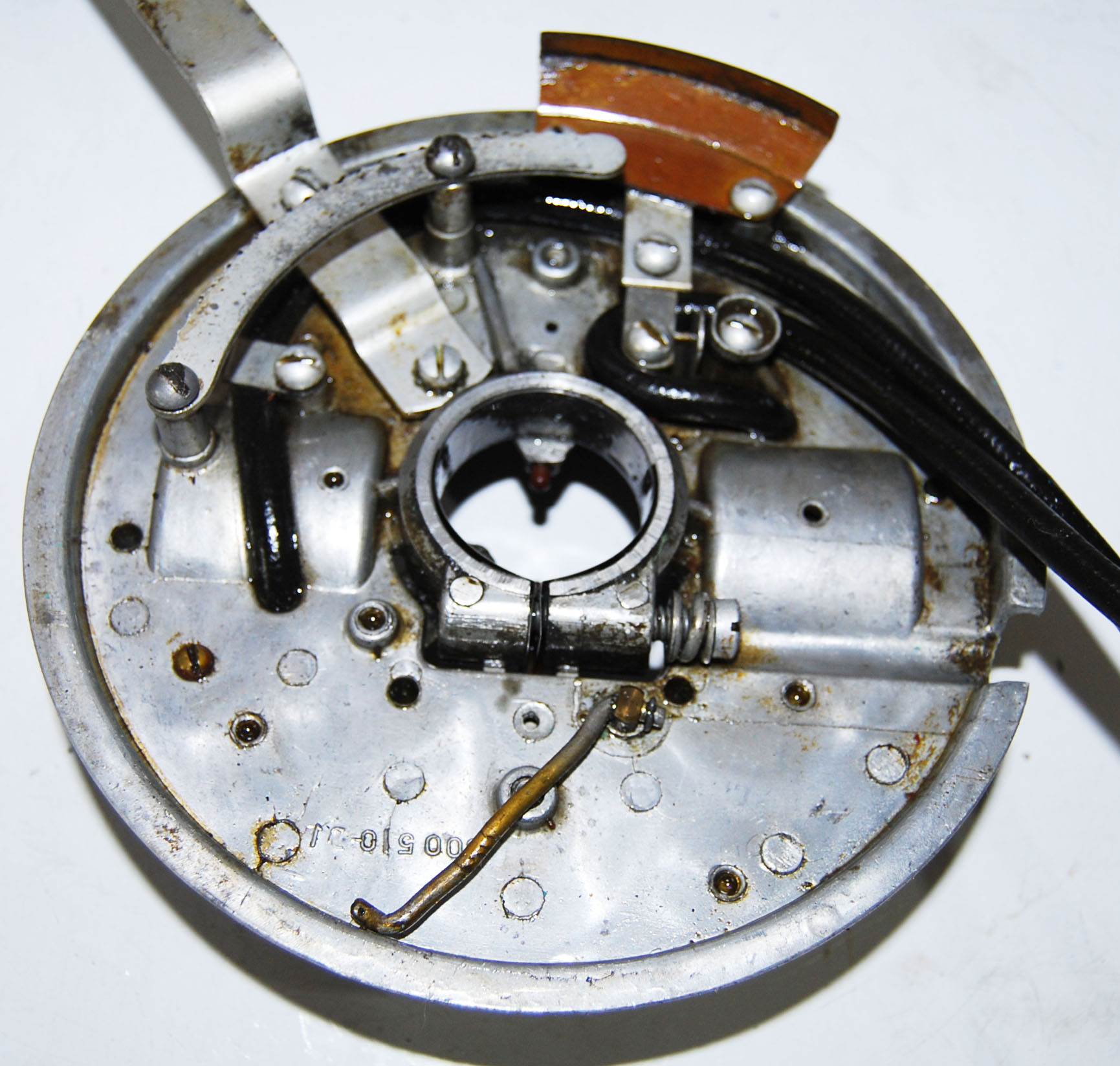

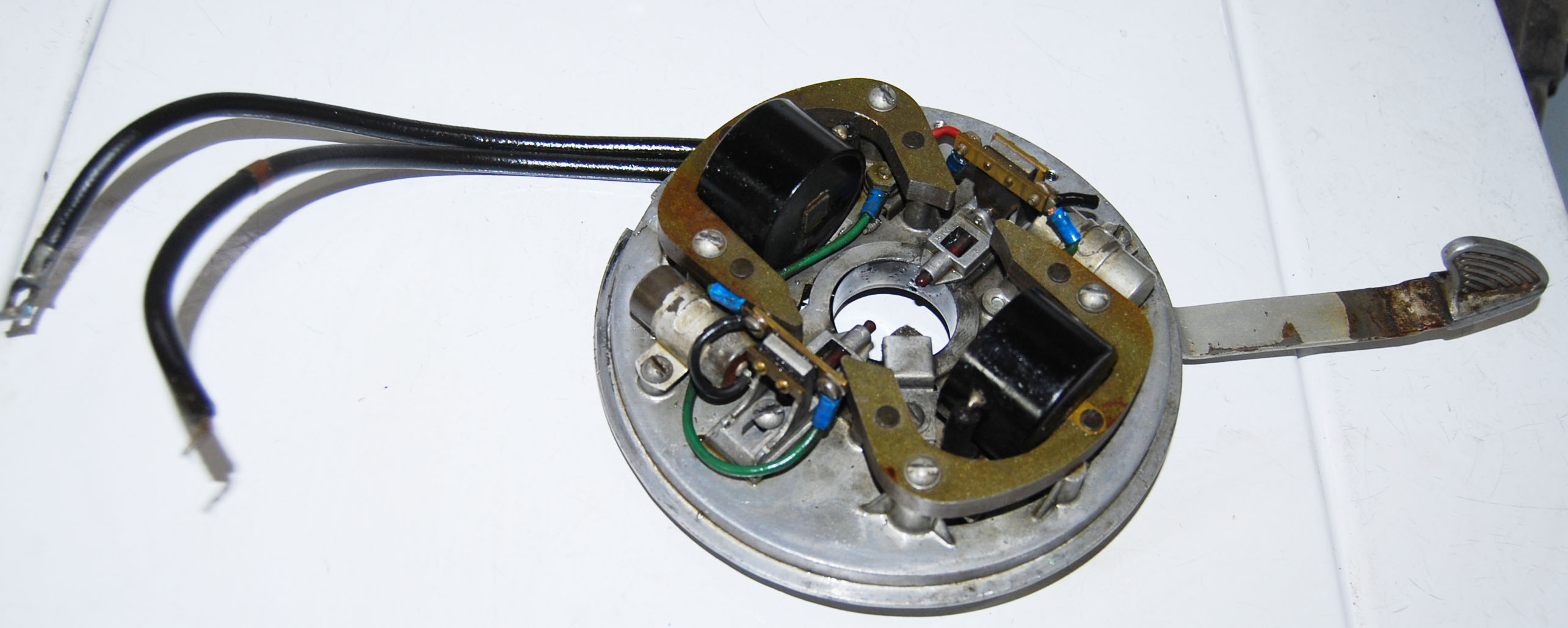

Magneto Assembly (both coils test good) |
1951* | $40.00 | |
 |

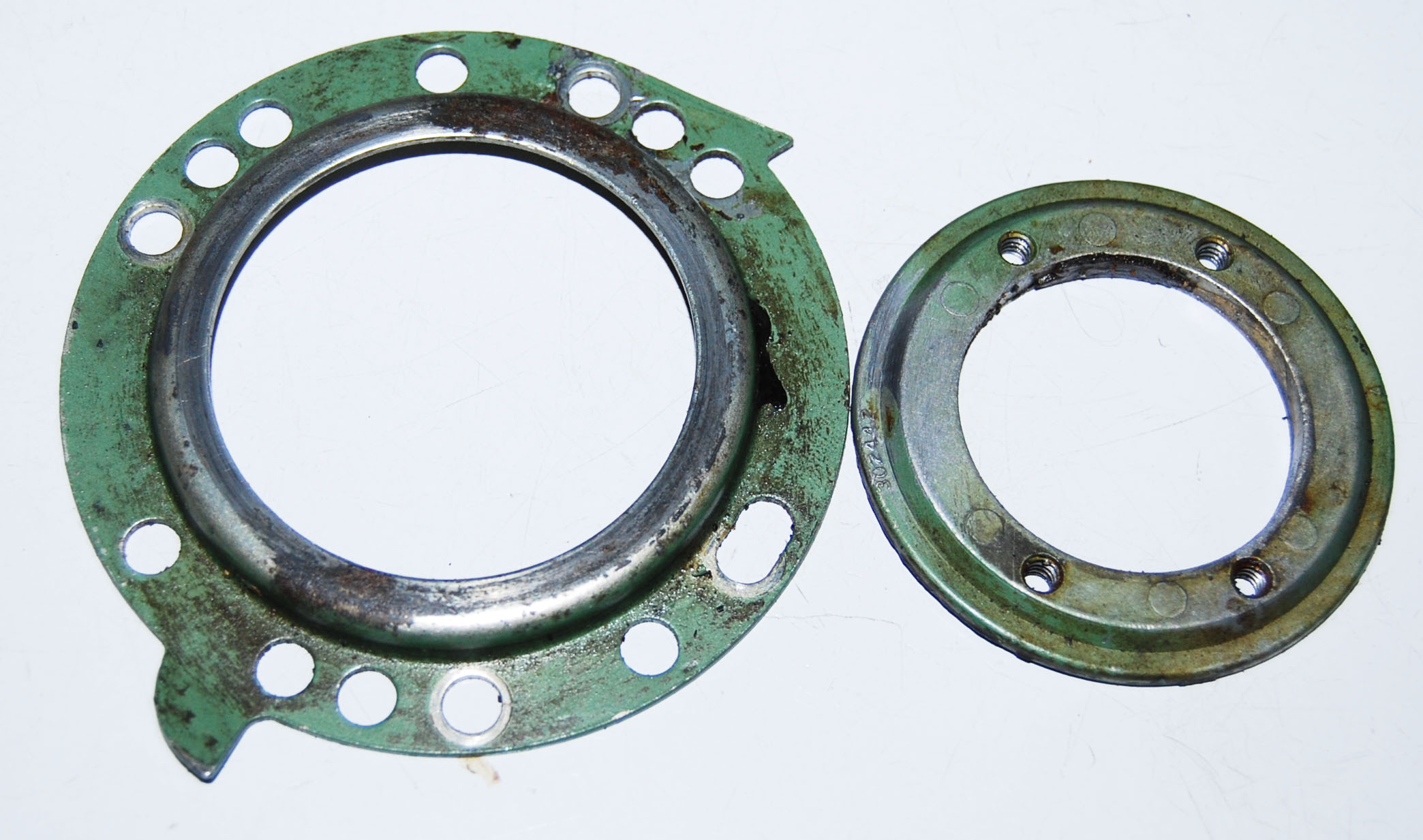

Stator Plate Retainers | 1953* | n/a | $7.00 | |
| 301392 |  |

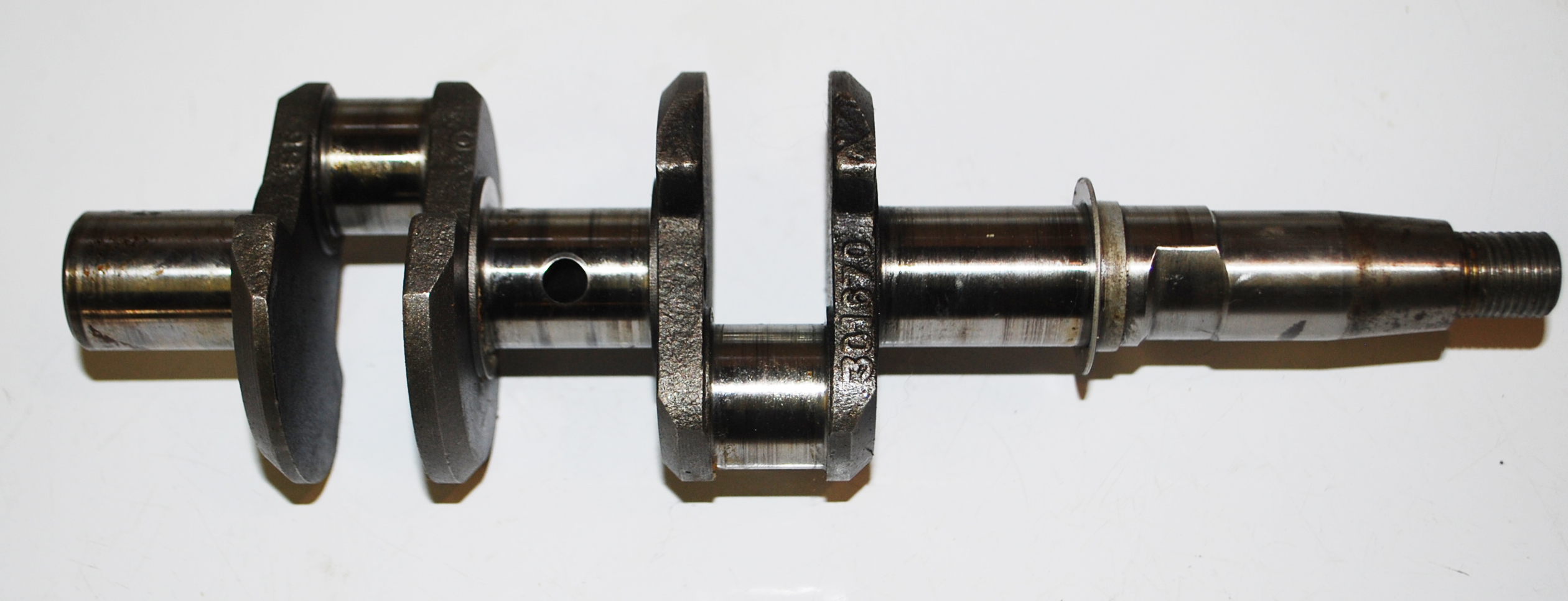

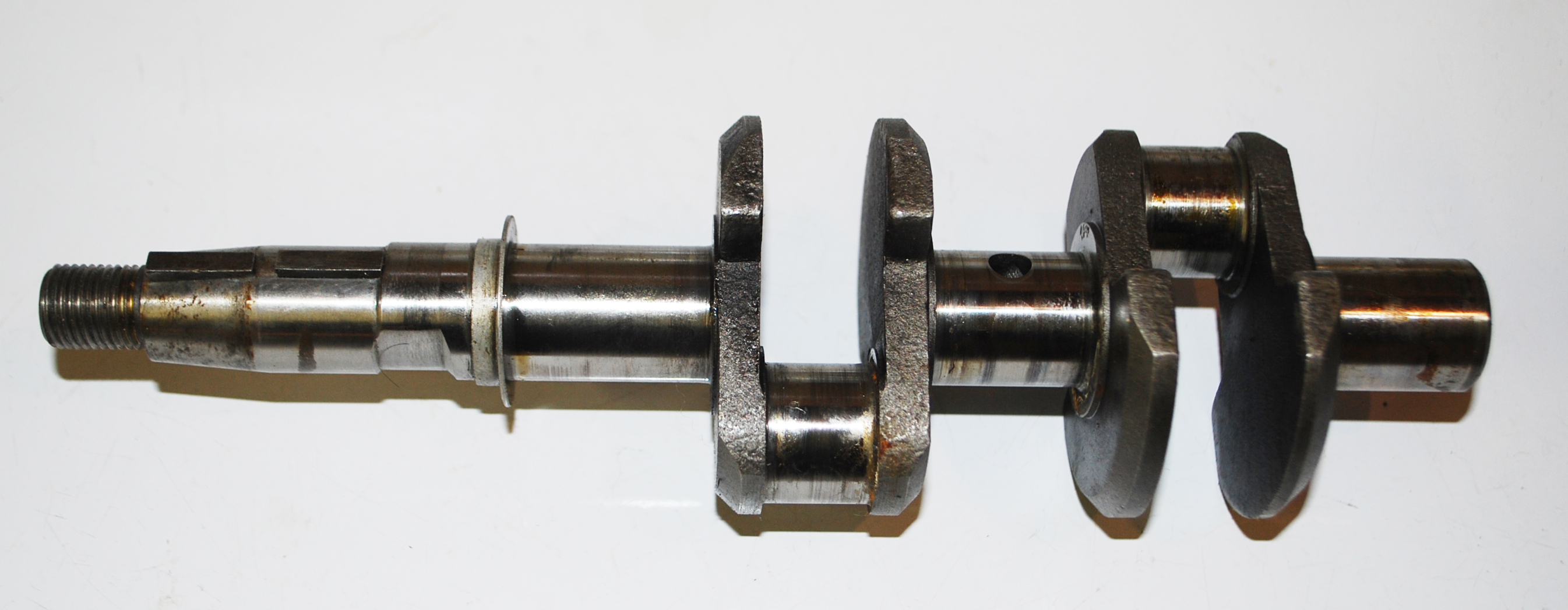

Crankshaft (two available) |
1950-53* | PIC#2 | $17.50 |
| 375538 |  |

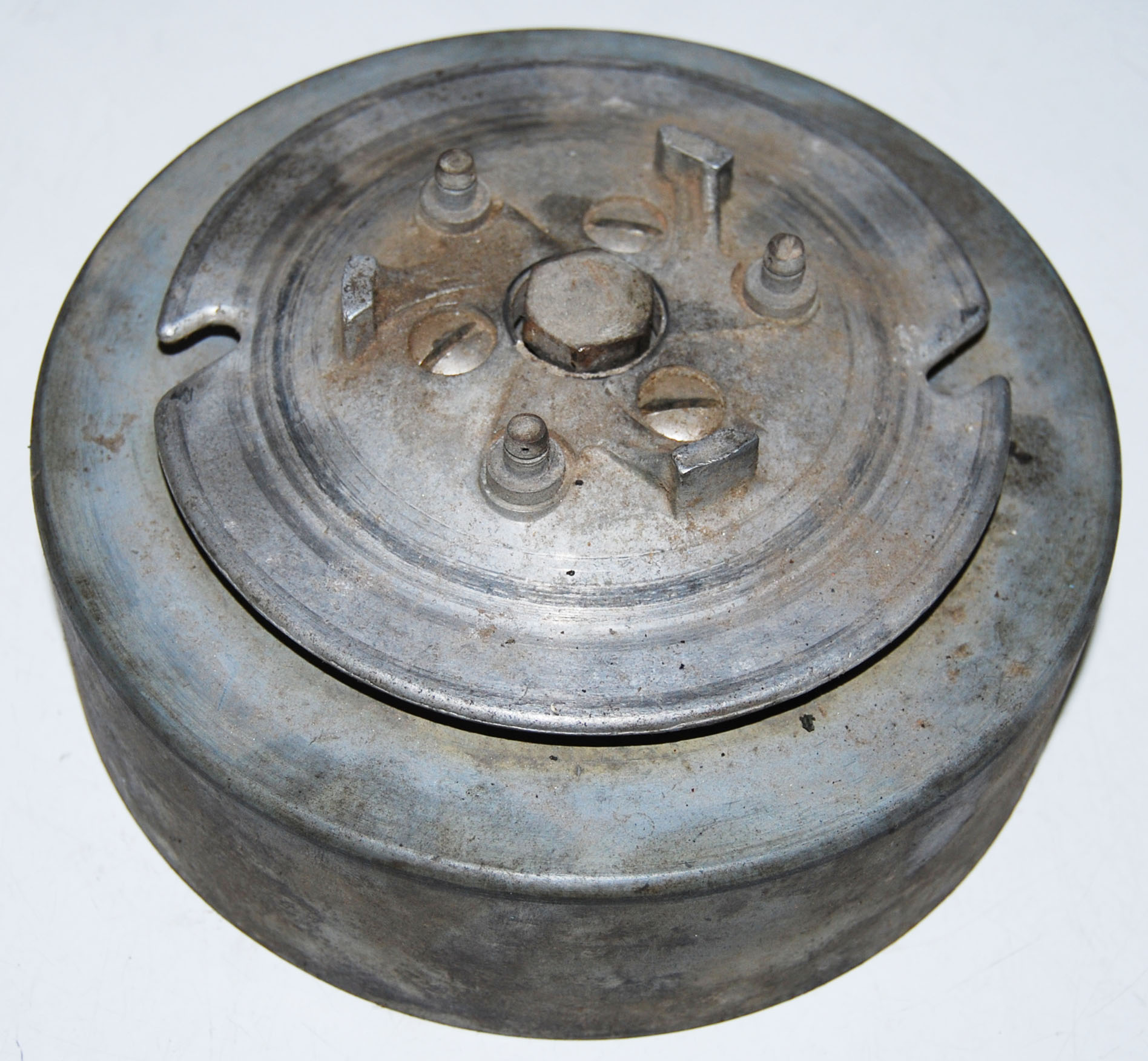

Flywheel Assy. | 1951* | PIC#2 | $20.00 |
| 41-32 |  |

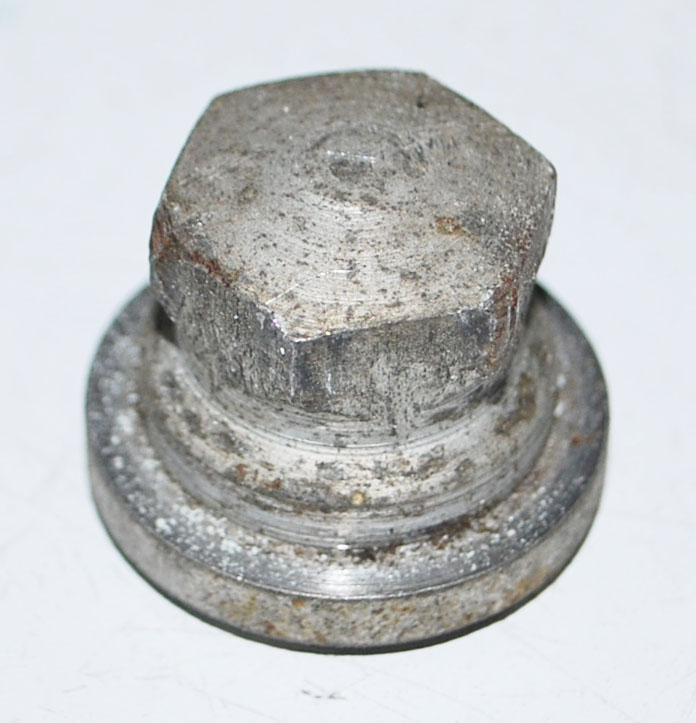

Flywheel Nut (two available) |
1950* | n/a | $3.50 |
| 300497 |  |

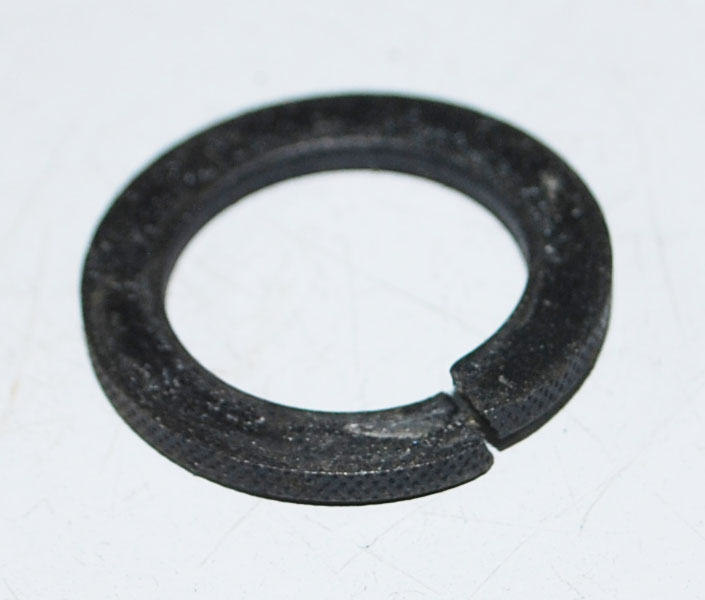

Flywheel Nut Lockwasher | 1950* | n/a | $1.50 |
 |

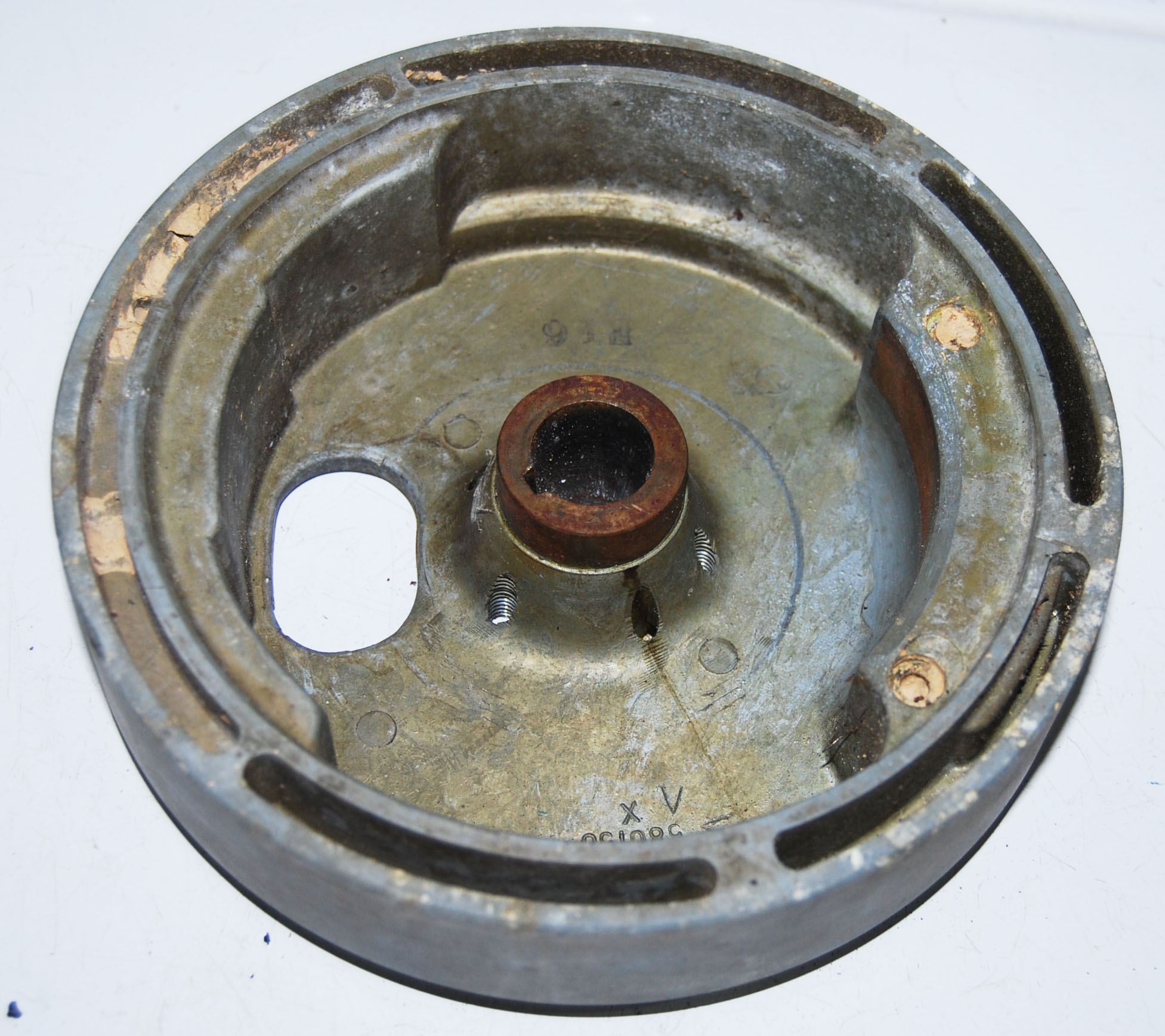

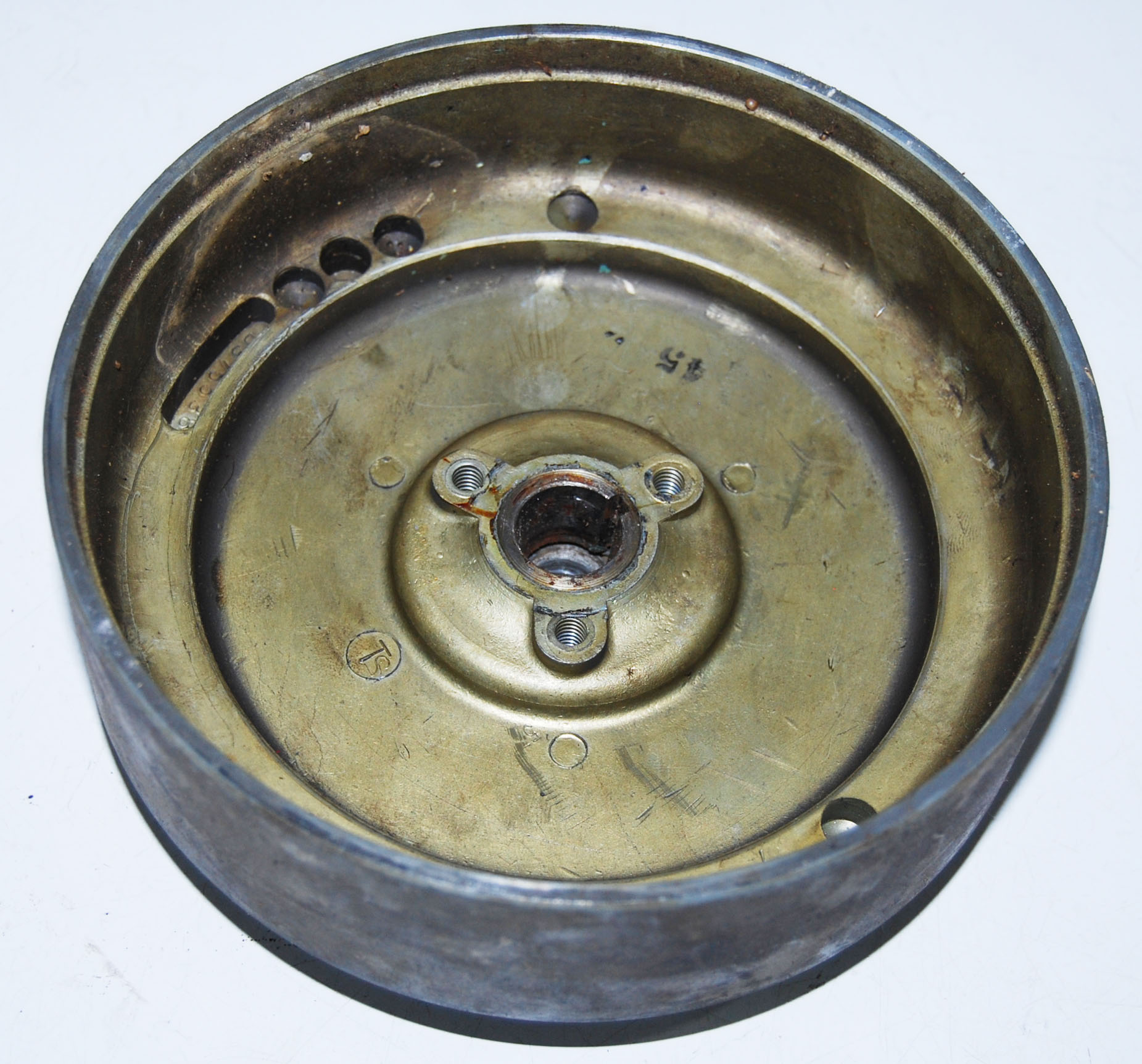

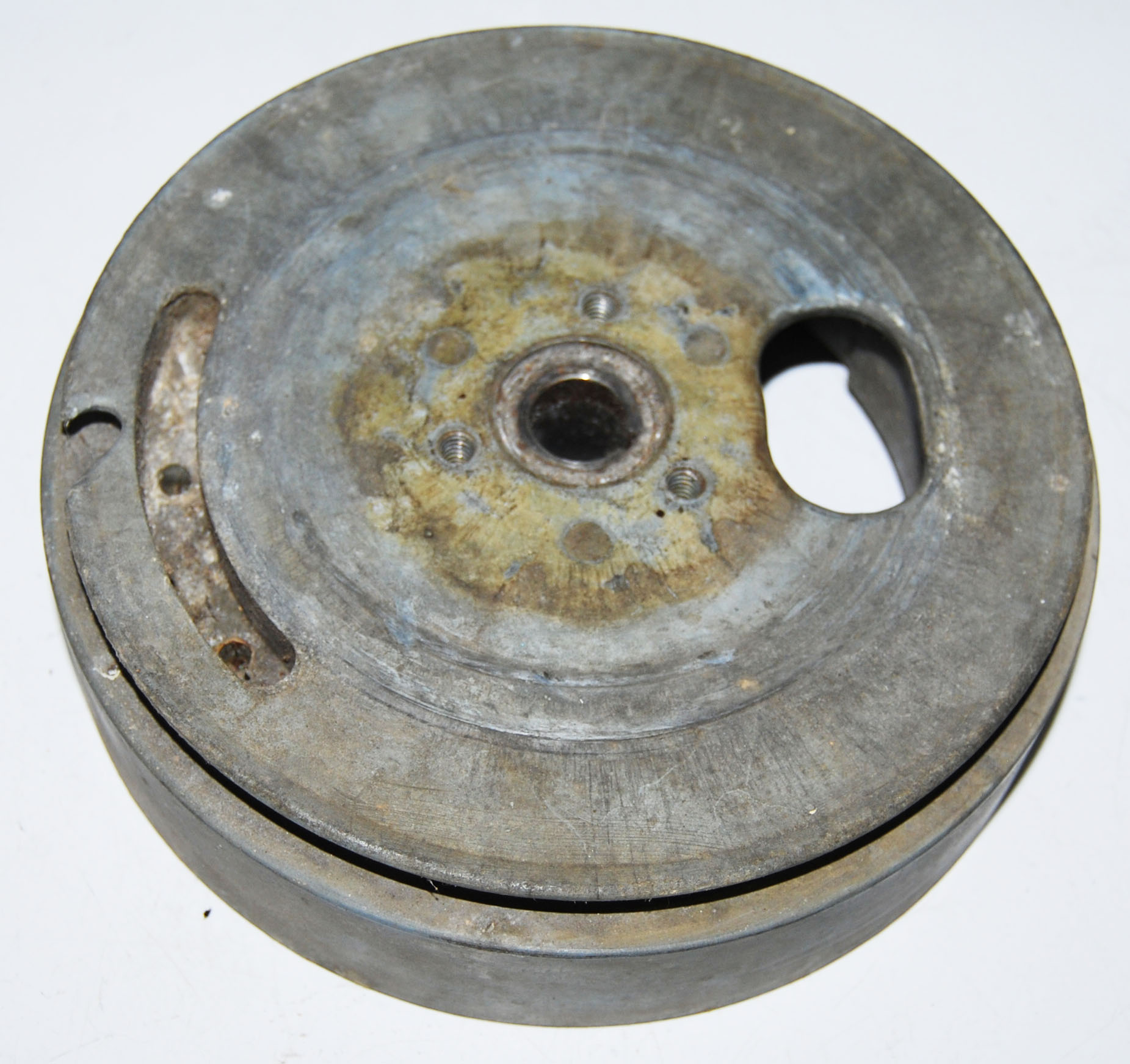

Flywheel | 1953* | PIC#2 | $16.00 | |
 |
Flywheel Nut | 1953* | n/a | $3.00 | |
| 302365 |  |

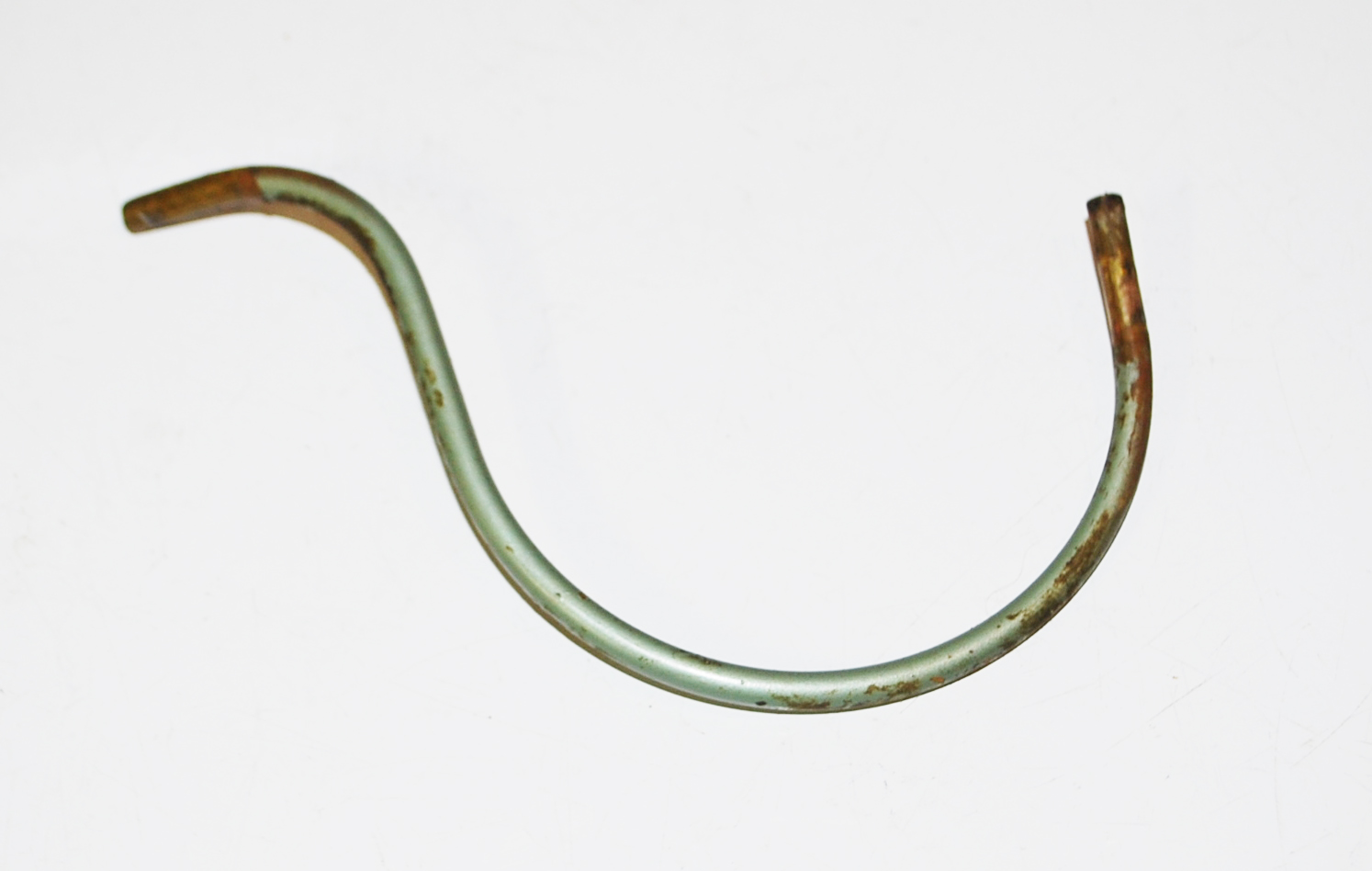

Clutch Cable Guide | 1950* | n/a | $4.00 |
| 375689 |  |

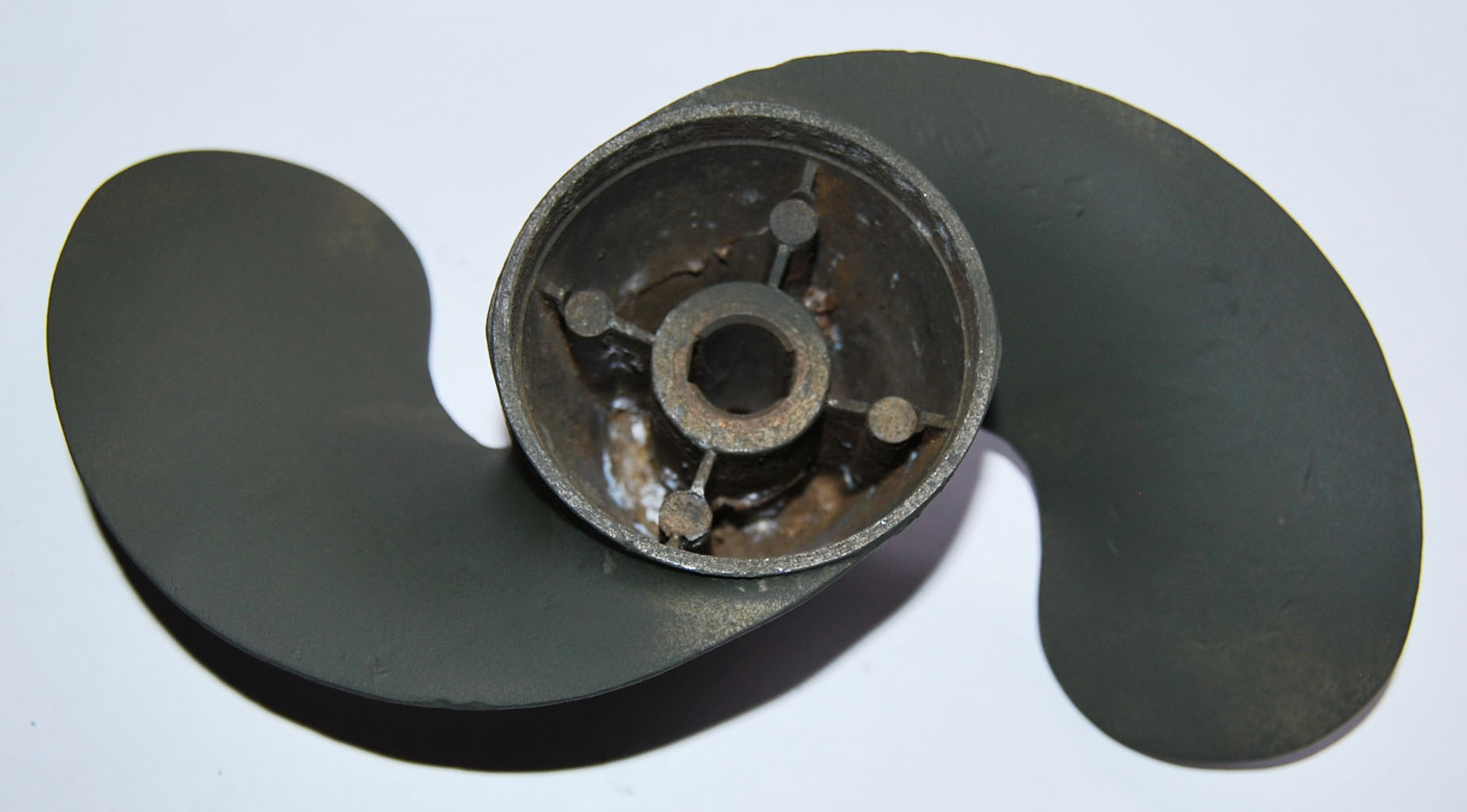

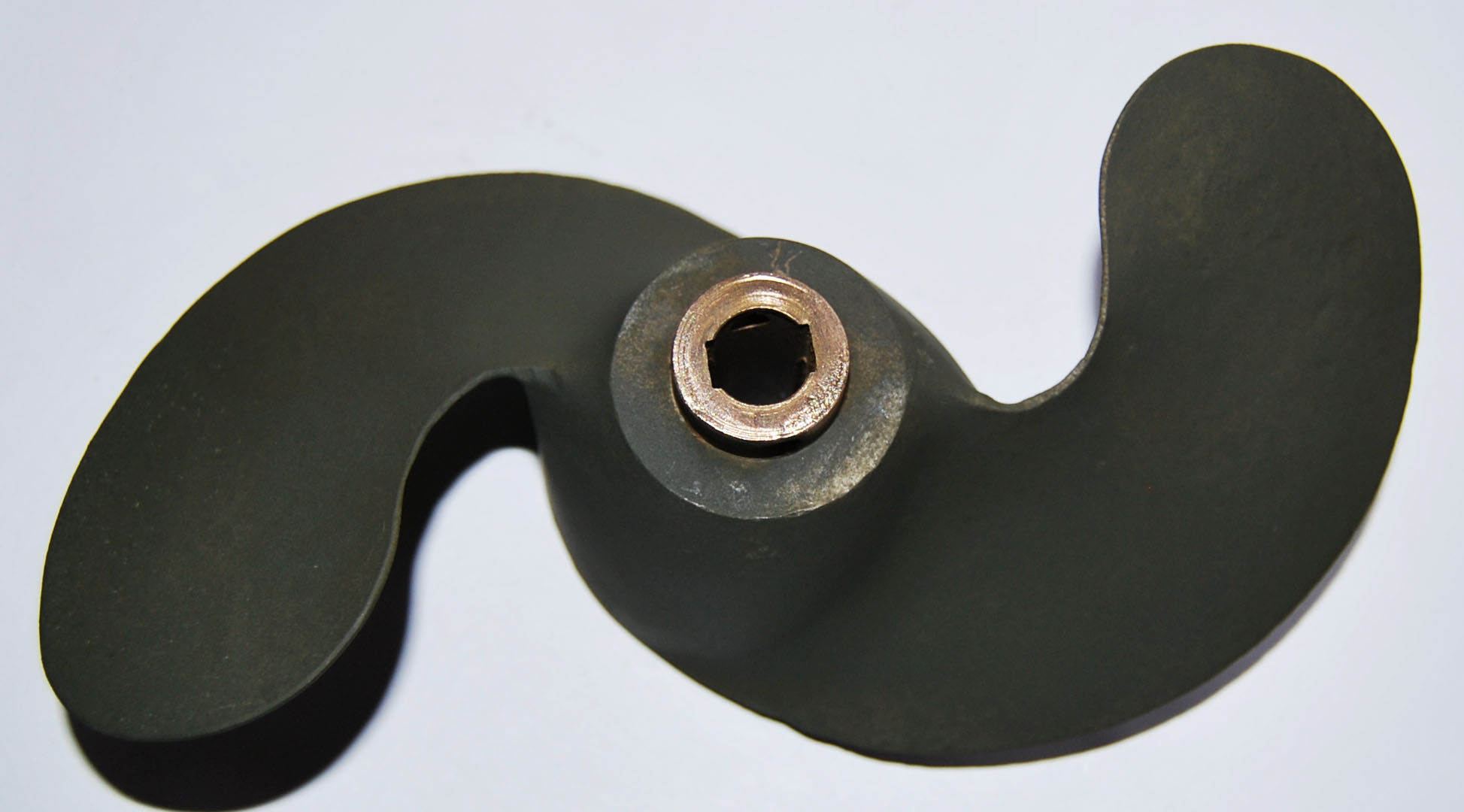

Propeller, Johnson TN-25,28 (5 HP) (three available) |
1950-53* | PIC#2 | $20.00 |
 |

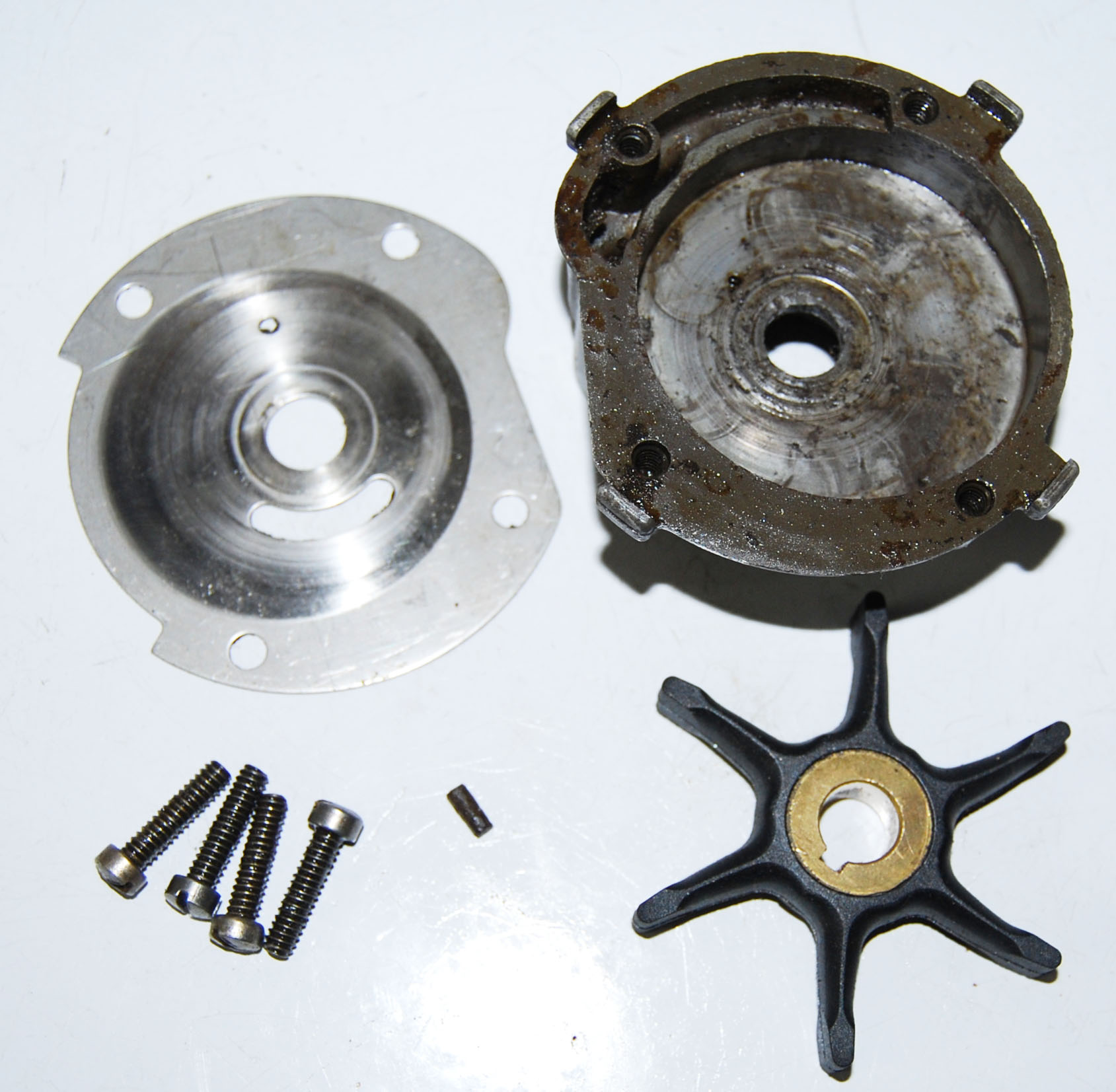

Water Pump Assembly (new impeller) |
1953* | PIC#2 | $24.00 | |
(Page updated 12/12/2024)
*may fit other years
