PARTS FOR 1955 & 1956 WIZARD SUPER 5 HP OUTBOARD MOTORS
The parts from this outboard motor (Model #WH-6) are at our North Carolina location which is open from
October 1st thru March 27th.
This Wizard outboard was manufactured by Mercury outboards and was similar to the Mark 6 - sold by Western Auto Stores.
NOTE: Our shopping cart adds shipping charges for domestic orders only. We will ship internationally after a request for a shipping quote is made.
Click on any image to enlarge.
| Part # | Pic 1 | Description | Year | Extra Pics | PRICE |
|---|---|---|---|---|---|
 |
**Operating Instructiona & Parts List (PDF Format, 32 pages) |
1957* | n/a | $3.50 | |
| 119-411A 3 |  |

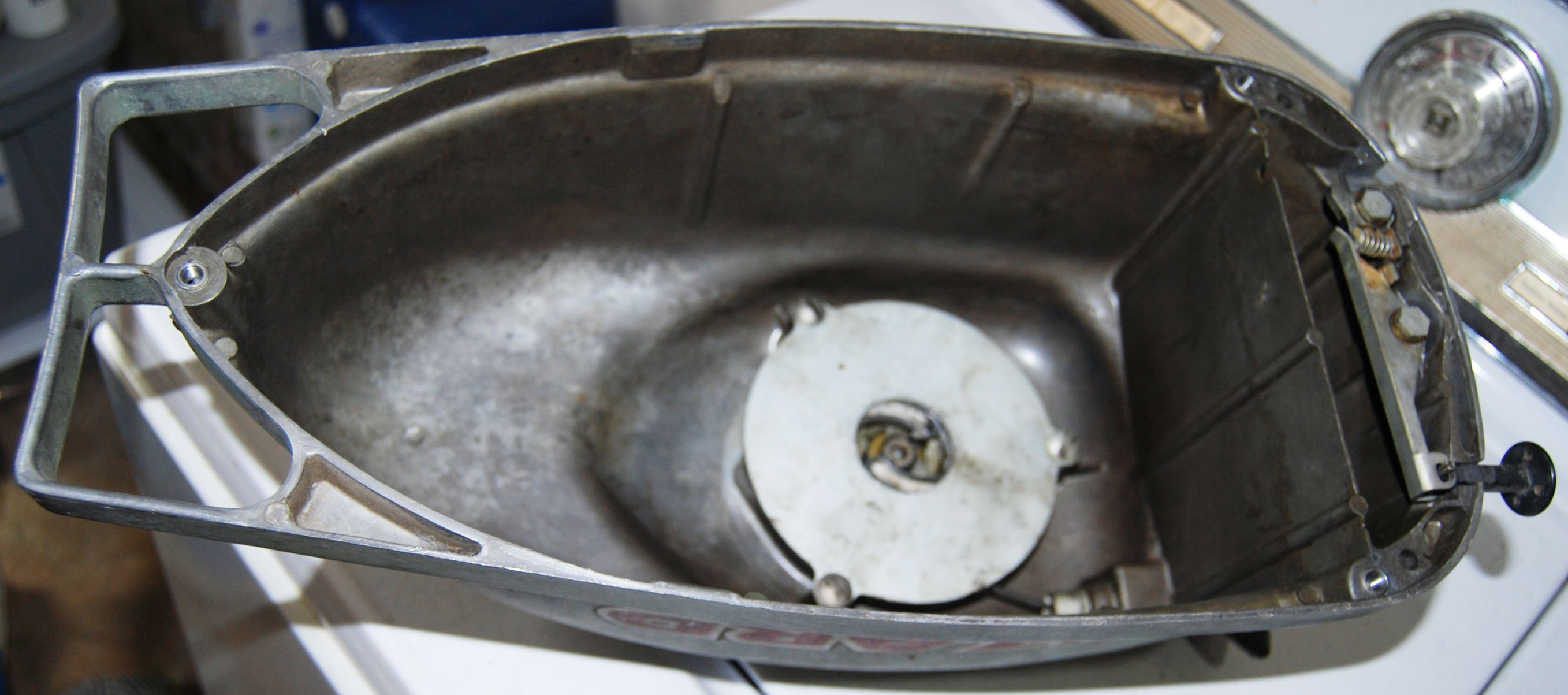

Hood / Cowling with good Rewind Starter & Knobs as shown |
1955-56* | $40.00 | |
 |

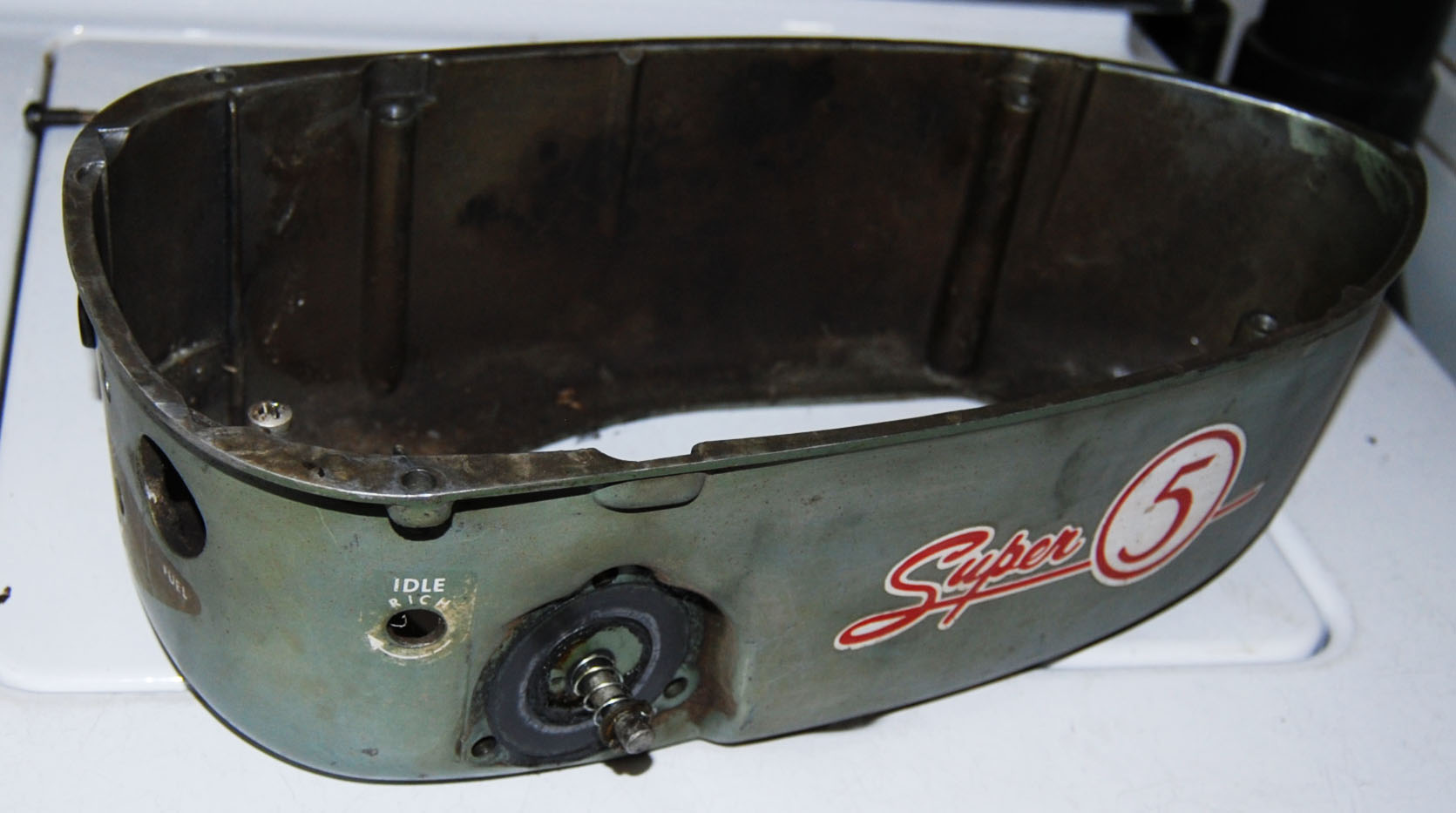

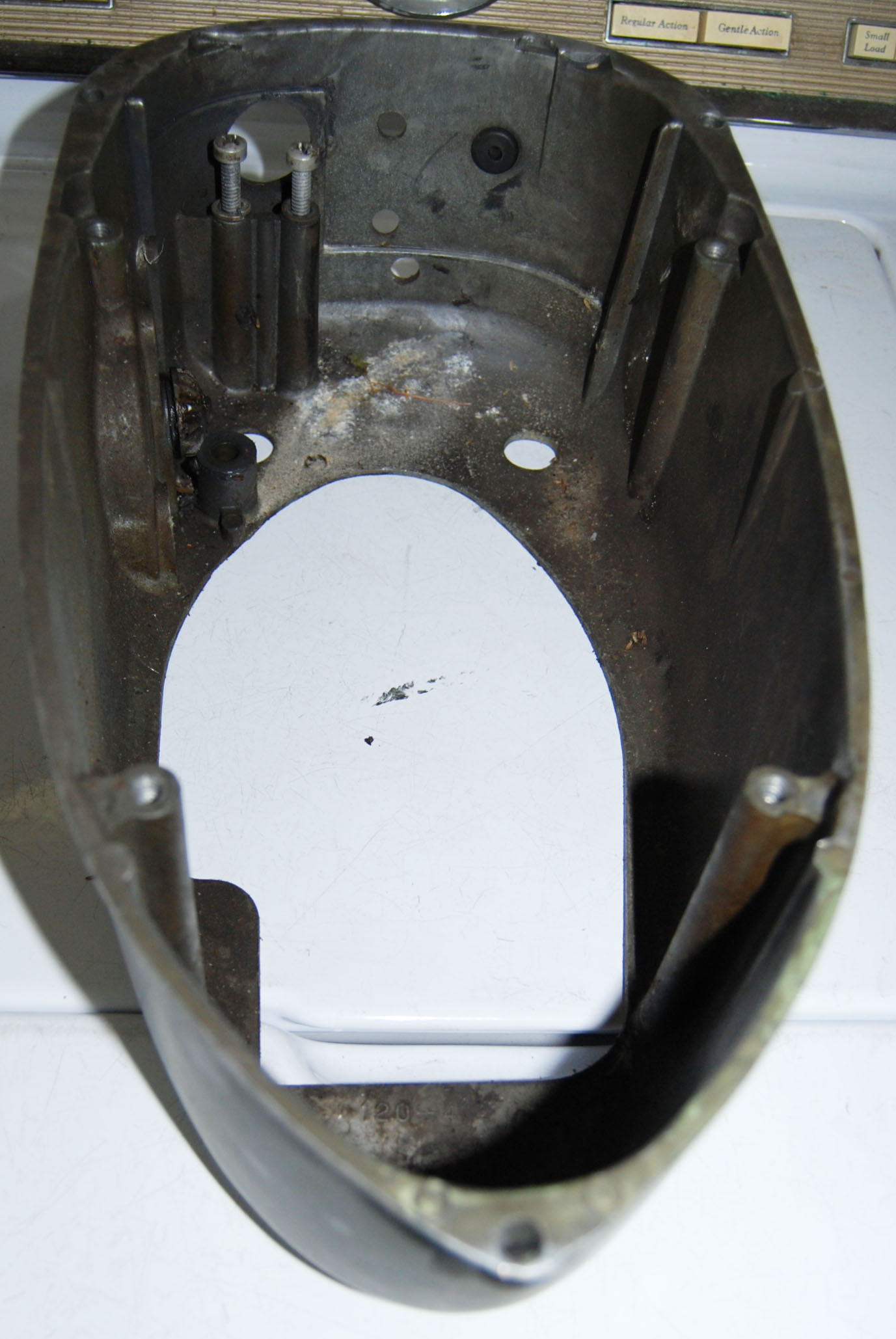

Lower Cowl | 1955-56* | PIC#2 | $24.00 | |
| 398-691 |  |
Flywheel | 1955-56* | PIC#2 | $16.00 |
| 22680 |  |
Flywheel Nut /Starter Ratchet with Washers | 1955-56* | n/a | $10.00 |
| 32-23542, 22932A, 32-23550 |  |

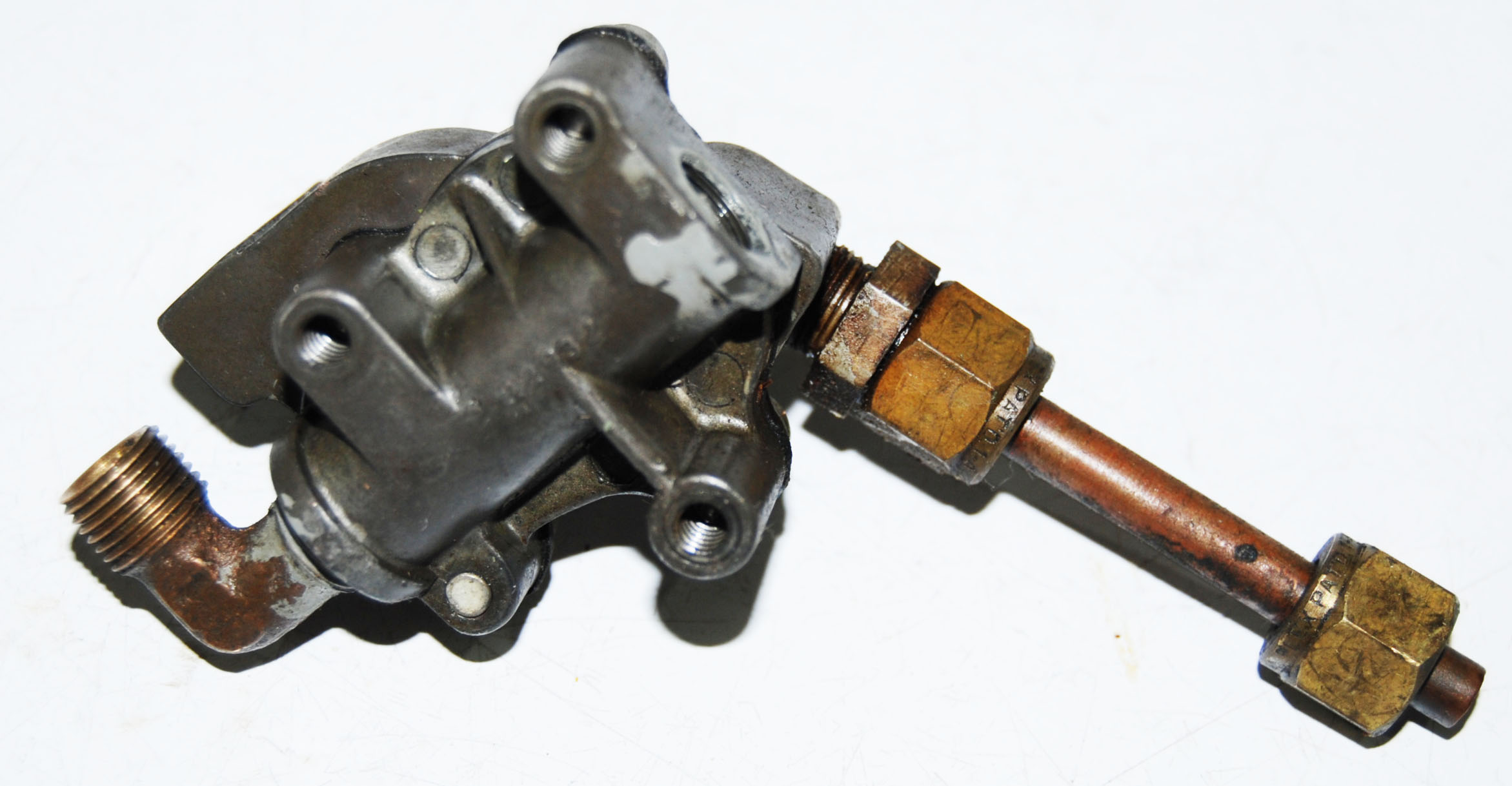

Fuel Pump with Crankcase to Pump Line | 1955-56* | n/a | $24.00 |
| 22871 |  |

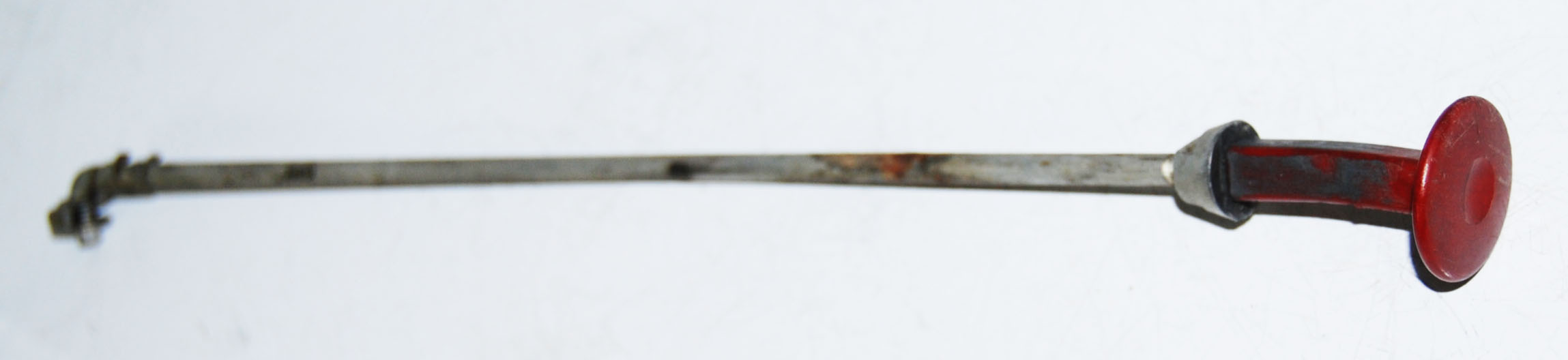

Clutch Knob & Shaft Assy. | 1955-56* | n/a | $11.00 |
1304-415 (#AJ46A) |
 |

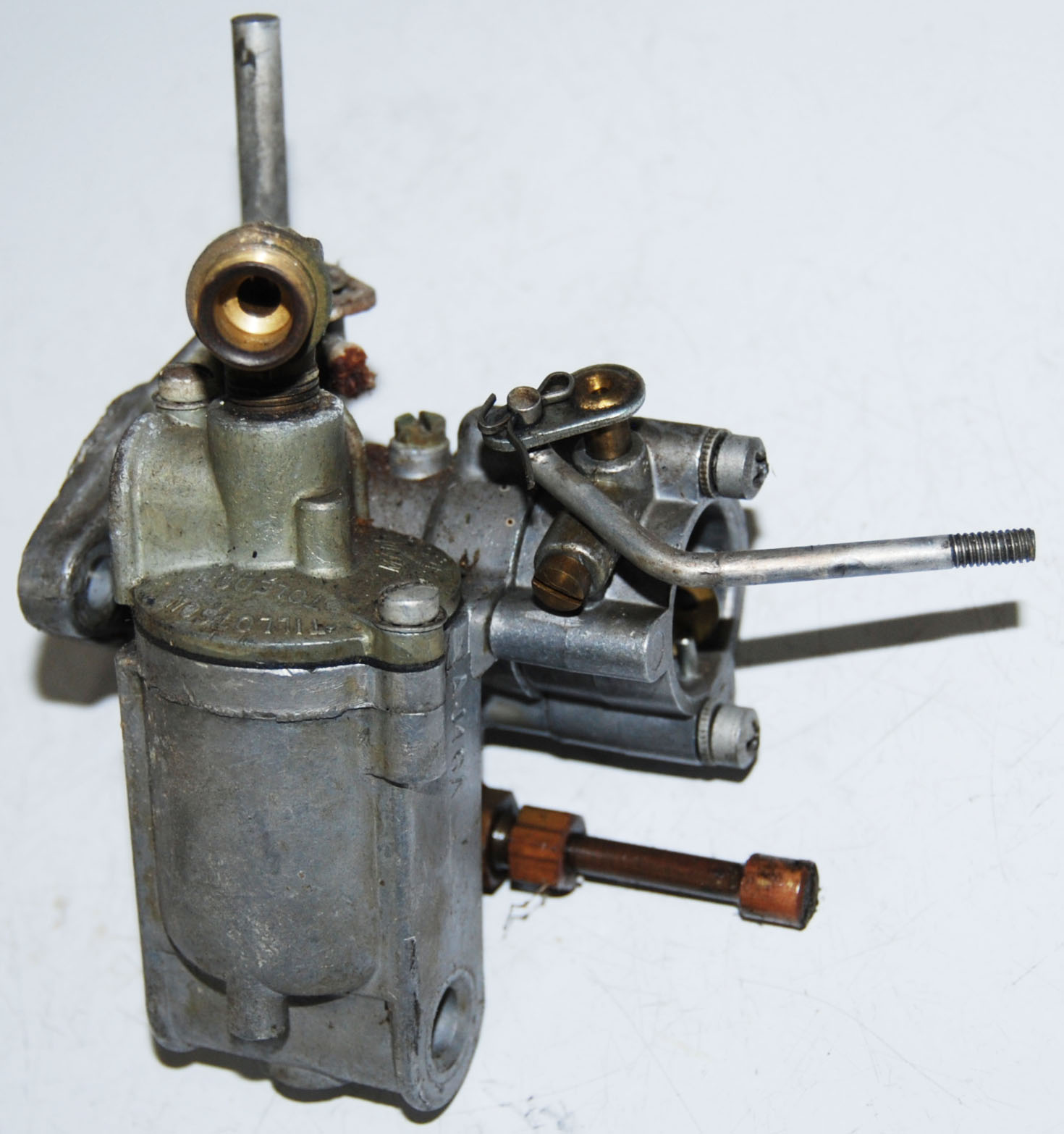

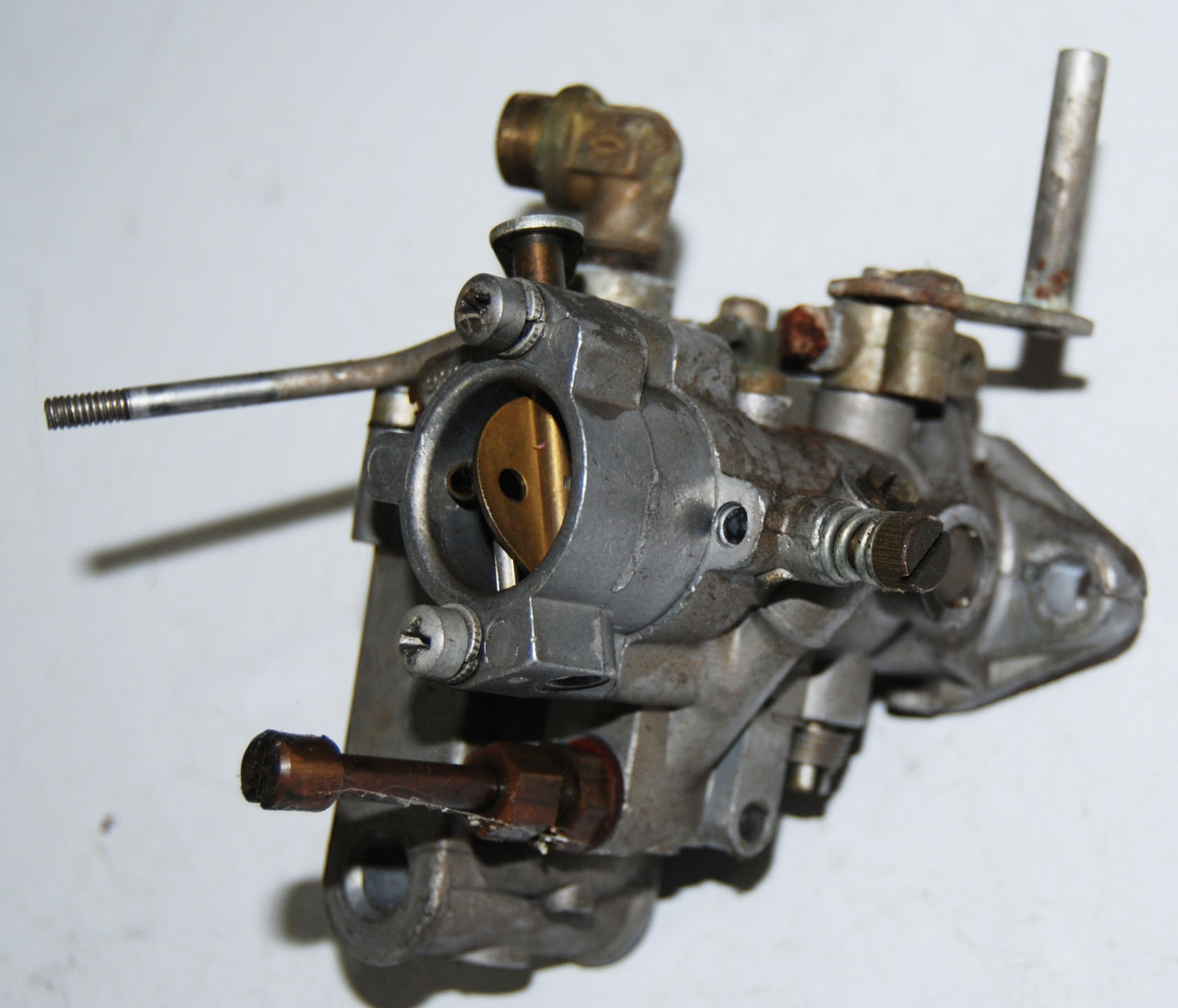

Carburetor Assembly |
1955-56* | $38.50 | |
| 22915A 1 |  |

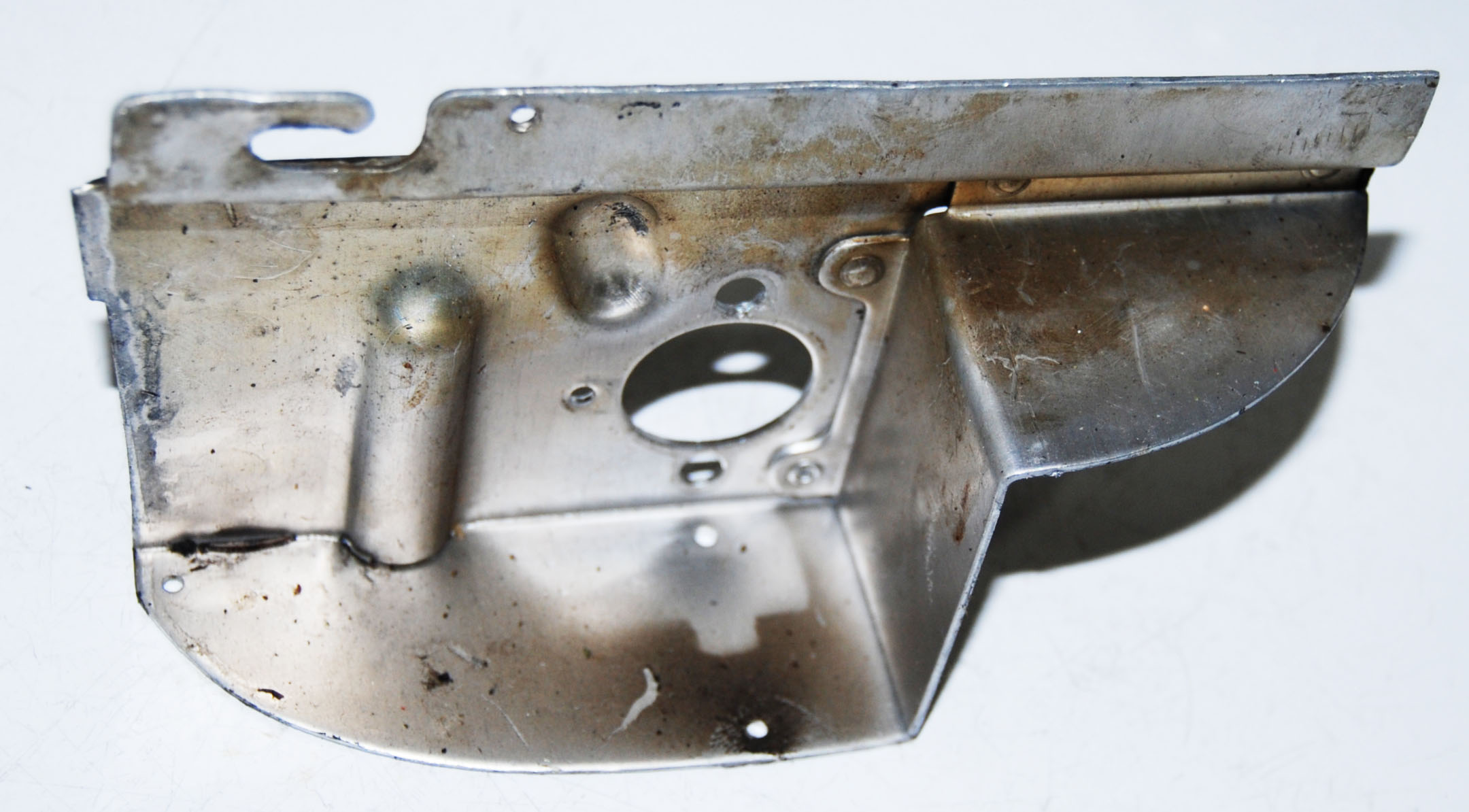

Carb. Baffle Plate |
1955-56* | n/a | $11.50 |
| 22833 |  |

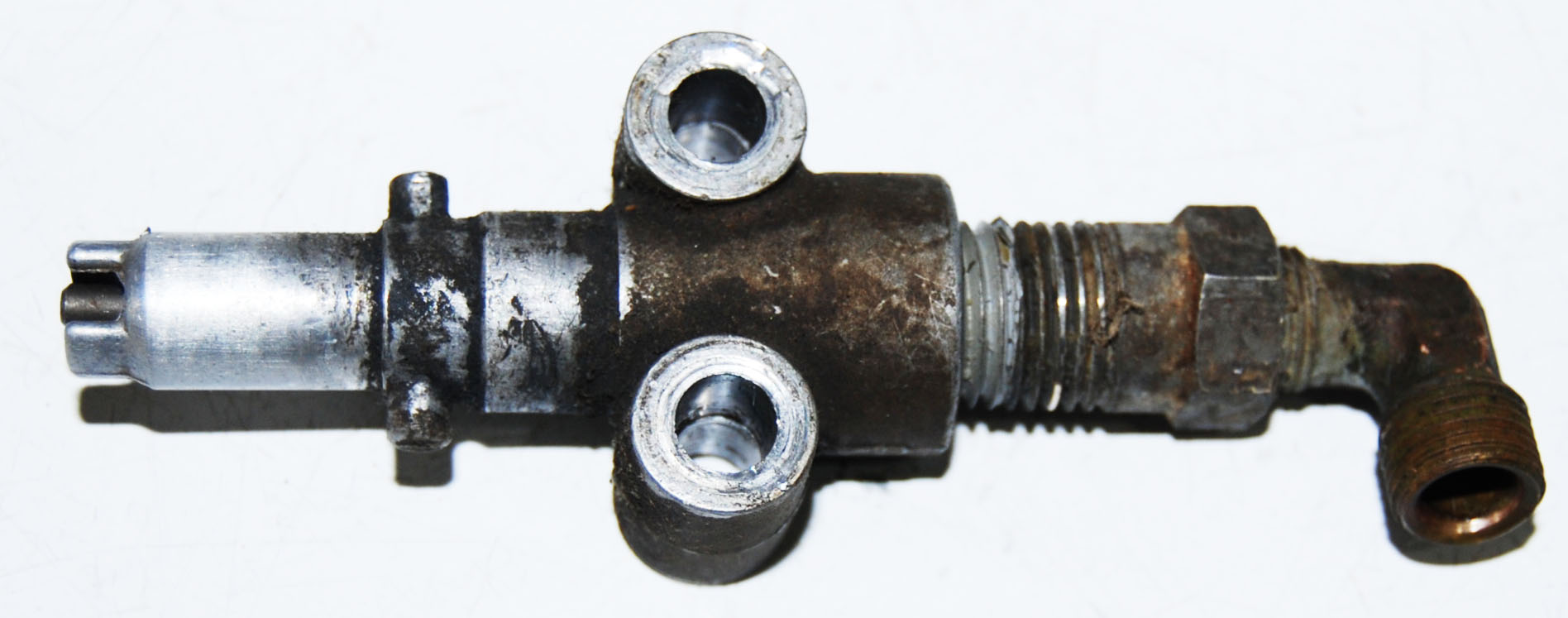

Fuel Connector Assy. | 1955-56* | n/a | $10.00 |
| 32-23542 |  |

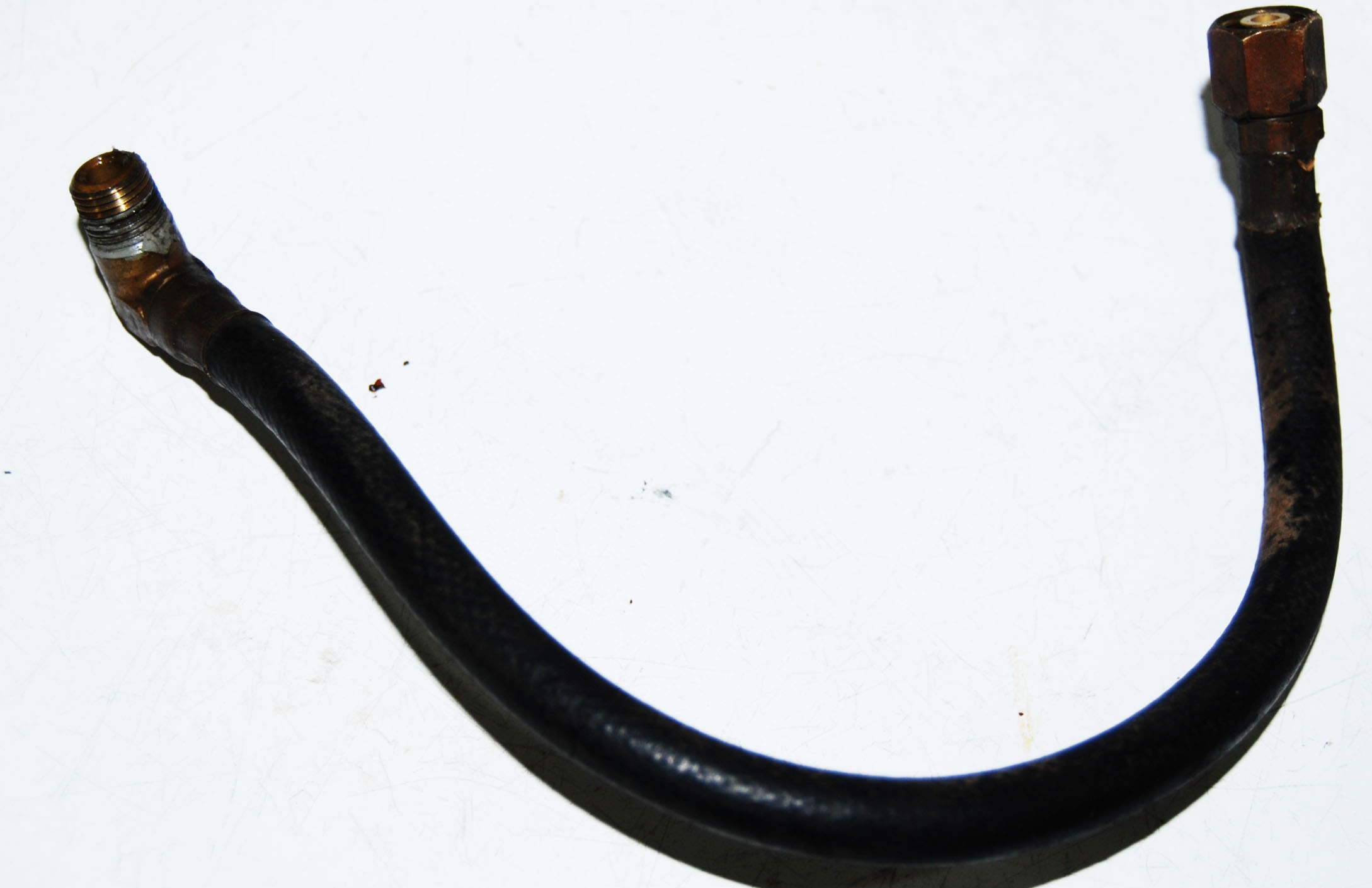

Fuel Line- Inlet to Pump |
1955-56* | n/a | $7.50 |
| 32-22585 |  |
Clutch Cable Tube | 1955-56* | n/a | $4.00 |
| 22876 |  |

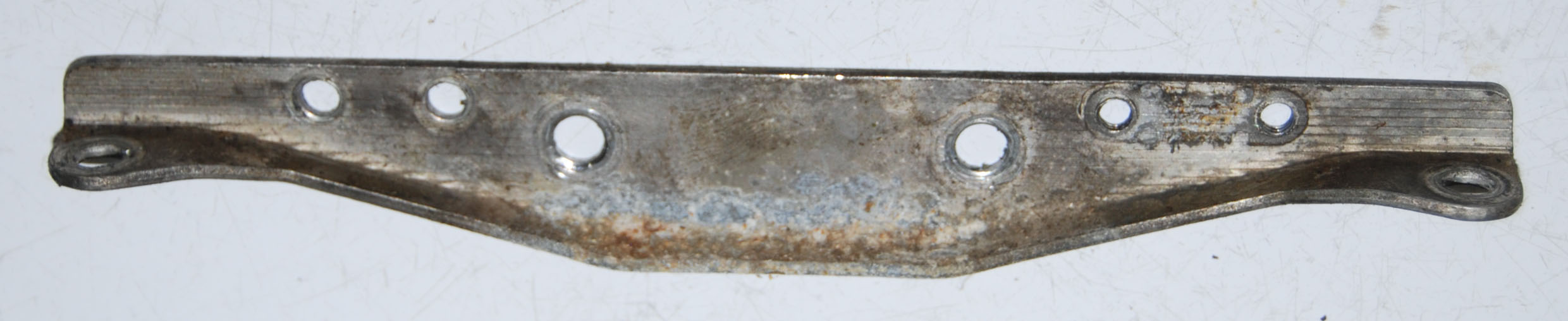

Support Bar | 1955-56* | n/a | $5.00 |
| 23019 |  |
Stator Plate Supports | 1955-56* | n/a | $8.00 |
| # |  |

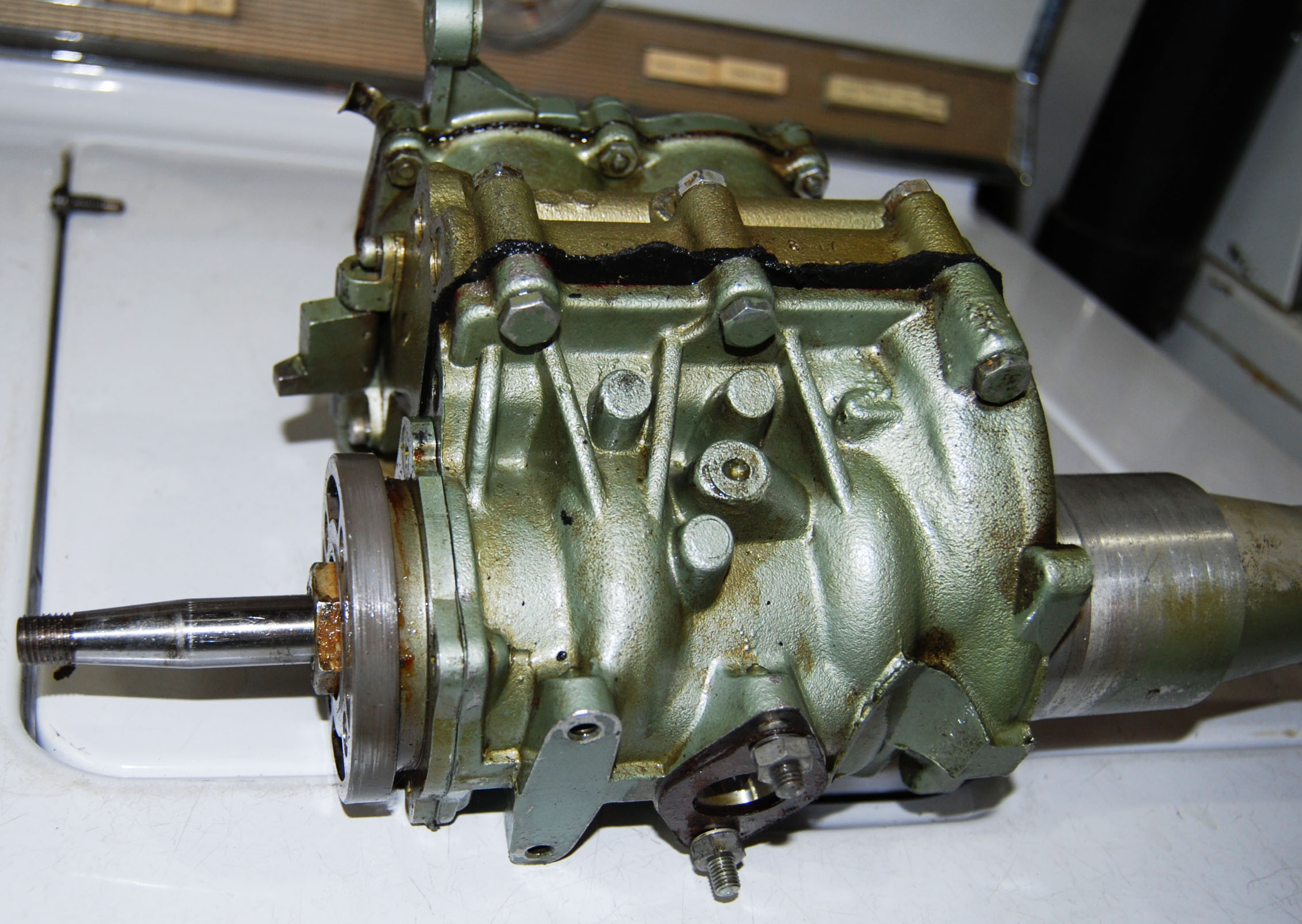

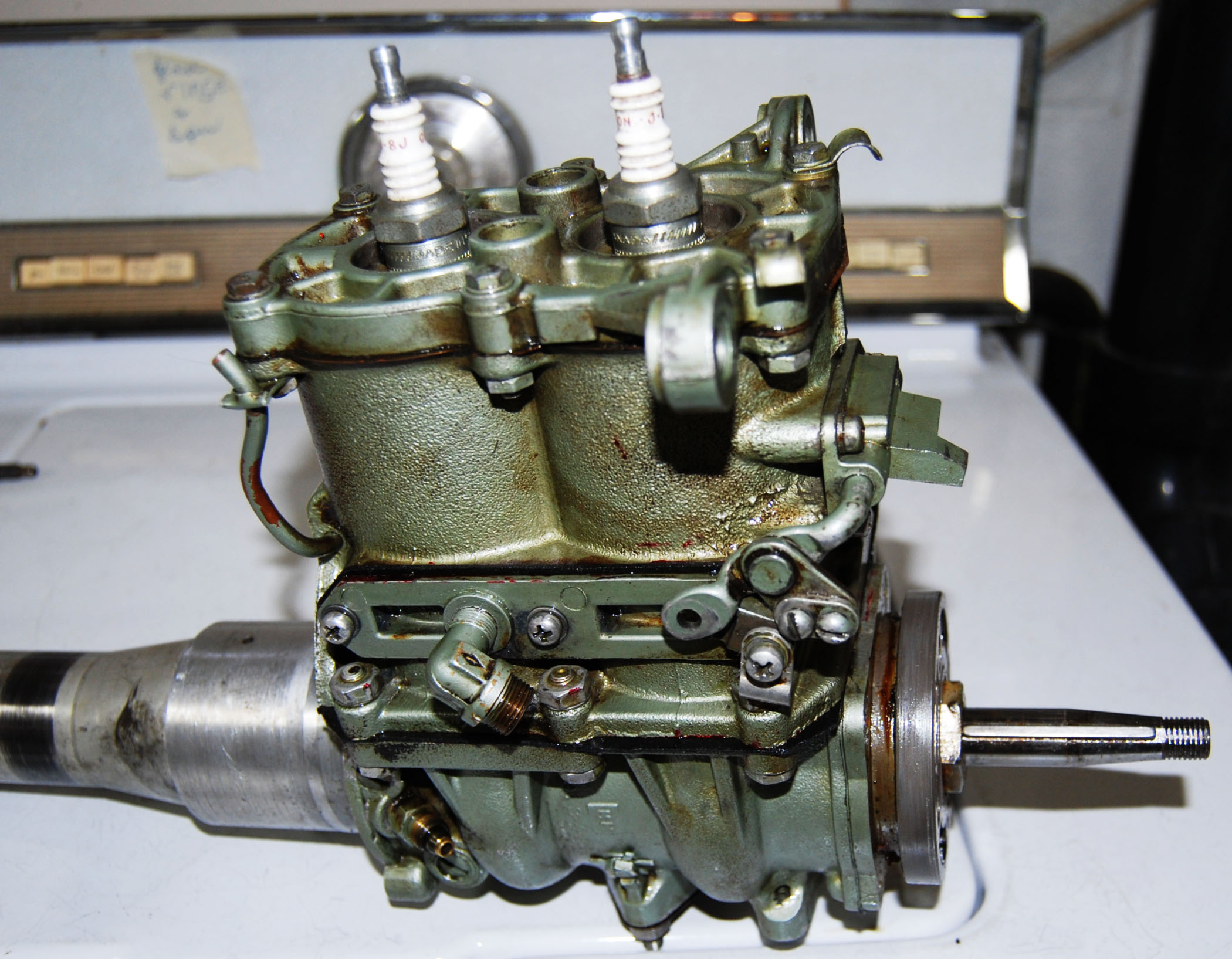

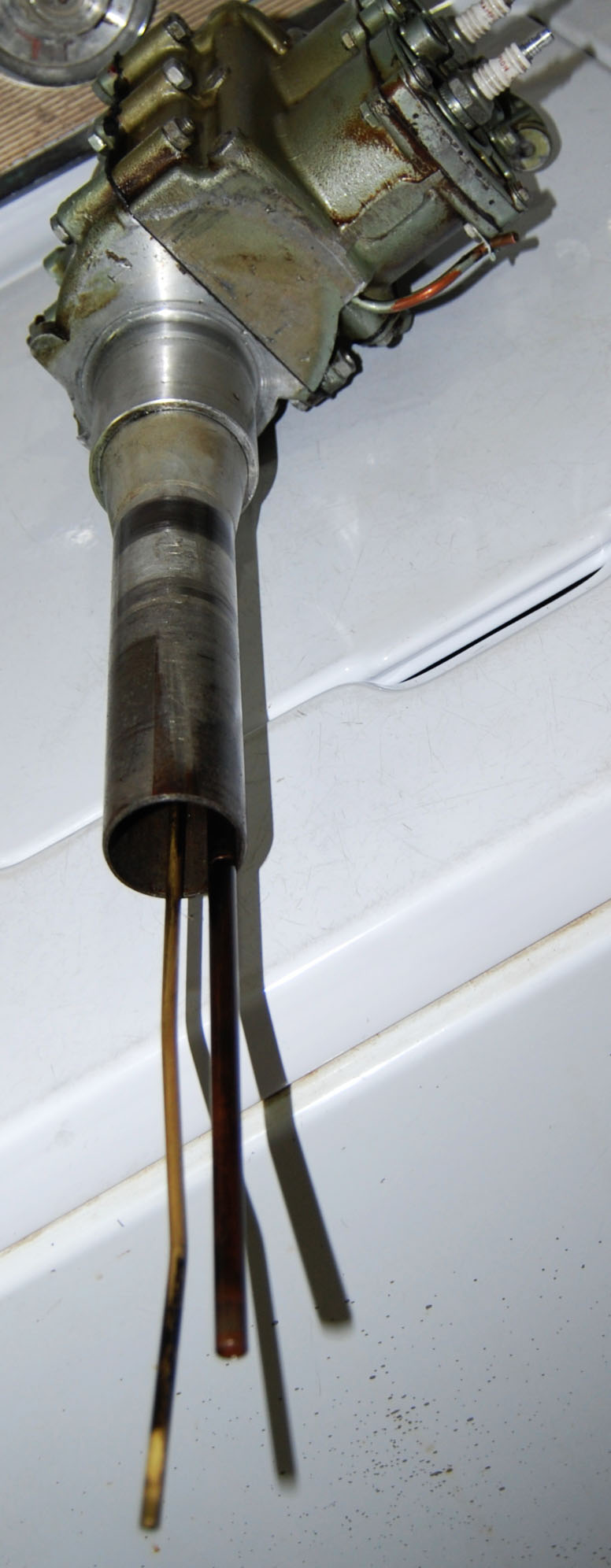

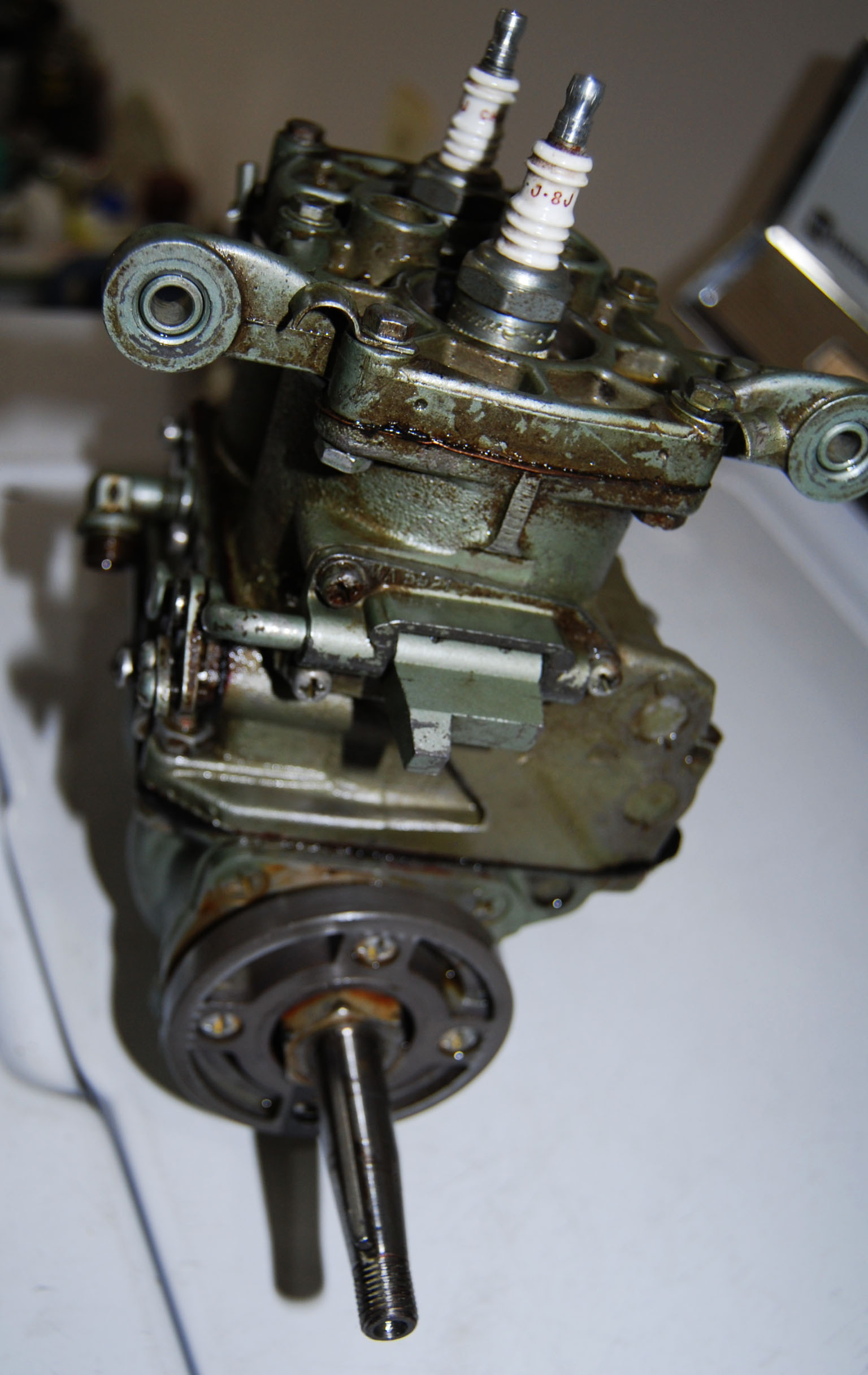

Powerhead Assembly (rotates smoothly with good compression) |
1955-56* | $60.00 | |
| 398-694, 24-22677 |  |
Magneto Cam & Spring |
1955-56* | n/a | $8.00 |
| 398-693 |  |
Condensers (2) |
1955-56* | n/a | $5.00 |
| 398-174 |  |
Point Sets (2) (refurbished) |
1955-56* | n/a | $12.00 |
| 398-692A 1 |  |

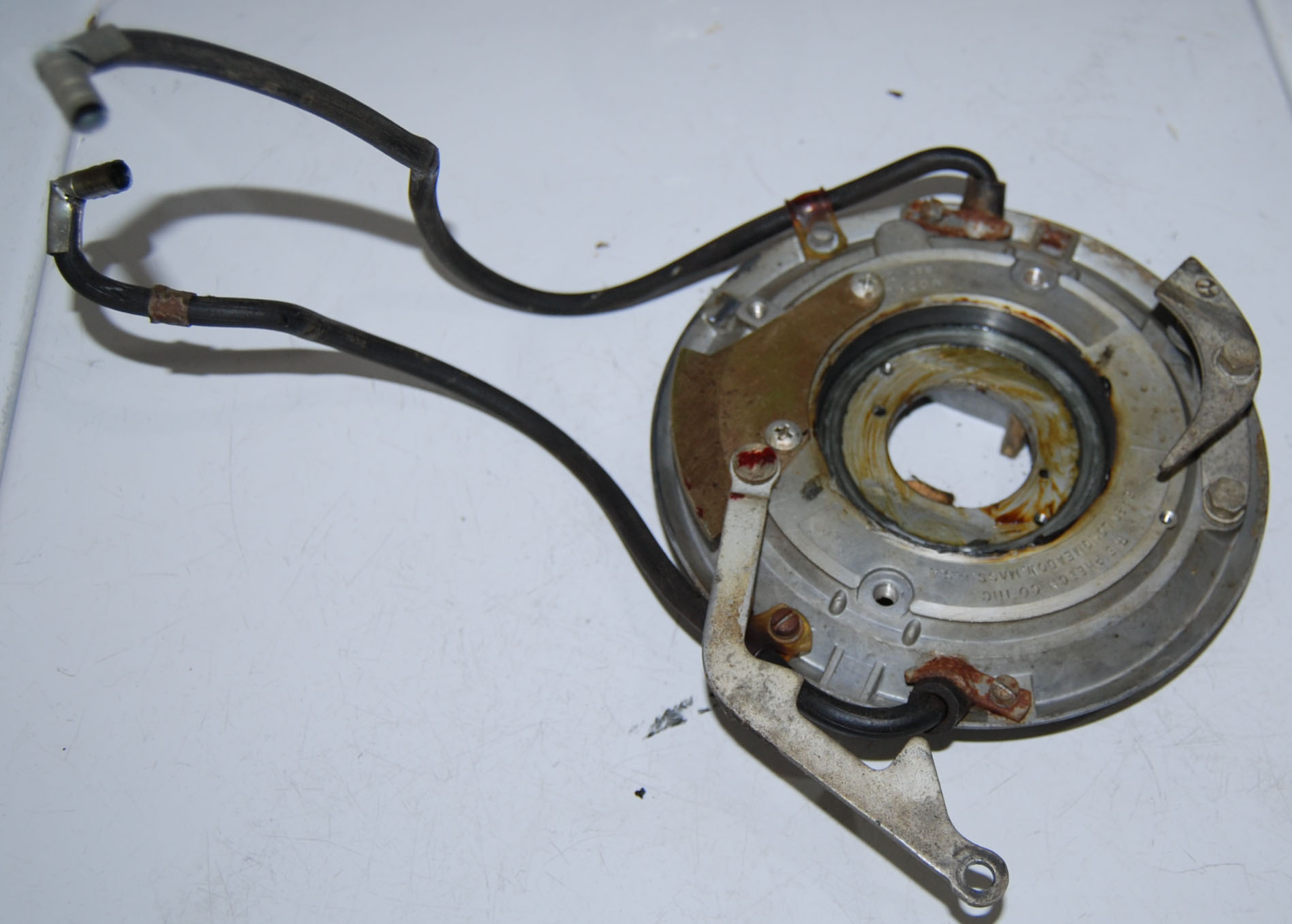

Stator Plate Assy. with Wires | 1955-56* | PIC#2 | $14.00 |
| 48-22820 |  |

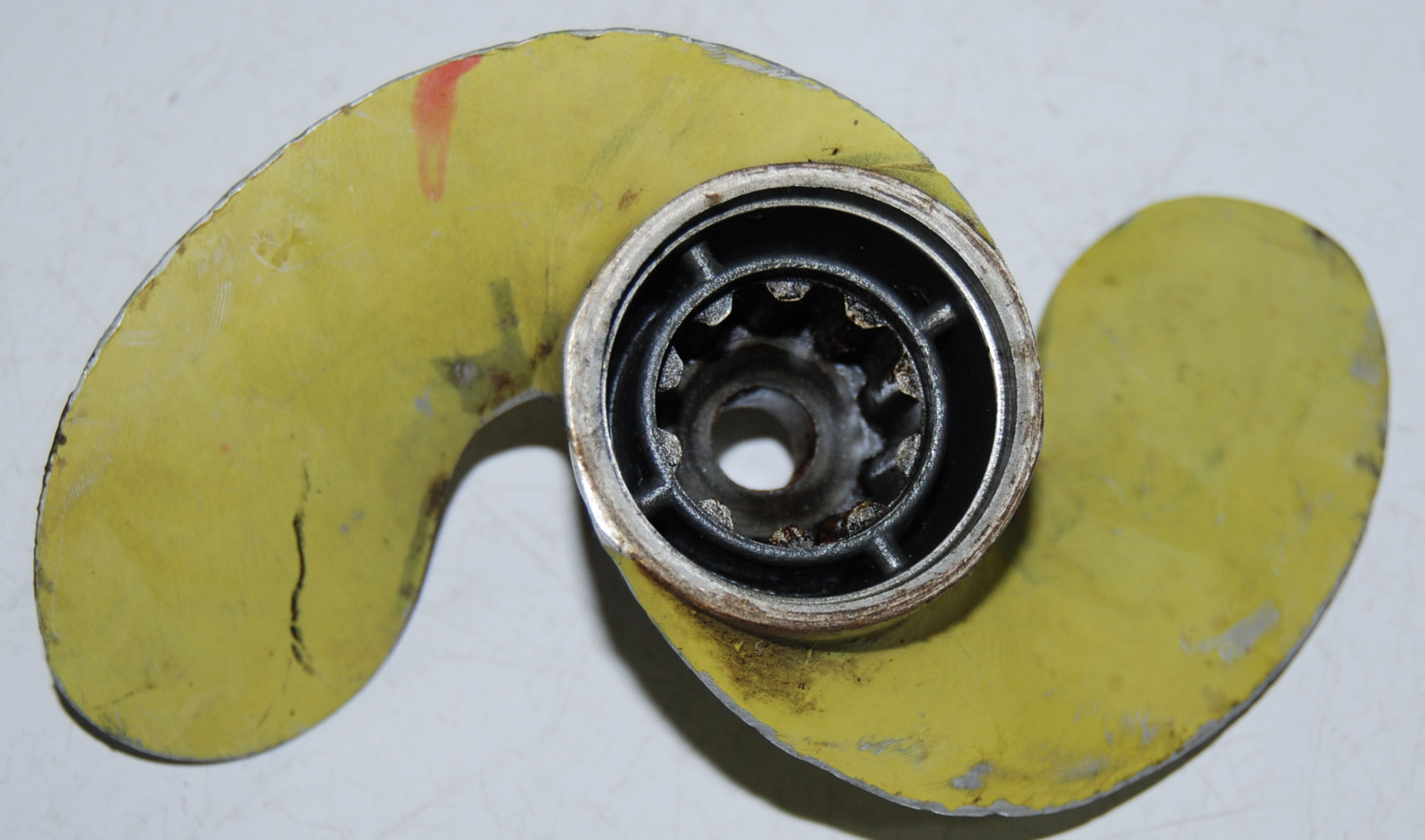

Propeller | 1955-56* | PIC#2 | $20.00 |
| n/a |  |

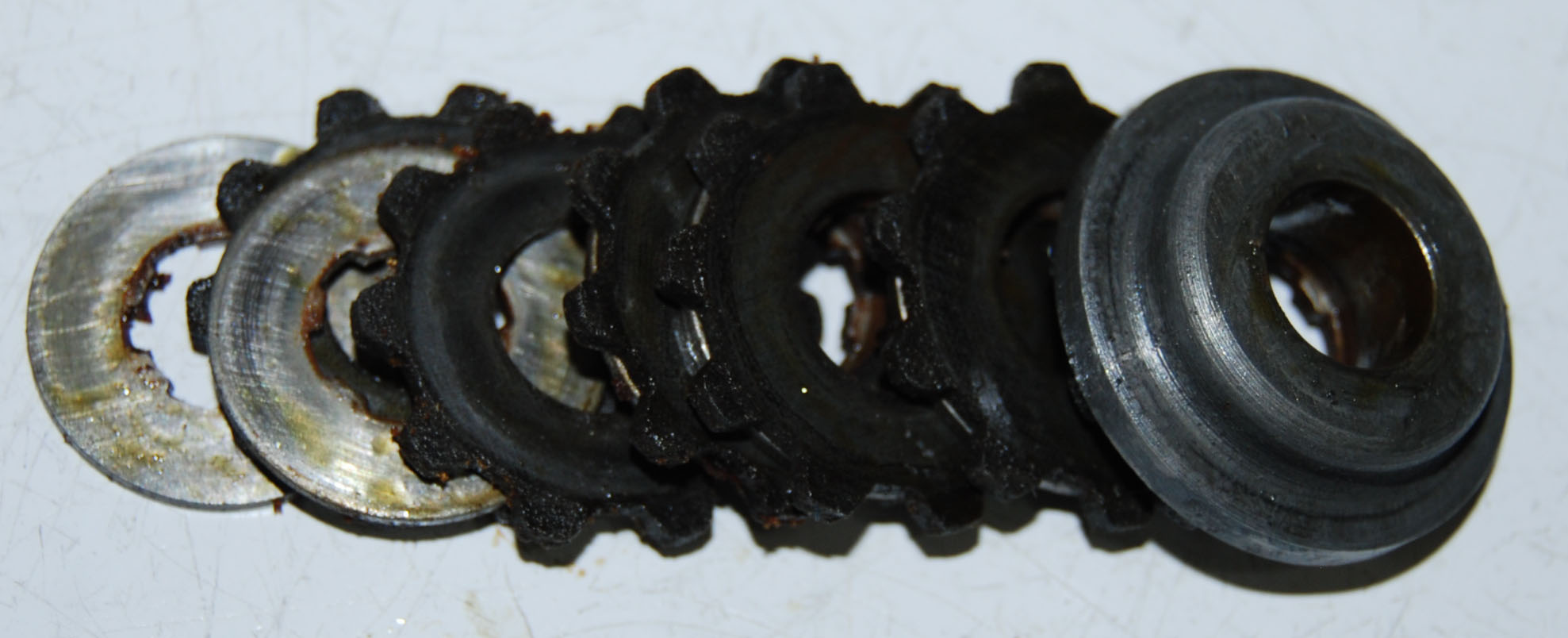

Prop Shaft Clutch Assy. | 1955-56* | n/a | $10.00 |
| n/a |  |

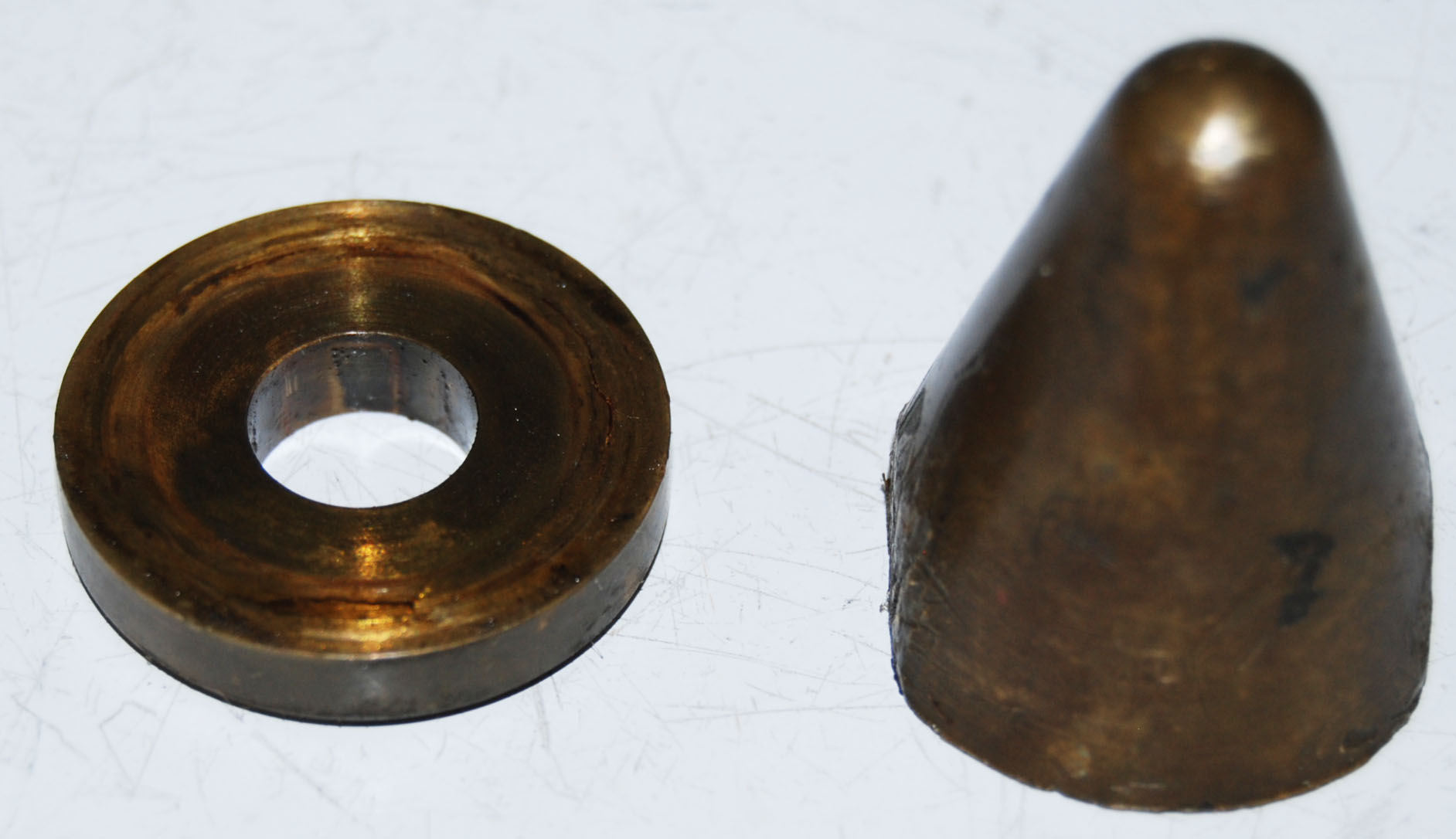

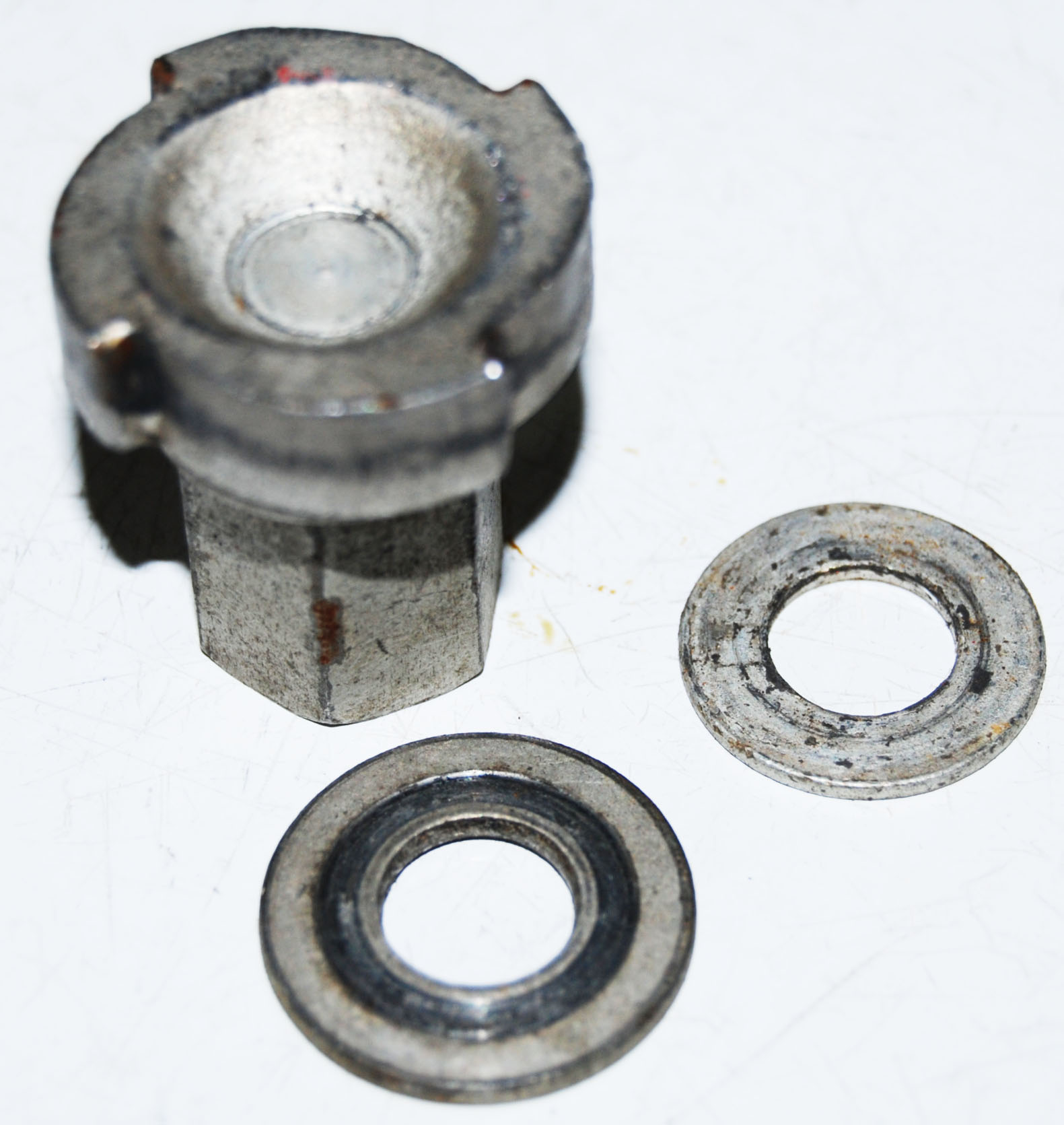

Propeller Nut with Washer | 1955-56* | n/a | $8.00 |
| 17-22643, 13-22854 |  |

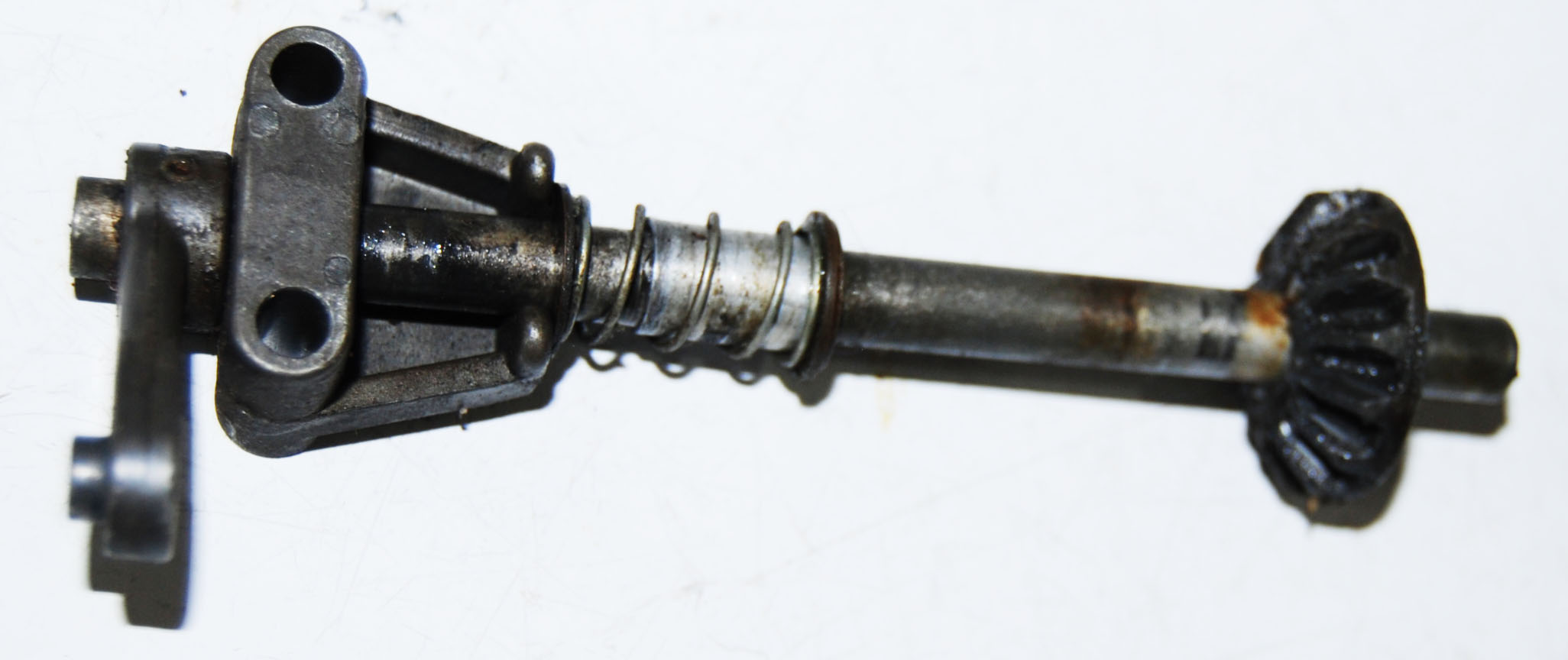

Advance Shaft Assembly | 1955-56* | n/a | $13.00 |
| 22905 |  |

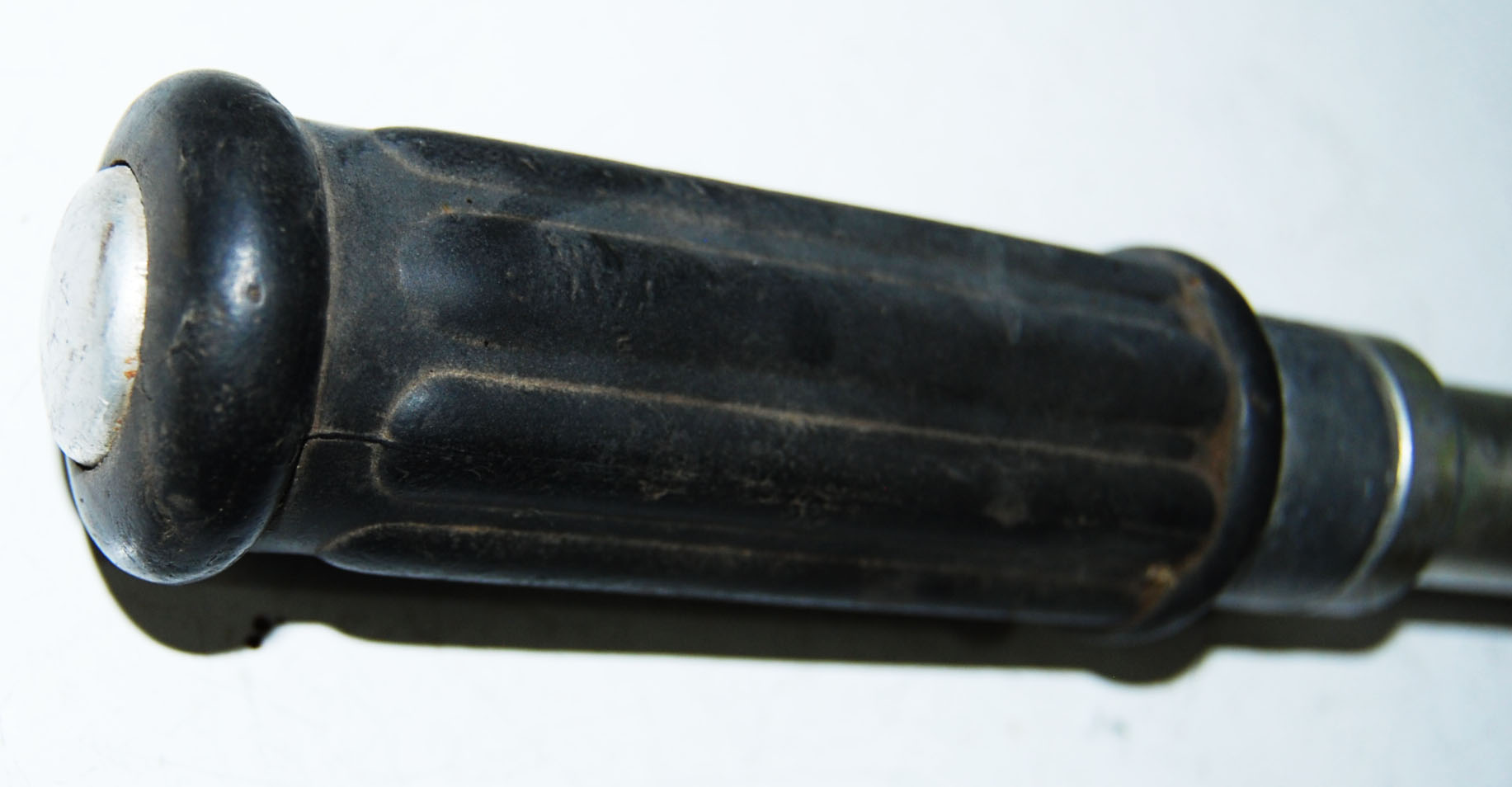

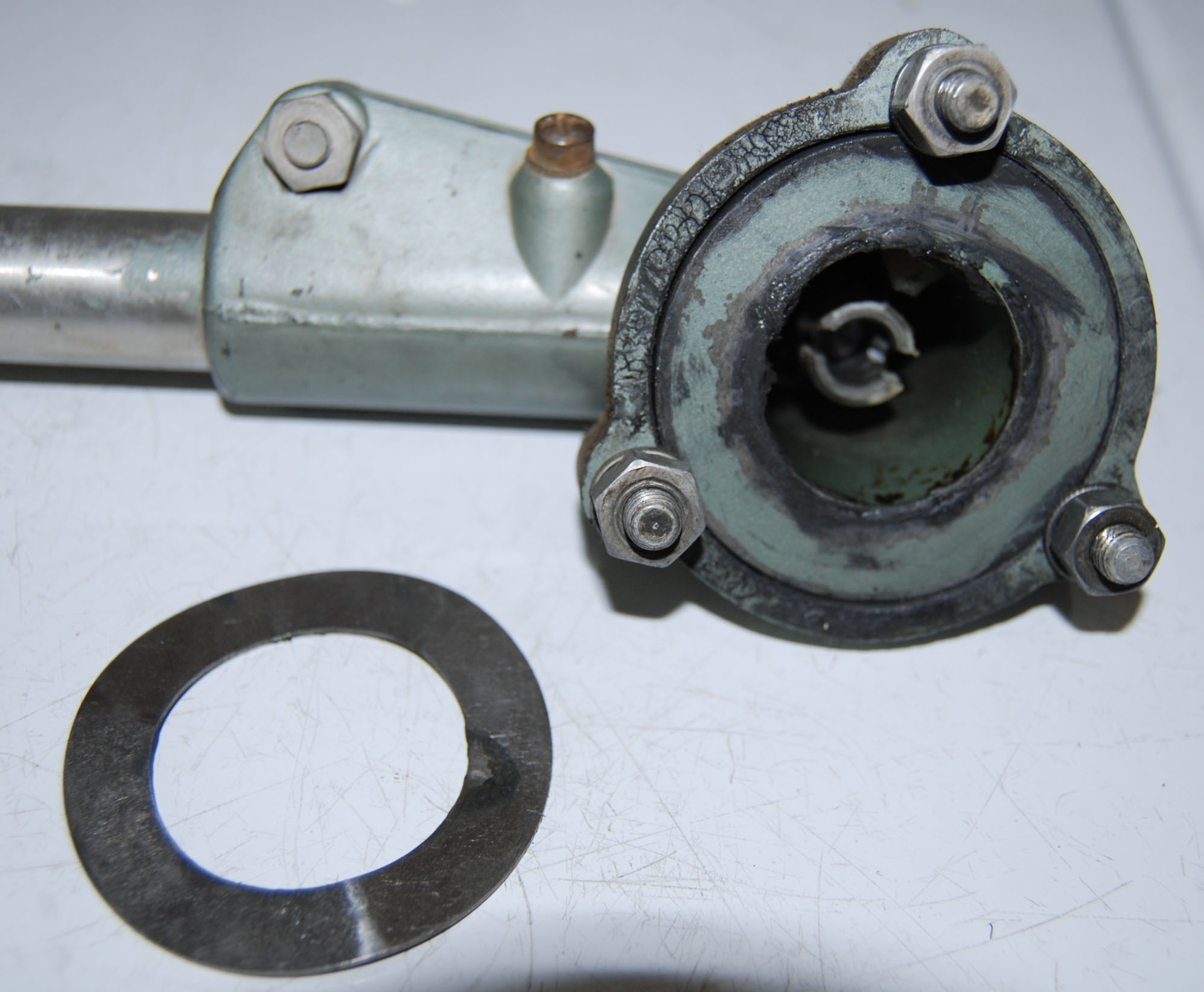

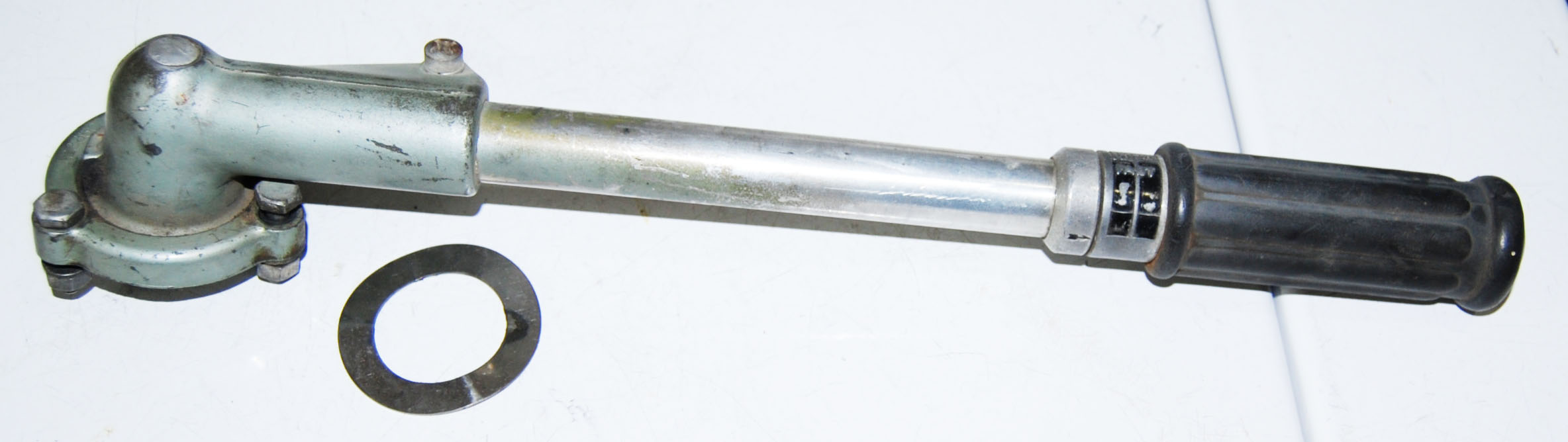

Tiller Handle Assembly |
1955-56* | $20.00 | |
| 1410-408A 2 |  |

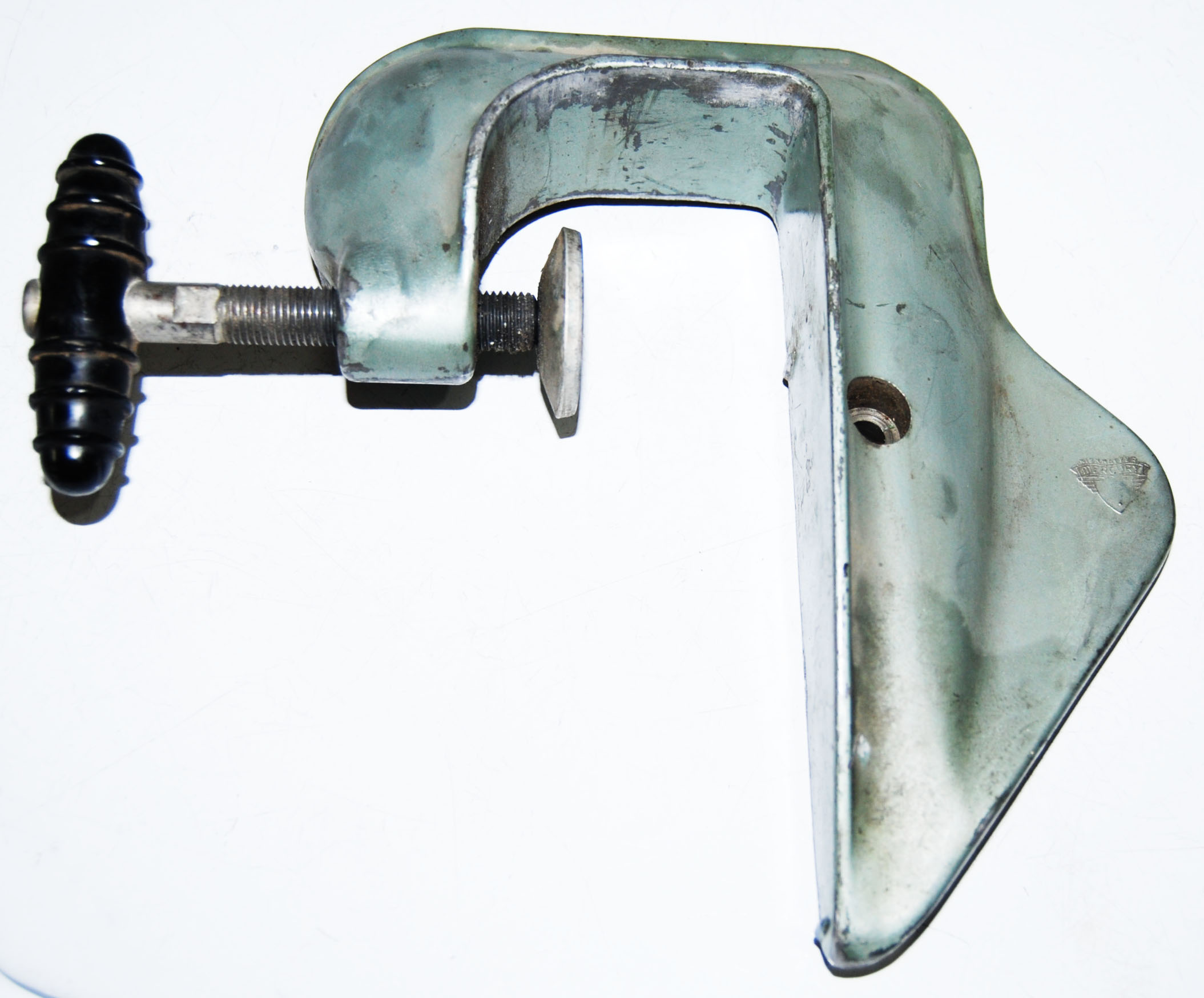

Stern Bracket - Port | 1955-56* | n/a | $15.00 |
| 1411-409A 4 |  |

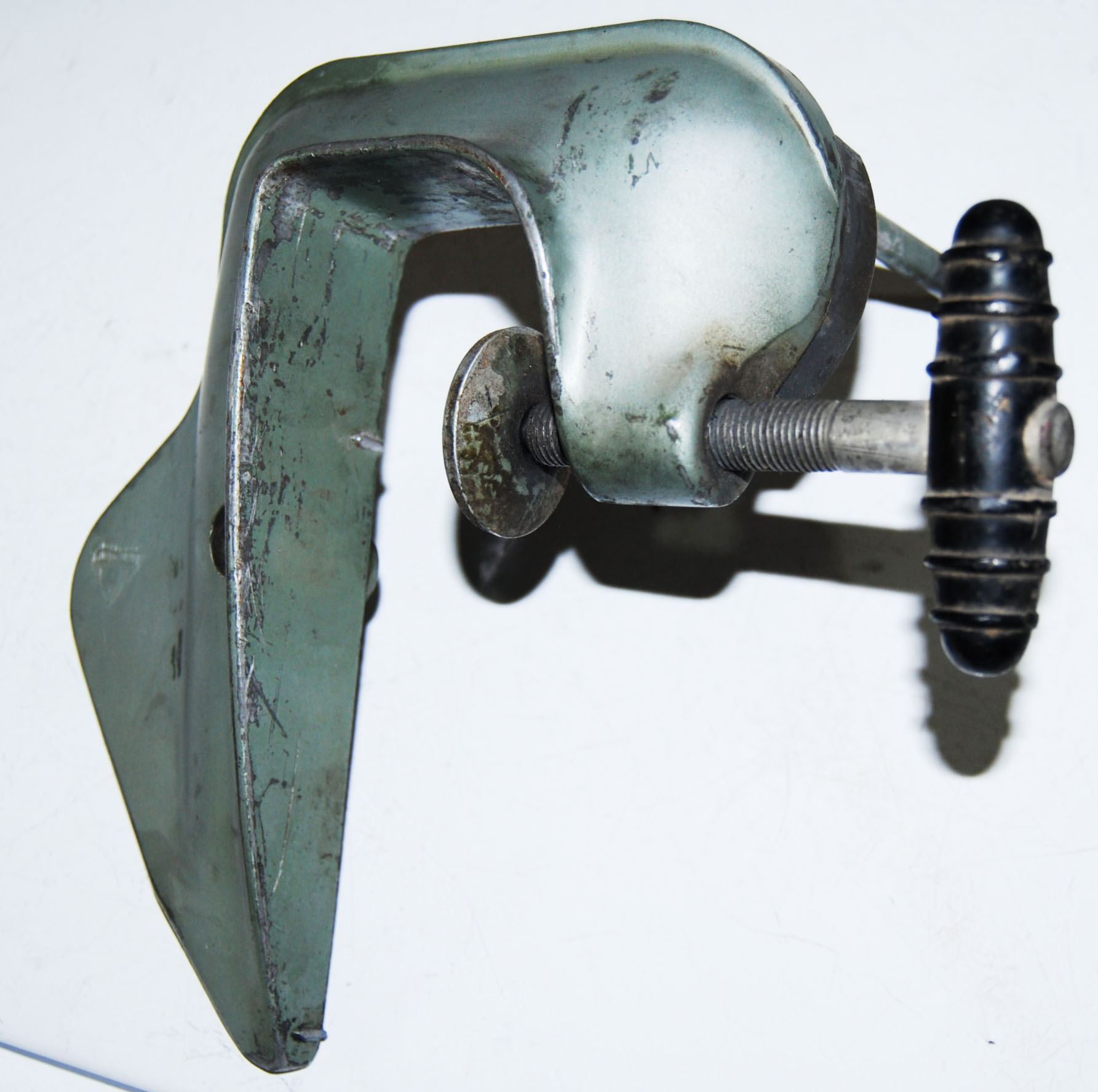

Stern Bracket - Starboard | 1955-56* | n/a | $15.00 |
| 22699 |  |
Stern Bracket Plate | 1955-56* | n/a | $4.50 |
| 14-22687 |  |
Double Stud | 1955-56* | n/a | $4.50 |
| 22686 |  |
Spreader | 1955-56* | n/a | $4.50 |
| n/a |  |

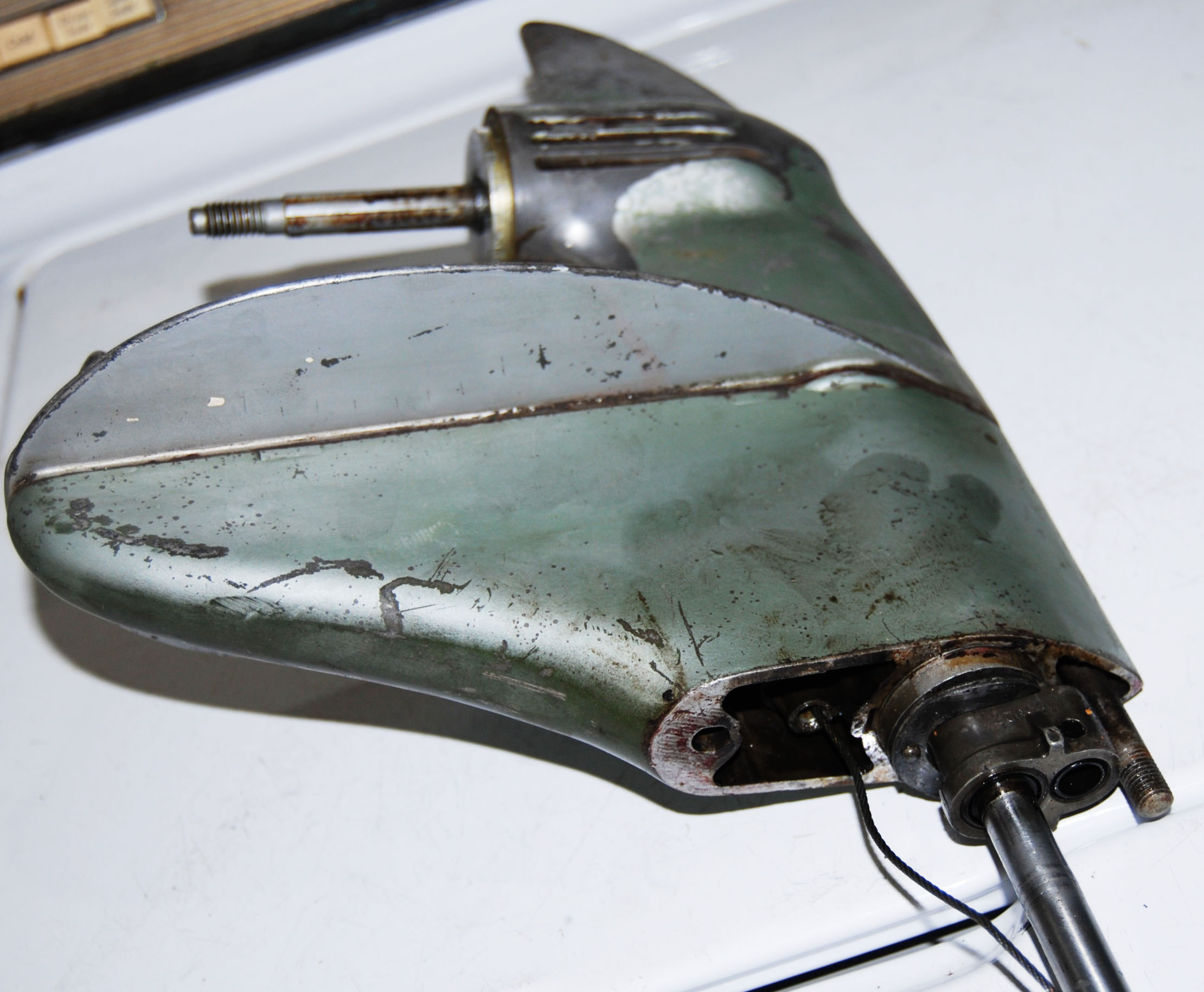

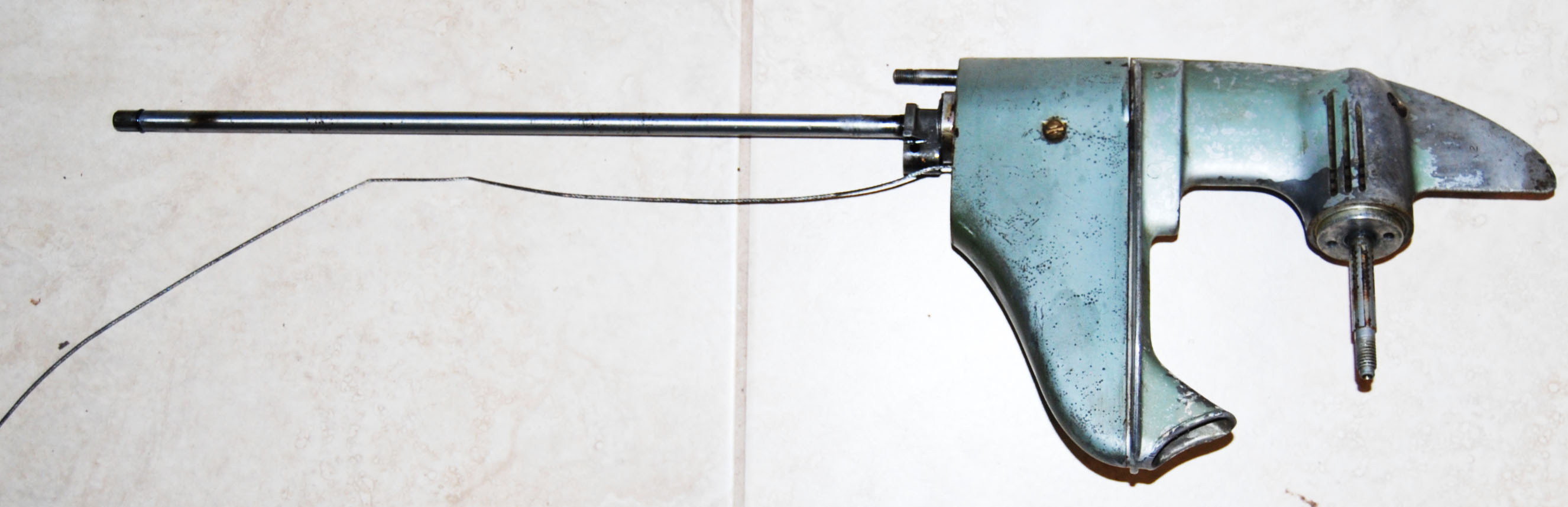

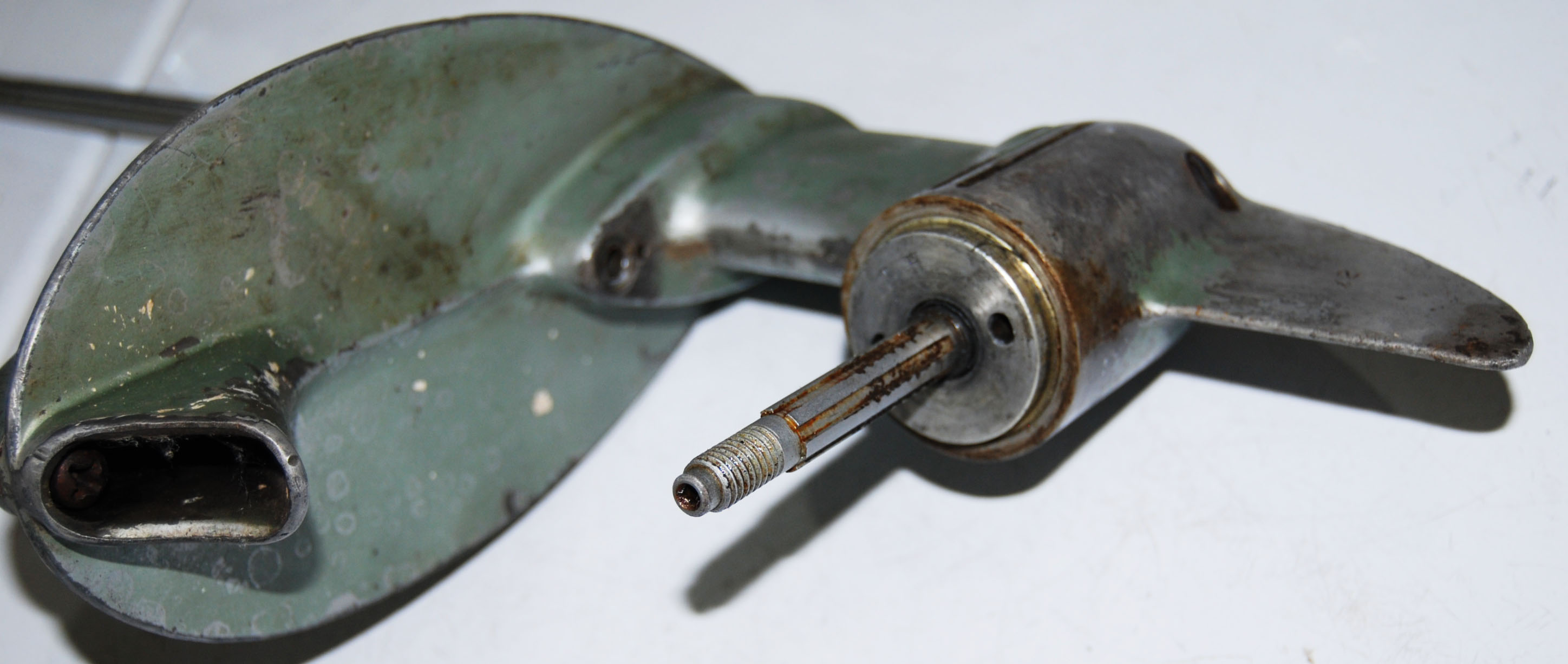

Lower Unit Assembly | 1955-56* | $50.00 | |
| 22726 |  |

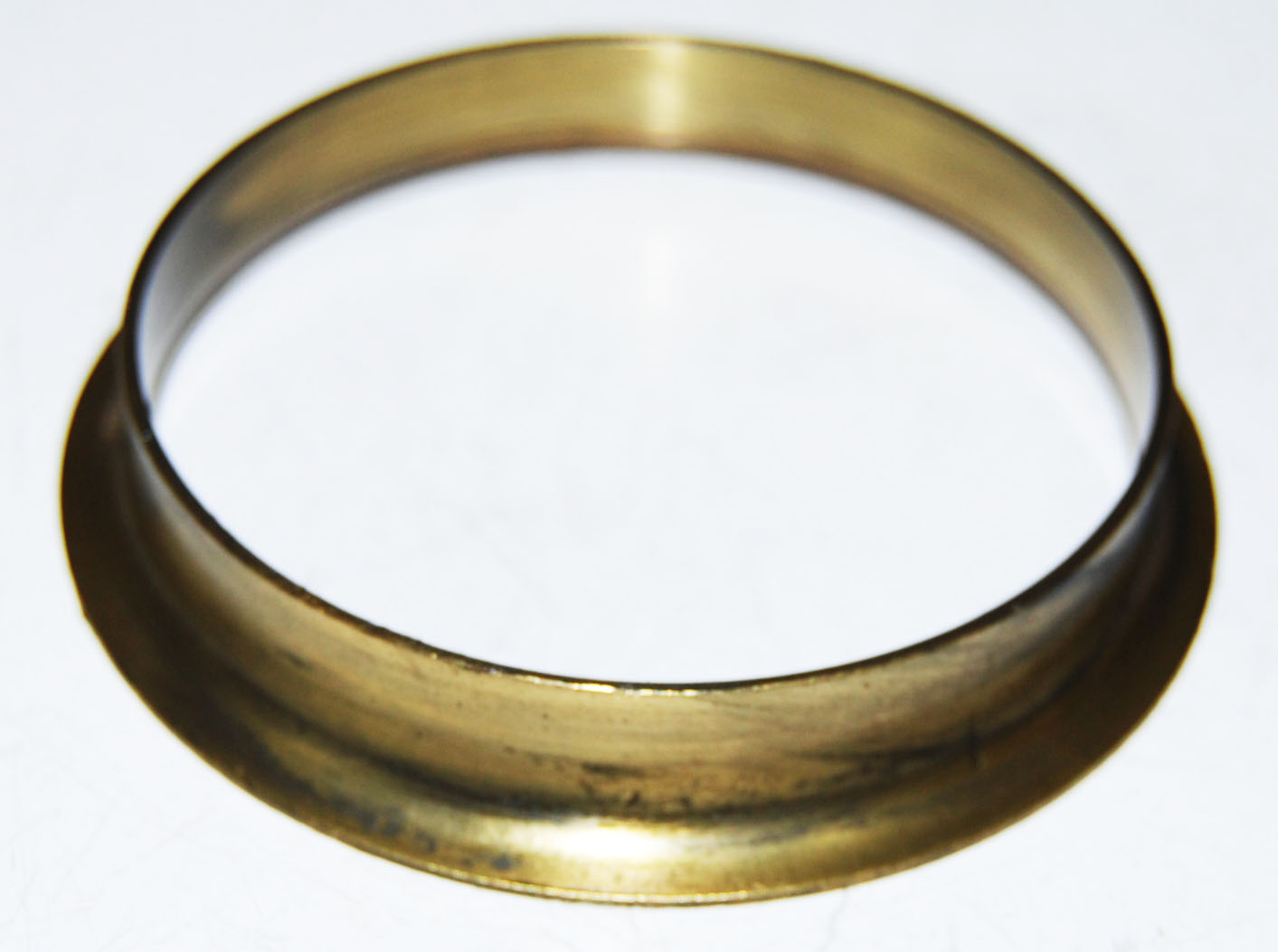

Co-Pilot Ring | 1955-56* | n/a | $8.00 |
| 20591 |  |

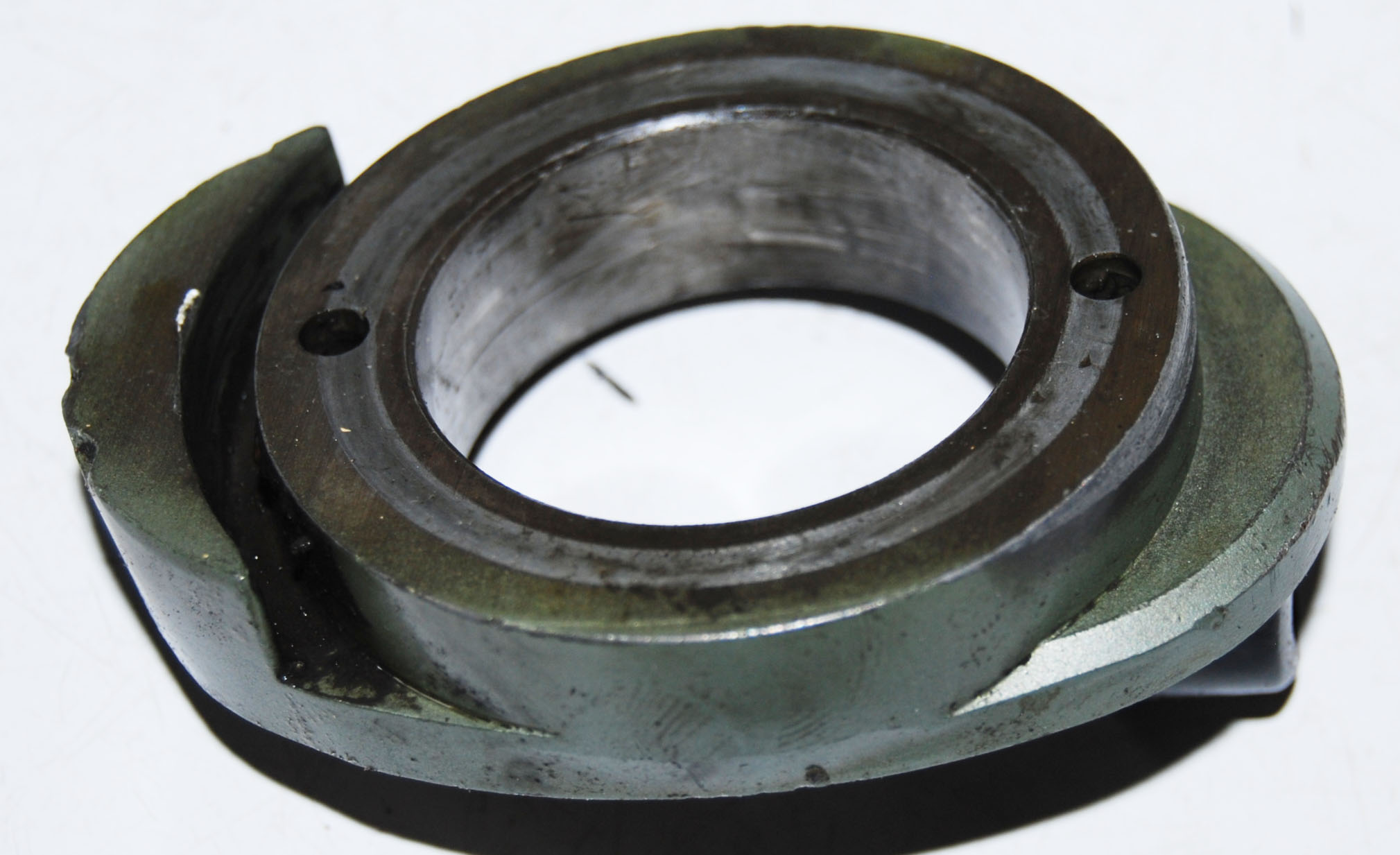

Collar | 1955-56* | n/a | $7.50 |
| 1409-427A 1 |  |

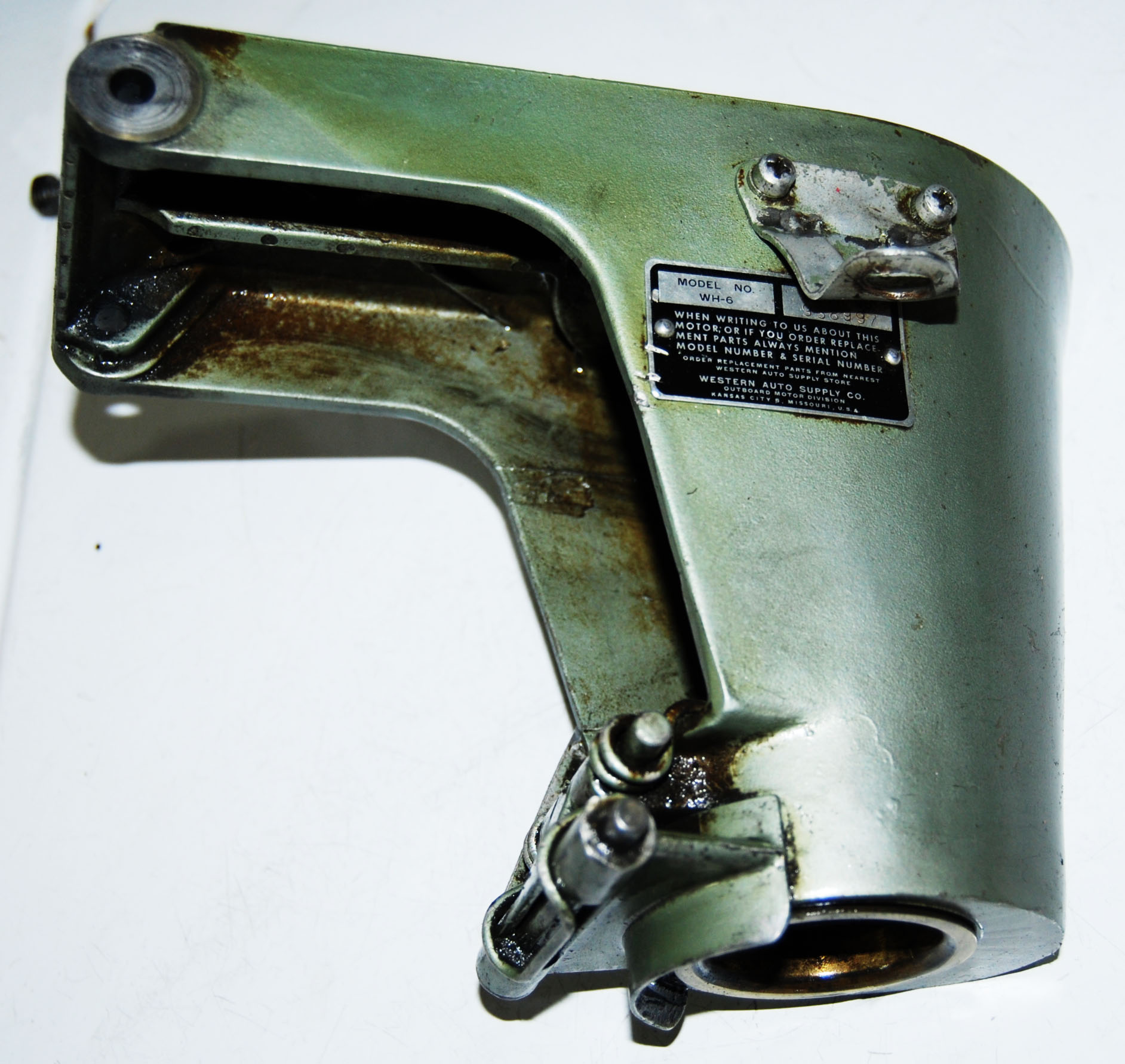

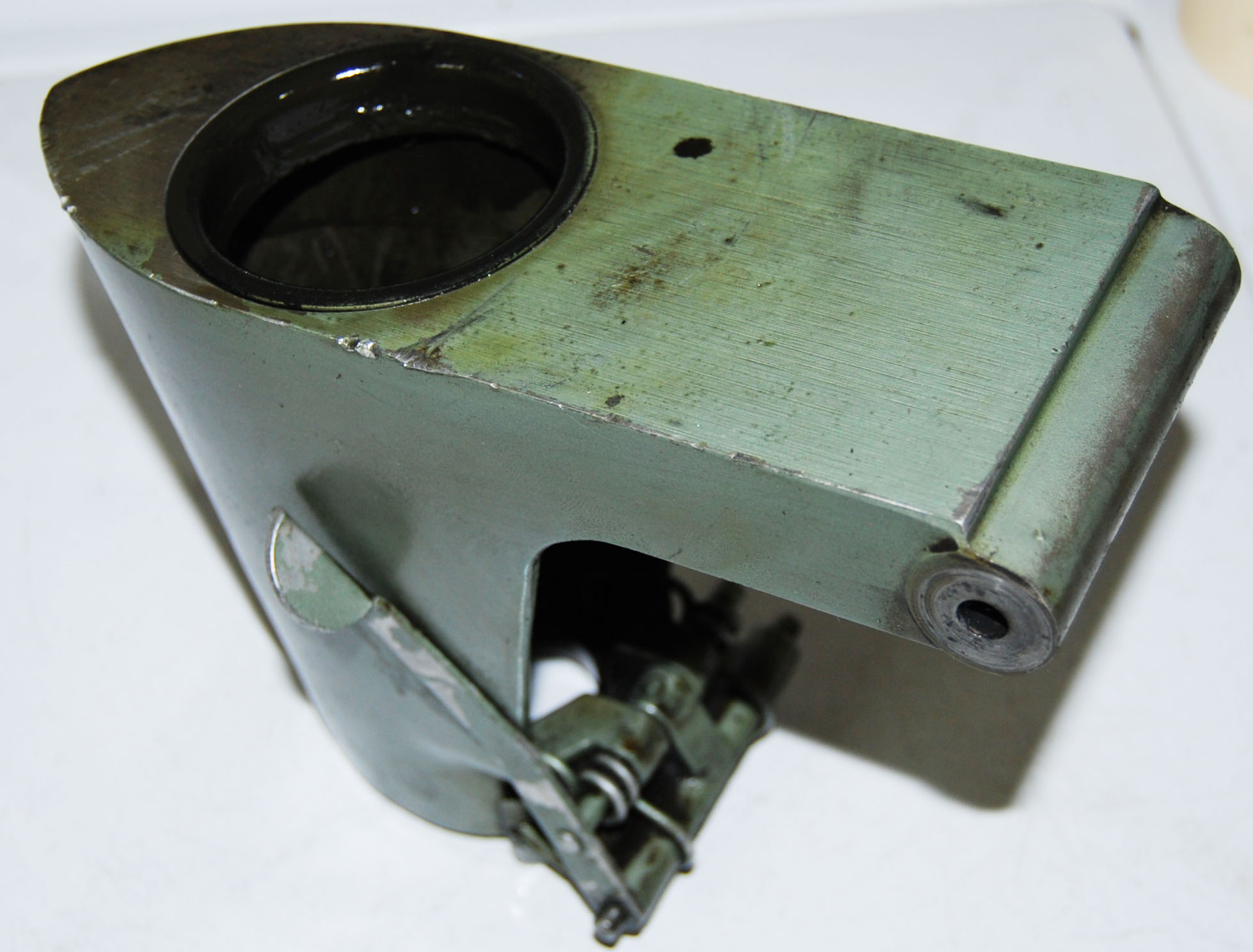

Swivel Bracket | 1955-56* | $28.50 | |
| 1508-949 |  |

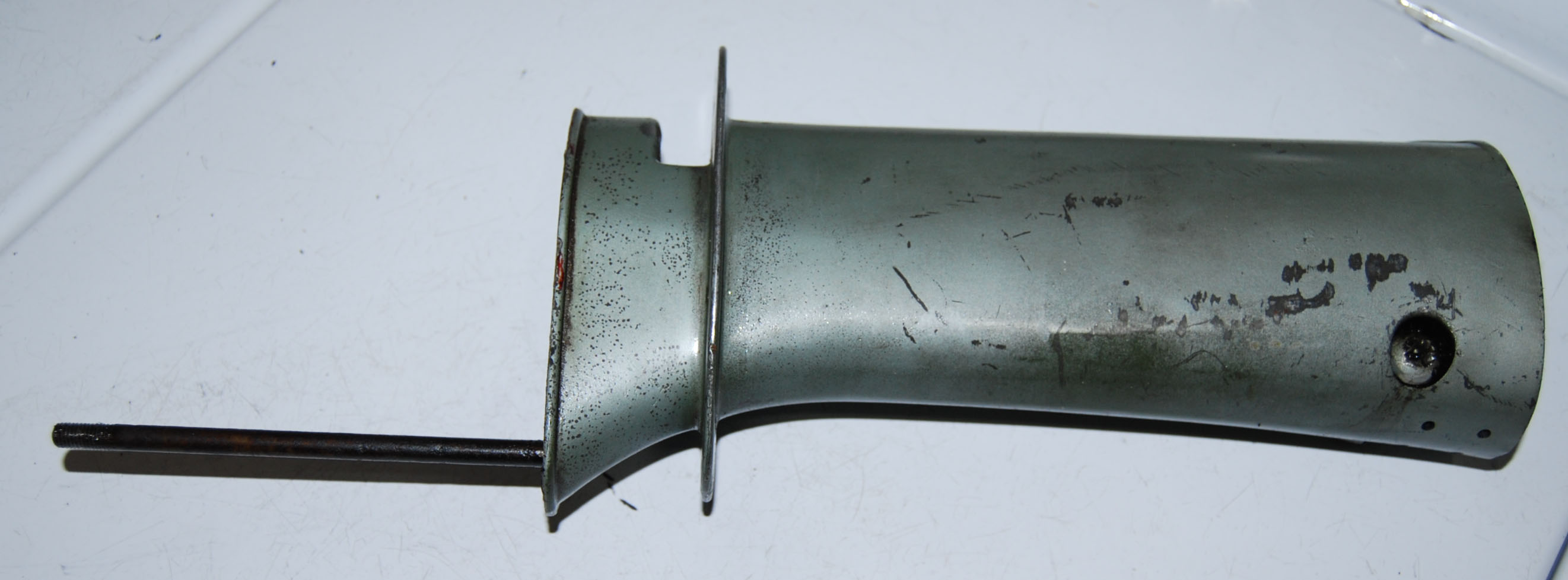

Upper Drive Shaft Housing | 1955-56* | n/a | $15.00 |
| 23-22706 |  |
Lower Co-Pilot Bushing | 1955-56* | n/a | $4.00 |
 |

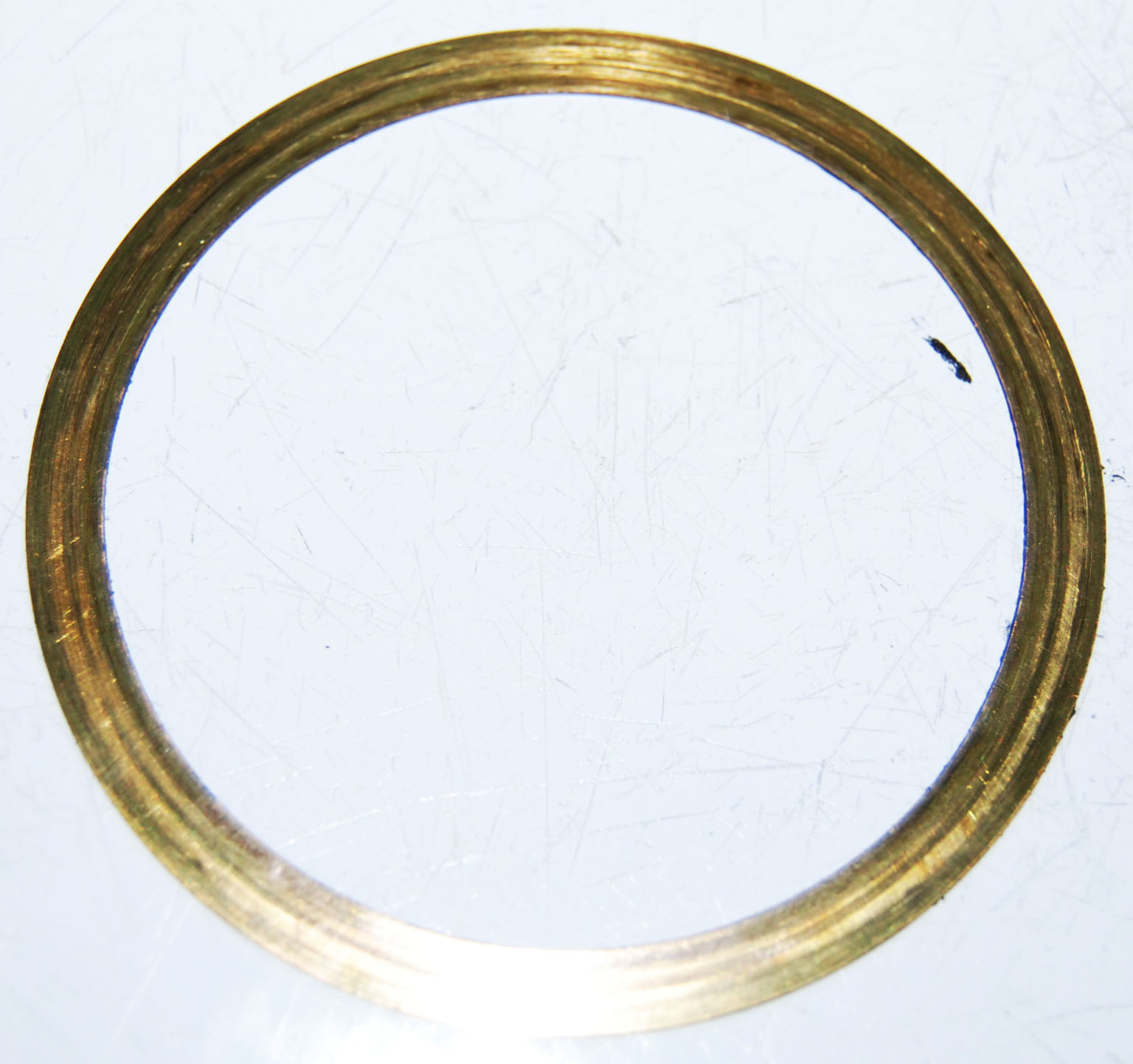

Brass Washer Shim | 1955-56* | n/a | $2.00 |
*may fit other years/models
**will be sent by e-mail after payment
Shipping can be combined on multiple orders
