PARTS FOR 1987, 28 HP JOHNSON OUTBOARD MOTORS
The parts from this motor (J28ESLCUC) are at our Pennsylvania location which is open from April 1st thru September 26th.
NOTE: Our shopping cart adds shipping charges for domestic orders only. We will ship internationally after a request for a shipping quote is made.
RETURN TO JOHNSON/EVINRUDE PARTS INDEX
Click on any image to enlarge.
| Part # | Pic 1 | Description | Year | Extra Pics | PRICE |
|---|---|---|---|---|---|
| 323294, 390295, 325263, 389472, 324457, 325258 |  |

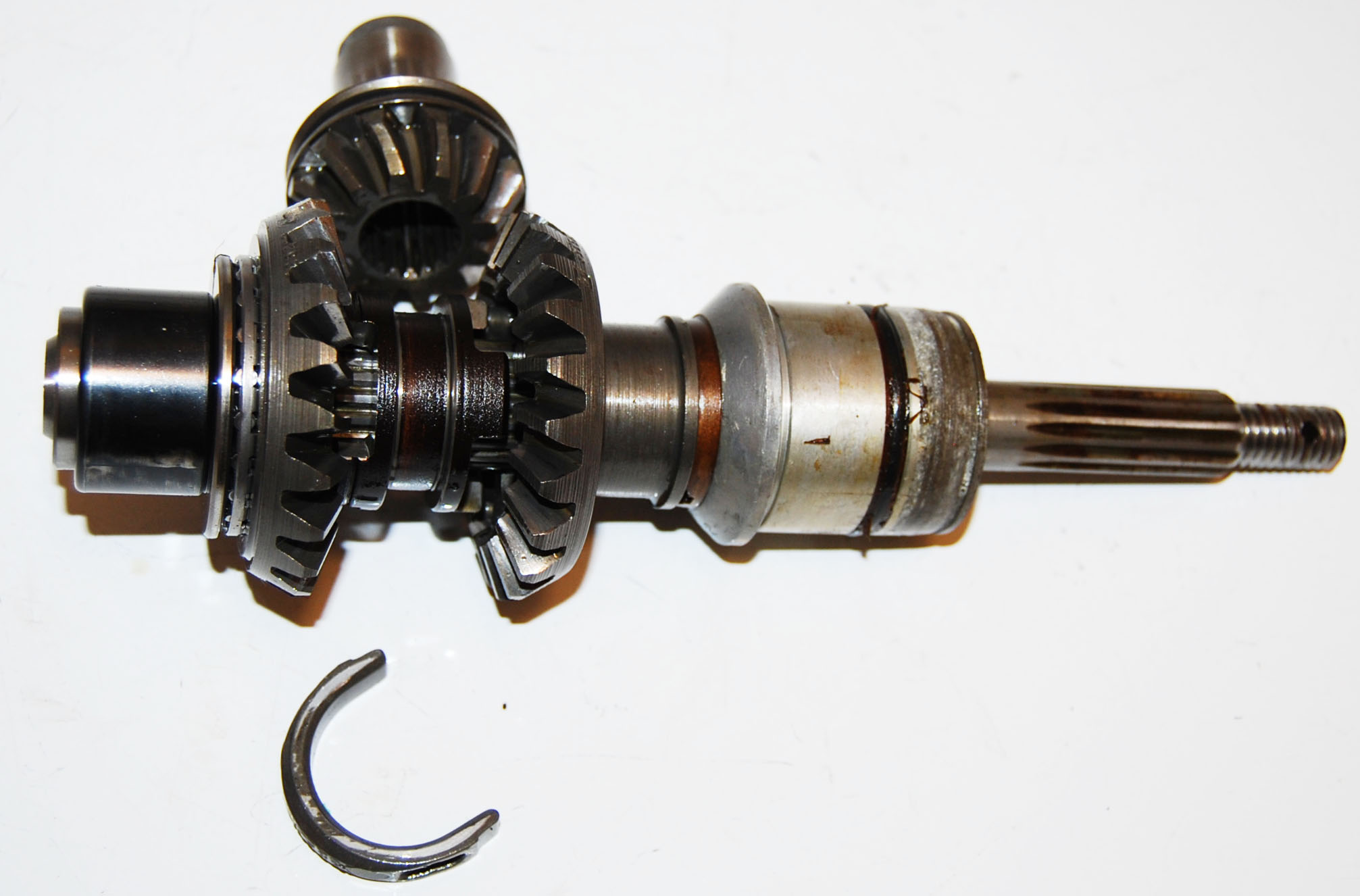

Lower Unit Gear Set | 1987* | PIC#2 | $65.00 |
| p/o 398139 |  |
Lower Unit Skeg with Screws | 1987* | n/a | $15.00 |
| 328336 |  |
Lower Unit 5" Extension | 1987* | n/a | $10.00 |
| 303257, 375755 |  |

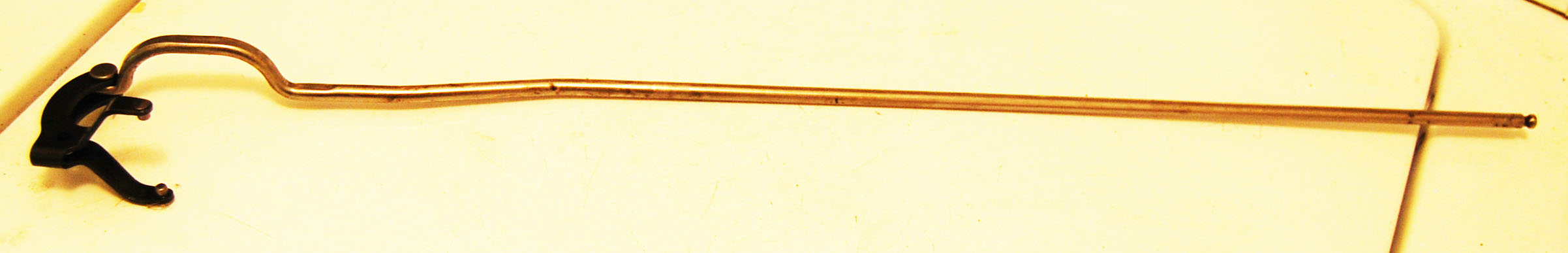

Lower Shift Rod Assy. (long) | 1987* | n/a | $14.00 |
| 303794 |  |

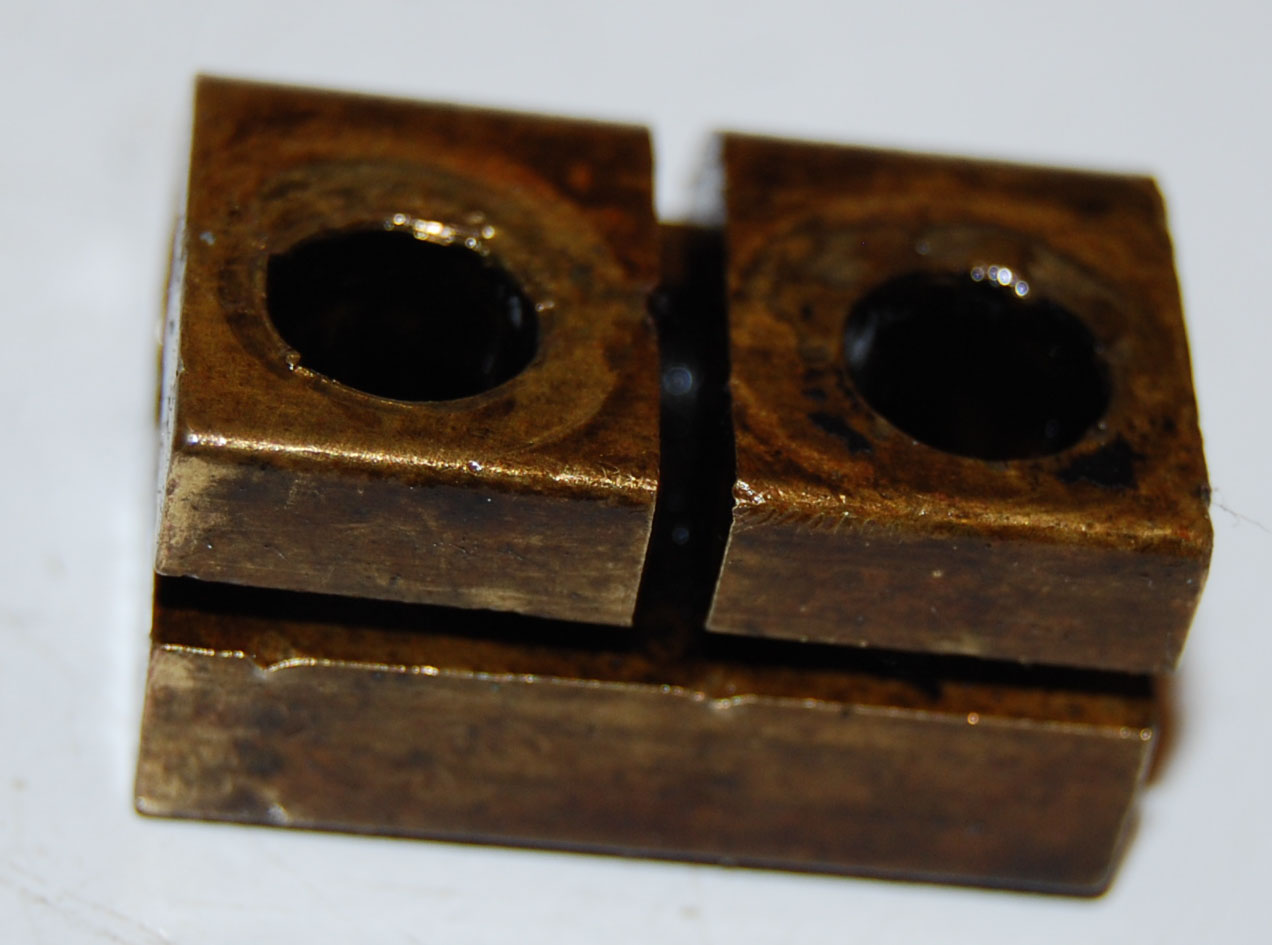

Shift Rod Connector with stainless screws | 1987* | n/a | $11.00 |
| 341649 |  |
Driveshaft (long) | 1987* | n/a | $15.00 |
| 395340 |  |

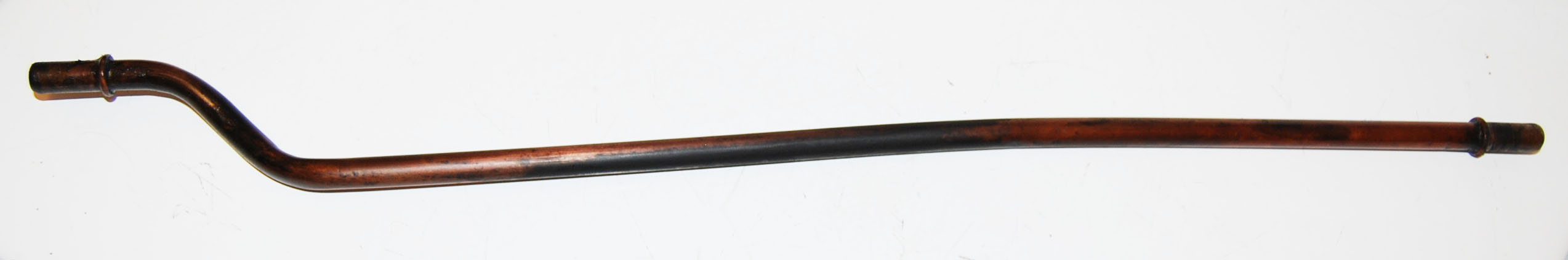

Water Tube (long) | 1987* | n/a | $8.00 |
| 330560, 328773, 329391, 324960, 330619 |  |

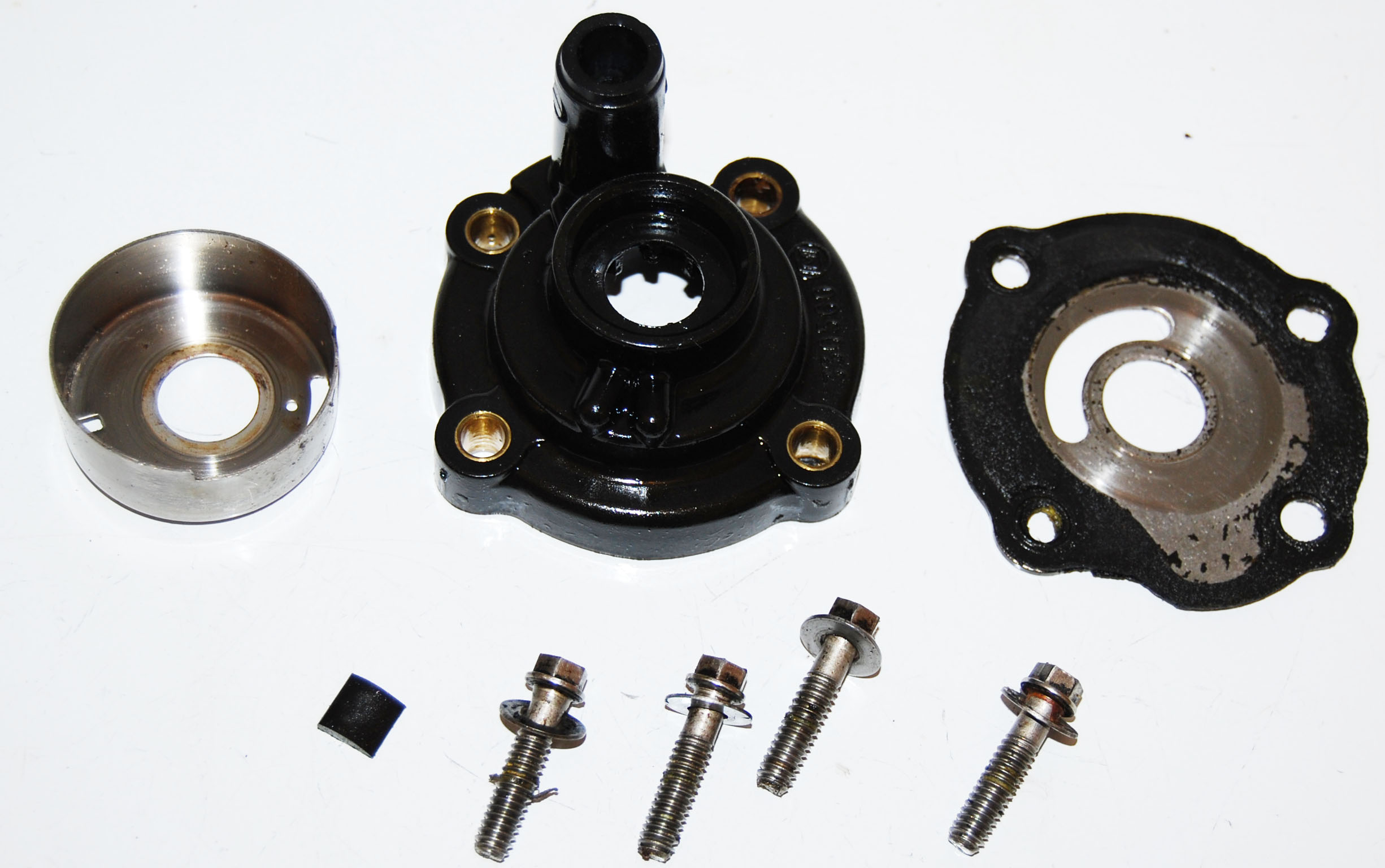

Water Pump Housing, Plate, Screws, key | 1987* | n/a | $20.00 |
| 330648 |  |
Exhaust Manifold | 1987* | n/a | $20.00 |

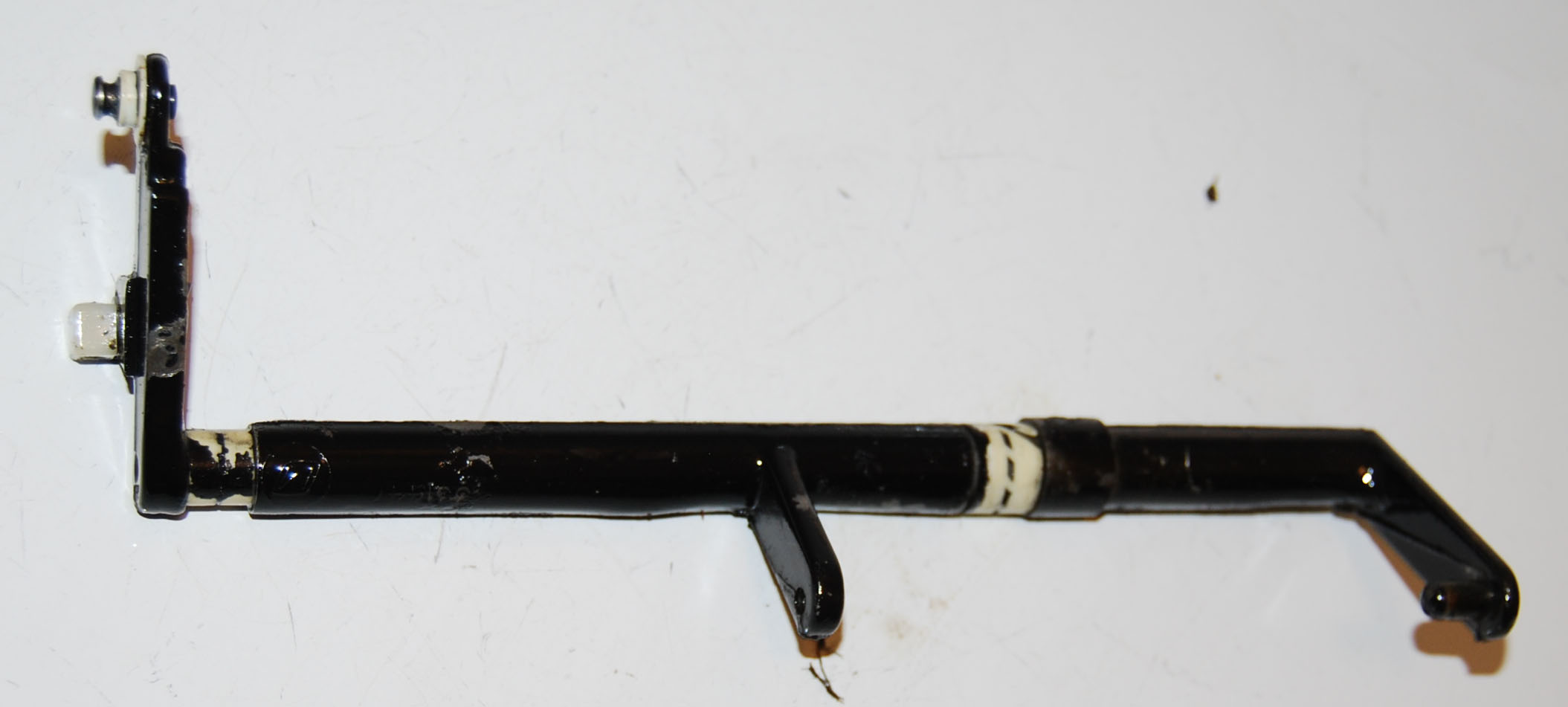

| 398026 |  |
Spark Advance Lever | 1987* | n/a | $11.00 |
| 325340 |  |

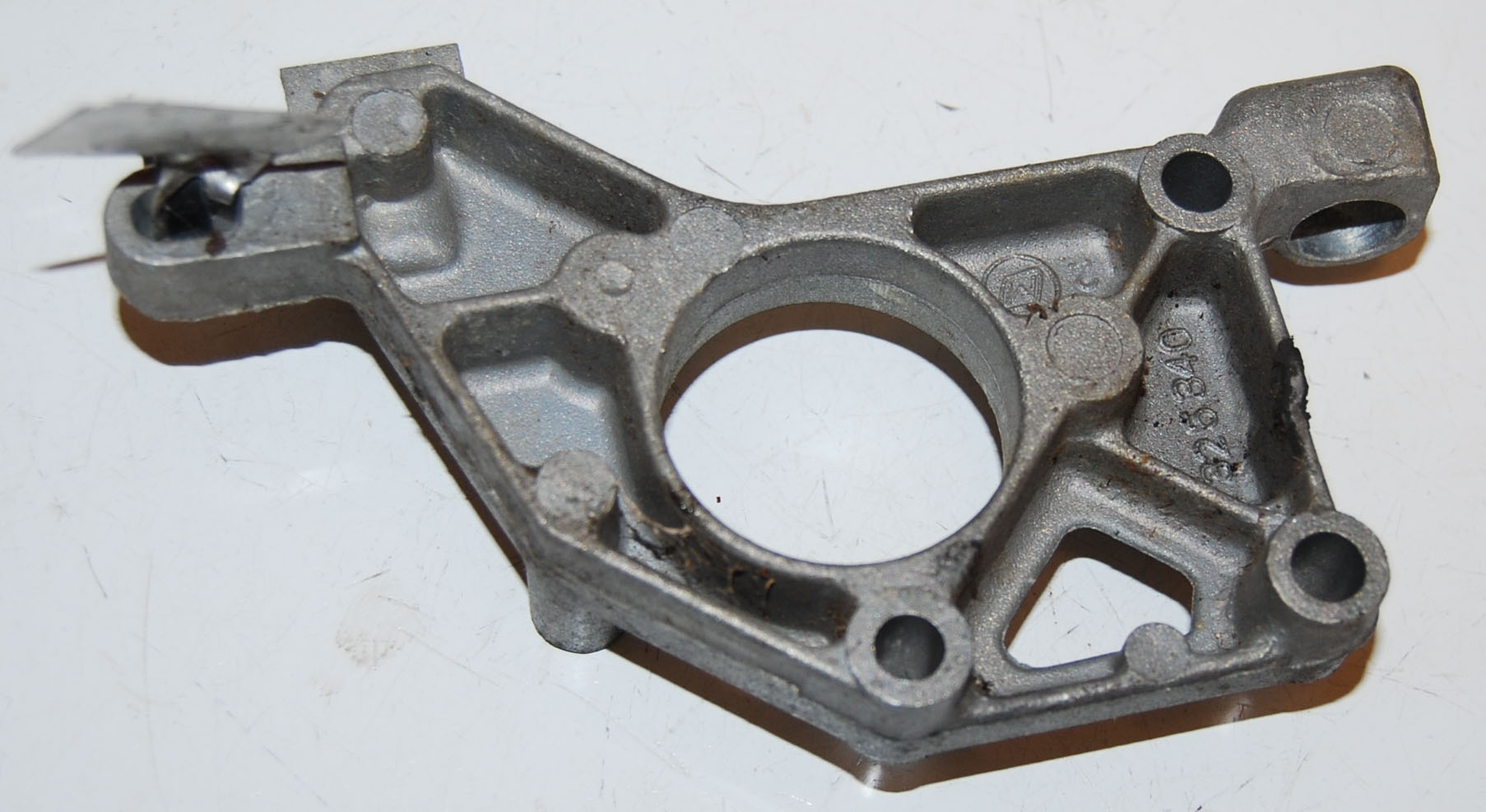

Starboard Bracket | 1987* | n/a | $8.00 |
| 332678 |  |
Fuel Pump Diaphragm & Check Valves | 1987* | n/a | $6.00 |
| 330092 |  |

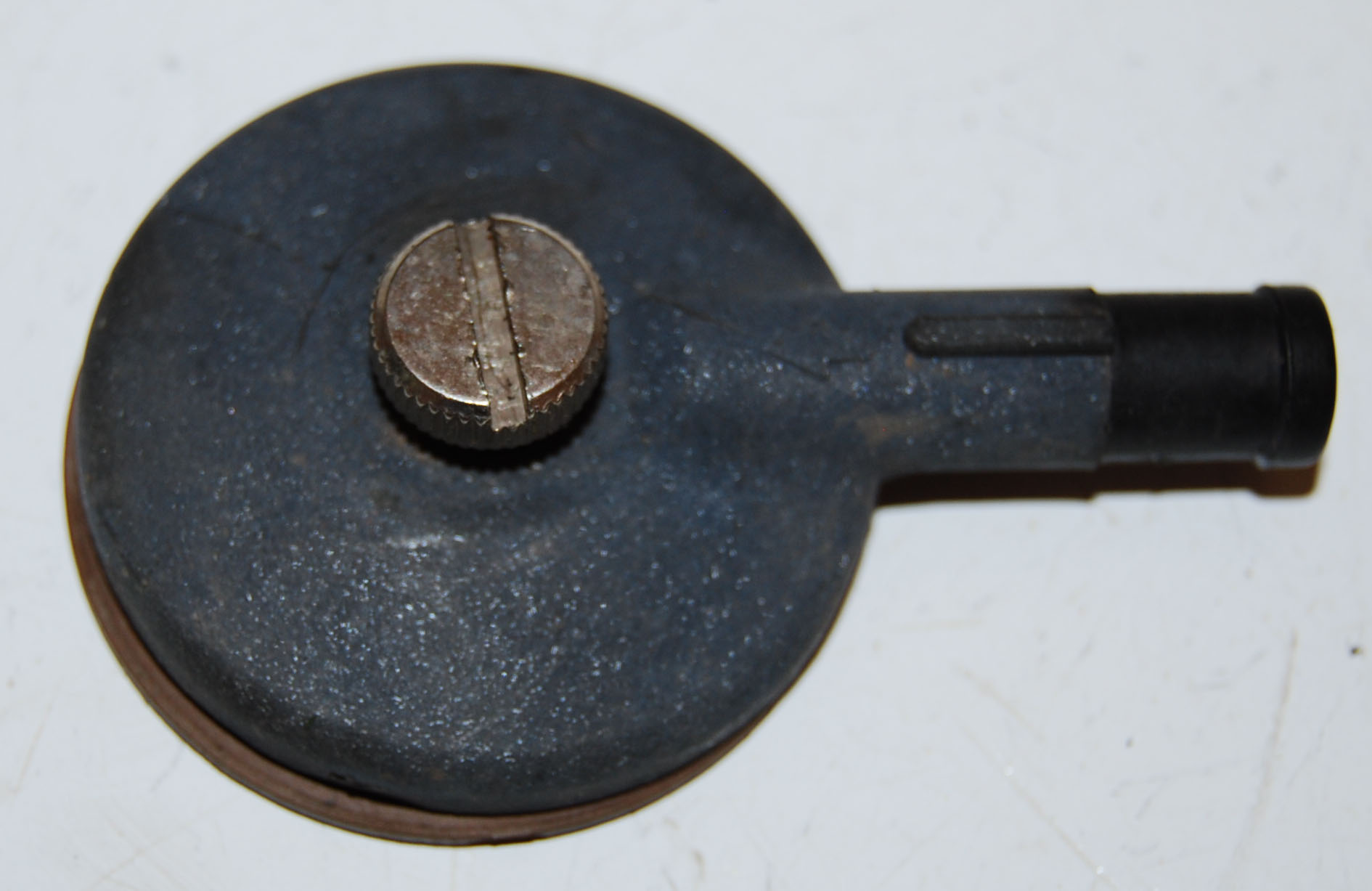

Fuel Pump Cap & Filter | 1987* | n/a | $6.00 |
| 398780 |  |

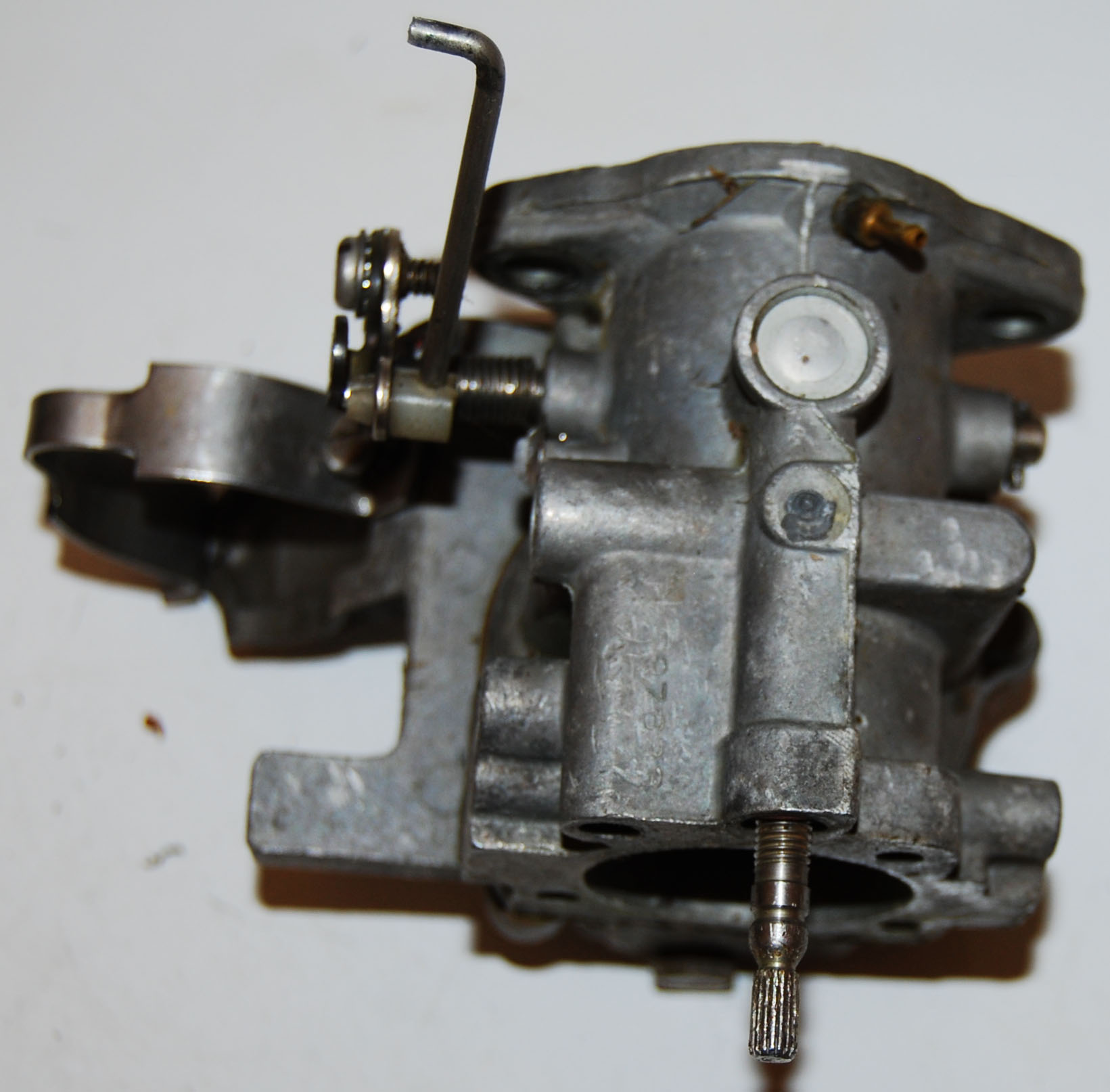

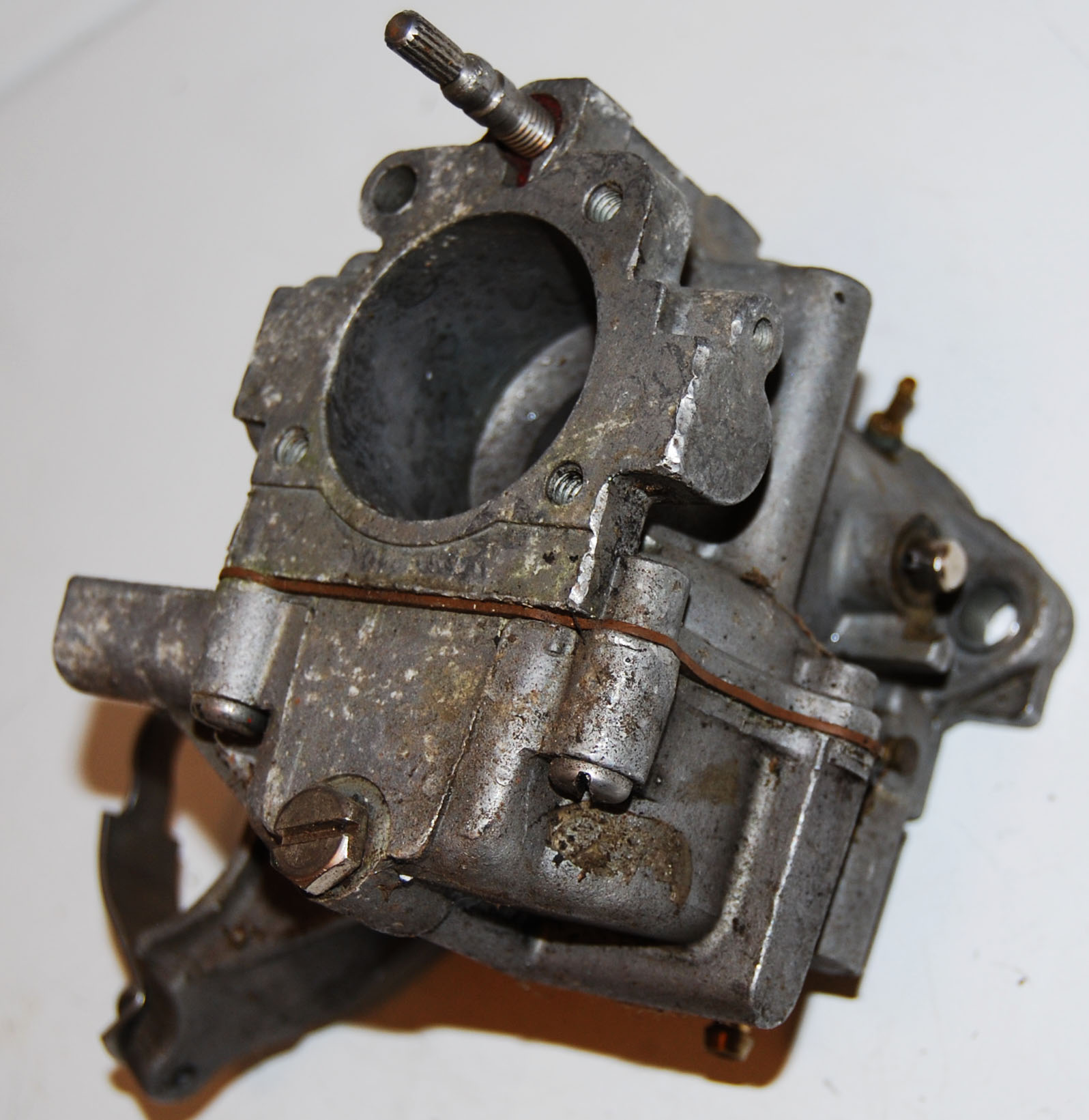

Carburetor Assembly | 1987* | $45.00 | |

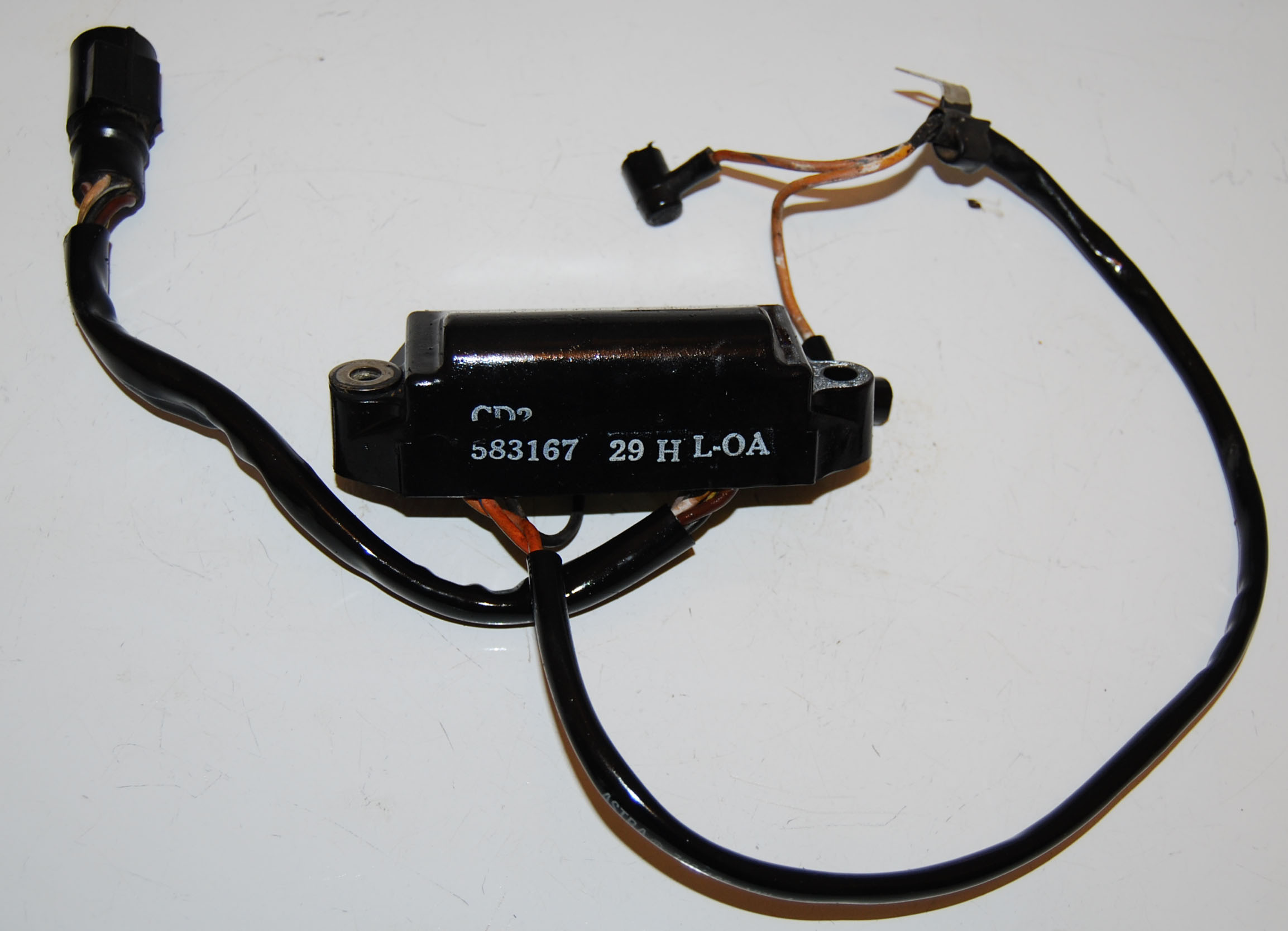

| 583167 |  |
Power Pack | 1987* | n/a | $32.50 |
| 582508 |  |

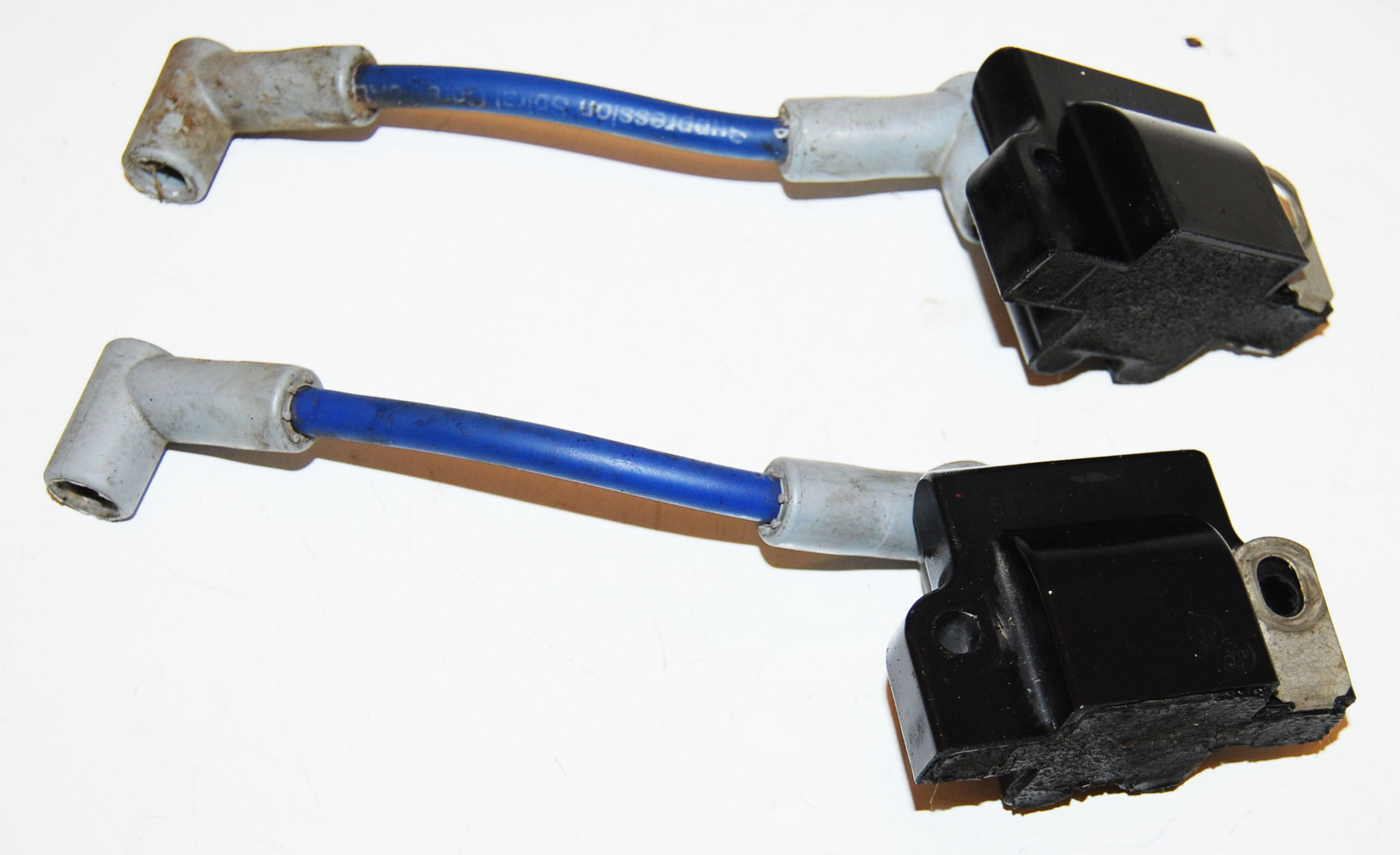

Coil with Ignition Wire (two available) |
1987* | n/a | $14.00 ea. |
| 322102, 322435 |  |
Stator Support Bearing | 1987* | n/a | $6.00 |
| 396031 |  |

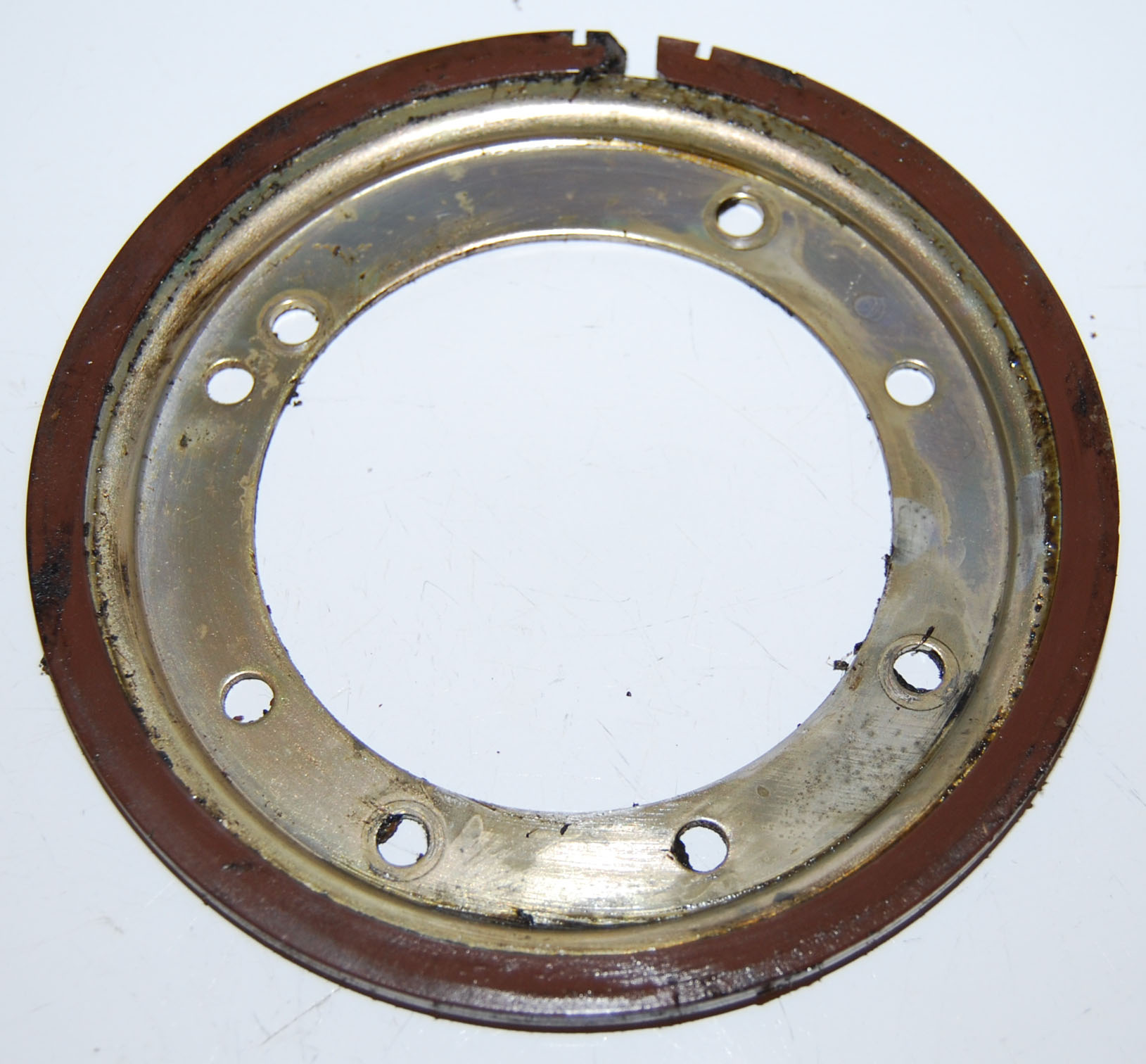

Stator Support Bearing Retainer | 1987* | n/a | $9.00 |
| 581778 |  |

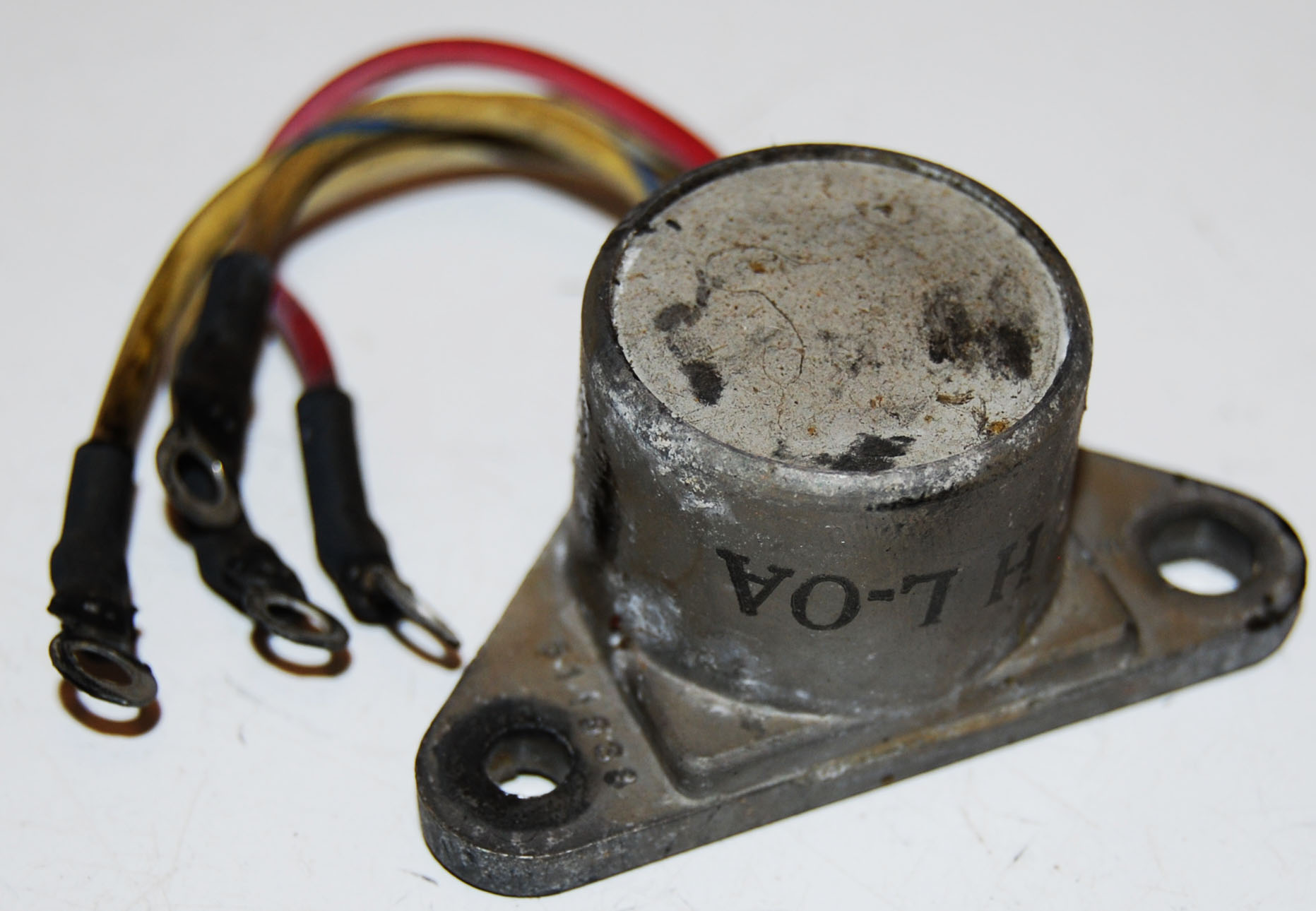

Rectifier | 1987* | n/a | $15.00 |
| 583001 |  |

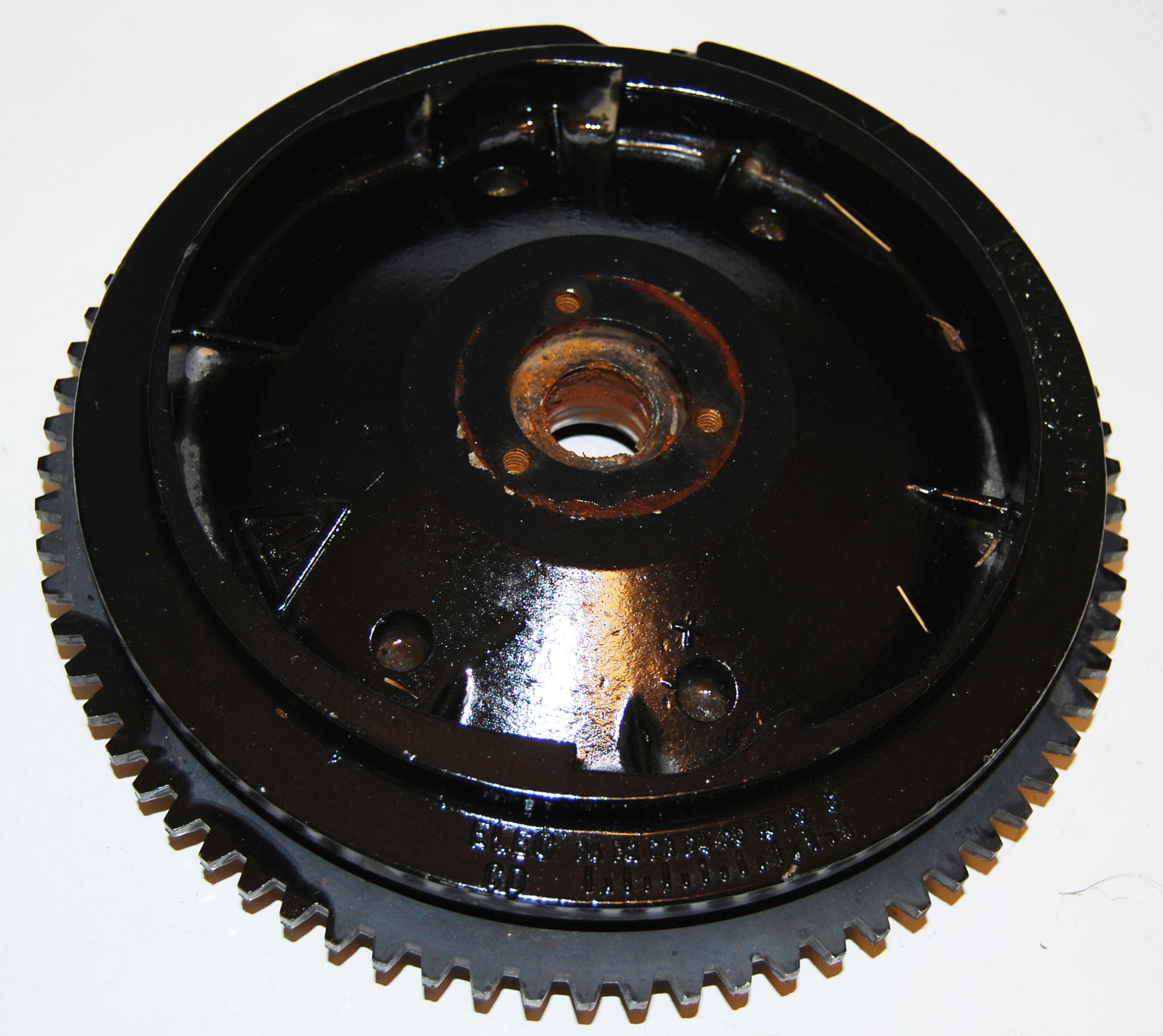

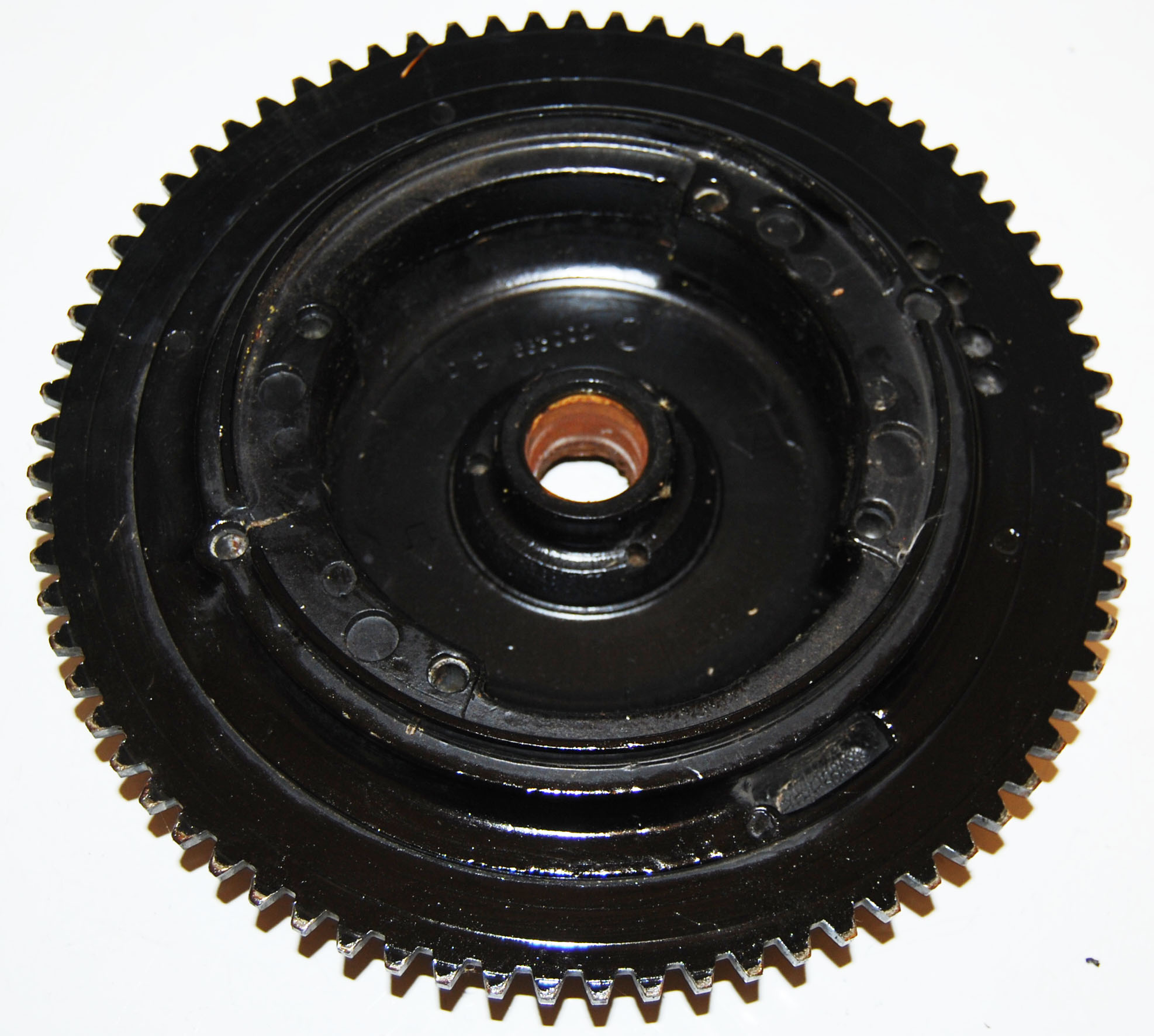

Flywheel | 1987* | PIC#2 | $26.00 |
| 321341 |  |

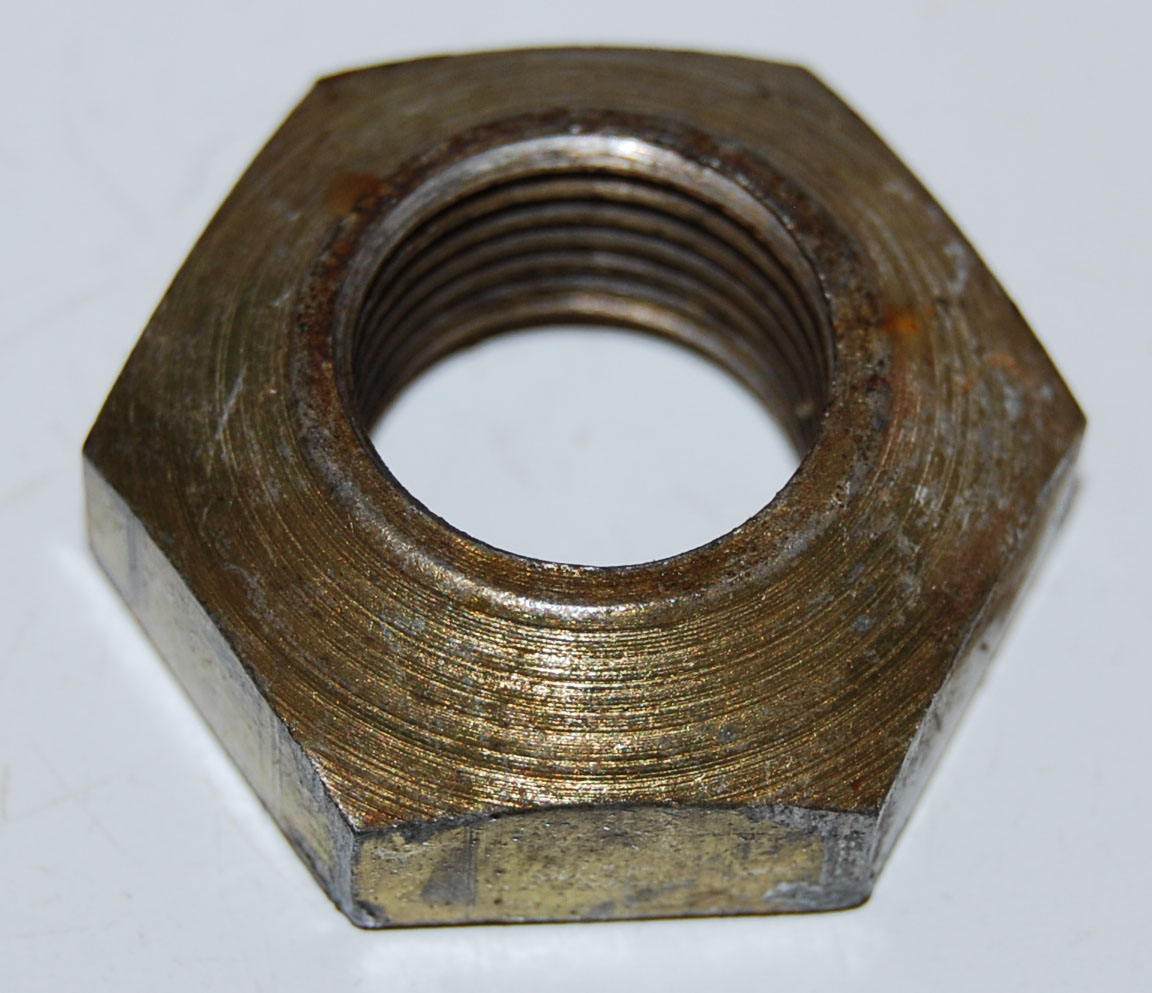

Flywheel Nut | 1987* | n/a | $3.50 |
| 331470, 325327 |  |
Shift Actuating Cam with Boot | 1987* | n/a | $9.00 |
| 582524 |  |

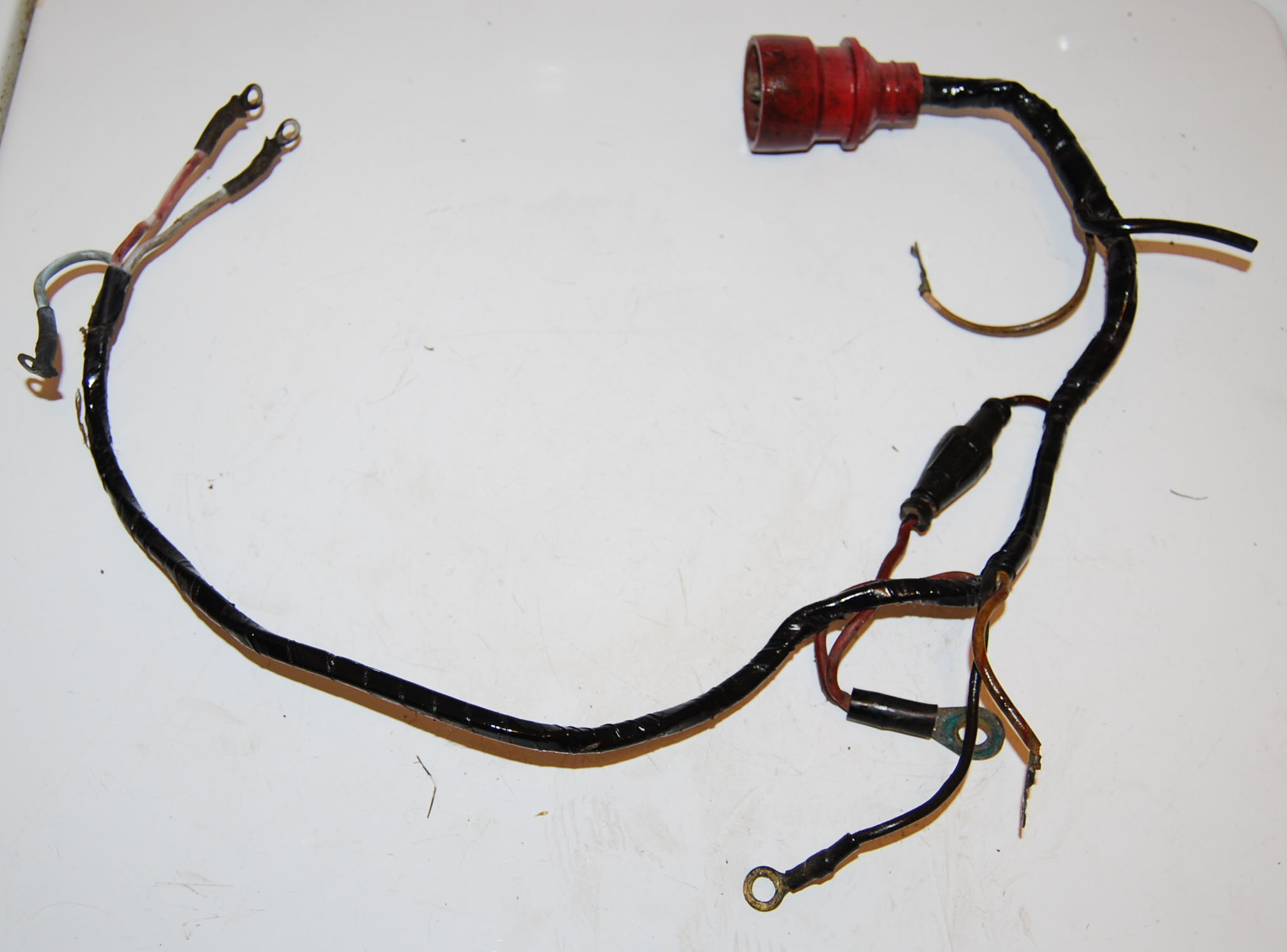

Wiring Harness | 1987* | n/a | $20.00 |
| 511949 |  |

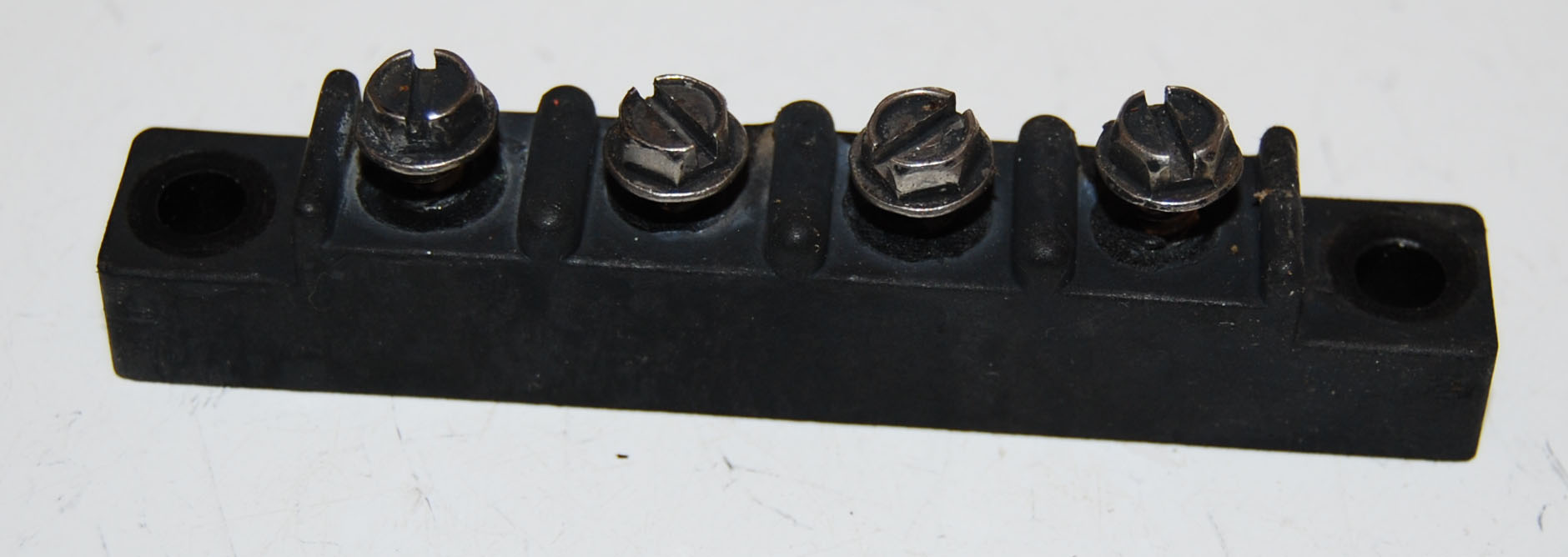

Terminal Block | 1987* | n/a | $3.00 |
| 313537, 325569, 327228 |  |

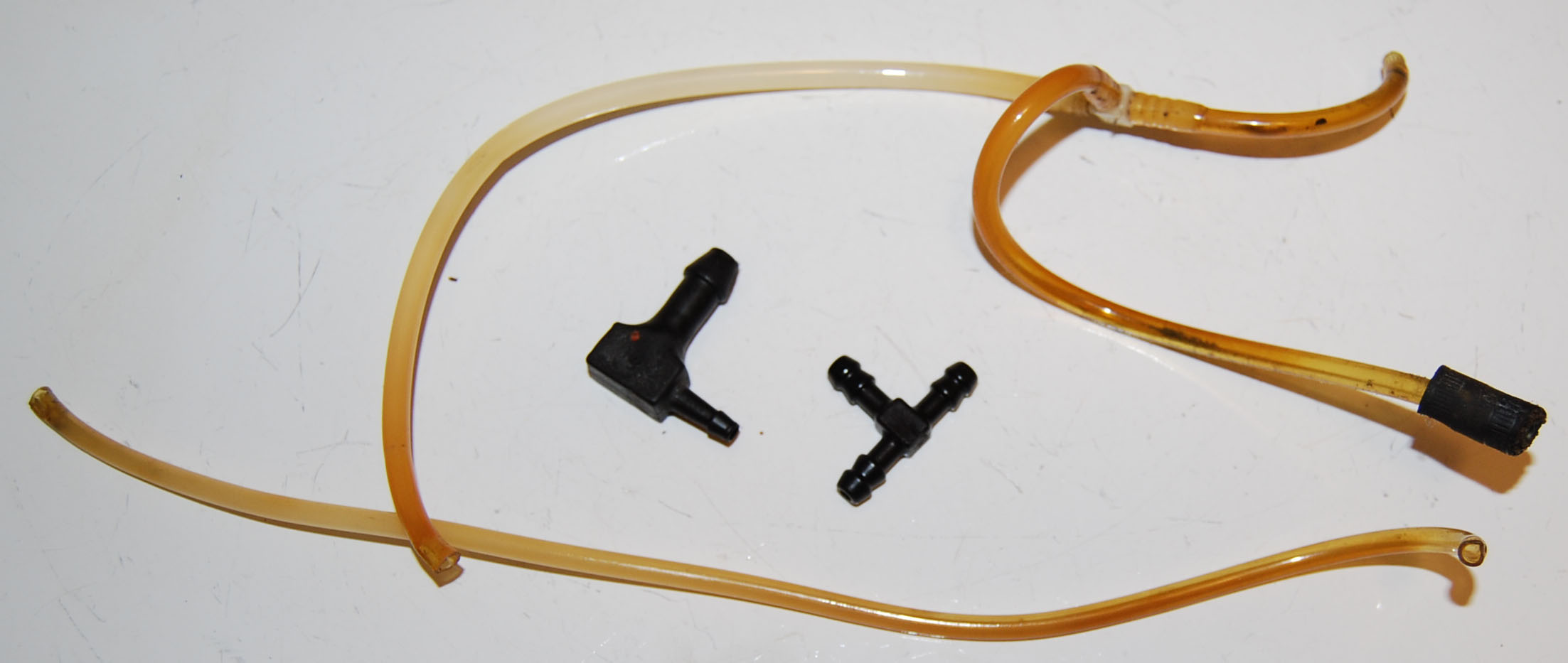

Primer Fuel Tubes & Fittings | 1987* | n/a | $8.00 |
| 331446 |  |

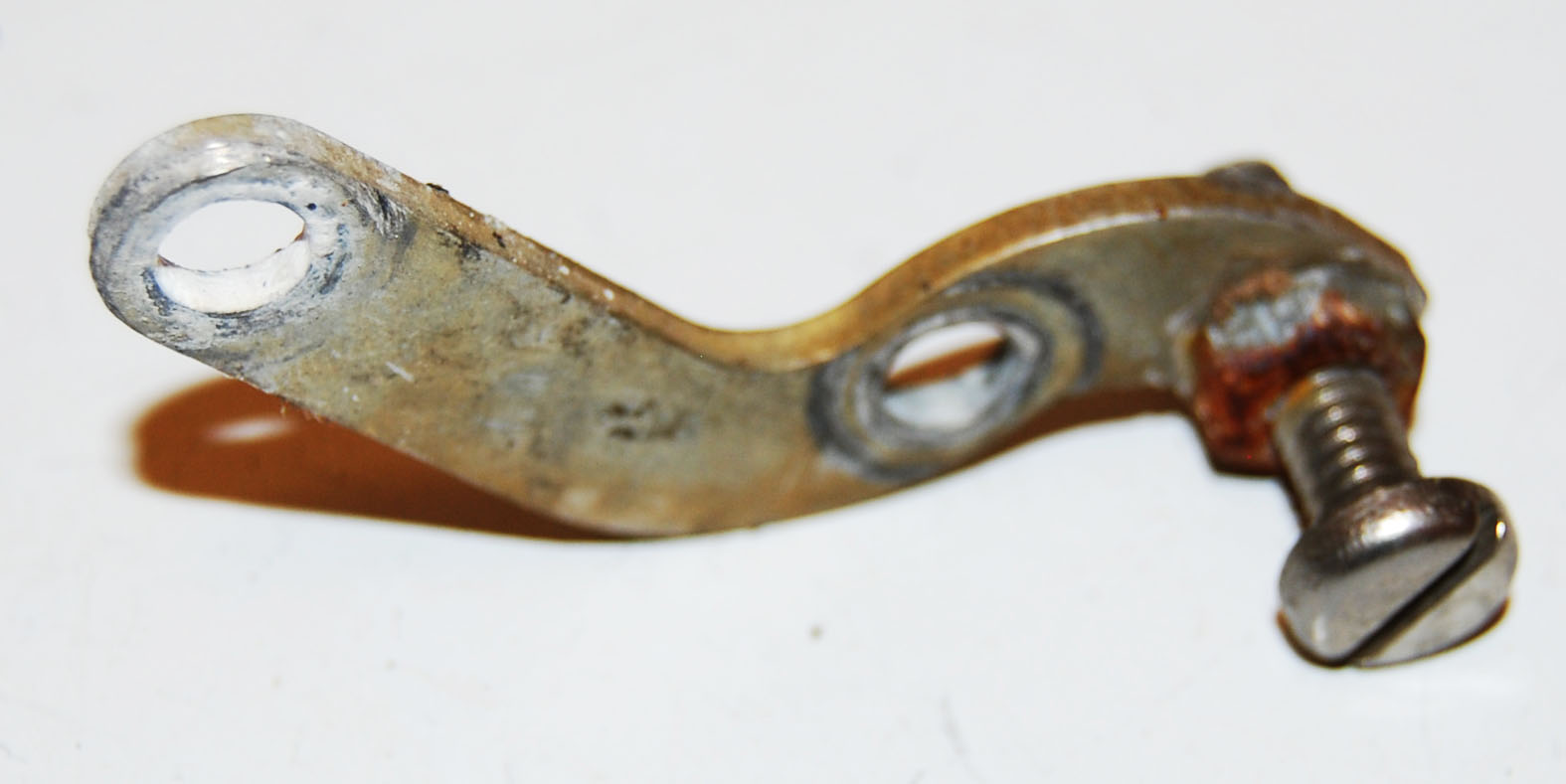

Idle Stop Bracket | 1987* | n/a | $5.00 |
| 321319, 395910 |  |

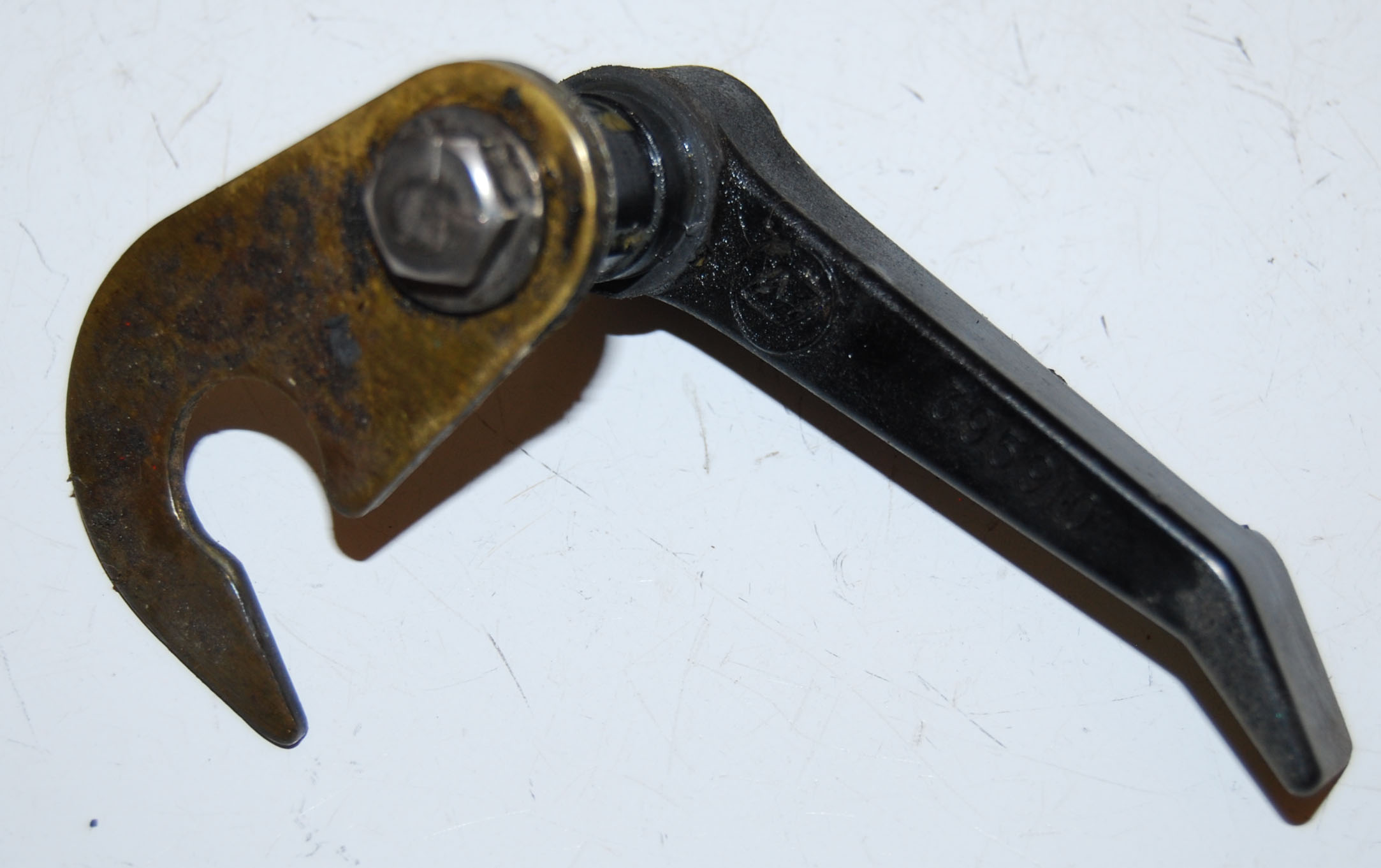

Hood Latch Assy. | 1987* | n/a | $12.50 |
| 321721 |  |
Throttle Control Spring | 1987* | n/a | $3.50 |
| 320156 |  |
Throttle Control Rod | 1987* | n/a | $4.00 |
| 391942 |  |
Port Stern Bracket | 1987* | n/a | $17.00 |
| 391943 |  |
Starboard Stern Bracket | 1987* | n/a | $17.00 |
| 319709 |  |
Stern Bracket Tie Bar | 1987* | n/a | $5.00 |
| 331475 |  |

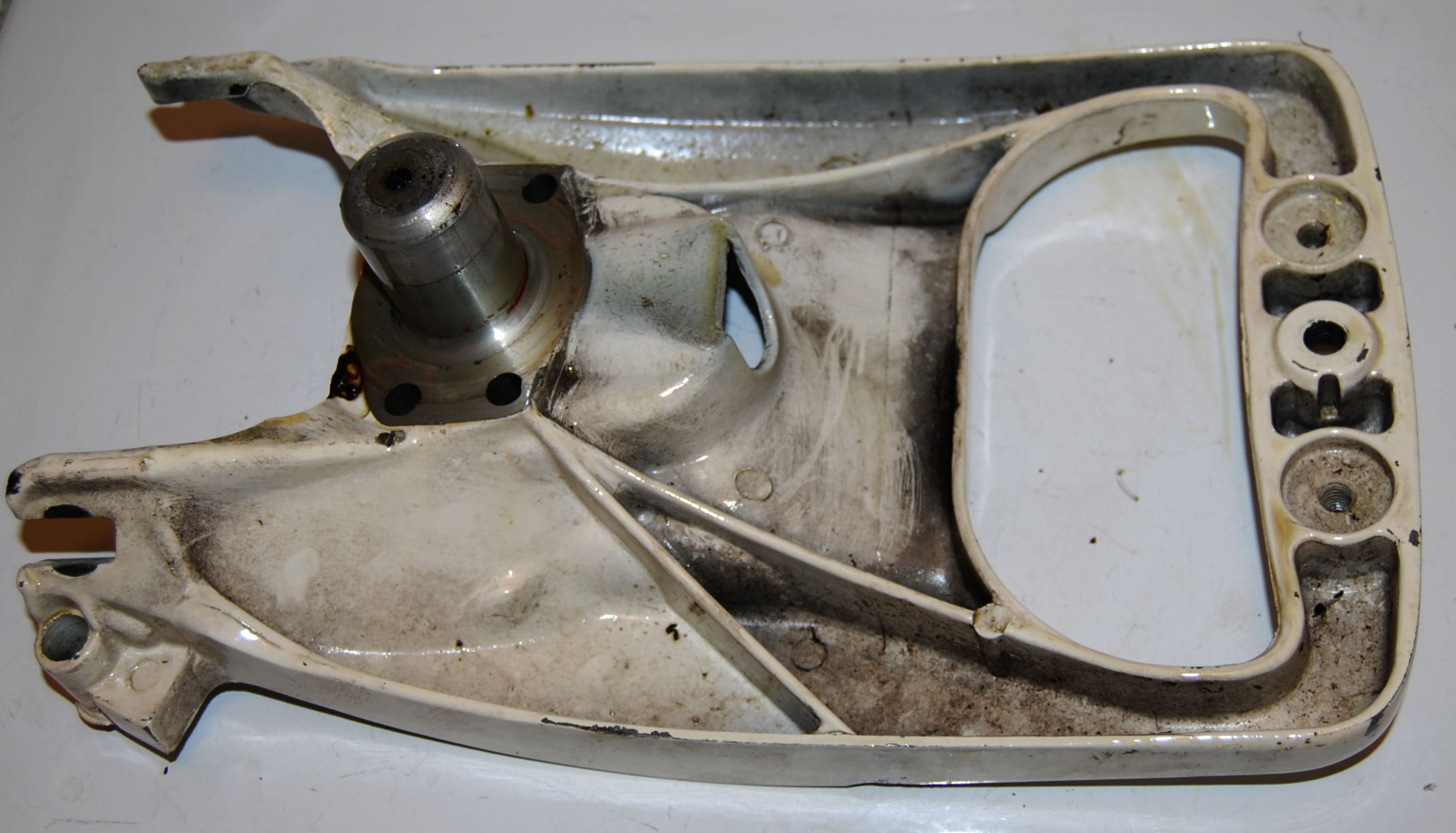

Steering Bracket | 1987* | PIC#2 | $26.00 |
| 325868 |  |

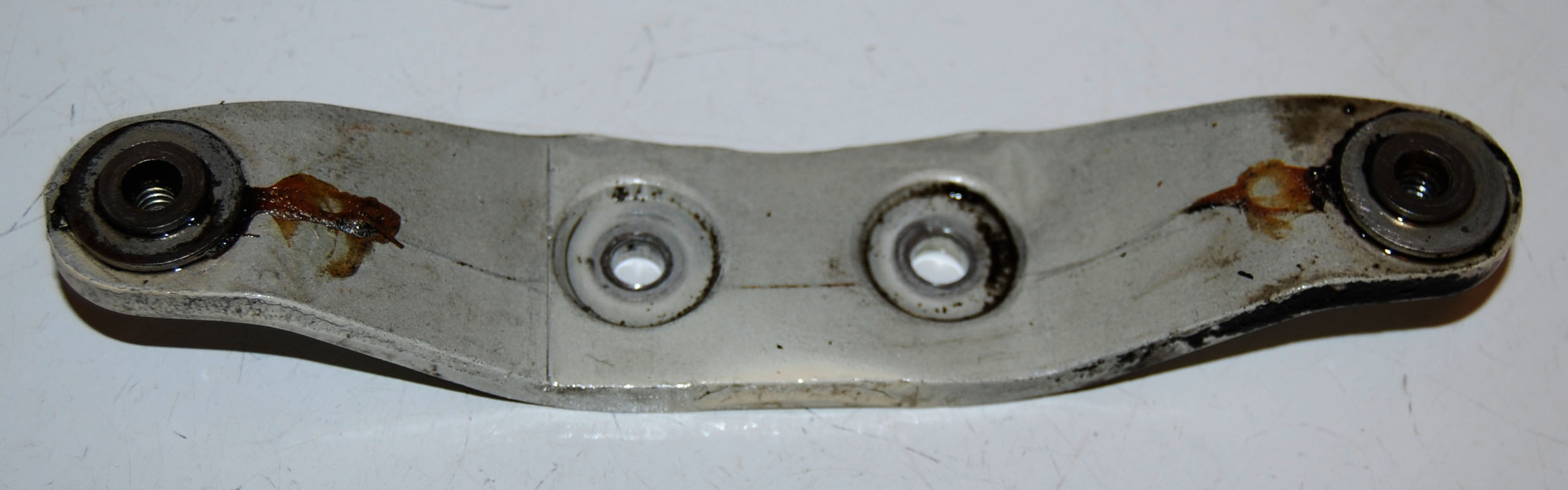

Cover Mount Bracket | 1987* | n/a | $6.00 |
| 398783 |  |
Hood (some damage) | 1987* | PIC#2 | $20.00 |
| 332637 |  |

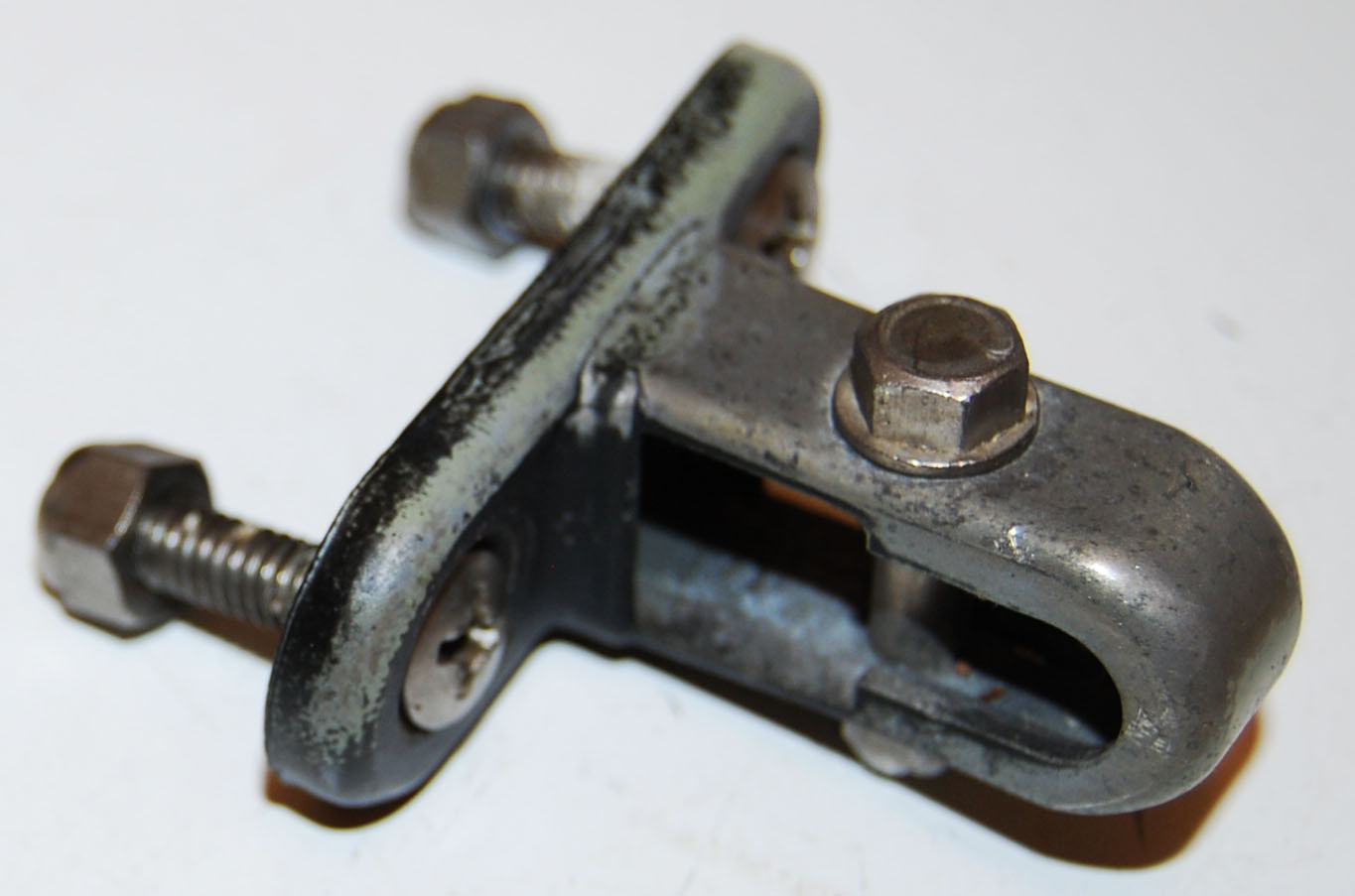

Remore Control Anchor Block | 1987* | n/a | $18.00 |

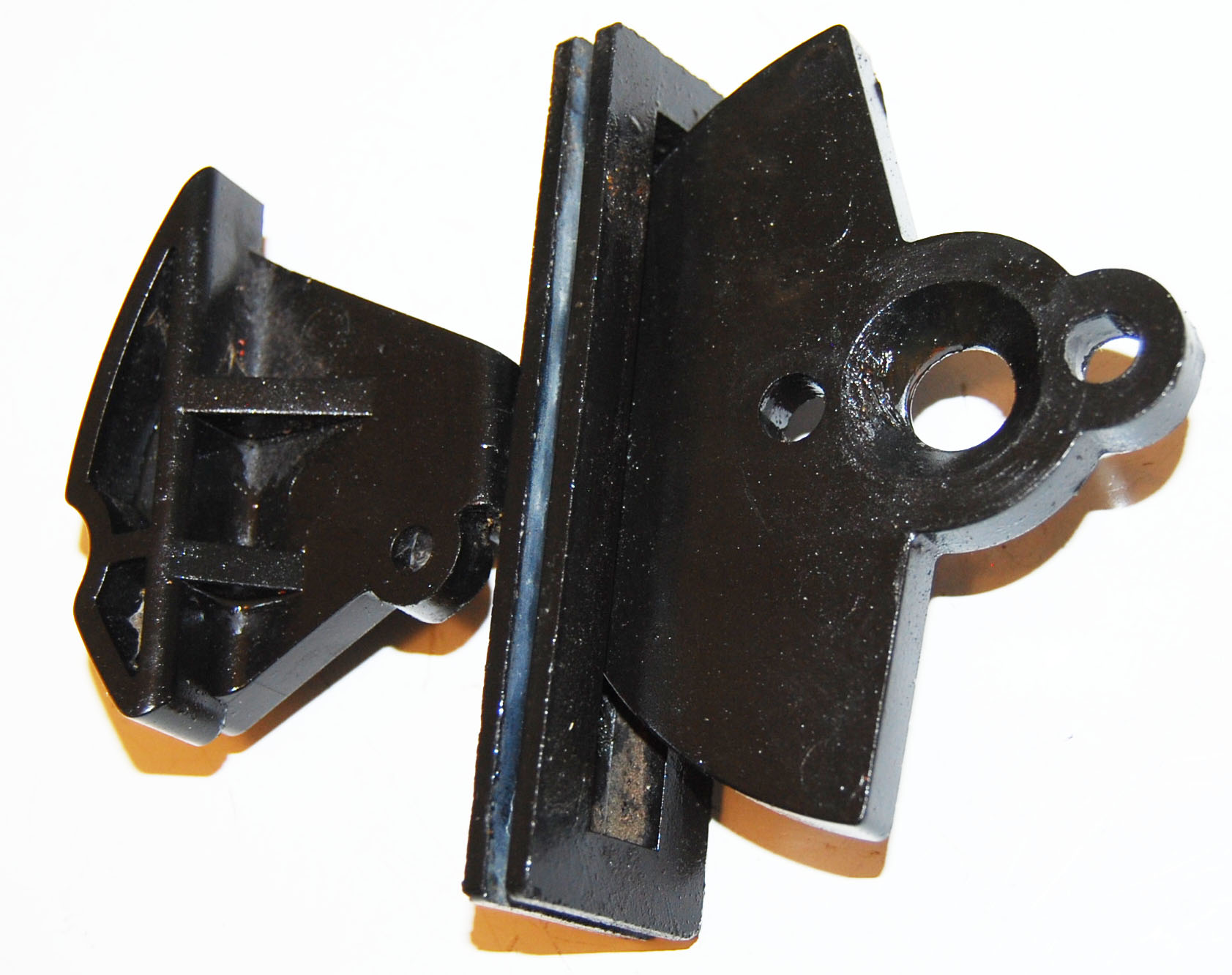

| 331460 |  |

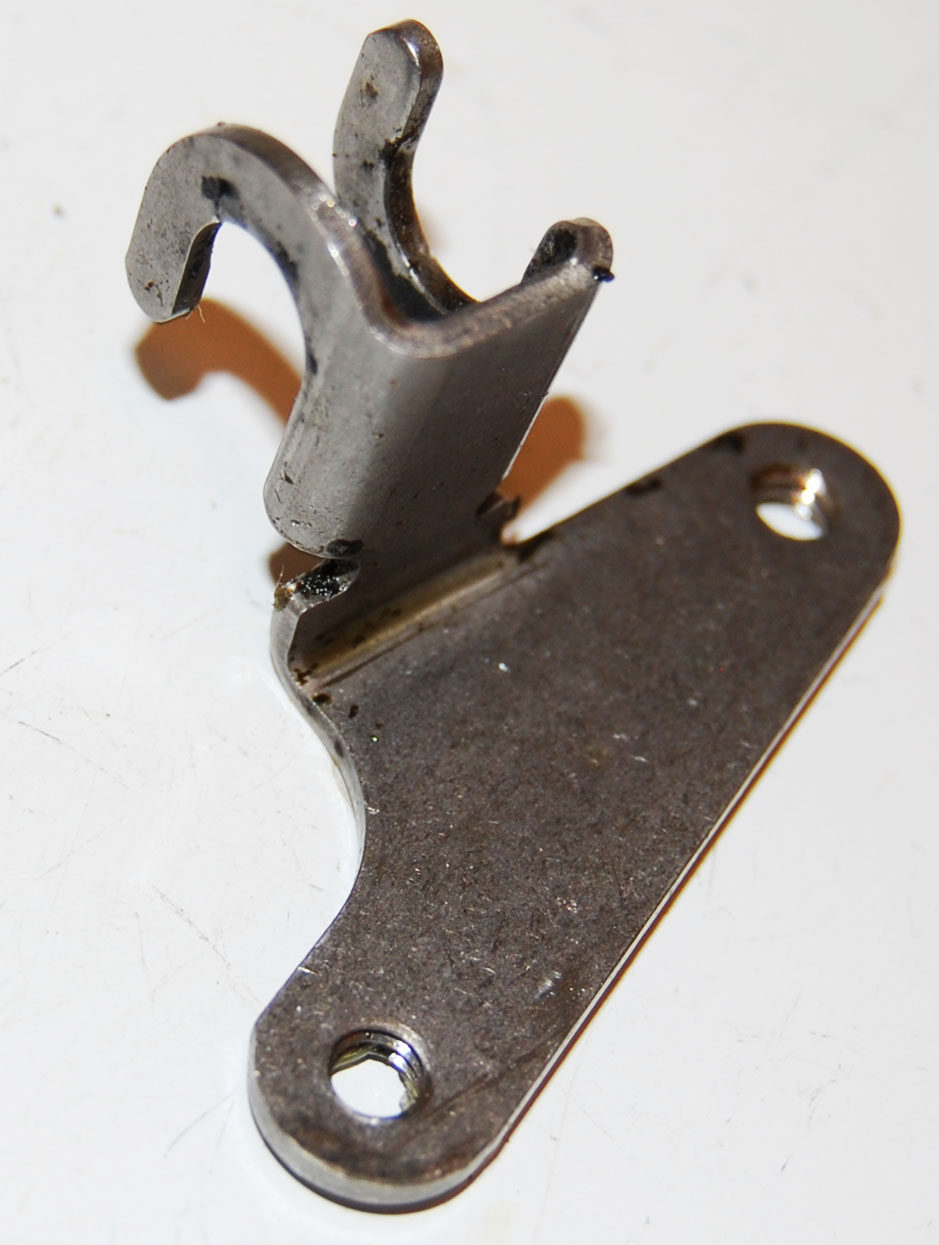

Remore Control Lock Bracket | 1987* | n/a | $8.50 |
| 174244 |  |
Auxiliary Motor Link | 1987* | n/a | $15.00 |
* will fit other years/models
